ZONELINE VERTICAL ACCESSORIES TELESCOPIC PLENUM AZ95 MODELS

Since a Zoneline Vertical Air Conditioner (VTAC) does not install in a wall opening, the use of a plenum is required to contain and separate the outdoor air paths. The plenum must be able to hold water in the bottom without leaking into the wall cavity. It also must have a "splitter" to separate the outdoor air paths and prevent the discharge air from being drawn back into the unit.

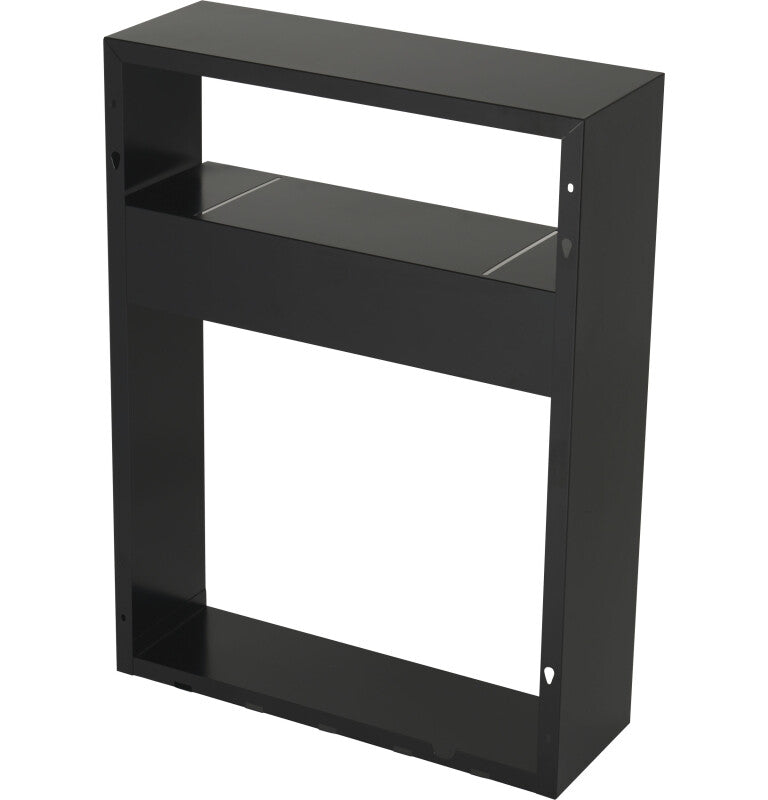

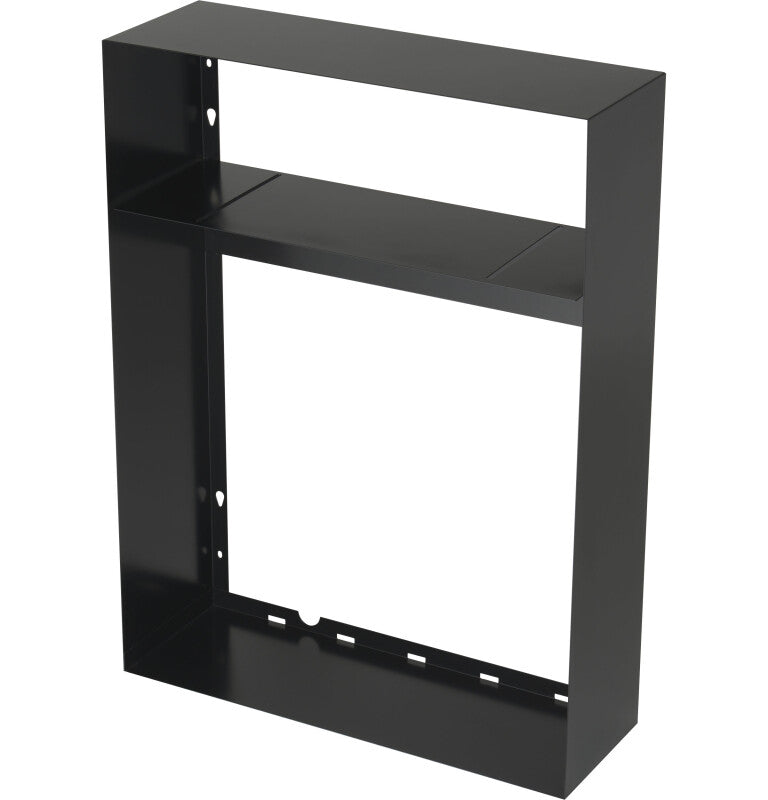

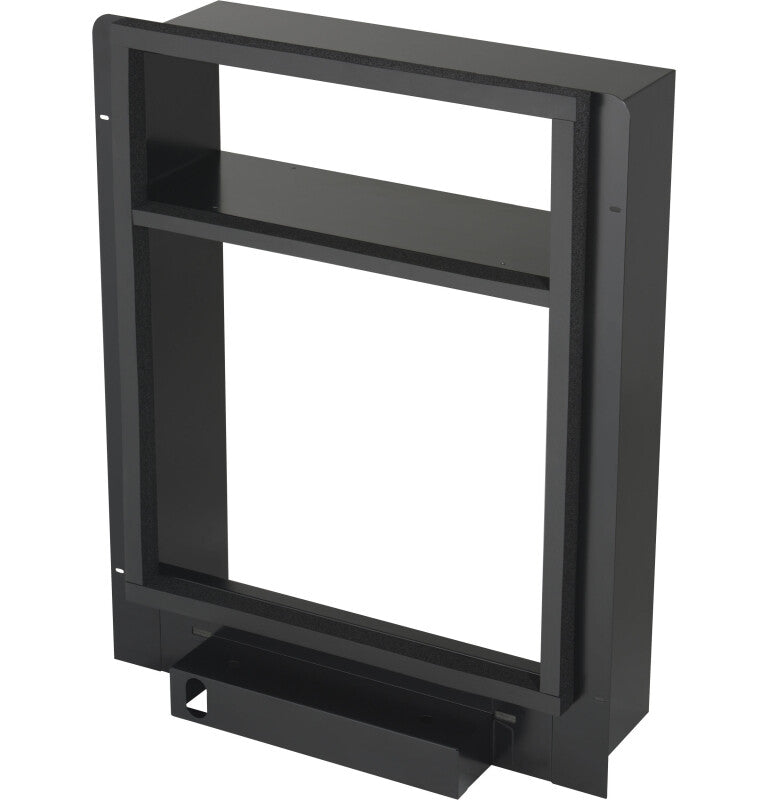

The RAVWPT15 features a telescopic design and can accommodate a range of different wall thicknesses from 8" up to 15". It features GE's QuickInstall 2-piece design which allows for plenum assembly before installing in the wall. This design also allows for interior installation with no need to access the exterior of the building. Also included for installation is a 1.25" thick gasket that assures a complete seal between the plenum and unit eliminating outdoor air or moisture from entering the space. For easier installation, Grille Kit (RAVAL3) should be installed at time of Wall Plenum Installation.
