ZONELINE VERTICAL ACCESSORIES DRAIN PLATFORM FOR AZ95

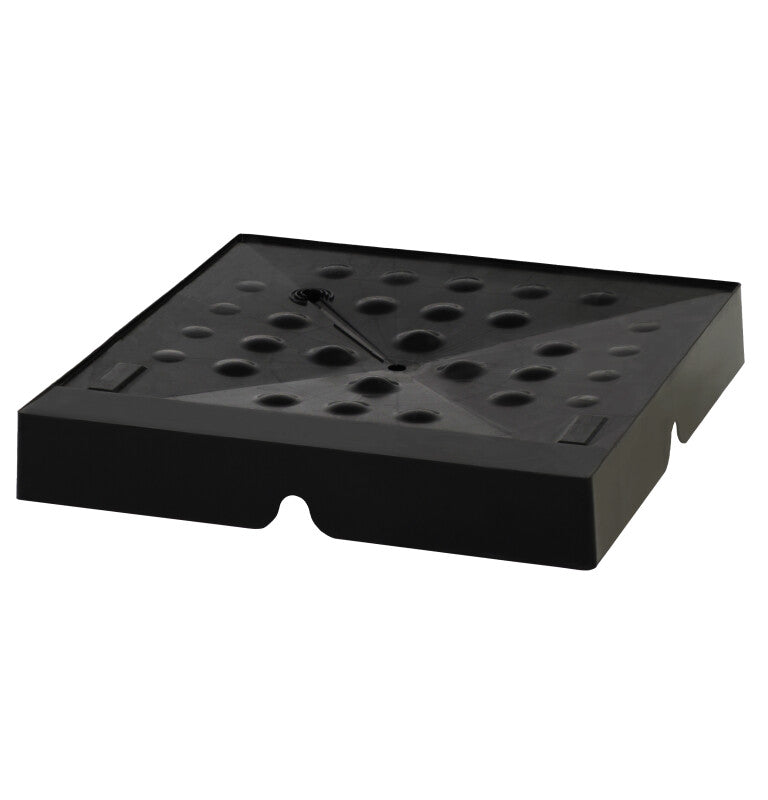

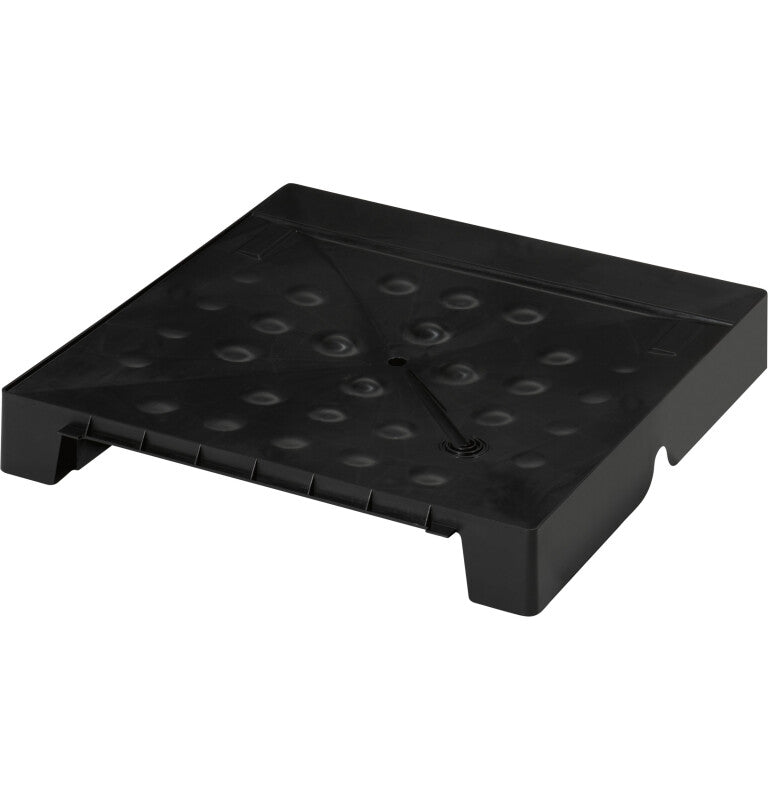

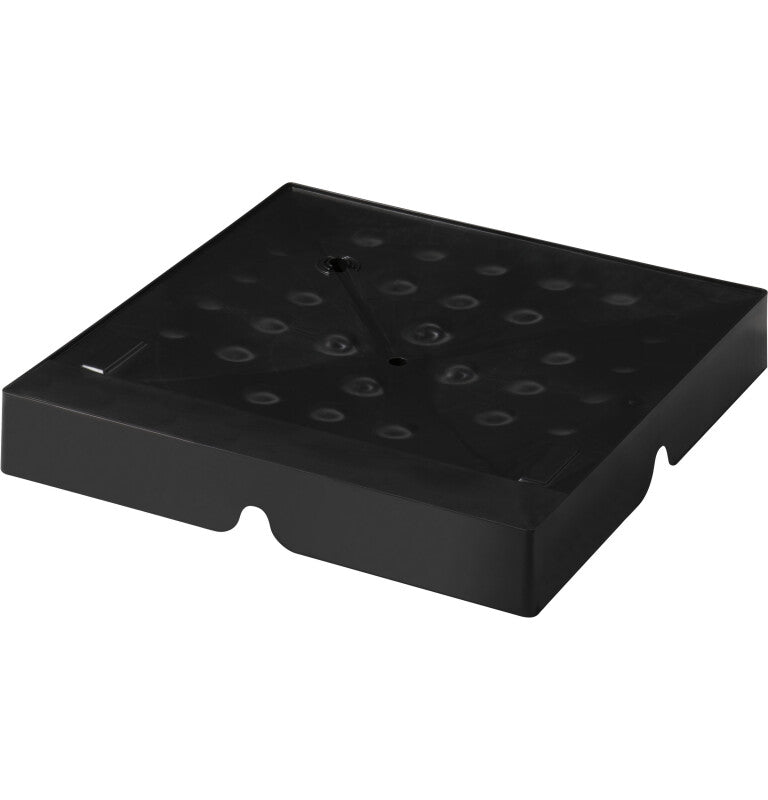

The RAVDPLAT, is an external drain pan platform that is required on all AZ95H Series VTAC units including new construction and retrofits. It is installed under the unit perfectly with its Self Aligning Lock-In Place system and attaches easily to the wall plenum.

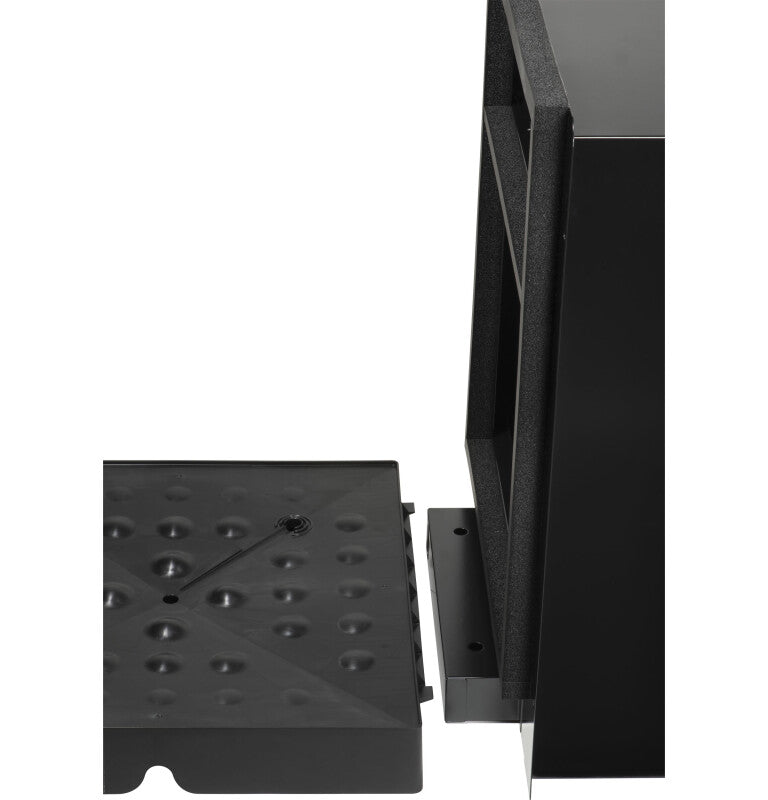

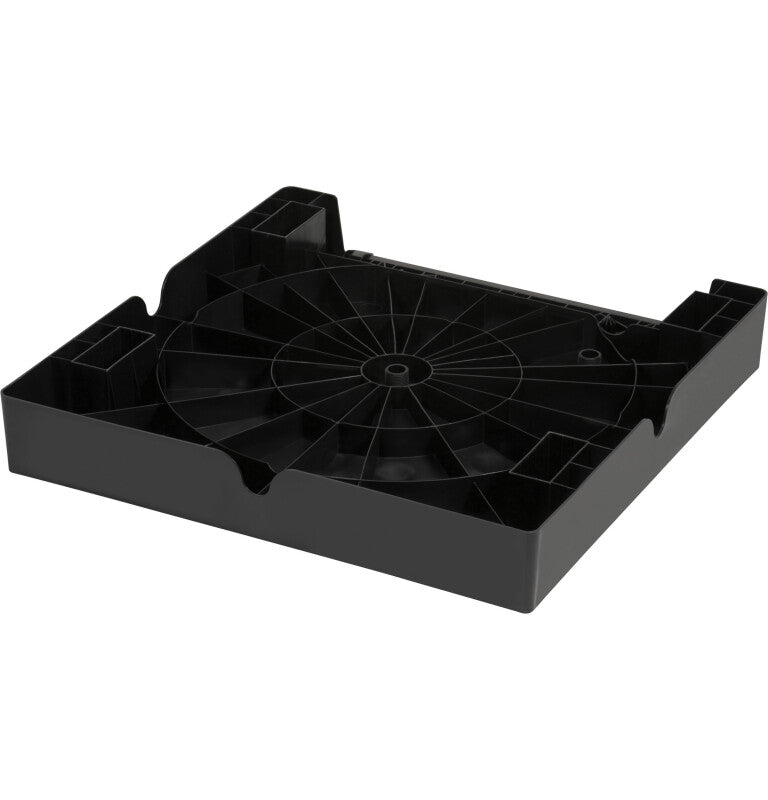

Its 3-Way Chassis Access gives the installer access to all sides for easy installation, cleaning and servicing unit including connecting the unit to the external condensate drain. The RAVDPLAT drain pan platform is lightweight, rustproof and moisture-resistant, constructed in SMC Engineered Resin. It helps to support the unit, safely contains condensate water and provides drainage for the chassis. Its patent-pending low-friction surface with a self locating feature makes it a very easy to slide the unit in from the front while allowing for perfect positioning and plumbing connections.

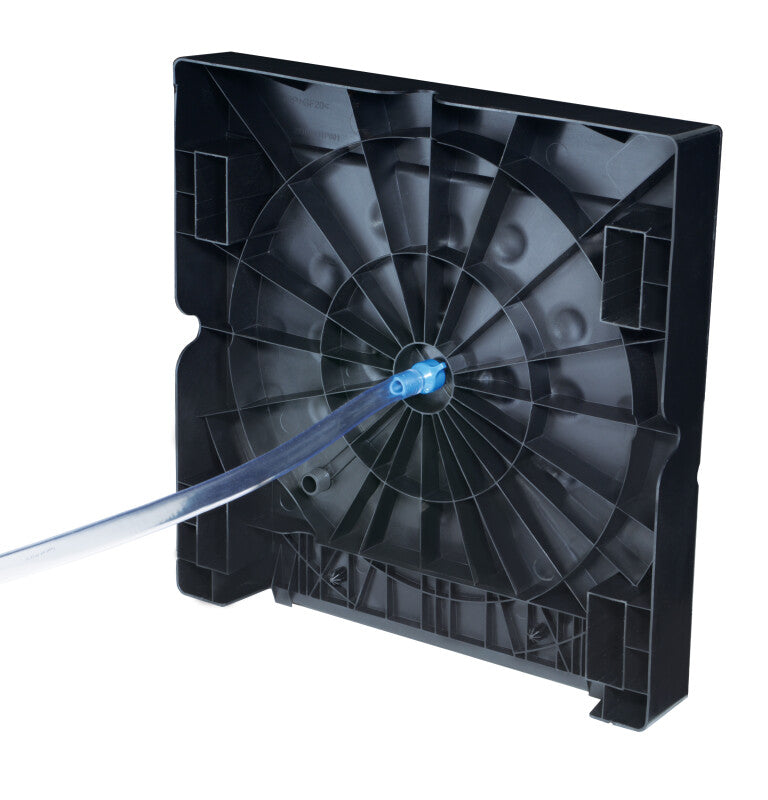

The platform also allows the primary and secondary drain fittings to be installed before the chassis, making drain install a breeze! If installed on the floor level, the primary drain can be setup on 3 sides. If installed off the floor, the primary drain be be setup in any direction
