Sale price $2,719.99 Regular price $3,535.97 Save $815.98 / 23% OFF

Product Details for ZLINE RA36

Technical Details

Other

Interior Oven Dimensions 30.5" W x 18.5" D x 14" H
Burner Fuel Natural Gas and Liquid Propane Convertible
Oven Fuel Electric Convection Oven
Electrical Requirement 240V/60Hz/30A
Oven Capacity (cu.ft) 4.6 cu. ft.
Number of Burners 6
Cooktop BTUs Front Right Sealed Dual Burner BTU: 18000Front Middle Sealed Burner BTU: 18000Front Left Sealed Single Burner BTU: 10000Rear Left Sealed Single Burner BTU: 4500Rear Middle Sealed Burner BTU:
Material Stainless Steel
Convection Fan Yes
Warranty 1 Year
Cooktop BTUs Front Right Sealed Dual Burner BTU: 18000Front Middle Sealed Burner BTU: 18000Front Left Sealed Single Burner BTU: 10000Rear Left Sealed Single Burner BTU: 4500Rear Middle Sealed Burner BTU:

Dimensions & weight

Width 35.75 Inch
Height 36.13 Inch
Length 27.38 in.
Weight 253 lbs
Depth 27.5 Inch

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.75 Inch
Shipping Height 41.13 Inch
Shipping Length 32.5 Inch
Shipping Weight 293 lbs
Total of Shipping Weight 293 lbs
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 20.56 ft³
Dimensional Weight 255.54 Ibs
Total of Cubes 20.56 ft³
Total of Dimensional Weight 255.54 Ibs

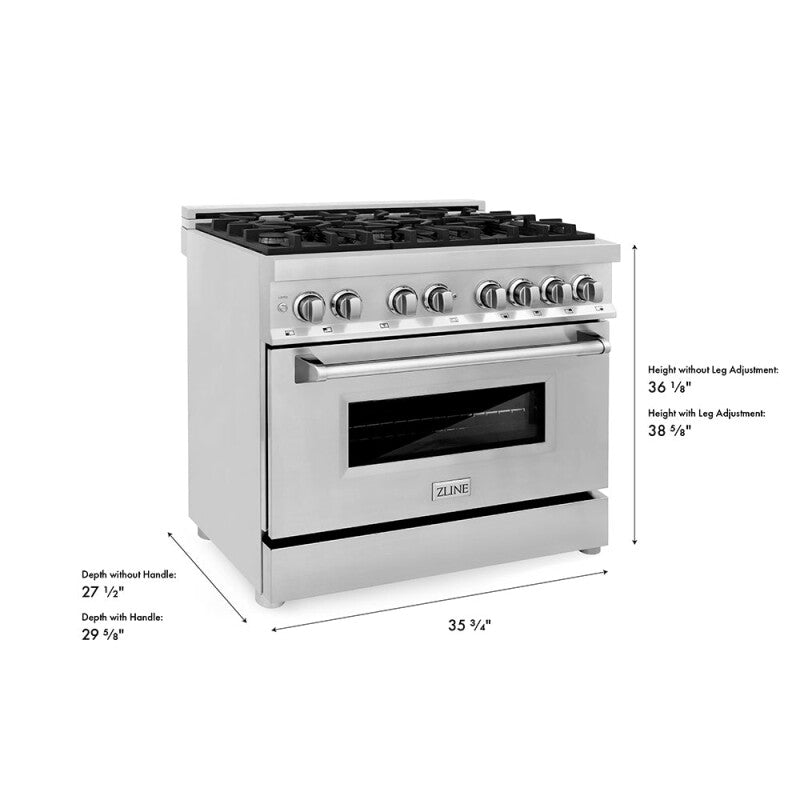

Dimensions

Dimensions 35.75 in. W x 27.5 in. D x 36.125 in. H
Product Depth (in.) 27.50
Product Width (in.) 35.75
Product Height (in.) 36.13
Oven Interior Dimensions (in) 24.875 in. W x 17.75 in. D x 16 in. H
Depth With Door(s) Open 90 Degrees (in.) 41.8
Range Size (Width) 36 in.

Warranties & certifications

Certifications and Listings CSA Listed
Manufacturer Warranty 1 year parts and service, limited lifetime warranty on burners

Technical information

Appliance Category Freestanding Range
Color/ Finish Family Stainless Steel
Hardware Color/Finish N/A
Back Left Burner BTU 12500
Back Middle Burner BTU 10000
Back Right Burner BTU 4500
Front Left Burner BTU 18000
Front Middle Burner BTU 10000
Front Right Burner BTU 12500
Total BTUs 67500

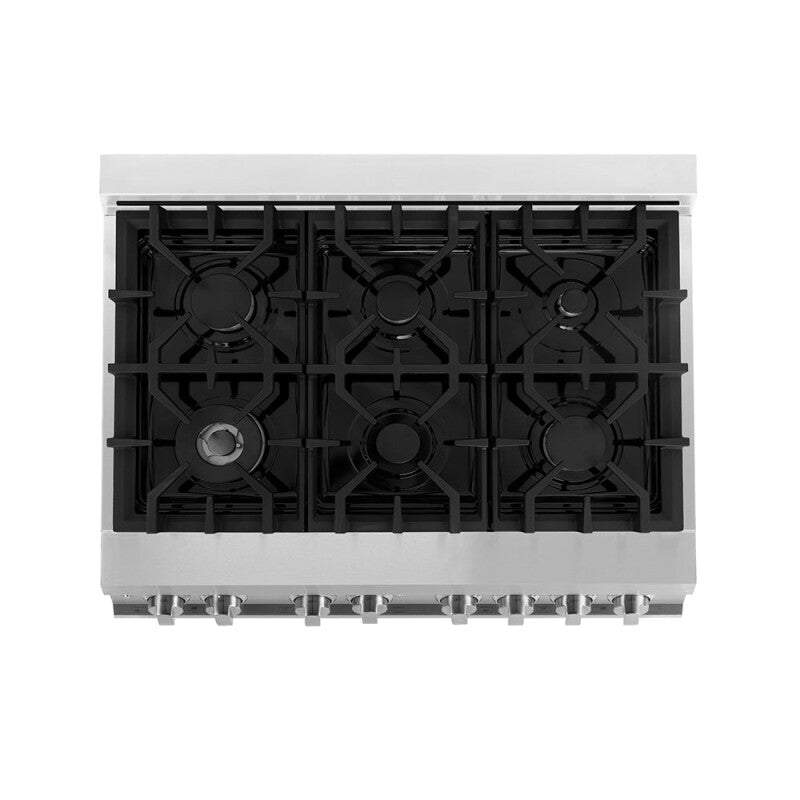

Cooktop Features (6) Burners with Porcelain Cook Top with electronic spark ignition for all burners

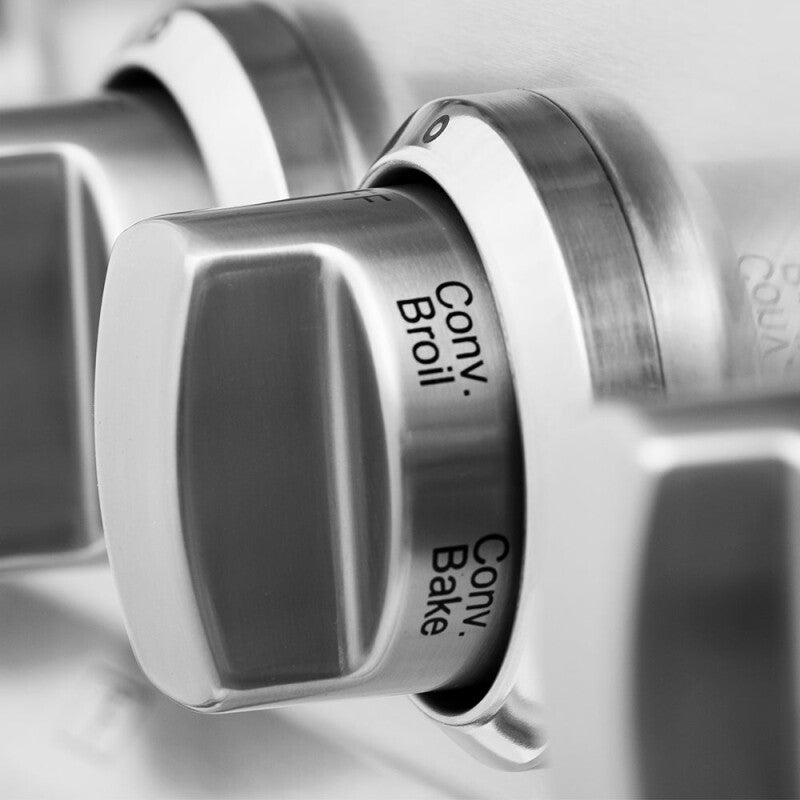

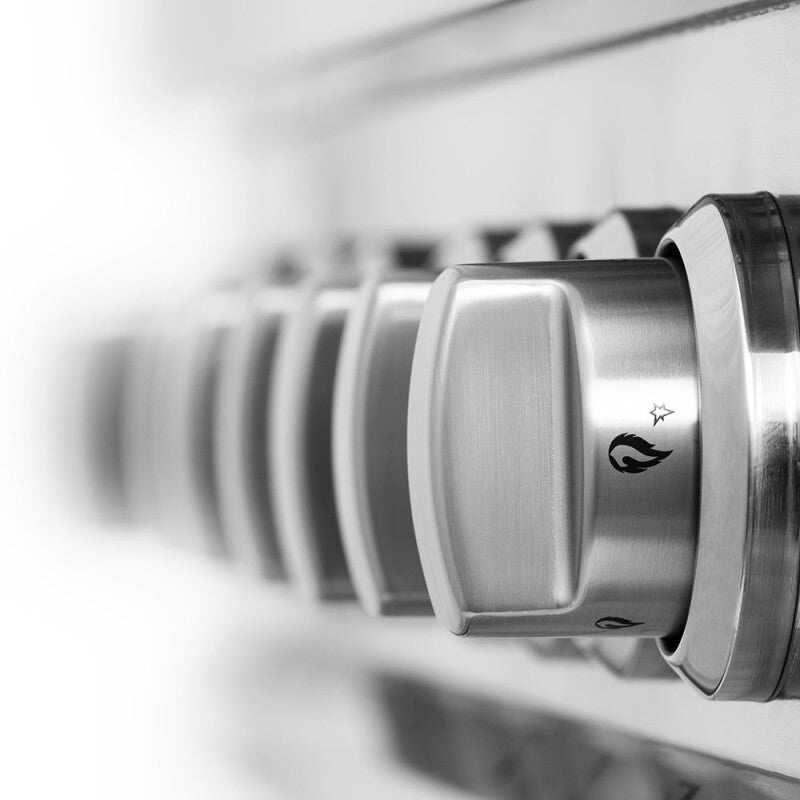

Control Type Manual Front Control
Capacity of Oven (cu. ft.) 4.6
Product Weight (lb.) 253
Fuel Type Convection Electric Oven- Gas Cooktop
Oven Features Manual Clean - Convection Electric - 4.6 cu. ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum Mesh Seal
Voltage 240V
Frequency 60 Hz
Amps 15A
Convection Fan Yes

Description

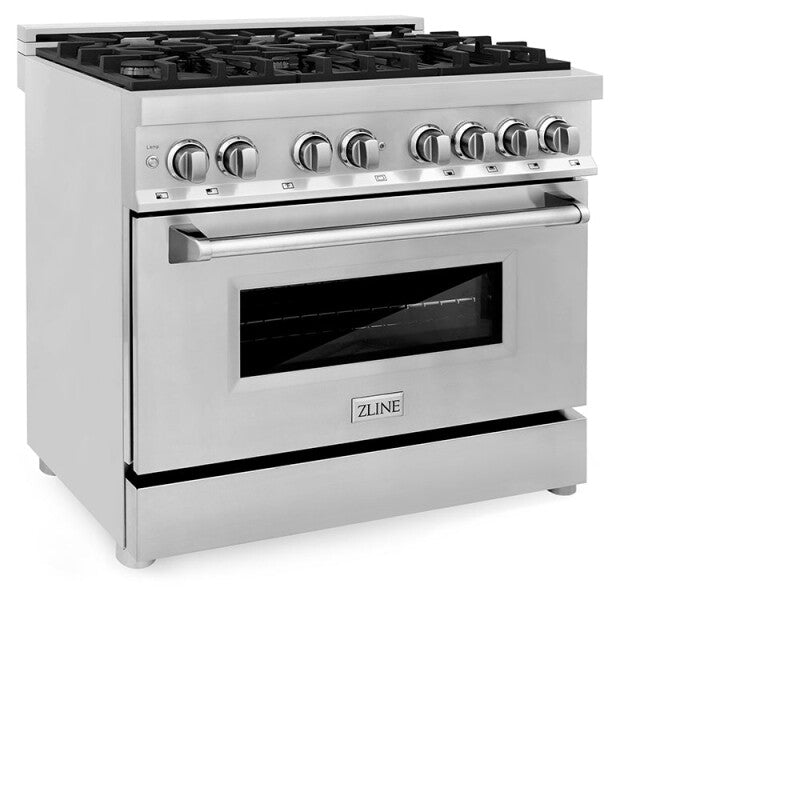

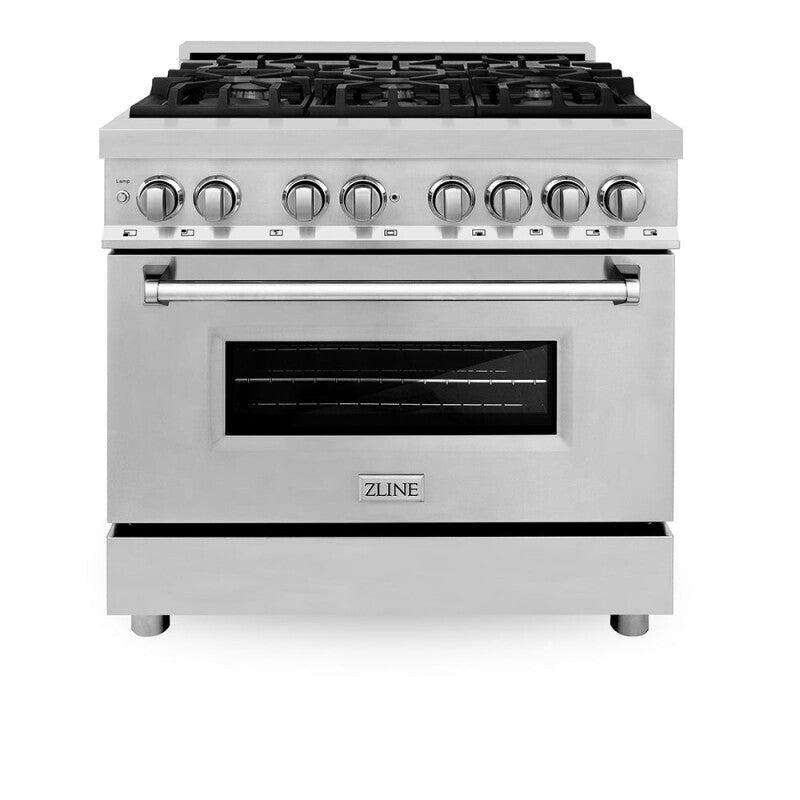

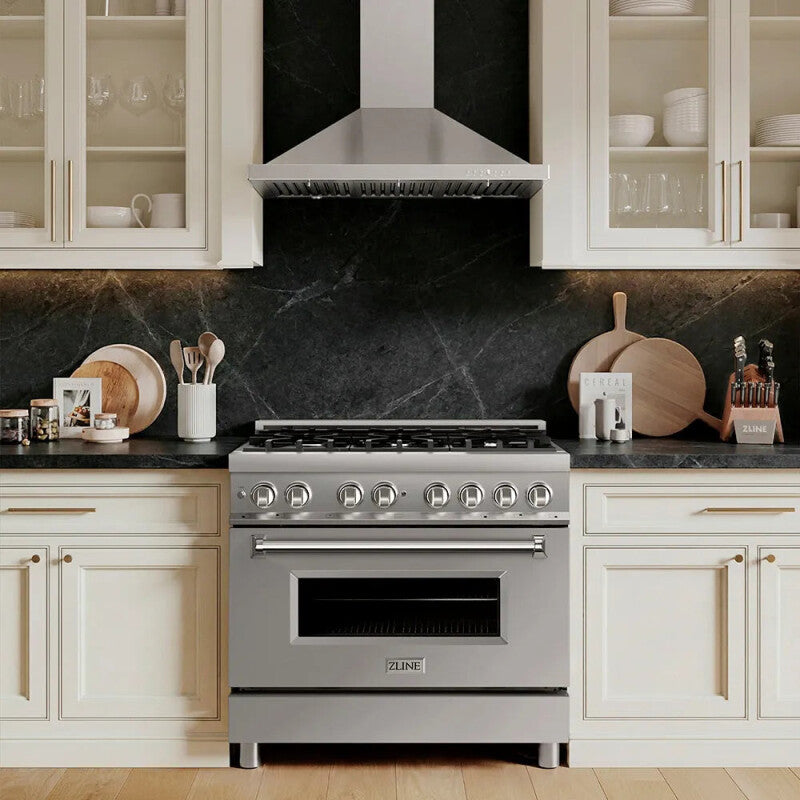

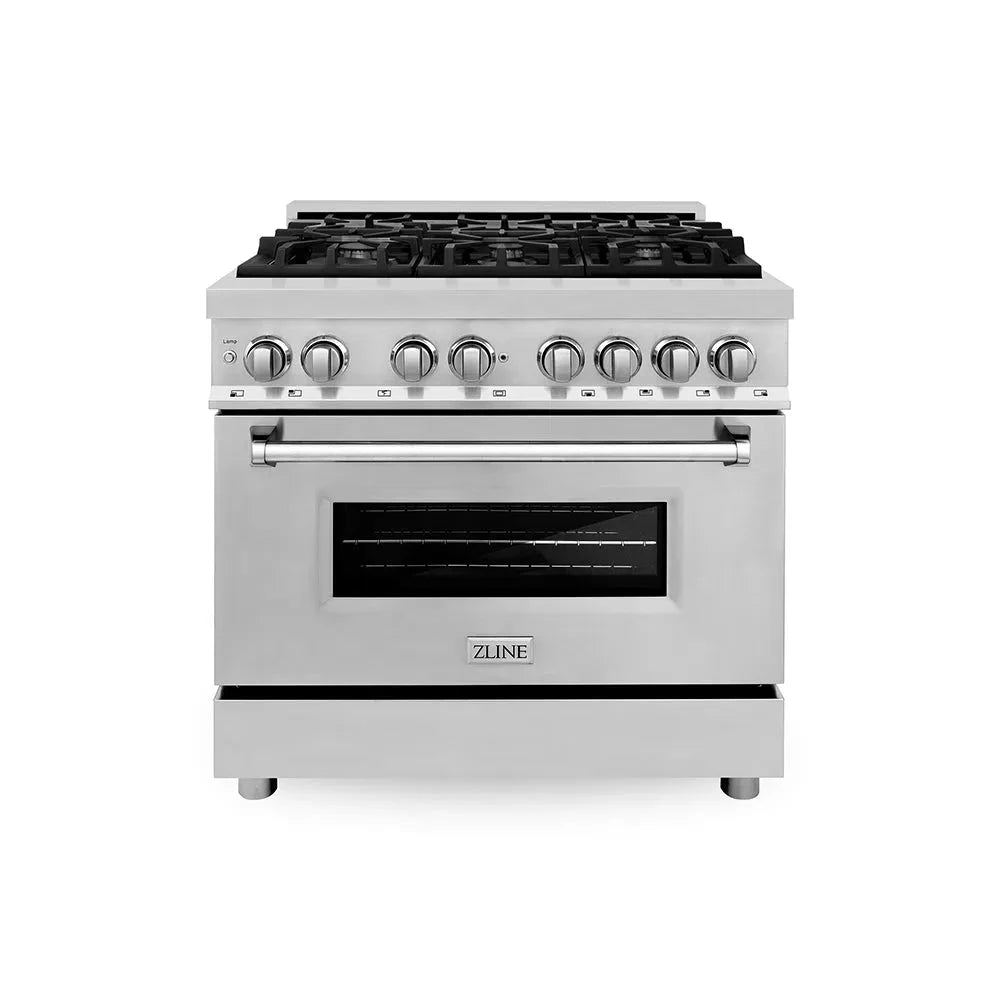

The ZLINE 36 in. 4.6 cu. ft. Legacy Dual Fuel Range with 6 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel (RA36) pairs a powerful gas cooktop with 6 Italian-crafted burners and an electric convection oven with a Landscape oven door window design. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.


Product Features

  • ZLINE Legacy Series
    The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
  • Professional Dual Fuel Cooking
    Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and an electric convection oven

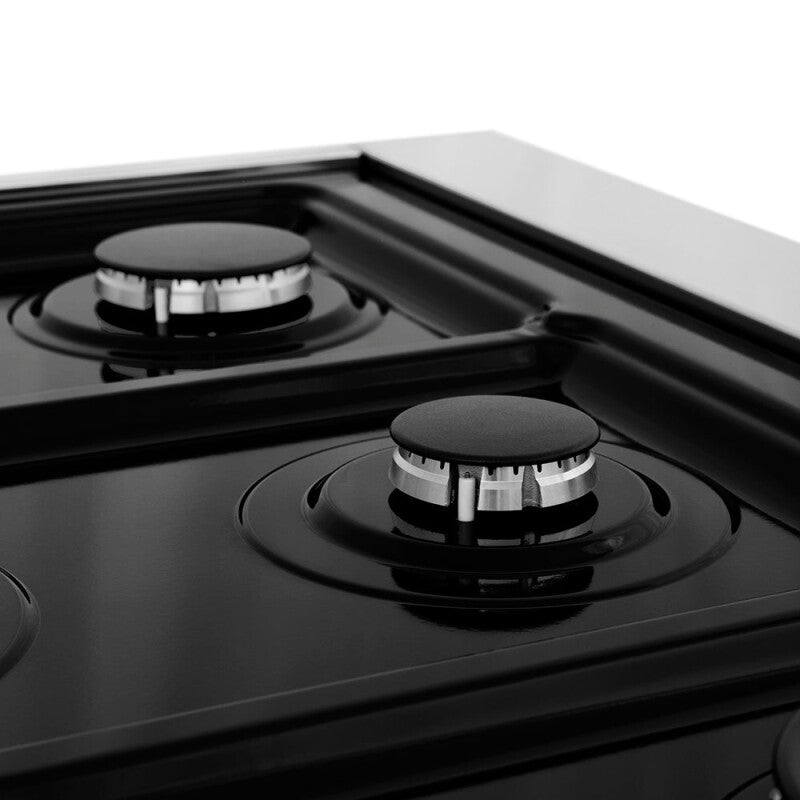

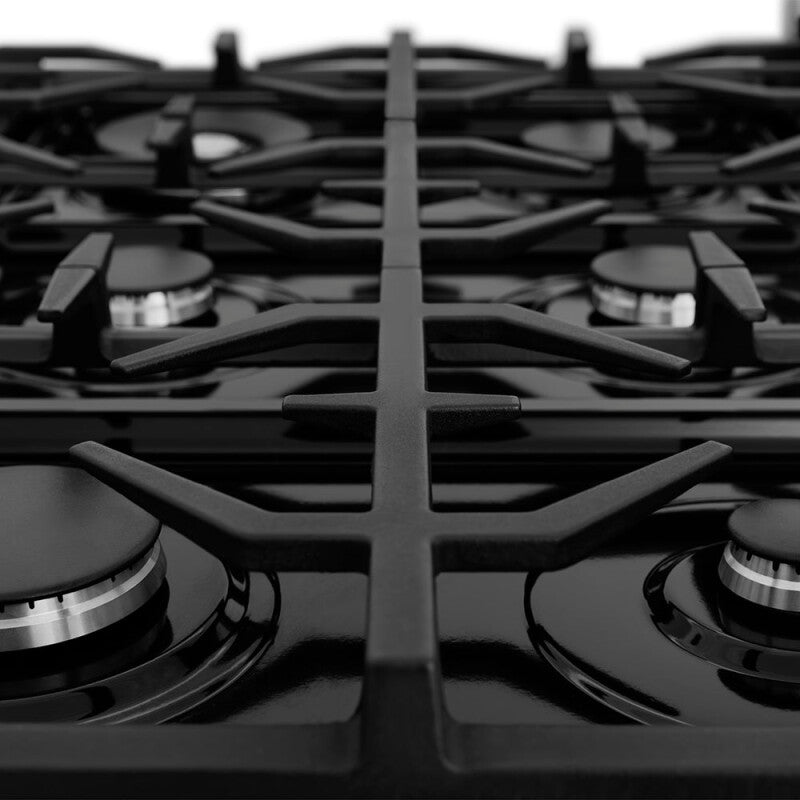

  • Italian-Made Sealed Burners
    Industry-leading gas cooktop includes 6 hand-cast burners with 1,000 - 18,000 BTUs of cooking power
  • Landscape Oven Window
    ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked

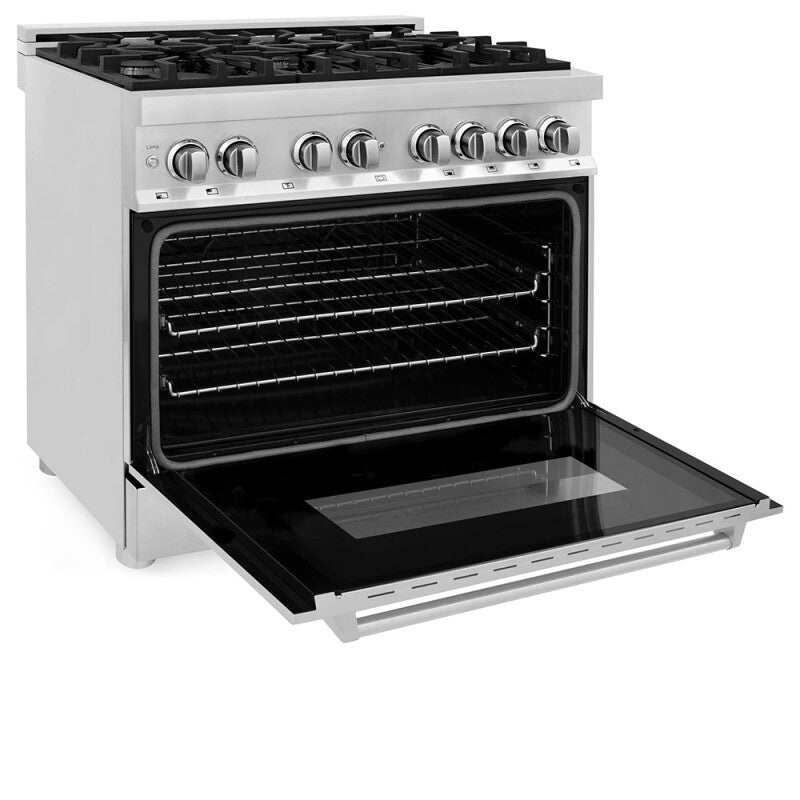

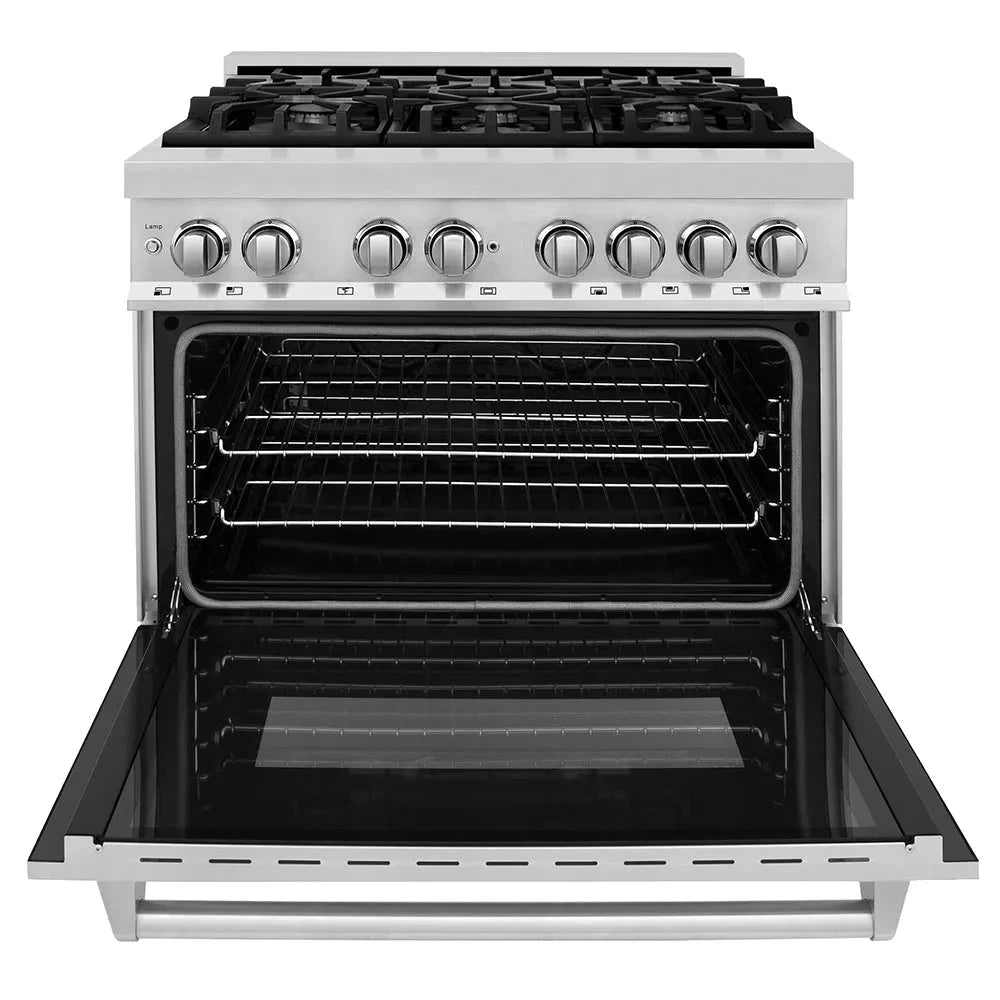

  • Large Oven Capacity
    A 4.6 cu. ft oven fits pans up to 27 in. wide for maximum space and convenience with everyday cooking
  • Premium Oven Insulation
    Triple layered glass and an aluminum mesh seal offers superior heat retention and consistent temperatures
  • Adjustable Range Height
    Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
  • Stunning Stainless Steel
    Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards

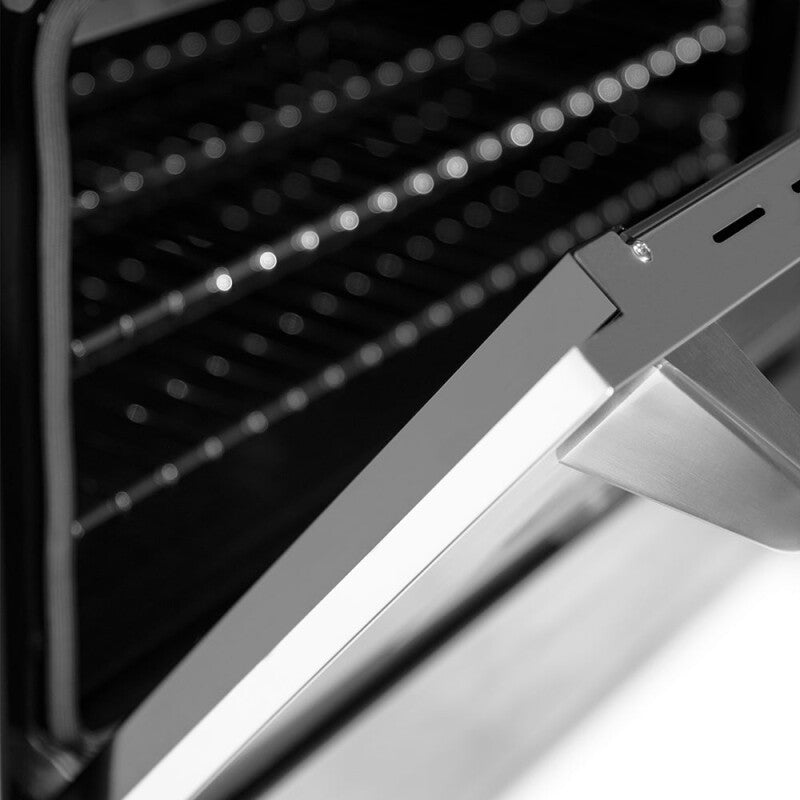

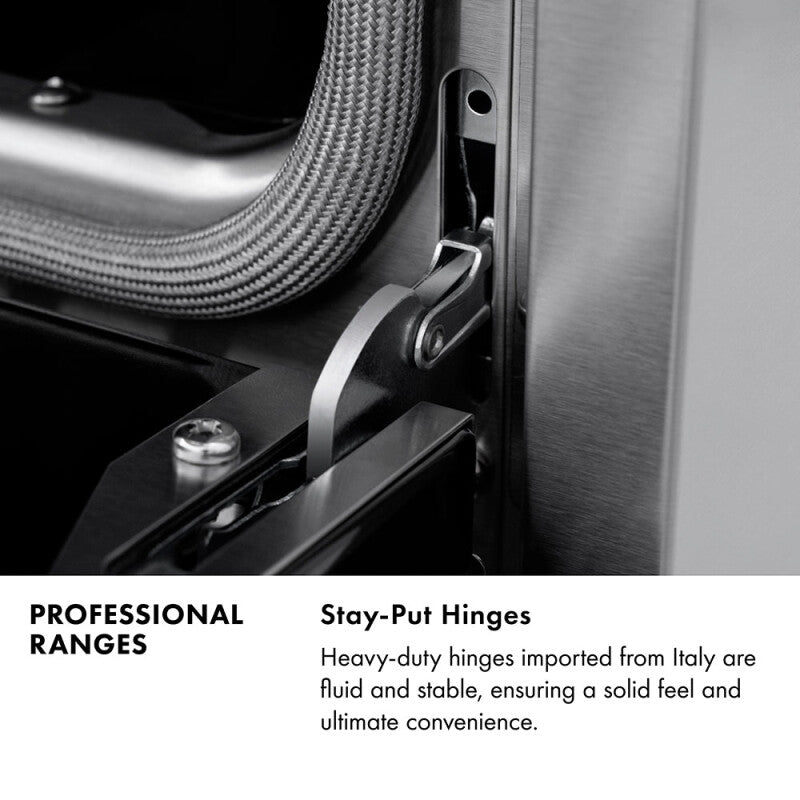

  • StayPut Oven Door Hinges
    Designed to support the full weight of the oven door, offering additional convenience and safety
  • Electrical Requirements
    Requires a dedicated 240V, 60Hz, 15-amp circuit with a NEMA 14-50 4-wire plug system

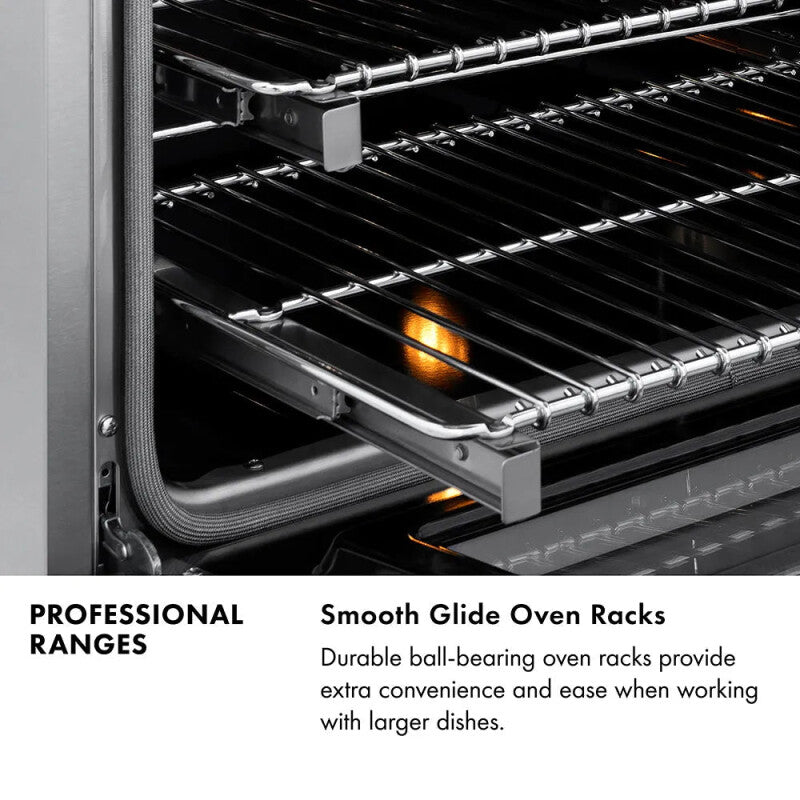

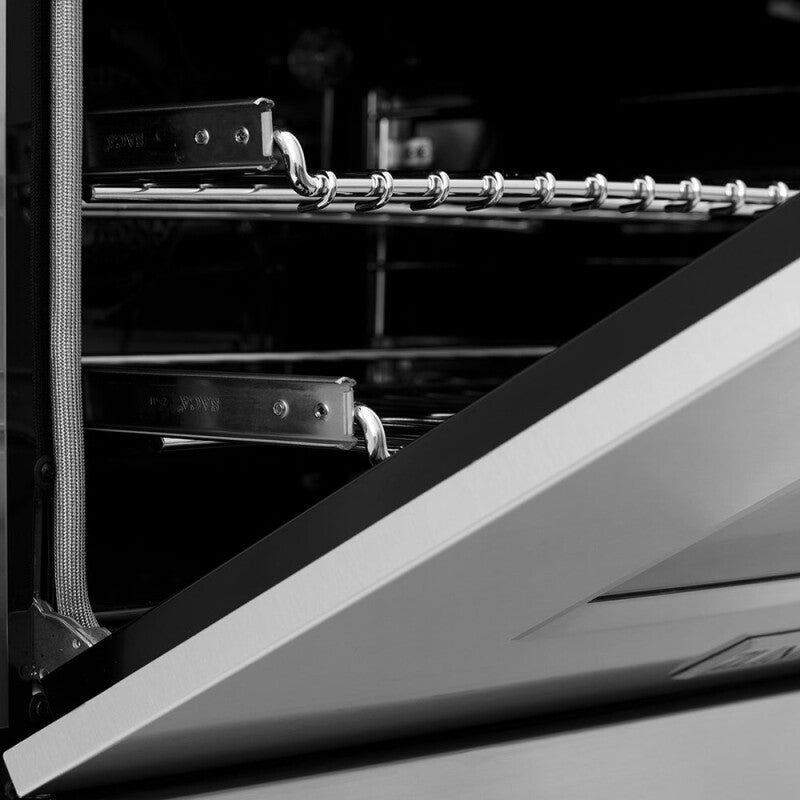

  • Smooth Glide Ball-Bearing Oven Racks
    2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes

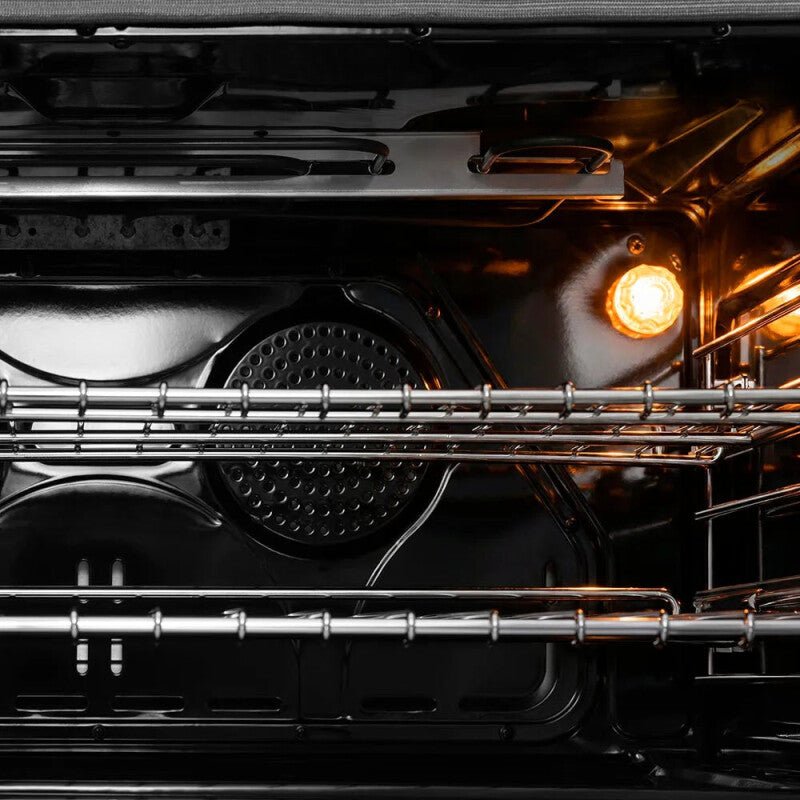

  • Dual Oven Lights
    Illuminate your oven space with dual halogen lighting, controlled by a switch located on the front control panel

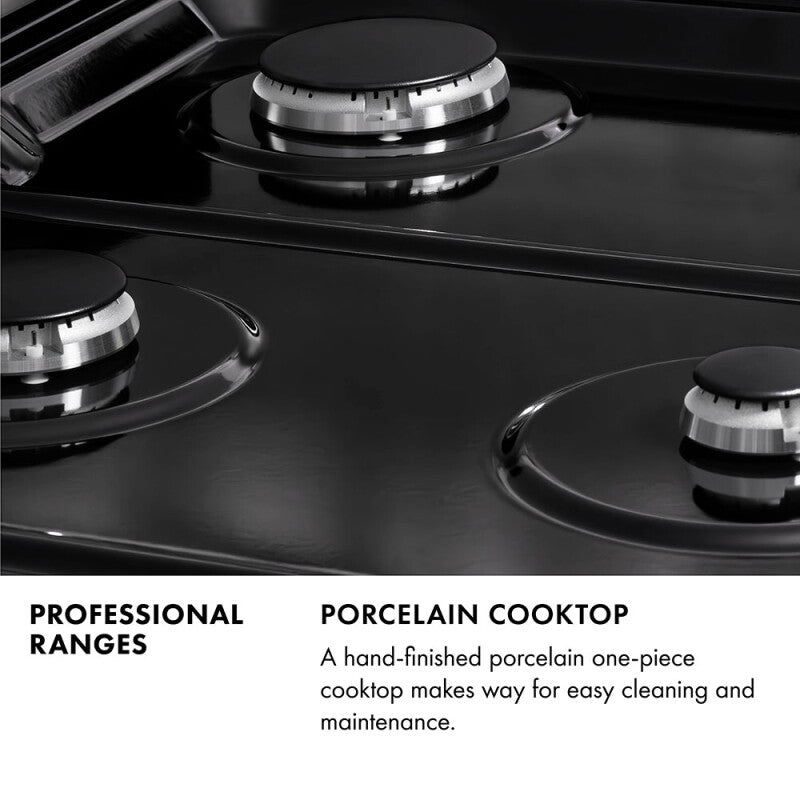

  • Minimal Cleaning
    Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
  • LP Conversion Kit
    Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
  • Industry First Lifetime Burner Warranty
    Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
  • Manufacturer Warranty
    1-year parts and service warranty
