| Brand | ZLINE Kitchen and Bath |
| Oven Dimensions | 26.5"/12.5"W x 18.5" D x 14"H |
| Lighting | Dual Lighting, controlled by light switch on front control panel |
| Voltage | Requires a minimum of 220V-240V/60HZ/40A |
| Mount Type | Free Standing |
| Control Type | Durable Front Control |
| Material | Stainless Steel frame with Porcelain Top- Italian made hinges and burners |
| Cooktop | (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners |

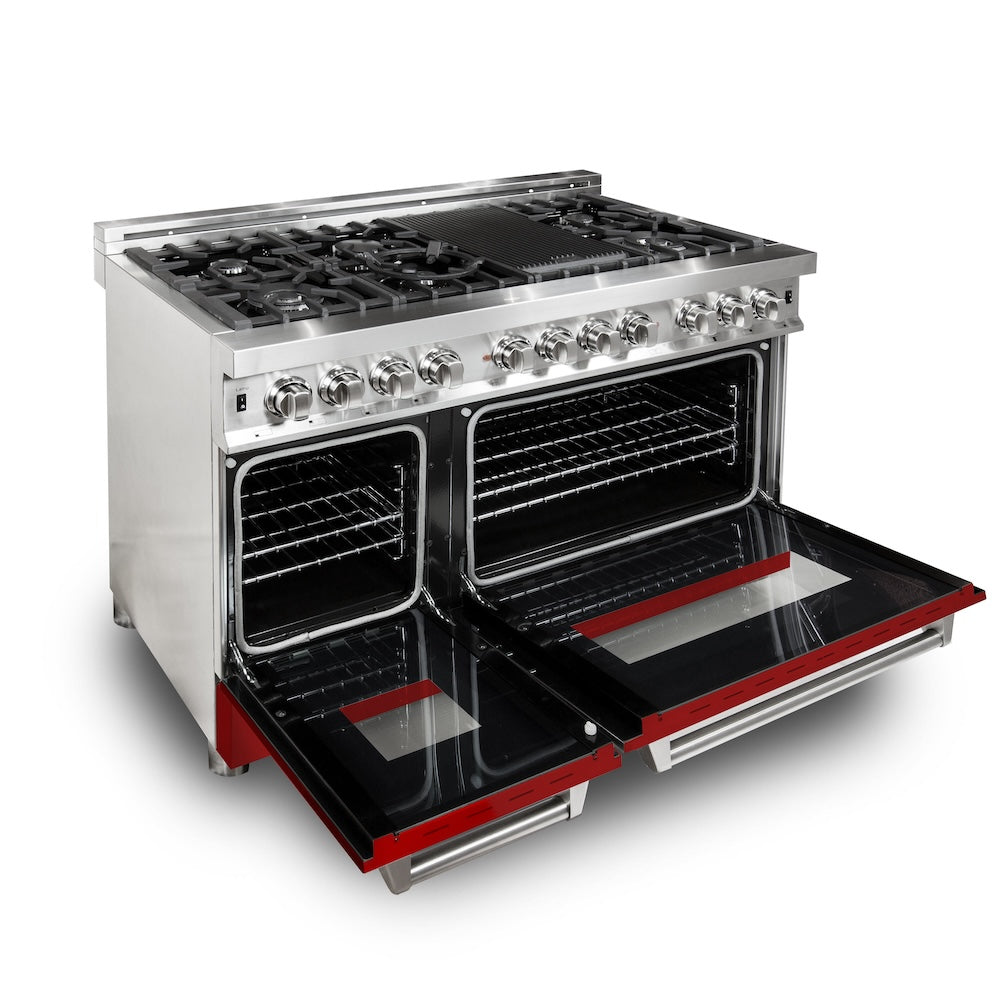

| Oven | Convection Oven; Manual Clean- Convection Electric- 4.6 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal; |
| BTU Rating Burners: | Dual Wok (x2) - 18,000 BTU; Griddle Burner - 13,000 BTU; Rapid Burner - 13,000 BTU; Semi-Rapid Burner (x2)- 8,500 BTU; Auxiliary Burner - 4,200 BTU; |
| Fuel Type | Convection Oven- Gas Cooktop |
| Warranty | 1 Year Warranty |
| Certifications | ETL Certified |
| Oven | Convection Oven Manual Clean- Convection Electric- 4.6 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal BTU Rating |
| Width | 48 in. |
| Height | 36 in. |
| Length | 27.38 in. |
| Weight | 270 lbs. |
| Width | 47.75 Inch |
| Height | 36.13 Inch |
| Weight | 270 lbs |
| Depth | 27.5 Inch |
| Number of Boxes | 1 |
| Shipping Width | 53 in. |
| Shipping Height | 41 in. |
| Shipping Length | 32.38 in. |
| Shipping Weight | 310 lbs. |
| Total of Shipping Weight | 310 lbs. |
| Source | Calculation |
| Shipping Width | 52.75 Inch |
| Shipping Height | 41.13 Inch |
| Shipping Length | 32.5 Inch |
| Shipping Weight | 310 lbs |
| Total of Shipping Weight | 310 lbs |
| Cubic Feet Measurement | 27.38 ft³ |
| Dimensional Weight | 340.38 lbs. |
| Total of Cubes | 27.38 ft³ |
| Total of Dimensional Weight | 340.38 lbs. |
| Cubic Feet Measurement | 27.46 ft³ |
| Dimensional Weight | 341.32 Ibs |
| Total of Cubes | 27.46 ft³ |
| Total of Dimensional Weight | 341.32 Ibs |

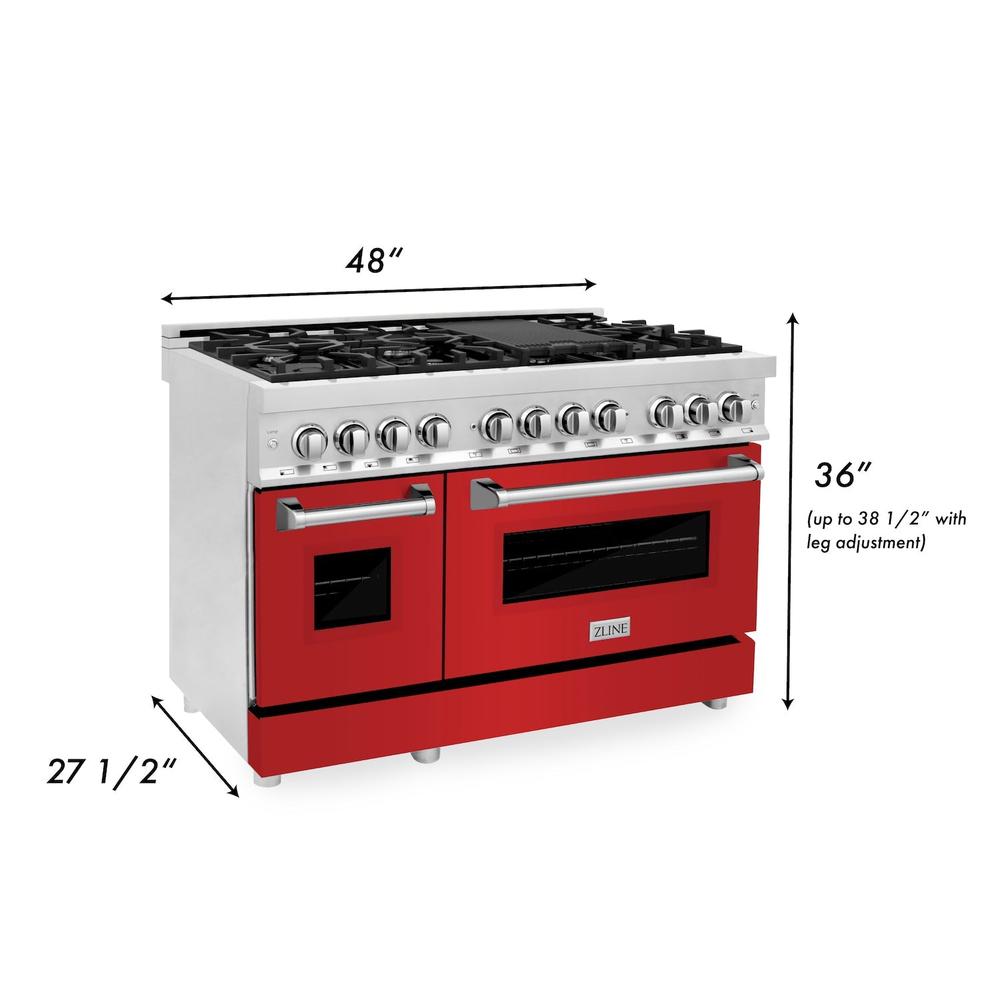

| Dimensions: | 47.75 in. W x 27.5 in. D x 36.125 in. H |
| Product Depth (in.): | 27.50 |
| Product Width (in.): | 47.75 |
| Product Height (in.): | 36.13 |
| Oven Interior Dimensions (in): | 24.875 in. W x 17.75 in. D x 16 in. H |
| Depth With Door(s) Open 90 Degrees (in.): | 41.8 |
| Range Size (Width): | 48 in. |
| Appliance Category: | Freestanding Range |
| Color/ Finish Family: | Red Matte |
| Hardware Color/Finish: | N/A |
| Back Left Burner BTU: | 10000 |
| Back Left Middle Burner BTU: | 12500 |
| Back Right Burner BTU: | 10000 |
| Front Left Burner BTU: | 18000 |
| Front Left Middle Burner BTU: | 4500 |
| Front Right Burner BTU: | 18000 |
| Fish Burner BTU: | 12500 |
| Total BTUs: | 85500 |
| Cooktop Features: | (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| Control Type: | Manual Front Control |
| Capacity of Oven (cu. ft.): | 6 (2 + 4) |
| Product Weight (lb.): | 270 |
| Fuel Type: | Convection Electric Oven- Gas Cooktop |
| Oven Features: | Manual Clean- Convection Electric- 6.0 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal |
| Voltage: | 240vac |
| Frequency: | 60Hz |
| Amps: | 30A |
| Convection Fan: | Yes |
| Certifications and Listings: | CSA Listed |

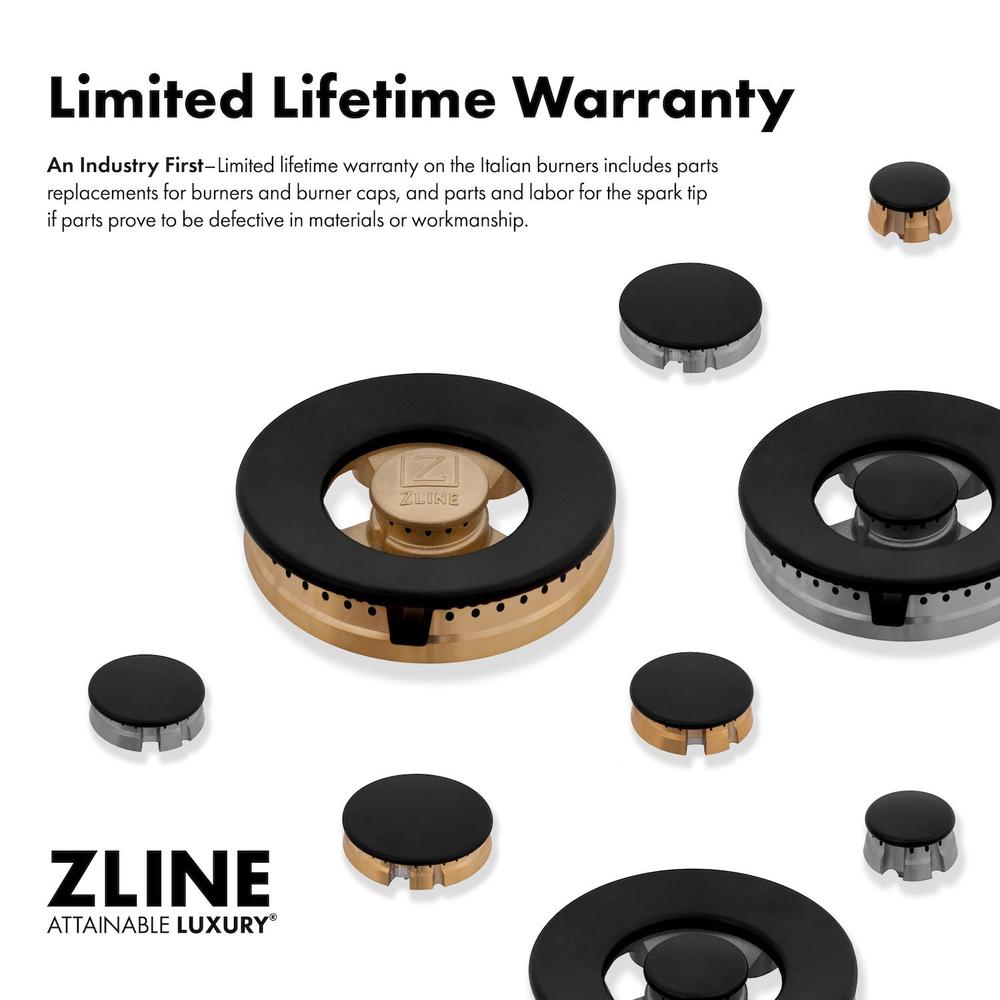

| Manufacturer Warranty: | 1 year parts and service, limited lifetime warranty on burners |
Built to insulate, increase efficiency and keep the kitchen cool.
Heavy duty porcelain cooktop allows for timeless style and effortless clean up.
Heavy-duty hinges imported from Italy are fluid and stable, ensuring a feel and ultimate convenience.
Handcrafted Italian burners offer the best in the industry when it comes to heat retention and distribution.
Twist legs to adjust the total range height anywhere from 36” to 38.5”.
