Sale price $11,699.99 Regular price $16,028.99 Save $4,329.00 / 27% OFF

Product Details for ZLINE RABM60

Technical Details

Other

Brand ZLINE Kitchen and Bath
Oven Dimensions 30.5/ 18.5" W x 18.5" D x 14" H
Lighting Dual Lighting, controlled by light switch on front control panel
Voltage 240V/60Hz/40A
Control Type Durable Front Control
Material Durasnow® Stainless Steel frame with Porcelain Top- Italian made hinges and burners

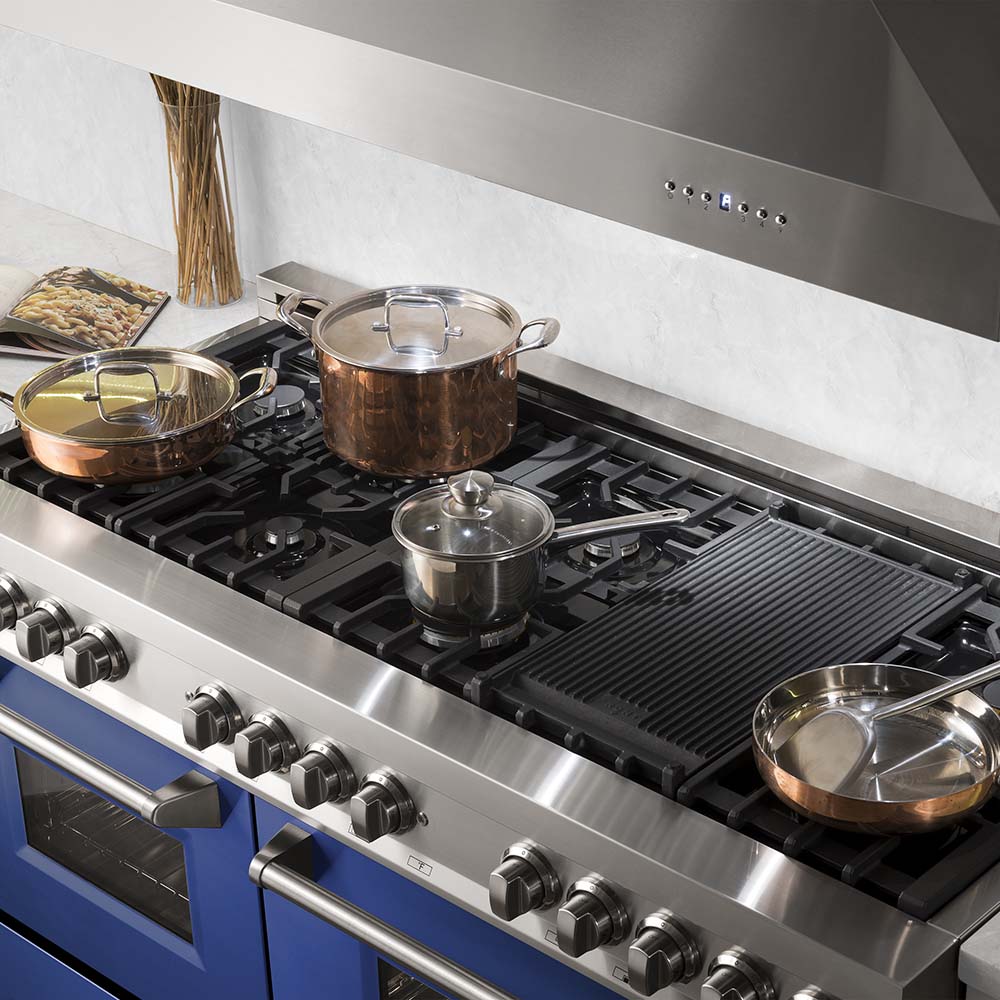

Cooktop (8) Burners, (1) Fish Burner with hand-finished stainless steel one piece cook top and electronic spark ignition for all burners

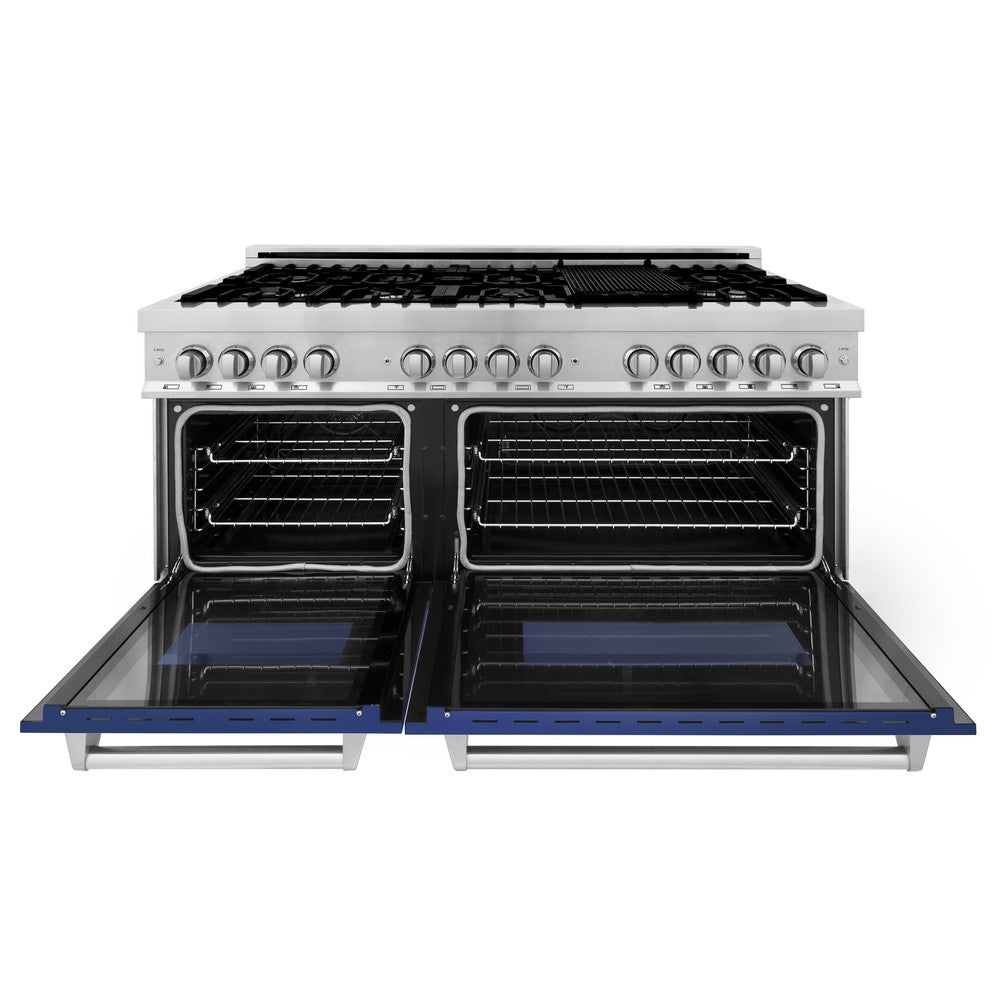

Oven Convection Gas Oven- 4.6 cu. ft./ 2.8 cu. ft.deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal BTU Rating
Warranty 1 Year Warranty
Certifications ETL Certified

Dimensions & weight

Width 60 in.
Height 36 in.
Length 28 in.
Weight 450 lbs.
Width 59.88 Inch
Height 36.13 Inch
Weight 450 lbs
Depth 27.5 Inch

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 65 in.
Shipping Height 41 in.
Shipping Length 33 in.
Shipping Weight 490 lbs.
Total of Shipping Weight 490 lbs.
Source Calculation
Shipping Width 64.88 Inch
Shipping Height 41.13 Inch
Shipping Length 32.5 Inch
Shipping Weight 490 lbs
Total of Shipping Weight 490 lbs

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 35 ft³
Dimensional Weight 435.11 lbs.
Total of Cubes 35 ft³
Total of Dimensional Weight 435.11 lbs.
Cubic Feet Measurement 34.43 ft³
Dimensional Weight 428.02 Ibs
Total of Cubes 34.43 ft³
Total of Dimensional Weight 428.02 Ibs

Dimensions

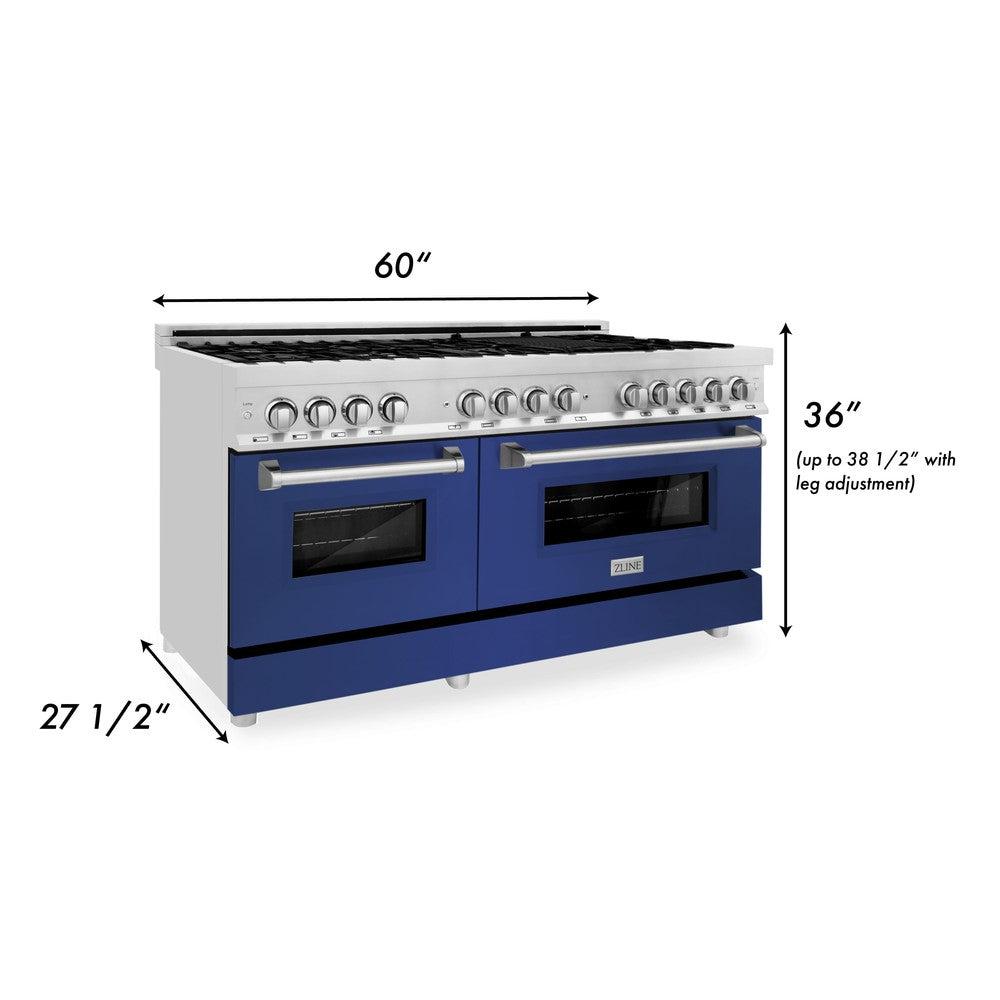

Dimensions: 59.875 in. W x 27.5 in. D x 36.125 in. H
Product Depth (in.): 27.50
Product Width (in.): 59.88
Product Height (in.): 36.13
Oven Interior Dimensions (in): 24.875 in. W x 17.75 in. D x 16 in. H
Depth With Door(s) Open 90 Degrees (in.): 41.8
Range Size (Width): 60 in.

Details

Appliance Category: Freestanding Range
Color/ Finish Family: Stainless Steel ann Blue Matte
Hardware Color/Finish: N/A
Back Left Burner BTU: 10200
Back Left Middle Burner BTU: 13100
Back Right Middle Burner BTU: 10200
Back Right Burner BTU: 10200
Front Left Burner BTU: 18000
Front Left Middle Burner BTU: 5100
Front Right Middle Burner BTU: 18000
Front Right Burner BTU: 5100
Fish Burner BTU: 13100
Total BTUs: 103000
Cooktop Features: (8) Burners, (1) Fish Burner with hand-finished stainless steel one piece cook top and electronic spark ignition for all burners
Control Type: Manual Front Control
Capacity of Oven (cu. ft.): 7.4 (2.8 + 4.6)
Product Weight (lb.): 450
Fuel Type: Convection Electric Oven- Gas Cooktop
Oven Features: Convection Gas Oven- 4.6 cu. ft./ 2.8 cu. ft.deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal
Voltage: 240vac
Frequency: 60 Hz
Amps: 40
Convection Fan: Yes

Warranties & certifications

Certifications and Listings: CSA Listed
Manufacturer Warranty: 1 year parts and service, limited lifetime warranty on burners

Description

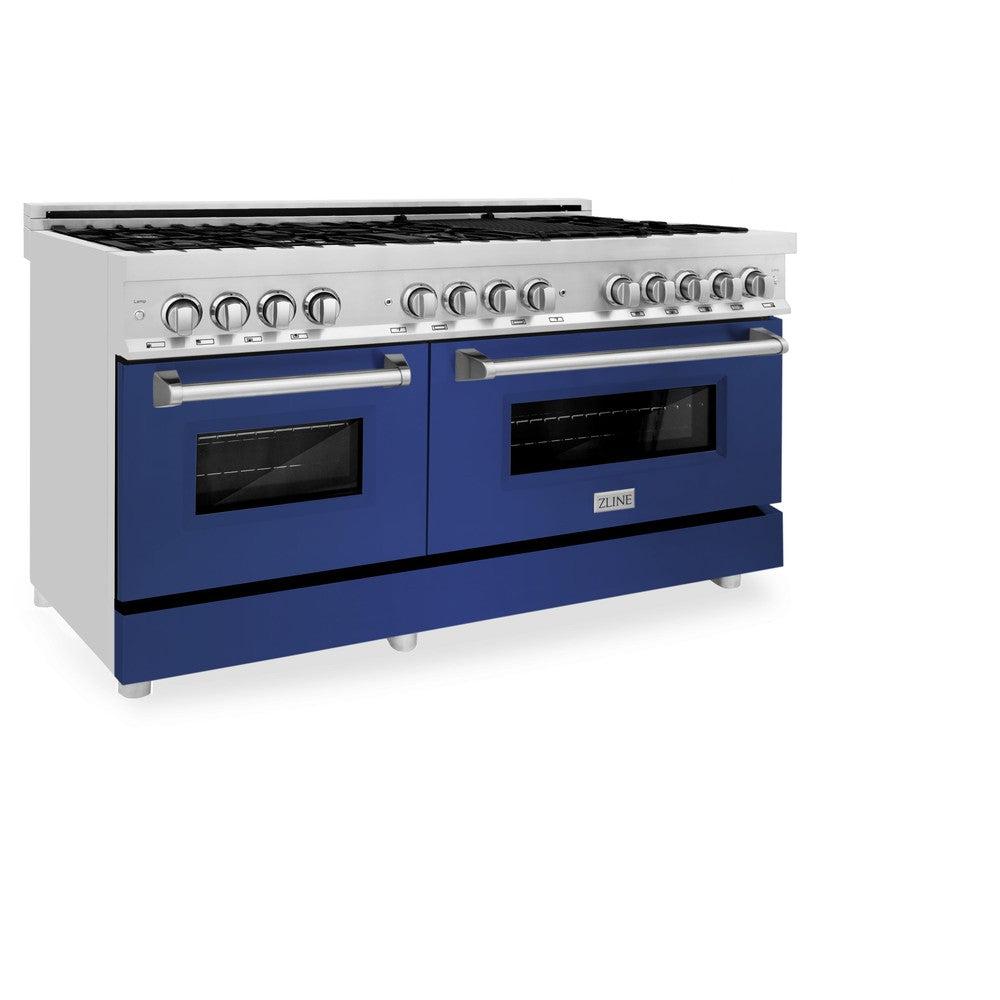

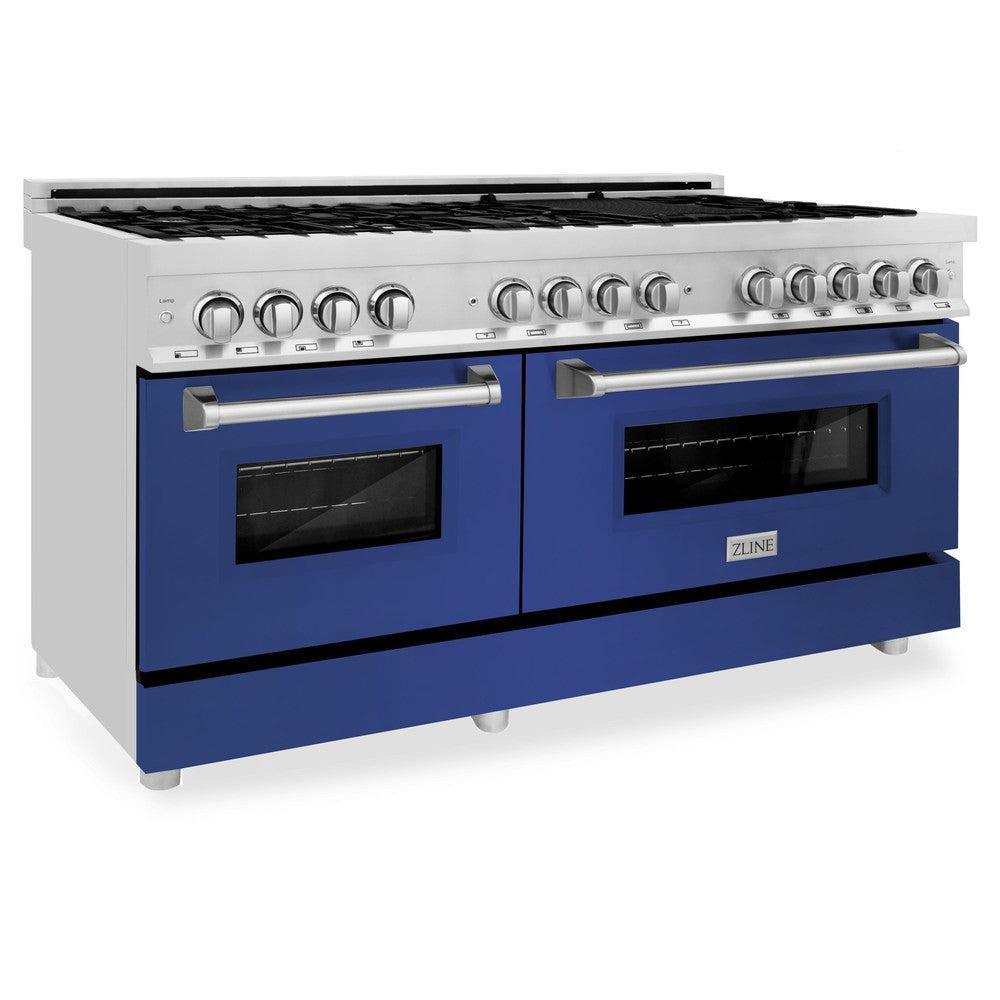

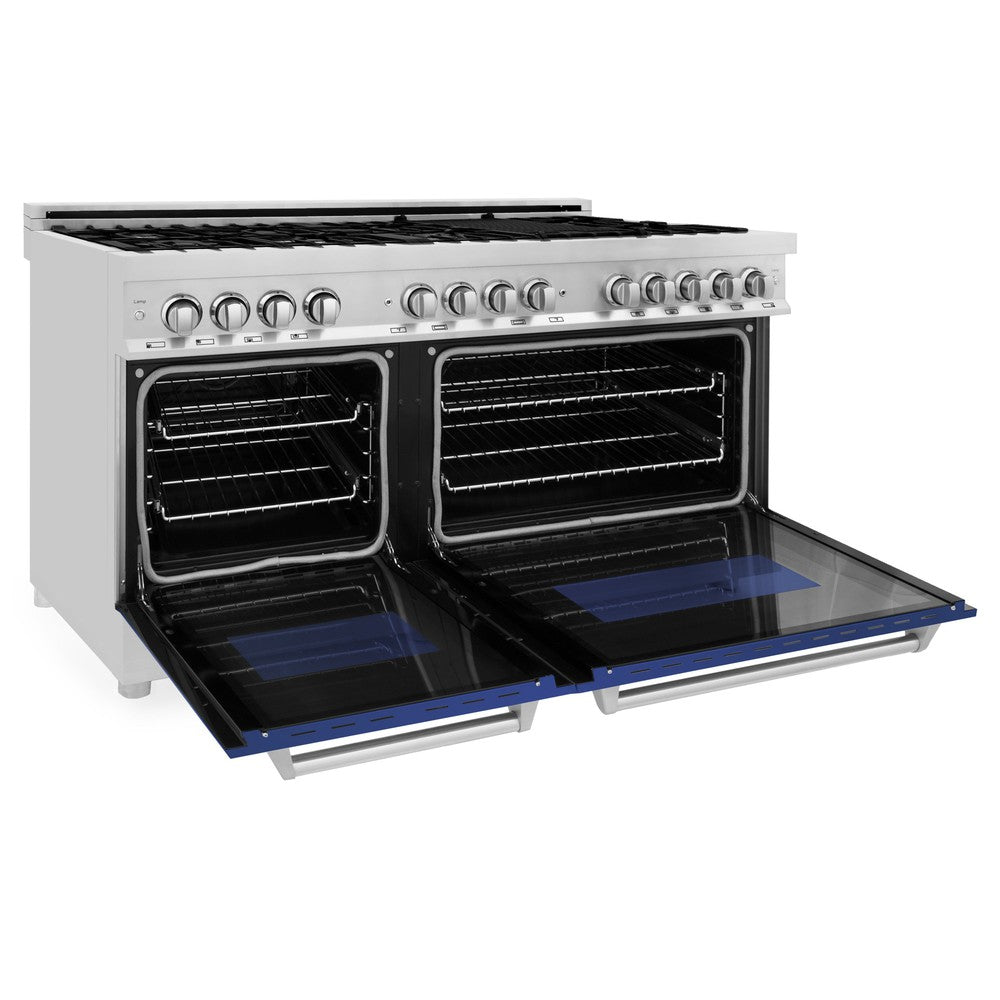

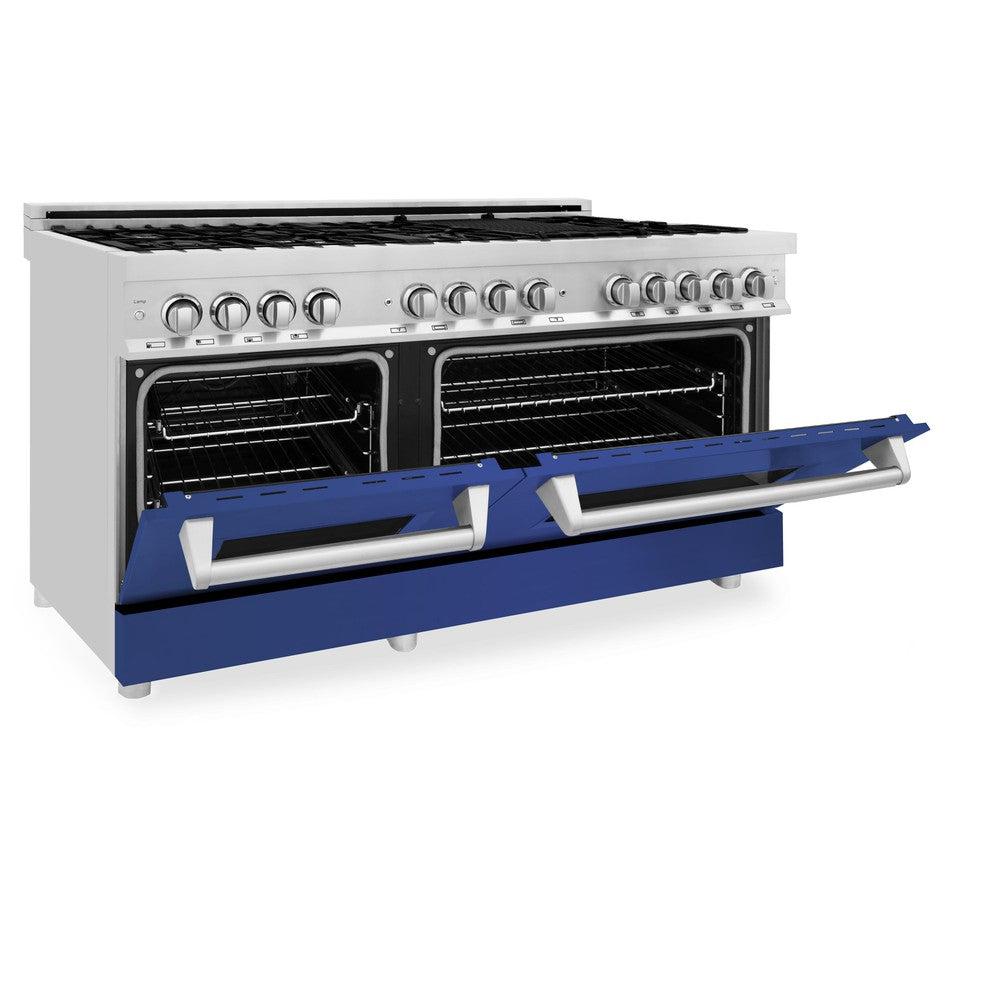

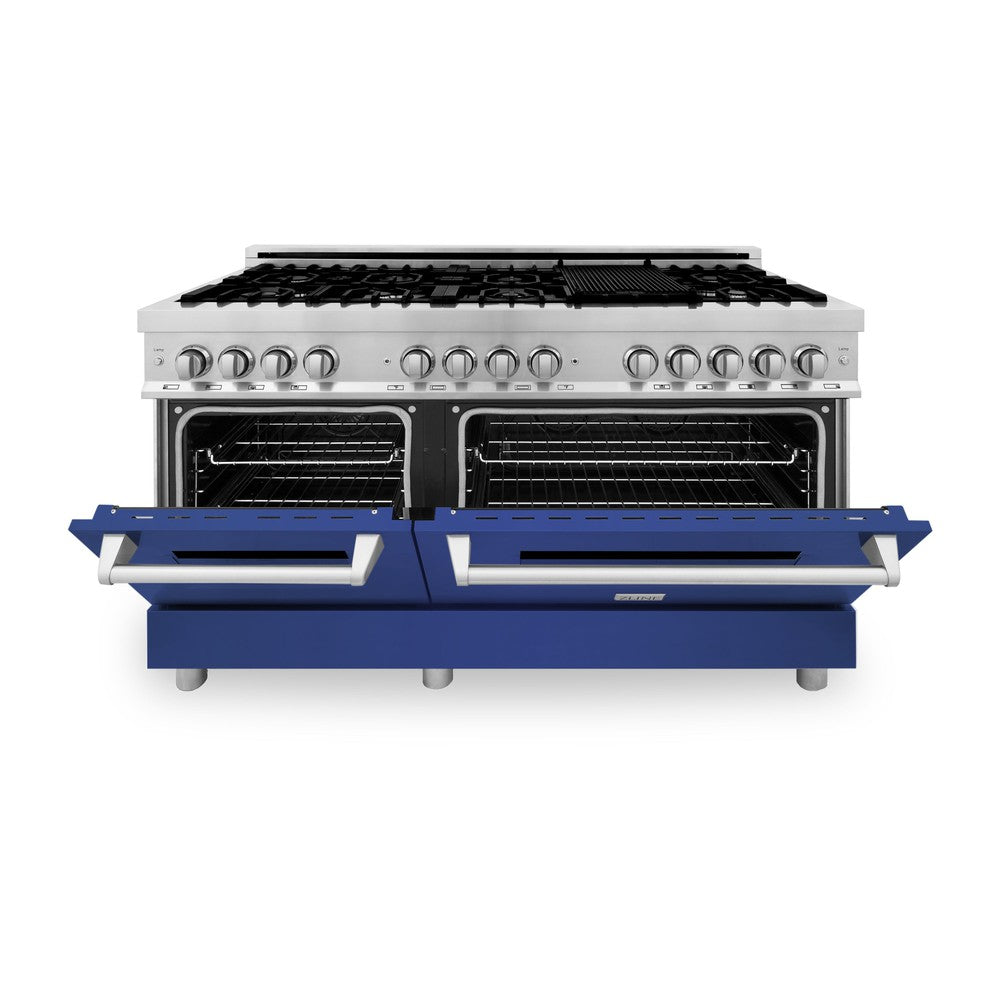

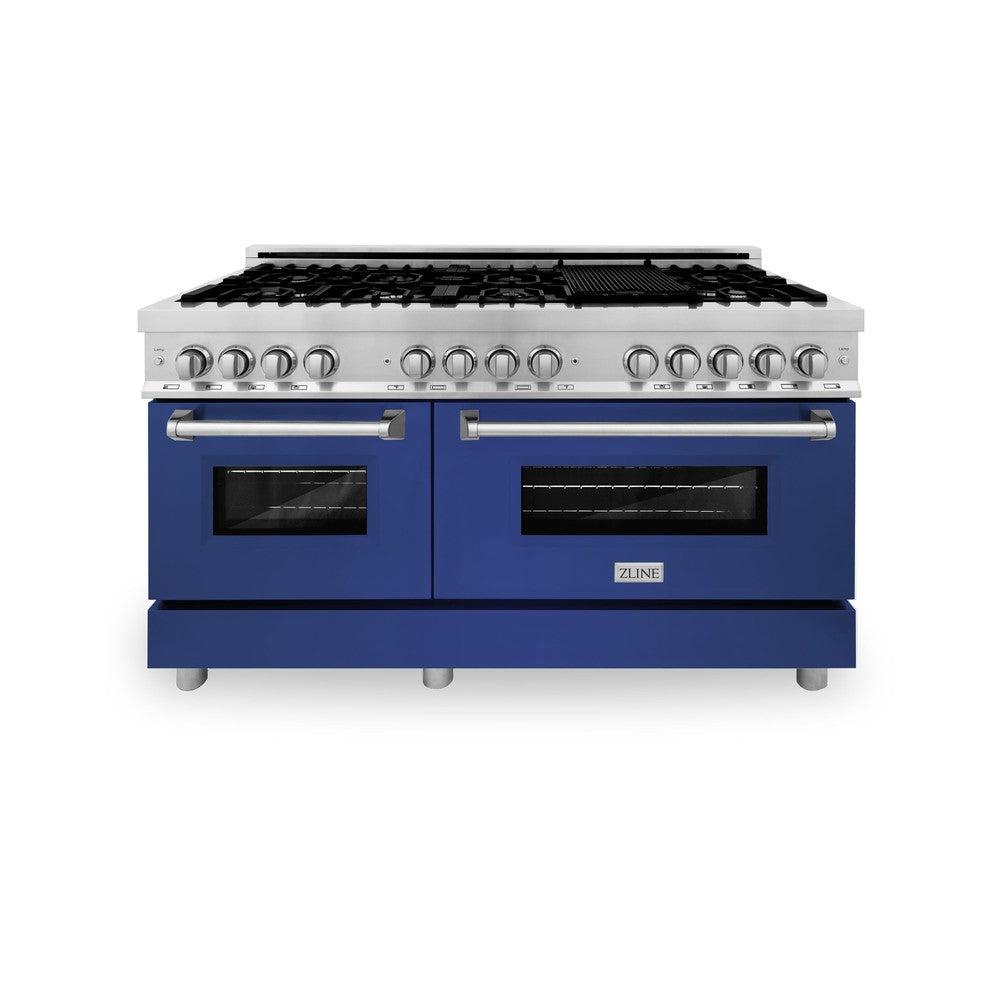

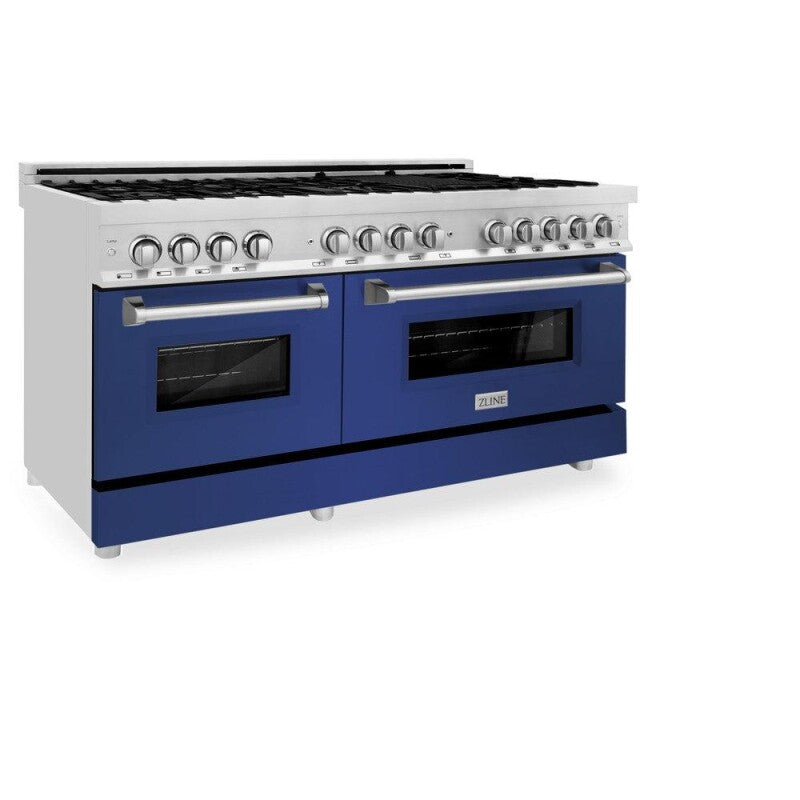

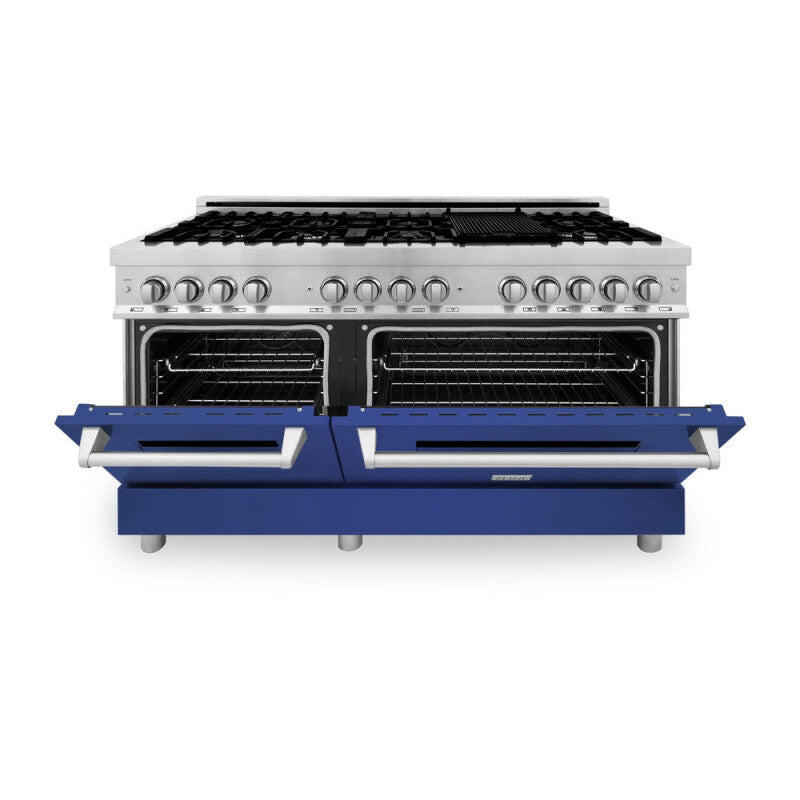

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 60 in. 7.4 cu. ft. Legacy Dual Fuel Range with 9 Burner Gas Cooktop and 2 Electric Convection Ovens in Stainless Steel and Blue Matte Doors (RA-BM-60) pairs a powerful gas cooktop with 9 Italian-crafted burners, dual electric convection ovens, and beautiful blue matte doors with Landscape window designs. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.


Product Features

  • ZLINE Legacy Series
    The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
  • Custom Door Finish
    Outfit your ZLINE Legacy Dual Fuel Range with 2 beautiful Blue Matte oven doors
  • Professional Dual Fuel Cooking
    Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and 2 electric convection ovens
  • Italian-Made Sealed Burners
    Industry-leading gas cooktop includes 9 hand-cast burners, including an expansive fish burner, with 1,000

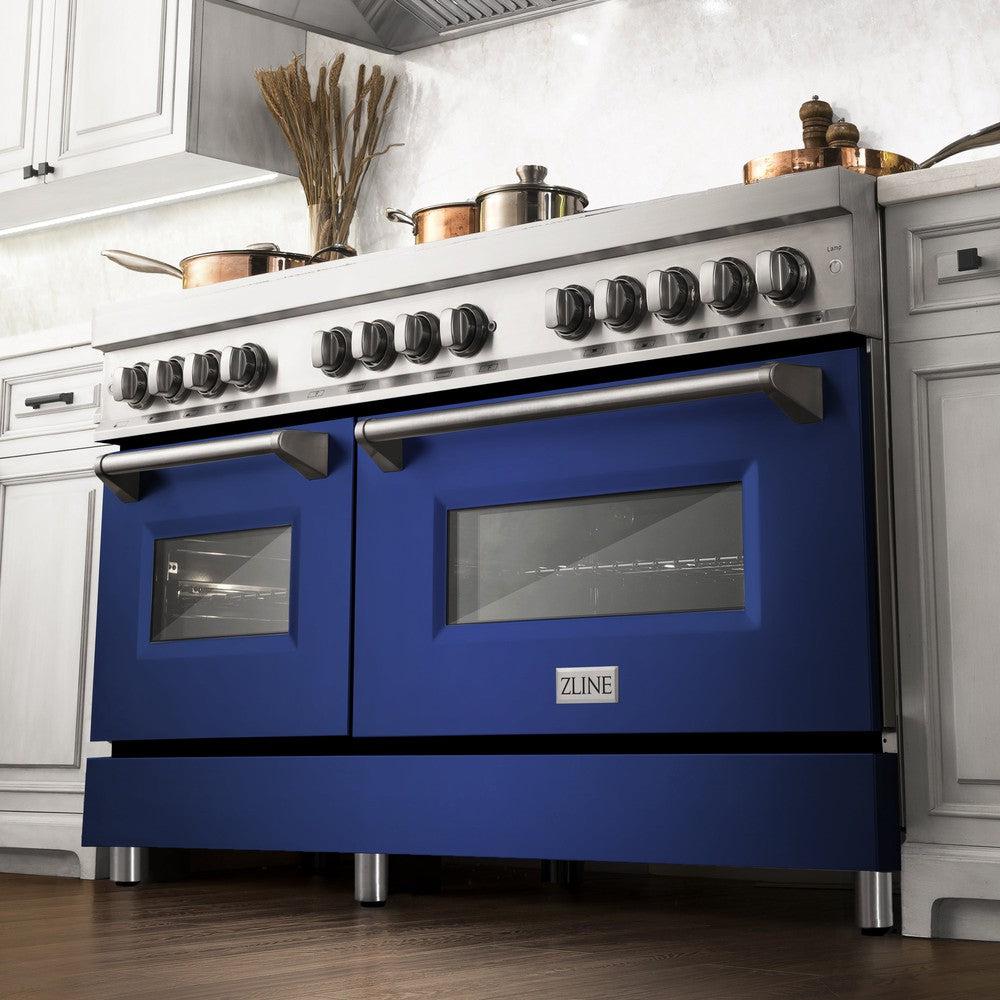

  • Landscape Oven Window
    ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
  • Large Oven Capacity
    A dual oven capacity of 7.4 cu. ft fits pans up to 27 in. or 15 in. wide for maximum space and convenience with everyday cooking
  • Cast-Iron Griddle
    Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
  • Premium Oven Insulation
    Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
  • Adjustable Range Height
    Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
  • Stunning Stainless Steel
    Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
  • StayPut Oven Door Hinges
    Designed to support the full weight of both oven doors, offering additional convenience and safety

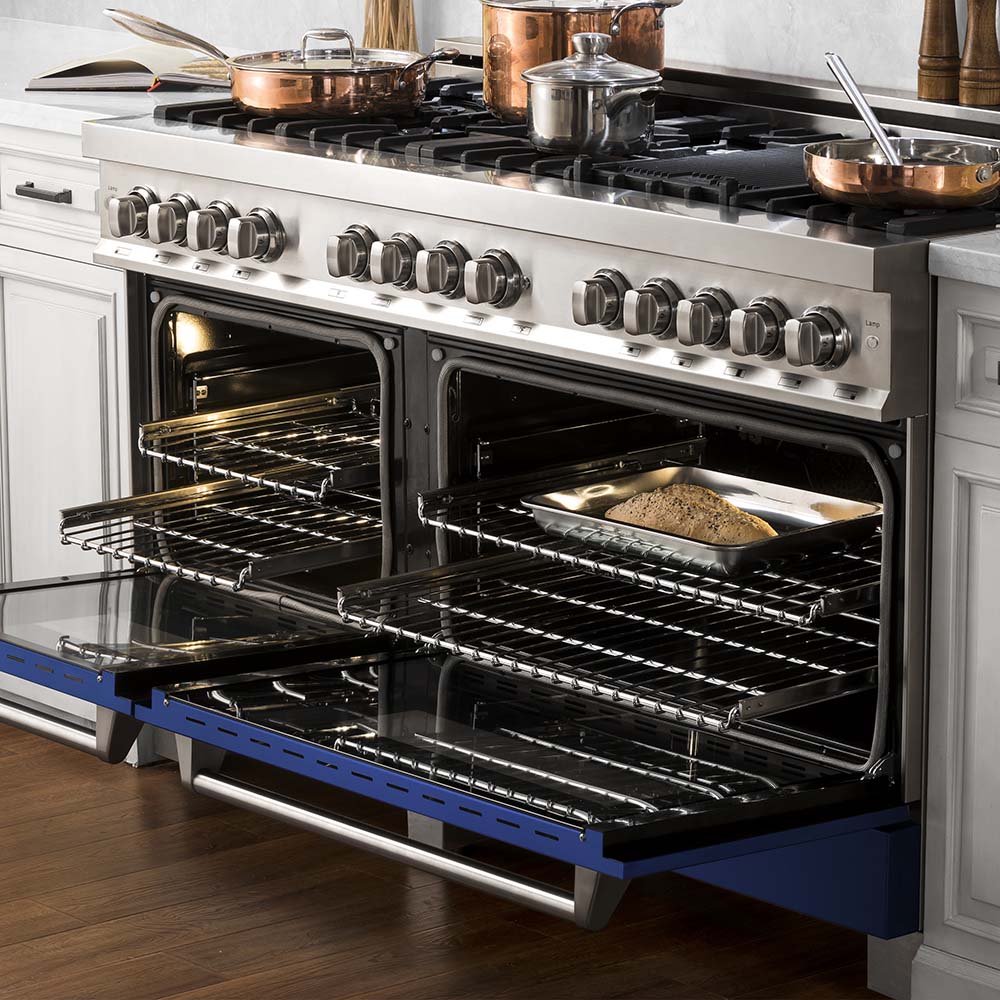

  • Smooth Glide Ball-Bearing Oven Racks
    4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
  • Halogen Oven Lights
    Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
  • Minimal Cleaning
    Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
  • LP Conversion Kit
    Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference

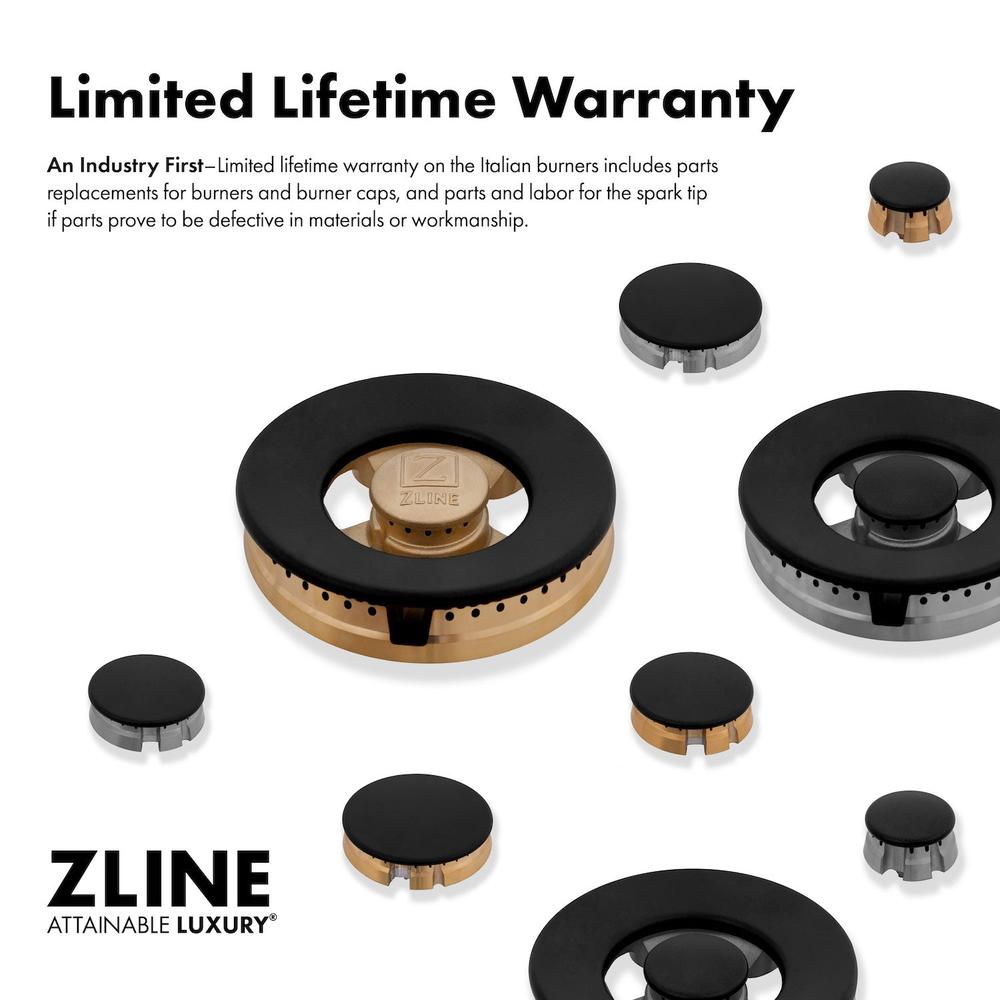

  • Industry First Lifetime Burner Warranty
    Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
  • Manufacturer Warranty
    1-year parts and service warranty
  • Additional Assembly Required
    This product ships in multiple boxes and will require minimal assembly upon arrival

Key Features

Triple Layer Glass

Built to insulate, increase efficiency and keep the kitchen cool.

Porcelain Cooktop

Heavy duty porcelain cooktop allows for timeless style and effortless clean up.

Stay-put Hinges

Heavy-duty hinges imported from Italy are fluid and stable, ensuring a feel and ultimate convenience.

Italian Burners

Handcrafted Italian burners offer the best in the industry when it comes to heat retention and distribution.

Adjustable Legs

Twist legs to adjust the total range height anywhere from 36” to 38.5”.
