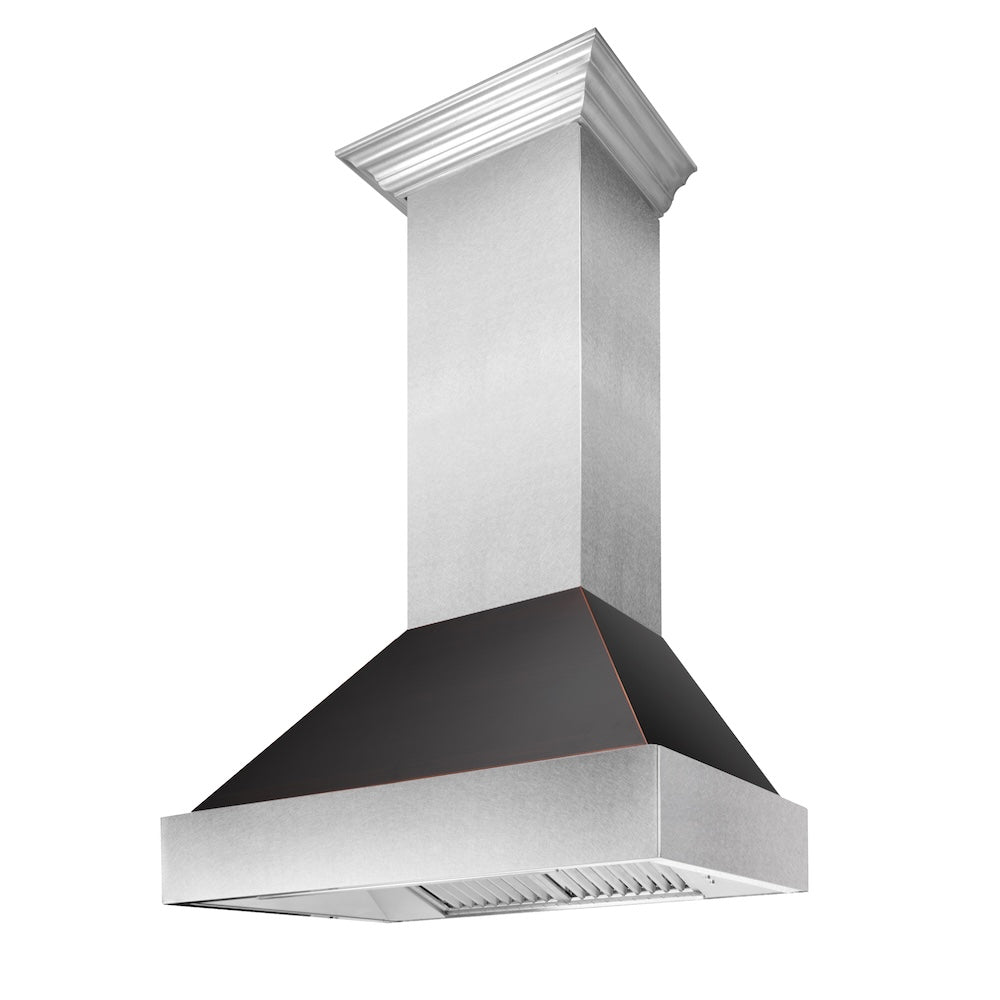

Product Details for ZLINE 8654ORB36
Technical Details
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 41 Inch |
| Shipping Height | 21 Inch |
| Shipping Length | 28.8 Inch |
| Shipping Weight | 120 lbs |
| Total of Shipping Weight | 120 lbs |
| Source | Calculation |
Dimensions & weight
| Width | 36 Inch |
| Height | 16 Inch |
| Depth | 23.8 Inch |
| Weight | 80 lbs |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 7.93 ft³ |
| Dimensional Weight | 98.62 Ibs |
| Total of Cubes | 7.93 ft³ |
| Total of Dimensional Weight | 98.62 Ibs |
Dimensions

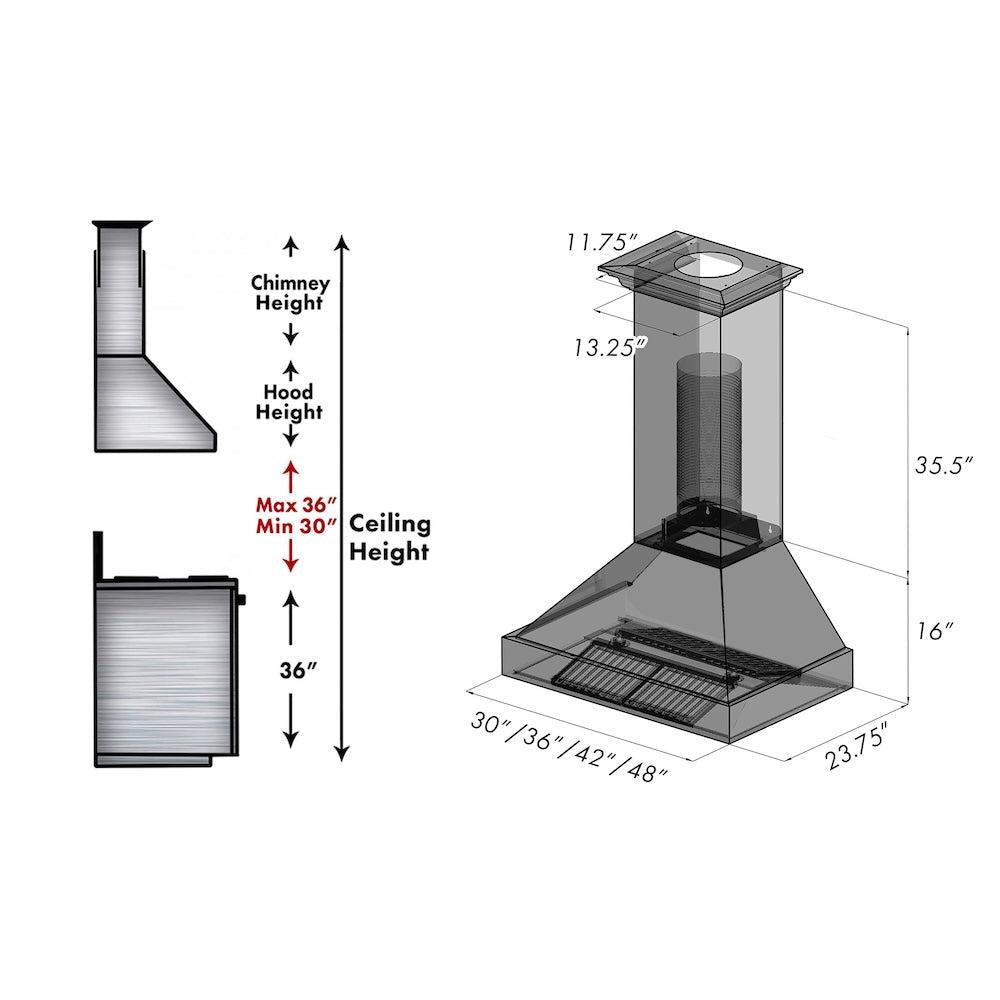

| Dimensions: | 36 in. W x 23.75 in. D x 16 in. H |
| Product Depth (in.): | 23.8 |
| Product Width (in.): | 36 |
| Product Height (in.): | 16.0 |
| Chimney Dimensions: | 13.25" W x 11.75" D x 35.5" H |
Details
| Appliance Category: | Wall Mount RH |
| Color/ Finish Family: | Satin Stainless Steel with 7-Layer Baked Copper Shell |
| Airflow (Q/L/M/H): | 280/420/560/700 |
| Motor: | High Performance 700 CFM/4-Speed Motor |
| Filters: | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type: | Wall Mount |
| Number of Lights: | 2 |
| Number of Speeds: | 4 |
| Control Type: | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel: | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.): | 80 |
| Decibels: | 30/41/49/52 |
| Duct Size: | 8 |
| Voltage: | 110 |
| Amps: | 5 |
Warranties & certifications
| Certifications and Listings: | ETL Listed |
| Manufacturer Warranty: | 3 year parts, life-time motor warranty |
Description
Product Features
-
Convenient Control Panel
Easy-to-use push button controls let you easily adjust fan speeds and lighting options -
4-Speed Fan Control
Choose the appropriate air flow among 280/420/580/700 CFM for your cooking situation -
Powerful Ventilation
The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area -

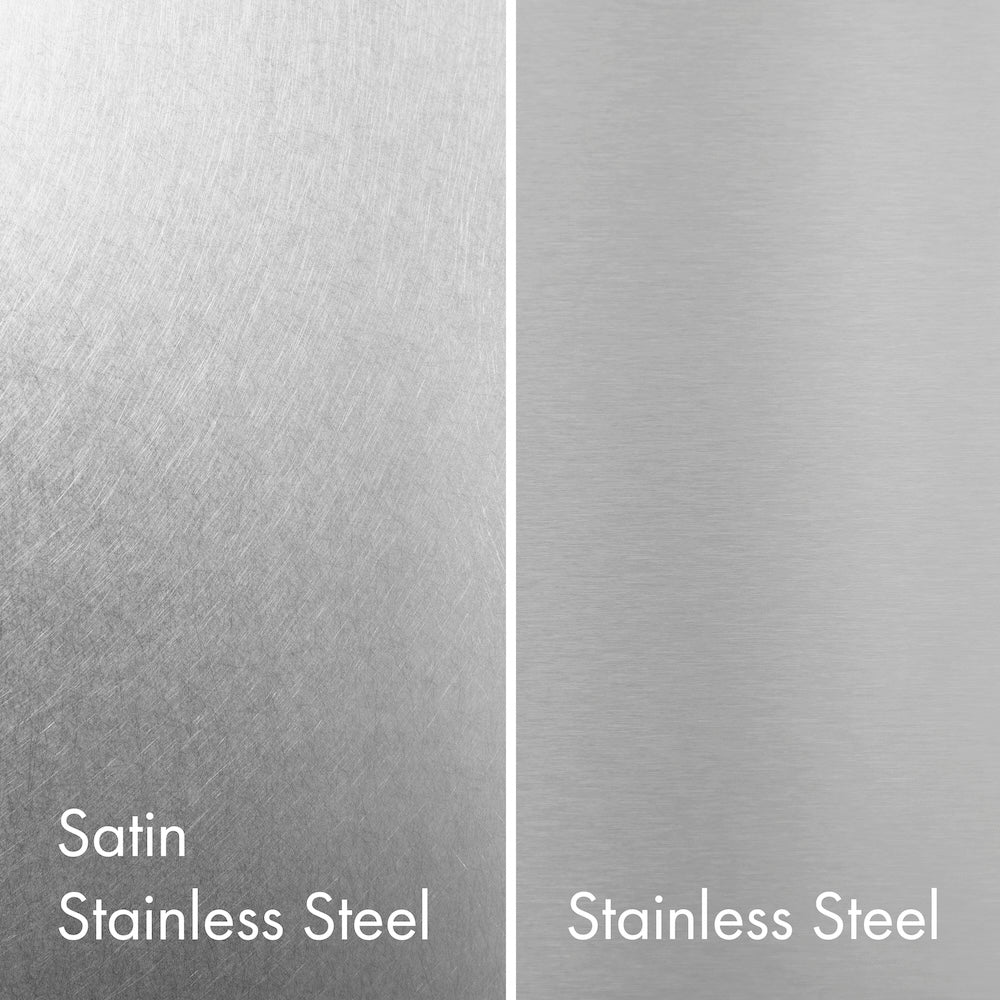

Satin Stainless Steel Finish
ZLINE's Satin Stainless Steel finish is a circular, non-directional, professionally styled stainless steel that is rust, scratch, and fingerprint-resistant -

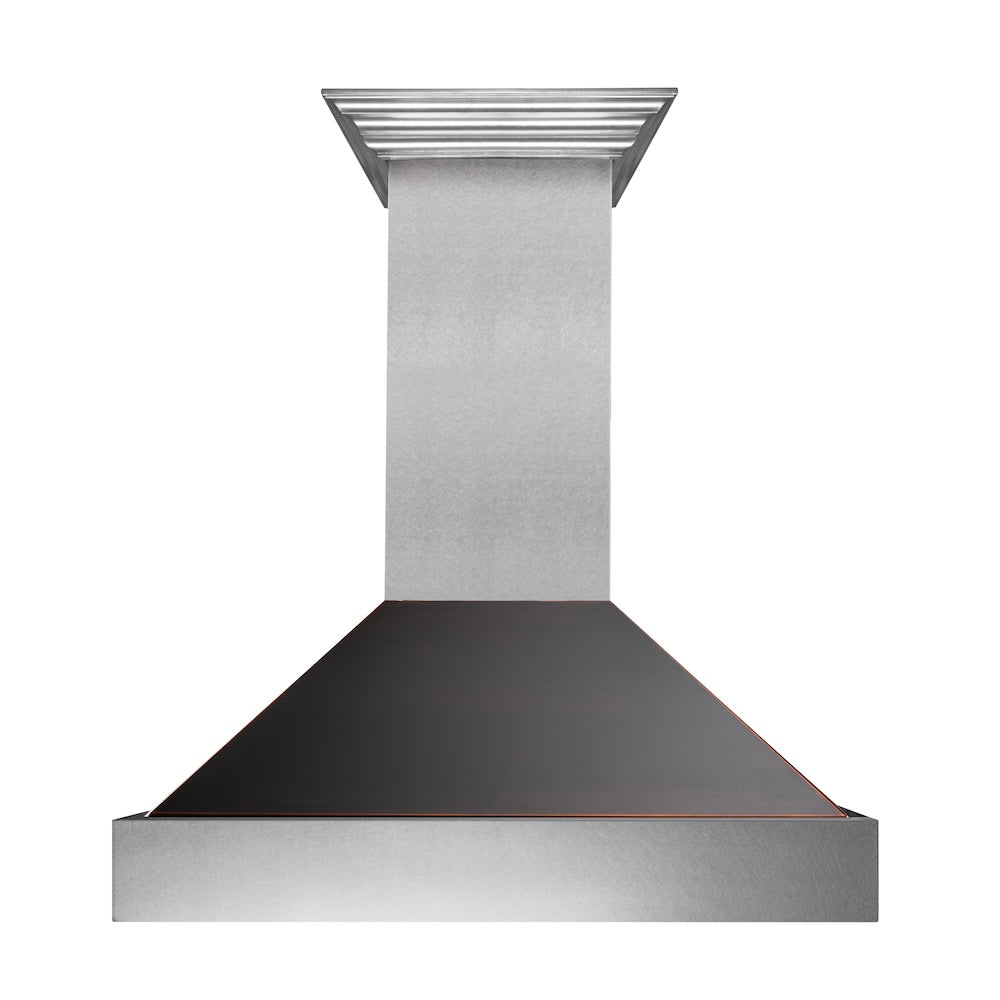

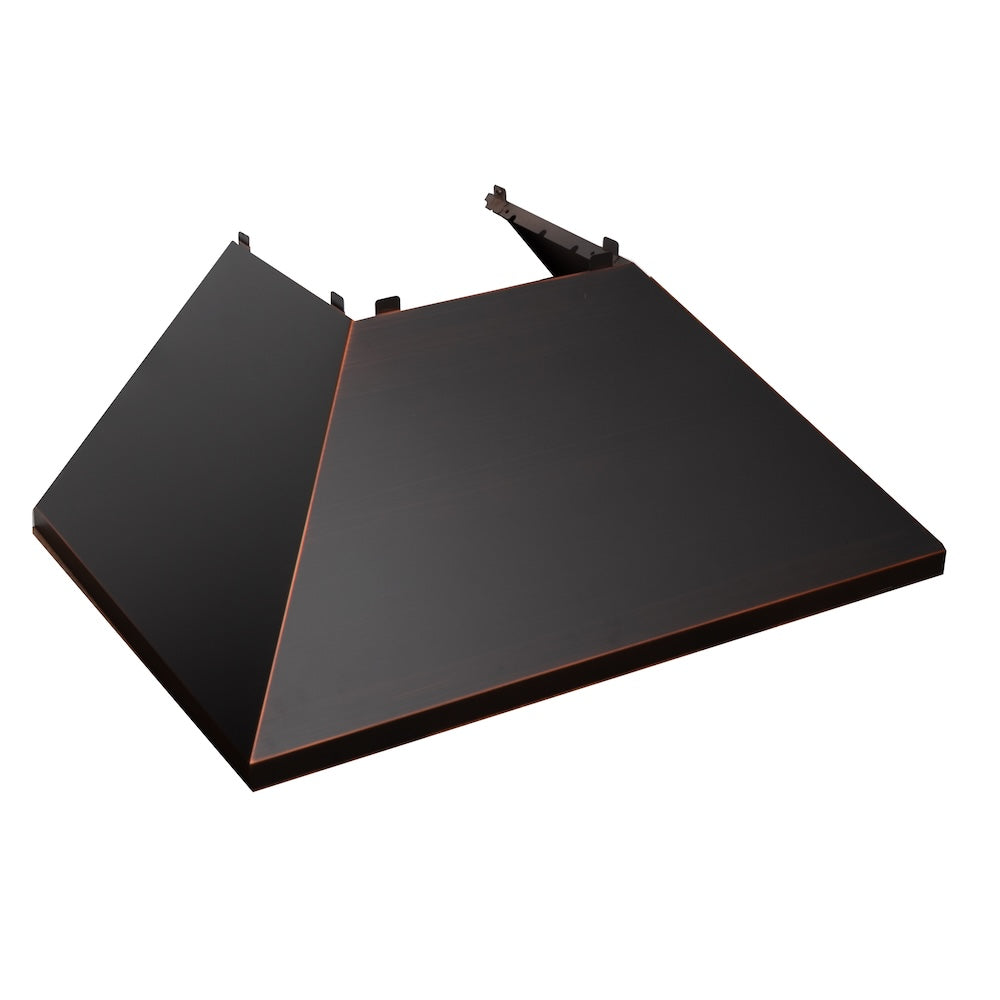

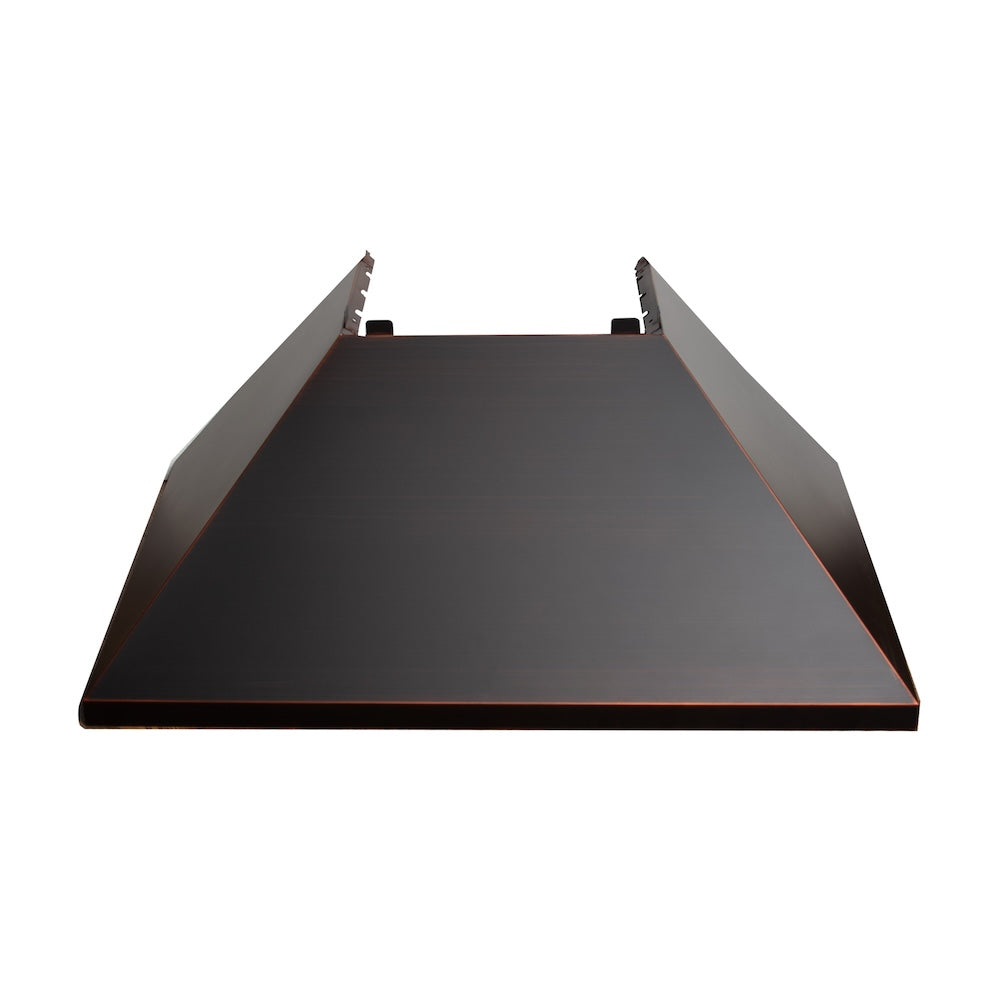

Oil Rubbed Bronze Shell

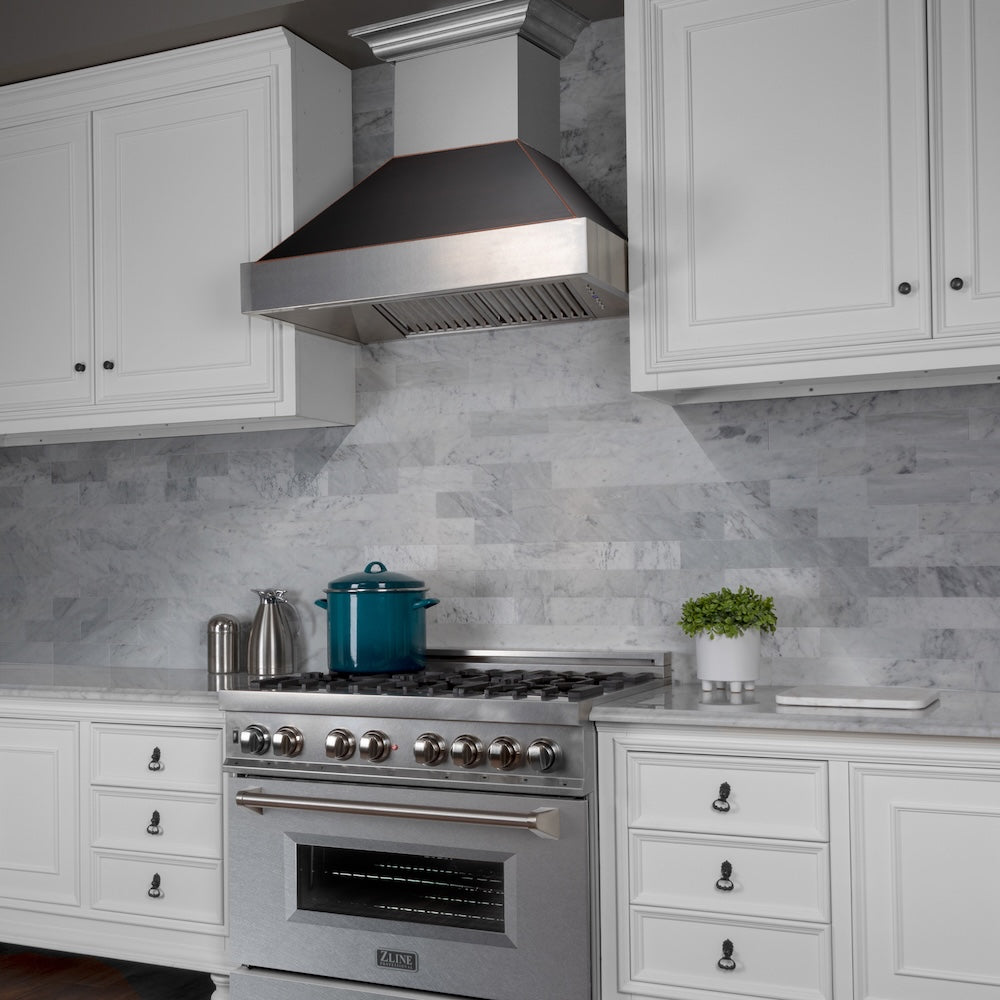

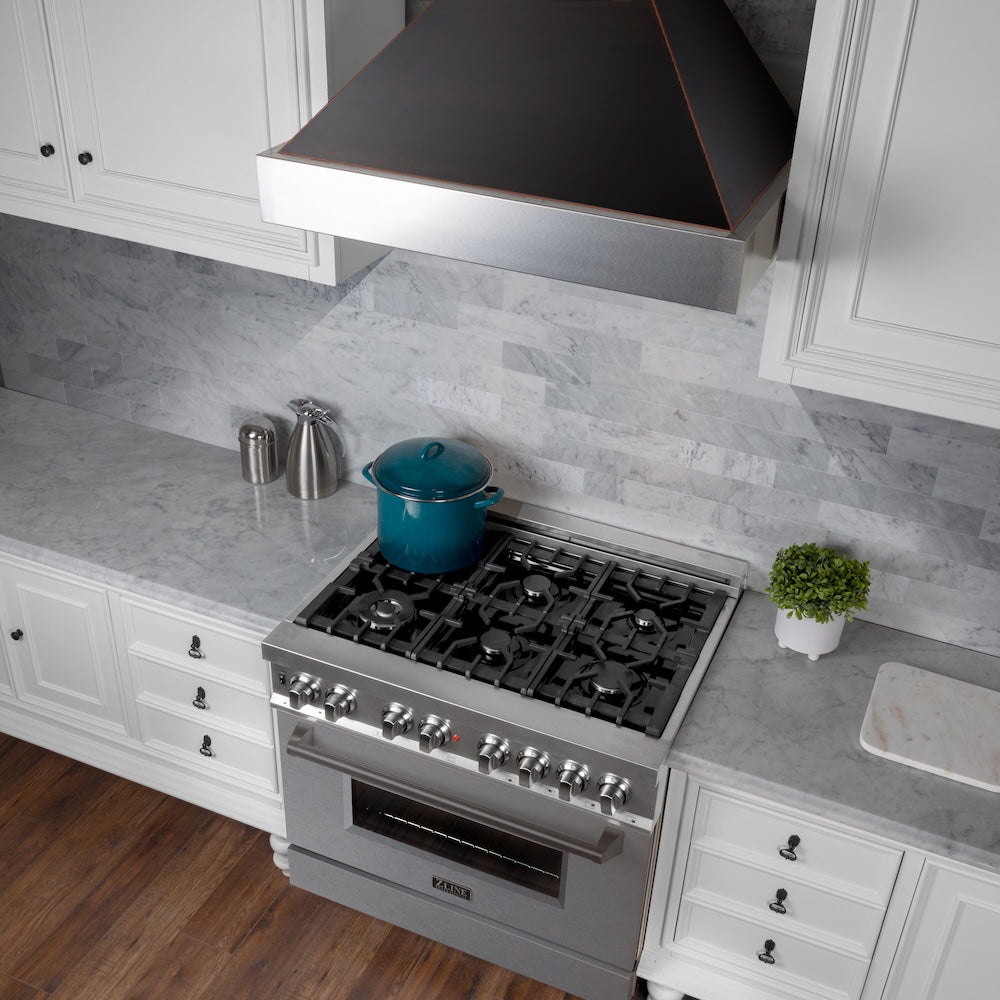

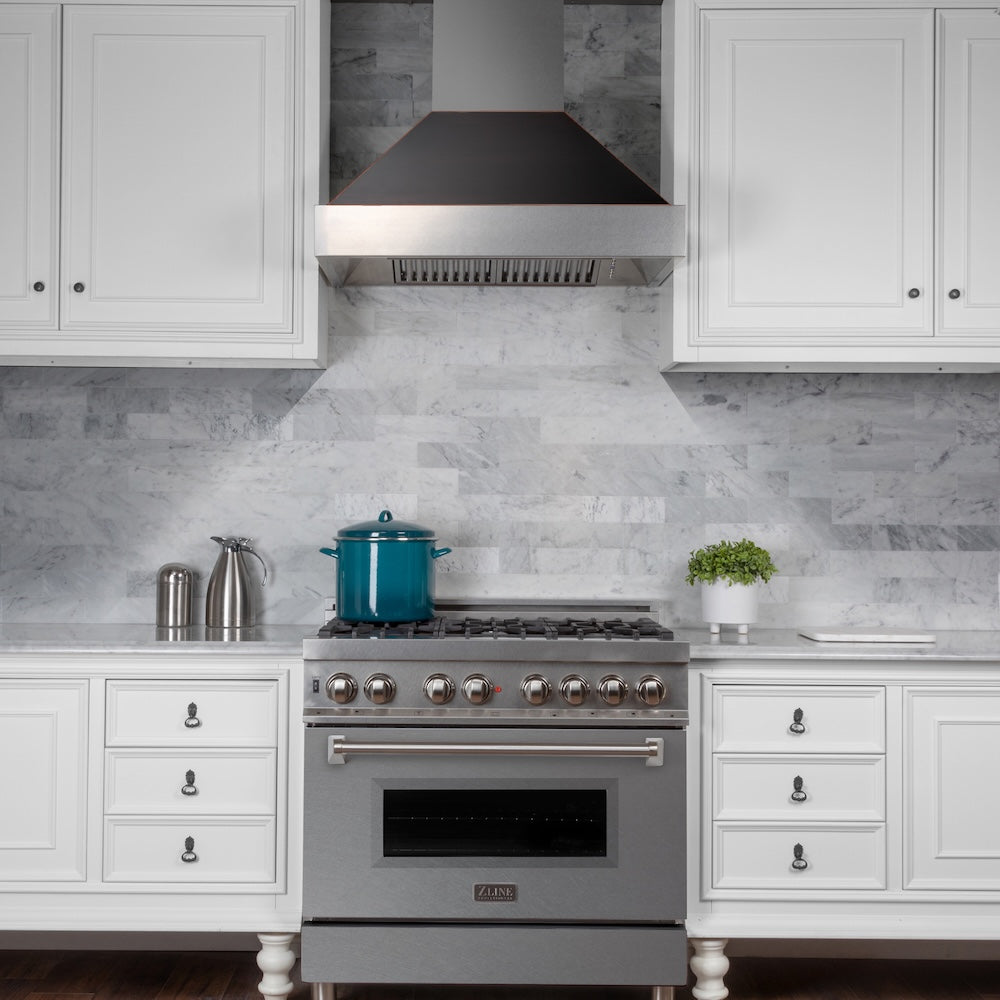

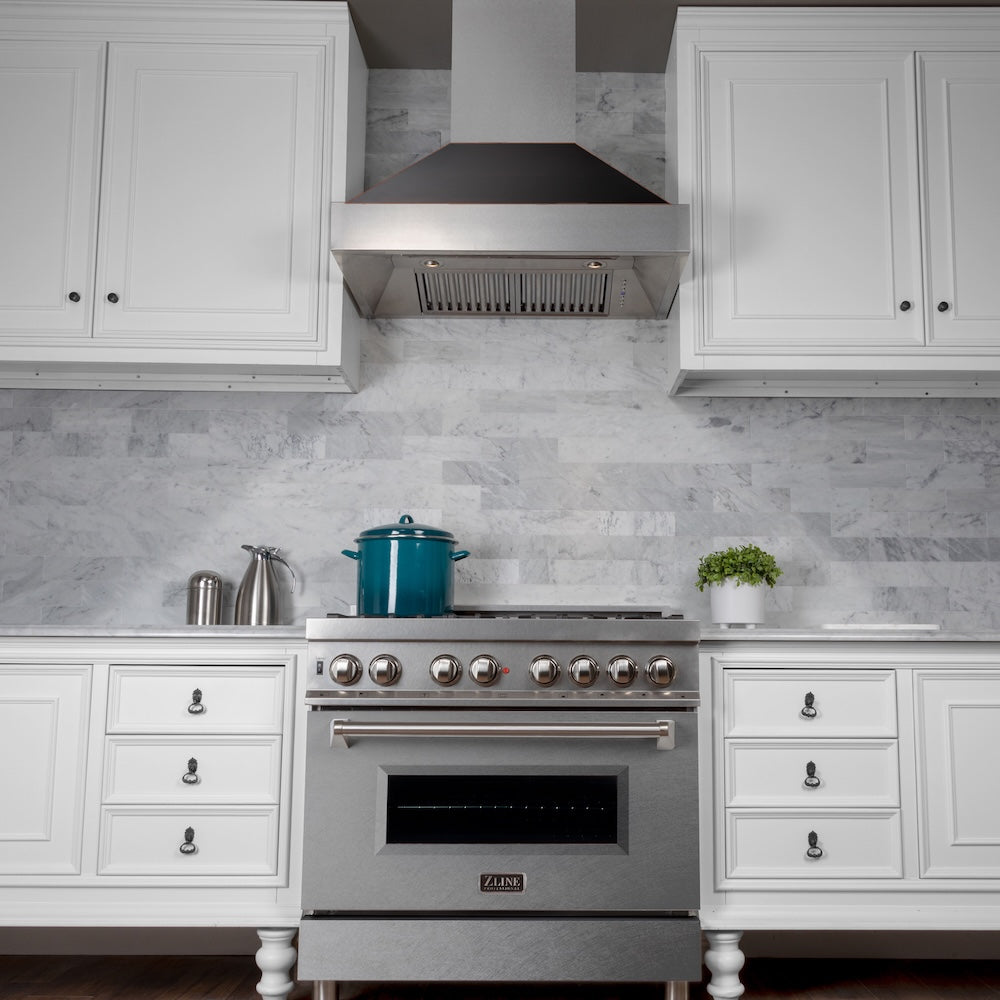

This ZLINE range hood is equipped with an elegant oil rubbed bronze shell paired with a Satin Stainless Steel front face and chimney to give your kitchen an elevated, bold look -
A Revolutionary Design
Created to combat the ongoing problem of stainless steel smudging, Satin Stainless Steel has a deeper, metallic gray hue that elevates your kitchen’s potential -
Minimal Cleaning

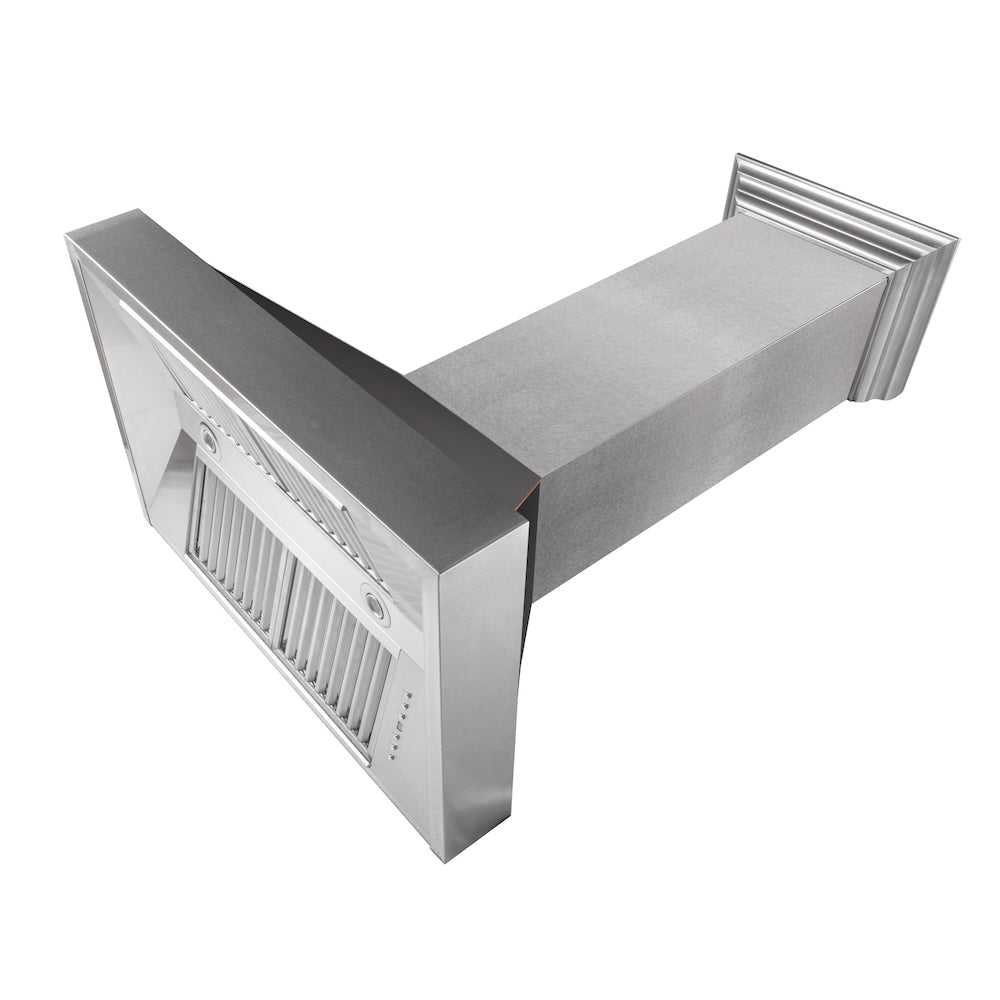

This range hood includes dishwasher-safe stainless steel baffle filters that are simple to clean -
LED Lighting
This ZLINE range hood comes equipped with 2 energy-efficient LED lights to illuminate the cooking surface below -
Easy Installation
ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting -
Warranty
ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty -
Additional Assembly Required
This product ships in multiple boxes and will require minimal assembly upon arrival
Manuals & Guides
Key Features
Lifetime Motor Warranty
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
Dishwasher Safe Baffle Filters
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
Built-in Led Lighting
Easily illuminate your cooking space with bright built-in LED lights
