Product Details for ZLINE ICCDZSN15MB
Technical Details
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 19.88 Inch |
| Shipping Height | 39 Inch |
| Shipping Length | 30.5 Inch |
| Shipping Weight | 135 lbs |
| Total of Shipping Weight | 135 lbs |
| Source | Calculation |
Dimensions & weight
| Width | 14.88 Inch |
| Height | 34 Inch |
| Depth | 25.5 Inch |
| Weight | 95 lbs |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 7.46 ft³ |
| Dimensional Weight | 92.78 Ibs |
| Total of Cubes | 7.46 ft³ |
| Total of Dimensional Weight | 92.78 Ibs |

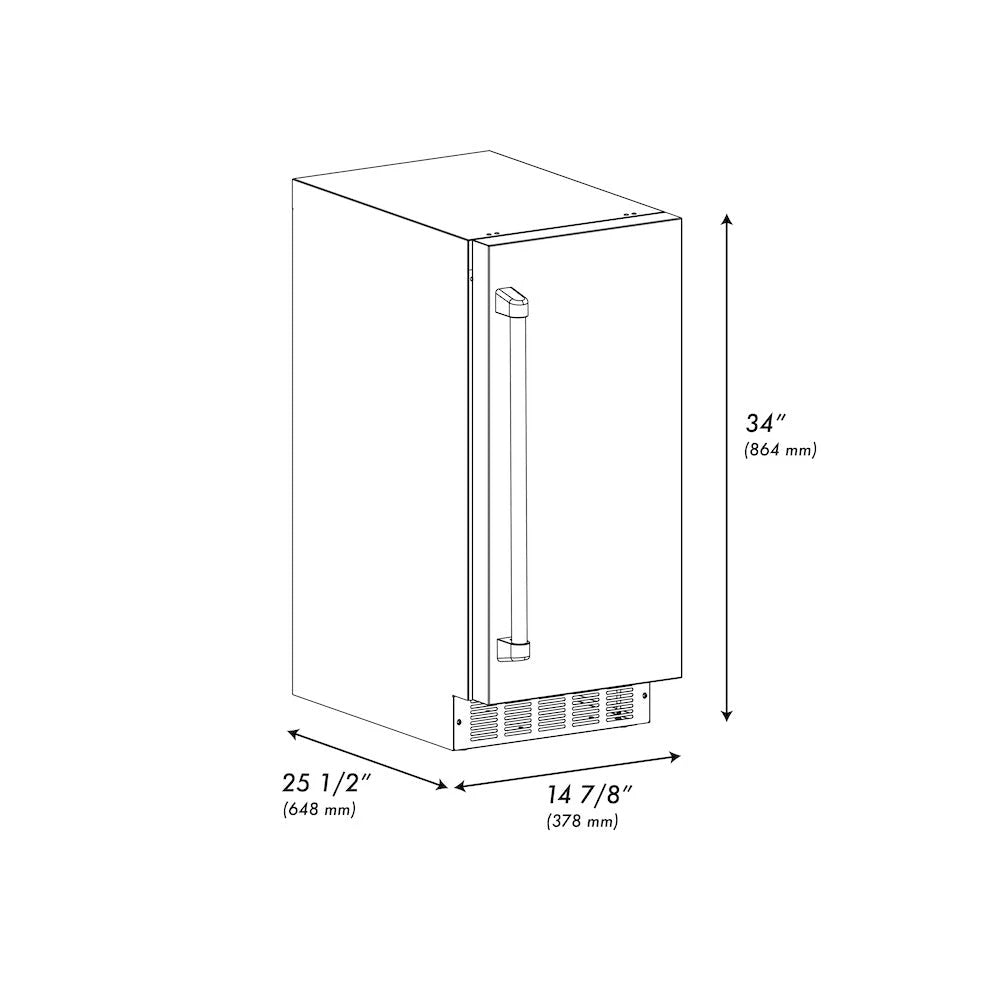

Dimensions
| Dimensions: | 14.88 in. W x 25.5 in. D x 34 in. H |
| Product Depth (in.): | 25.5 |
| Product Width (in.): | 14.875 |
| Product Height (in.): | 34 |
| Depth With Door(s) Open 90 Degrees (in.): | 38.1875 |
| Cut-out Dimensions: | 15 in. W x 24 in. D x 34.125 in. H |
| Refrigeration Size (Width): | 15 in. |
Details
| Appliance Category: | Refrigerator |
| Color/ Finish Family: | Satin Stainless Steel |
| Ice Shape: | Cube |
| Ice Amount per Day (lbs.): | 75 |
| Ice Tray Storage (lbs.): | 26 |
| Interior Finish: | White Interior with Stainless Steel Back Panel on the Interior of the Door |
| Product Weight (lb.): | 95 |
| Door Alarm: | Yes |
| Voltage: | 115V/60Hz |
| Amps: | 2.5A |
| Lights: | 1 |
Warranties & certifications
| Certifications and Listings: | UL, CUL, CEC Compliant, DOE Compliant, NRCan Compliant |
| Manufacturer Warranty: | Manufacturing Warranty - 2-year parts and labor warranty, 5-year parts-only for sealed system |
Description
Product Features
-

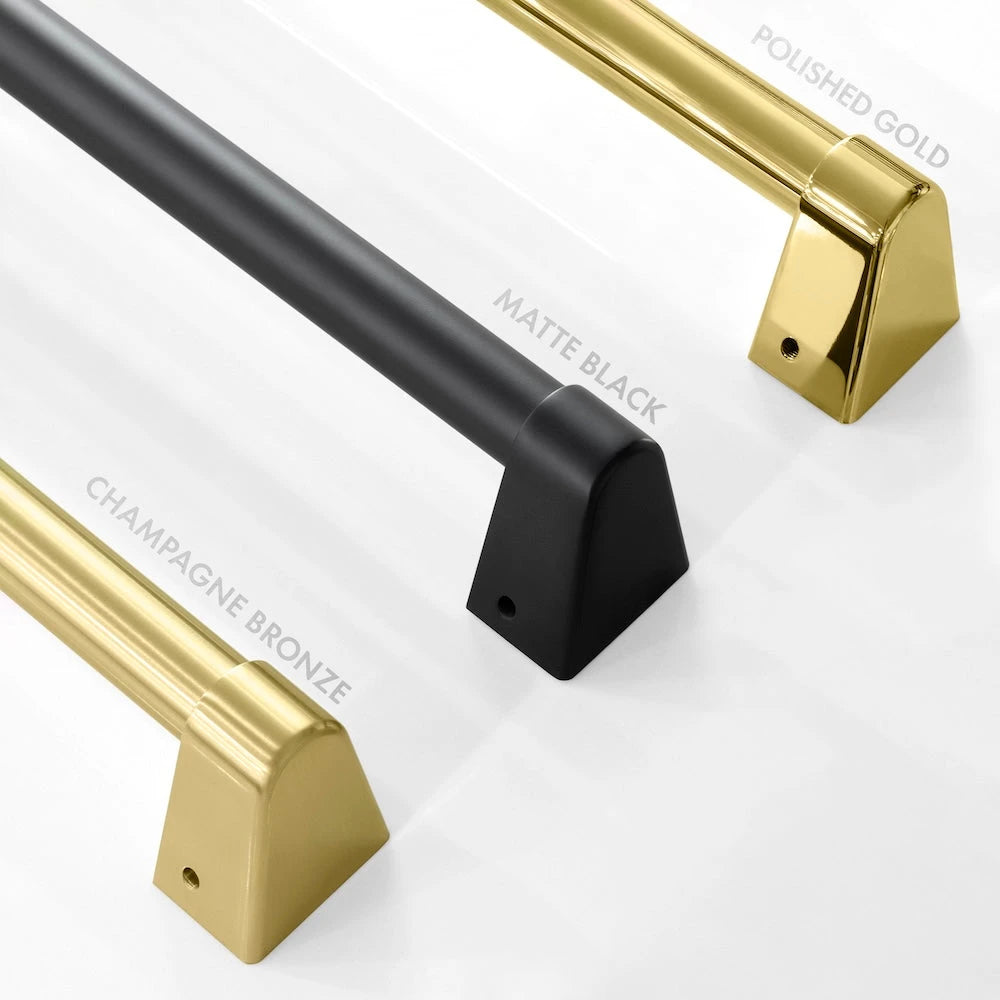

Autograph Edition Series
Enjoy a timeless look with a luxurious Matte Black accent handle, giving your Touchstone Ice Maker an elegant, unmatched style -
Crystal Clear Ice Cubes
Innovative ice-making technology creates restaurant-quality crystal clear cubes that won’t cluster together or dilute drinks -
Superbly Clear and Transparent
Clear ice cubes are carefully angled in size and supremely transparent due to slow-freezing technology that removes air bubbles and other impurities -
High-Quality Ice Cubes
Enjoy high-quality cocktails, soft drinks, mocktails, cold brews, ice water, and more with clear cubes that melt evenly thanks to increased surface areas -
Outdoor Compatible
A fully wrapped 430-grade stainless steel exterior with an anti-sweat and waterproof design is compatible with outdoor installation amid ambient temperatures of 50–110°F -

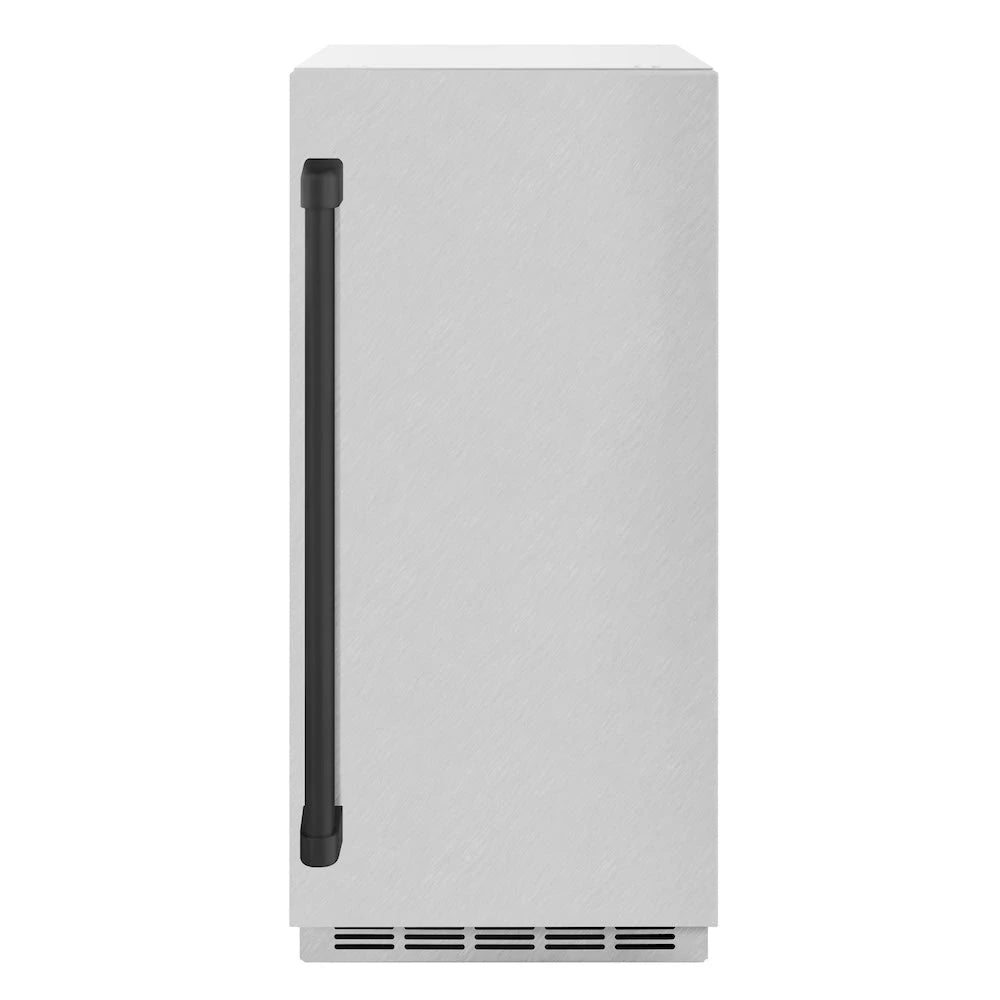

Custom Door Finish
Outfit your ZLINE Touchstone Ice Maker with a beautiful ZLINE Satin Stainless Steel door and a professional handle that complements any style -
Multiple Cube Sizes
Craft ice-cold drinks for all ages thanks to an easy-to-use setting that offers 6 different cube sizes, with each cycle creating 40 clear cubes -

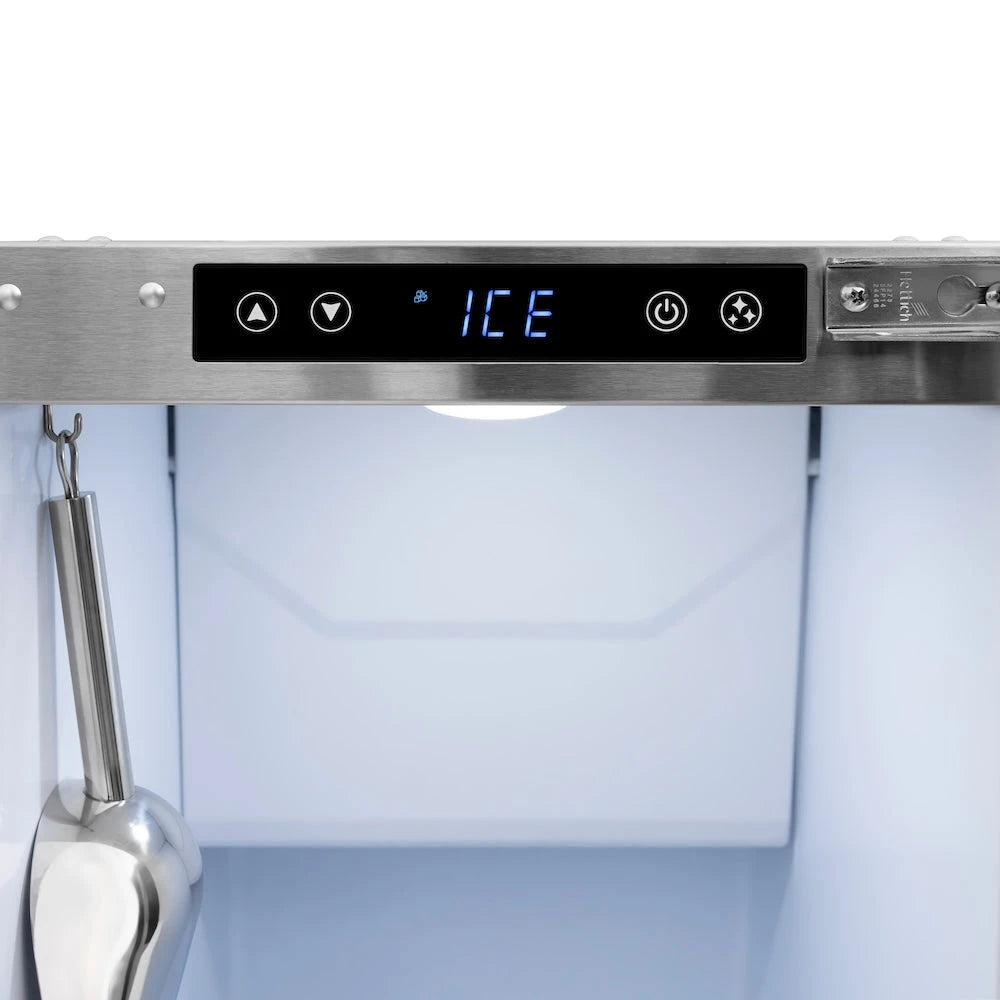

Touchscreen Display
Quickly change settings, activate a timed ice-making mode, and engage a child lock for additional safety with a state-of-the-art LED touchscreen -
Factory Installed Drain Pump
A high-caliber sealed drain pump with a 6-foot hose creates installation flexibility by giving customers options on where to drain water -

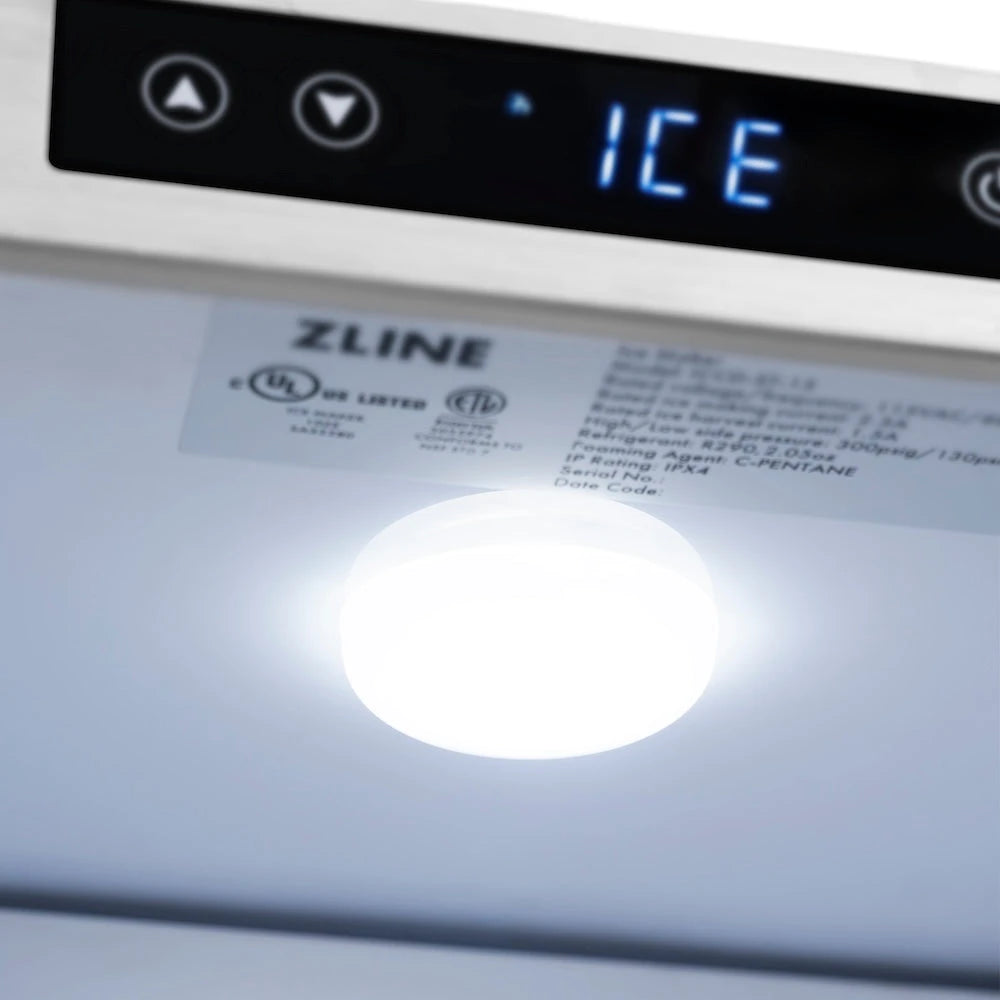

LED Illumination
Illuminate your expansive ice collection with 1 cool white LED light inside the appliance that turns off when the door closes -

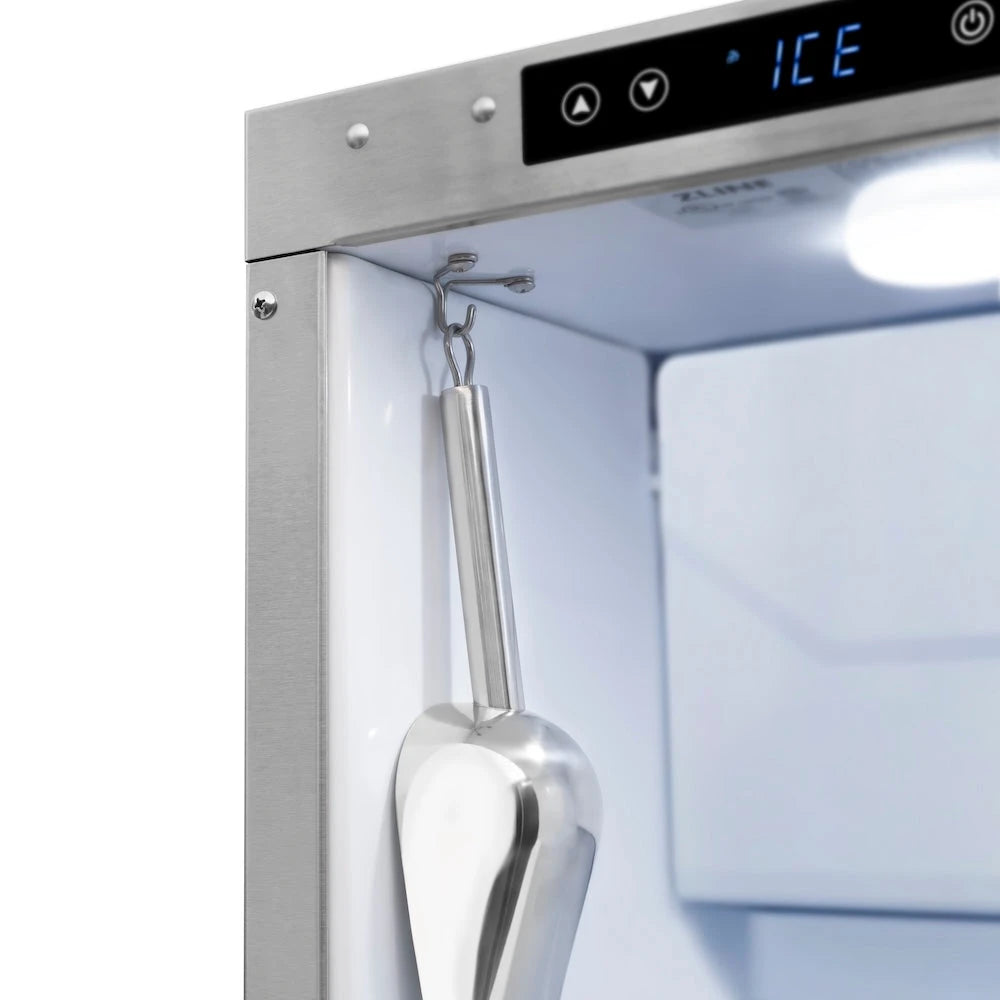

Durable Ice Scoop
Easily gather cubes for multiple beverages at once with a stainless steel ice scoop that’s stored on a convenient hook inside the appliance -
Water Filter Included
An integrated water filtration system eliminates impurities for perfectly shaped cubes; filters should be replaced every 6 months -
Cleaning Cycle
Activate a specialized 30-minute cleaning cycle with the simple touch of a button on the ice maker’s convenient control panel -
Fast Ice-Making Mode
Eliminate stress while entertaining guests by activating an ultra-quick Fast Ice-Making Mode -
Seamless Integration
A precise zero-clearance design matched with an easy-to-install anti-tip device allows for flush built-in installation into any undercounter setting -
ENERGY STAR® Rated
Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system -
Sabbath Mode
A convenient Sabbath Mode enables optimal energy efficiency for those of particular faiths during use on the Sabbath and holidays -

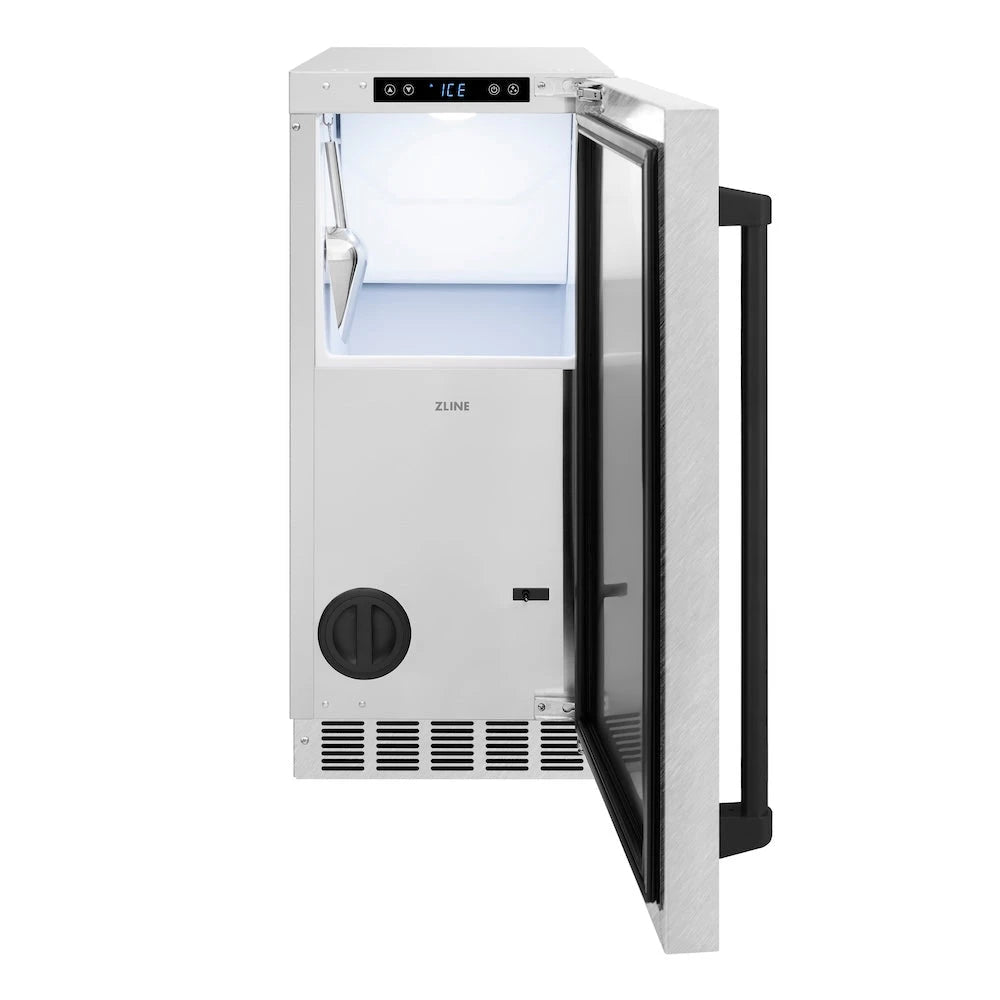

Reversible Door
An easy-to-switch reversible door with articulating soft-closing hinges provides additional installation flexibility -
Additional Installation Required
Purchase of an ice maker water line kit that includes a 1/4" OD compression fitting is required to complete installation -
Warranty
Enjoy peace of mind with a 2-year parts and service warranty and a 5-year parts-only warranty on the factory-installed drain pump
Manuals & Guides
Key Features
High-Capacity Production
Store up to 26 pounds of ice and create up to 75 pounds daily with an ice maker that includes an auto shut-off feature when the bin is full
Indoor & Outdoor Compatibility
A fully wrapped 430-grade stainless steel exterior with an anti-sweat and waterproof design is compatible with outdoor installation amid ambient temperatures of 50–110°F.
Integrated Panel & Panel-ready Doors
Easily match your cabinetry or stand out with a timeless option like stainless steel, black stainless steel, and more.
High-capacity Production
Store up to 26 pounds of ice with an ice maker that includes an auto shut-off feature when the bin is full.
