Product Details for ZLINE GOU242
Technical Details
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 46.63 Inch |
| Shipping Height | 22.75 Inch |
| Shipping Length | 41 Inch |
| Shipping Weight | 145 lbs |
| Total of Shipping Weight | 145 lbs |
| Source | Calculation |
Dimensions & weight
| Width | 41.63 Inch |
| Height | 17.75 Inch |
| Depth | 36 Inch |
| Weight | 105 lbs |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 15.39 ft³ |
| Dimensional Weight | 191.36 Ibs |
| Total of Cubes | 15.39 ft³ |
| Total of Dimensional Weight | 191.36 Ibs |
Dimensions
| Dimensions: | 41.625 in. W x 36 in. D x 17.75 in. H |
| Product Depth (in.): | 36 |
| Product Width (in.): | 41.625 |
| Product Height (in.): | 17.75 |
| Cutout Dimensions: | 42 in. W x 36.25 in. D x in. H |
Details
| Appliance Category: | Undercab RH |
| Color/ Finish Family: | Stainless Steel |
| Airflow (Q/L/M/H): | 800/1200/1600/2000 |
| Motor: | High Performance 2000 CFM Dual Motor |
| Filters: | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Number of Lights: | 4 |
| Number of Speeds: | 4 |
| Button Panel: | Rotary Knob Control (4-Speed Fan Control Per Motor/Dimmable Lights) |
| Product Weight (lb.): | 105 |
| Decibels: | 53/56/60/66 |
| Duct Size: | 8 x2 |
| Voltage: | 120 |
| Amps: | 4.8 |
Warranties & certifications
| Certifications and Listings: | ETL Listed |
| Manufacturer Warranty: | 3 year parts, life-time motor warranty |
Description

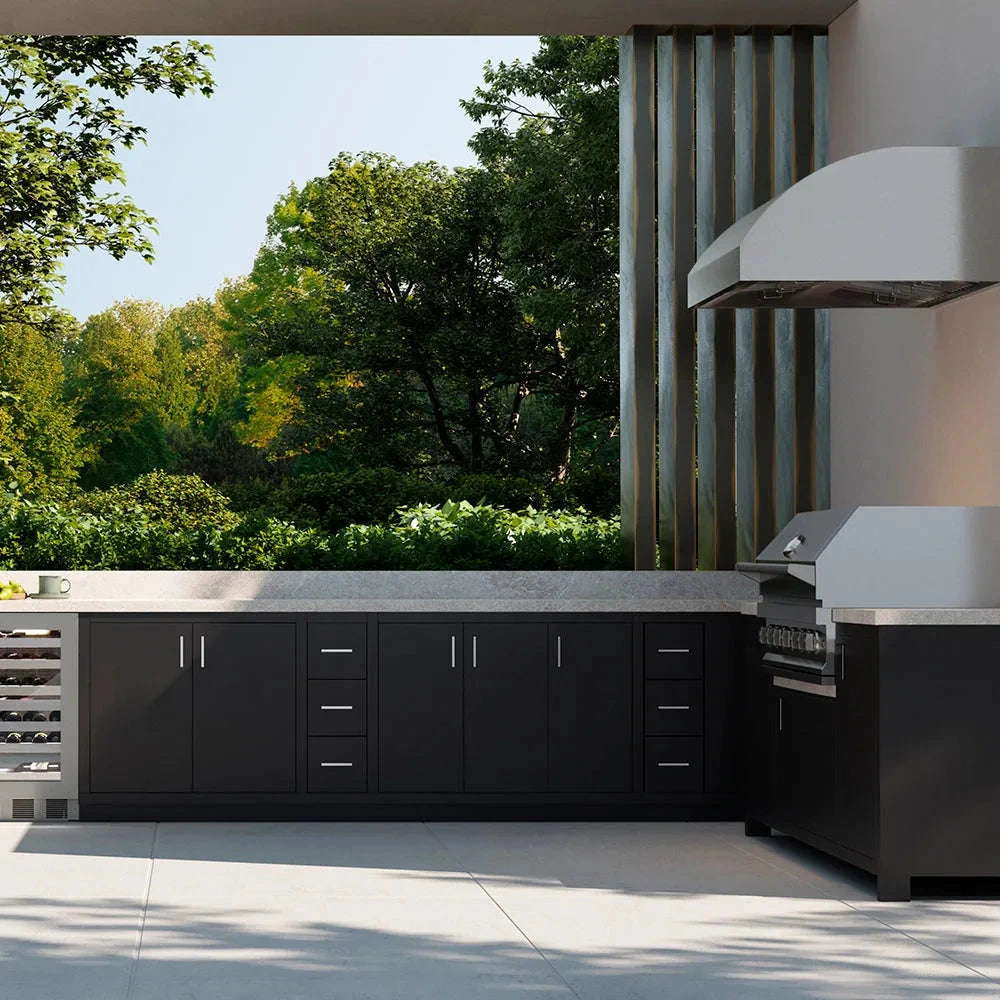

Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE 42 in. Under Cabinet Outdoor Grill Hood (GOU2-42) is crafted for those who demand professional-grade results beyond the kitchen. Designed to integrate into any custom patio or outdoor setting, this powerful grill hood stands up to weather conditions while efficiently reducing smoke and odors. Whether hosting a backyard barbecue or an intimate alfresco dinner, achieve ZLINE Attainable Luxury® with ZLINE Grill Hoods.
Product Features
-

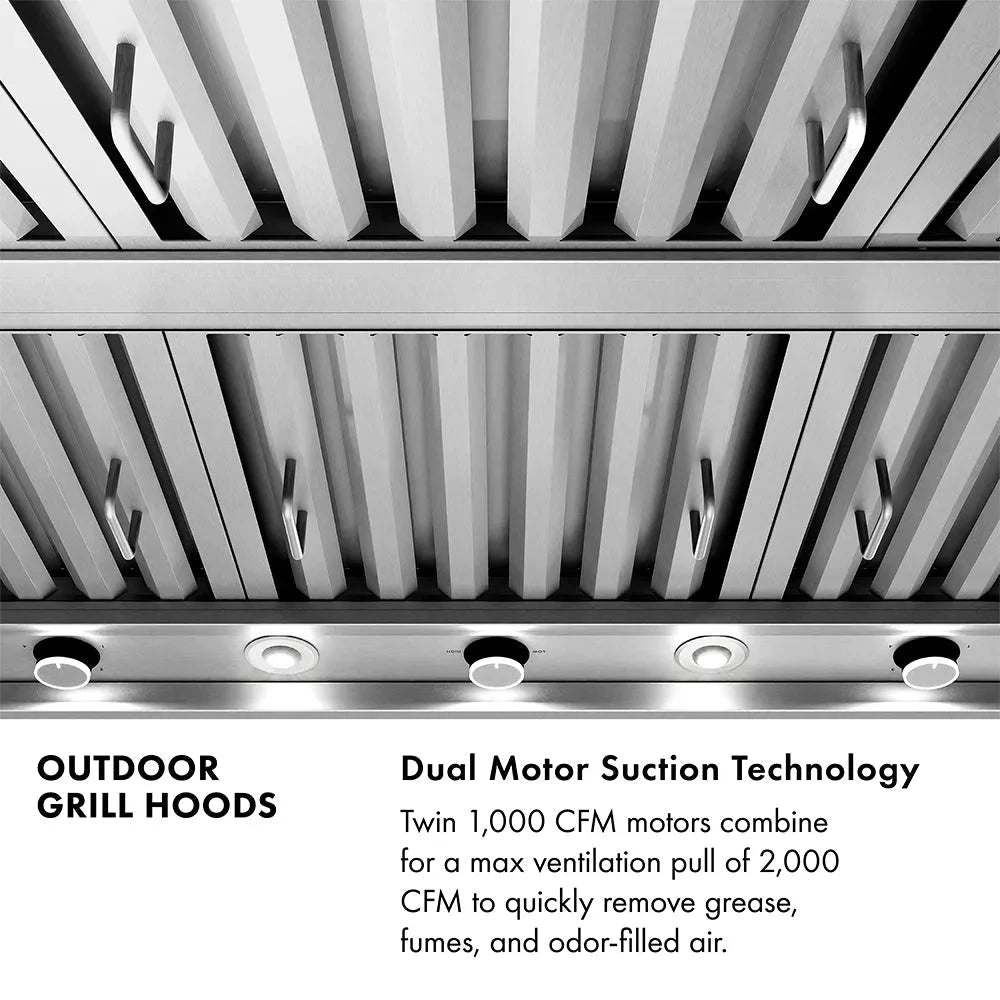

Dual Motor Suction Technology
Twin 1,000 CFM motors combine for a max ventilation pull of 2,000 CFM to smoothly move grease, fumes, and odor-filled air away from your outdoor cooking area -
Expansive Ventilation Zone
At 36 inches deep, ZLINE Grill Hoods help you conquer the art of open-air cooking thanks to large surface areas that help capture fast-rising smoke levels consistent with outdoor cooking devices -
Powerful LED Lighting
ZLINE Under Cabinet Outdoor Grill Hoods are equipped with 4 energy-efficient multi-directional LED lights to illuminate cooking surfaces any time day or night -
Push Knob Controls
Adjust fan speeds and light brightness with 3 knobs that easily push in and out and are designed to withstand extreme heat and unpredictable weather conditions -
4-Speed Fan Control
No matter if you’re grilling a single steak or preparing a wide array of barbecue goods for a big gathering, choose the appropriate air flow among 400/600/800/1000 CFM on each motor that’s best for any cooking situation -
Stainless Steel Exterior
An expertly welded 304-grade stainless steel finish features a premium alloy of iron and carbon, ensuring optimal corrosion resistance for a durable and bold look -

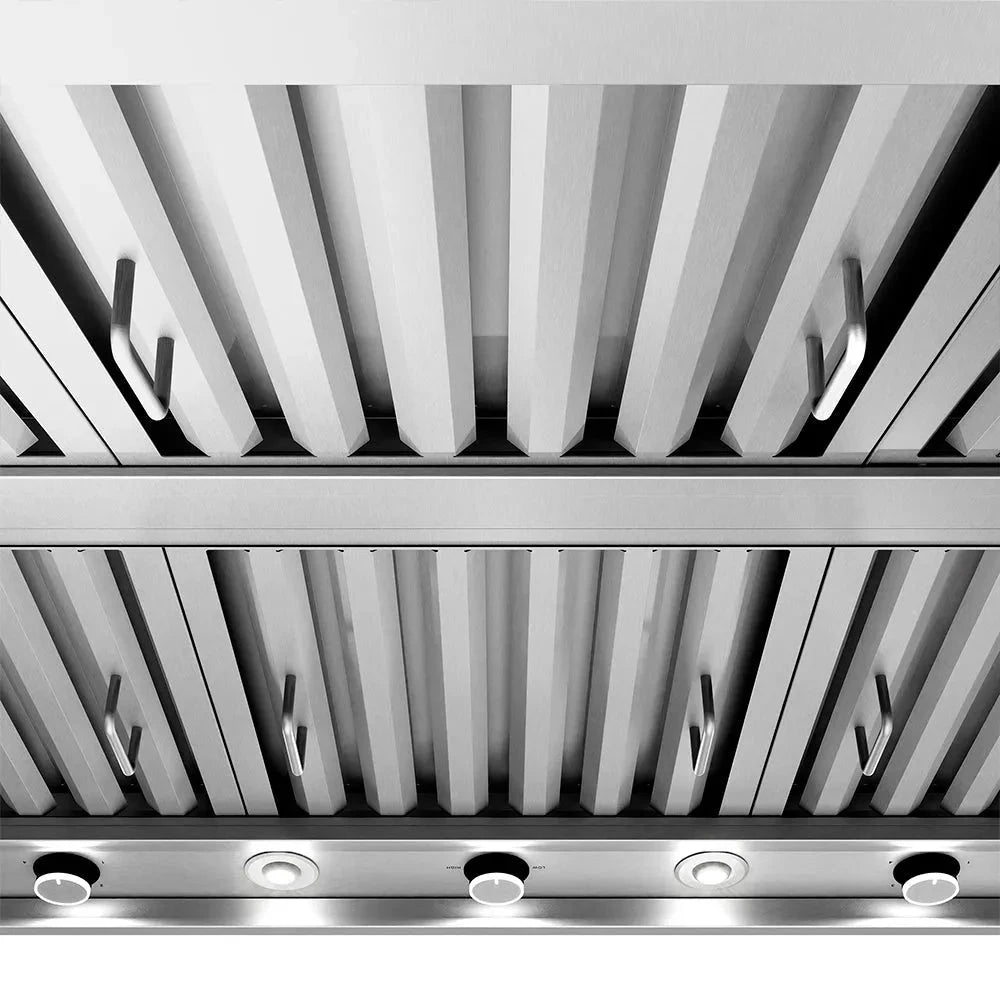

Minimal Cleaning
This outdoor grill hood includes 6 stainless steel, dishwasher-safe baffle filters that are easy to remove and replace for regular maintenance -
Weather-Proof Design
Combining superior ventilation with a sleek, long-lasting design, ZLINE Grill Hoods deliver the perfect combination of functionality and style to handle any weather scenario -
Easy Installation
Whether integrated into a rustic stone patio or a modern outdoor kitchen, ZLINE Grill Hoods come with comprehensive instructions and hardware to ensure seamless set-up -
Fixed Vent Ductwork
This grill hood is designed to fit standard (circular) 8 in. ductwork, with dual transition pieces for dual ductwork located at the top for easy external venting -
Warranty
ZLINE grill hoods carry a 3-year parts-only warranty, in addition to a lifetime fan motor warranty
Manuals & Guides
Key Features
Lifetime Motor Warranty
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
Dishwasher Safe Baffle Filters
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
Built-in Led Lighting
Easily illuminate your cooking space with bright built-in LED lights
