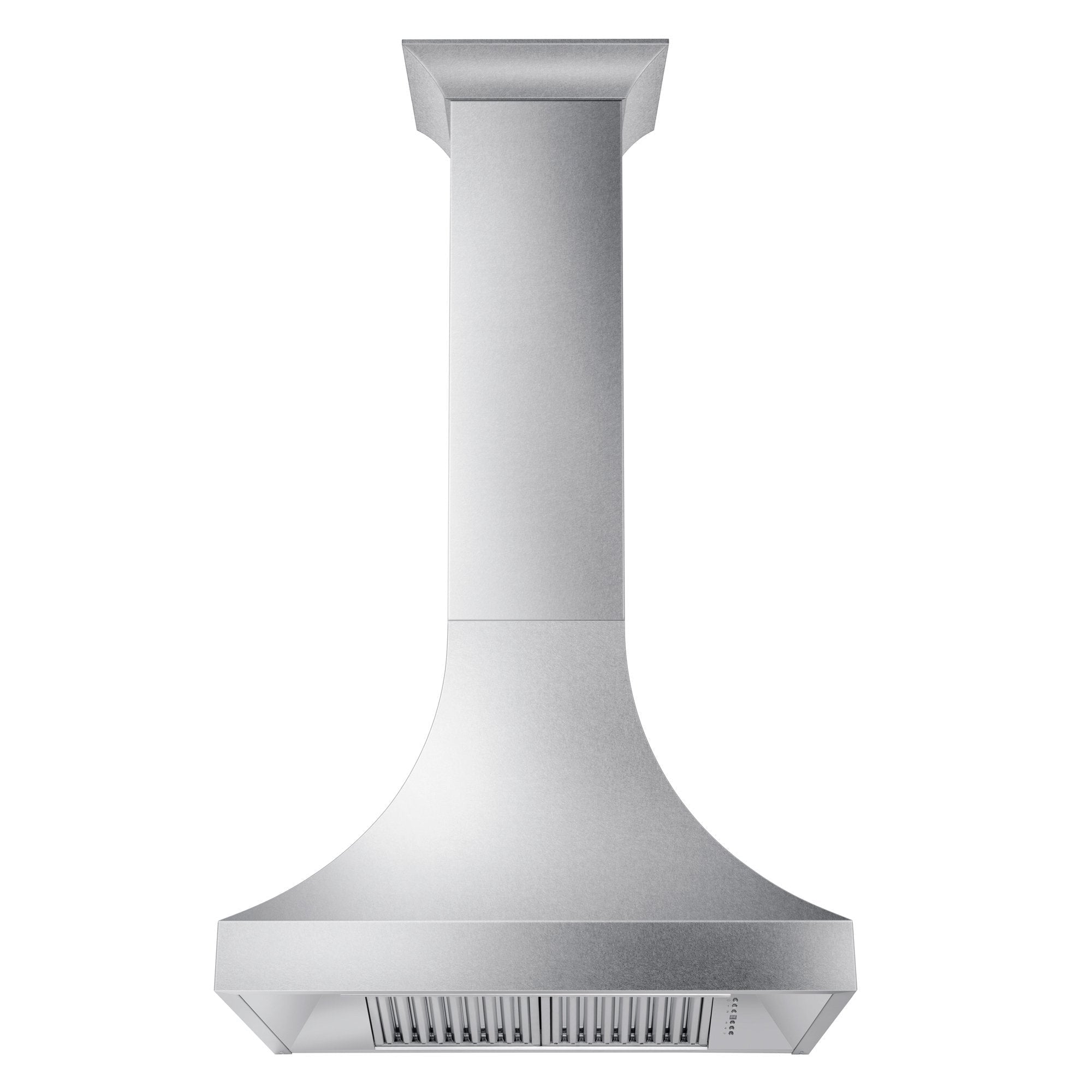

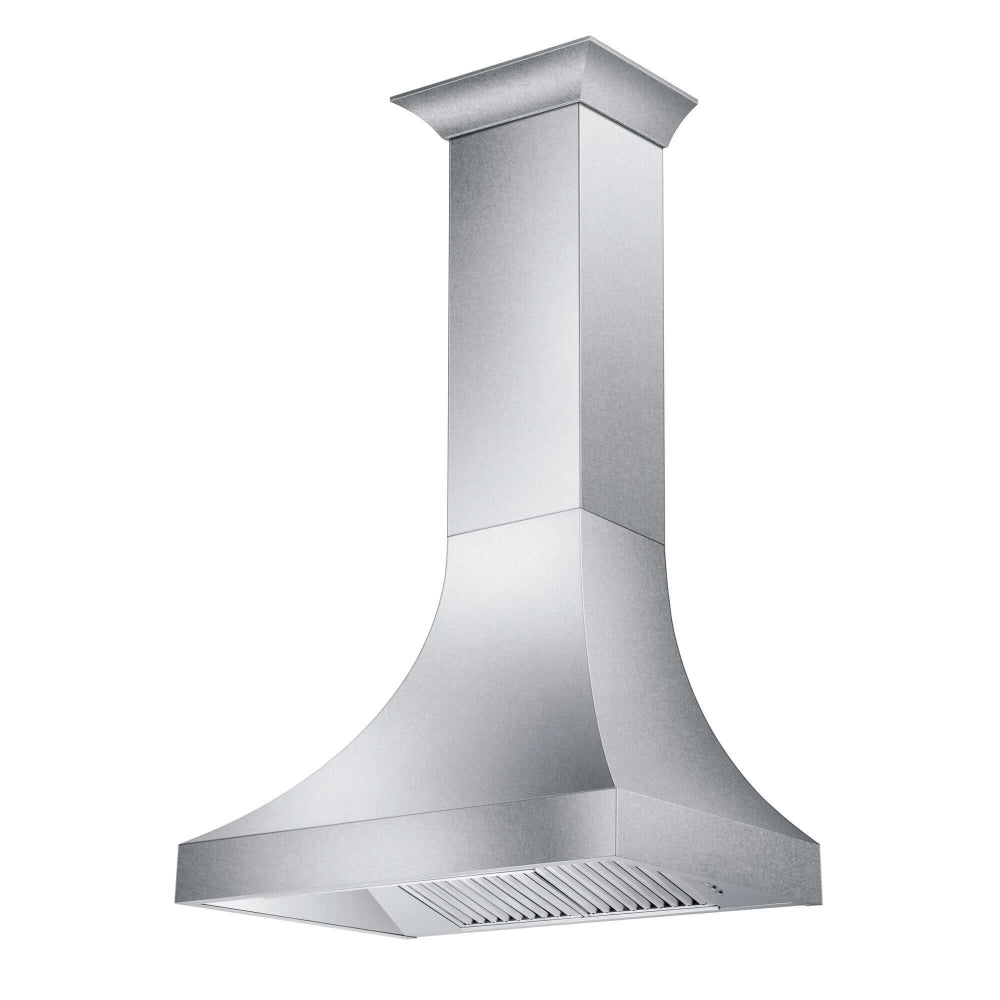

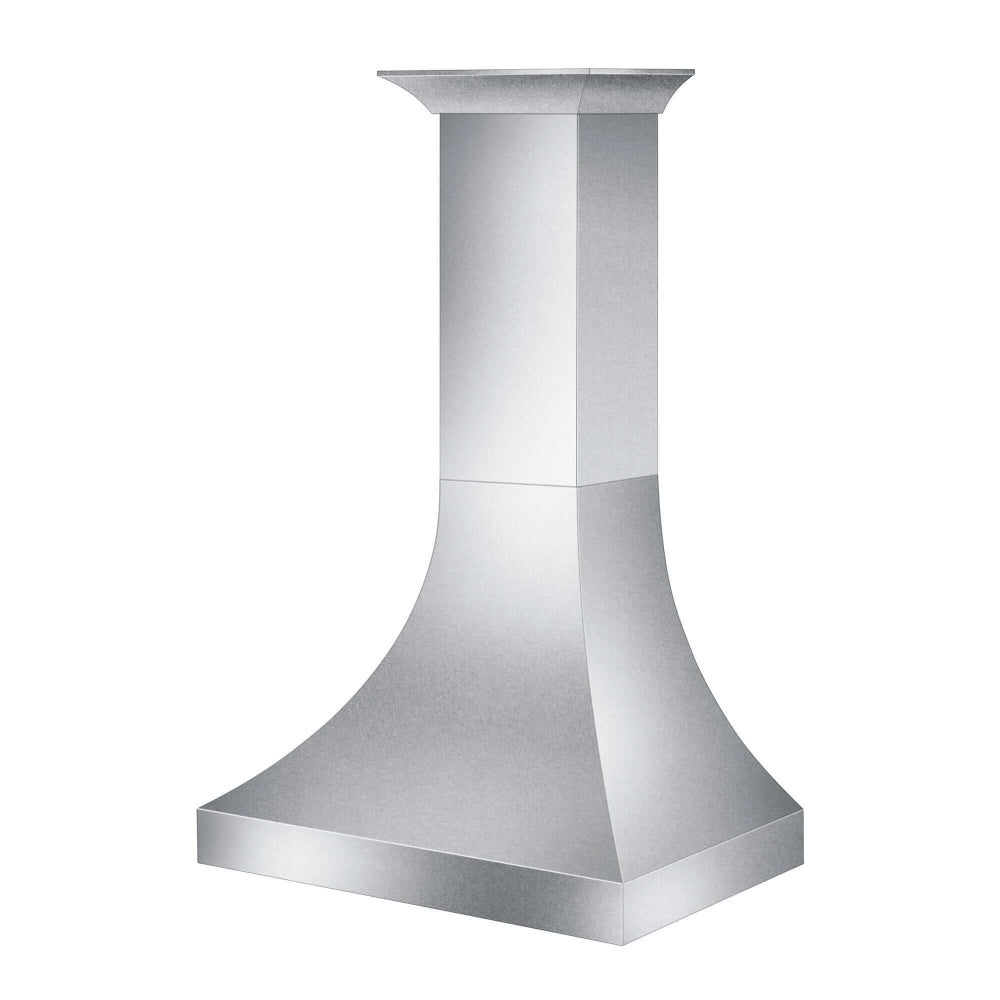

ZLINE 8632S48 48 In. Designer Series Satin Stainless Steel Ducted Wall Range Hood
Sale price
$2,319.99
Regular price
$3,270.98
Save
$950.99
/ 29% OFF
In Stock
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$49.99
-
$83.99
-
$131.99
-
$195.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$2,319.99
Regular price
$3,270.98
Save
$950.99
/ 29% OFF
Product Details for ZLINE 8632S48
Technical Details
Other
| Venting Size | 8632S-30: 6" Outlet (Transition piece to round ducting included); 8632S-36: 6" Outlet (Transition piece to round ducting included); 8632S-42: 8" Outlet (Transition piece to round ducting in |
| Airflow (Q/L/M/H) | 8632S-30: 260/340/420/500; 8632S-36: 260/340/420/500; 8632S-42: 280/420/560/700; 8632S-48: 280/420/560/700; |
| Lighting | 8632S-30: 2 Directional LED Lights (3-Watt); 8632S-36: 2 Directional LED Lights (3-Watt); 8632S-42: 2 Directional LED Lights (3-Watt); 8632S-48: 4 Directional LED Lights (3-Watt); |
| Noise Level | 8632S-30: 20/29/34/41 (Decibels); 8632S-36: 20/29/34/41 (Decibels); 8632S-42: 30/41/49/52 (Decibels); 8632S-48: 30/41/49/52 (Decibels); |
| Voltage | 110V/60HZ |
| Motor | 8632S-30: High Performance 500 CFM/4-Speed Motor; 8632S-36: High Performance 500 CFM/4-Speed Motor; 8632S-42: High Performance 700 CFM/4-Speed Motor; 8632S-48: High Performance 700 CFM/ |
| Mount Type | Wall Mounted |
| Speeds | 4 Speeds |
| Material | DuraSnow® Stainless Steel |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Warranty | 3 Year Parts Warranty |
| Features | Model No. 8632S-30, 8632S-36, 8632S-42, 8632S-48; Chimney Extension: Model No. KBUU-E; |
| UPC | 8632S-30: 817299029922; 8632S-36: 817299029939; 8632S-42: 817299029946; 8632S-48: 817299029953; |
| Certifications | ETL Listed |
| Venting Size | 8632S-30: 6" Outlet (Transition piece to round ducting included); 8632S-36: 6" Outlet (Transition piece to round ducting included); 8632S-42: 8" Outlet (Transition piece to round ducting incl |
| Motor | 8632S-30: High Performance 500 CFM/4-Speed Motor; 8632S-36: High Performance 500 CFM/4-Speed Motor; 8632S-42: High Performance 700 CFM/4-Speed Motor; 8632S-48: High Performance 700 CFM/4-Spee |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Source | Calculation |
| Shipping Width | 53 Inch |
| Shipping Height | 31.8 Inch |
| Shipping Length | 28.8 Inch |
| Shipping Weight | 92 lbs |
| Total of Shipping Weight | 92 lbs |
Dimensions & weight
| Width | 48 Inch |
| Height | 26.8 Inch |
| Weight | 52 lbs |
| Depth | 23.8 Inch |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 17.72 ft³ |
| Dimensional Weight | 220.26 Ibs |
| Total of Cubes | 17.72 ft³ |
| Total of Dimensional Weight | 220.26 Ibs |

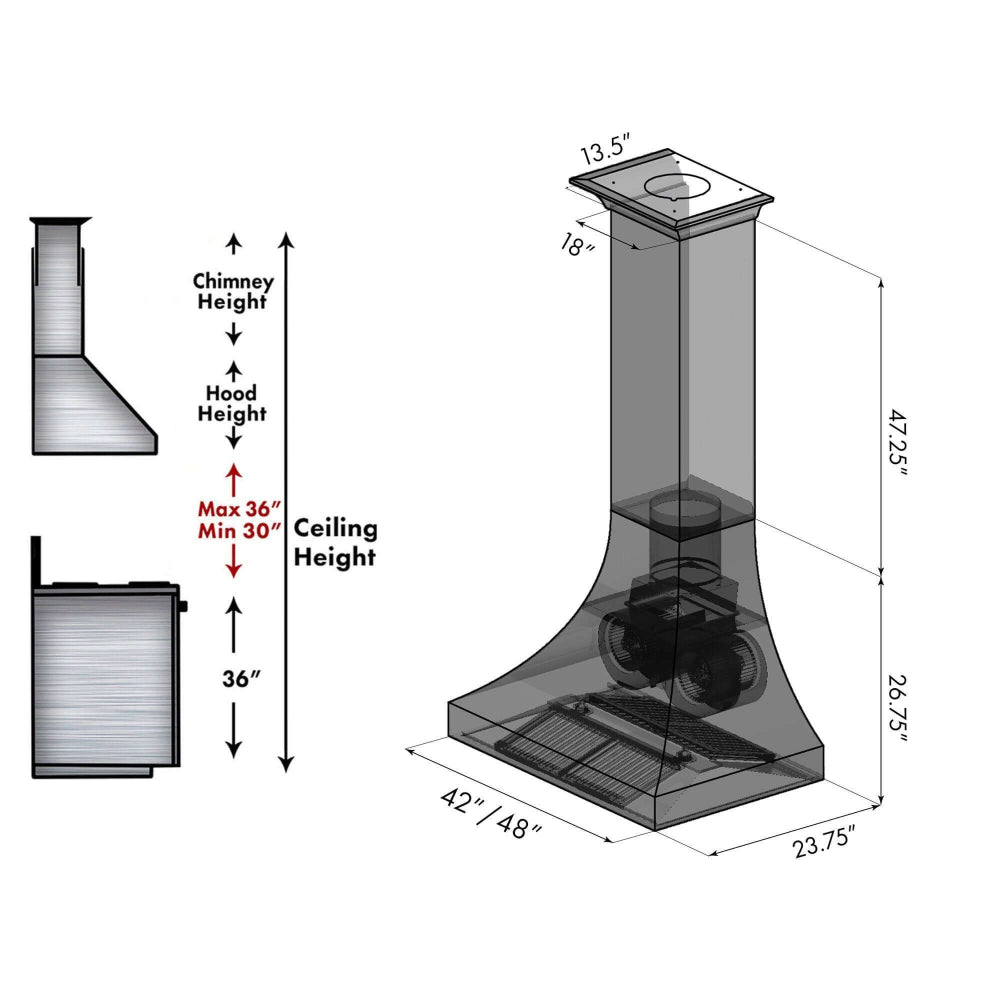

Dimensions
| Dimensions: | 48 in. W x 23.75 in. D x 26.75 in. H |
| Product Depth (in.): | 23.8 |
| Product Width (in.): | 48.0 |
| Product Height (in.): | 26.8 |
| Chimney Dimensions: | 11.75" W x 10.75" D x 47.25" H |
Details
| Appliance Category: | Wall Mount RH |
| Color/ Finish Family: | Satin Stainless Steel |
| Airflow (Q/L/M/H): | 280/420/560/700 |
| Motor: | High Performance 700 CFM/4-Speed Motor |
| Filters: | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type: | Wall Mount |
| Number of Lights: | 4 |
| Number of Speeds: | 4 |
| Control Type: | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel: | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.): | 52 |
| Decibels: | 30/41/49/52 |
| Duct Size: | 8 |
| Voltage: | 120 |
| Amps: | 5 |
Warranties & certifications
| Certifications and Listings: | ETL Listed |
| Manufacturer Warranty: | 3 year parts, life-time motor warranty |
Description

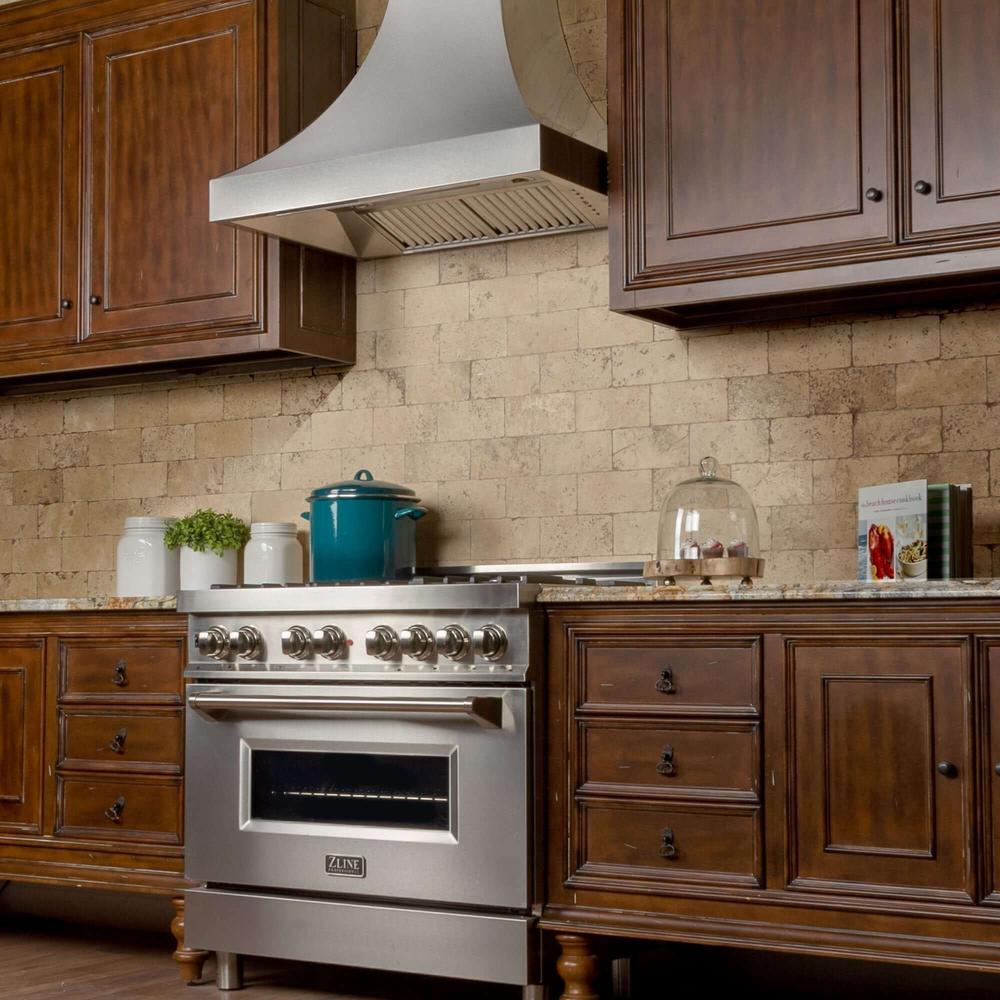

Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE 48 in. Designer Series Satin Stainless Steel Ducted Wall Range Hood (8632S-48) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
Product Features
-
Convenient Control Panel
Easy-to-use push button controls let you easily adjust fan speeds and lighting options -
4-Speed Fan Control
Choose the appropriate air flow among 280/420/560/700 CFM for your cooking situation -
Powerful Ventilation
The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area -

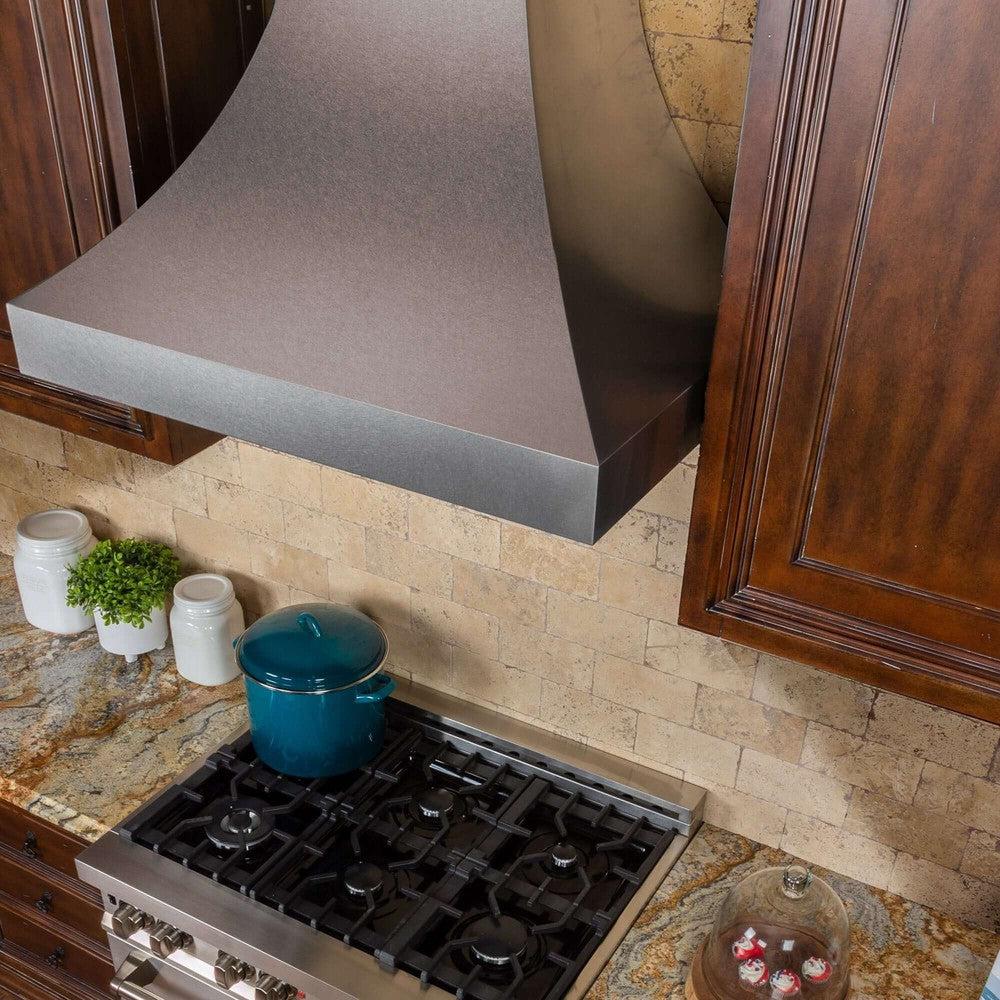

Satin Stainless Steel Finish
ZLINE's Satin Stainless Steel finish is a circular, non-directional, professionally styled stainless steel that is rust, scratch, and fingerprint-resistant -
A Revolutionary Design
Created to combat the ongoing problem of stainless steel smudging, Satin Stainless Steel has a deeper, metallic gray hue that elevates your kitchen’s potential -
Minimal Cleaning

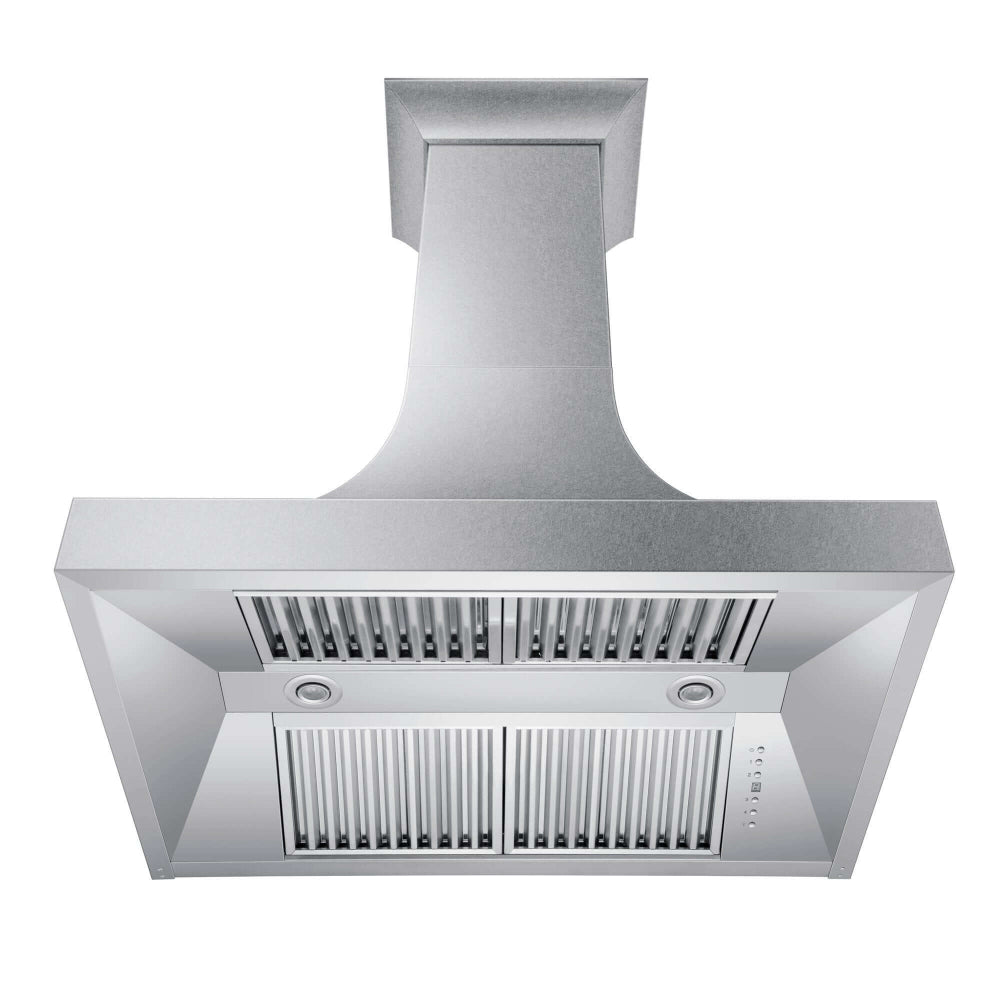

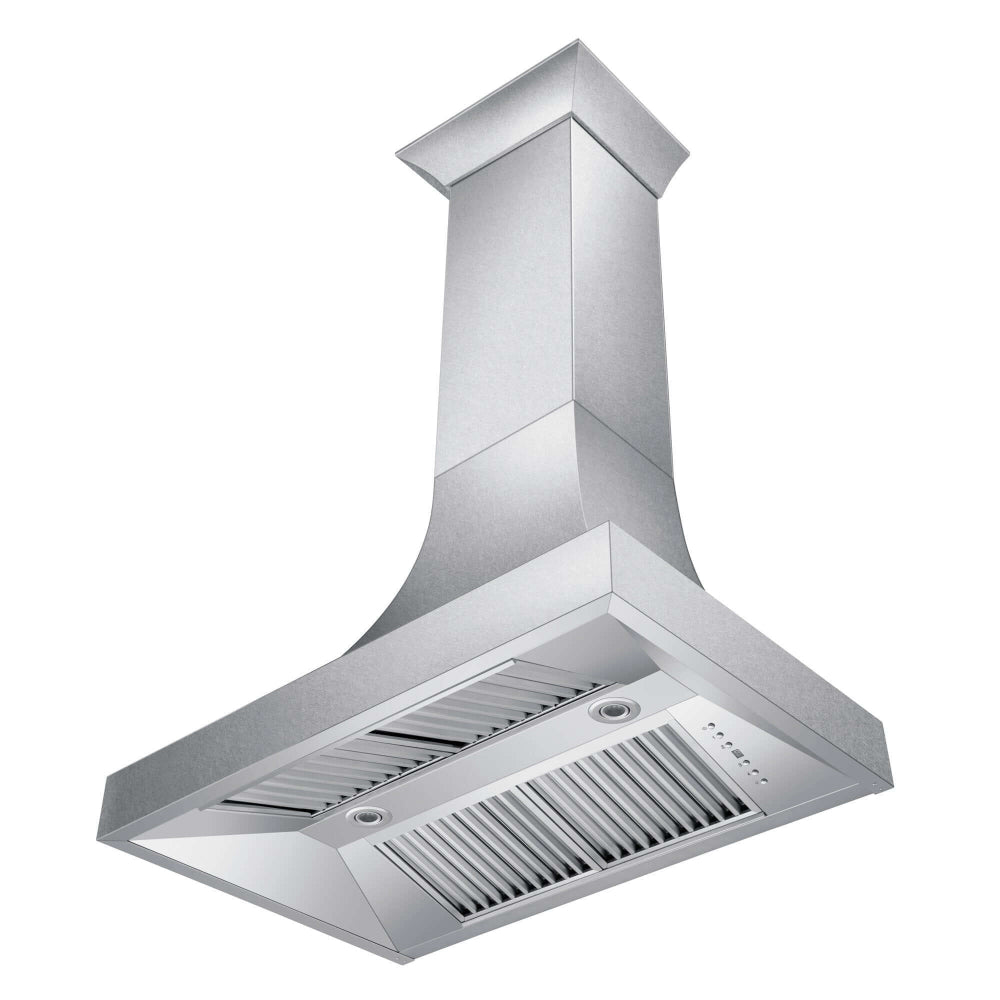

This range hood includes dishwasher-safe stainless steel baffle filters that are simple to clean -
LED Lighting
This ZLINE range hood comes equipped with 4 energy-efficient LED lights to illuminate the cooking surface below -
Easy Installation
ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting -
Warranty
ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty -
Additional Assembly Required
This product ships in multiple boxes and will require minimal assembly upon arrival
Manuals & Guides
Key Features
Lifetime Motor Warranty
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
Dishwasher Safe Baffle Filters
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
Built-in Led Lighting
Easily illuminate your cooking space with bright built-in LED lights
