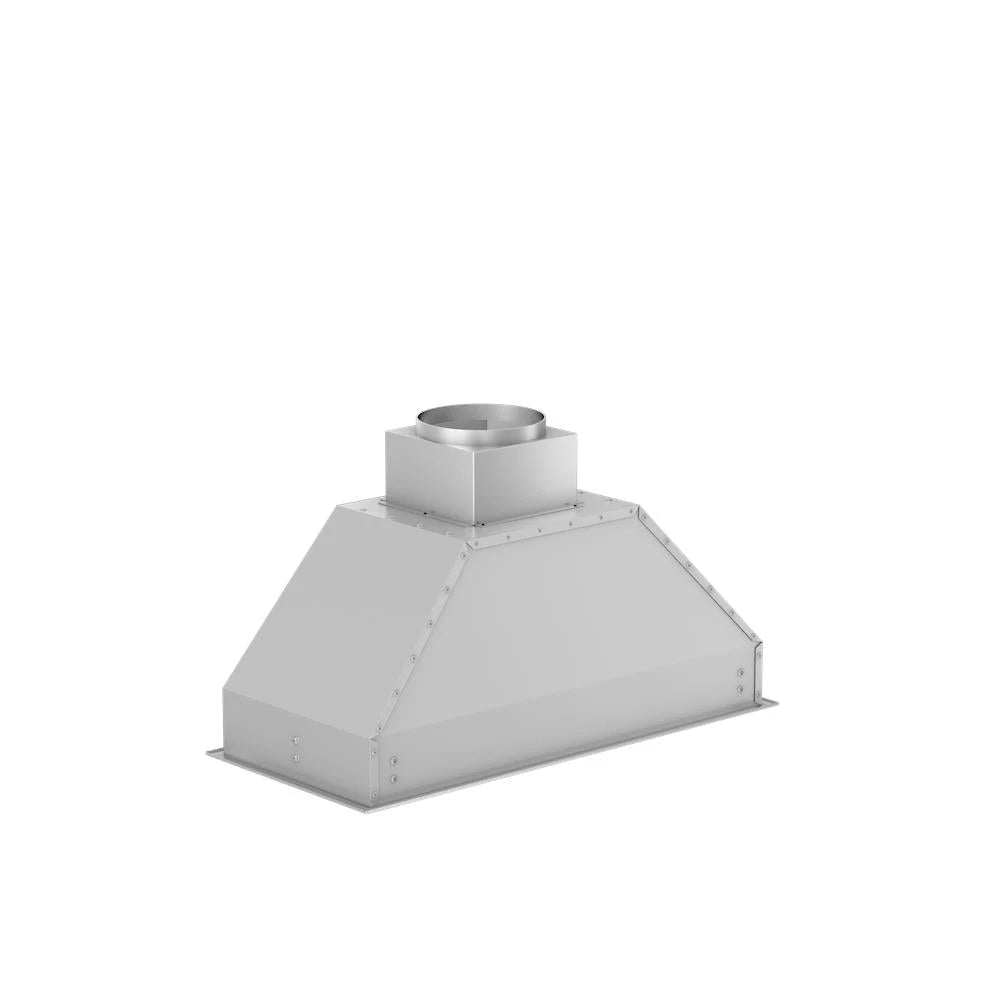

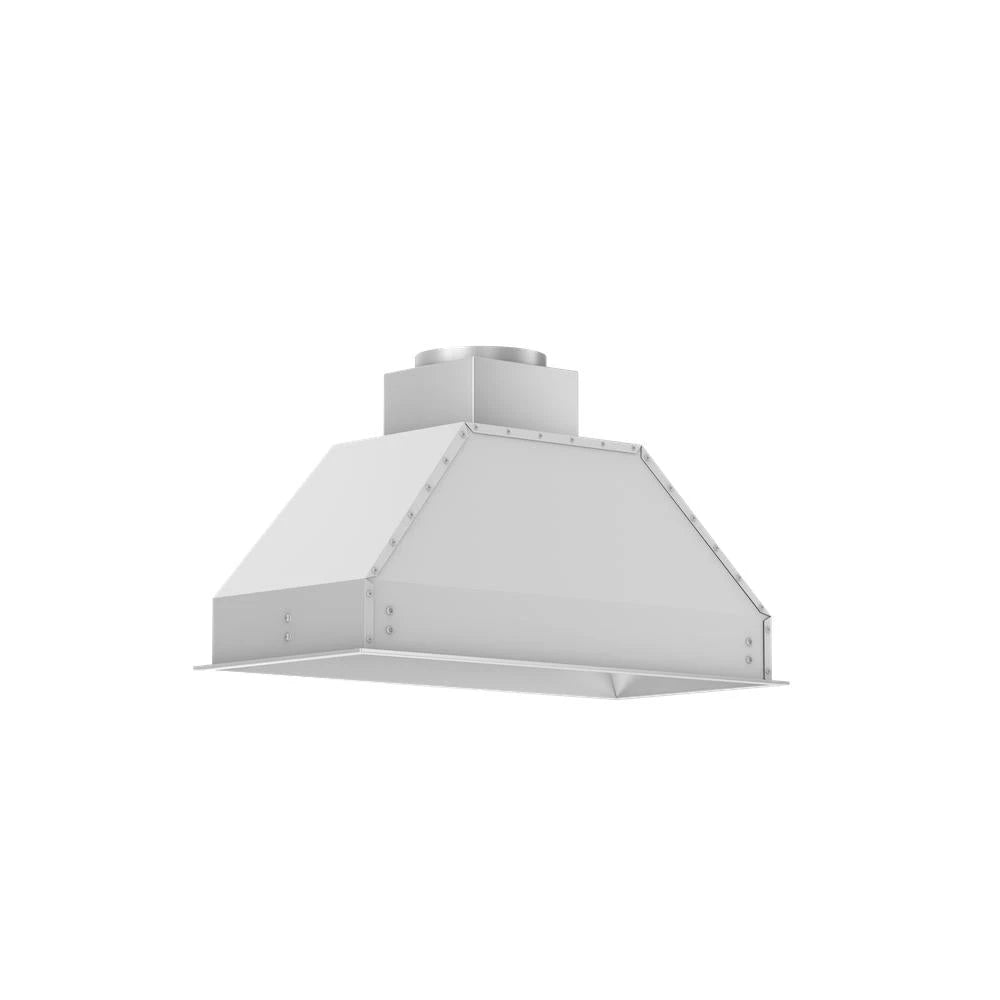

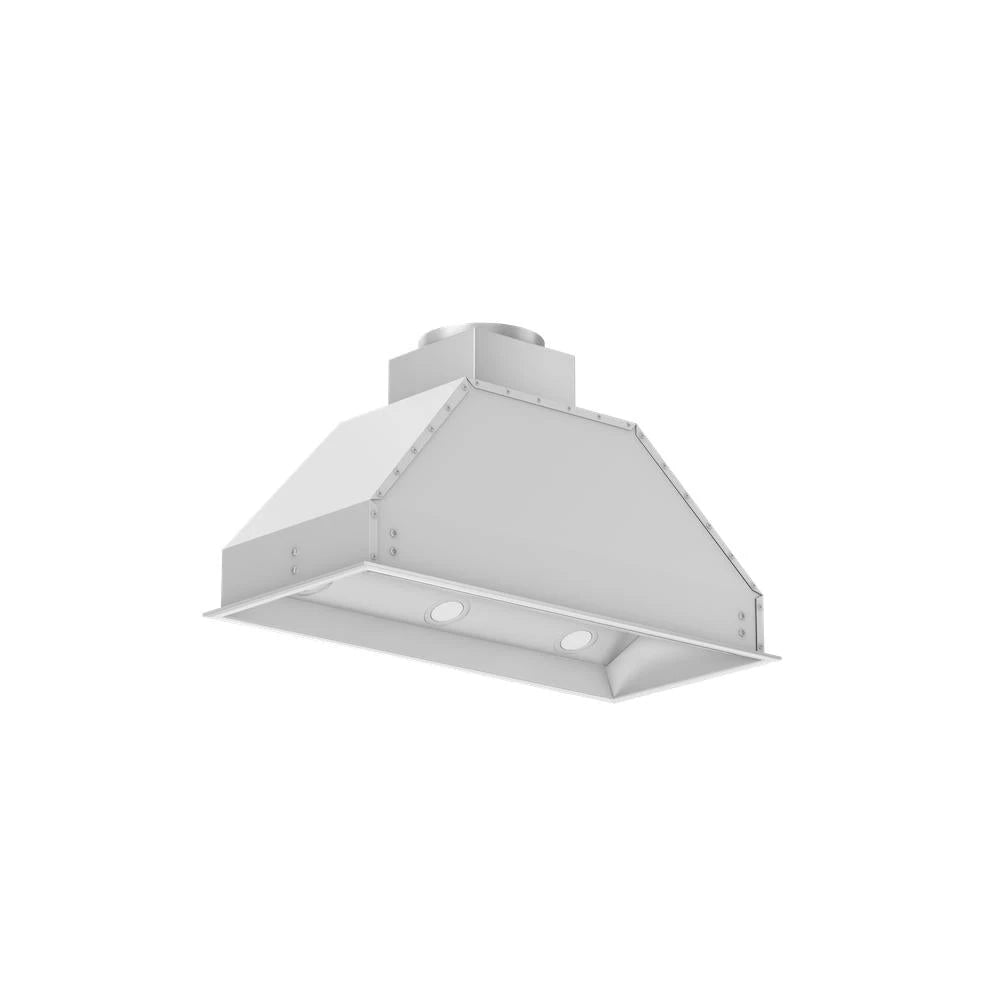

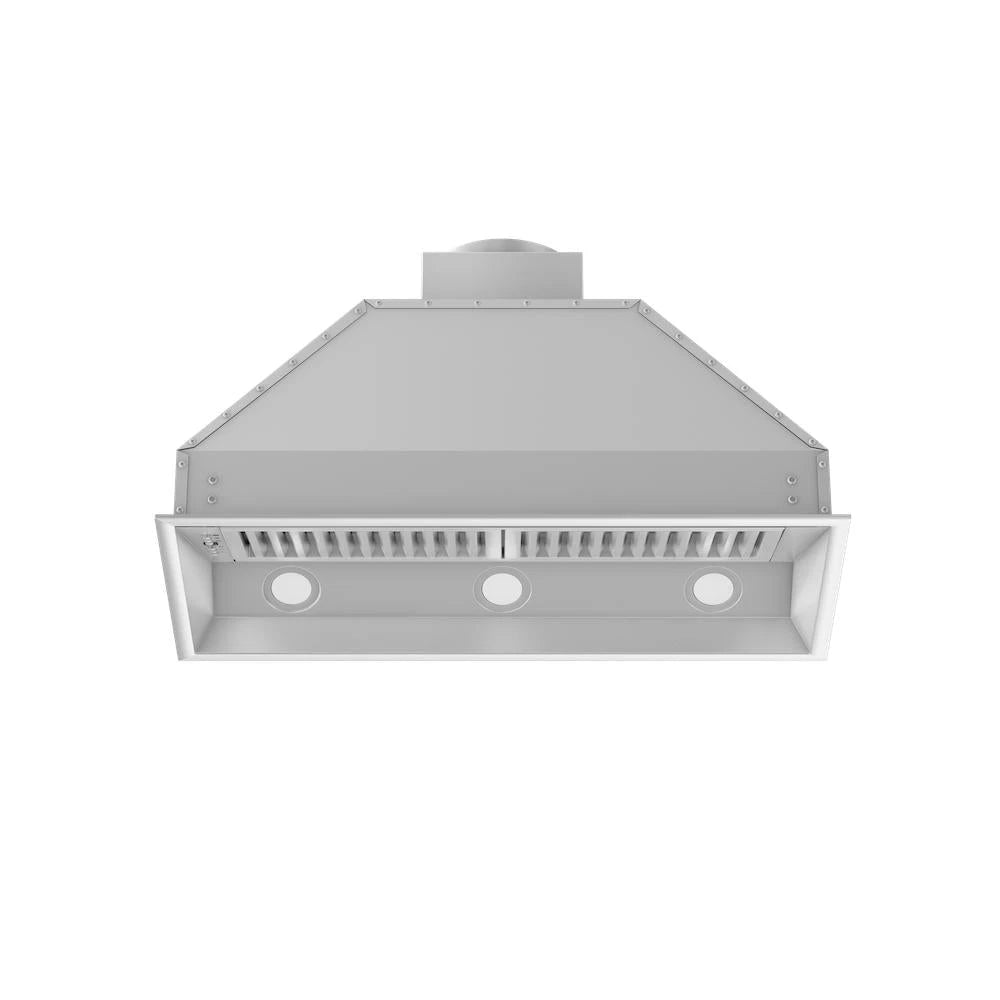

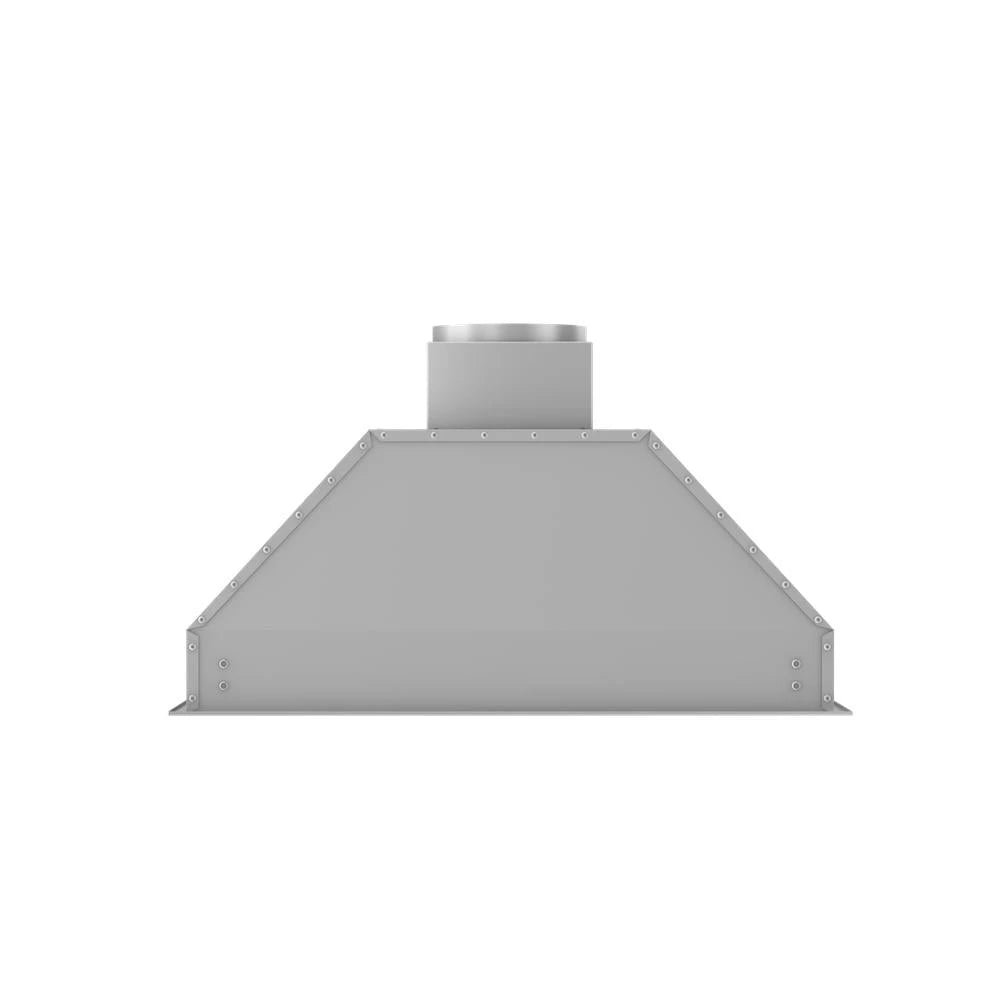

ZLINE 69534 34 In. Ducted Wall Mount Range Hood Insert In Stainless Steel Brushed 430 Stainless Steel

Quick Specification More details

Width:
34"
Depth:
15"
Height:
14.06"
Type:
Wall & Chimney Hoods

About this product

Lifetime Motor Warranty
Dishwasher Safe Baffle Filters
Built-in Led Lighting

In Stock

On Sale

SKU: 69534 | UPC: 855187005023

ZLINE 69534 34 In. Ducted Wall Mount Range Hood Insert In Stainless Steel Brushed 430 Stainless Steel

$586.49 ~~$767.98~~ Save $181.49 / 23% OFF

Quantity:

In Stock

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
34"
Depth:
15"
Height:
14.06"
Type:
Wall & Chimney Hoods

About this product

Lifetime Motor Warranty
Dishwasher Safe Baffle Filters
Built-in Led Lighting

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

$586.49 ~~$767.98~~ Save $181.49 / 23% OFF

Product Details for ZLINE 69534

Technical Details

Warranty

Parts

3 Year

Other

Motor	High Performance 4-Speed Motor
Filters	Stainless Steel Baffle Filters (Dishwasher Safe)
Brand	ZLINE Kitchen and Bath
695-28	28 in. W x 15 in. D x 14 in. H
695-34	34 in. W x 15 in. D x 14 in. H
695-40	40 in. W x 15 in. D x 14 in. H
695-46	46 in. W x 15 in. D x 14 in. H
Venting Size	6" Outlet for 28" Insert and 8" Outlet for all other sizes (Transition piece with backdraft damper to round ducting included)
695-34	3 LED Lights
695-28	2 LED Lights
695-34	280/420/560/700
695-46	4 LED Lights
695-28	120/240/320/400
Speeds	4 Speeds
Control Type	Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Mount Type	Range Hood Insert
Filters	Stainless Steel Baffle Filters (Dishwasher Safe) Warranty
Material	21g #430 Stainless Steel
Voltage	110V/60HZ

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Source	Calculation
Shipping Width	39 Inch
Shipping Height	19.06 Inch
Shipping Length	20 Inch
Shipping Weight	85 lbs
Total of Shipping Weight	85 lbs

Dimensions & weight

Width	34 Inch
Height	14.06 Inch
Weight	45 lbs
Depth	15 Inch

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	4.15 ft³
Dimensional Weight	51.6 Ibs
Total of Cubes	4.15 ft³
Total of Dimensional Weight	51.6 Ibs

Dimensions

Dimensions:	34.0625 in. W x 15 in. D x 14.0625 in. H
Product Depth (in.):	15
Product Width (in.):	34
Product Height (in.):	14.0625

Details

Appliance Category:	Insert Range Hood
Color/ Finish Family:	Brushed 430 Stainless Steel
Airflow (Q/L/M/H):	280/420/560/700
Motor:	High Performance 700 CFM/4-Speed Motor
Filters:	Stainless Steel Baffle Filters (Dishwasher-safe)
Mount Type:	Insert
Number of Lights:	3
Number of Speeds:	4
Control Type:	Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Button Panel:	Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Product Weight (lb.):	45
Decibels:	30/41/49/52
Duct Size:	8
Voltage:	110
Amps:	5

Warranties & certifications

Certifications and Listings:	ETL Listed,CEC Listed
Manufacturer Warranty:	3 year parts, life-time motor warranty

Description

The ZLINE 34 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-34) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
