SKU: KBTT30 | UPC: 817299025061

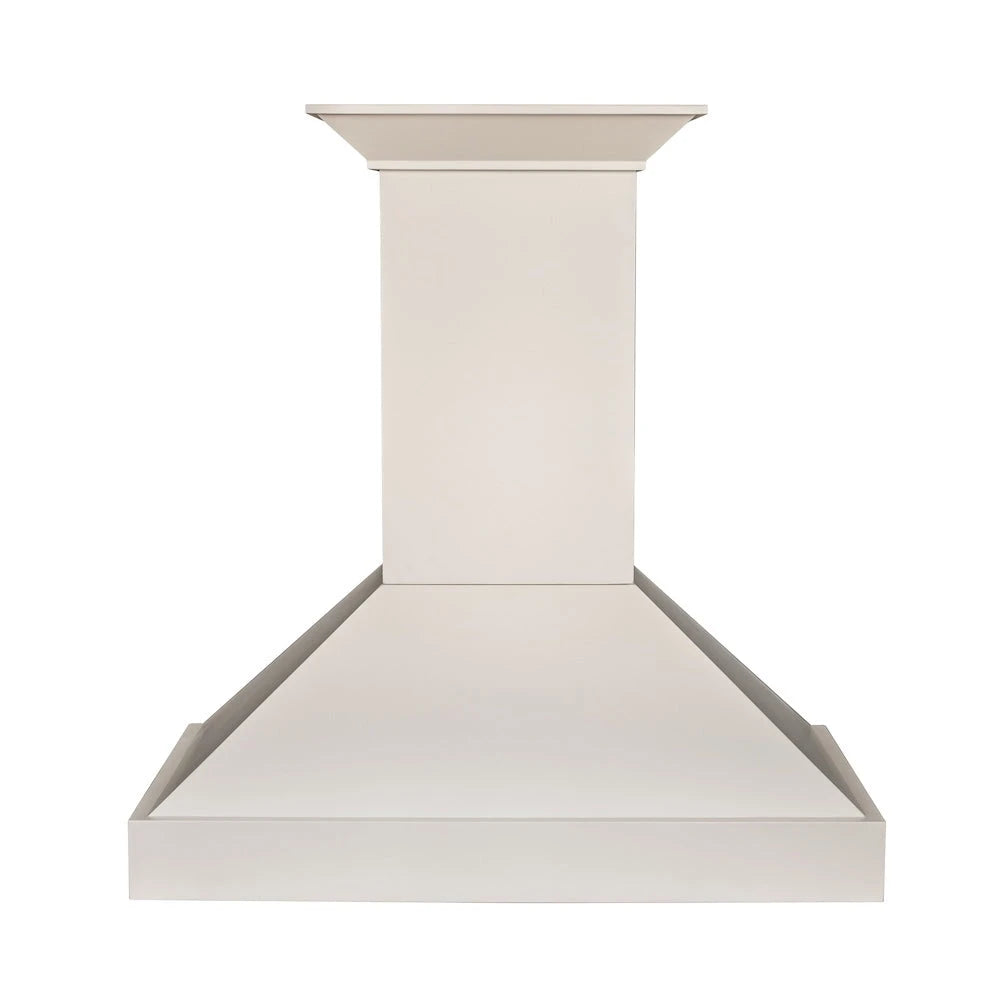

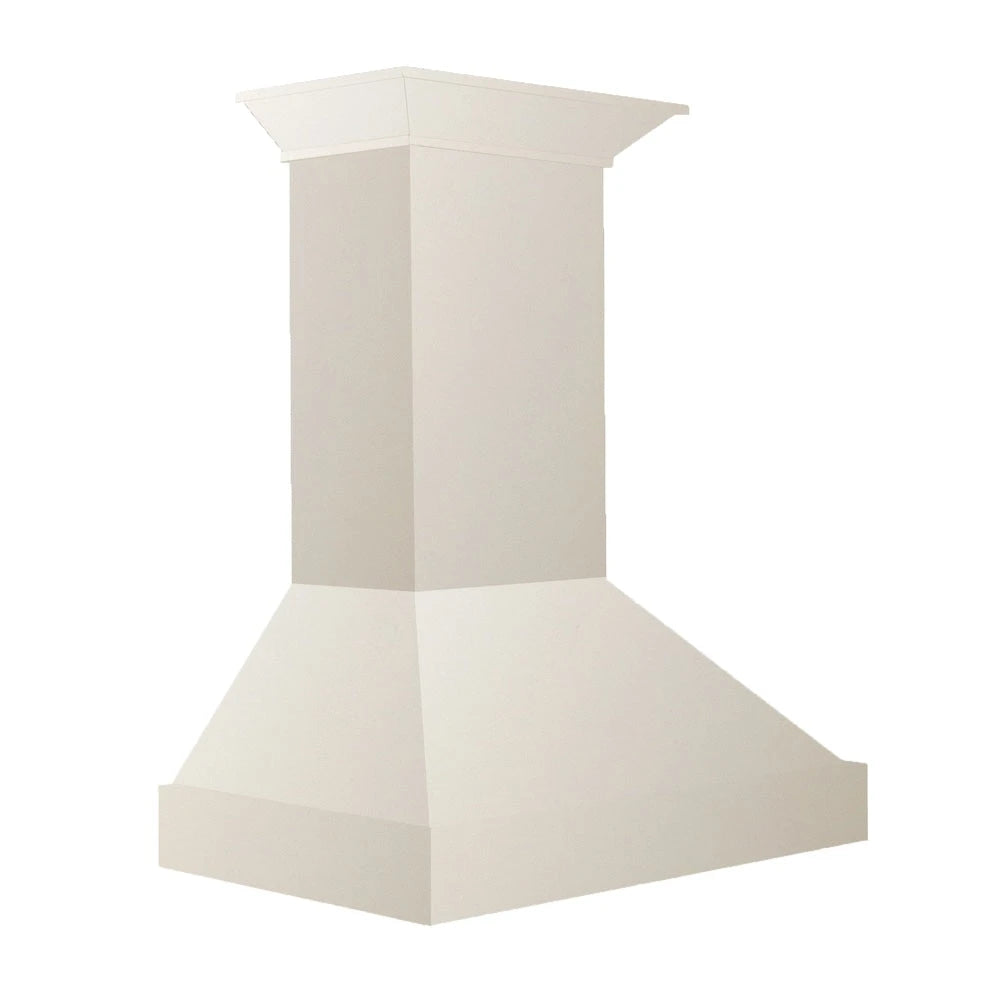

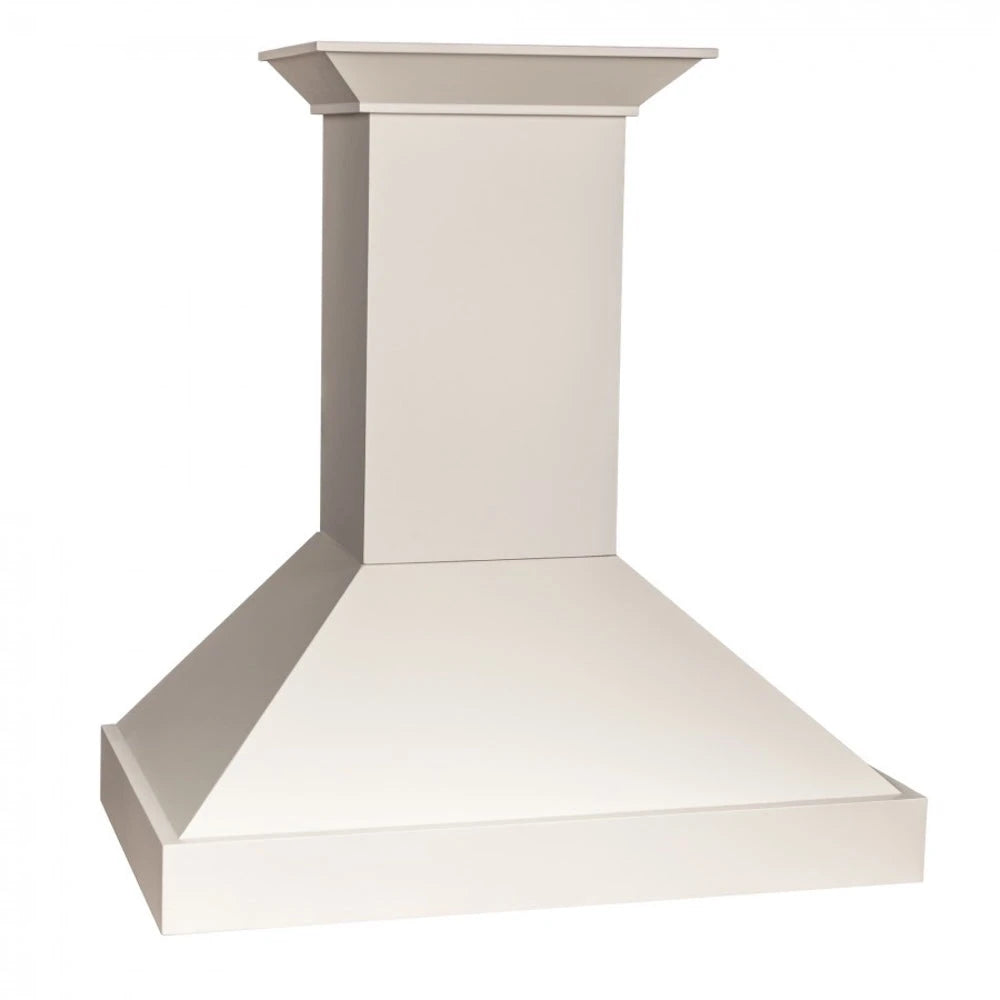

ZLINE KBTT30 30 In. Ducted Wooden Wall Mount Range Hood In Cottage White Solid Wood Exterior with Stainless Steel Insert, Cottage White Painted Finish

30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White
30 In. Ducted Wooden Wall Mount Range Hood In Cottage White

Quick Specification More details

  • Width:
    30"
  • Depth:
    17.7"
  • Height:
    13.25"
  • Type:
    Wall & Chimney Hoods

About this product

  • Wall Mount Design
  • Cottage White Wood Finish
  • Convenient Control Panel
  • 4-Speed Fan Control
In Stock
On Sale

SKU: KBTT30 | UPC: 817299025061

ZLINE KBTT30 30 In. Ducted Wooden Wall Mount Range Hood In Cottage White Solid Wood Exterior with Stainless Steel Insert, Cottage White Painted Finish

$818.99 $1,064.97 Save $245.98 / 23% OFF

In Stock

Active Rebates

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $43.49
  • $75.99
  • $115.99
  • $163.99
KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Available services

Quick Specification More details

  • Width:
    30"
  • Depth:
    17.7"
  • Height:
    13.25"
  • Type:
    Wall & Chimney Hoods

About this product

  • Wall Mount Design
  • Cottage White Wood Finish
  • Convenient Control Panel
  • 4-Speed Fan Control
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
$818.99 $1,064.97 Save $245.98 / 23% OFF

Product Details for ZLINE KBTT30

Technical Details

Other
Venting Size 6" Outlet (Transition piece to round ducting included)
Lighting 2 Directional LED Lights (3-Watt)
Airflow (Q/L/M/H) 120/240/320/400
Voltage 110V/60HZ Motor

Dimensions & weight
Height 13.25 in.
Length 17.7 in.
Width 30 Inch
Height 13.3 Inch
Weight 55 lbs
Depth 18 Inch

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Height 18.25 in.
Shipping Length 22.7 in.
Source Calculation
Shipping Width 35 Inch
Shipping Height 18.3 Inch
Shipping Length 23 Inch
Shipping Weight 95 lbs
Total of Shipping Weight 95 lbs

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 4.16 ft³
Dimensional Weight 51.67 Ibs
Total of Cubes 4.16 ft³
Total of Dimensional Weight 51.67 Ibs

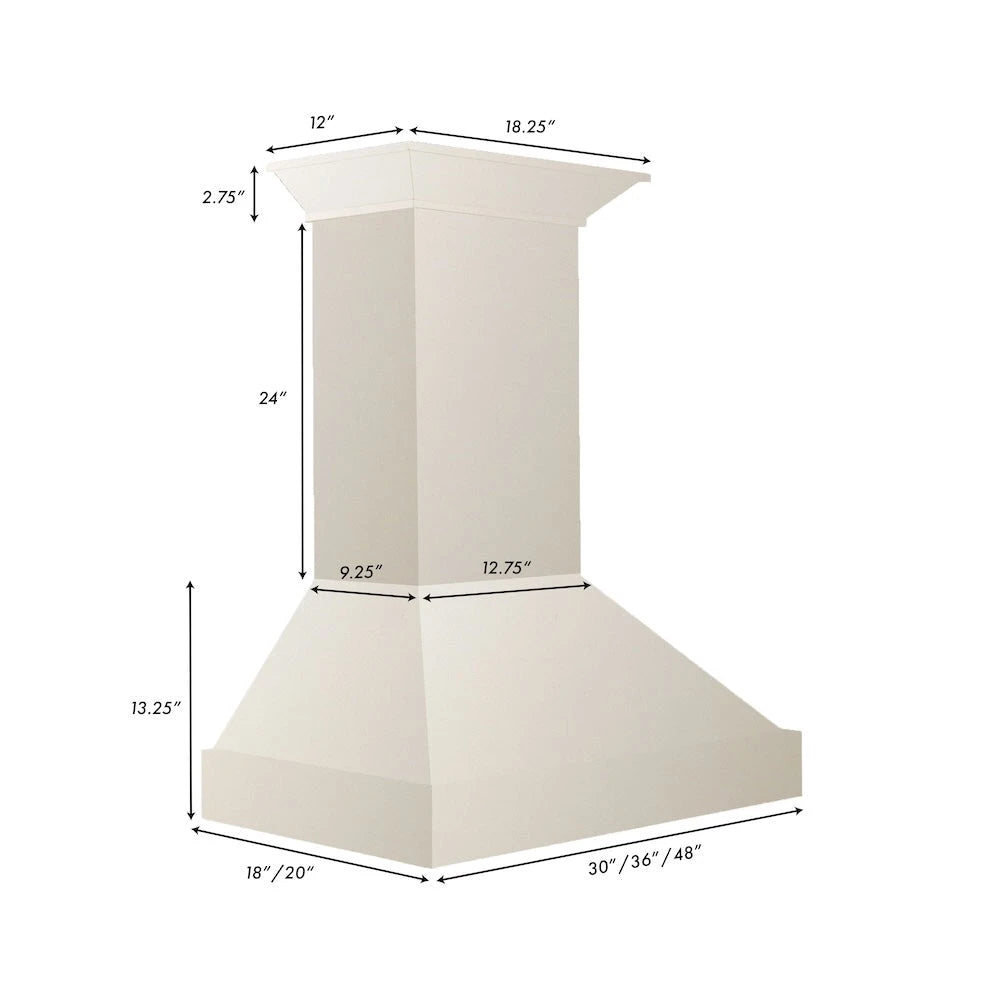

Dimensions
Dimensions 30 in. W x 18 in. D x 13.25 in. H
Product Depth (in.) 18.0
Product Width (in.) 30
Product Height (in.) 13.3

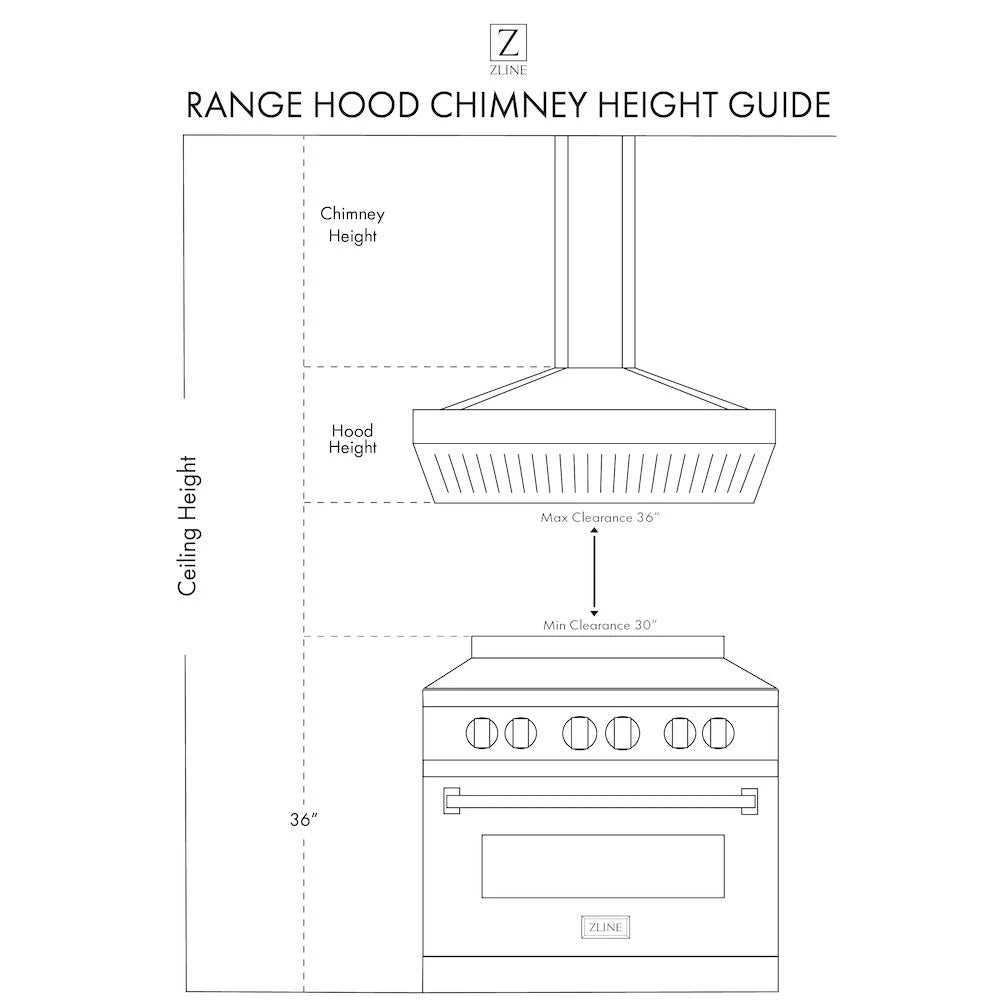

Chimney Dimensions 12.5" W x 9.25" D x 23.5" H

Warranties & certifications
Certifications and Listings ETL Listed,CEC Listed
Manufacturer Warranty 3 year parts, life-time motor warranty

Technical information
Appliance Category Wall Mount RH
Color/ Finish Family Solid Wood Exterior with Stainless Steel Insert, Cottage White Painted Finish
Airflow (Q/L/M/H) 120/240/320/400
Motor High Performance 400 CFM/4-Speed Motor
Filters Stainless Steel Baffle Filters (Dishwasher-safe)
Mount Type Wall Mount
Number of Lights 2
Number of Speeds 4
Control Type Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Button Panel Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Product Weight (lb.) 55
Decibels 51/55/58/61
Duct Size 6
Voltage 110
Amps 3.5

Description

The ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.


Product Features

  • Wall Mount Design

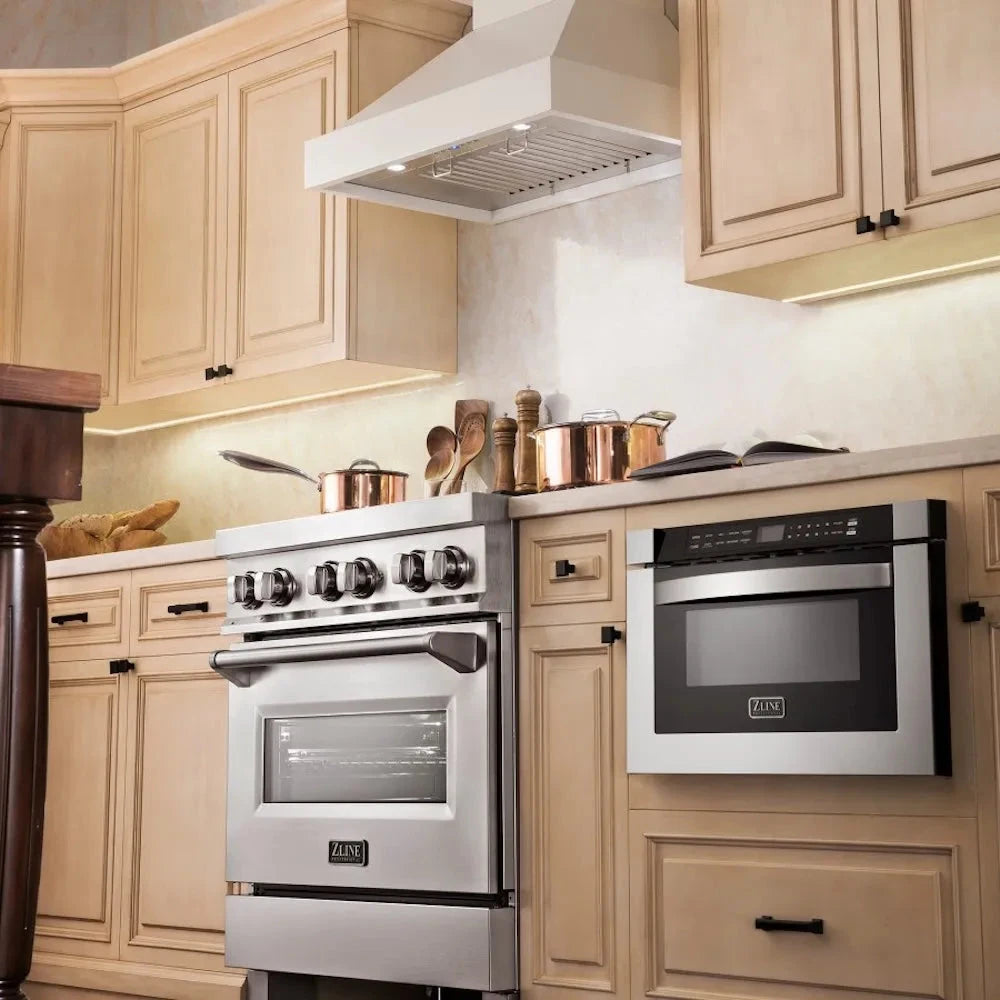

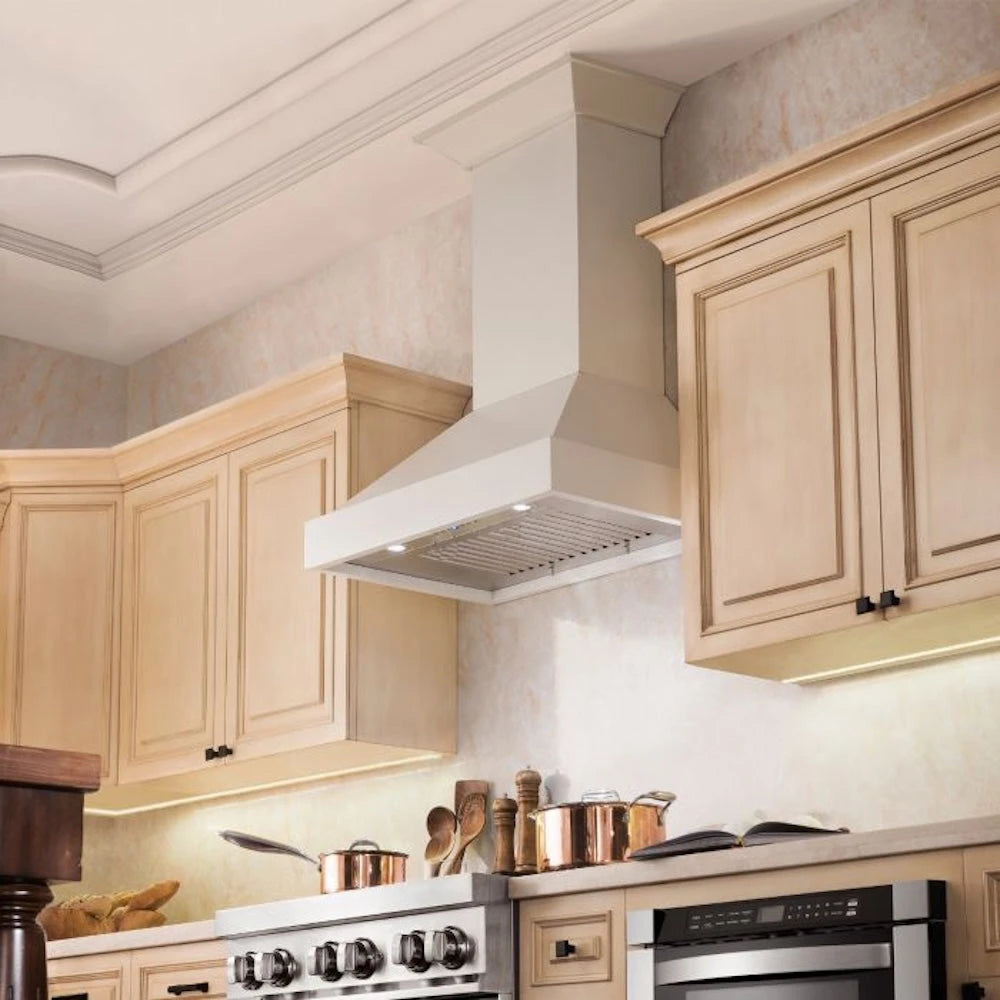

    This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
  • Cottage White Wood Finish
    Featuring an elegant cottage white hand-crafted pine wood finish paired with a stainless steel inner frame to add a rustic flair to any custom kitchen design
  • Convenient Control Panel
    Easy-to-use push button controls let you easily adjust fan speeds and lighting options
  • 4-Speed Fan Control
    Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
  • Powerful Ventilation
    The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area

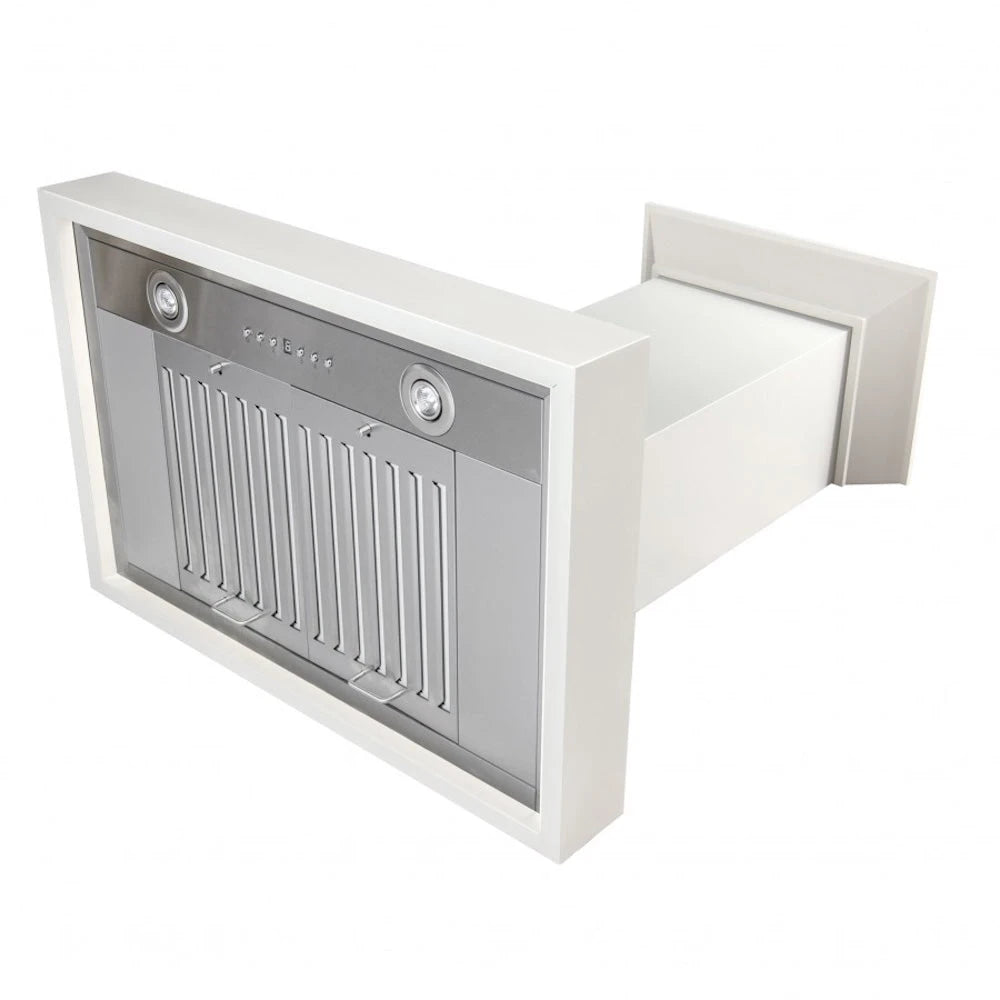

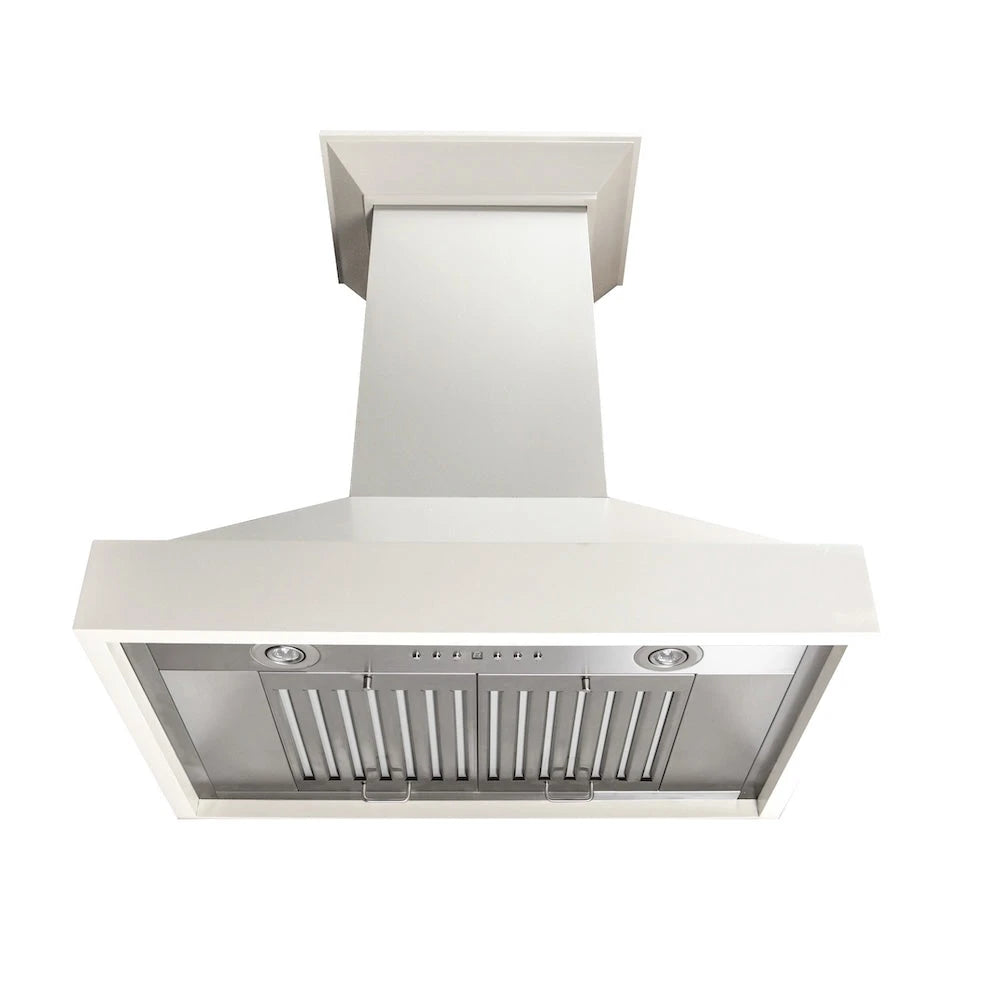

  • Minimal Cleaning
    This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
  • LED Lighting
    ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
  • Electrical Requirements
    Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
  • Standard Ductwork
    ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
  • Warranty
    ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
  • Additional Assembly Required
    This product ships in multiple boxes and will require minimal assembly upon arrival
