Sale price $1,487.49 Regular price $1,858.98 Save $371.49 / 19% OFF

Product Details for ZLINE 321TT30

Technical Details

Warranty

Parts 3 Year

Other

Venting Size 8" Outlet (Transition piece to round ducting included)

Dimensions & weight

Width 321 in.
Height 17.5 in.
Length 22 in.
Width 30 Inch
Height 17.5 Inch
Weight 84 lbs
Depth 22 Inch

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 326 in.
Shipping Height 22.5 in.
Shipping Length 27 in.
Source Calculation
Shipping Width 35 Inch
Shipping Height 22.5 Inch
Shipping Length 27 Inch
Shipping Weight 124 lbs
Total of Shipping Weight 124 lbs

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 71.52 ft³
Dimensional Weight 889.1 lbs.
Total of Cubes 71.52 ft³
Total of Dimensional Weight 889.1 lbs.
Cubic Feet Measurement 6.68 ft³
Dimensional Weight 83.09 Ibs
Total of Cubes 6.68 ft³
Total of Dimensional Weight 83.09 Ibs

Dimensions

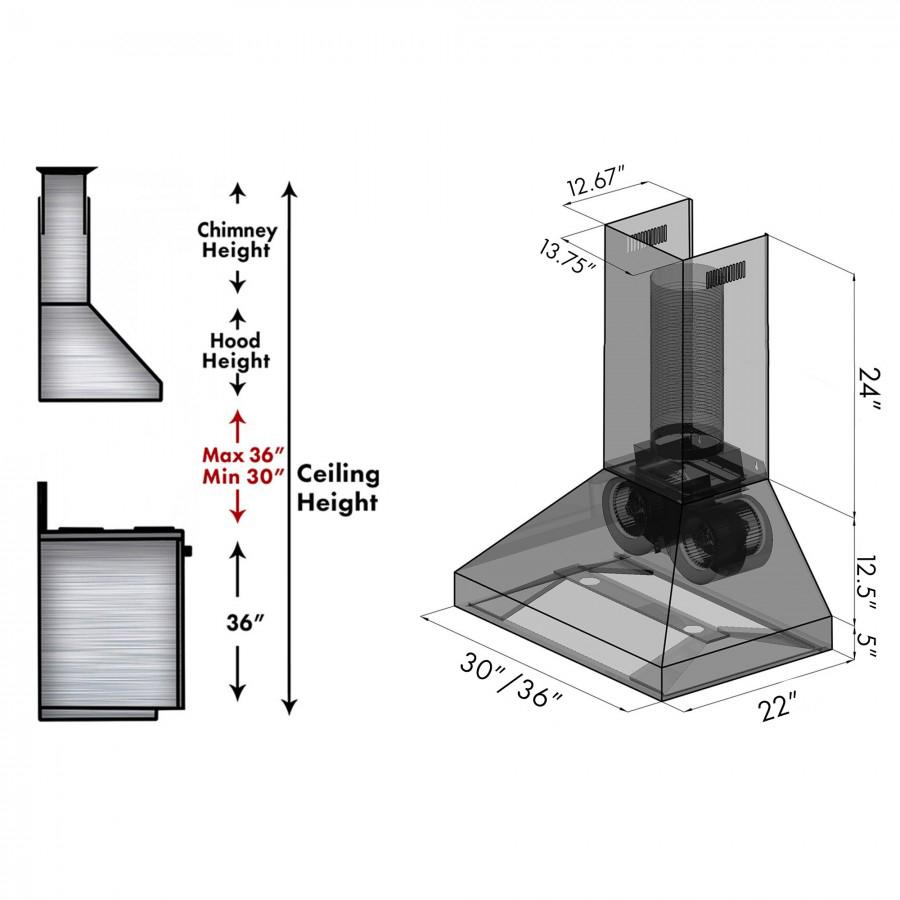

Dimensions: 30 in. W x 22 in. D x 17.5 in. H
Product Depth (in.): 22.0
Product Width (in.): 30
Product Height (in.): 17.5
Chimney Dimensions: 13.75" W x 12.67" D x 24"H

Details

Appliance Category: Wall Mount RH
Color/ Finish Family: Solid Wood Exterior with Stainless Steel Insert, White Body & Chimney
Airflow (Q/L/M/H): 120/240/320/400
Motor: High Performance 400 CFM/4-Speed Motor

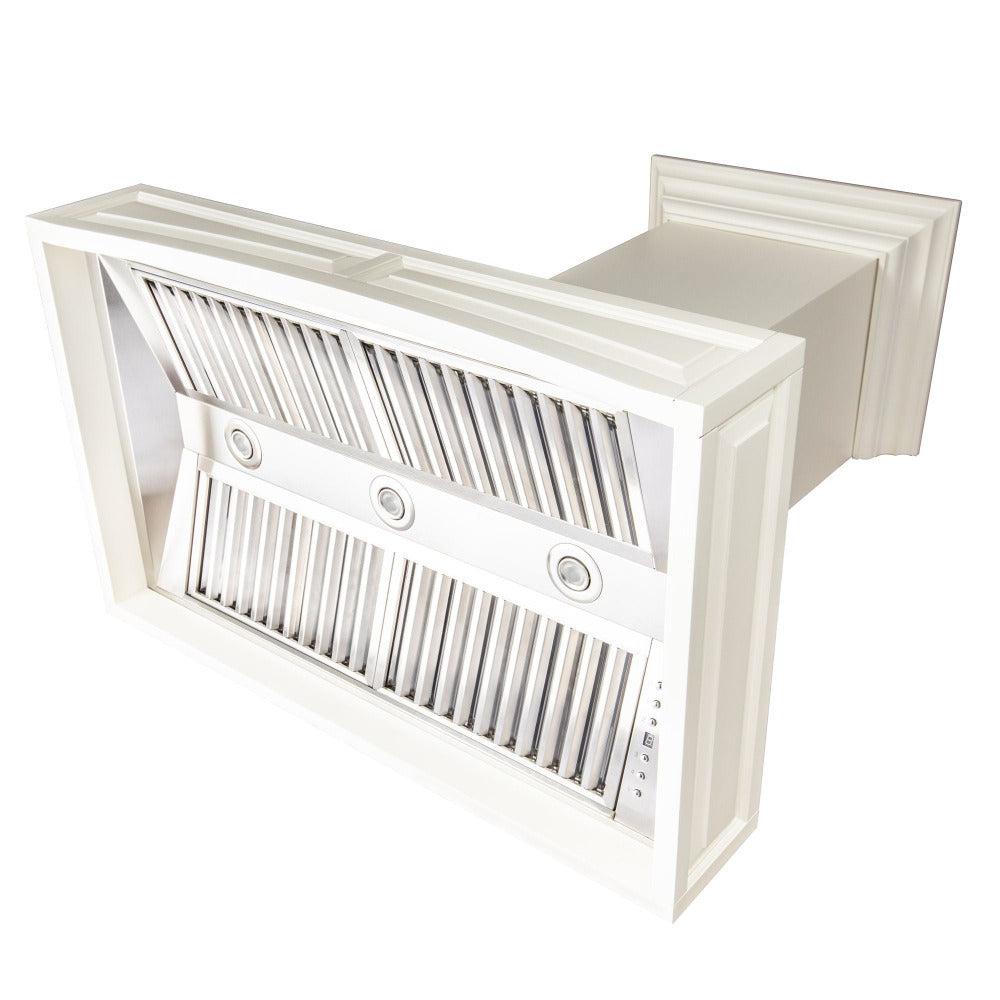

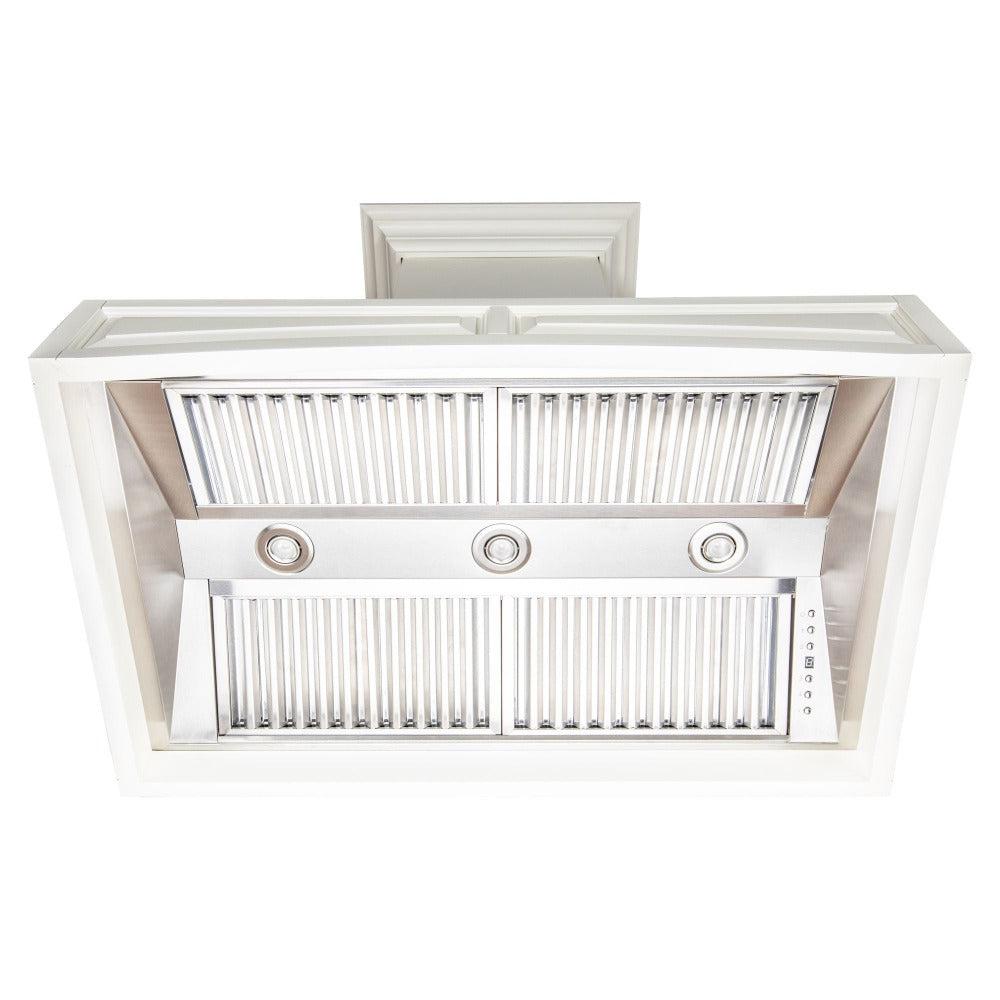

Filters: Stainless Steel Baffle Filters (Dishwasher-safe)
Mount Type: Wall Mount
Number of Lights: 3
Number of Speeds: 4
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Button Panel: Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Product Weight (lb.): 84
Decibels: 51/55/58/61
Duct Size: 6
Voltage: 110
Amps: 5

Warranties & certifications

Certifications and Listings: ETL Listed
Manufacturer Warranty: 3 year parts, life-time motor warranty

Description

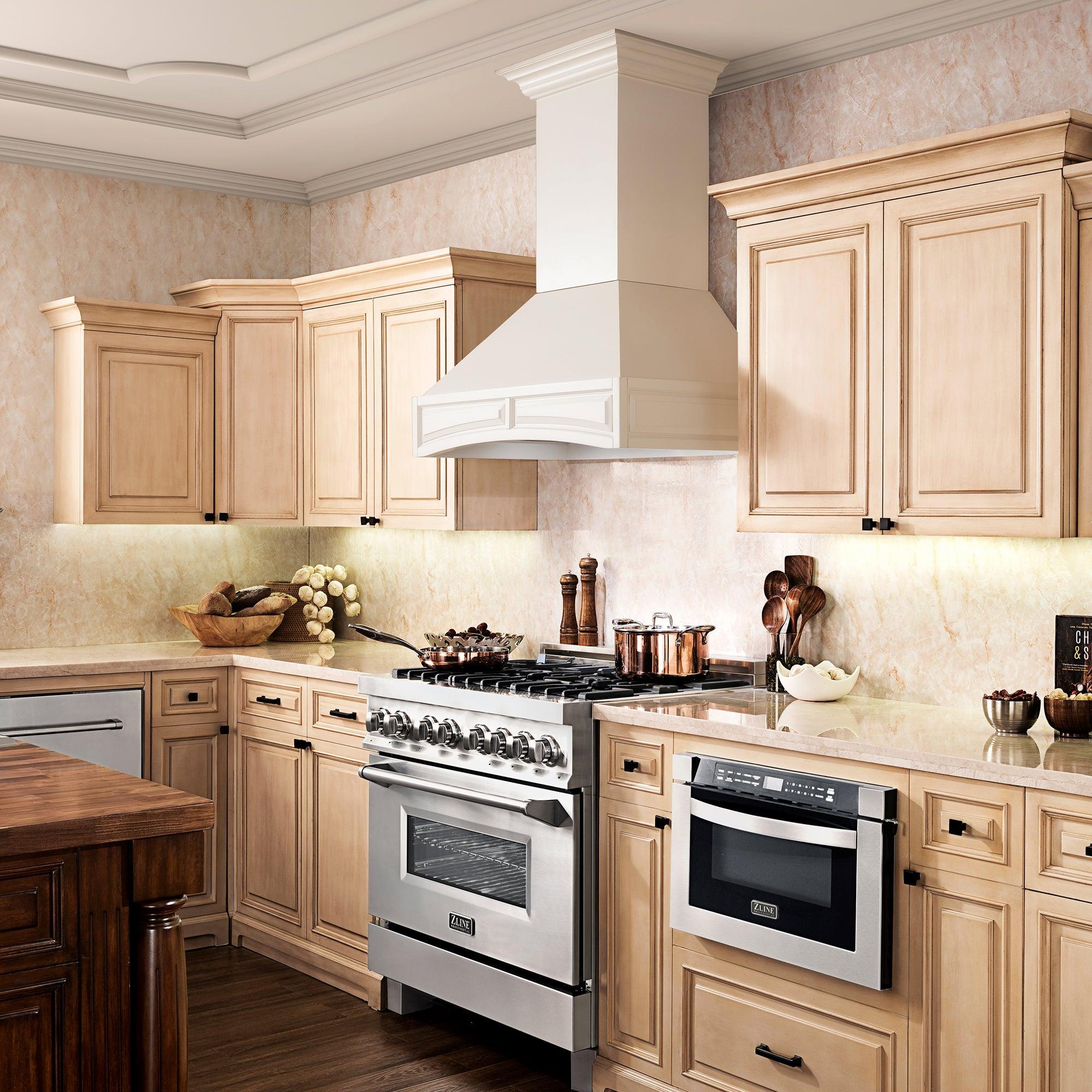

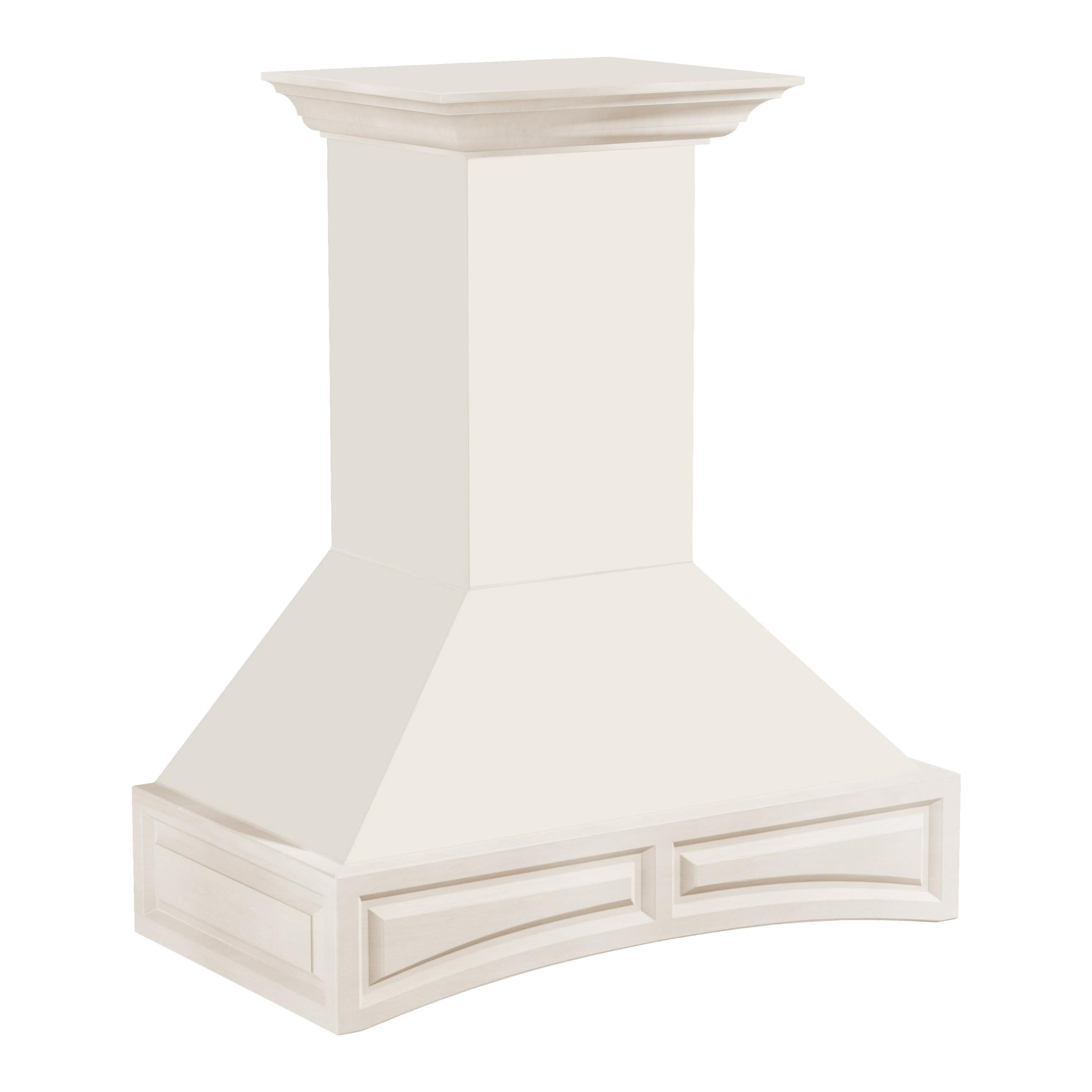

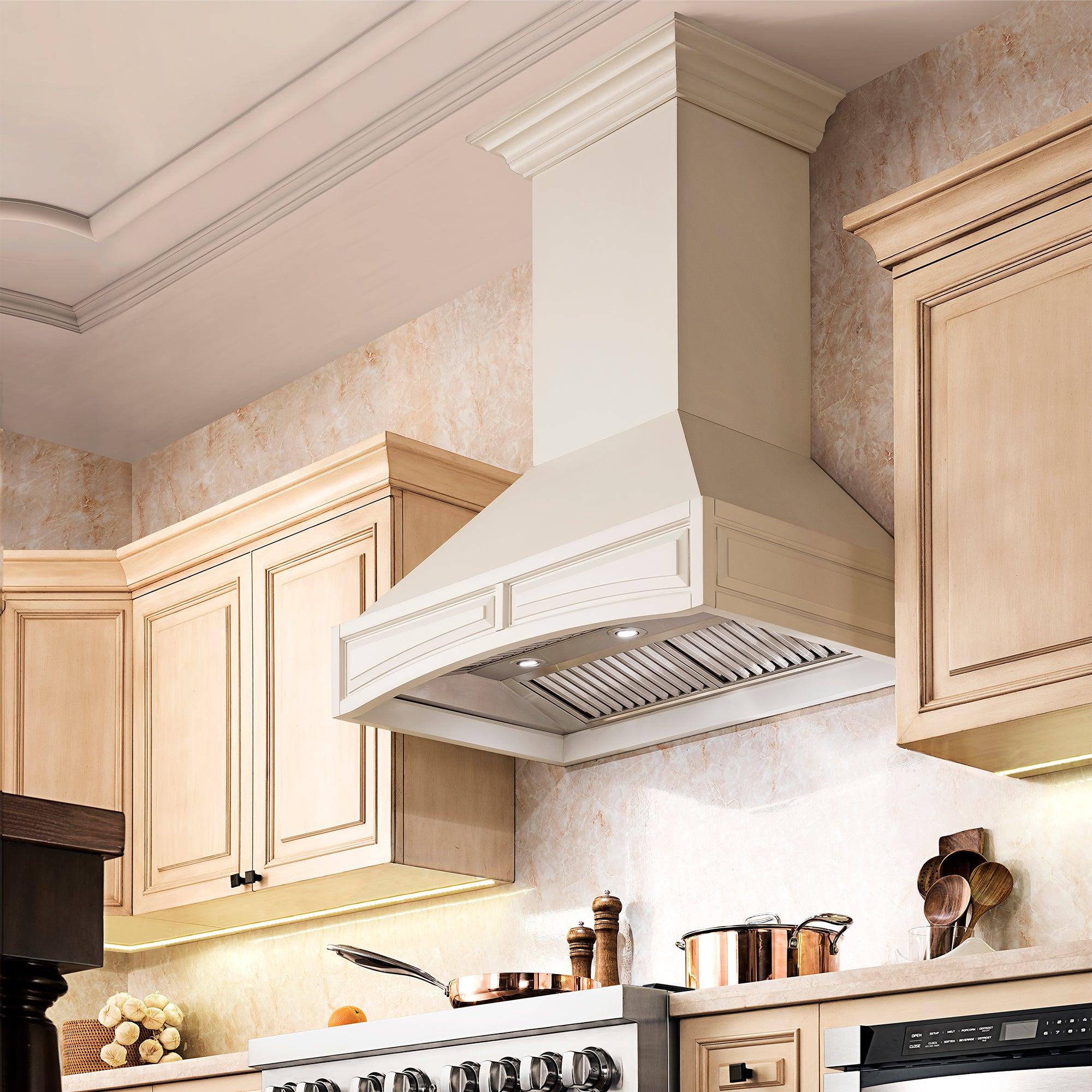

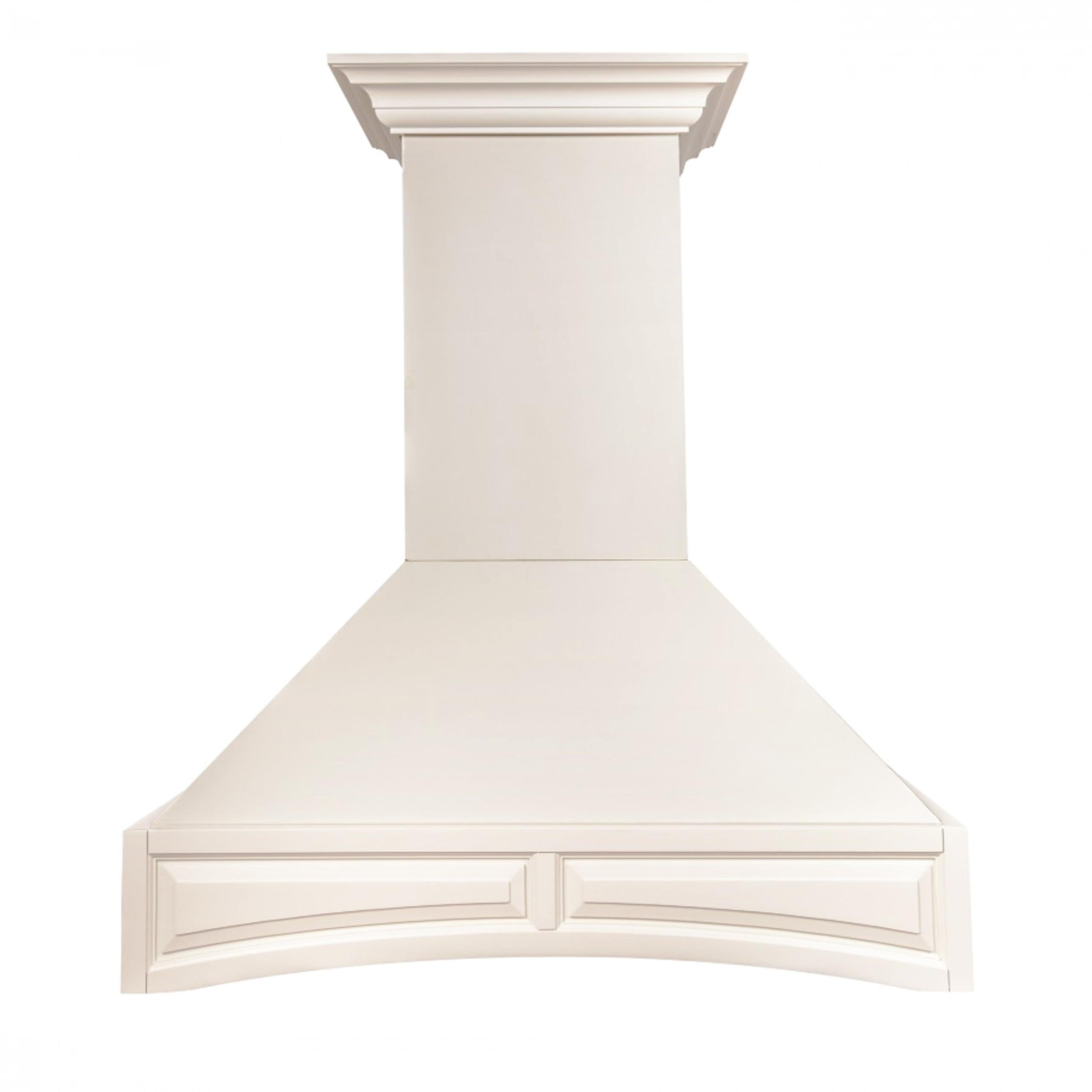

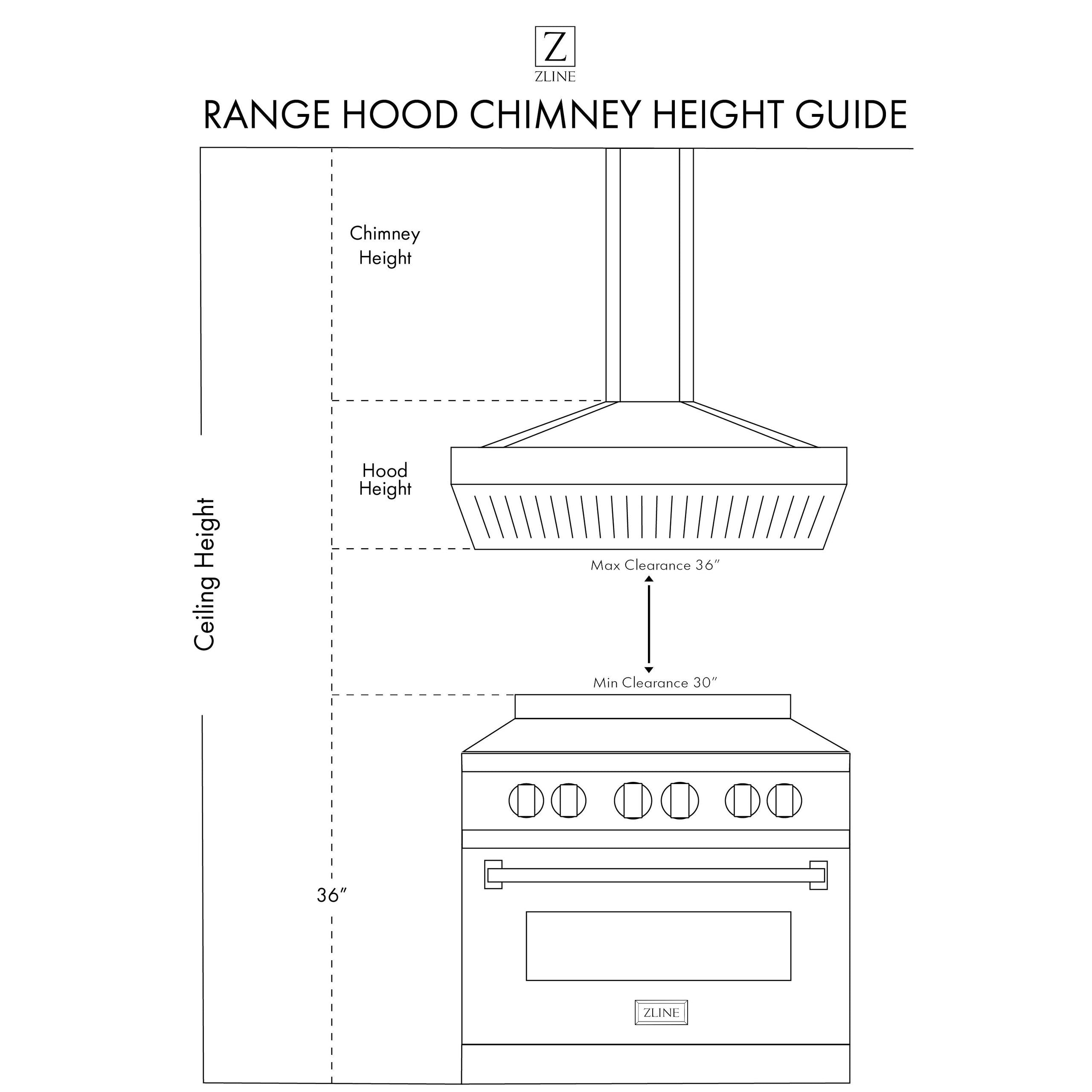

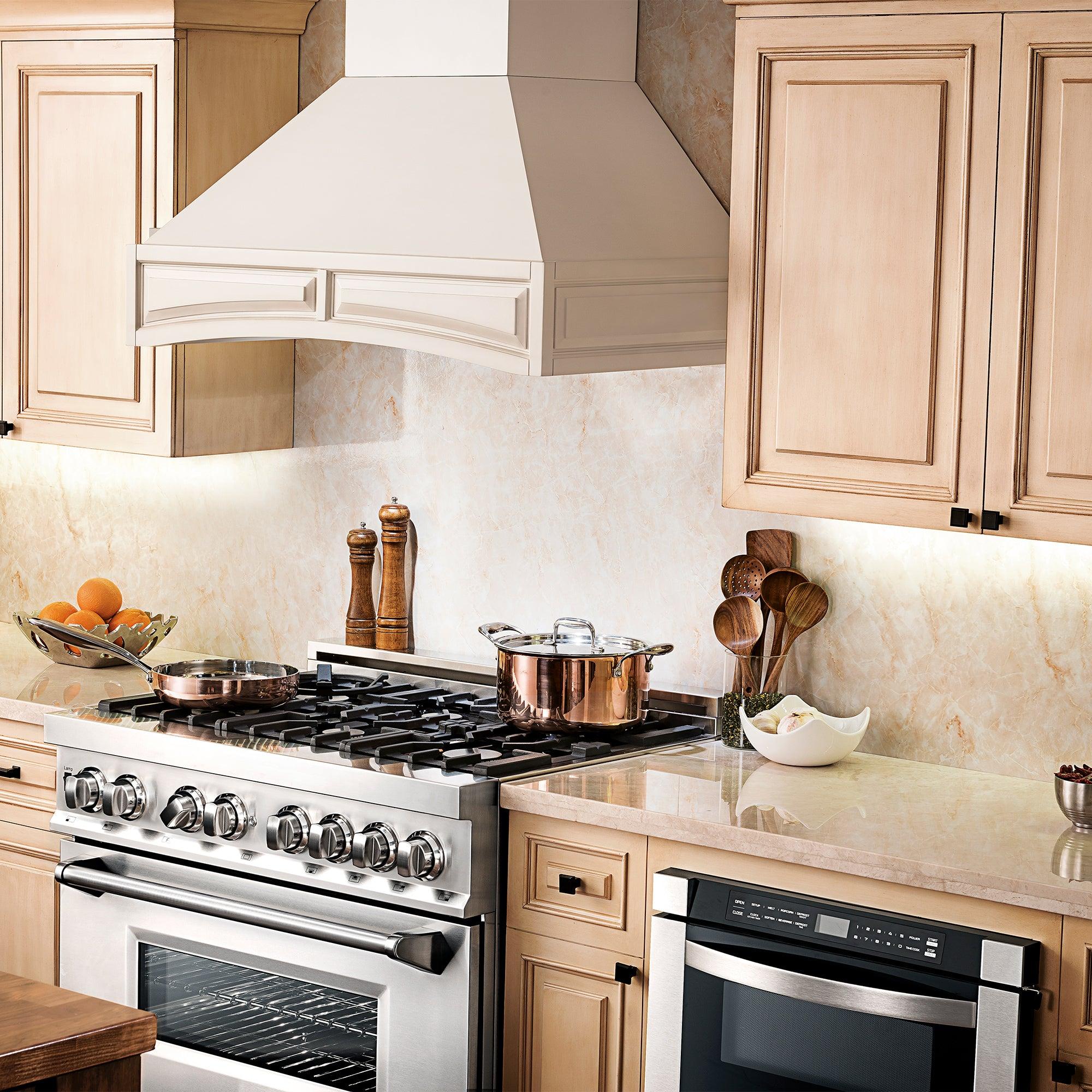

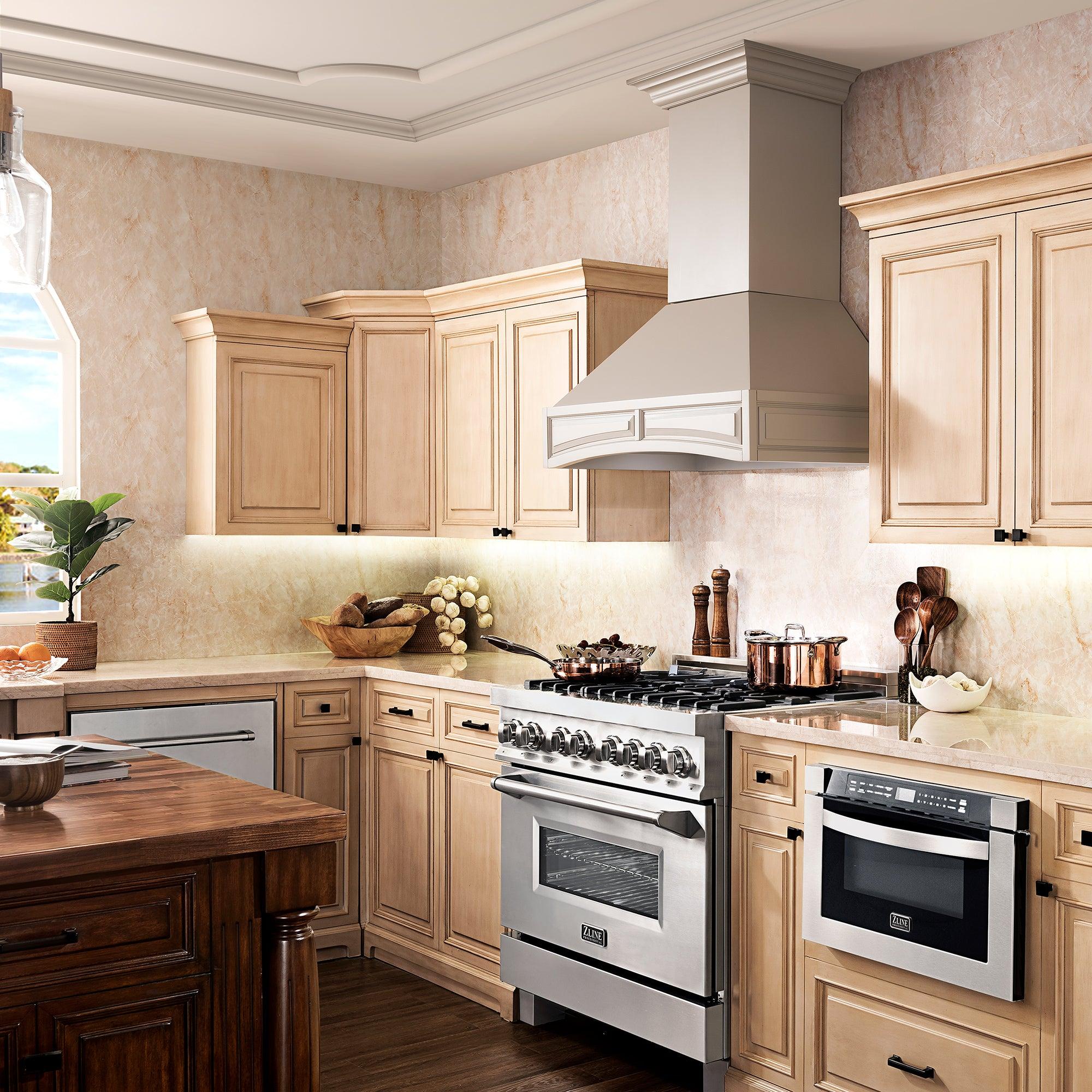

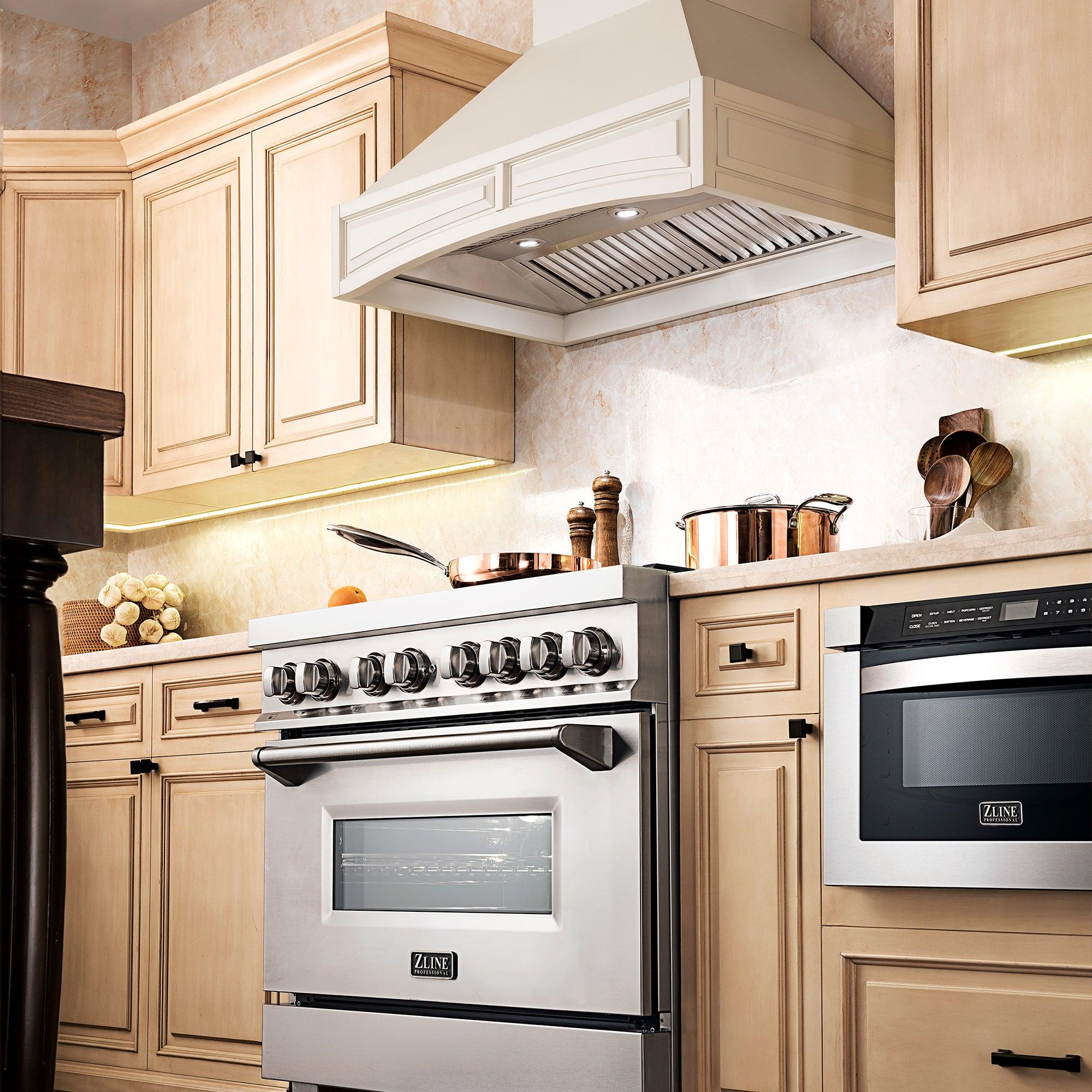

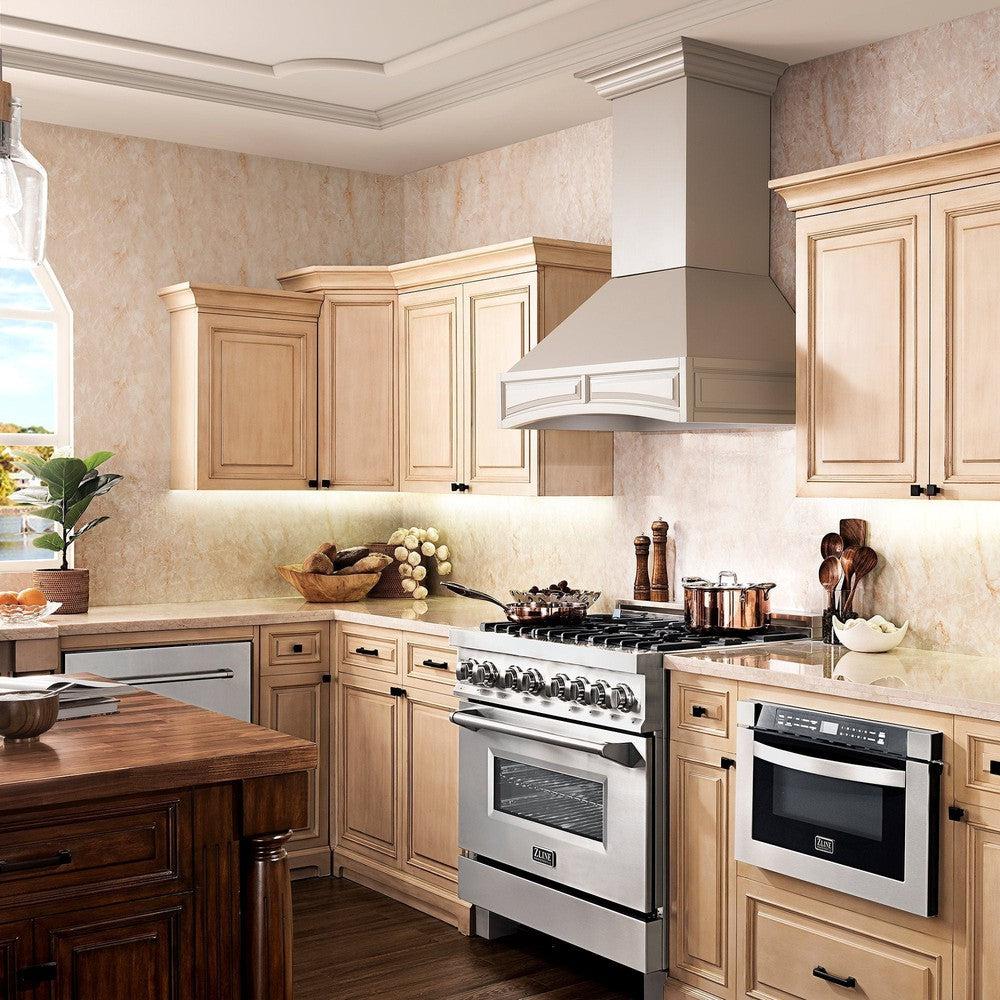

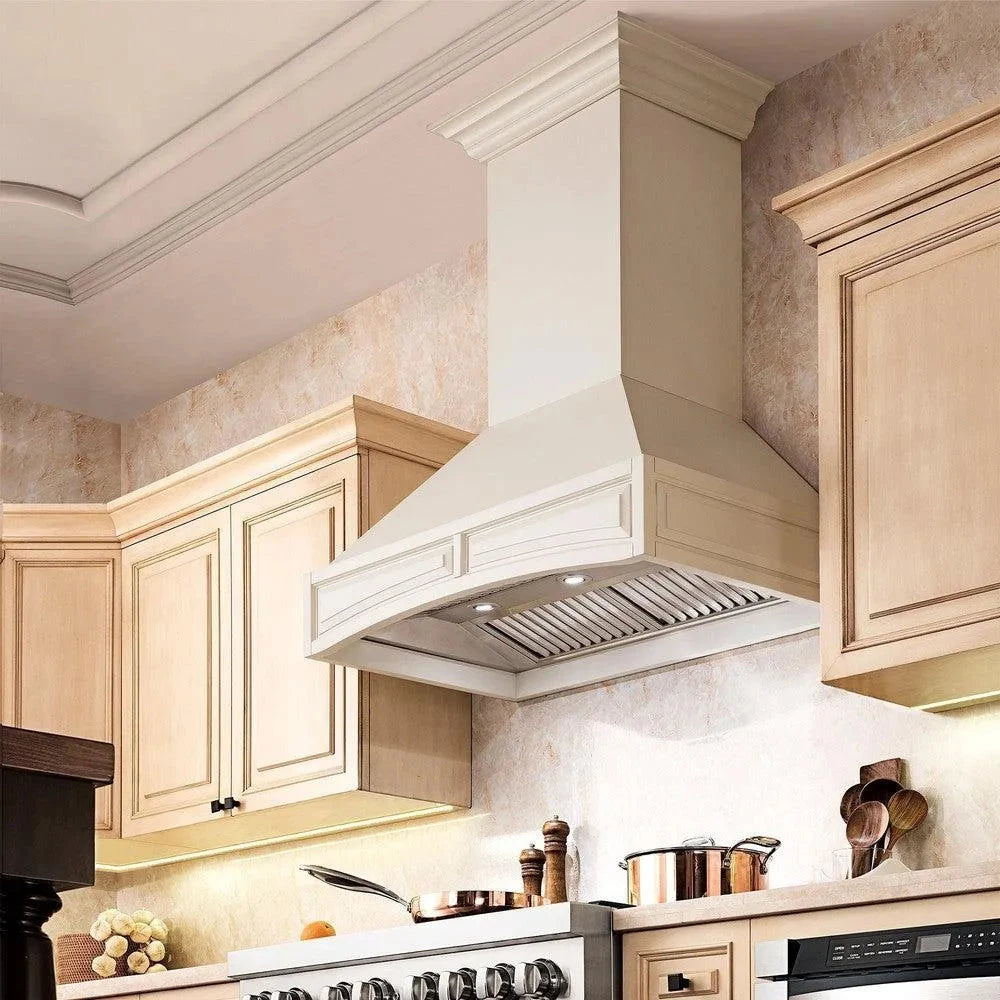

The ZLINE 321TT-30 is a 30 in. 400 CFM Designer Series Wooden Wall Mount Range with a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The hand-finished wood with walnut raised-arch paneling and a walnut base, is made from solid pine with a stainless-steel inner frame. This convertible vent range hood comes with a high-performance, 400 CFM, 4-speed motor (120/240/320/400 CFM) that will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry. The 321TT-30 includes a 24 in. chimney with elegant crown molding for ceilings up to 9.5 ft. (must be custom cut to appropriate height) and a 61 in. Chimney Extension (not included) is available for ceilings up to 12.5 ft. ZLINE stands by all products with its Manufacturer Parts Warranty. The 321TT-30 convertible range hood ships next day when in stock.

Key Features

Lifetime Motor Warranty

Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty

Dishwasher Safe Baffle Filters

Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe

Built-in Led Lighting

Easily illuminate your cooking space with bright built-in LED lights
