Sale price $2,549.99 Regular price $3,496.98 Save $946.99 / 27% OFF

Product Details for ZLINE RABR30

Technical Details

Other

Interior Oven Dimensions 26.5" W x 18.5" D x 14" H
Burner Fuel Natural Gas and Liquid Propane Convertible
Oven Fuel Electric Convection Oven
Electrical Requirement 240V/60Hz/30A
Oven Capacity (cu.ft) 4.0 cu. ft.
Number of Burners 4
Cooktop BTUs Front Right Sealed Dual Burner BTU: 18000Front Left Sealed Single Burner BTU: 10000Rear Left Sealed Single Burner BTU: 4500Rear Right Sealed Single Burner BTU: 12500
Material Stainless Steel
Convection Fan Yes
Warranty 1 Year

Dimensions & weight

Width 30 in.
Height 36 in.
Length 28 in.
Weight 230 lbs.
Width 29.75 Inch
Height 36.13 Inch
Weight 230 lbs
Depth 27.5 Inch

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 41 in.
Shipping Length 33 in.
Shipping Weight 270 lbs.
Total of Shipping Weight 270 lbs.
Source Calculation
Shipping Width 34.75 Inch
Shipping Height 41.13 Inch
Shipping Length 32.5 Inch
Shipping Weight 270 lbs
Total of Shipping Weight 270 lbs

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 17.5 ft³
Dimensional Weight 217.55 lbs.
Total of Cubes 17.5 ft³
Total of Dimensional Weight 217.55 lbs.
Cubic Feet Measurement 17.11 ft³
Dimensional Weight 212.65 Ibs
Total of Cubes 17.11 ft³
Total of Dimensional Weight 212.65 Ibs

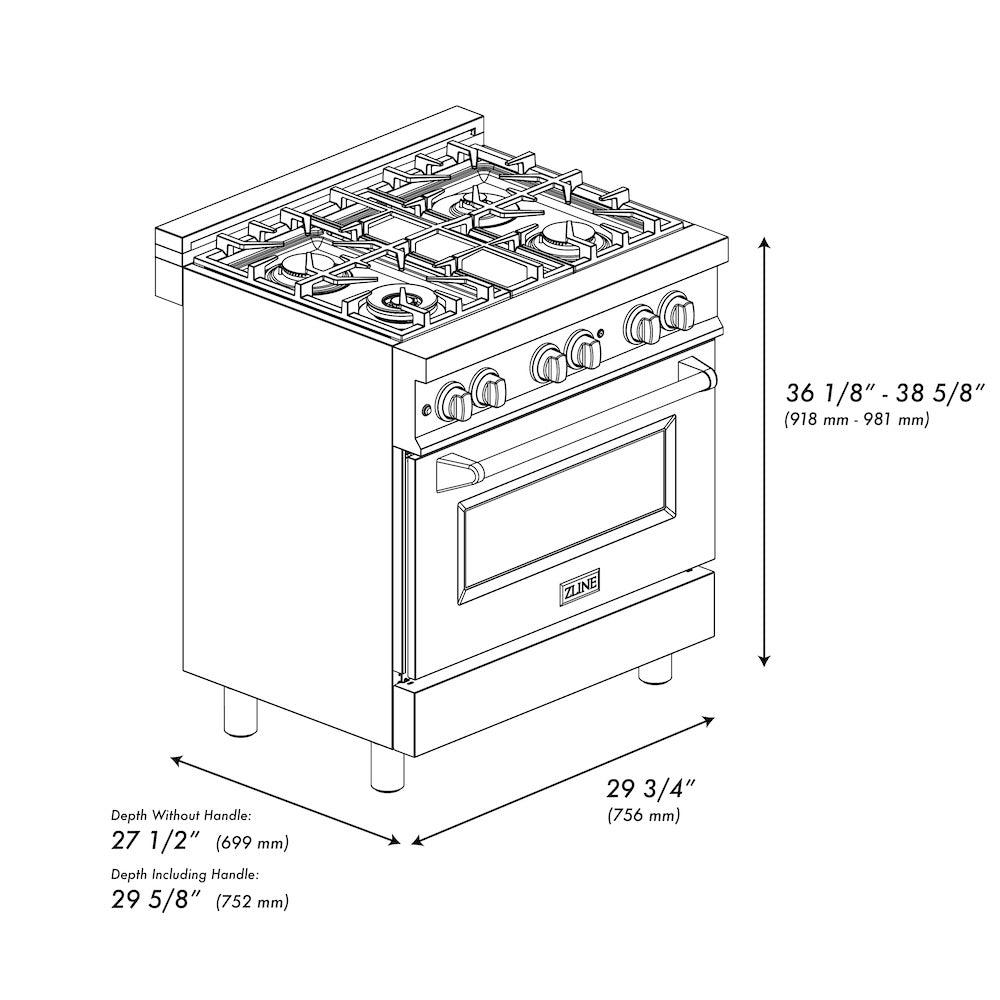

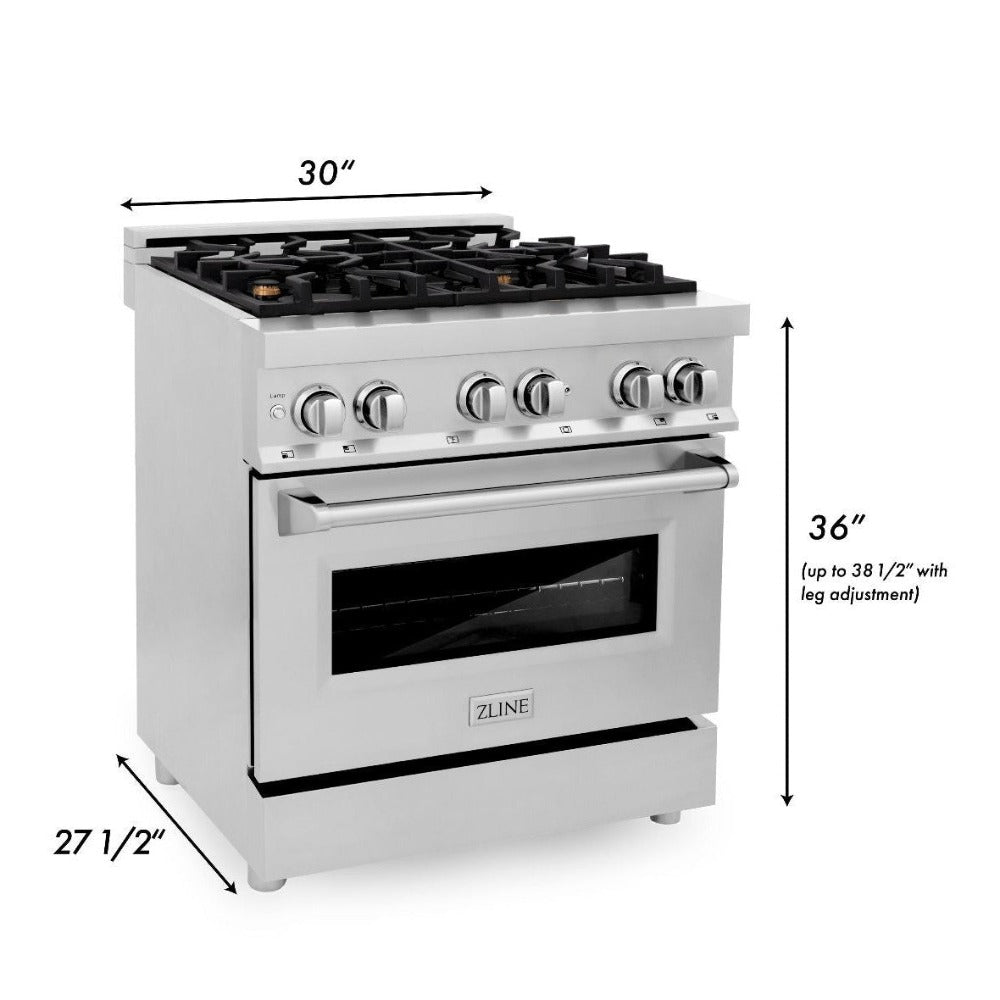

Dimensions

Dimensions: 29.75 in. W x 27.5 in. D x 36.125 in. H
Product Depth (in.): 27.50
Product Width (in.): 29.75
Product Height (in.): 36.13
Oven Interior Dimensions (in): 24.875 in. W x 17.75 in. D x 16 in. H
Depth With Door(s) Open 90 Degrees (in.): 41.8
Range Size (Width): 30 in.

Details

Appliance Category: Freestanding Range
Color/ Finish Family: Stainless Steel
Hardware Color/Finish: N/A
Back Left Burner BTU: 4500
Back Right Burner BTU: 10000
Front Left Burner BTU: 18000
Front Right Burner BTU: 12500
Total BTUs: 45000

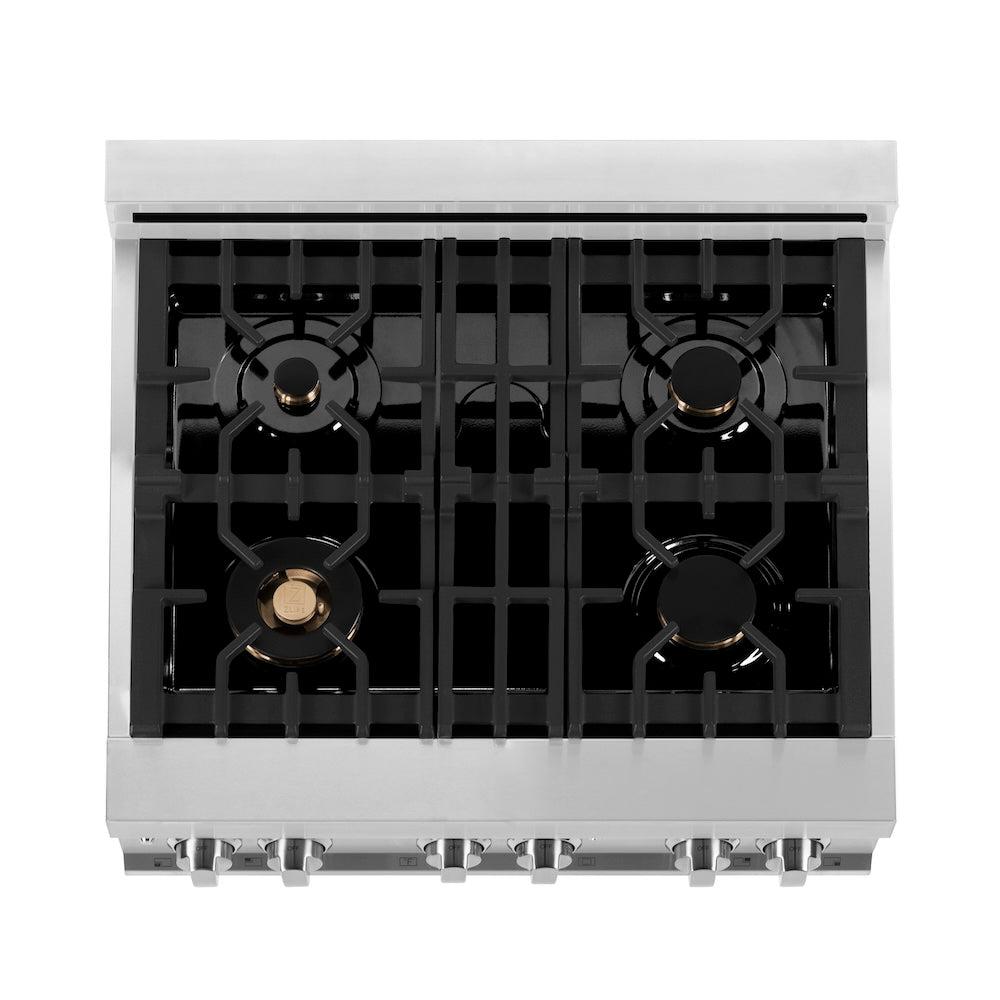

Cooktop Features: (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
Control Type: Manual Front Control
Capacity of Oven (cu. ft.): 4
Product Weight (lb.): 230
Fuel Type: Convection Electric Oven- Gas Cooktop
Oven Features: Manual Clean- Convection Electric- 4.0 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal
Voltage: 240V
Frequency: 60Hz
Amps: 15
Convection Fan: Yes

Warranties & certifications

Certifications and Listings: CSA Listed
Manufacturer Warranty: 1 year parts and service, limited lifetime warranty on burners

Description

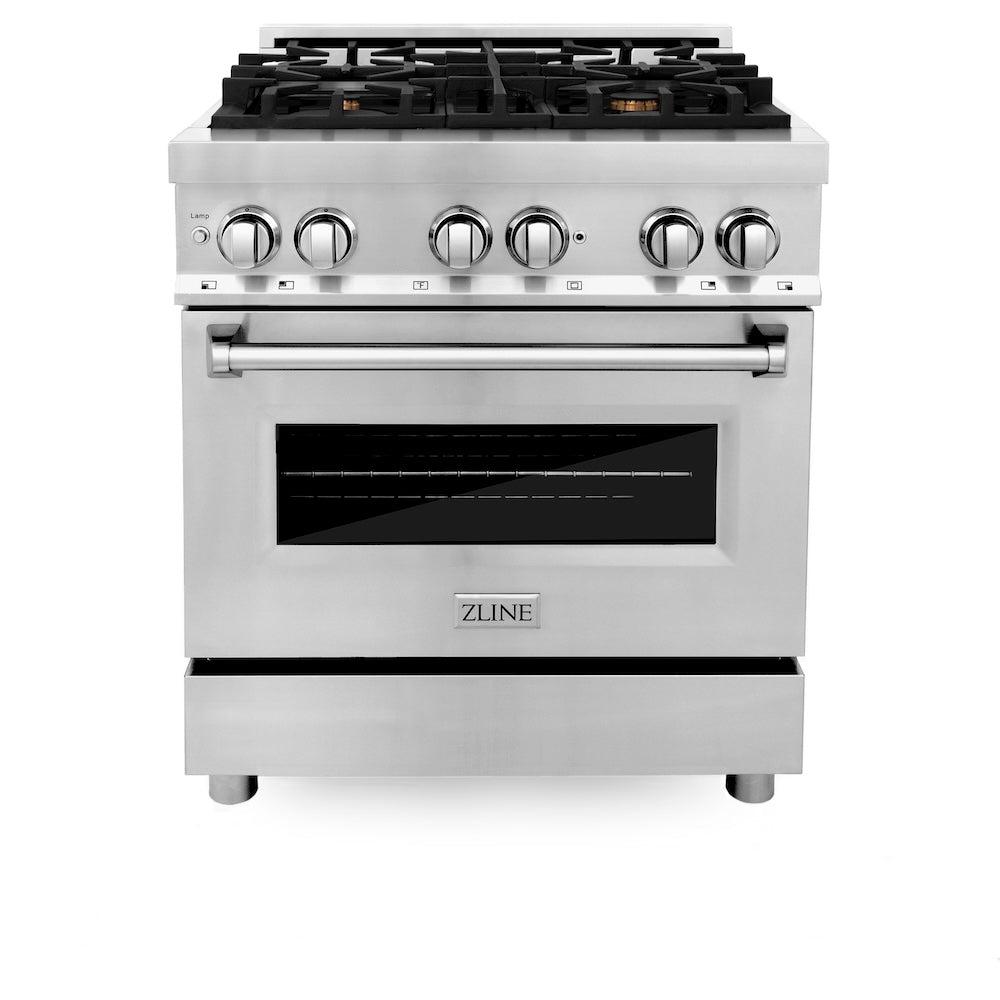

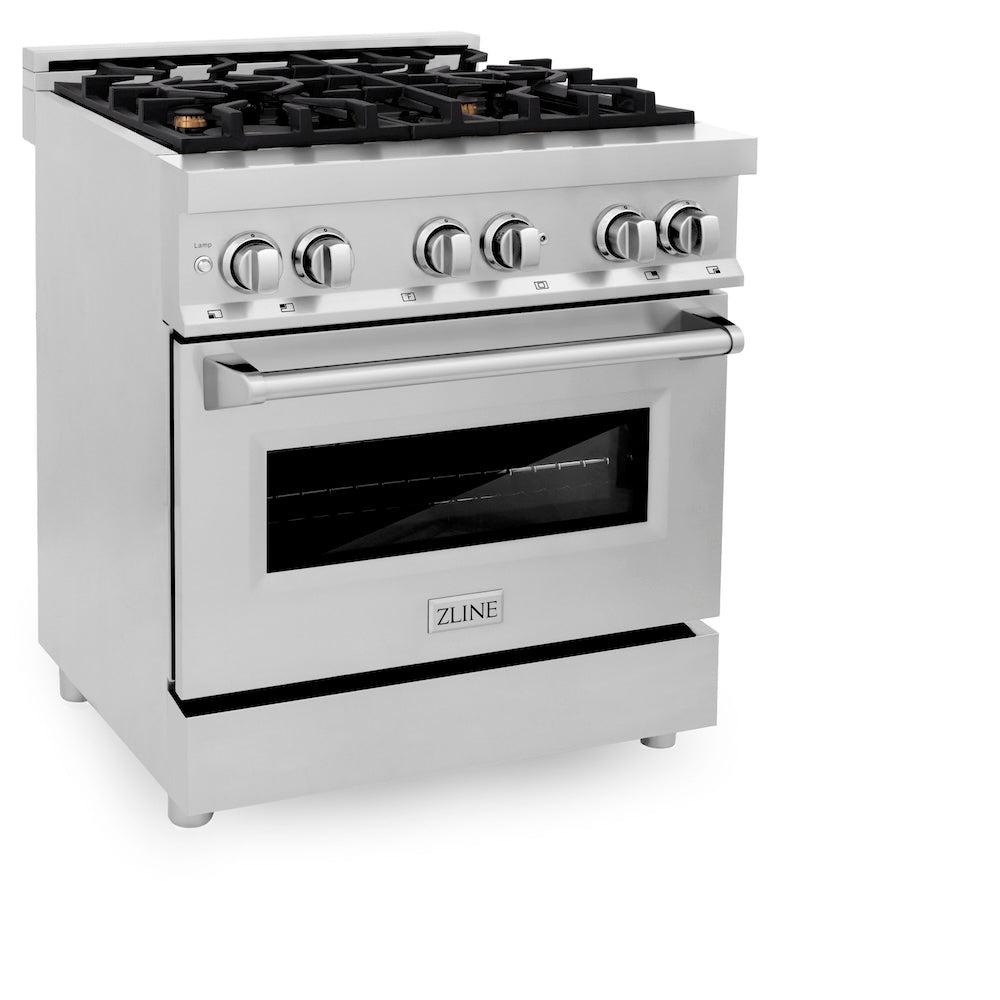

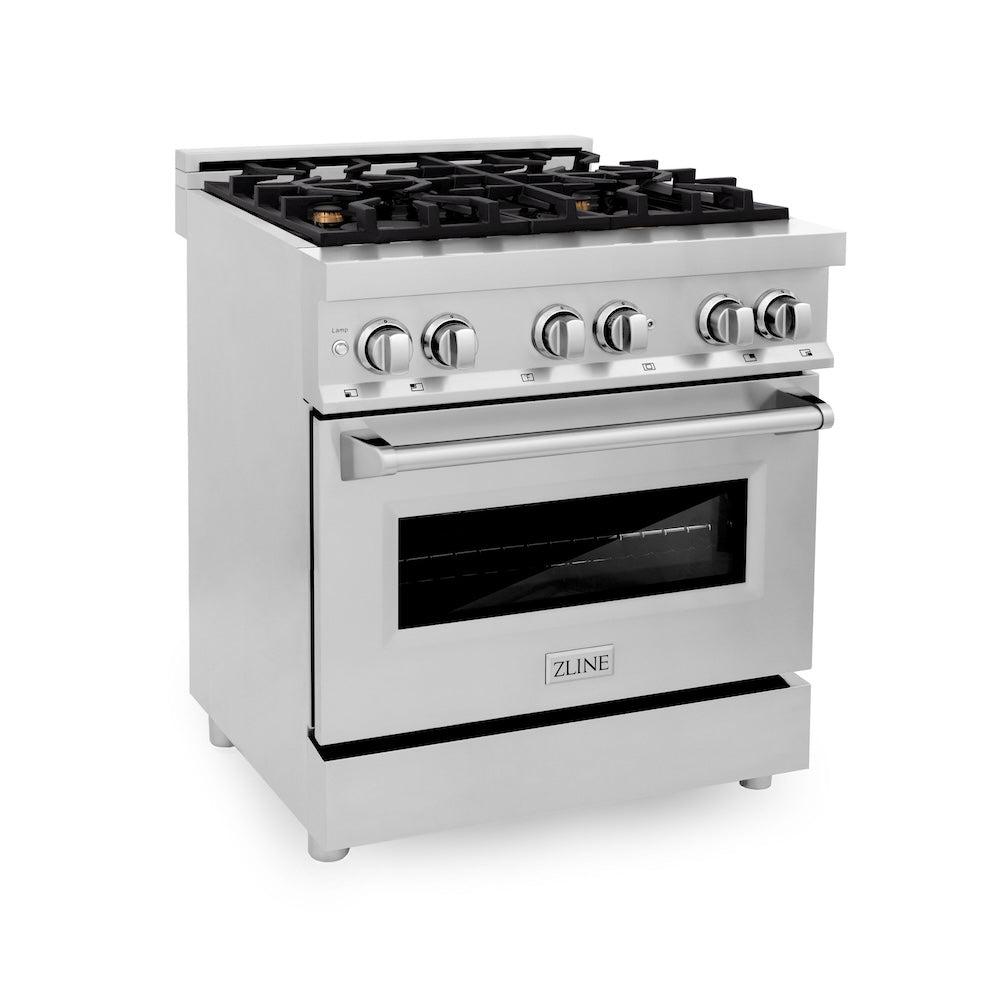

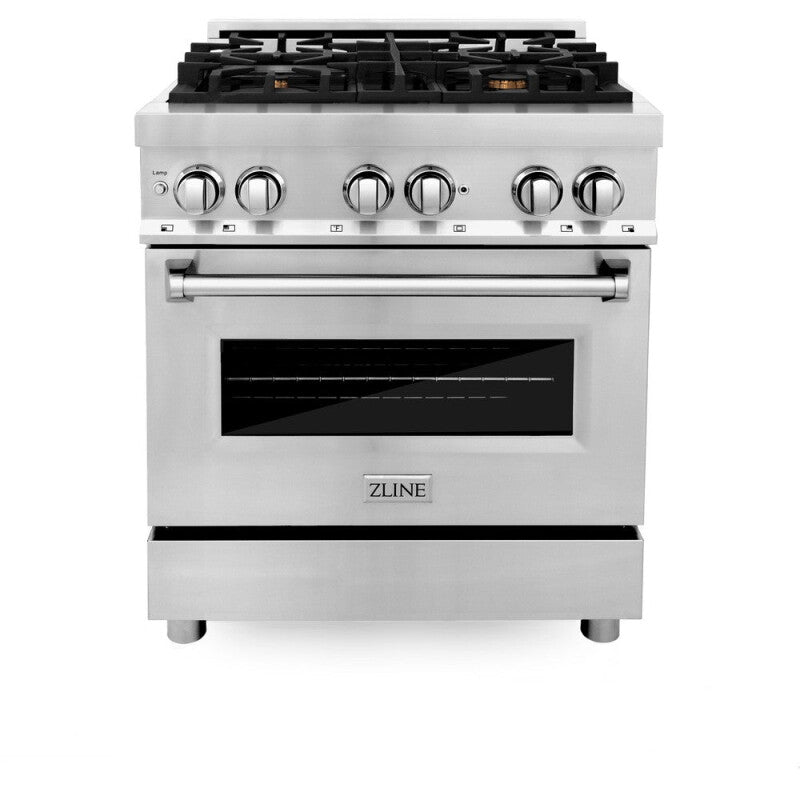

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 30 in. 4.0 cu. ft. Legacy Dual Fuel Range with Gas Cooktop and Electric Convection Oven in Stainless Steel with 4 Brass Burners (RA-BR-30) pairs a powerful gas cooktop with 4 Italian-crafted brass burners and an electric convection oven with a Landscape oven door window design. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.


Product Features

  • ZLINE Legacy Series
    The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury

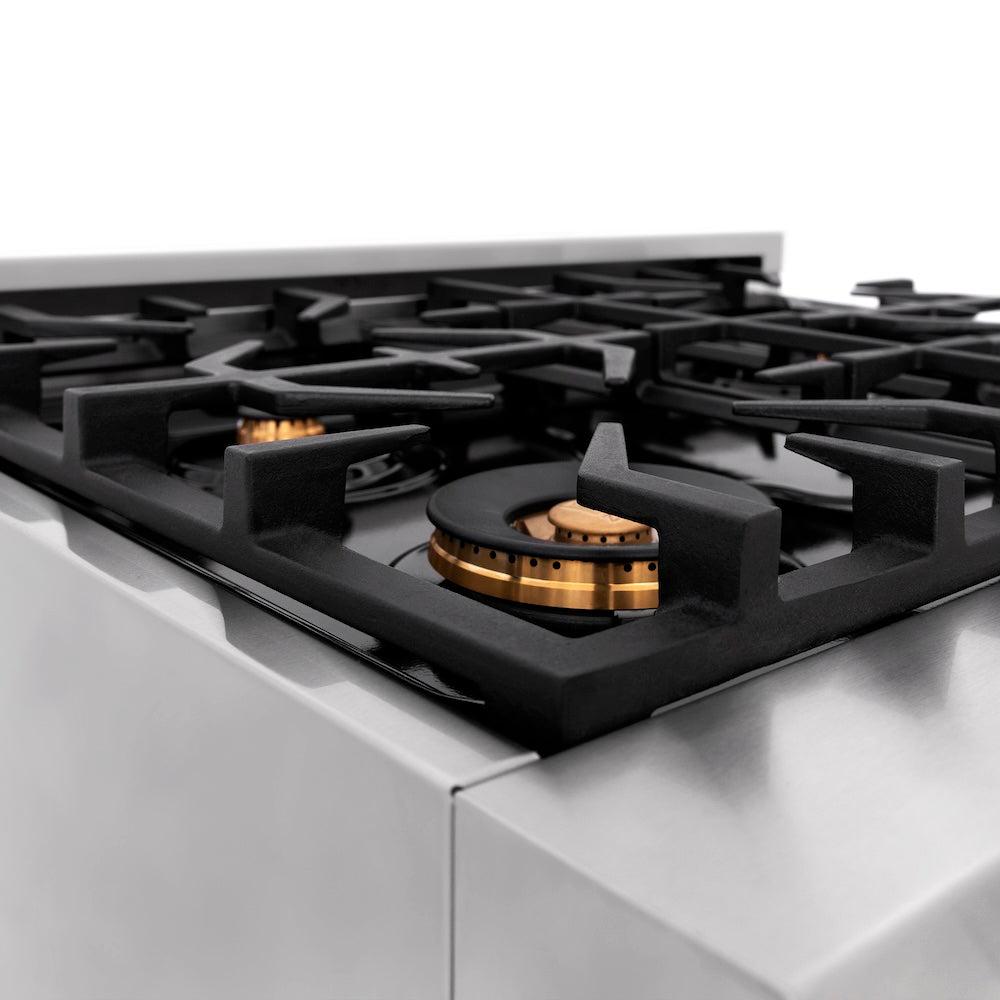

  • Hand-Cast Brass Burners
    Industry-leading gas cooktop includes 4 hand-cast Italian brass burners with 1,000
  • Professional Dual Fuel Cooking
    Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and an electric convection oven
  • Landscape Oven Window
    ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
  • Large Oven Capacity
    A 4.0 cu. ft oven fits pans up to 23 in. wide for maximum space and convenience with everyday cooking
  • Premium Oven Insulation
    Triple layered glass and an aluminum mesh seal offers superior heat retention and consistent temperatures
  • Adjustable Range Height
    Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
  • Italian Brass Burner Craftsmanship
    Italian-made brass burners naturally form a patina and deeper brass hue to protect from corrosion, an expected oxidation process that ensures optimal temperature control and safety
  • Stunning Stainless Steel
    Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
  • StayPut Oven Door Hinges
    Designed to support the full weight of the oven door, offering additional convenience and safety
  • Smooth Glide Ball-Bearing Oven Racks
    2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
  • Dual Oven Lights
    Illuminate your oven space with dual halogen lighting, controlled by a switch located on the front control panel
  • Minimal Cleaning
    Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
  • LP Conversion Kit
    Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
  • Industry First Lifetime Burner Warranty
    Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
  • Manufacturer Warranty
    1-year parts and service warranty
  • Additional Assembly Required
    This product ships in multiple boxes and will require minimal assembly upon arrival

Key Features

Triple Layer Glass

Built to insulate, increase efficiency and keep the kitchen cool.

Porcelain Cooktop

Heavy duty porcelain cooktop allows for timeless style and effortless clean up.

Stay-put Hinges

Heavy-duty hinges imported from Italy are fluid and stable, ensuring a feel and ultimate convenience.

Italian Burners

Handcrafted Italian burners offer the best in the industry when it comes to heat retention and distribution.

Adjustable Legs

Twist legs to adjust the total range height anywhere from 36” to 38.5”.
