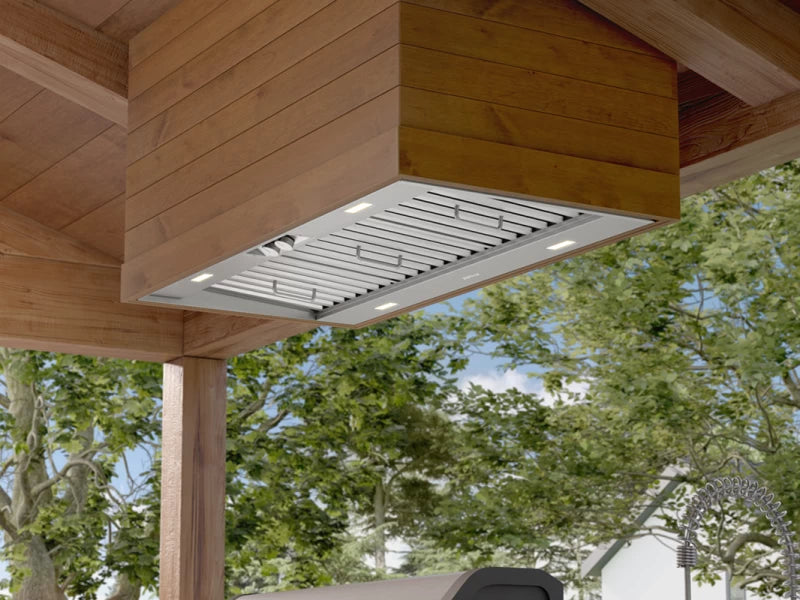

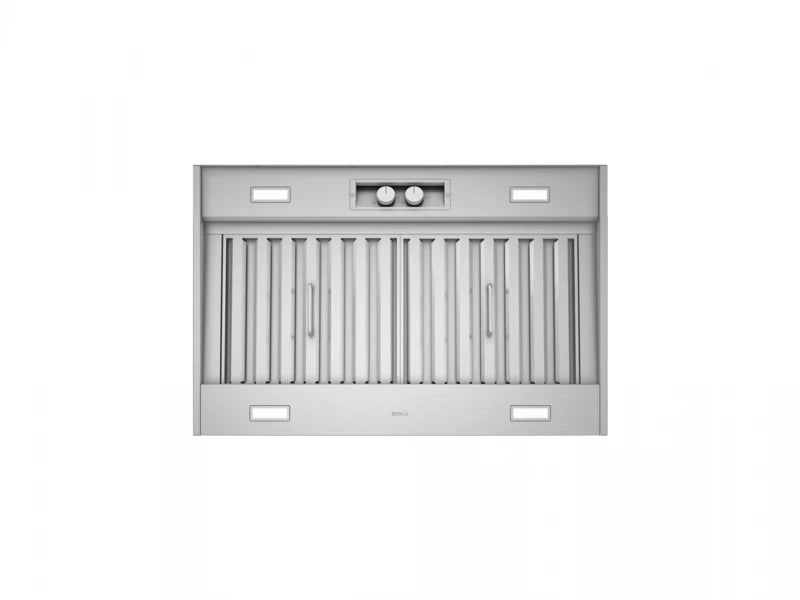

The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, LumiLight LED lighting, and pro baffle filters to enhance airflow.
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328010620 |
| GTIN | 00646328010620 |
| Country of Origin | Taiwan |
| Model Group | AK98-B |
| Model Name | Spruce |
| Collection | Pro Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 3.5 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 450 |
| Installation Type | Insert |
| For Outdoor Use | Yes |
| Color | Stainless Steel |
| Controls Type | Control Knob |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210031 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 10 |
| Mounting Height Above Cooktop; IN | 30 - 36 |
| Voltage | 120 |
| Maximum Amperage | 8 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | None |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 960 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 12 |
| Weight; LBS | 62 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Shipping Length; IN | 16.93 |
| Shipping Width; IN | 37.8 |
| Shipping Height; IN | 28.54 |
| Shipping Weight; LBS | 56.2 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Cutout Depth in. | 22.625 |
| Cutout Width in. | 34.5 |
| Duct Type | Vertical |
| Duct Type | Vertical |
