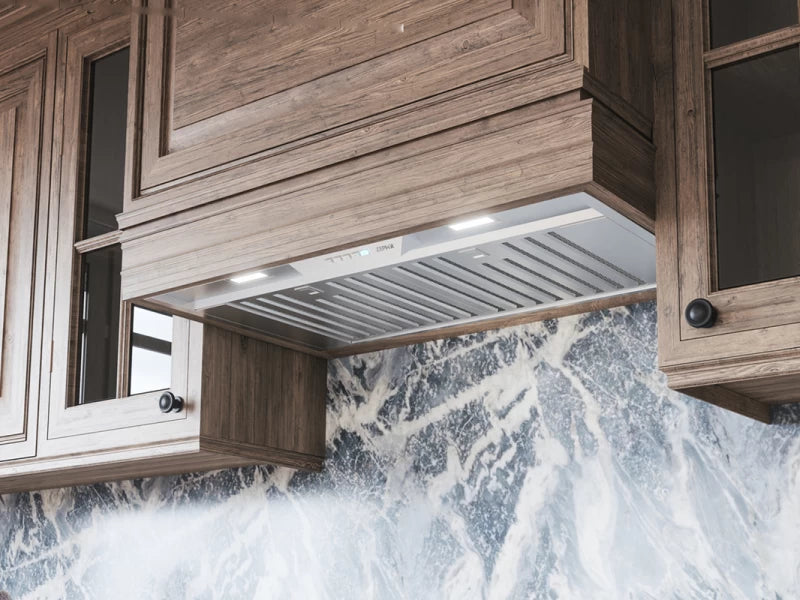

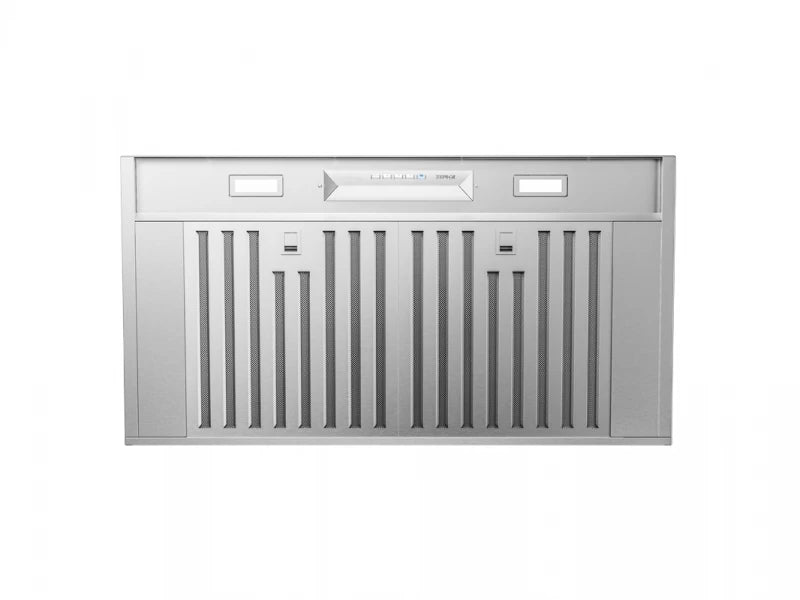

A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. Featuring a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT™), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options.
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328009914 |
| GTIN | 00646328009914 |
| Country of Origin | Taiwan |
| Model Group | AK95-A |
| Model Name | Monsoon Mini II |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210041 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9100A, Z0F-C091, AK00067, MUA006A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 18.0625 |
| Net Height; IN | 6.125 |
| Weight; LBS | 33.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 38.9 |
| Shipping Width; IN | 9 |
| Shipping Height; IN | 22.8 |
| Shipping Weight; LBS | 38.5 |
| Shipping Method | Small Parcel |
| Freight Class | 125 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 18.5 |
| Cutout Width in. | 34.5 |
| Duct Type | Vertical |
| Duct Type | Vertical |
