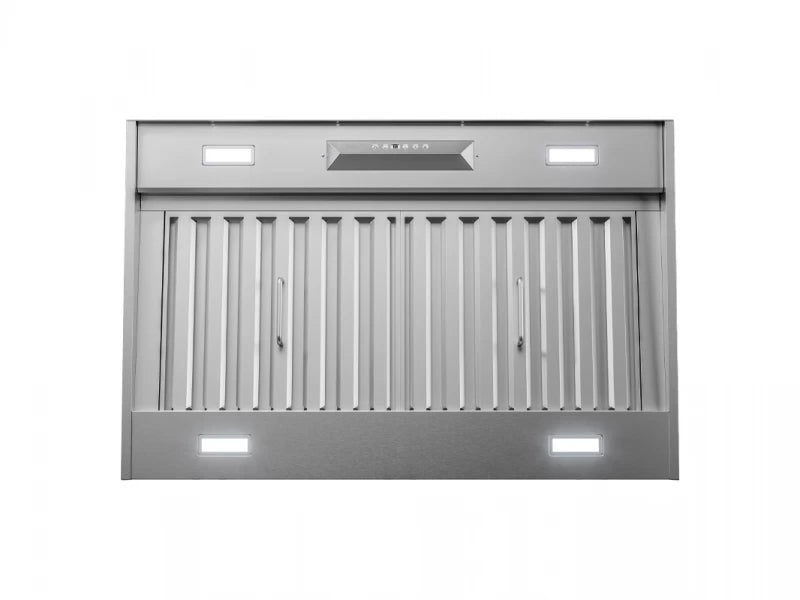

Name: ZEPHYR AK9340BS 42" Monsoon II Insert
Brand: ZEPHYR
SKU: AK9340BS-KT
Price: 1749.00 USD
Availability: InStock

Key Specs

Type: Hood inserts
Width: 40.37 Inch
Depth: 22.5 Inch
Height: 12.0 Inch

More details

Translation missing: en.products.product.product_variants

$1,749.00 $1,899.00 Save $150.00

Check Delivery Options

More on the way

Quantity:

Extended Protection

5 Year Major Appliance True Extended under $2,500.00
$195.99
3 Year Major Appliance True Extended under $2,500.00
$131.99
Decline Protection

Product Information
Technical Details
Manuals & Guides
Features
Reviews

General
Model: AK9340BS
Brand: ZEPHYR
Color: STAINLESS STEEL
Height: 12.0
Width: 40.37
Length: 22.5
Cooking Capabilities
Number of Burners: 0
Number of Elements: 0
Convection: No
Self-Cleaning: No
Cooking Capabilities
Warming Drawer: No
Hidden element: No
Proof cook mode: No
Continuous grate: No
Down draft: No
Storage Drawer: No
Induction: No
Features
Sabbath mode: No
Recessed turntable: No
Number of Shelves: 0
Convection: No
Advanced Features
Wi-Fi Connectivity: No
Smart Features: No
Power & Consumption
Microwave wattage: 0
CFM: 0

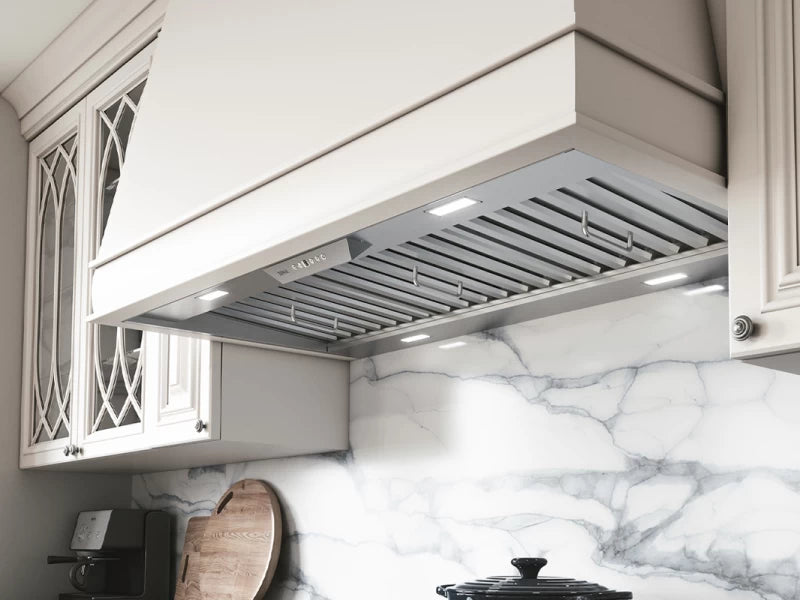

Now available with LumiLight LED lighting and our exclusive ACT™ technology, Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.

Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Insert
Vent Type	Ducted
UPC	646328008320
GTIN	00646328008320
Country of Origin	Taiwan
Model Group	AK93-B
Model Name	Monsoon II
Collection	Pro Collection
Blower Included	Yes
Blower CFM w/ACT	590, 390
Internal Blower 1 CFM	1200
Internal Blower 1 Min. Sones	3.5
Internal Blower 1 Max Sones	9
Minimum CFM	450
Installation Type	Insert
For Outdoor Use	No
Color	Stainless Steel
Controls Type	Electronic
Blower Speeds	6
Automatic Delay-Off	Yes
Clean Air Function	Yes
Lighting Type	LED
Lights Quantity	4
Watts Per Bulb	6
Lights Levels	2
Grease Filter Type	Pro baffle
Compatible Mesh or Baffle Filter Part Number	50210033
Duct Discharge	Vertical
Duct Size; Vertical; IN	10
Mounting Height Above Cooktop; IN	26 - 36
Voltage	120
Maximum Amperage	7
ADA Compliant	Yes
Warranty Parts / Labor	3 / 1
Compatible Appliances	MUA010A, Z0B0040, 14000005
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	Yes
Remote Optional	No
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Stainless Steel
Wattage	840
Certification	UL
Nominal Width; IN	42
Net Width; IN	40.375
Net Depth; IN	22.5
Net Height; IN	12
Weight; LBS	59.1
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	12 ft.
Shipping Length; IN	16.5
Shipping Width; IN	43.3
Shipping Height; IN	28.3
Shipping Weight; LBS	71.8
Shipping Method	LTL
Freight Class	300
Certification #	E127334
Clean Filter Alert	Yes
Cutout Depth in.	22.75
Cutout Width in.	40.625
Duct Type	Vertical
Duct Type	Vertical
