Sale price $945.61 Regular price $1,235.97 Save $290.36 / 23% OFF

Product Details for WHIRLPOOL WVW93UC0LZ

Technical Details

Certifications

Star K Certified No
prop65 Standard - Standard

Controls

Control Location Front
Control Type Push Button

Details

Damper Included No
Hood Type Wall-Mount Canopy
Hood and Vent Selections Fan Off/Decrease Speed; Fan On/Decrease Speed; Lamp On/Off; Timer
Lighting Control Type Push Button
Number of Task Light Settings 1
Number of Vent Speeds 3
Task Lighting Yes

Dimensions

Canopy Height 11.6
gross weight 37
net weight 25
carton depth 13
carton height 23
carton width 31

Electrical

Power Cord Included No

Ventilation details

Auto Function No
BTU Threshold 65 K
Blower Motor Blower Motor Included
Blower Type Centrifugal
Duct Direction Vertical
Duct Length 42.056
Duct Outlet Size 6
Duct Type Round
Exhaust Vent Location Top
Filters Dishwasher Safe Grease Filter
HVI (CFM HS Vertical) 270
Maximum Motor CFM 400
Night Light No
Night Light Type N/A
Sones High Speed Vertical 5
Task Light Type LED
Vent Material Metal
Venting Exterior or Recirculating
Sound Min Speed 0.7
Sound Max Speed (Sones) 5

Dimensions & weight

Height 11.6 in.
Canopy Height 11.6
carton depth 14
carton height 26
carton width 34
gross weight 37
net weight 25

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34 in.
Shipping Height 26 in.
Source Calculation

Product details

Energy Star® Qualified No

Description

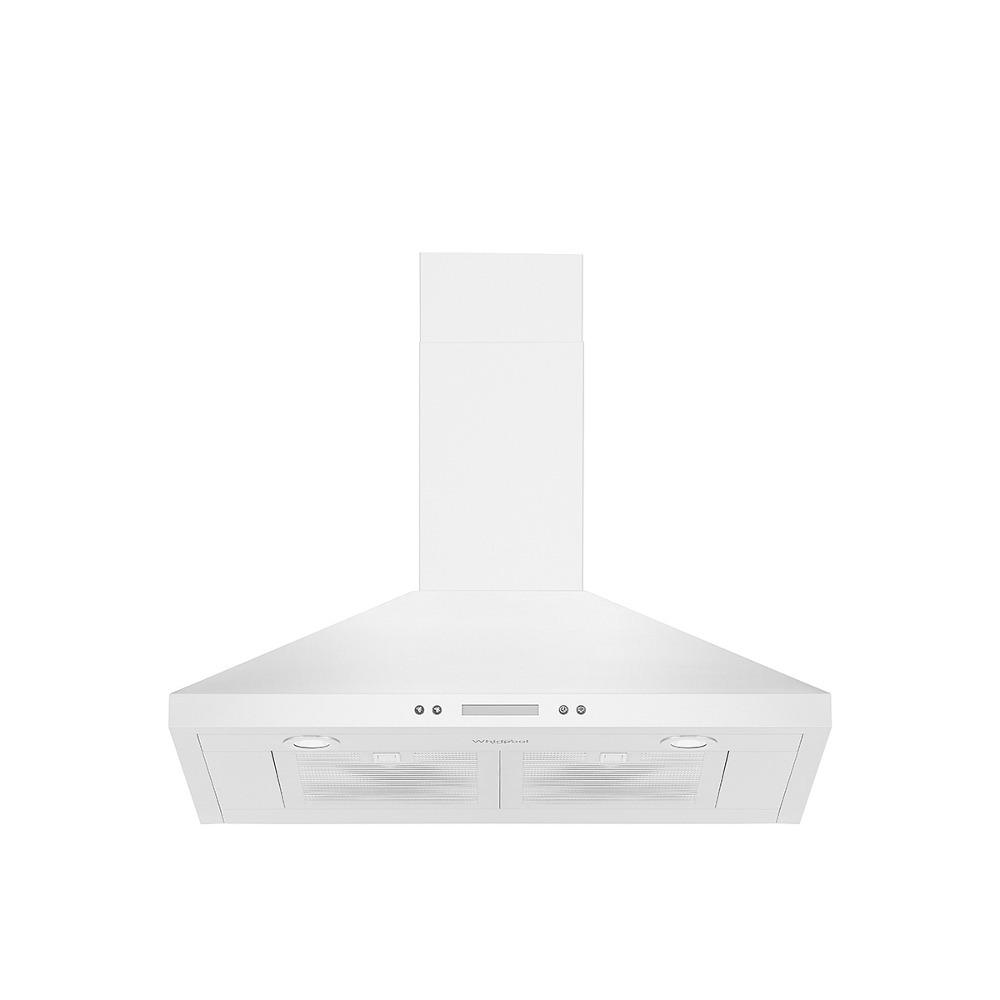

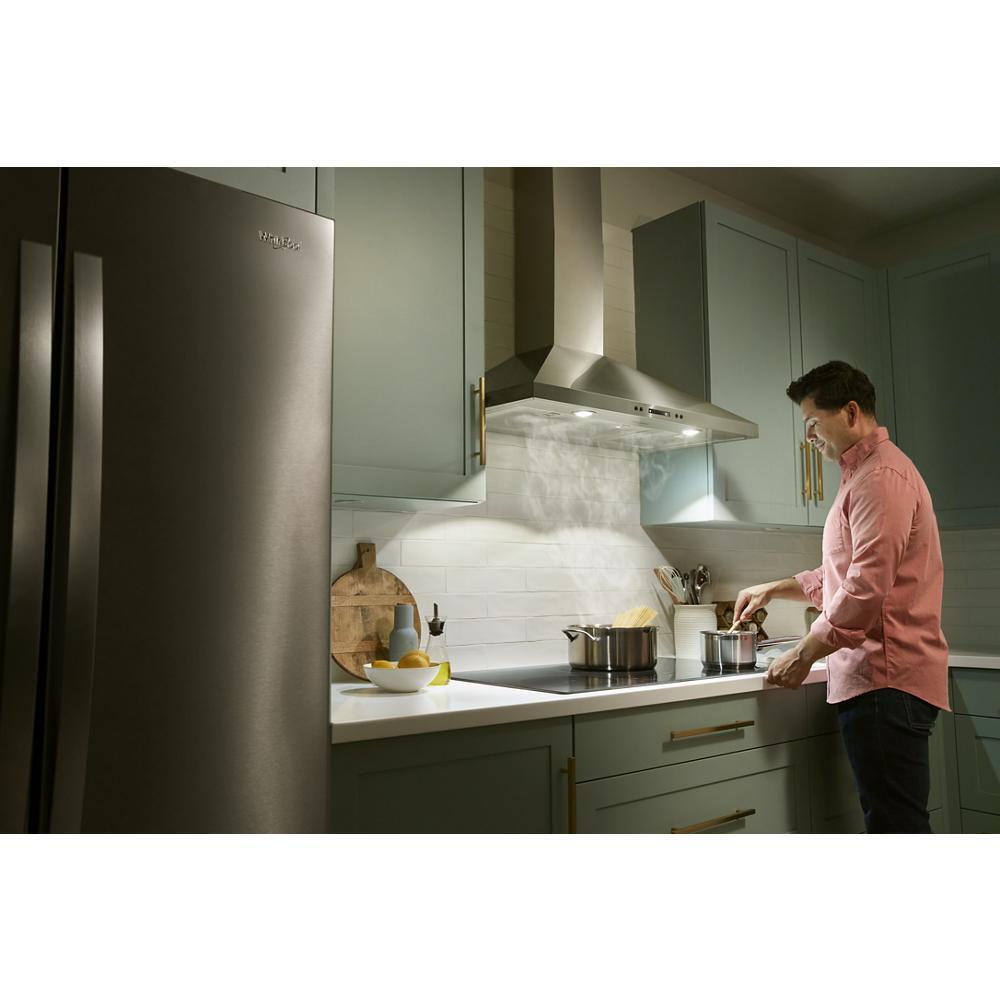

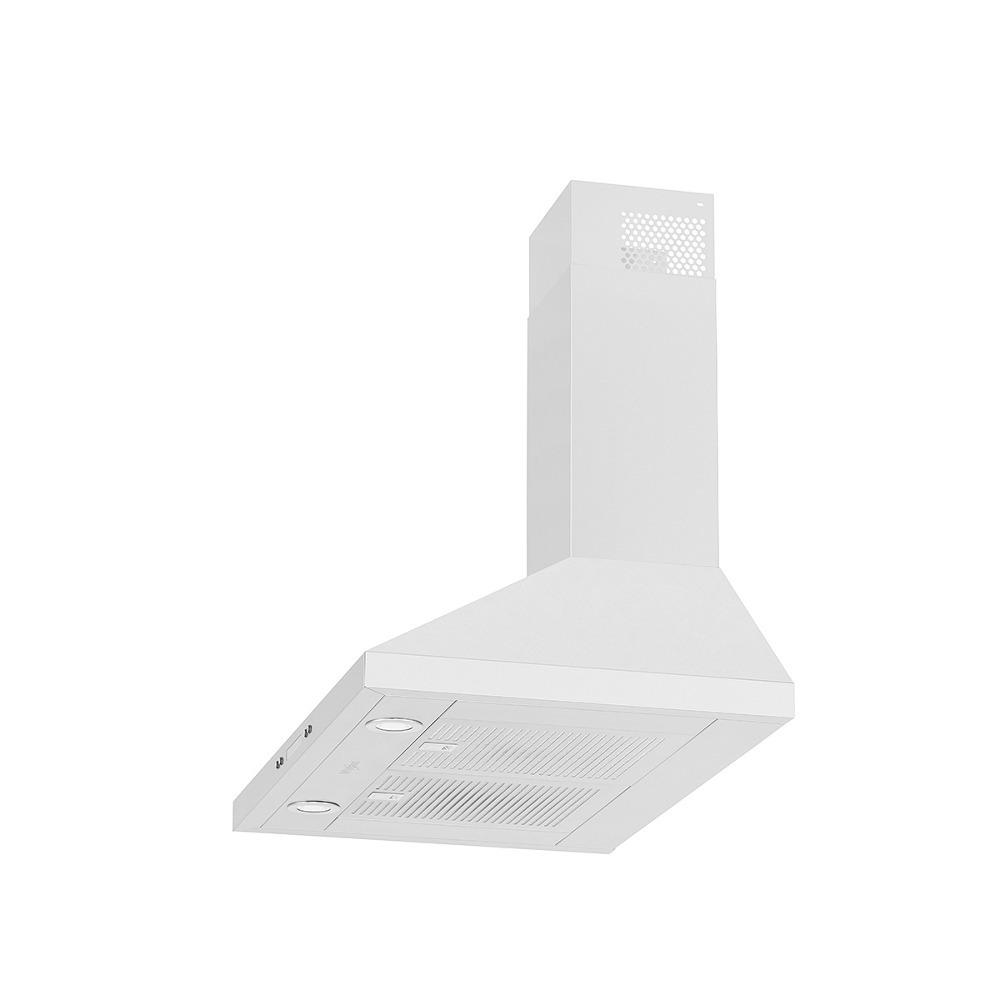

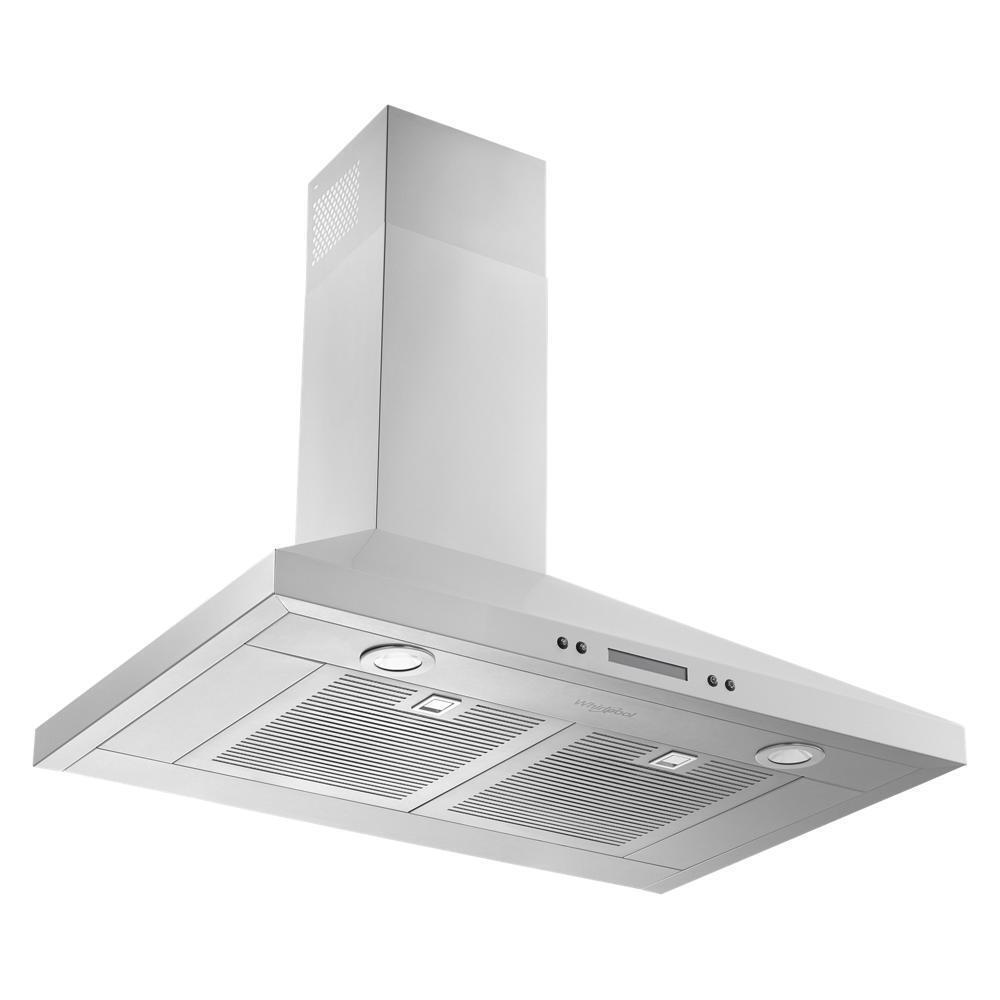

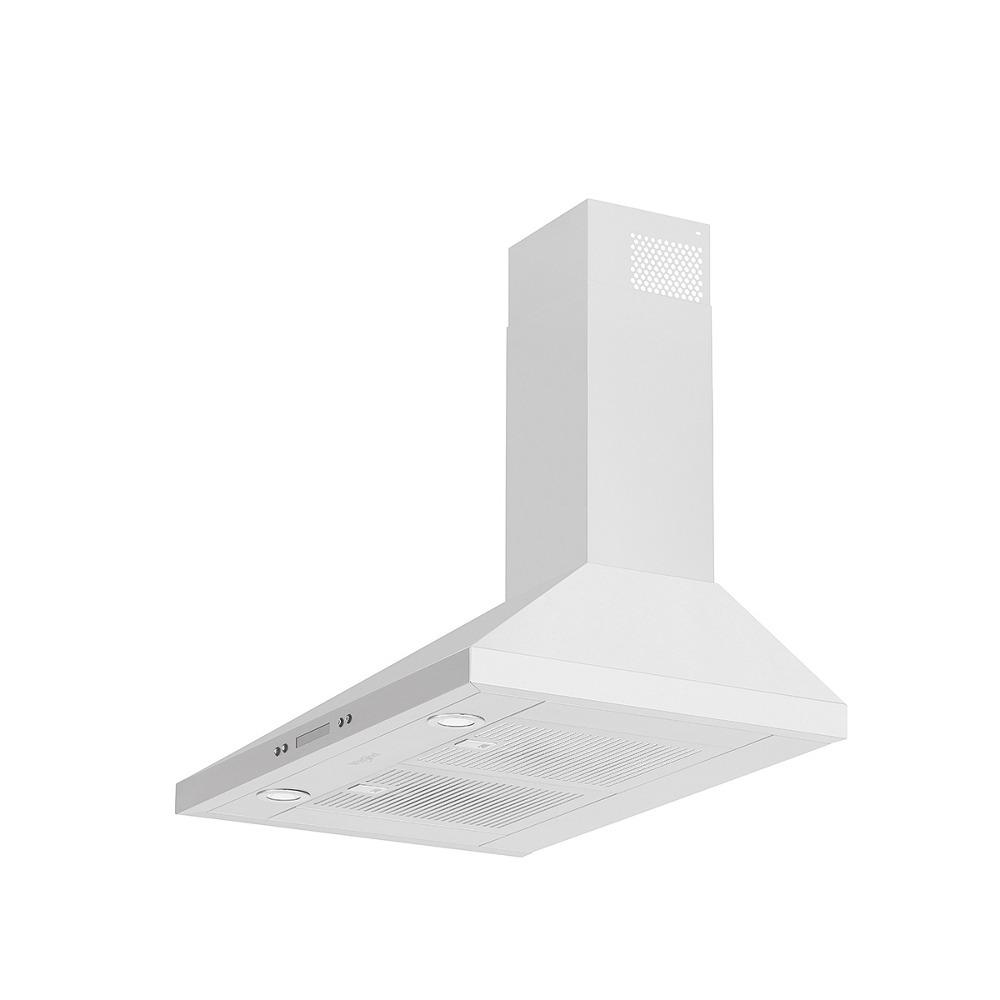

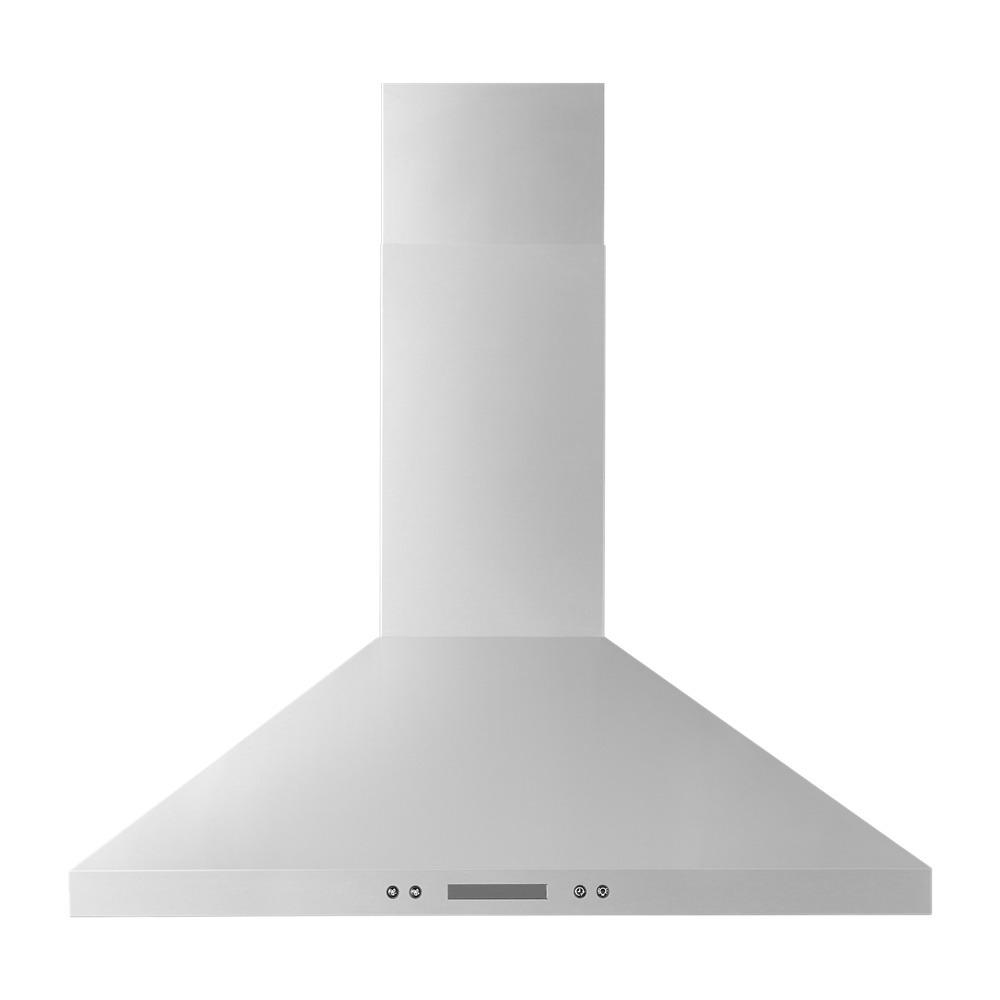

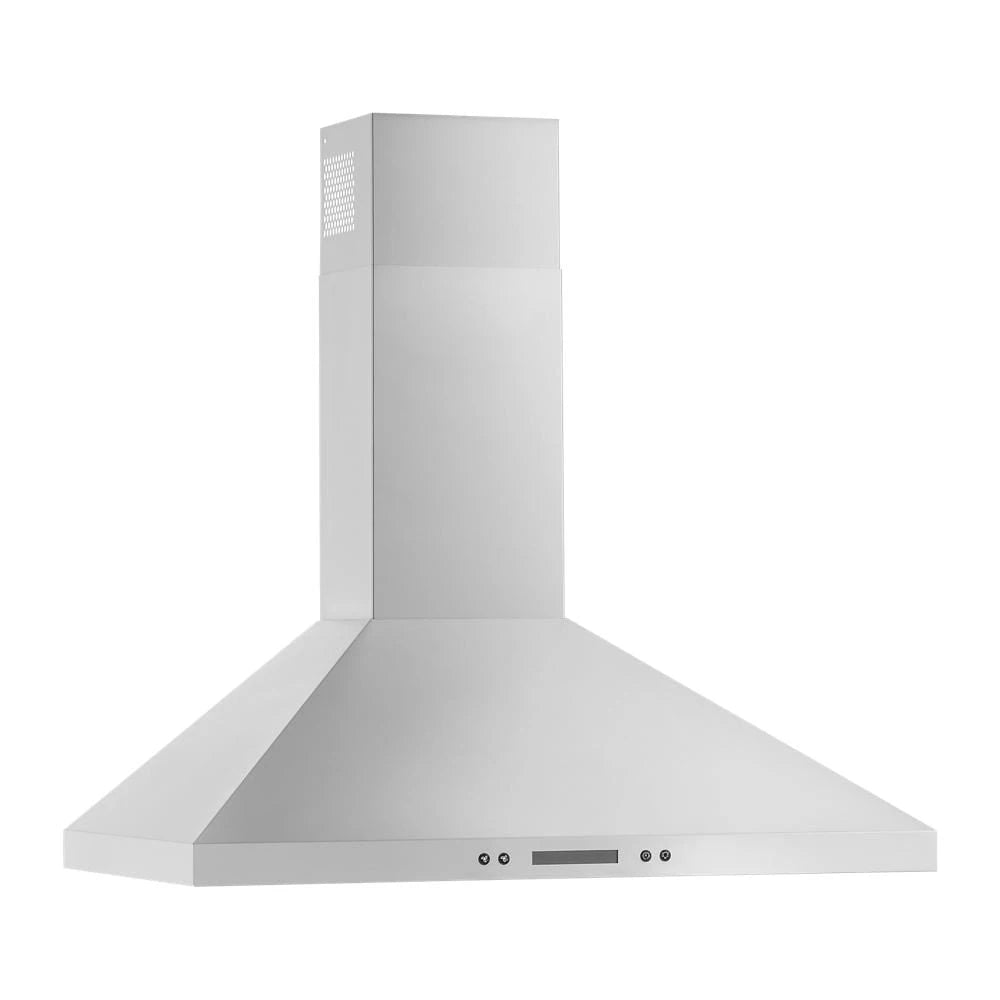

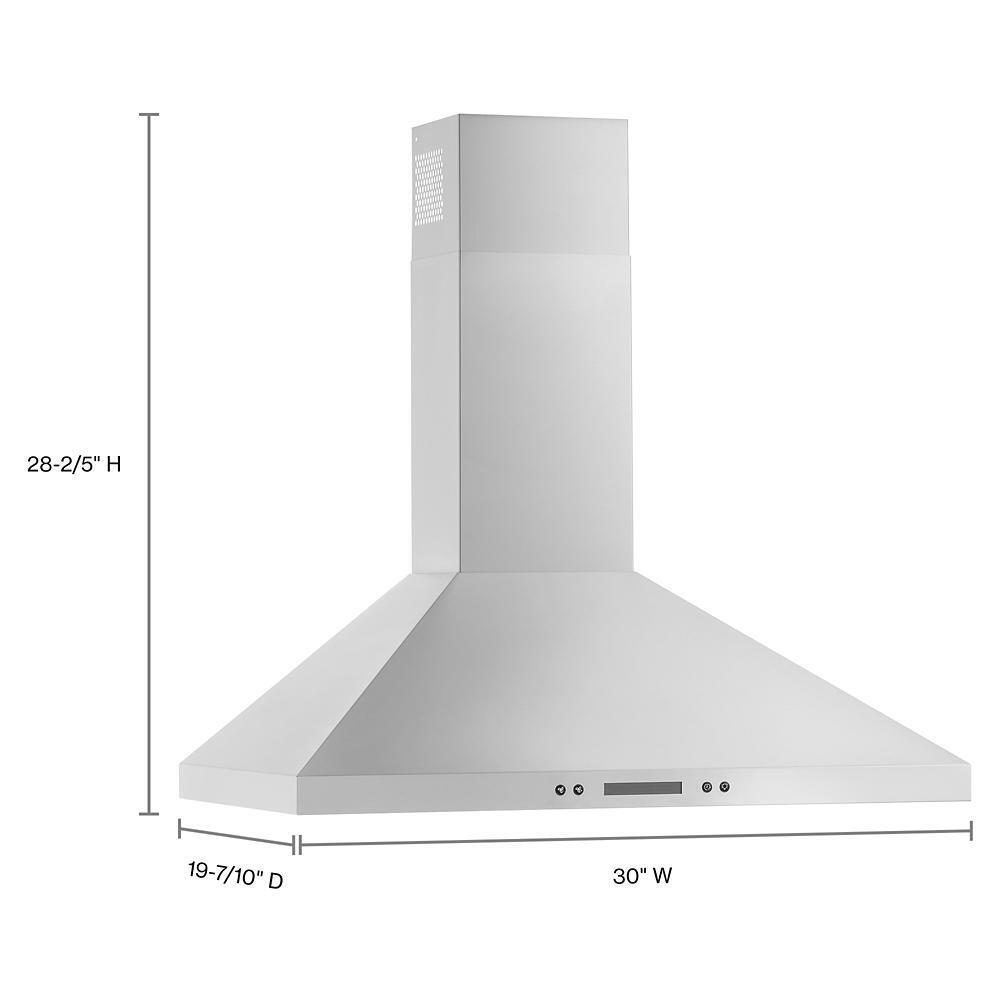

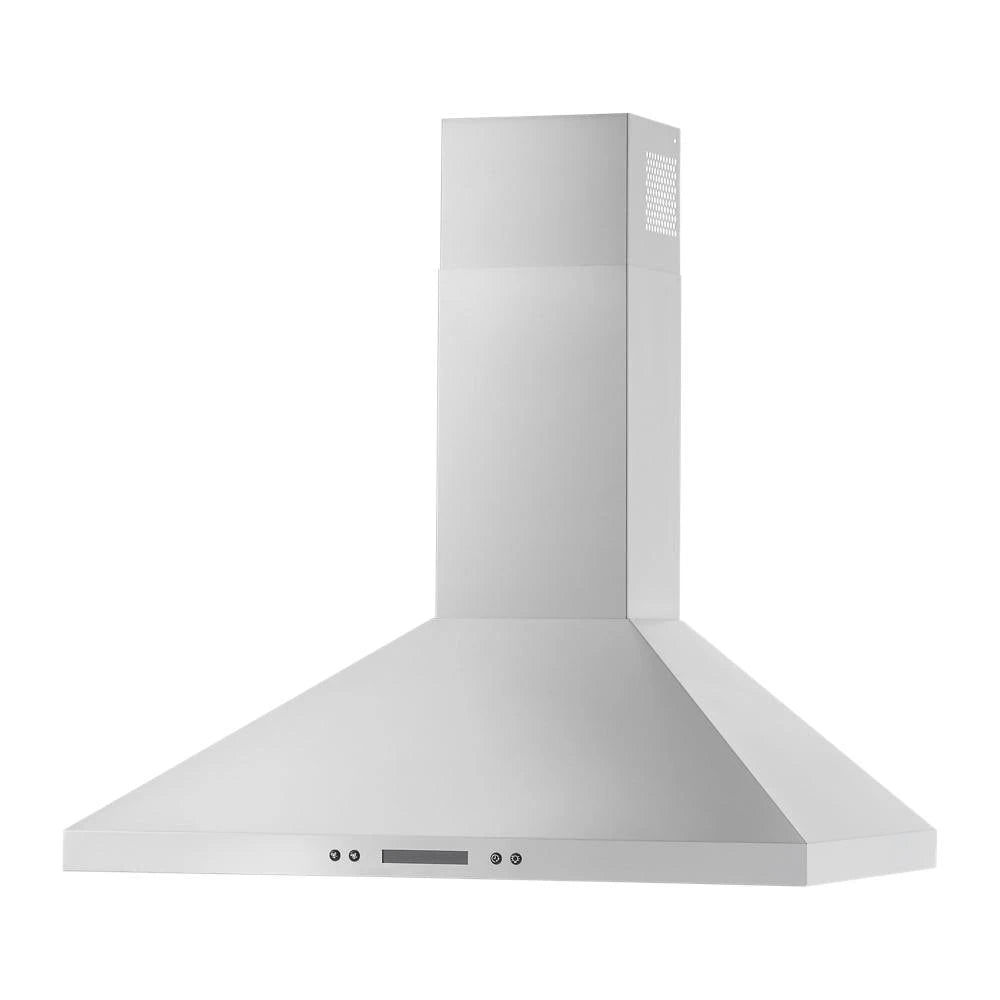

The Whirlpool WVW93UC0LZ 30 Inch Wall Mount Chimney Range Hood delivers powerful and efficient ventilation for contemporary kitchens. With a maximum 400 CFM blower and three-speed fan control, it efficiently clears smoke, grease, and cooking odors from the air. The stainless steel construction adds durability and style, while bright LED task lighting illuminates the cooking surface. Electronic touch controls make operation simple and intuitive, and the convertible ventilation system supports both ducted and recirculating installations. Designed to match modern appliances and aesthetics, this hood is the perfect blend of function and form for today’s kitchens.



Product Features

  • 3-Speed, 400 CFM Motor Class
    Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

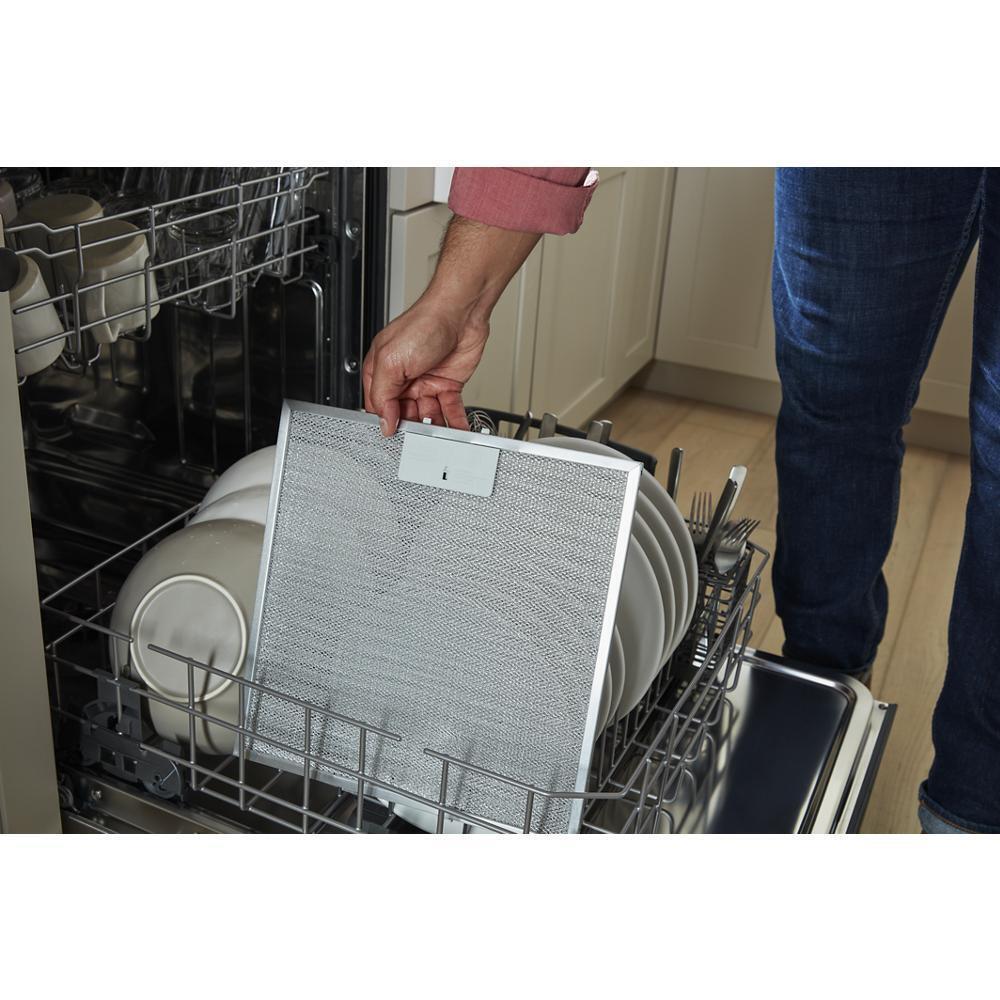

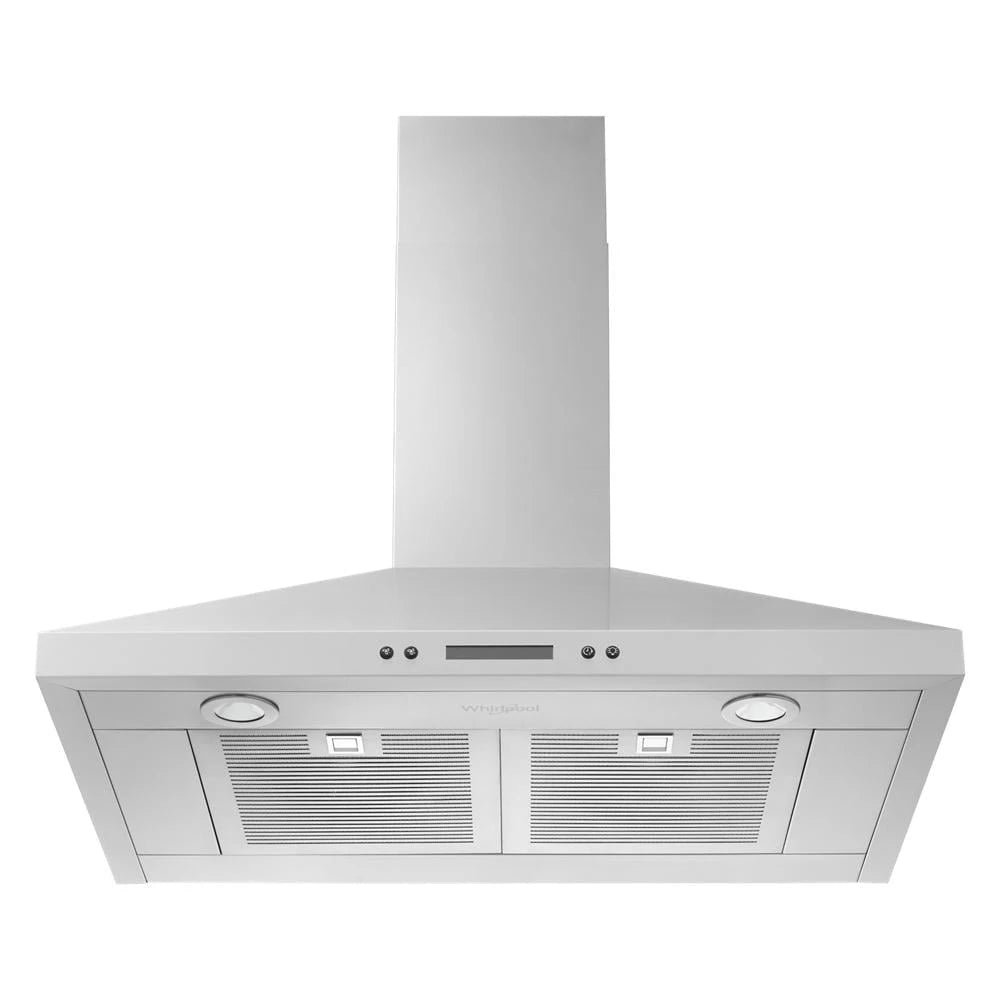

  • Dishwasher-Safe Grease Filter
    Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.

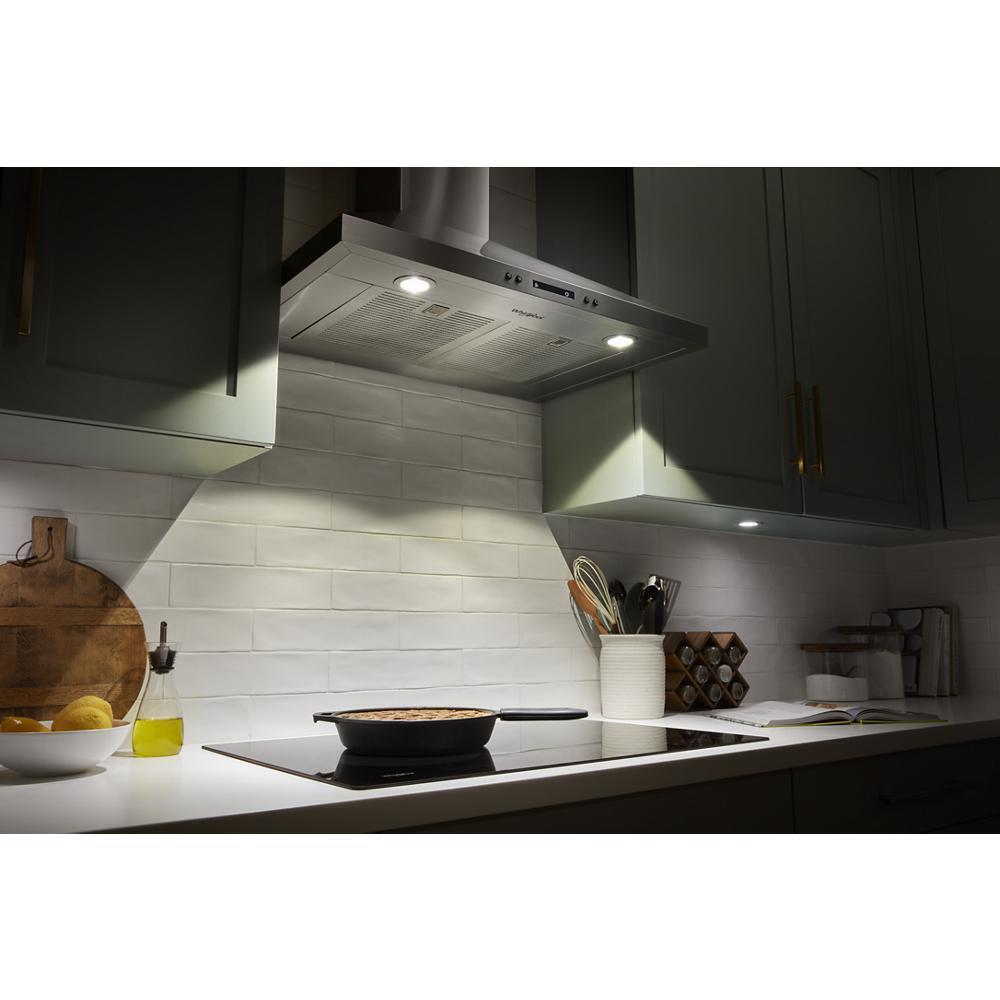

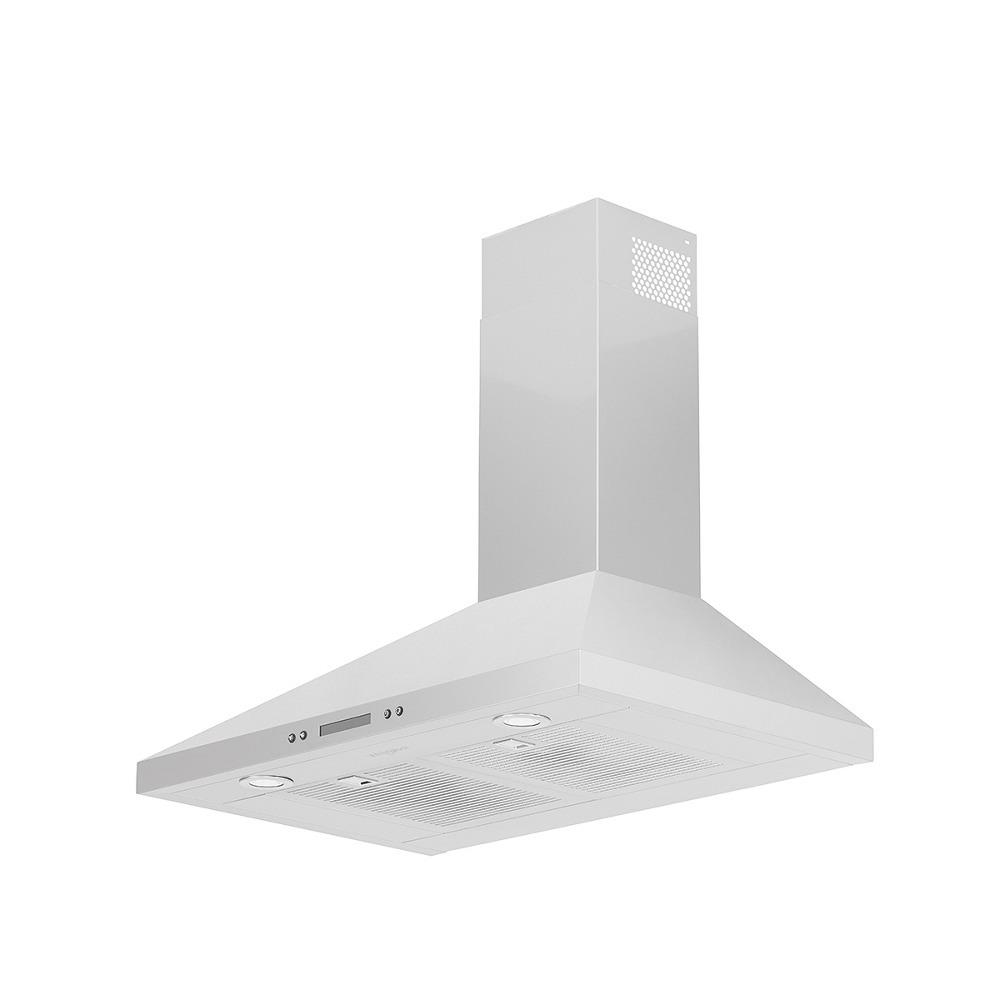

  • LED Task Lighting
    Bright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.
  • Vent Timer
    The Vent Timer automatically turns off the fan according to the timer so you can set it and forget it.
  • Filter Replacement Reminder
    Get reminded when its time to clean your grease filter and replace your charcoal filter to keep your hood running smoothly.
  • 65K BTU Cooktop Threshold
    Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
  • 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
    Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.

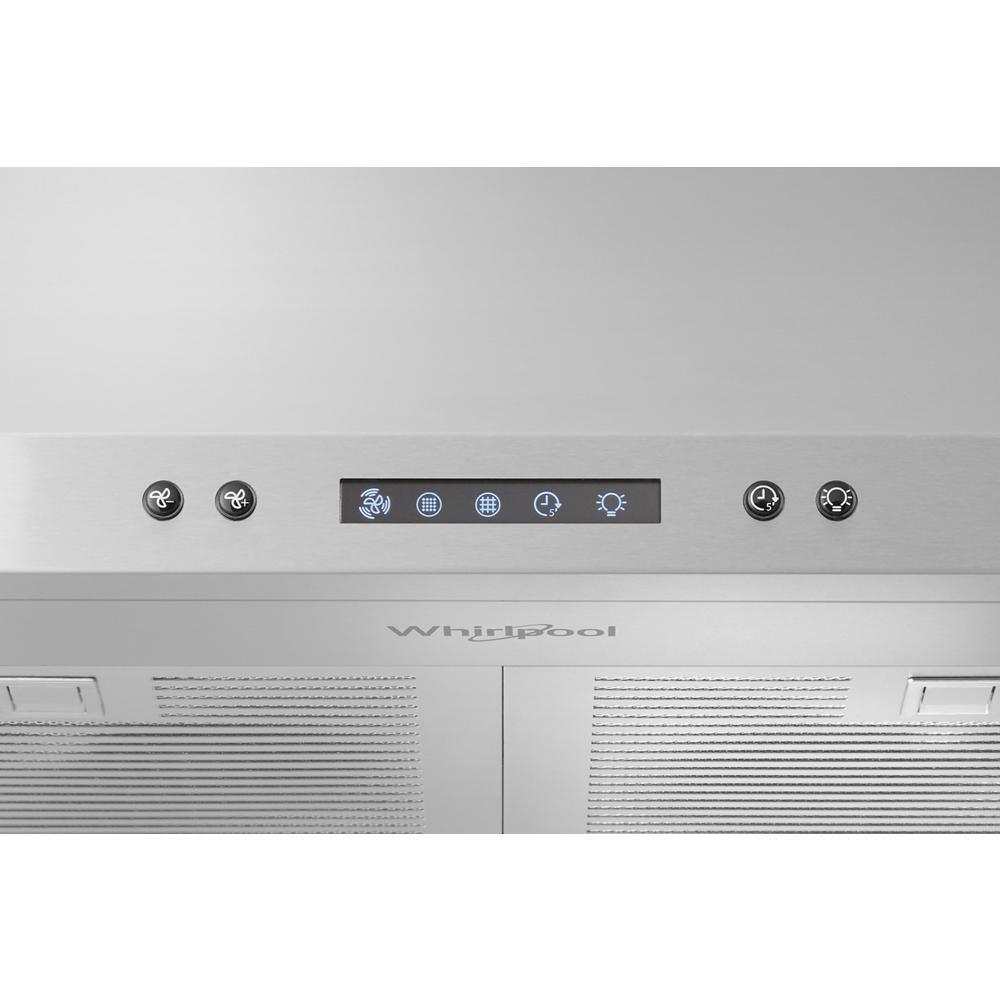

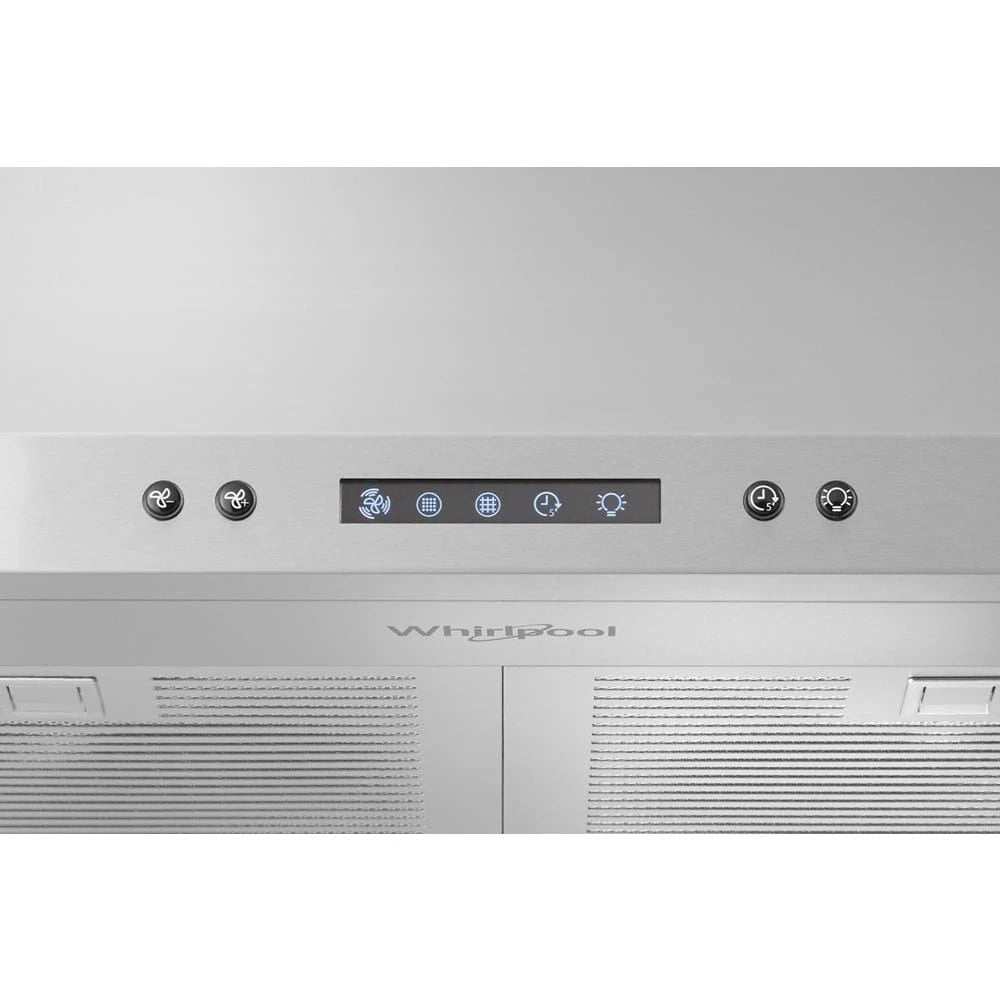

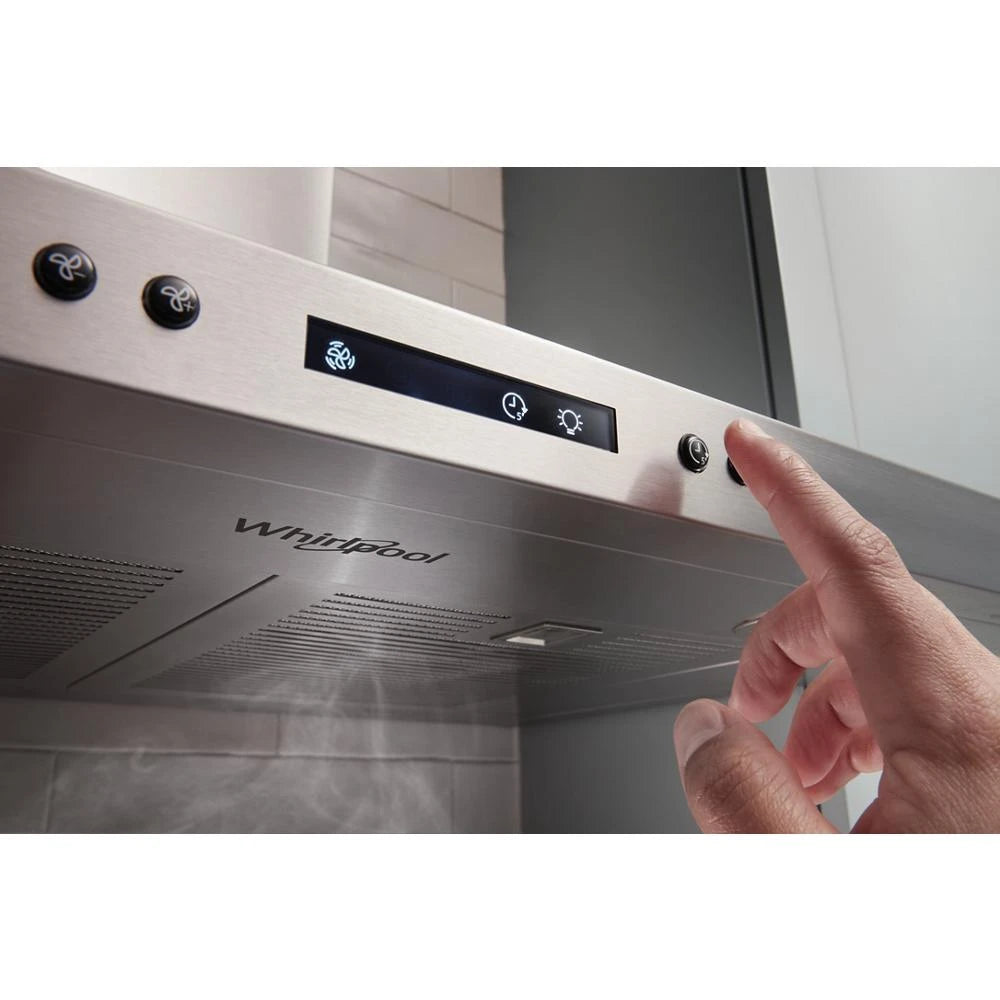

  • Electronic Controls with Display
    Clean the smooth, flat surface of these controls as easily as you use them.

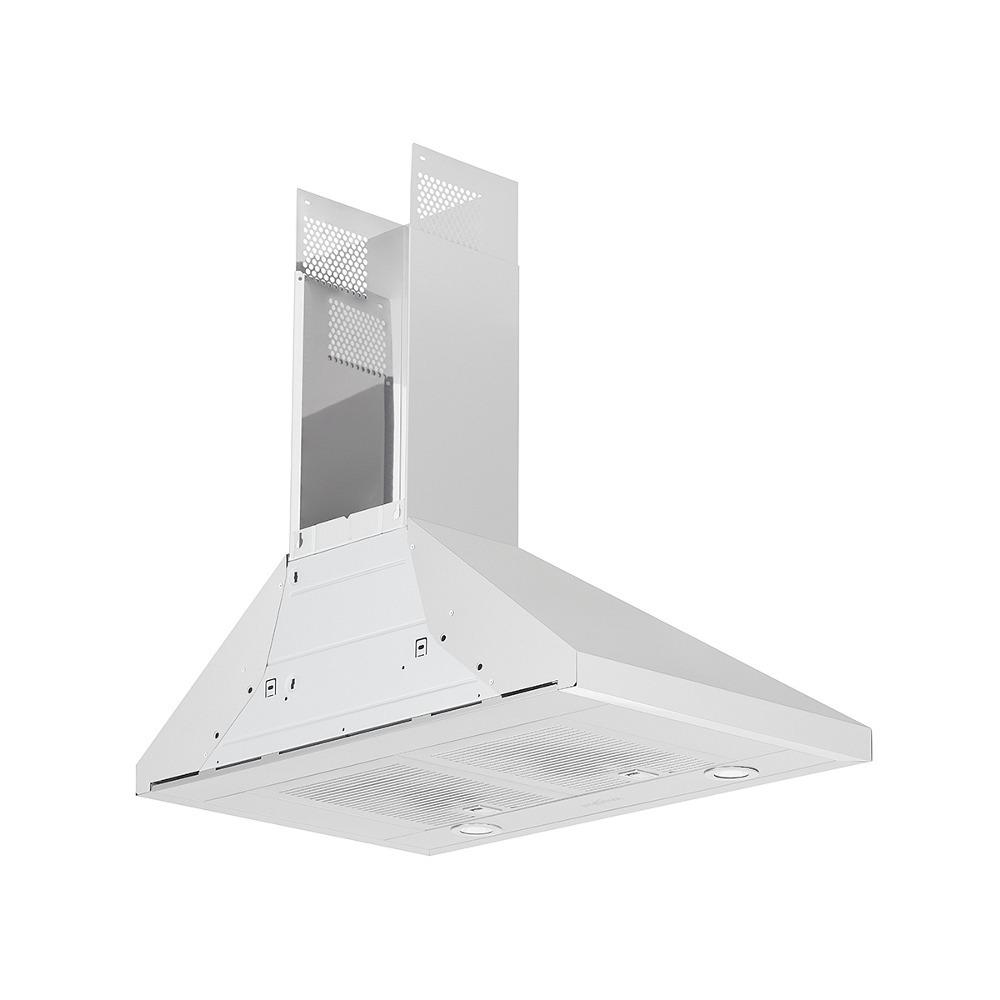

  • Convertible Ventilation (recirculating or vented)
    A convertible design allows for installation that can be vented externally or internally. When venting internally a recirculation kit is required and sold separately. Air passes through charcoal filters to trap grease and odors before pushing the air back into the home.*Recirculation kit sold separately. Part number W10272063.

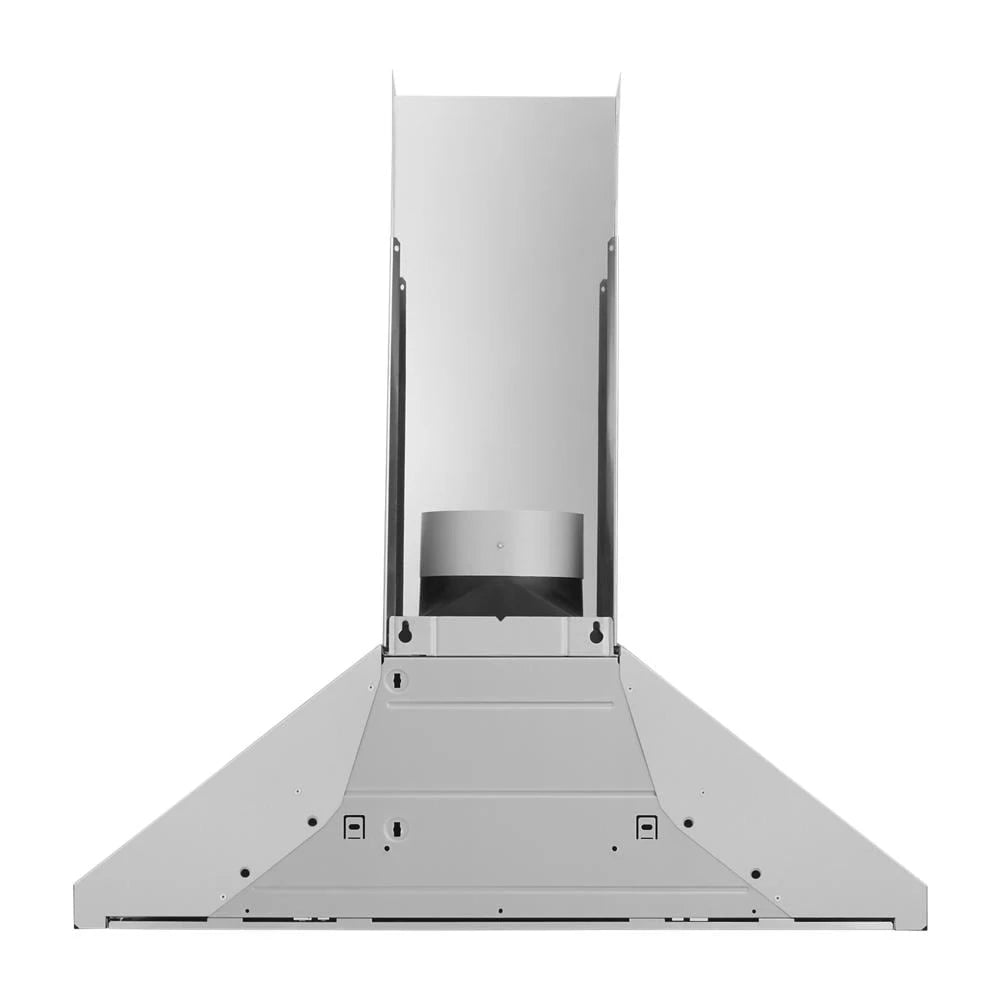

  • 6" Round Damper Included
    Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
  • Optional Chimney Extension Kit
    Extend chimney height for ceilings over 9 feet with the optional chimney extension kit. See installation instructions for details.
  • Fingerprint Resistant
    Available in black and stainless finishes that are easy to clean and resist fingerprints and smudges.
