Sale price $848.02 Regular price $1,003.97 Save $155.95 / 15% OFF

Product Details for WHIRLPOOL WVW93UC0LS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 3.97 ft³
Dimensional Weight 49.32 lbs.
Total of Cubes 3.97 ft³
Total of Dimensional Weight 49.32 lbs.

Controls

Control Location Front
Control Type Push Button

Ventilation details

Auto Function No
BTU Threshold 65 K
Blower Motor Blower Motor Included
Duct Direction Vertical
Duct Type Round
Exhaust Vent Location Top
Filters Dishwasher Safe Grease Filter
HVI (CFM HS Vertical) 270
Maximum Motor CFM 400
Night Light No
Night Light Type N/A
Task Light Type LED
Vent Material Metal
Venting Exterior or Recirculating
Blower Type Centrifugal
Sones High Speed Vertical 5
Duct Length 42.056
Duct Outlet Size 6
Sound Min Speed 0.7
Sound Max Speed (Sones) 5

Details

Hood Type Wall-Mount Canopy
Damper Included No
Hood and Vent Selections Fan Off/Decrease Speed; Fan On/Decrease Speed; Lamp On/Off; Timer
Lighting Control Type Push Button
Number of Task Light Settings 1
Number of Vent Speeds 3
Task Lighting Yes

Electrical

Power Cord Included No

Certifications

Star K Certified No
prop65 Standard - Standard

Dimensions

Canopy Height 11.6
gross weight 37
net weight 25
carton depth 13
carton height 23
carton width 31

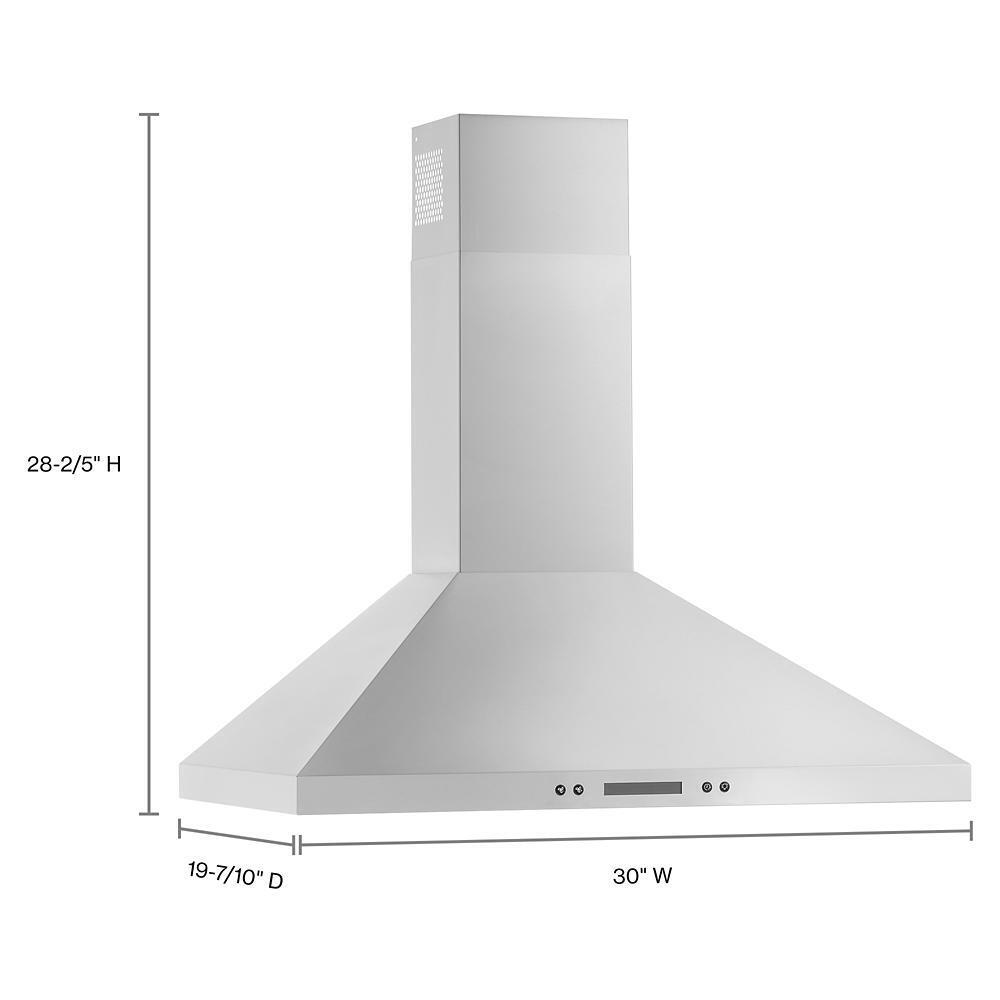

Dimensions & weight

Width 30 in.
Height 11.6 in.
Length 19.7 in.
Weight 37 lbs.
Canopy Height 11-3/5 in
Gross Weight 37 lbs
Net Weight 25 lbs
carton depth 14
carton height 26
carton width 34
Canopy Height 11.6
gross weight 37
net weight 25

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34 in.
Shipping Height 26 in.
Shipping Length 24.7 in.
Shipping Weight 77 lbs.
Total of Shipping Weight 77 lbs.
Source Calculation

Product details

Energy Star® Qualified No

Description

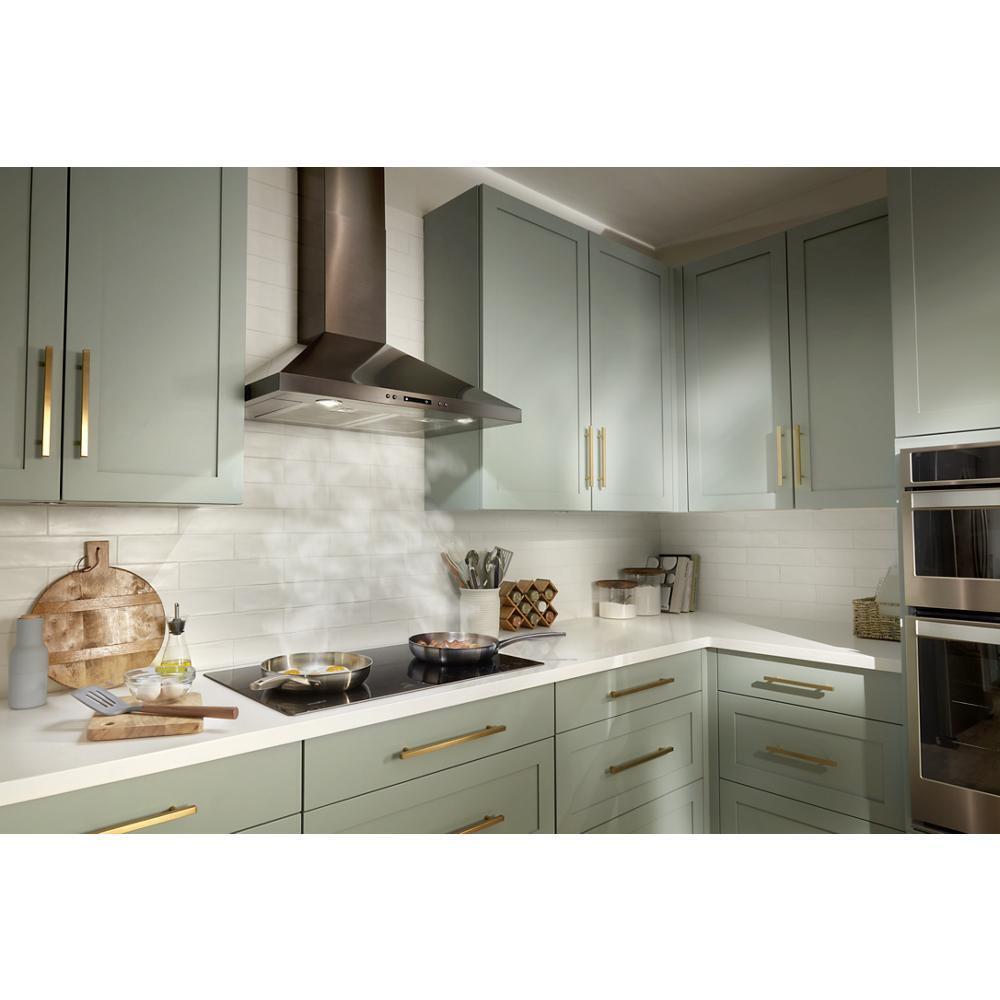

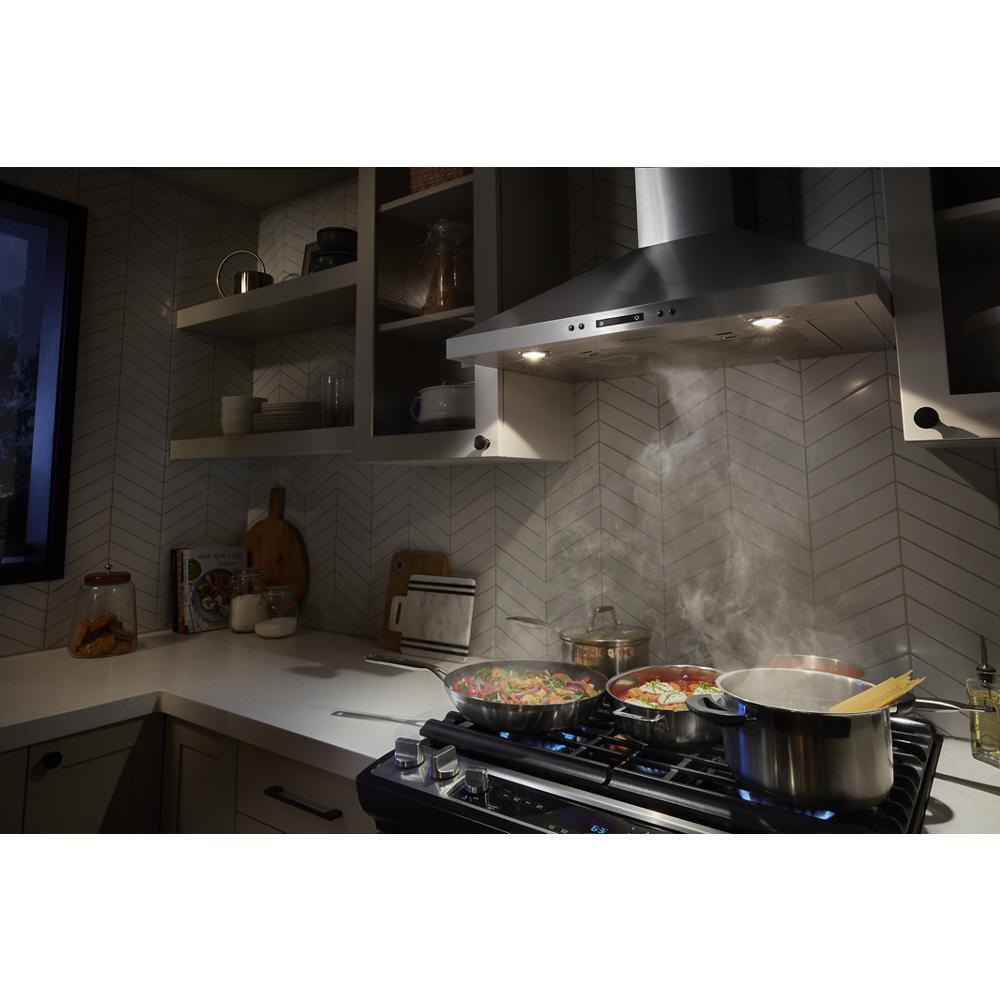

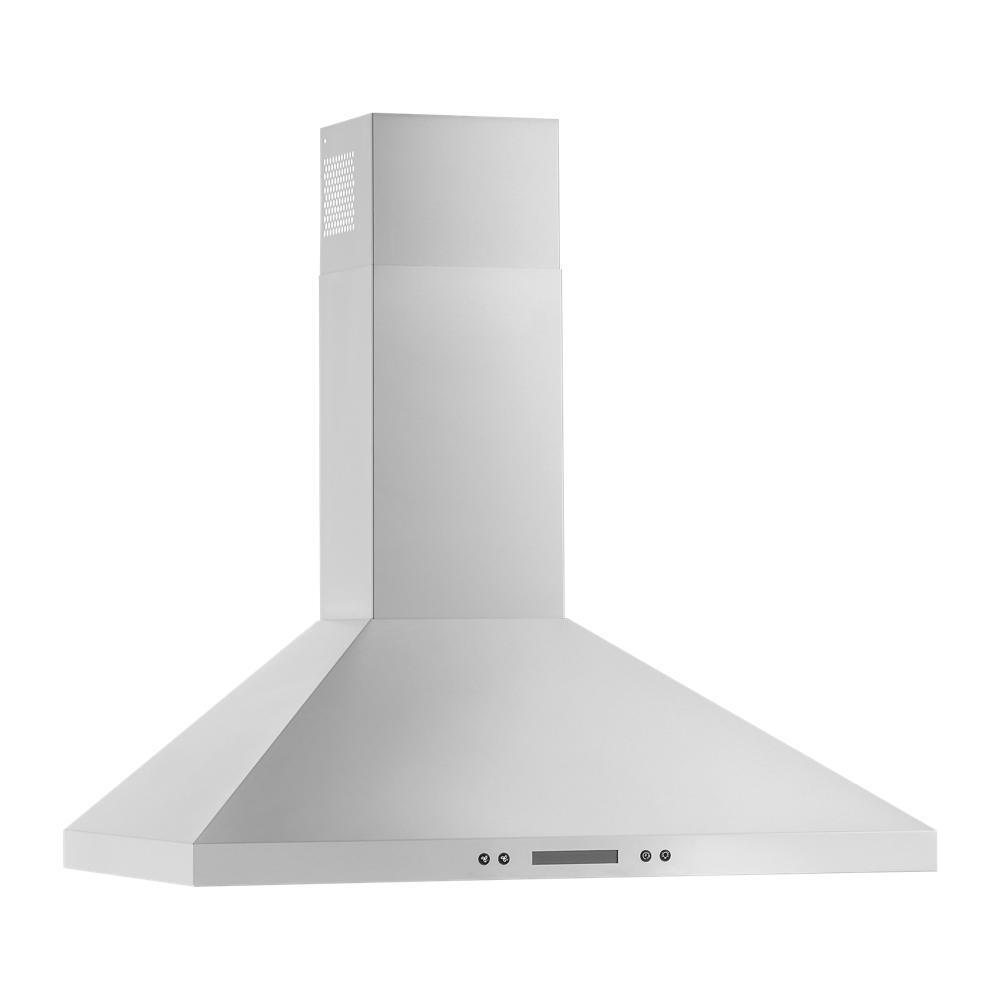

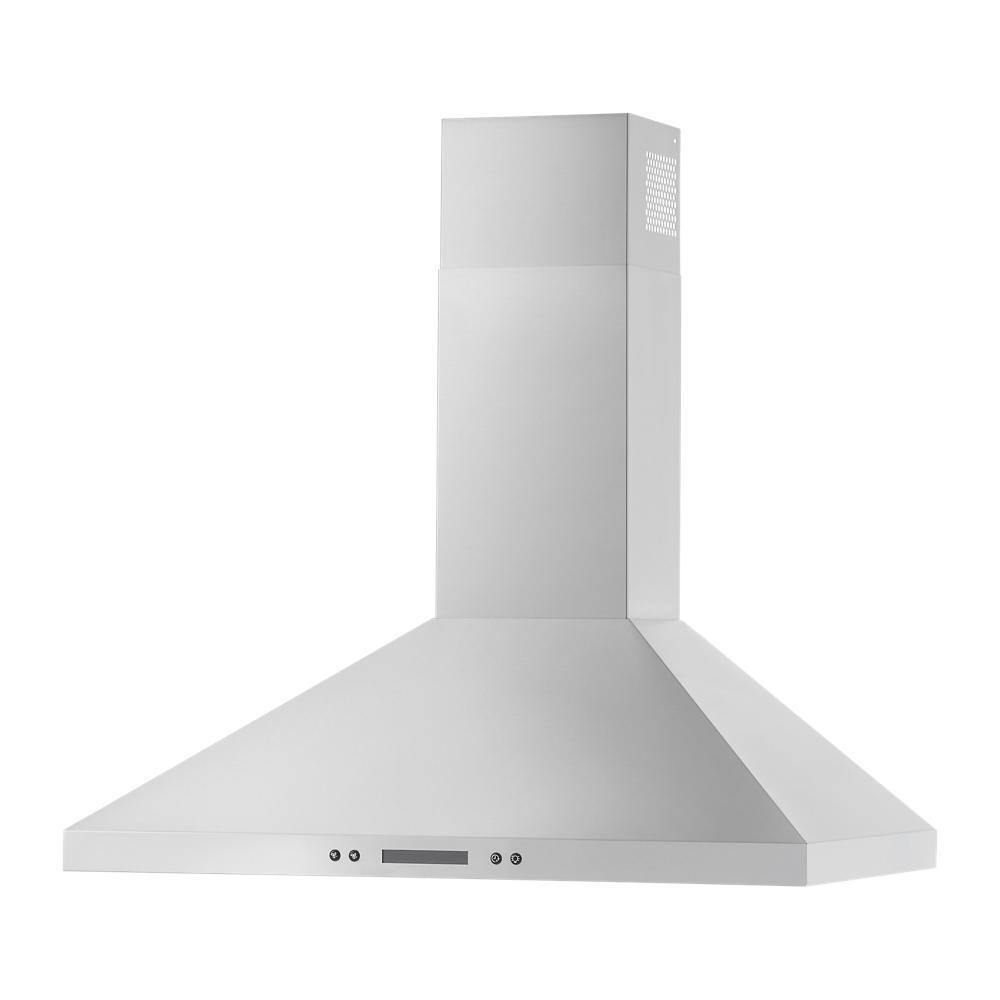

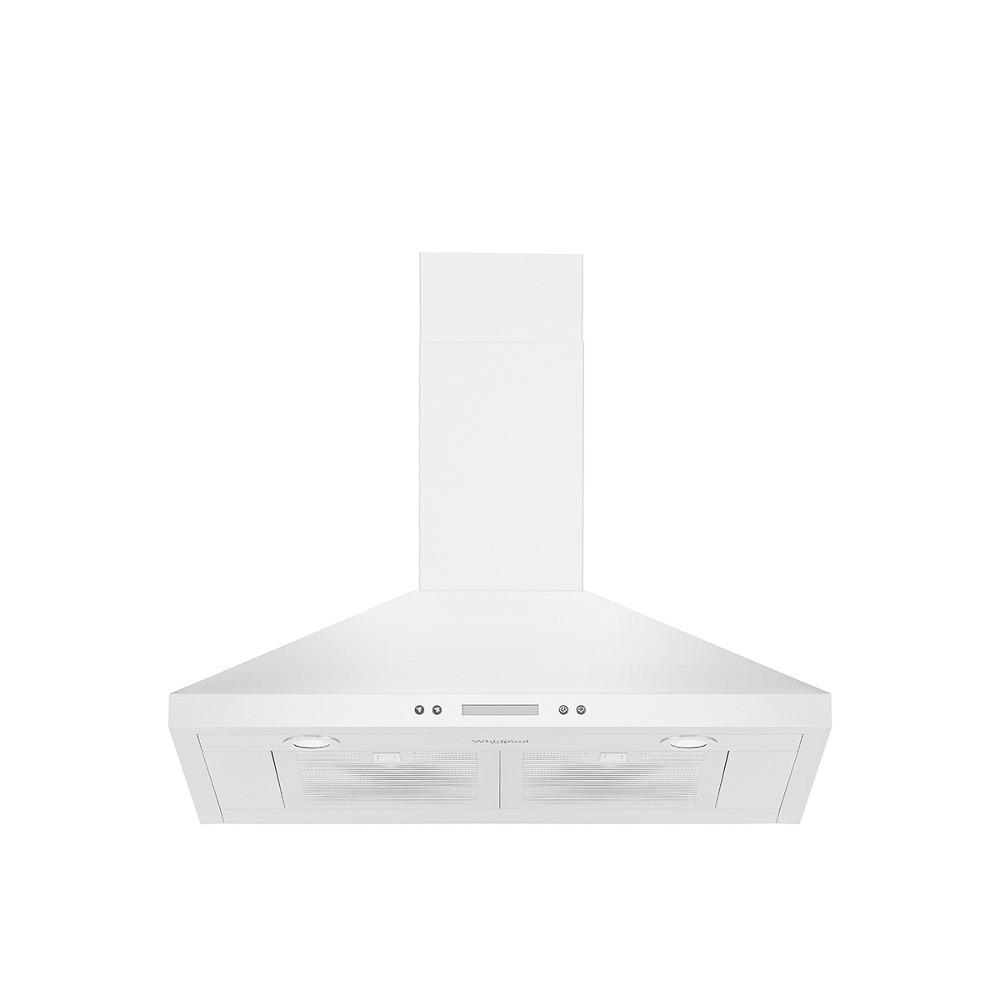

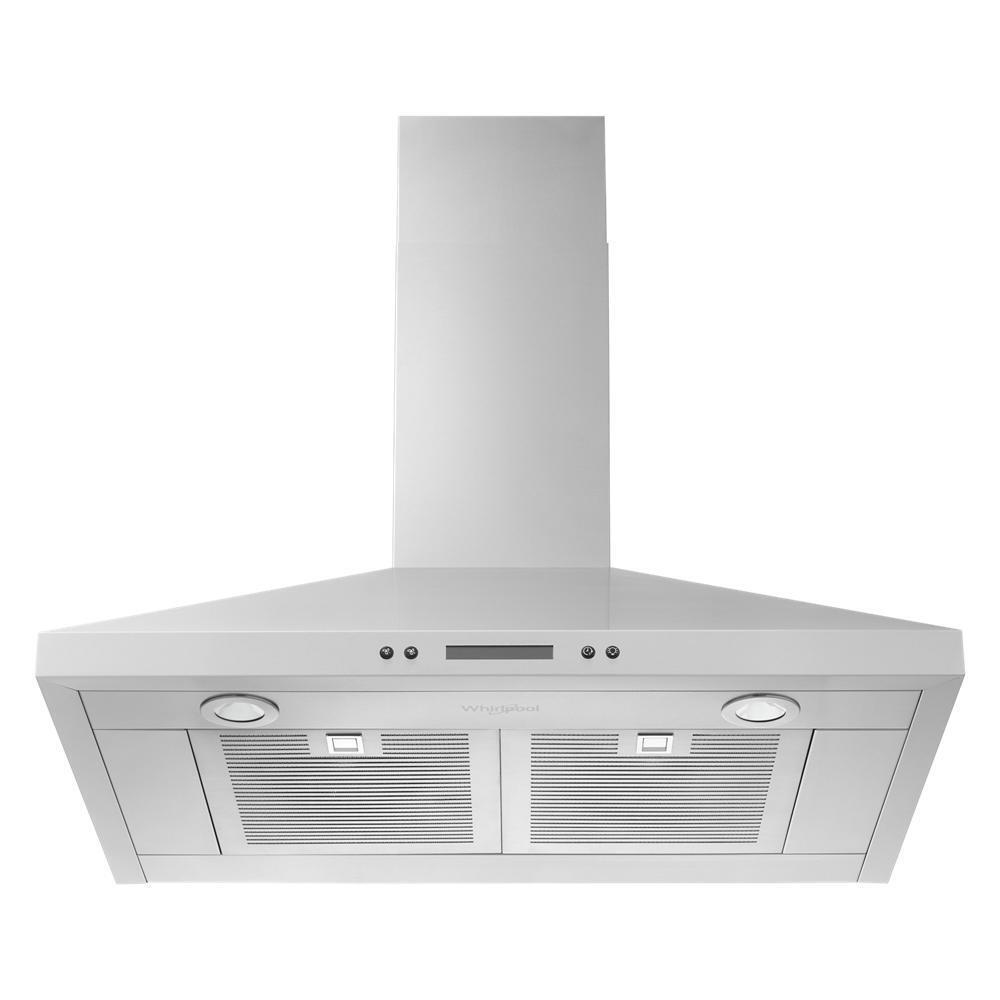

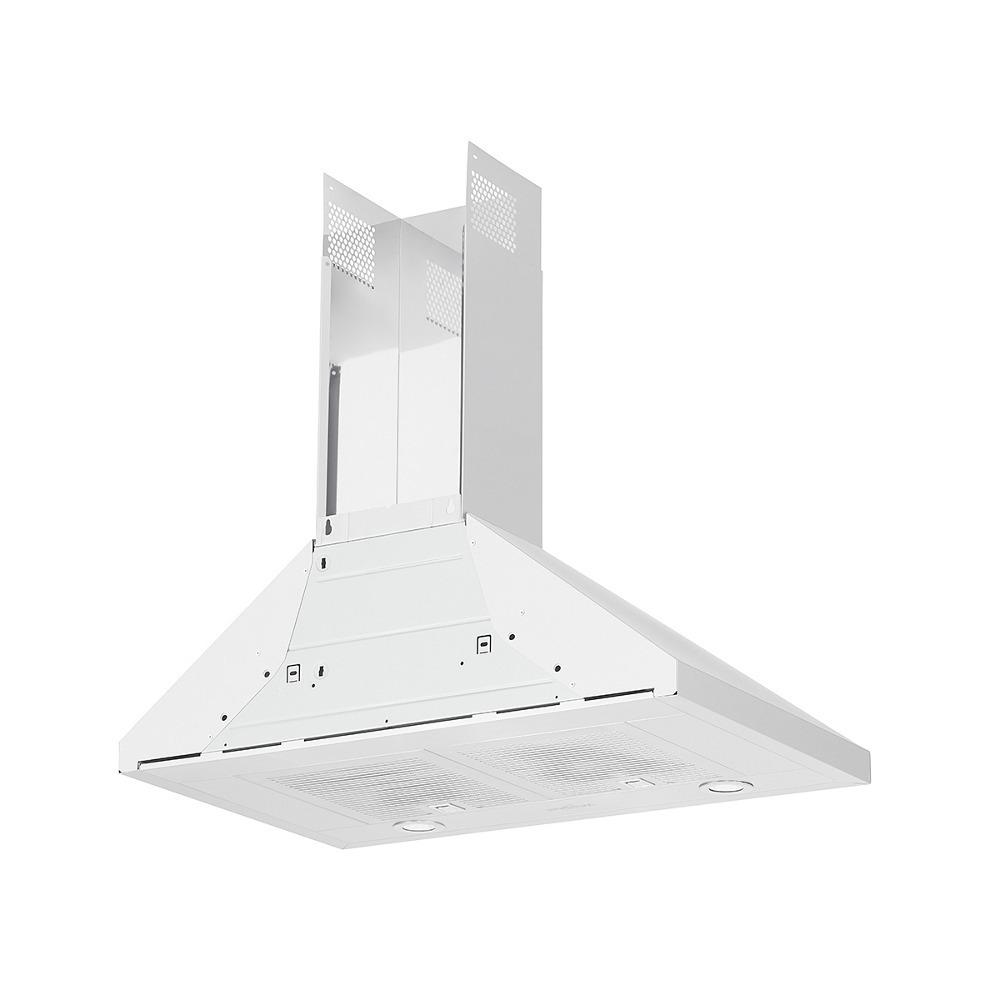

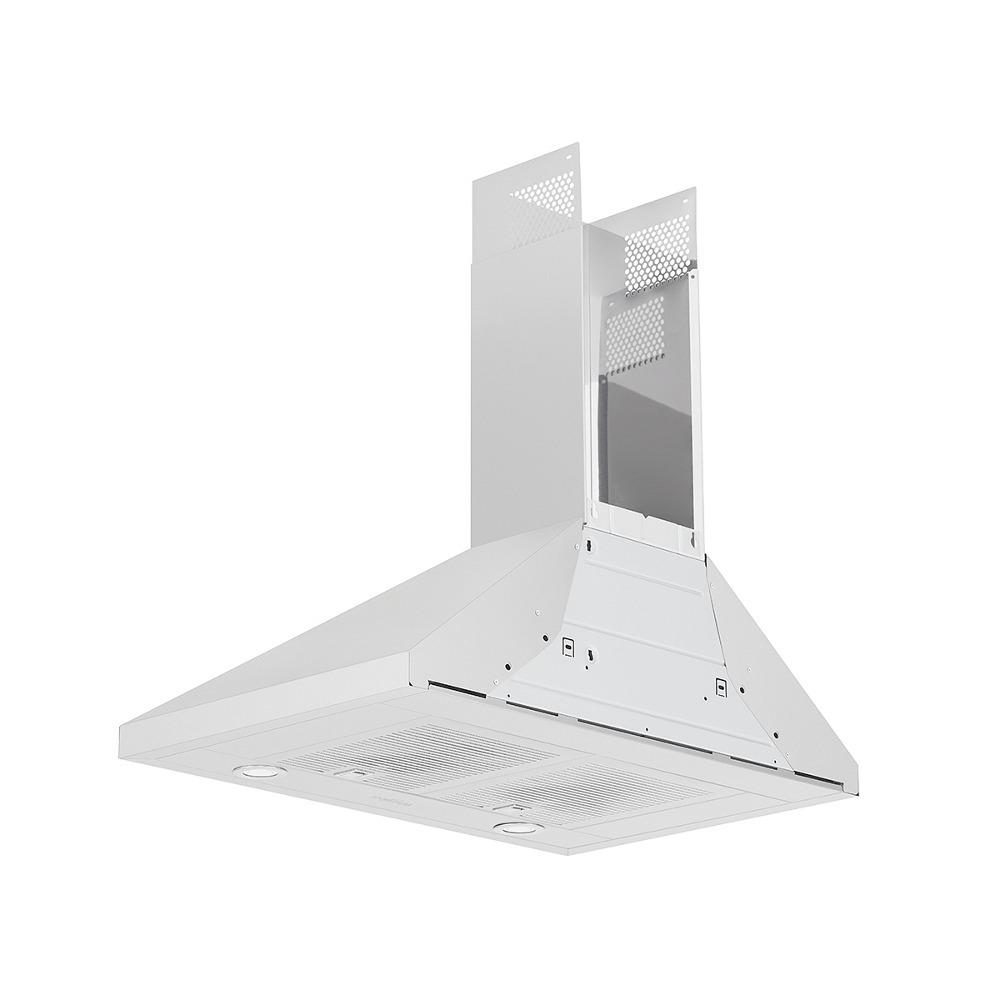

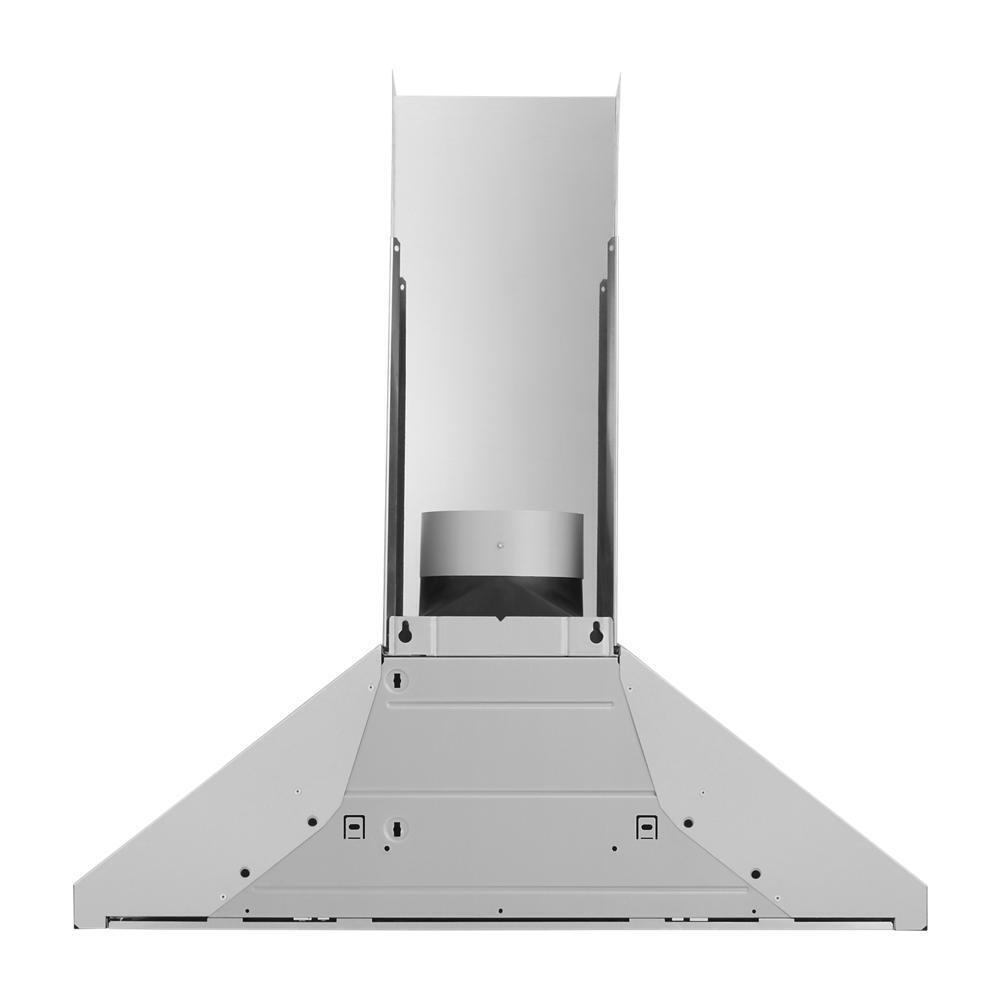

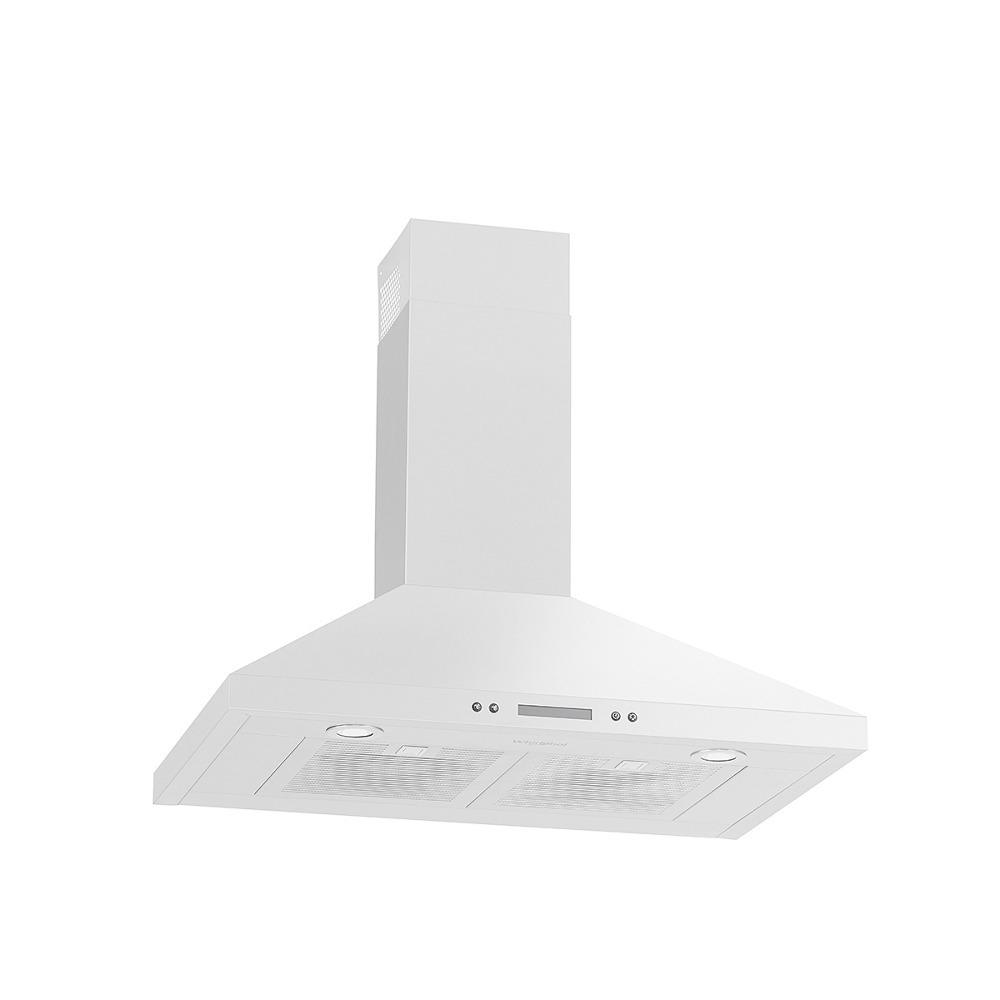

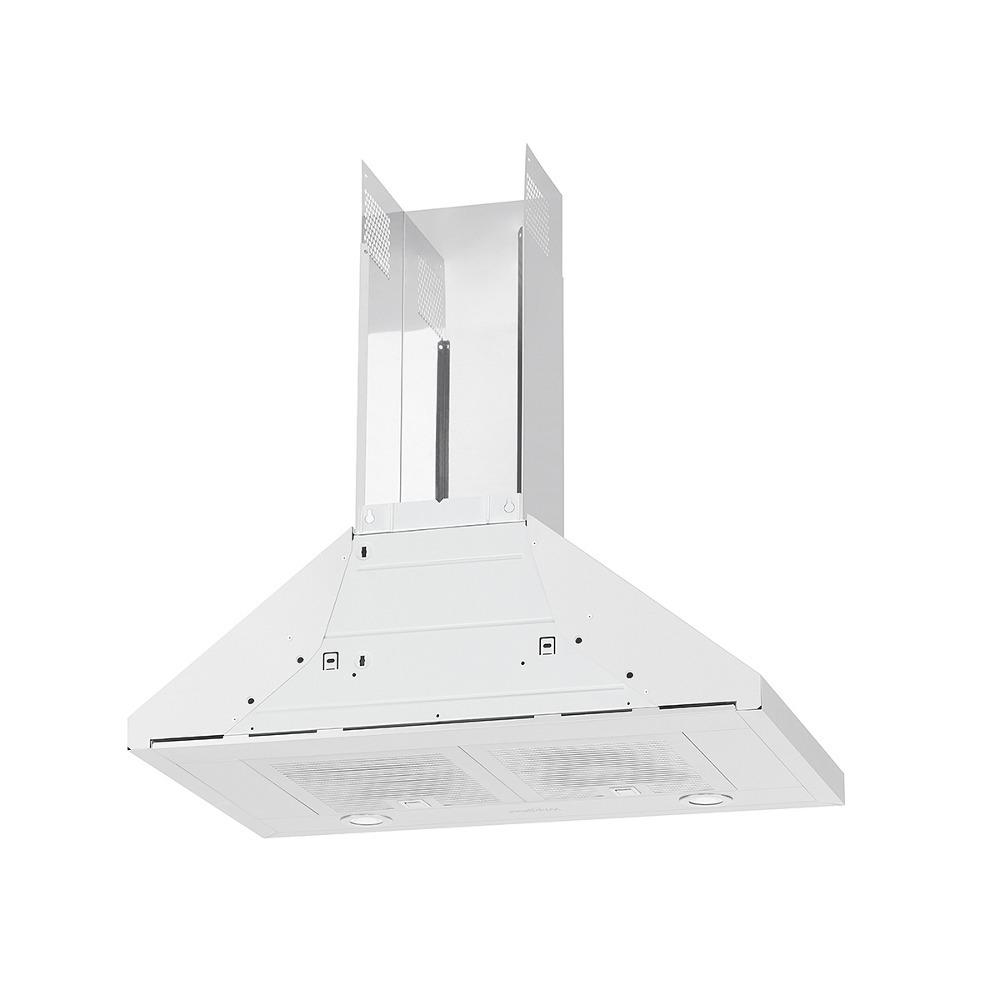

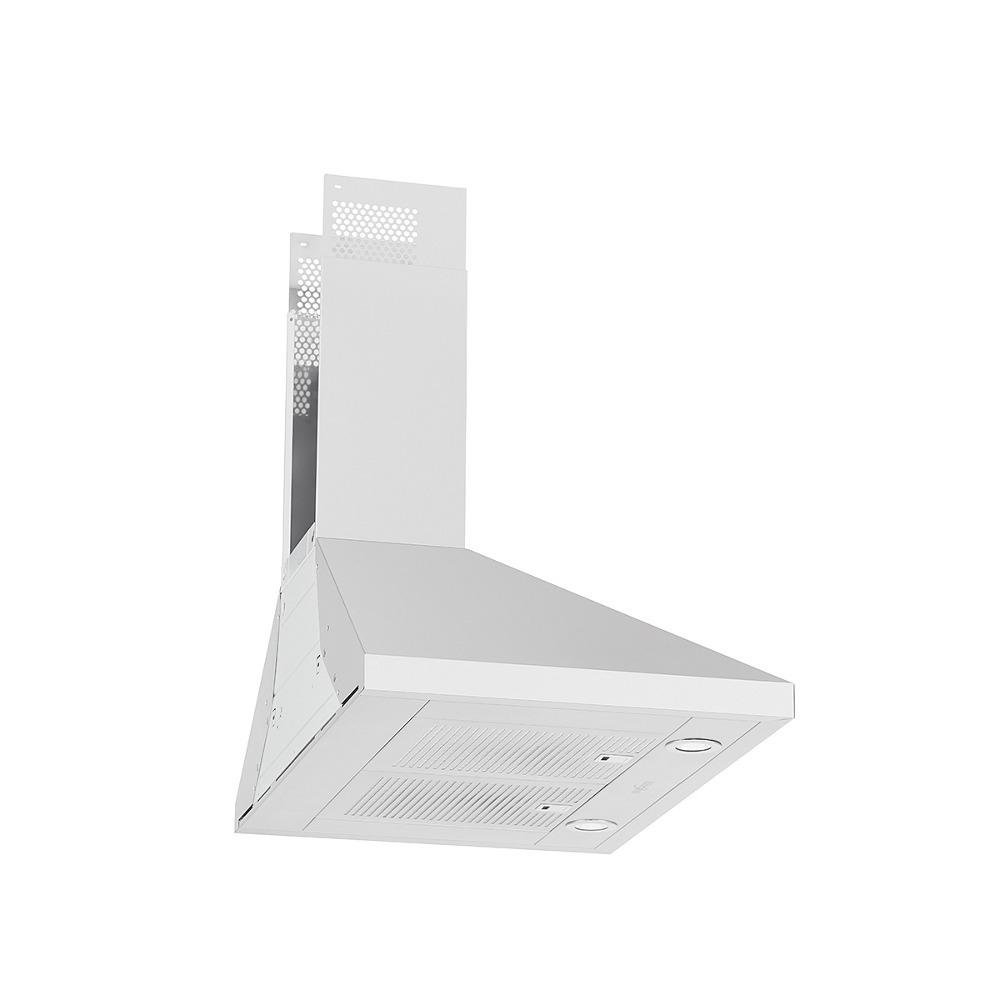

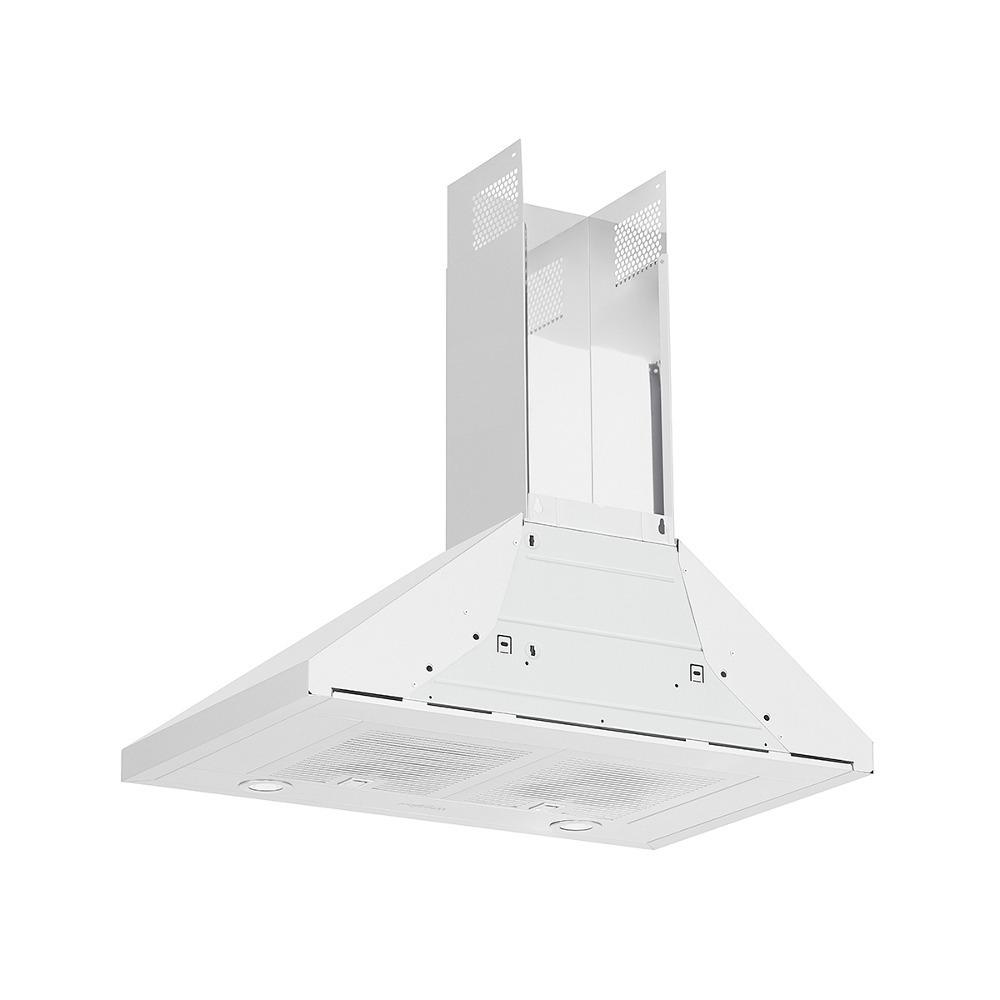

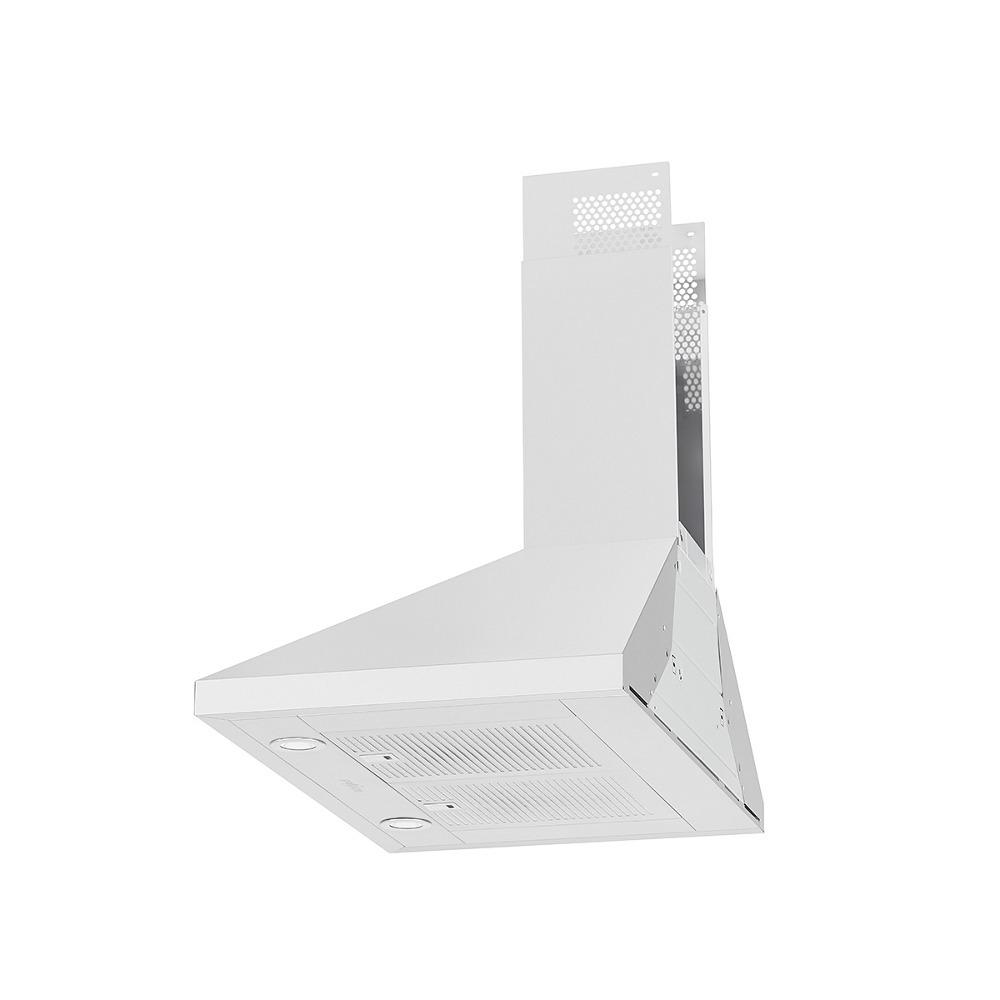

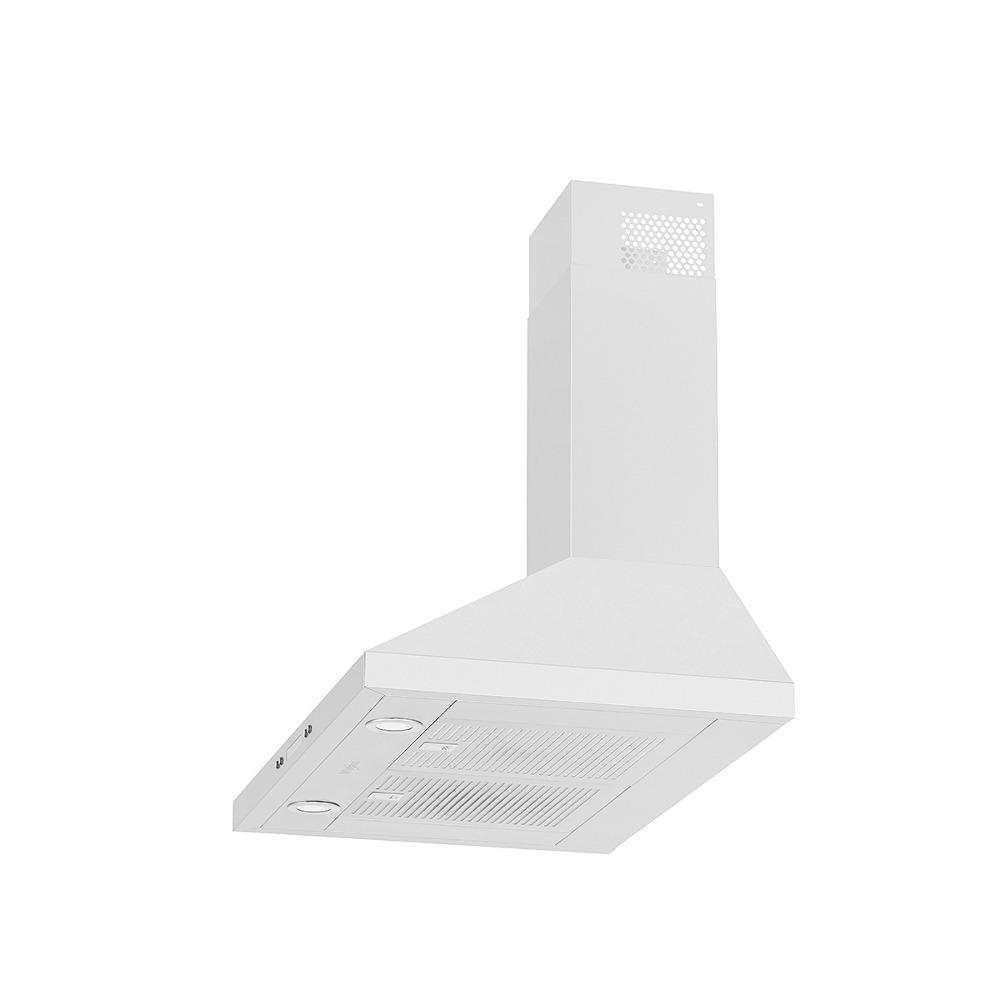

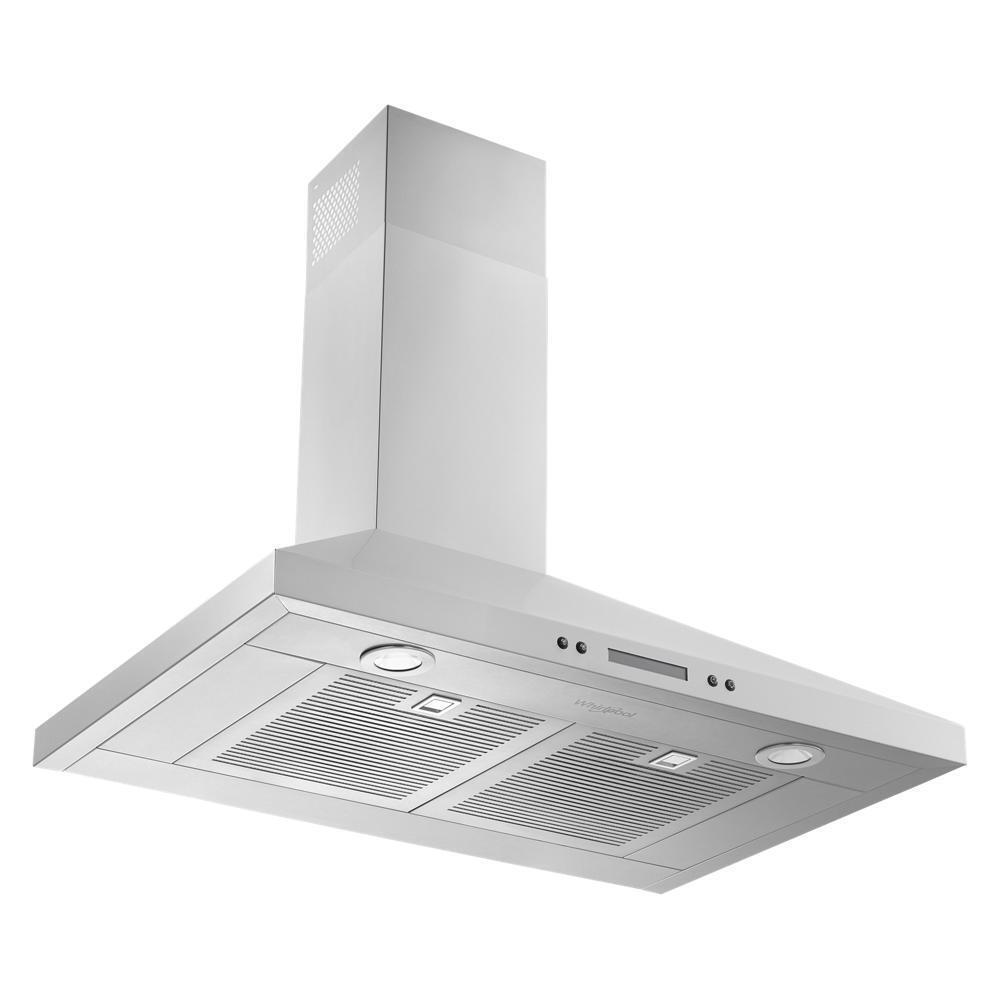

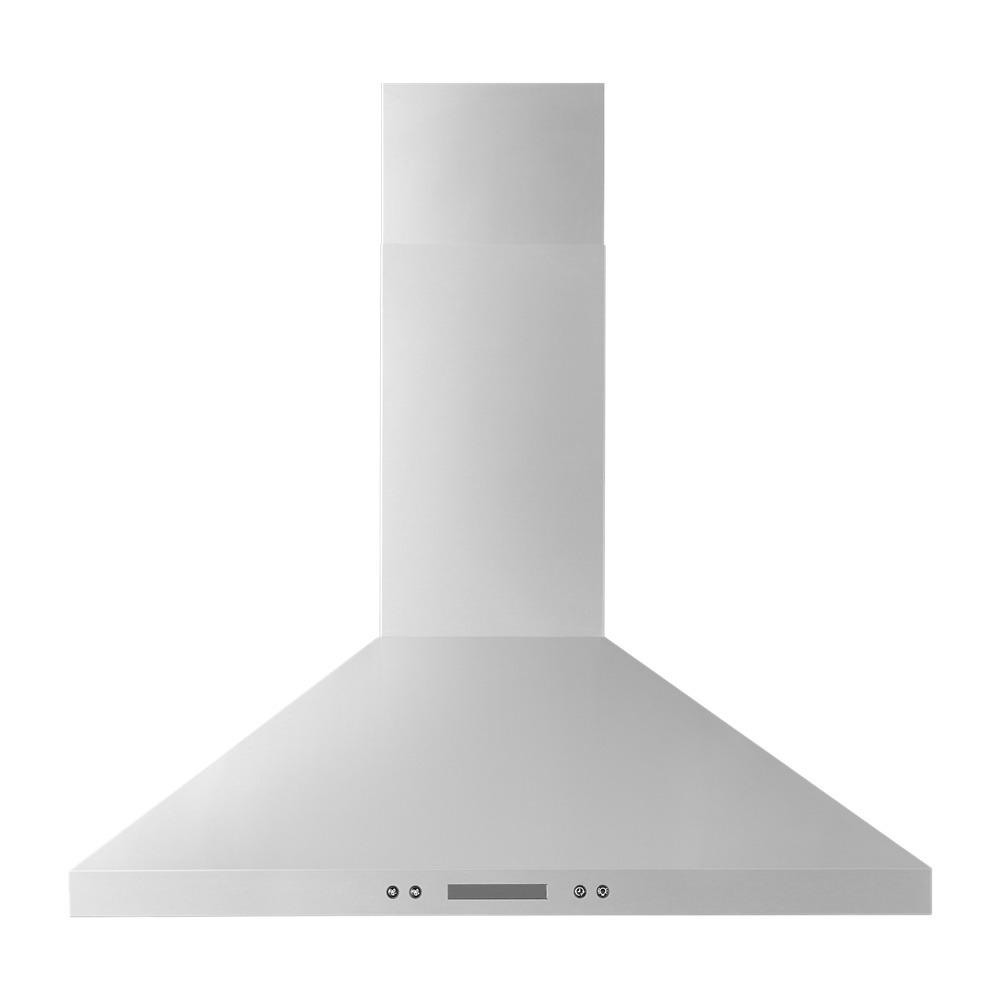

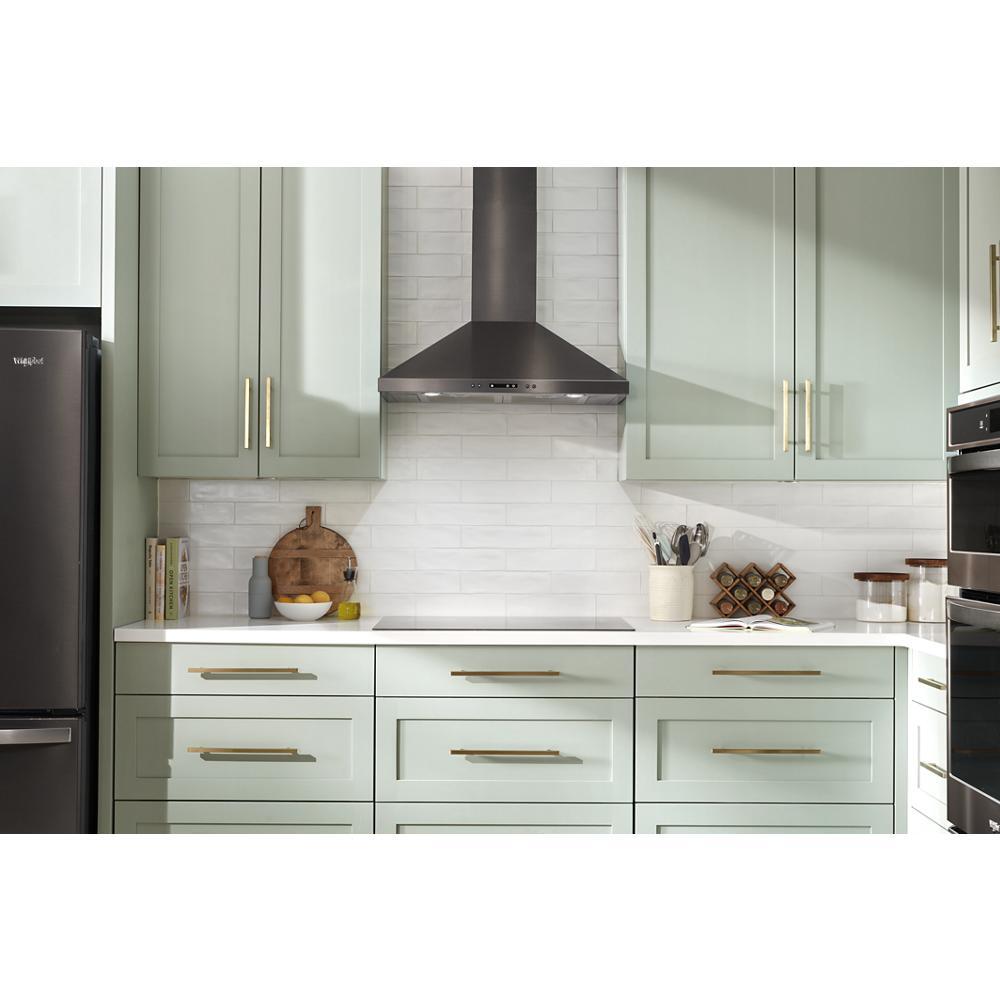

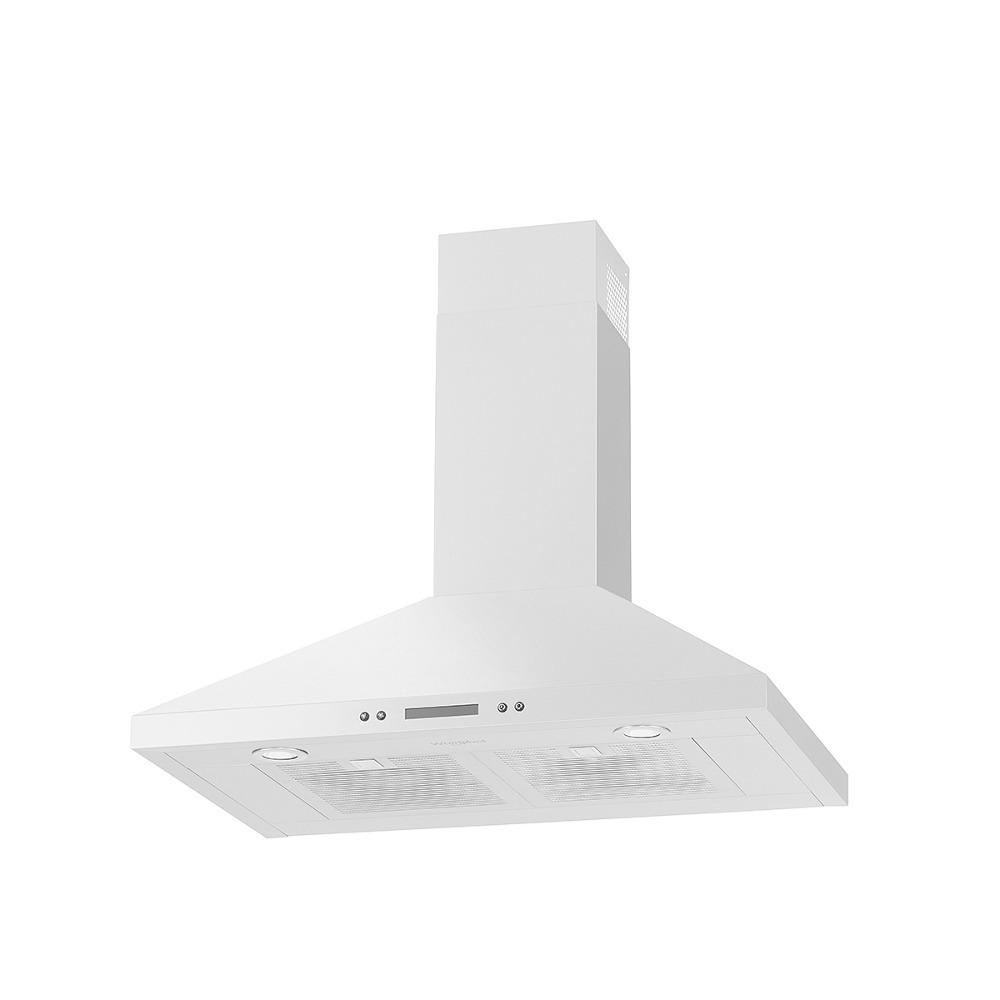

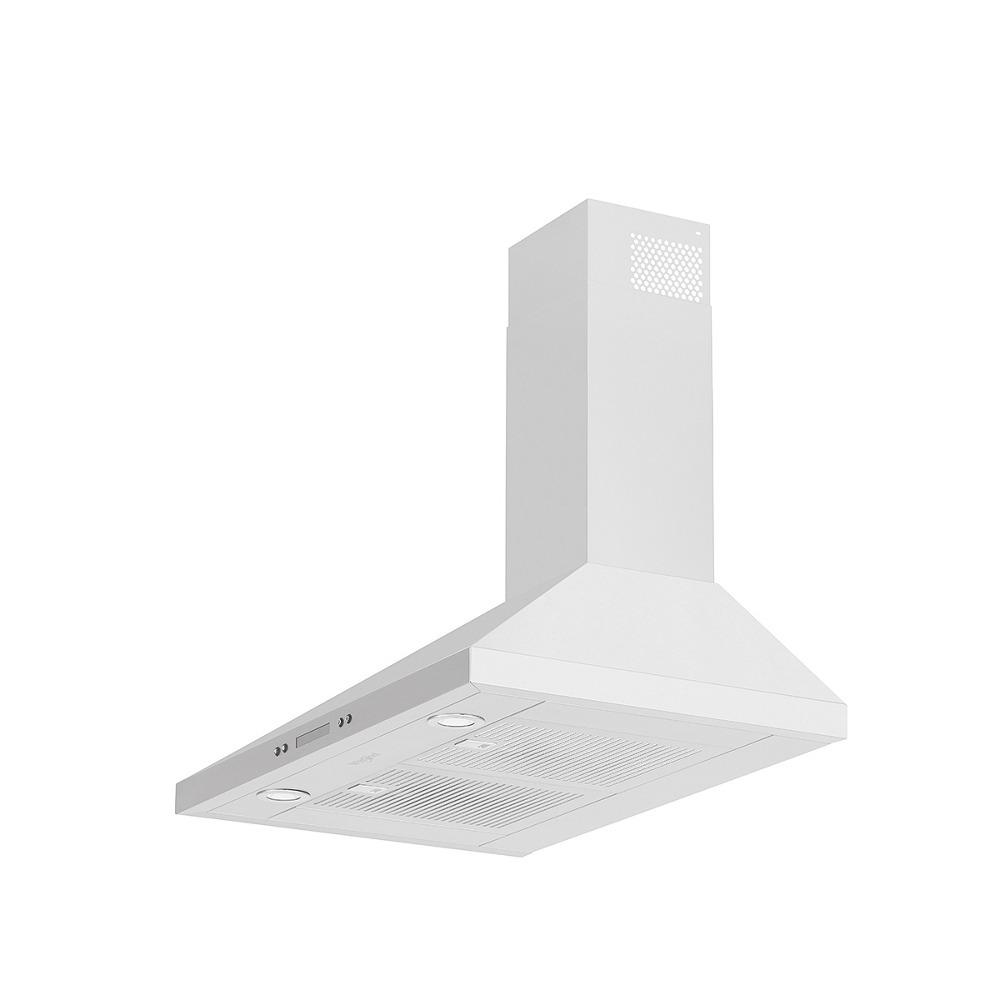

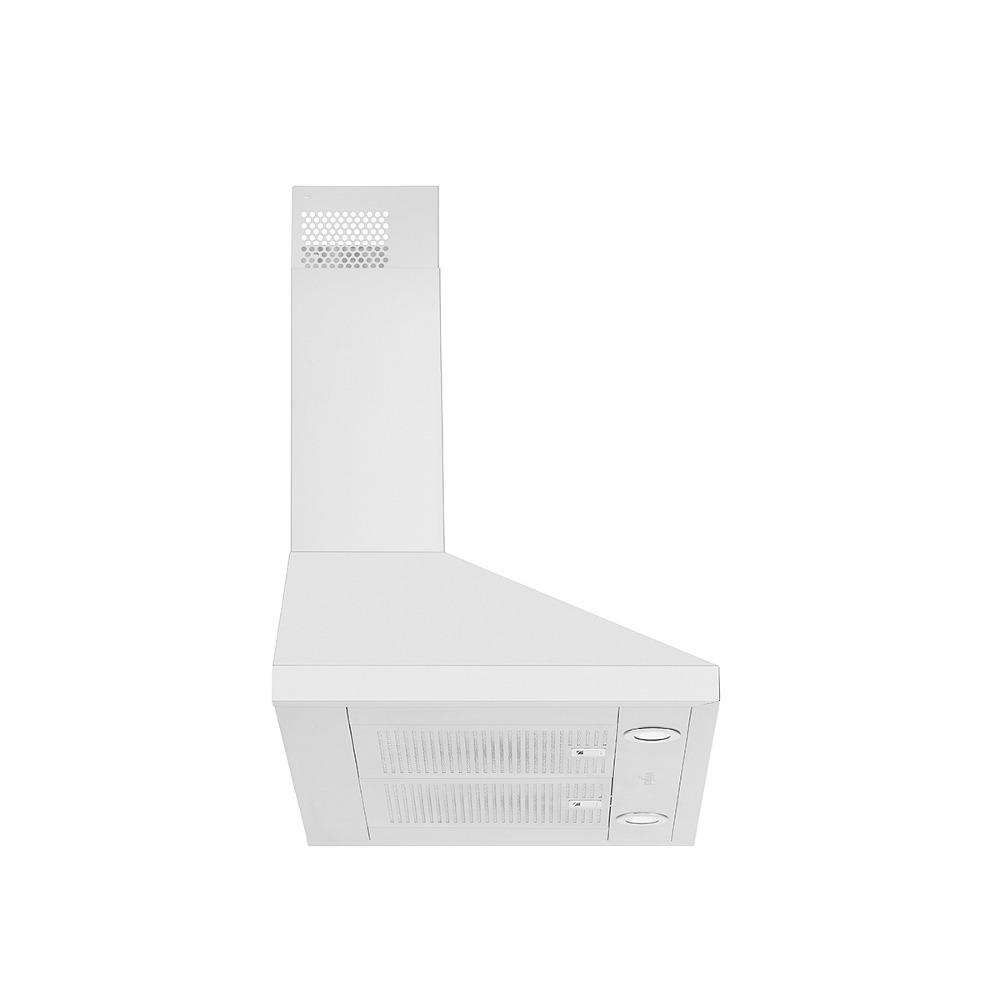

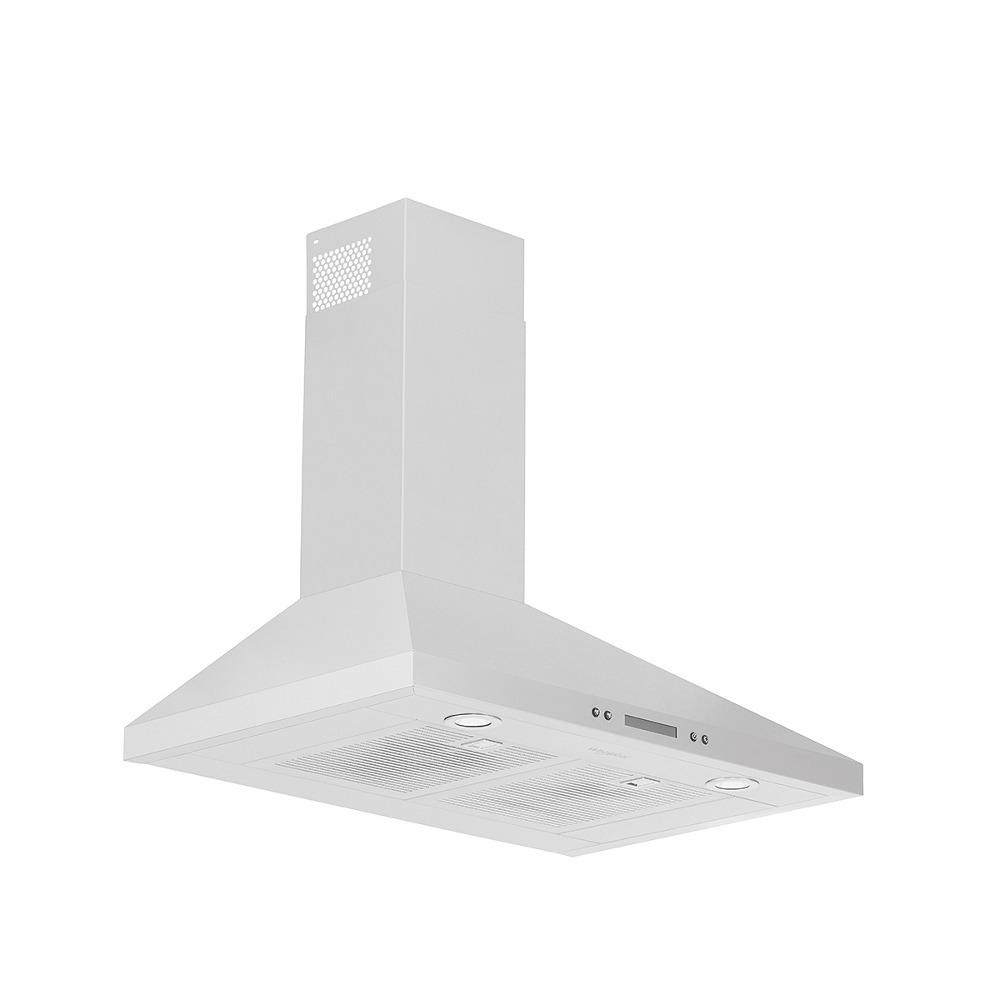

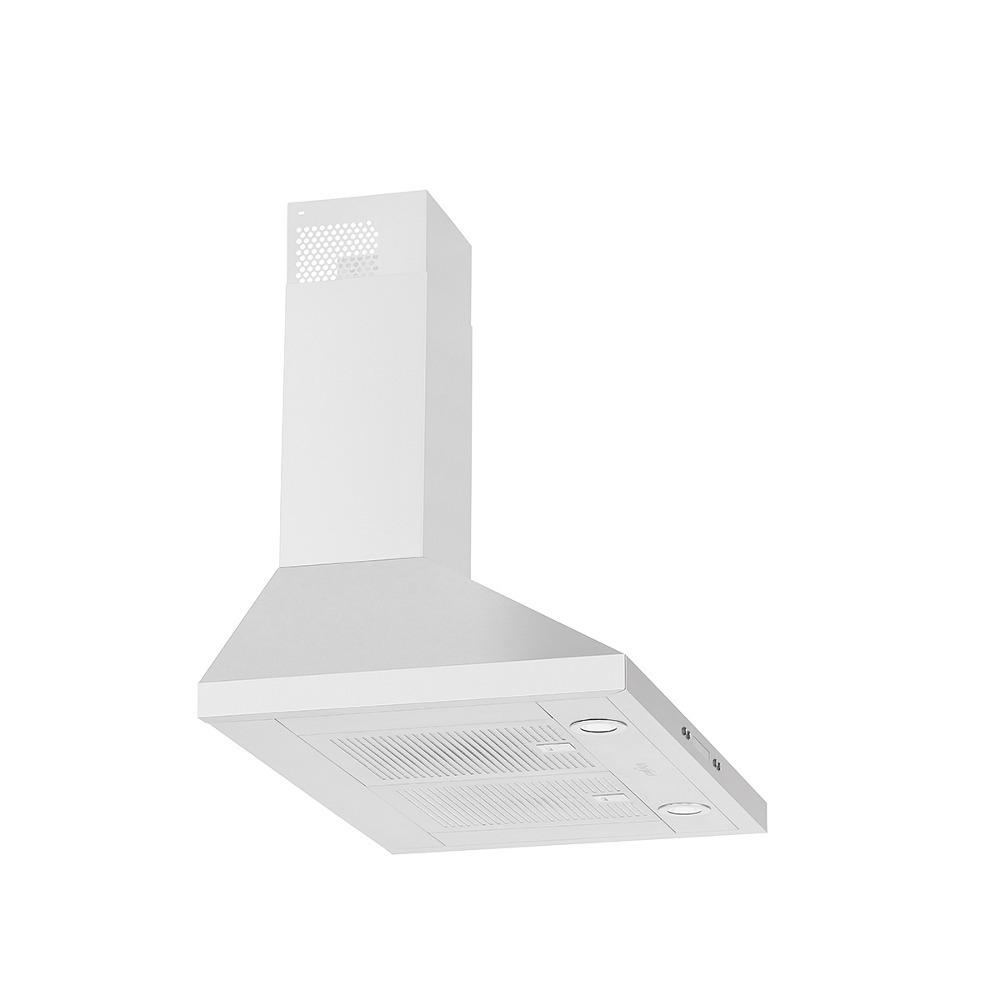

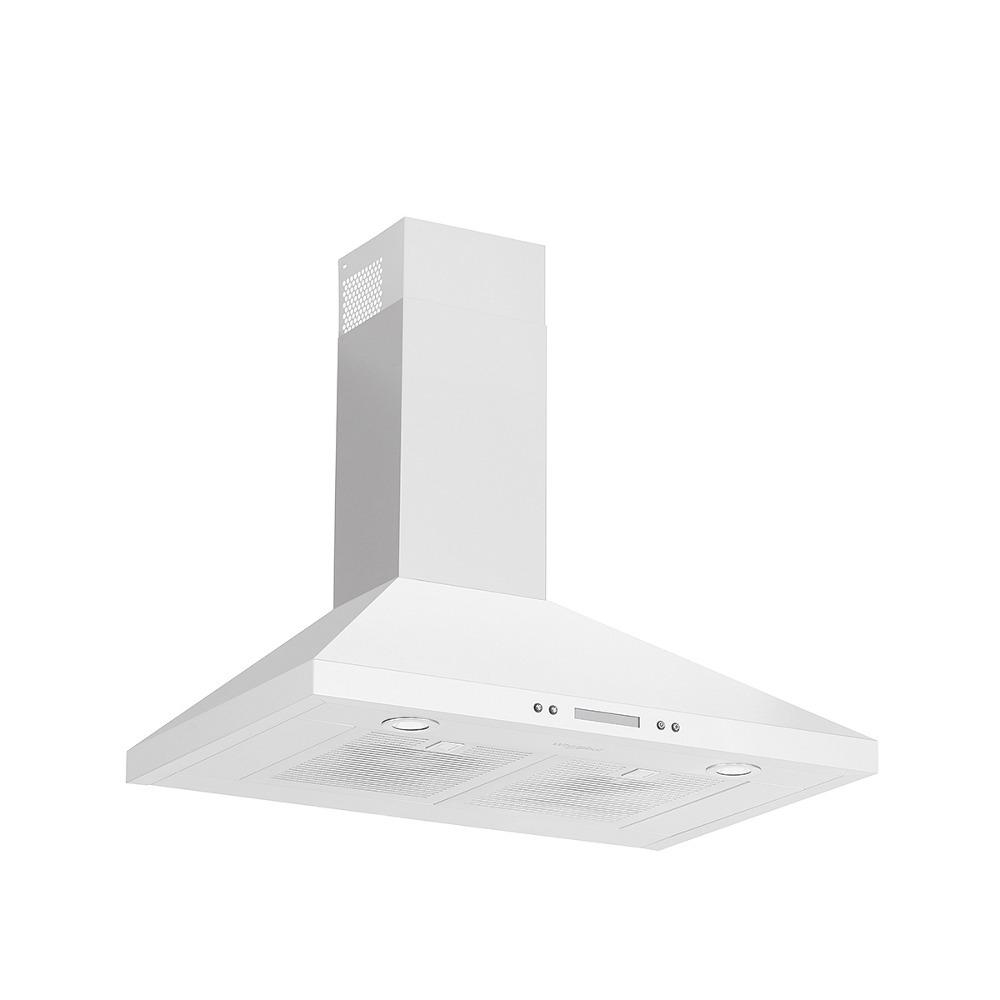

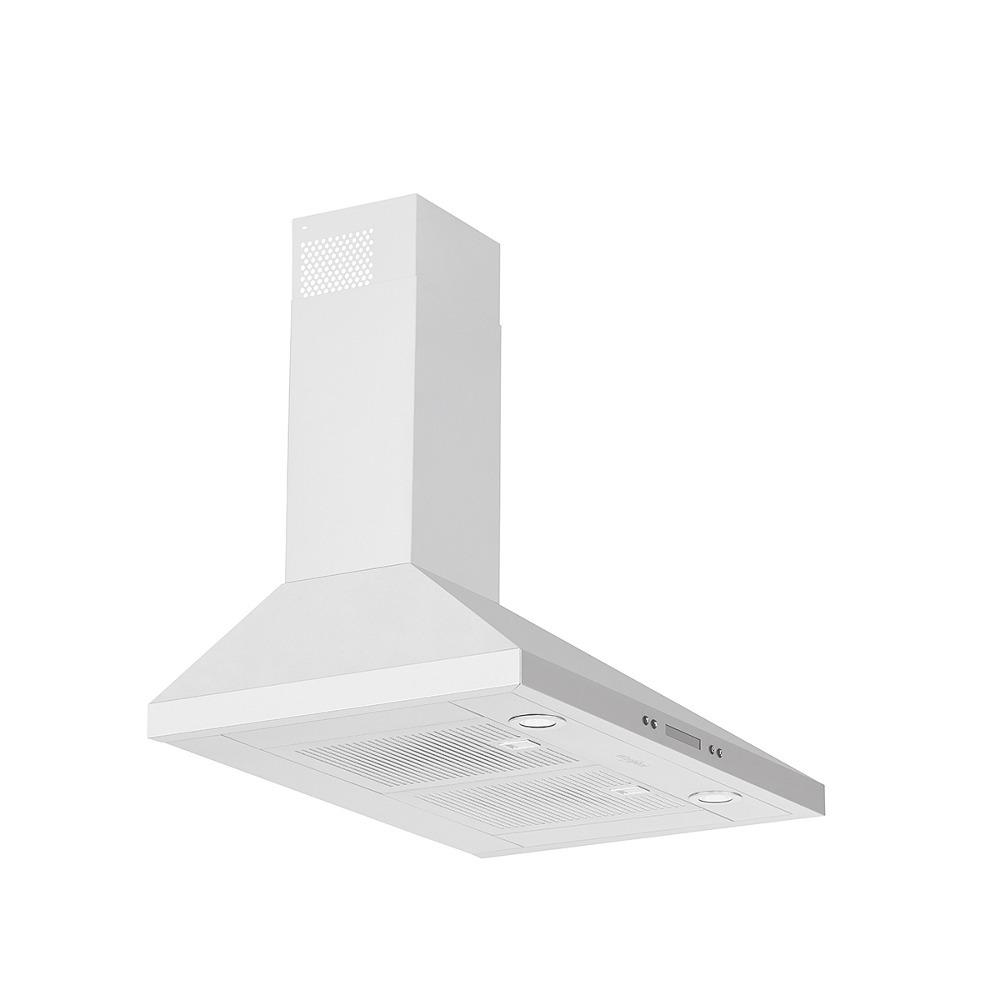

The Whirlpool WVW93UC0LS 30 Inch Chimney Wall Mount Range Hood delivers effective and stylish kitchen ventilation. Featuring a 400 CFM motor, this hood quickly removes smoke, odors, and grease from the cooking area. Its three-speed fan settings provide customizable airflow, while LED task lighting ensures a well-lit cooktop. The stainless steel design offers a contemporary look and durability, and the centrally located electronic touch controls allow for easy operation. This wall-mounted unit also includes a dishwasher-safe grease filter and is convertible to recirculating, making it adaptable for various kitchen setups. Designed for performance and elegance, it’s an ideal addition to modern home kitchens.



Product Features

  • 3-Speed, 400 CFM Motor Class

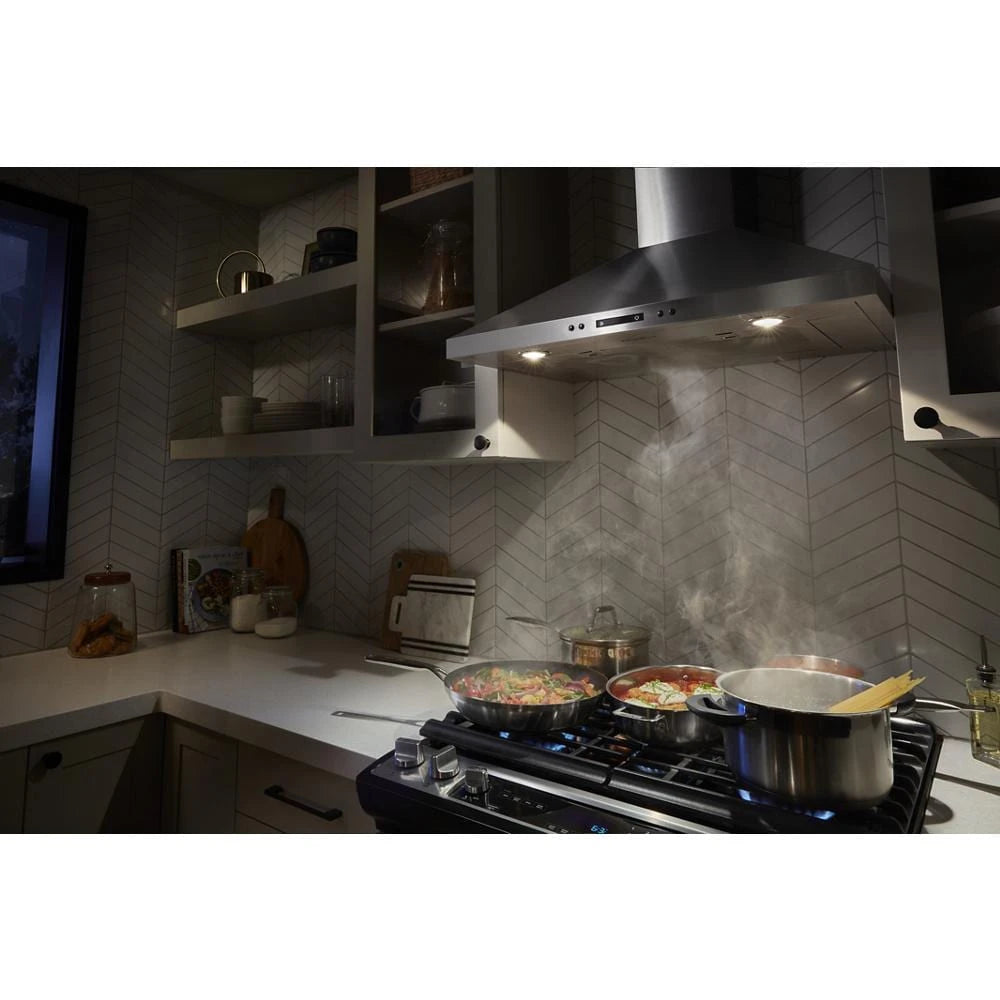

    Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

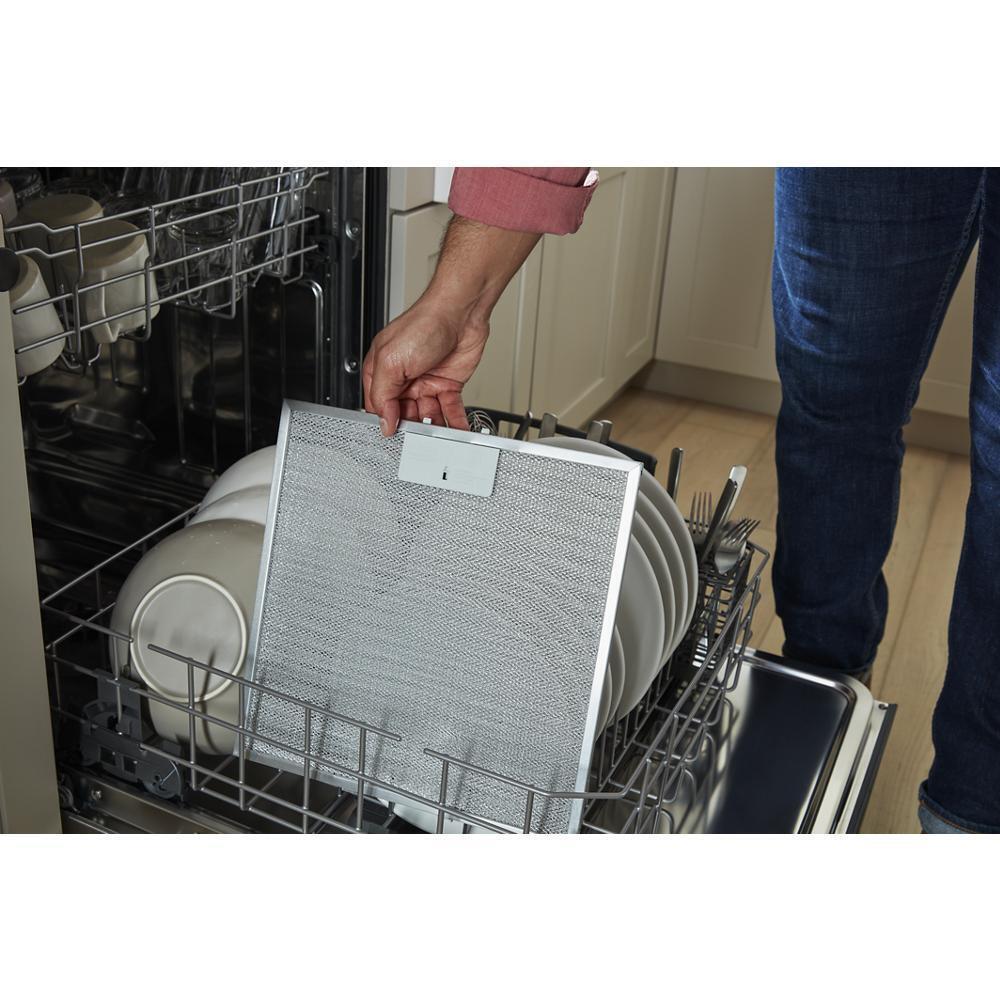

  • Dishwasher-Safe Grease Filter
    Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.

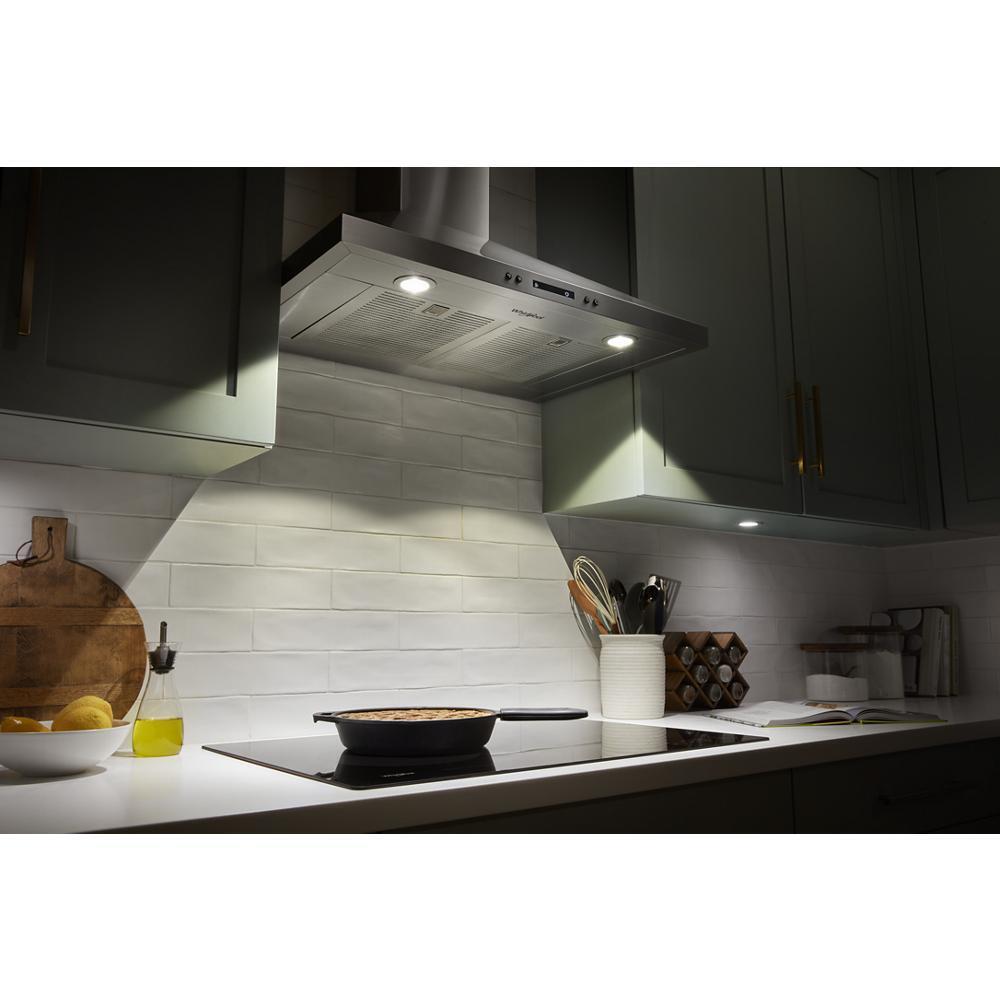

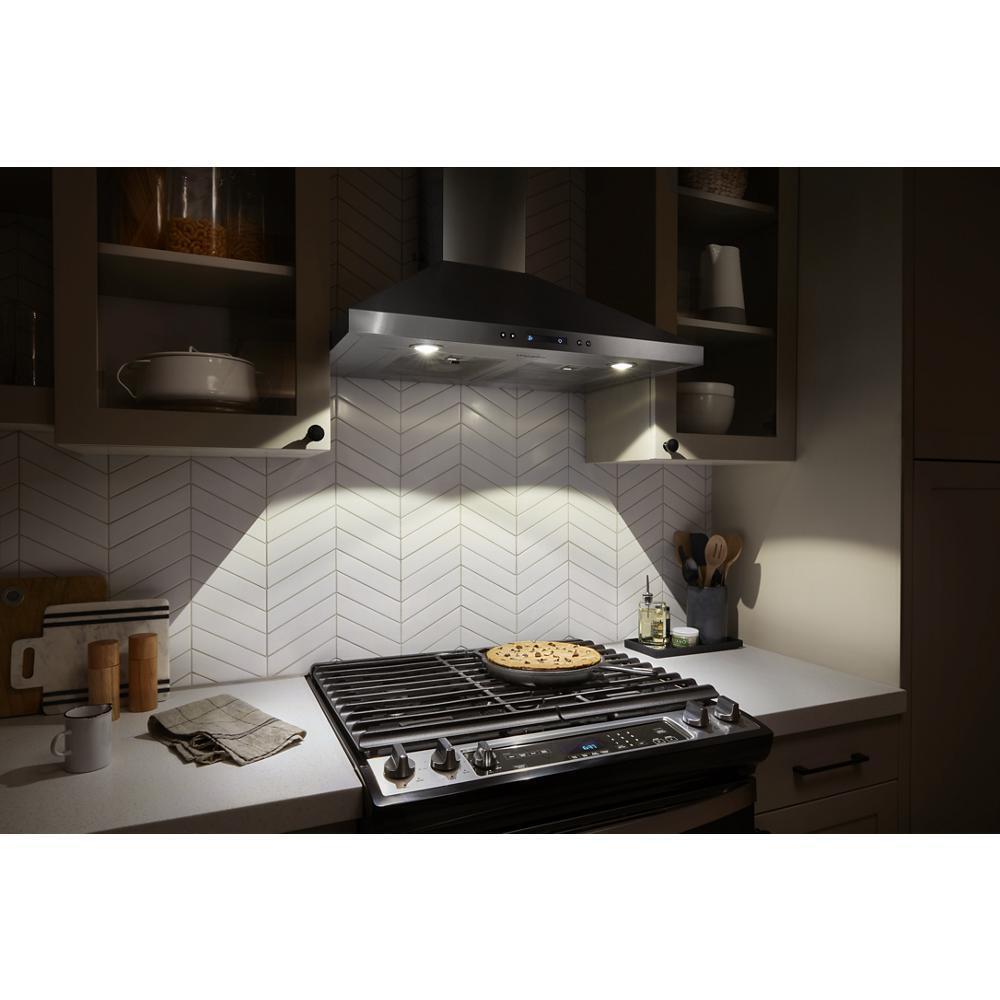

  • LED Task Lighting
    Bright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.
  • Vent Timer
    The Vent Timer automatically turns off the fan according to the timer so you can set it and forget it.
  • Filter Replacement Reminder
    Get reminded when its time to clean your grease filter and replace your charcoal filter to keep your hood running smoothly.
  • 65K BTU Cooktop Threshold
    Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
  • 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
    Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.

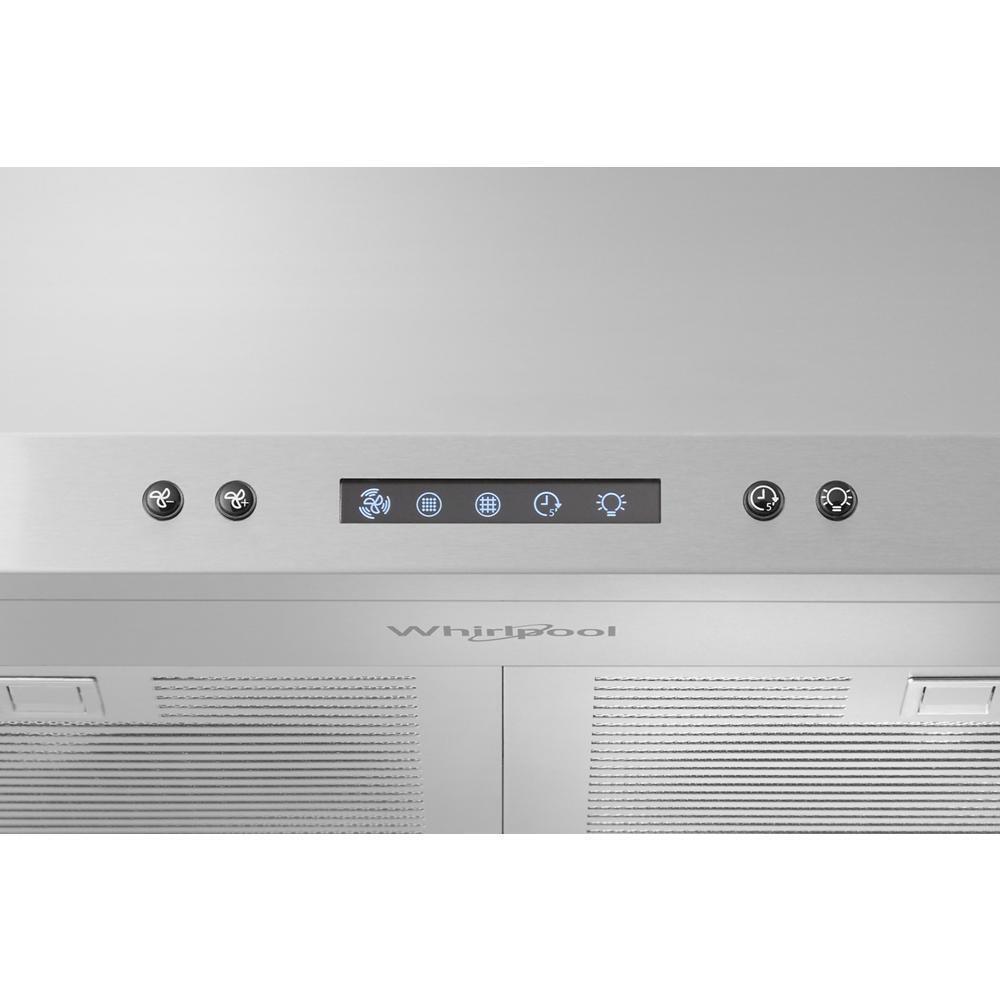

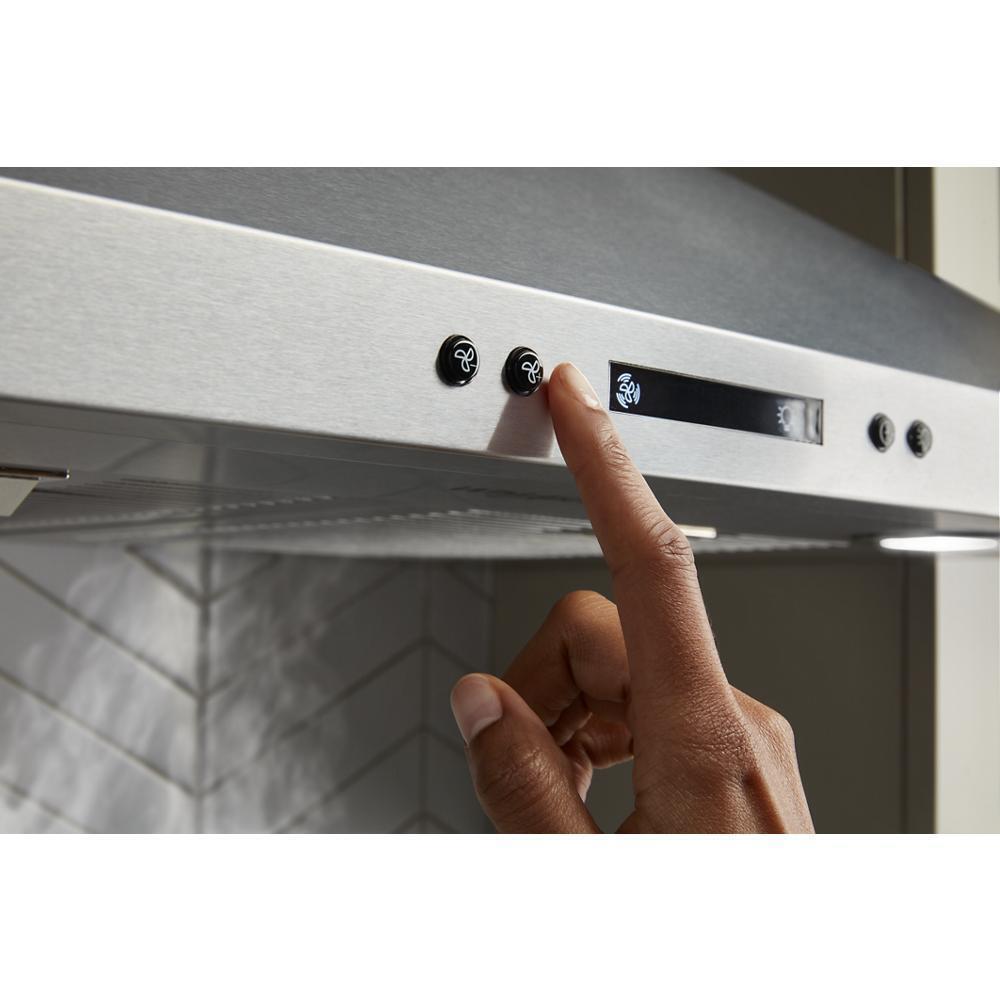

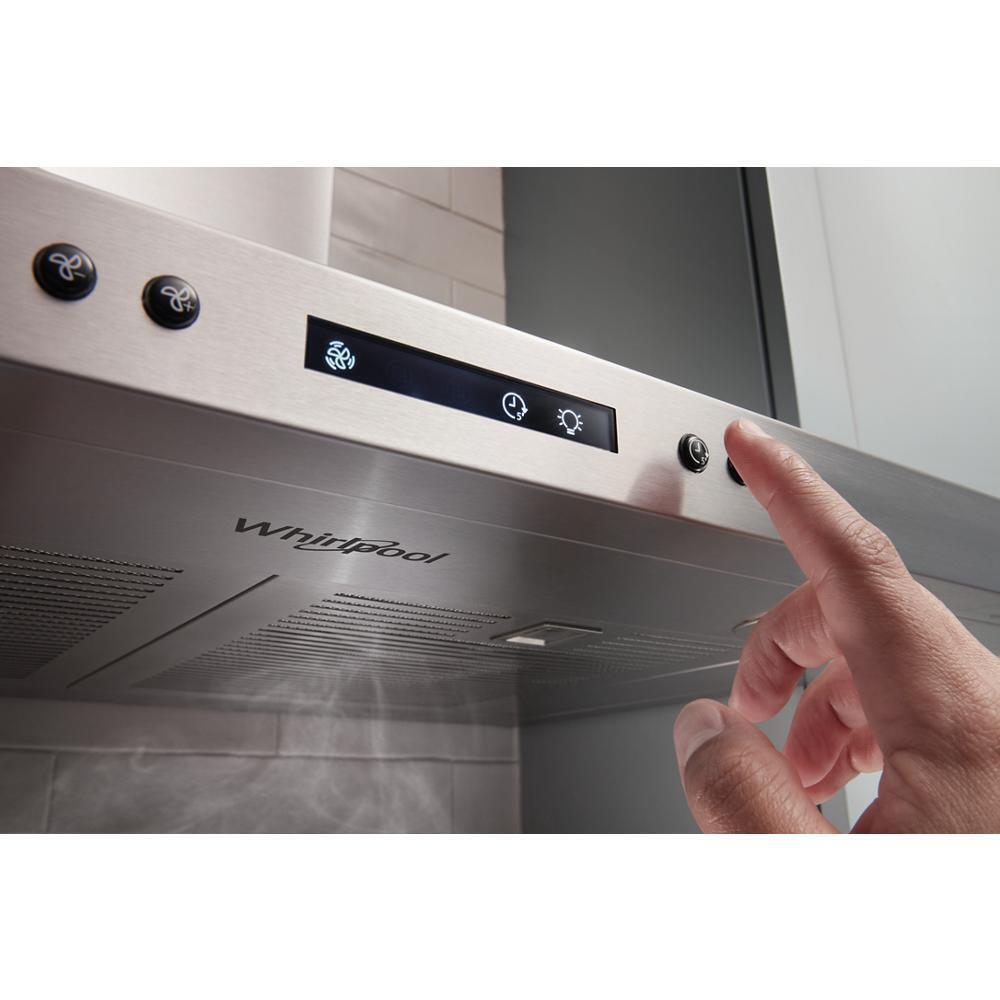

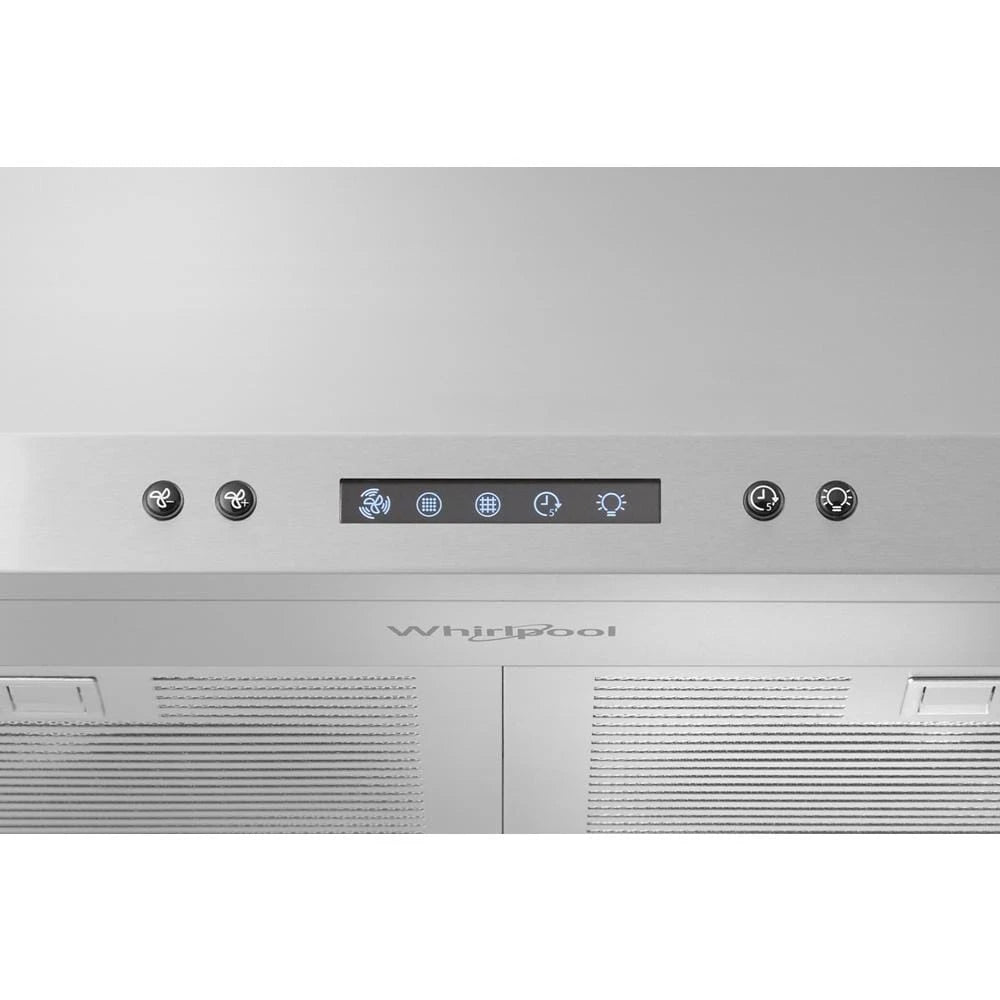

  • Electronic Controls with Display
    Clean the smooth, flat surface of these controls as easily as you use them.
  • Convertible Ventilation (recirculating or vented)
    A convertible design allows for installation that can be vented externally or internally. When venting internally a recirculation kit is required and sold separately. Air passes through charcoal filters to trap grease and odors before pushing the air back into the home.*Recirculation kit sold separately. Part number W10272063.
  • 6" Round Damper Included
    Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
  • Optional Chimney Extension Kit
    Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT18FS.
