Sale price $953.10 Regular price $1,502.97 Save $549.87 / 36% OFF

Product Details for Whirlpool WVW75UC6DS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.03 ft³
Total of Cubes 12.03 ft³
Dimensional Weight 149.59 lbs.
Total of Dimensional Weight 149.59 lbs.

Ventilation details

BTU Threshold 65 K
CFM Motor Class 400
Duct Direction Vertical
Duct Type Round
Filters Grease Filters
Night Light Yes
Night Light Type LED
Task Light Type LED
Venting Exterior or Recirculating
Duct Outlet Size 6 in
Number of Night Light Settings 2
Number of Task Light Settings 1
Task Lighting Yes

Details

Hood Type Wall Canopy
Material Stainless Steel with Glass
Blower Type Centrifugal

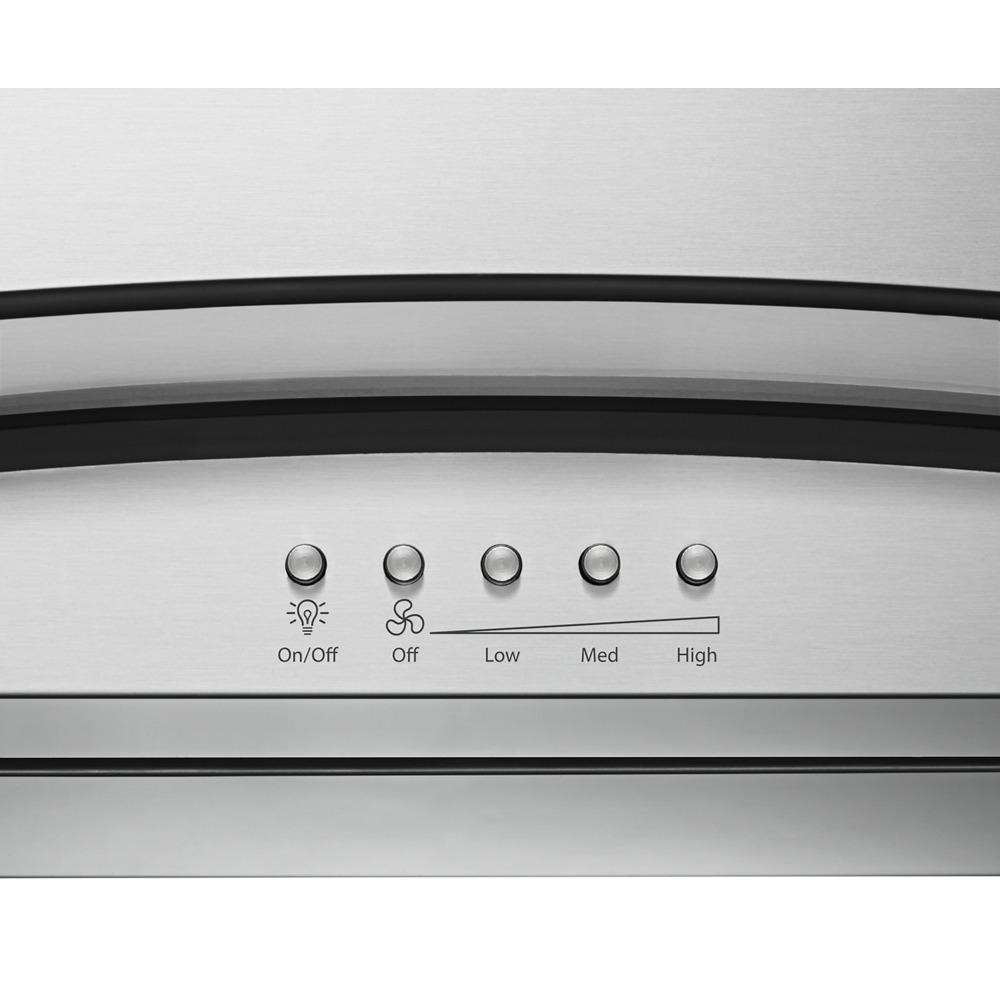

Controls

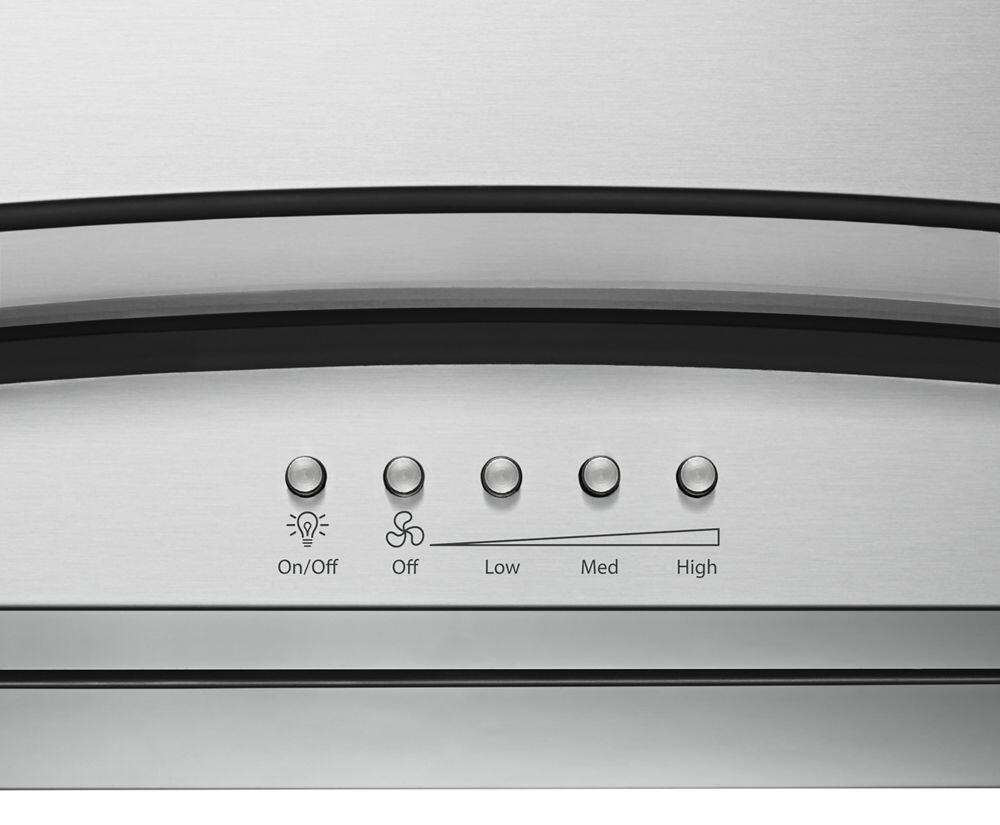

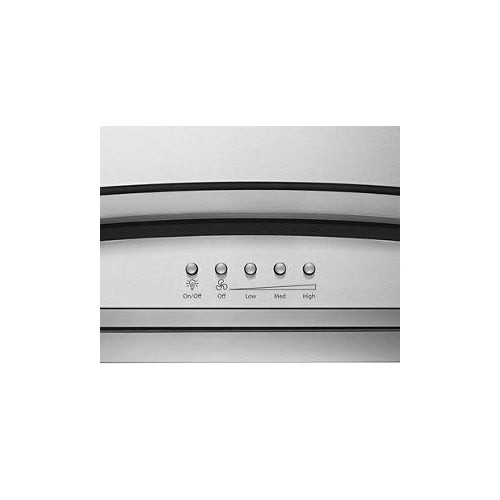

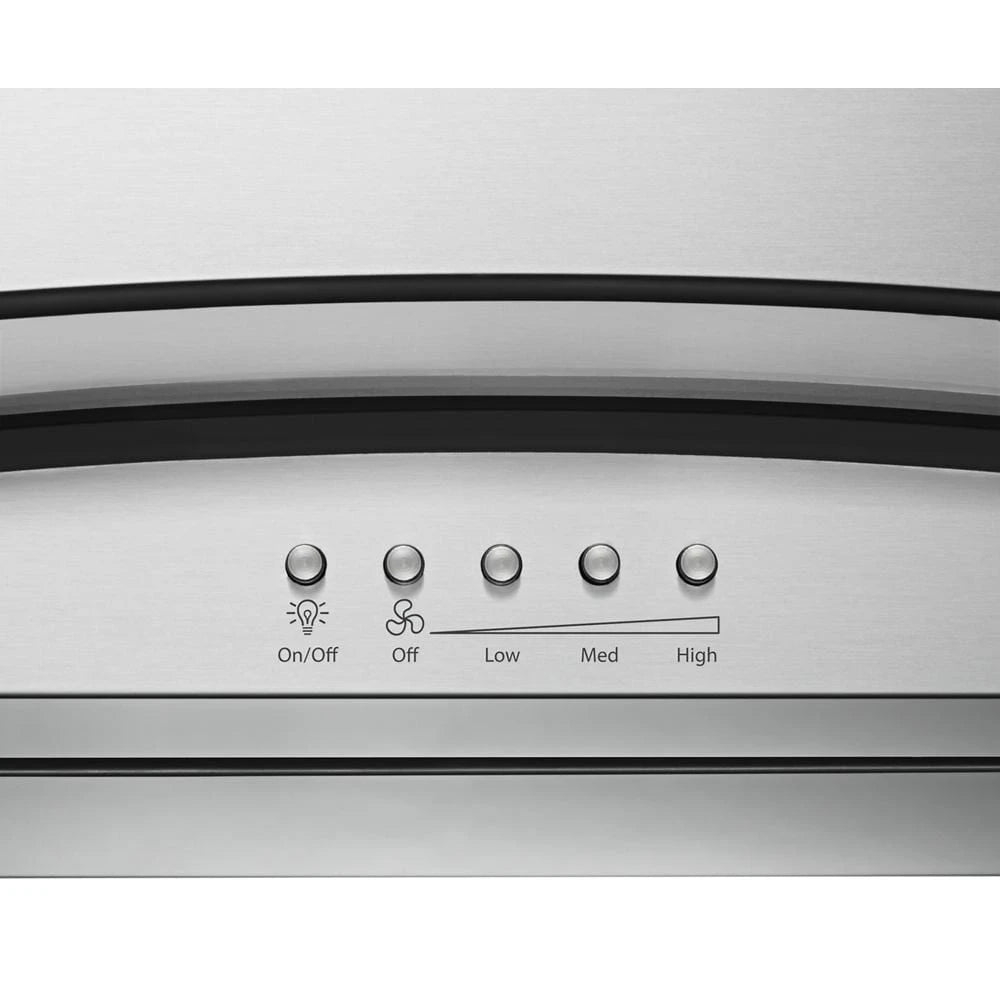

Control Type Push Button
Number of Vent Speeds 3

Certifications

Star K Certified Yes
Energy Star Qualified No
Energy Star® Qualified No

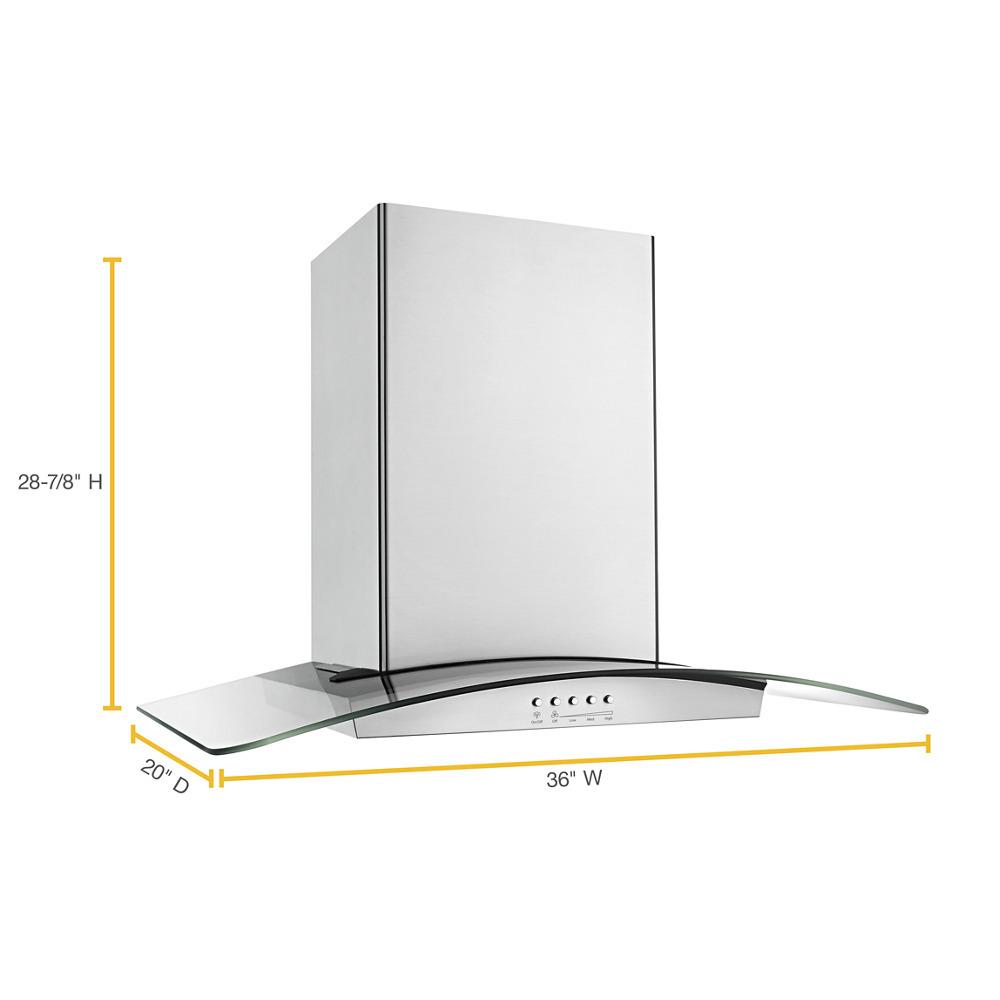

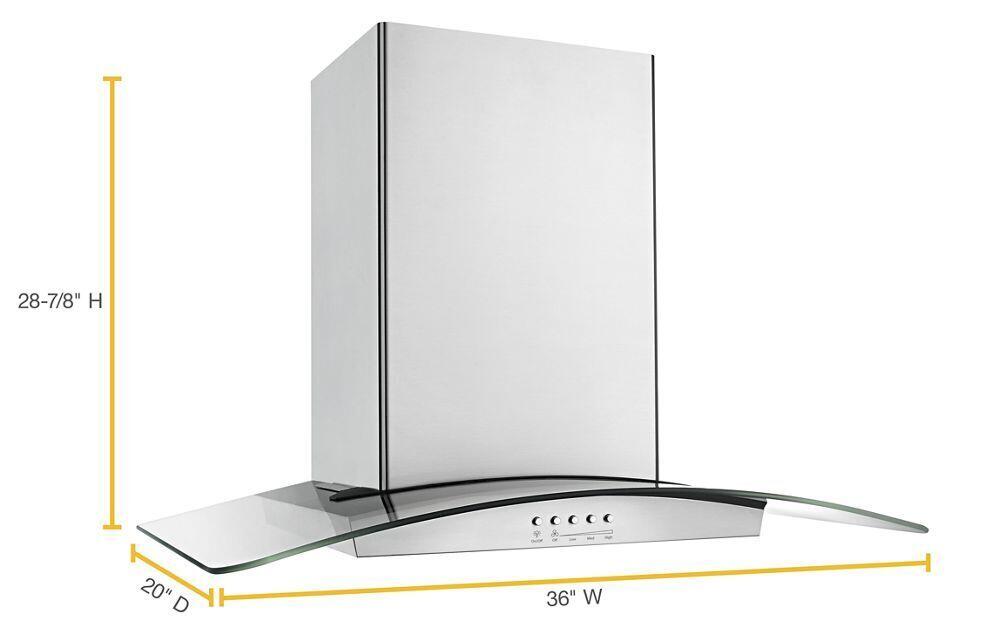

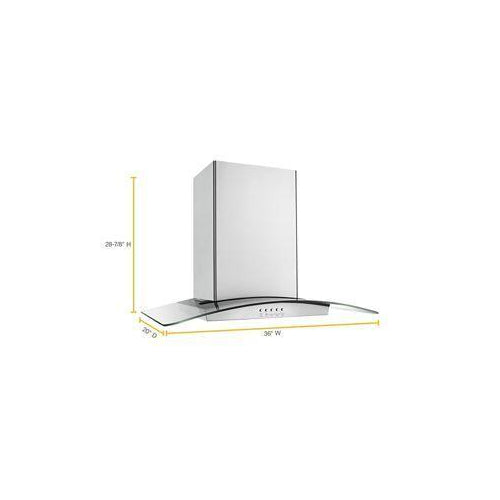

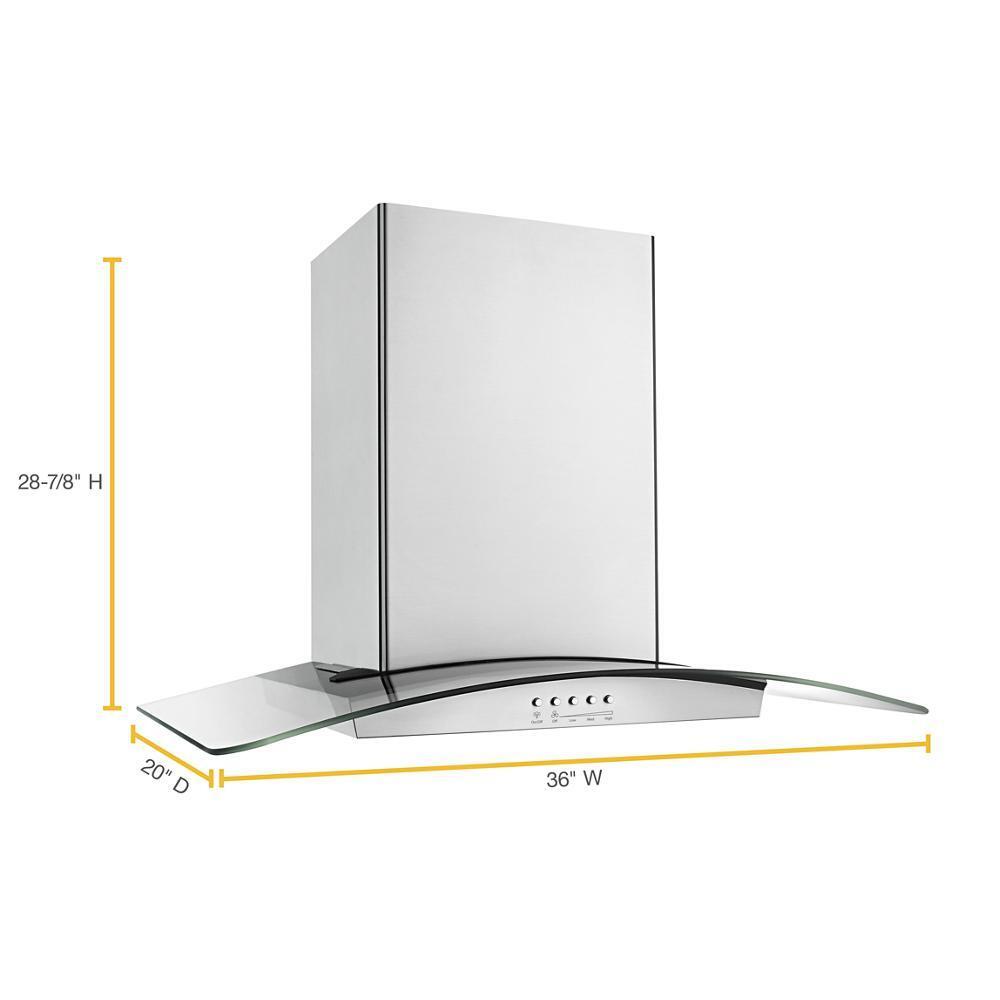

Dimensions & weight

Width 36 in.
Height 28.88 in.
Length 20 in.
Weight 56.39 lbs.
Gross Weight 56.39 lbs
Net Weight 41.89 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40 in.
Shipping Height 26 in.
Shipping Length 25 in.
Shipping Weight 96.39 lbs.
Total of Shipping Weight 96.39 lbs.
Source Calculation

Other

Common Size 36 in

Refinements

Features Grease Filter, Glass Edge LED Night Light, LED Lighting, Noise Reduction Technology, Perimetric Ventilation

Electrical

Amps 15
Volts 120

Capacity

Volume 10.833 Cu.Ft.

Description

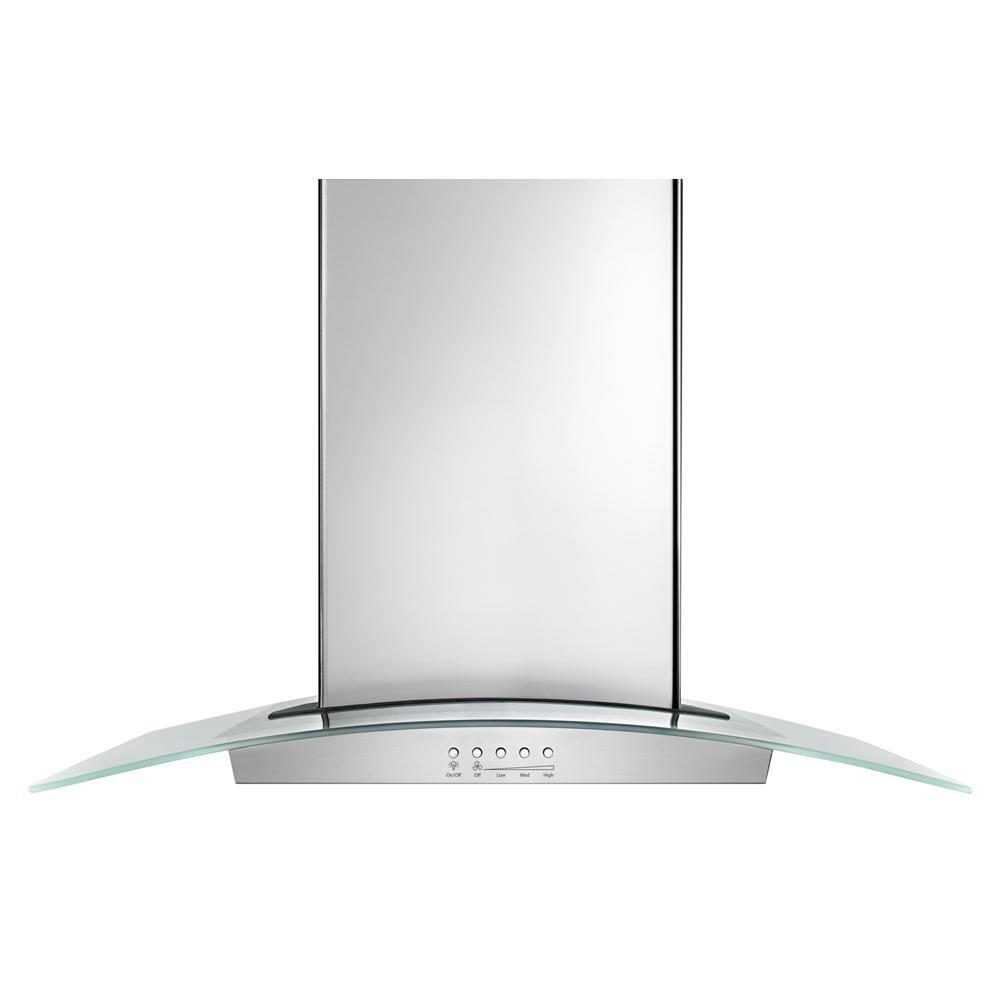

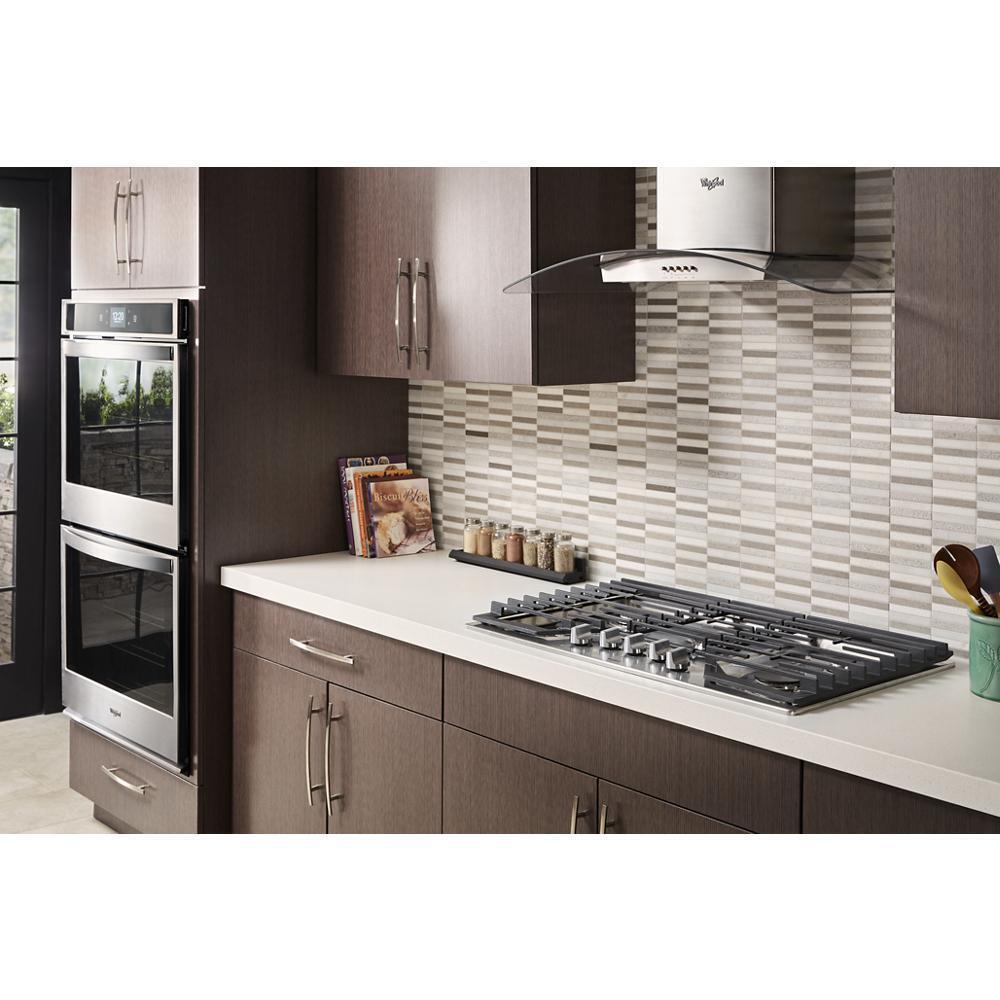

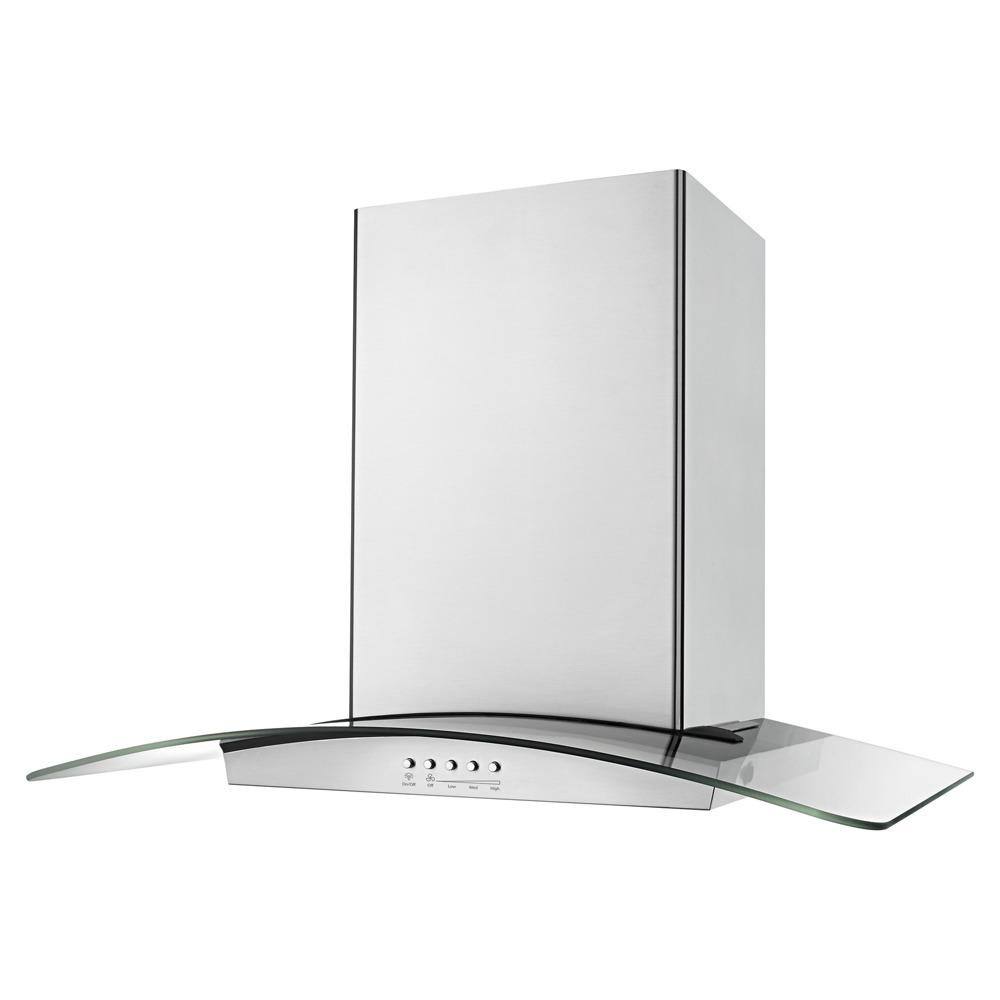

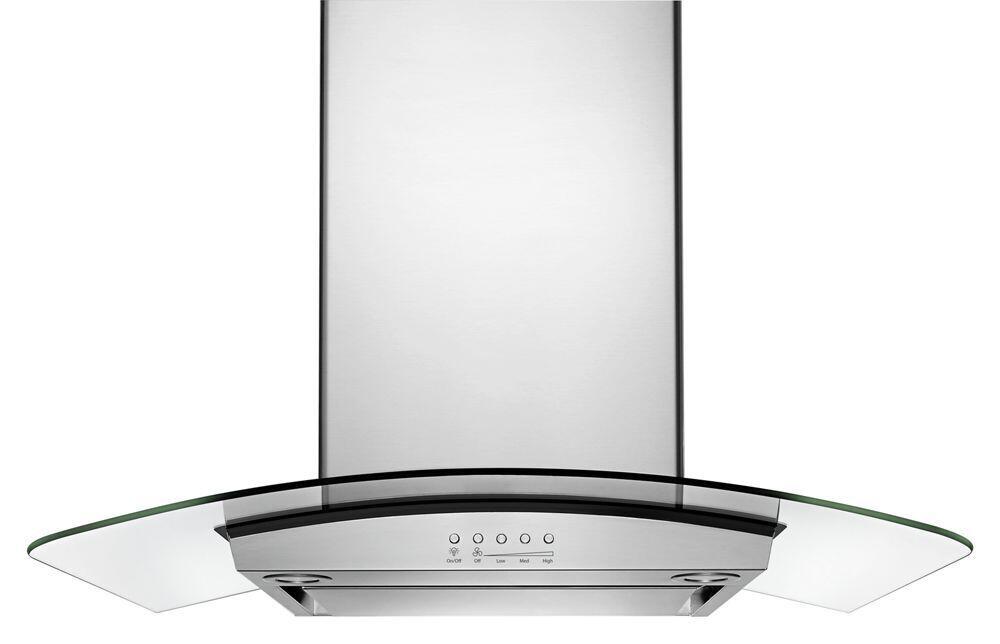

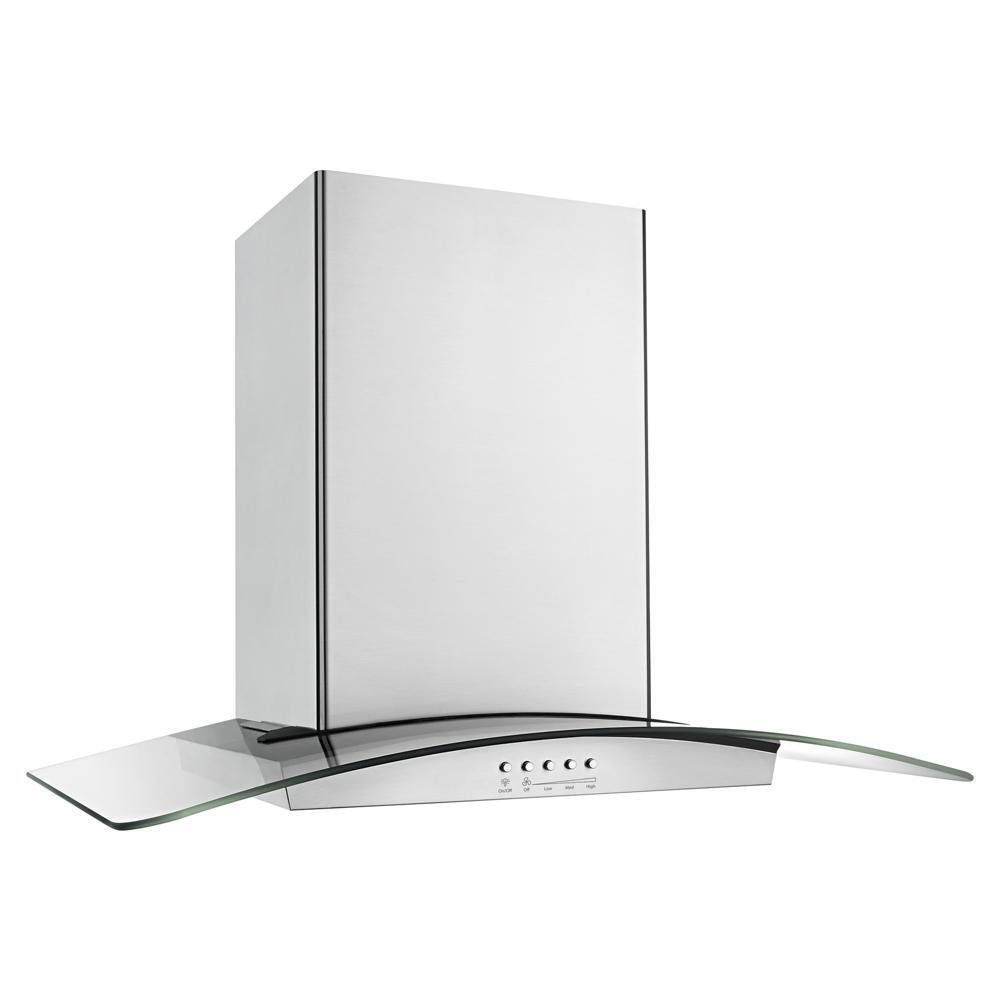

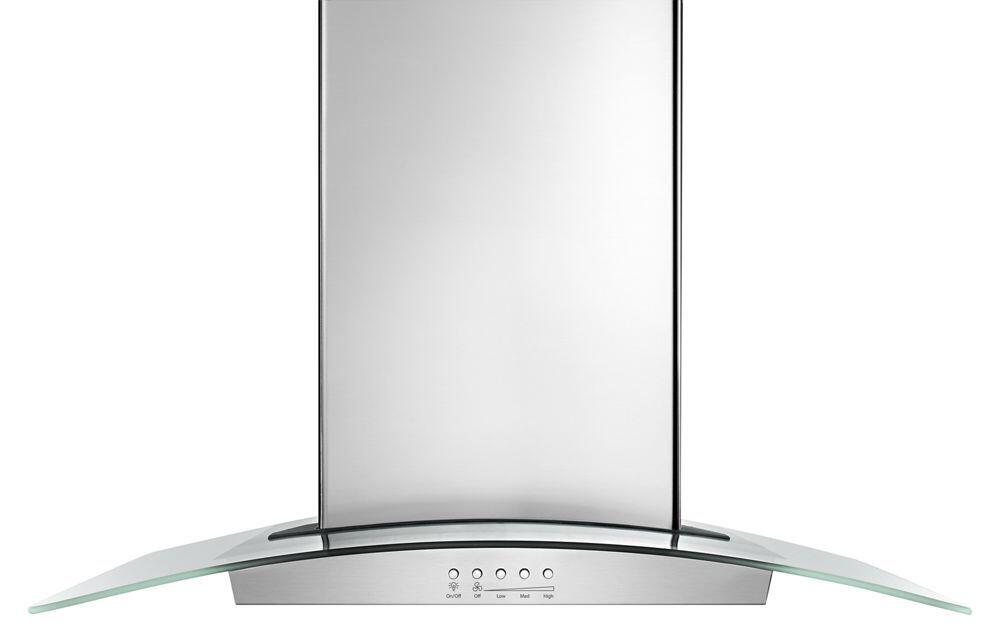

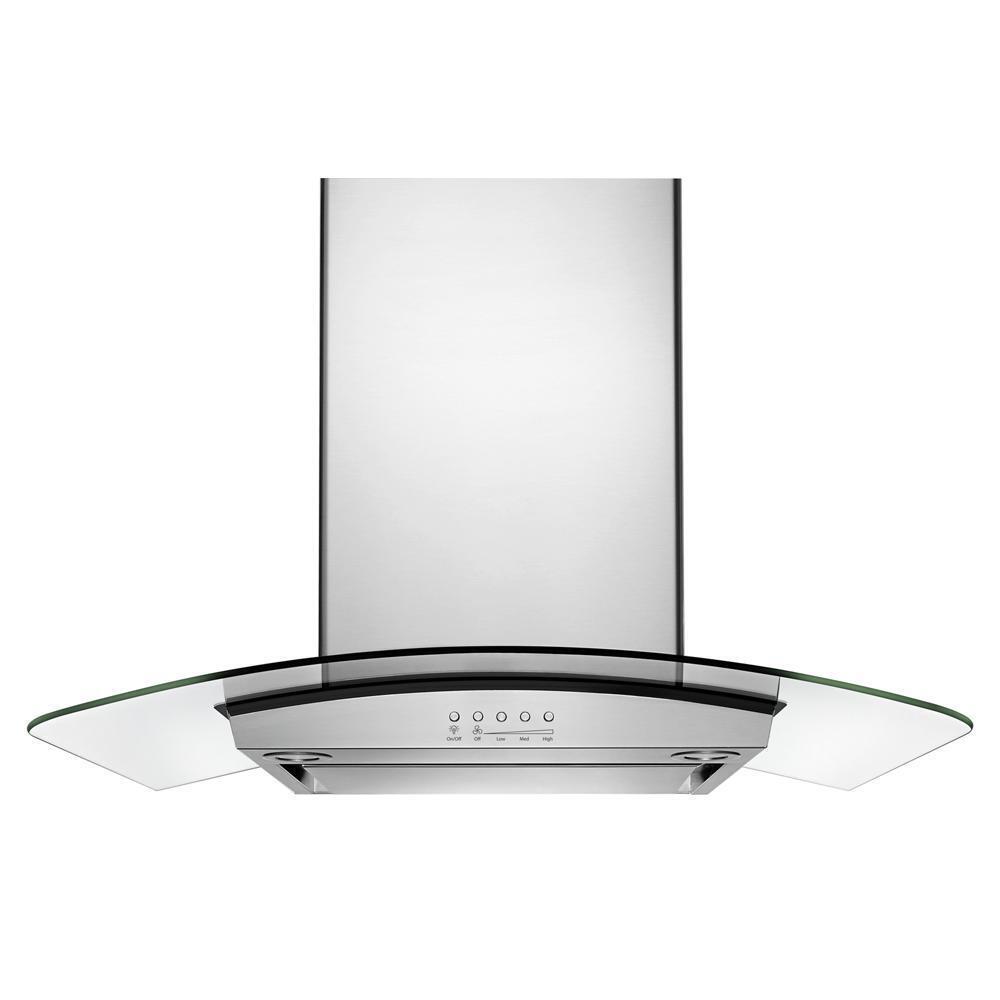

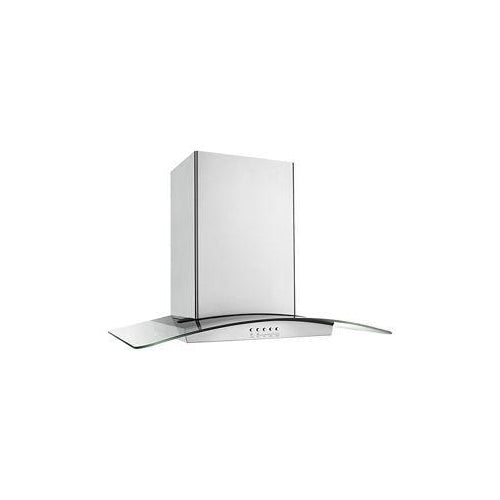

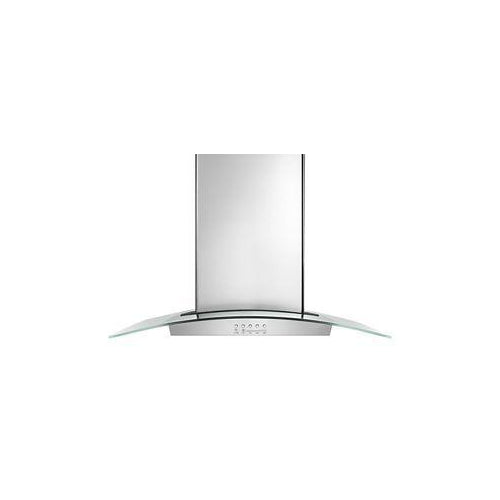

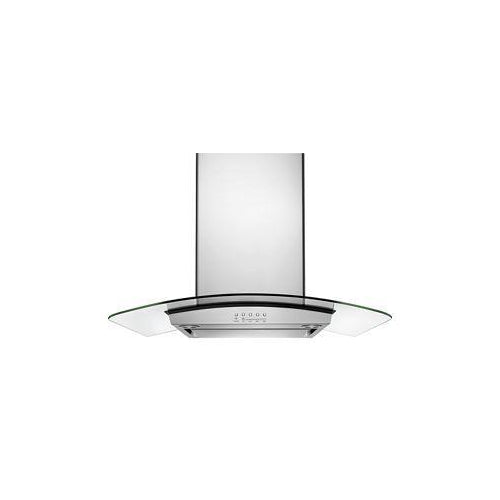

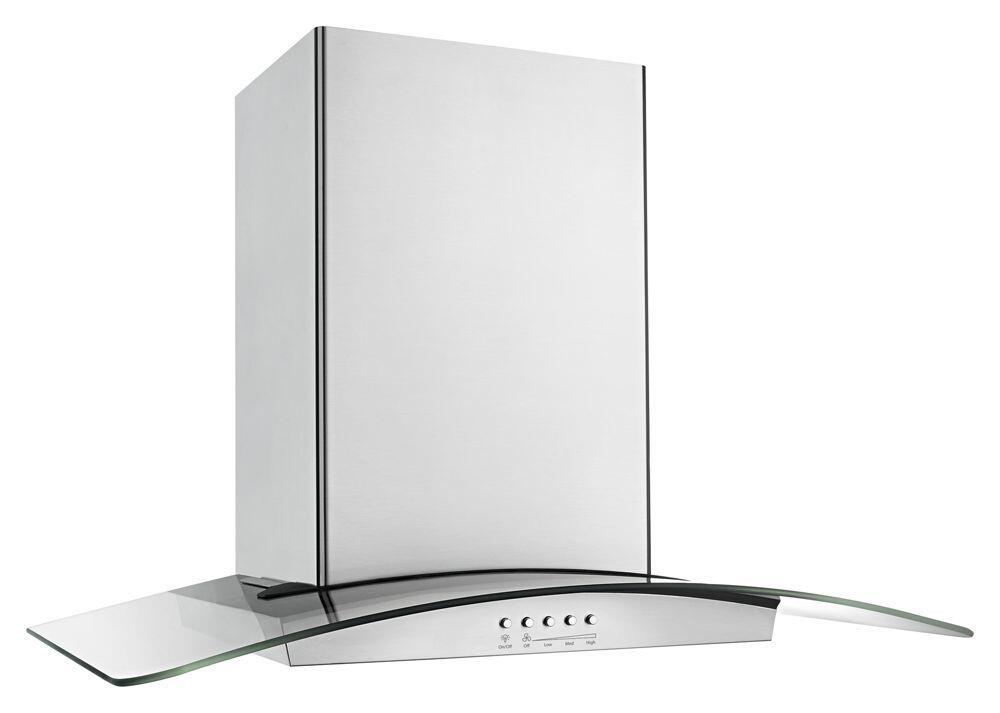

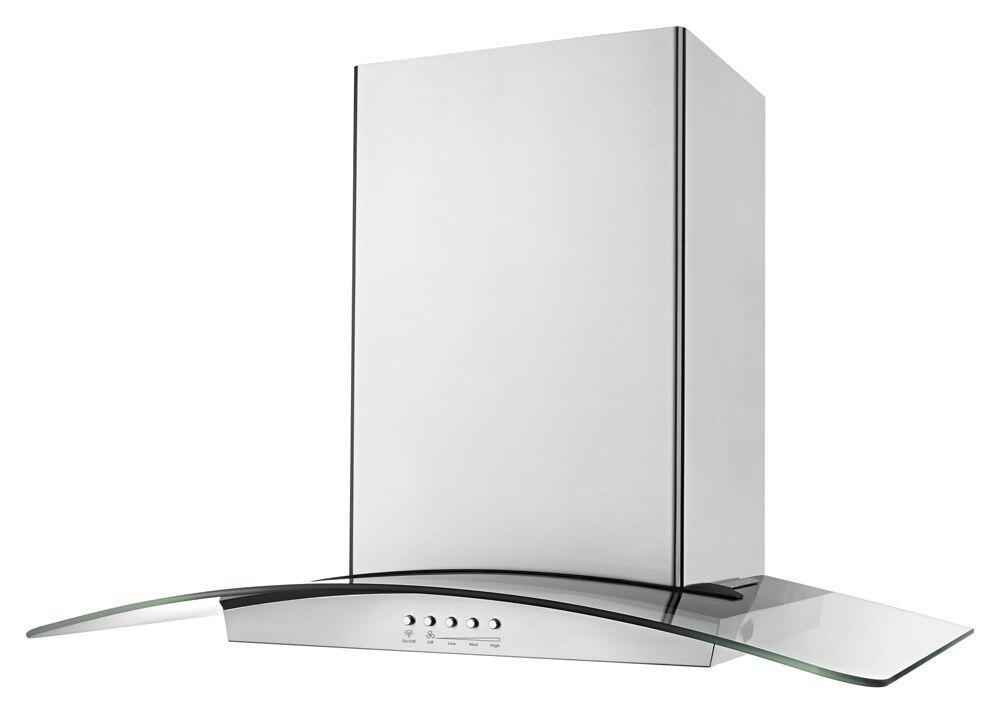

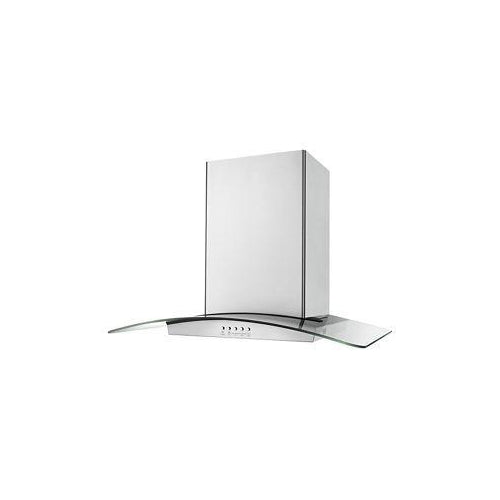

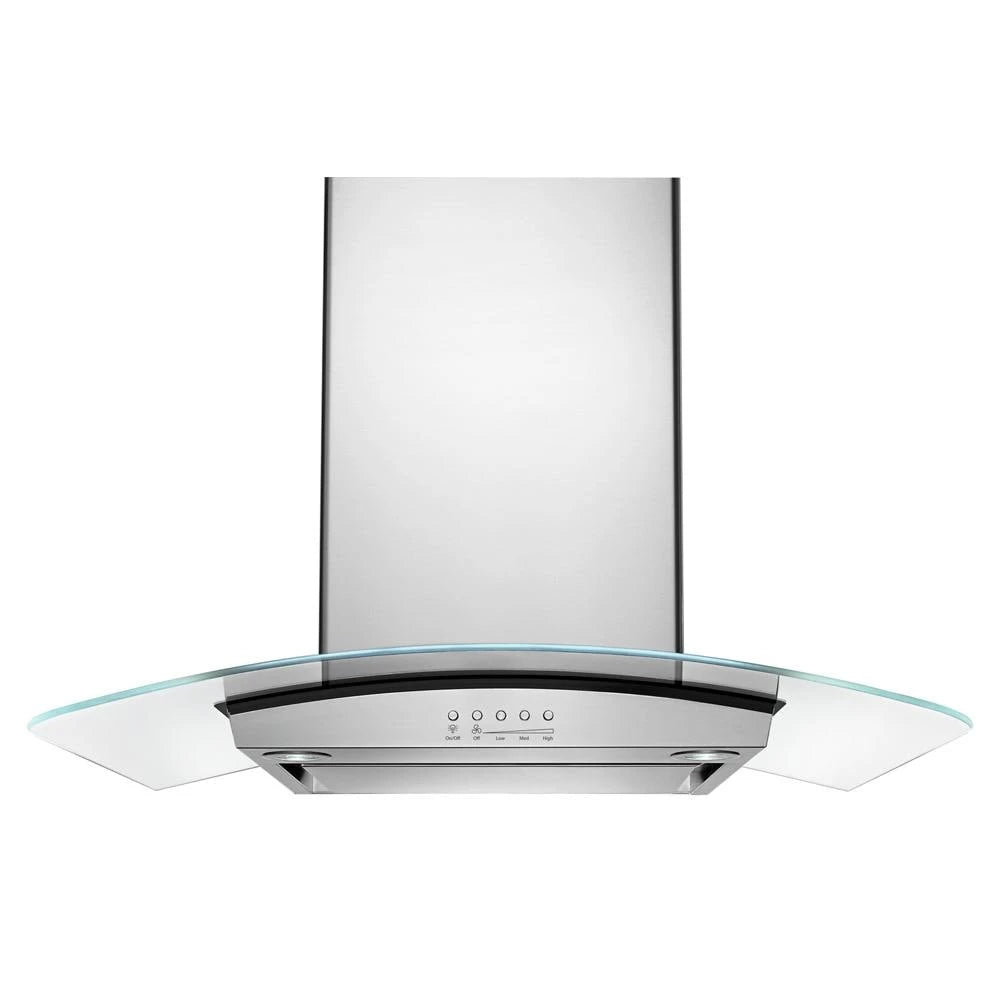

This glass wall mount kitchen hood provides a modern look. It helps remove smoke and odors by concentrating hood suction to targeted zones on your cooktop with Perimetric Venting technology and a 3-speed, 400 CFM motor class. Noise reduction technology features sound insulation and a special chimney design to provide a quiet kitchen ventilation system. When venting at low speed, sound levels can get as low as 49 dBA. It's easy to see what you're cooking with efficient LED task lighting, and the range hood's glass edge LED lighting acts as a night-light by sensing when your kitchen lights dim and automatically turning on.


Product Features

  • Perimetric Venting Technology
    Helps remove smoke and odors by concentrating hood suction to targeted zones on your cooktop.
  • Noise Reduction Technology
    Sound insulation and a special chimney design allow for quiet ventilation.
  • LED Task Lighting
    Bright, long-lasting LED task lighting makes it easy to see what you're cooking.
  • Grease filter
    The grease filter helps trap unwanted grease and helps remove odors.
  • In-Line Smart Blower
    The in-line smart blower can be installed as an exhaust motor in a ventilation hood or as an in-line blower in the attic of your home for added noise reduction.
  • 3-Speed, 400 CFM Motor Class
    Three fan speeds provide the right amount of ventilation for every meal you prepare.
  • Convertible Ventilation (Recirculating or Vented)
    Vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen's setup.
  • 49 dBA (1 Sone) at Low Speed
    Keep the kitchen quiet, even when venting at the highest speed. At maximum speed, sound level is 70 dBA (7.6 sones).

Key Features

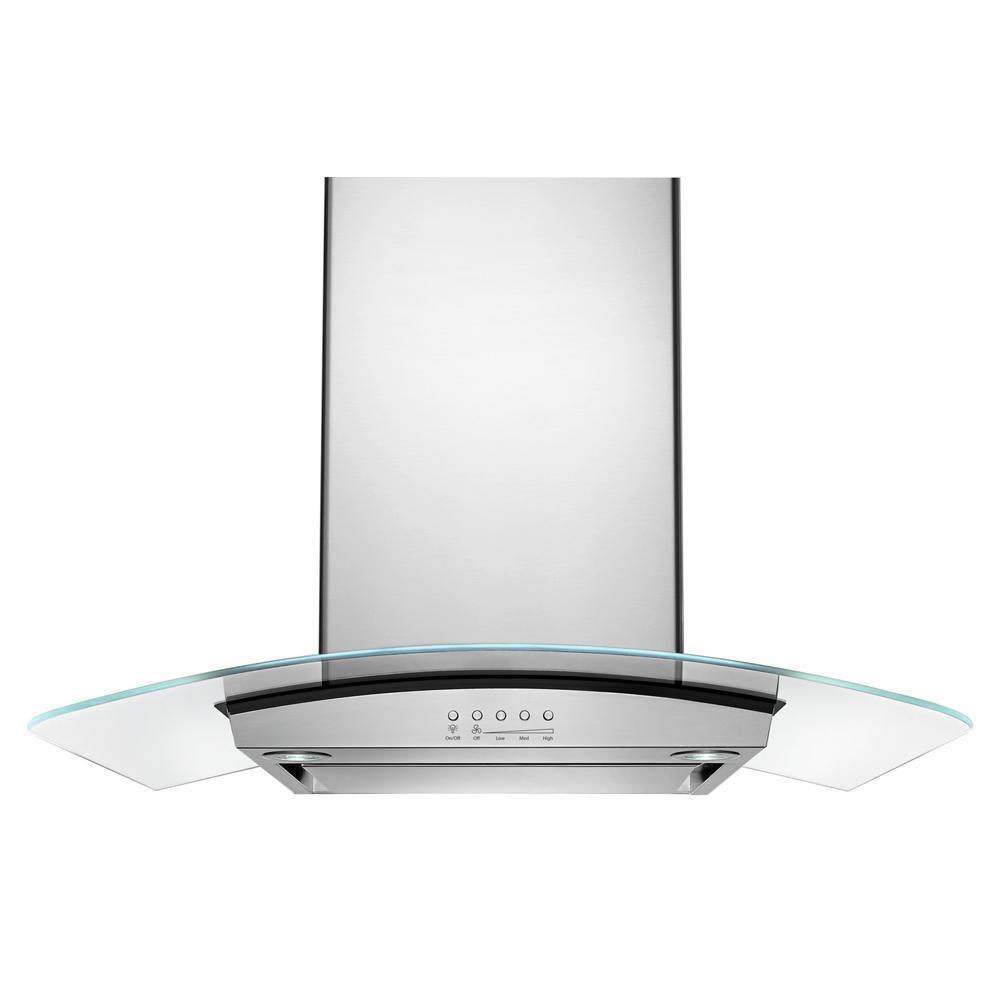

Glass Edge LED Lighting

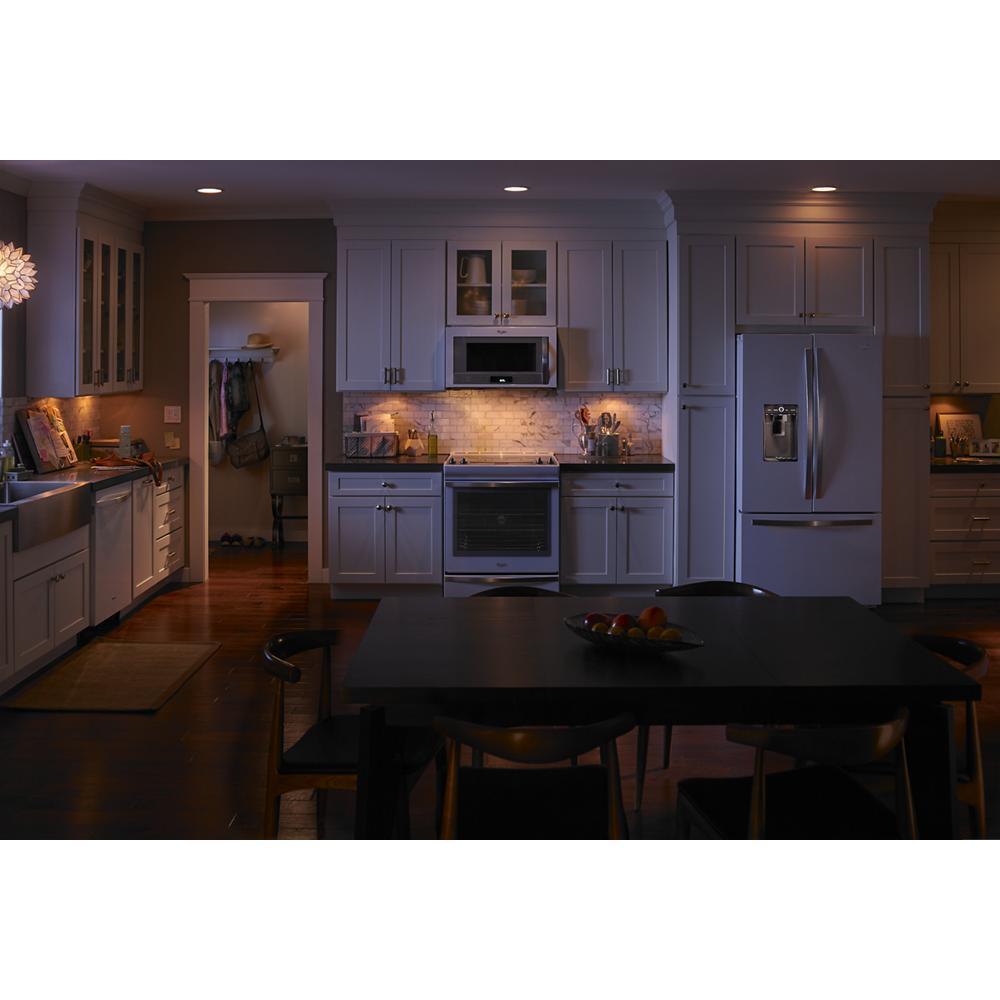

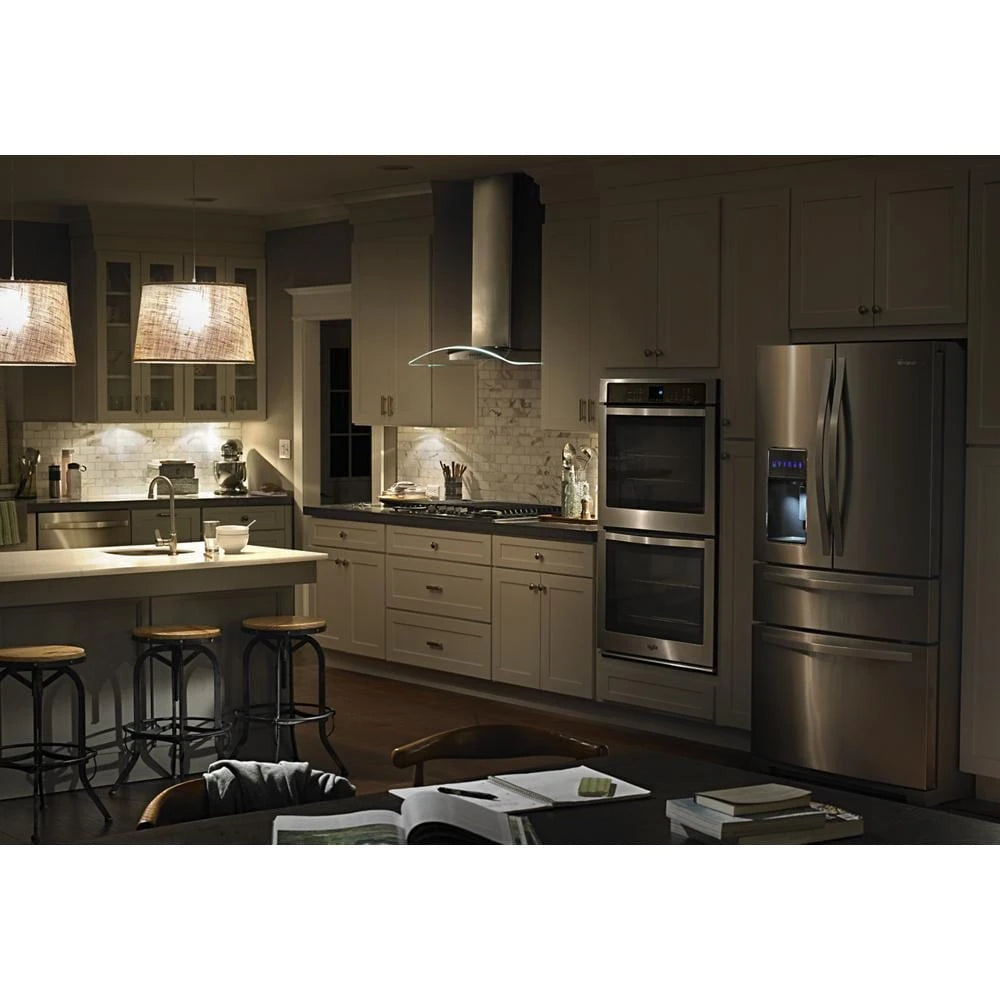

Glass edge LED lighting senses when your kitchen lights dim and automatically turns on to act as a night-light.
