Product Details for WHIRLPOOL WVW53UC6LS

Technical Details

Ventilation details

Auto Function No
BTU Threshold 65 K
Blower Motor N/A
CFM Motor Class 400
Duct Direction Vertical
Duct Length 42
Duct Type Round
Exhaust Vent Location Top
Filters Aluminum Mesh Filter
HVI (CFM HS Horizontal) N/A
HVI (CFM HS Vertical) 350
Maximum Motor CFM 350
Night Light Type N/A
Task Light Type LED
Vent Material Metal
Venting Exterior or Recirculating
Blower Type Centrifugal
Minimum Motor CFM 80
Sones High Speed Horizontal N/A
Sones High Speed Vertical 7.5
Duct Outlet Size 6
Sound Min Speed 0.7
Sound Max Speed (Sones) 7.5

Details

Hood Type Wall-Mount Canopy
Damper Included Yes
Hood and Vent Selections Fan High; Fan Med; Fan On/Off; Lamp
Lighting Control Type Push Button
Number of Task Light Settings 1
Number of Vent Speeds 3
Task Lighting Yes

Controls

Control Location Front
Control Type Push Button

Electrical

Power Cord Included No

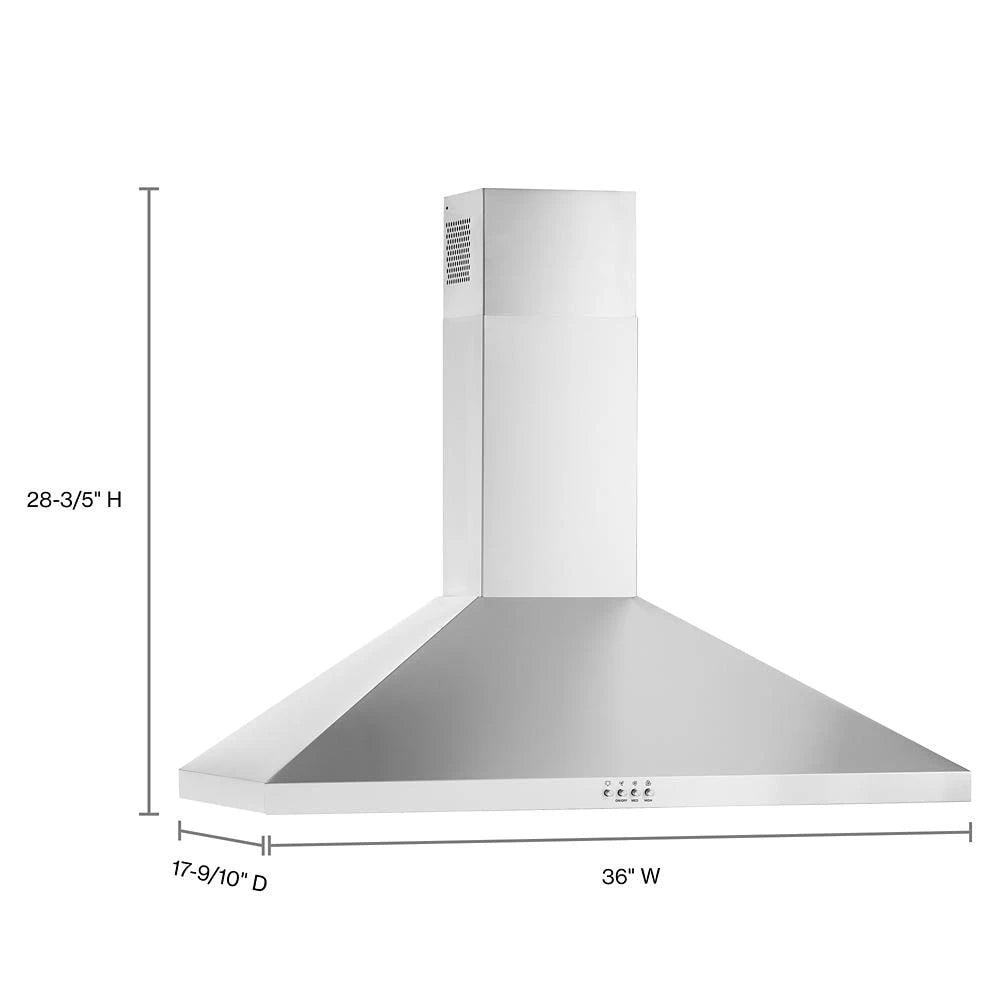

Dimensions & weight

Height 42.3 in.
Length 17.9 in.
Weight 36 lbs.
carton depth 13
carton height 20
carton width 37
Canopy Height 11.8
gross weight 36
net weight 24
Width 37 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 37 in.
Shipping Height 20 in.
Shipping Length 22.9 in.
Shipping Weight 76 lbs.
Total of Shipping Weight 76 lbs.
Source Calculation

Product details

Energy Star® Qualified No

Capacity

Volume 5.567 Cu.Ft.

Certifications

CEC Listed Yes
prop65 CA

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 16.21 ft³
Dimensional Weight 201.55 lbs.
Total of Cubes 16.21 ft³
Total of Dimensional Weight 201.55 lbs.

Description

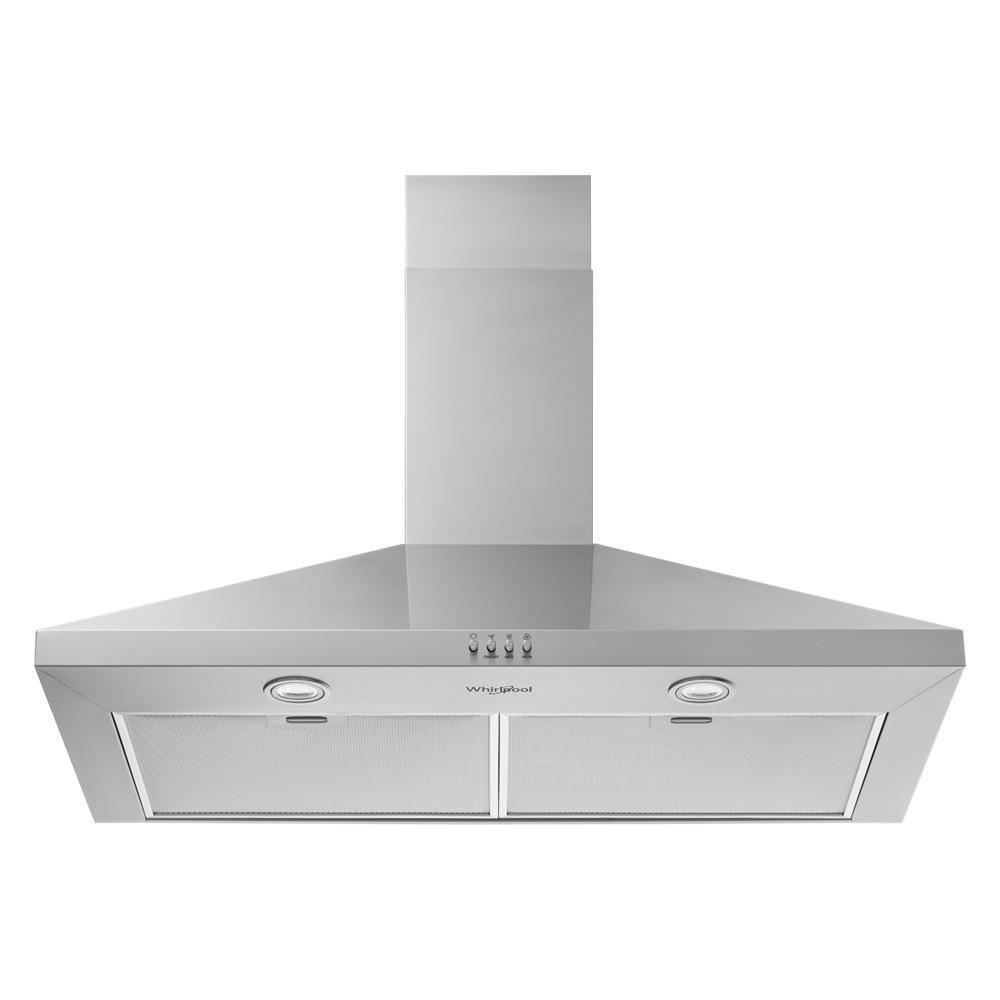

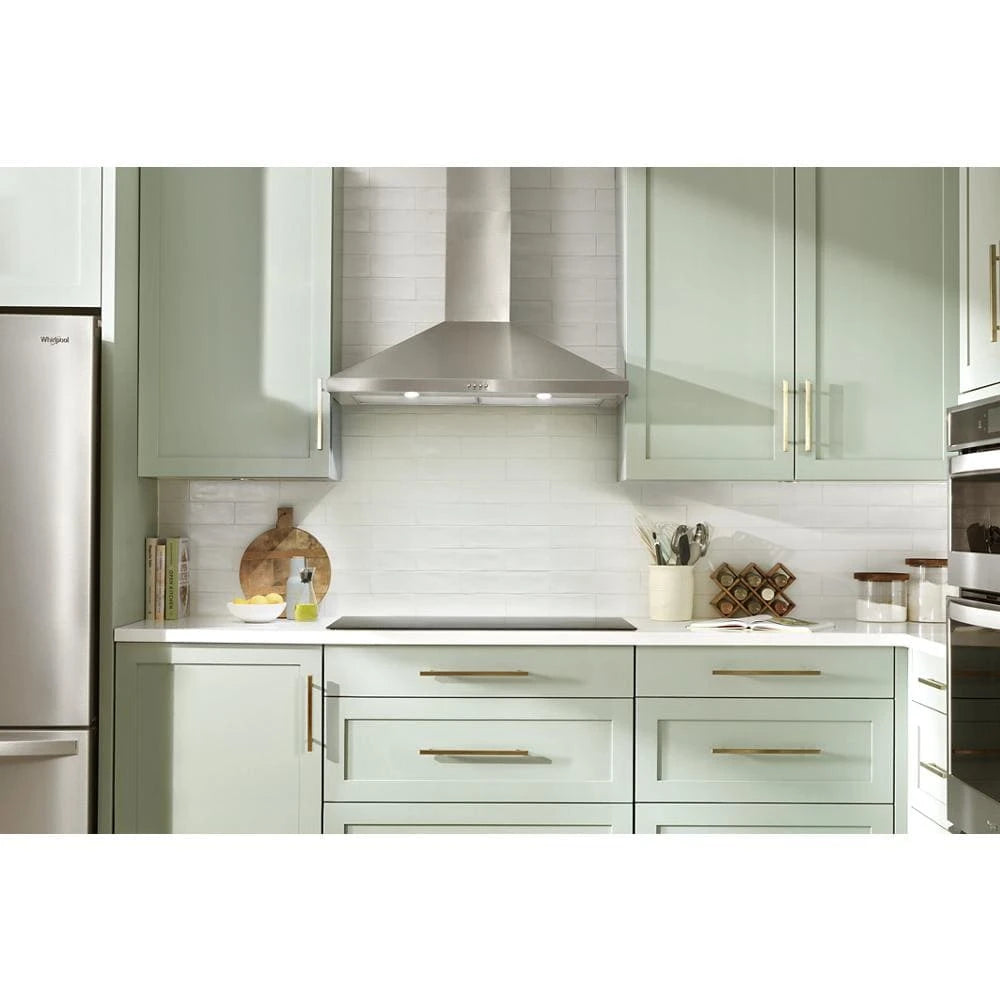

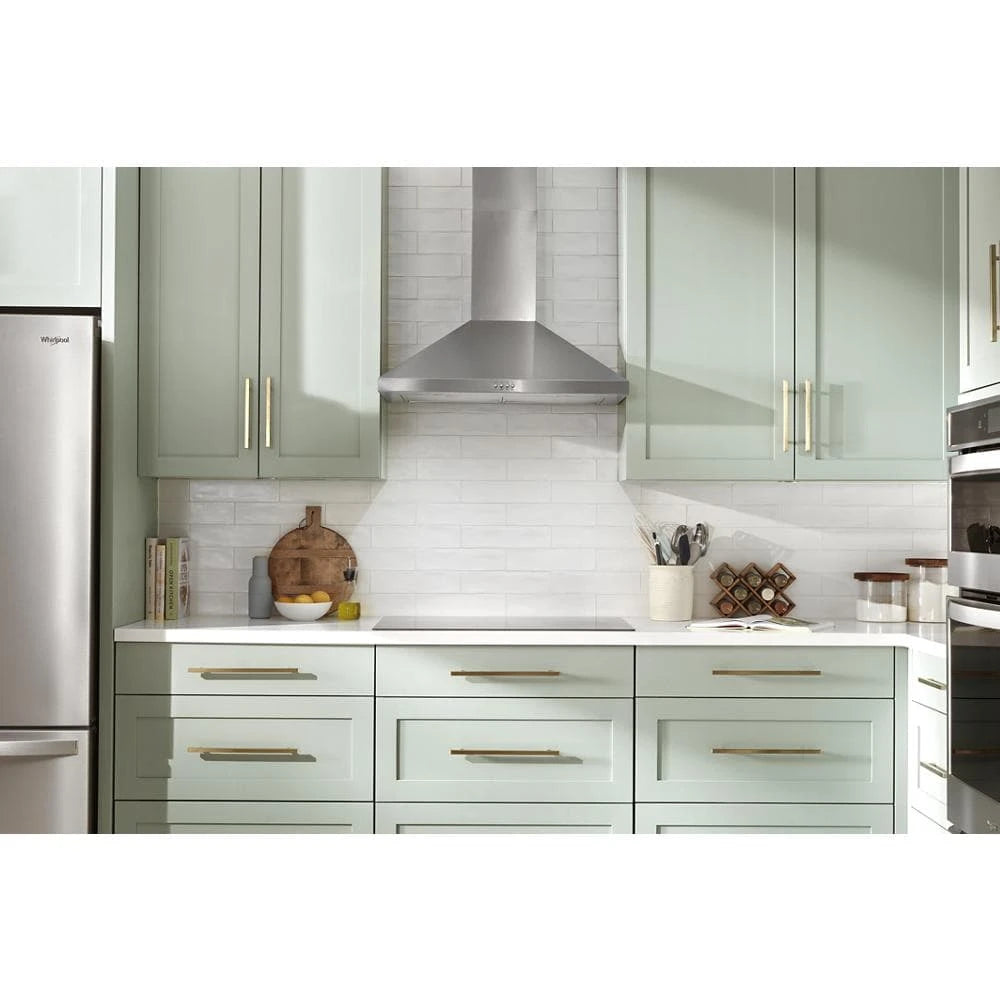

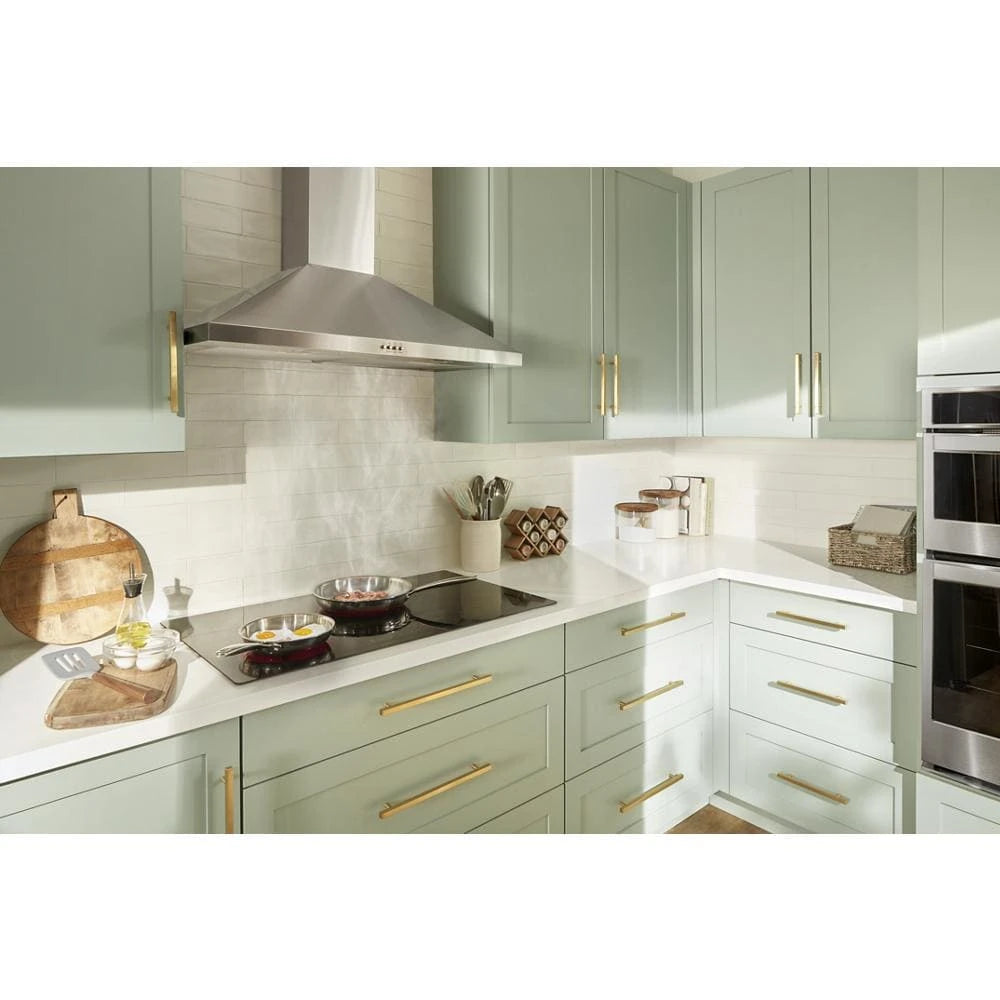

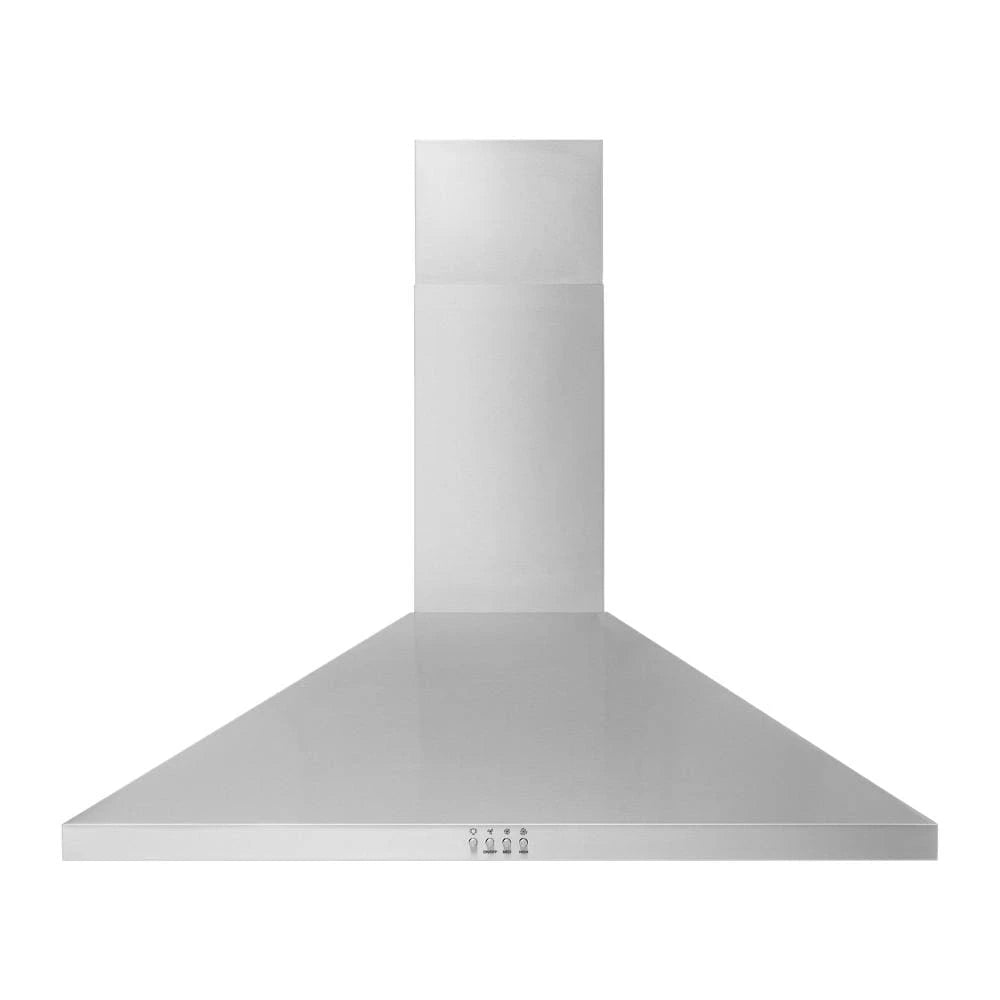

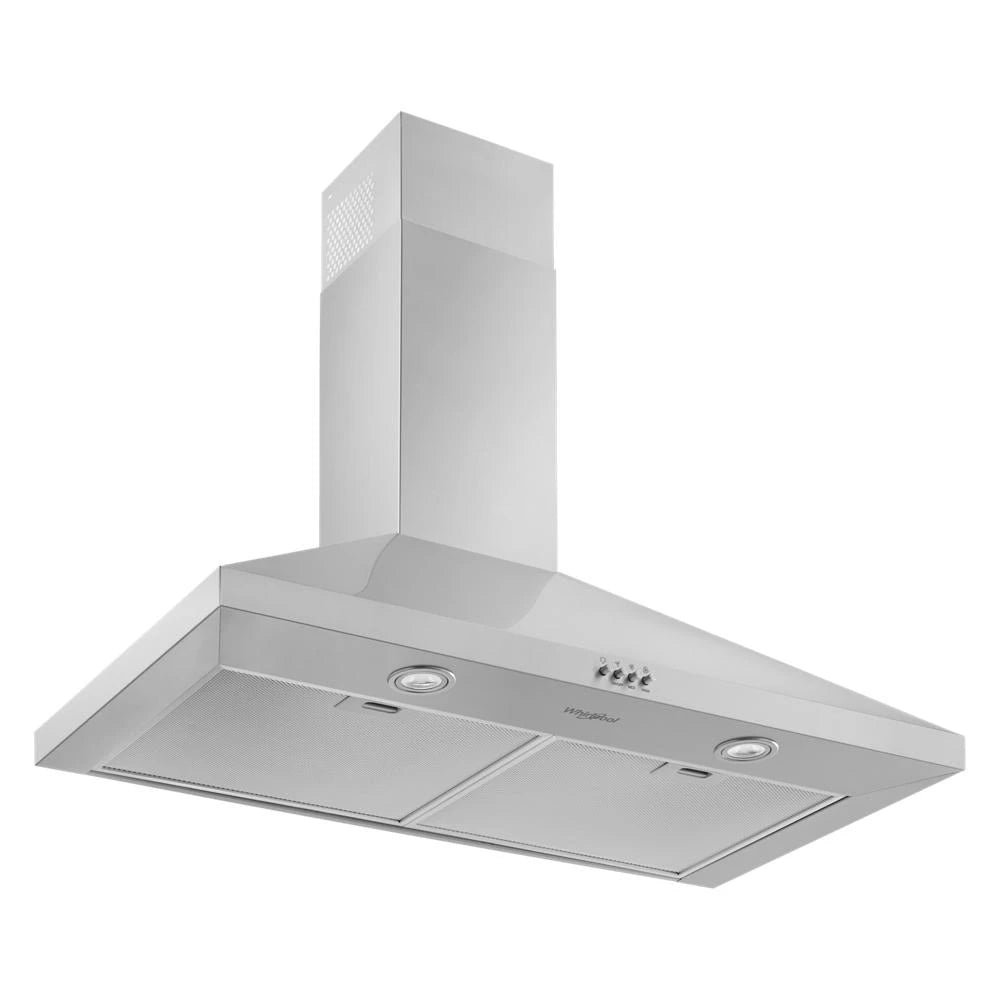

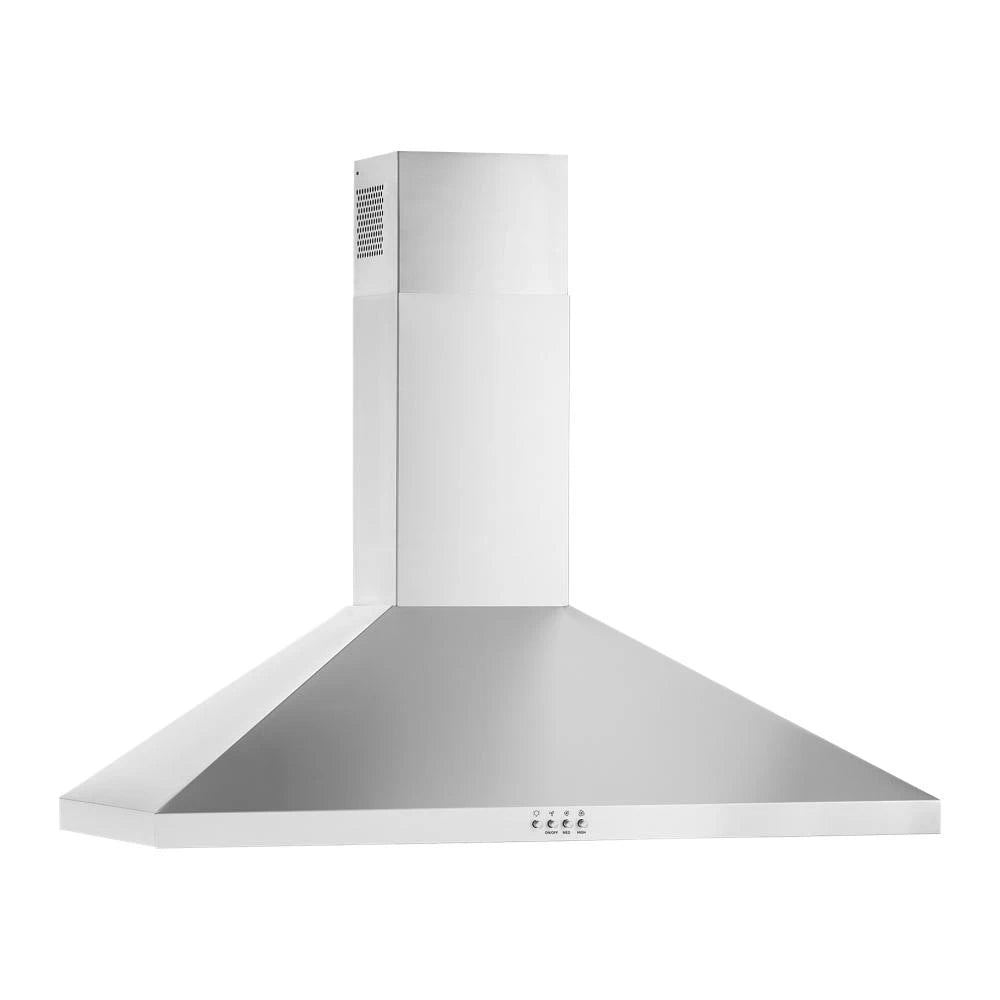

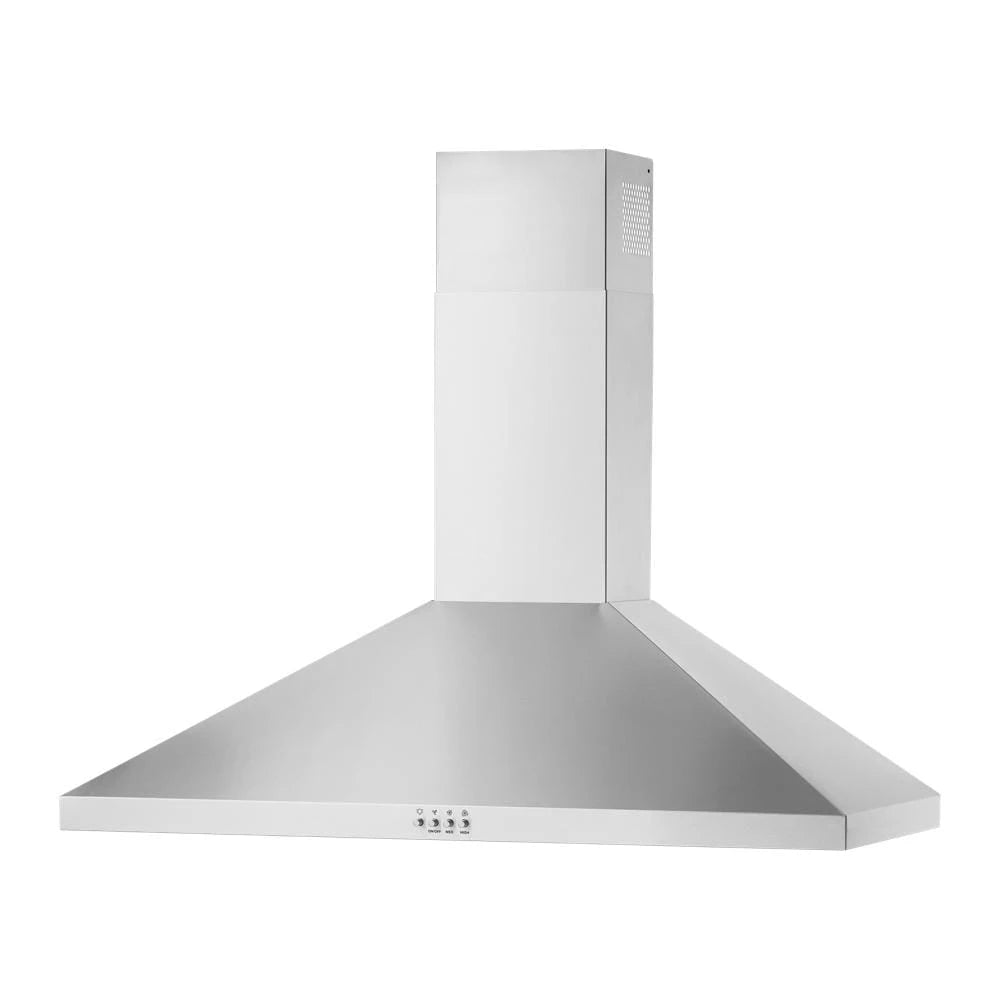

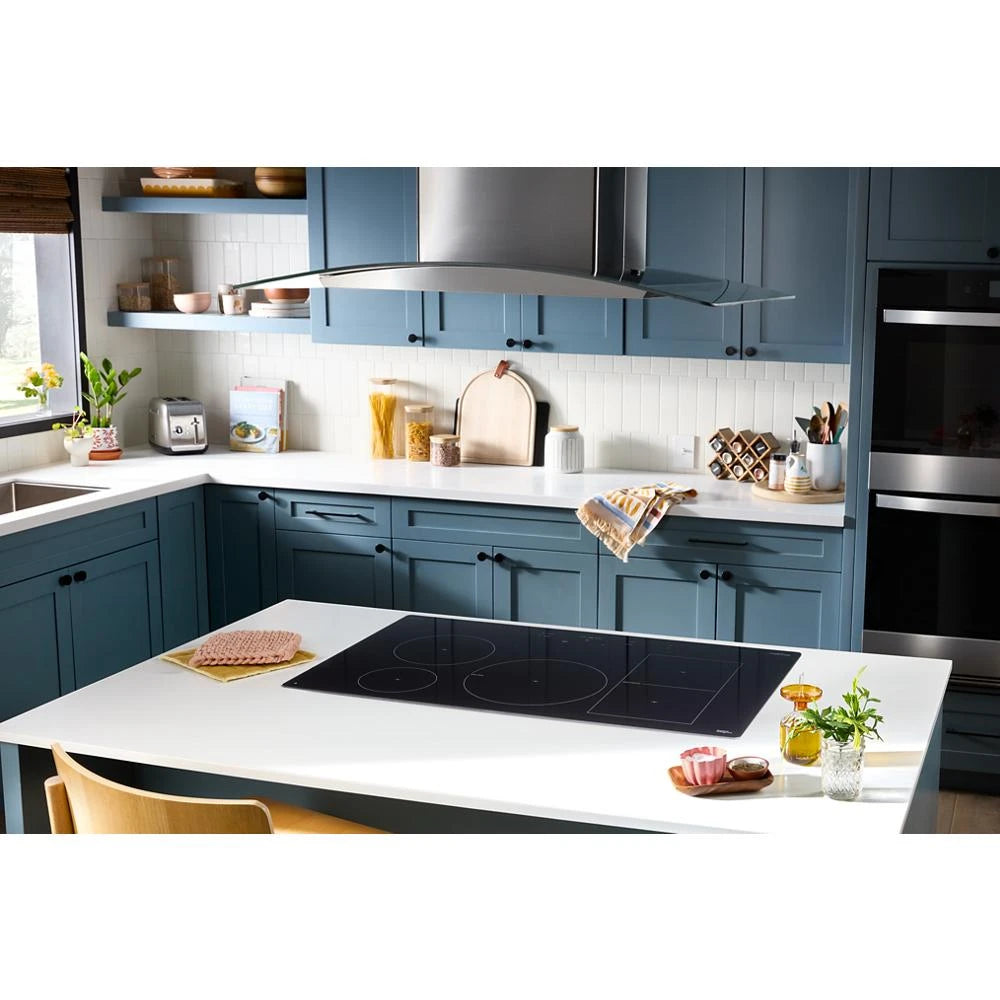

The brand Whirlpool WVW53UC6LS delivers reliable kitchen ventilation with this 36-inch wall mount range hood in stainless steel. Designed to efficiently remove smoke, grease, and odors, it features a three-speed fan that operates at up to 400 CFM, LED lighting for clear cooktop visibility, and dishwasher-safe mesh filters for easy cleaning. Its sleek design enhances any modern kitchen space.



Product Features

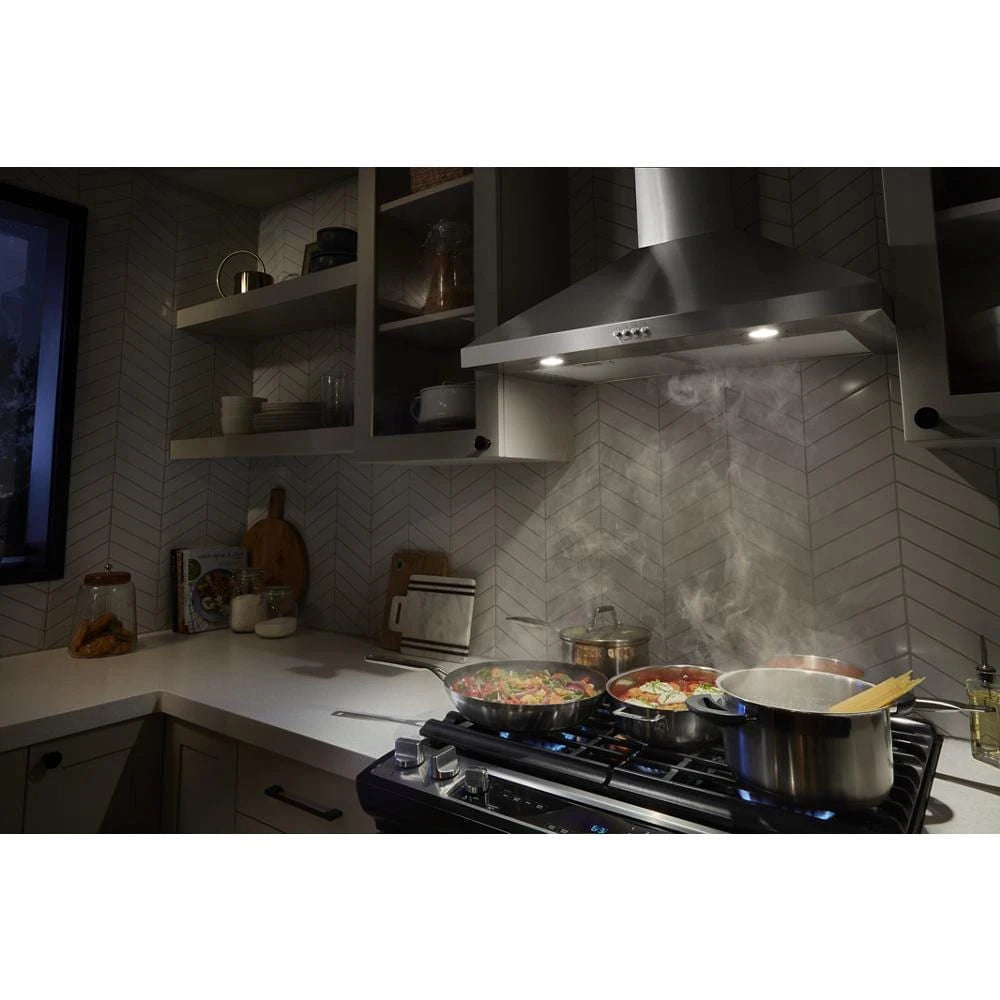

  • 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)
    Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

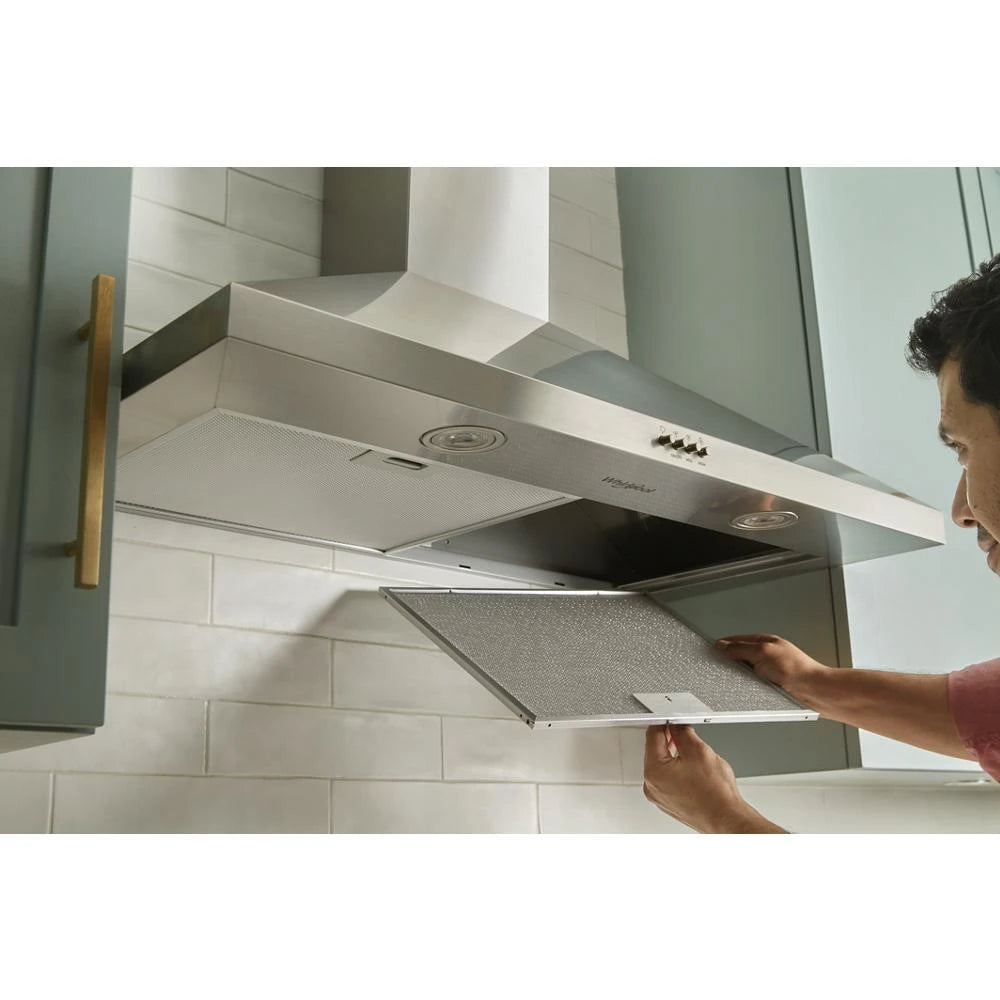

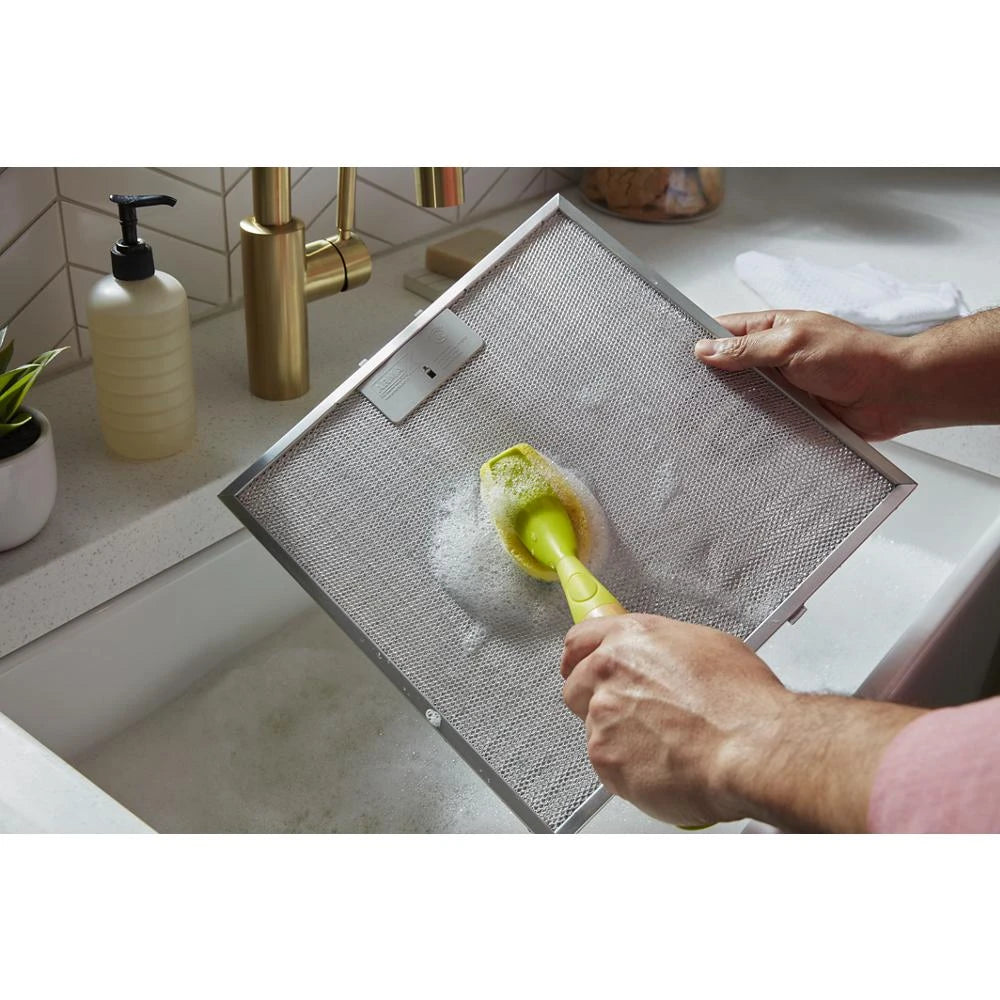

  • Grease Filter
    Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.

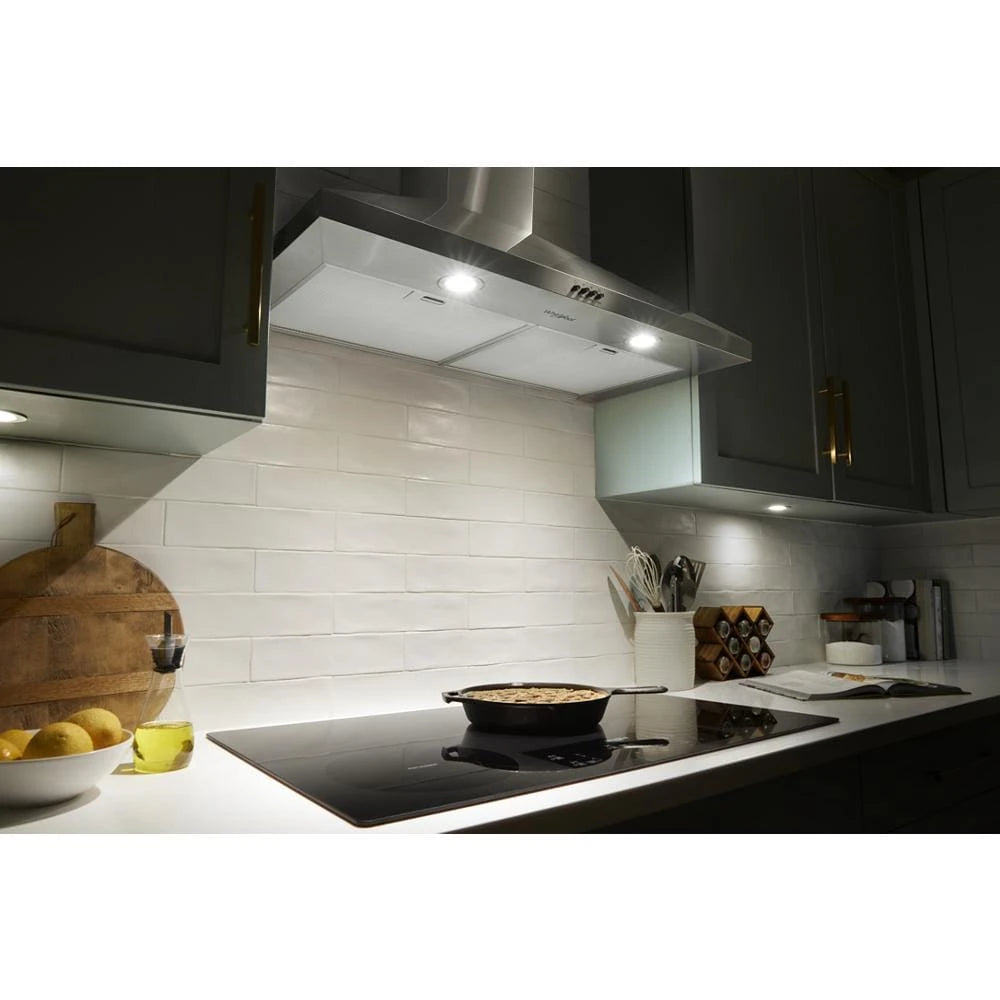

  • LED Task Lighting
    Bright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.
  • 65K BTU Cooktop Threshold
    Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
  • 7.5 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
    Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7.5 Sones. (When configured for outside ventilation. Published by aham.org.)

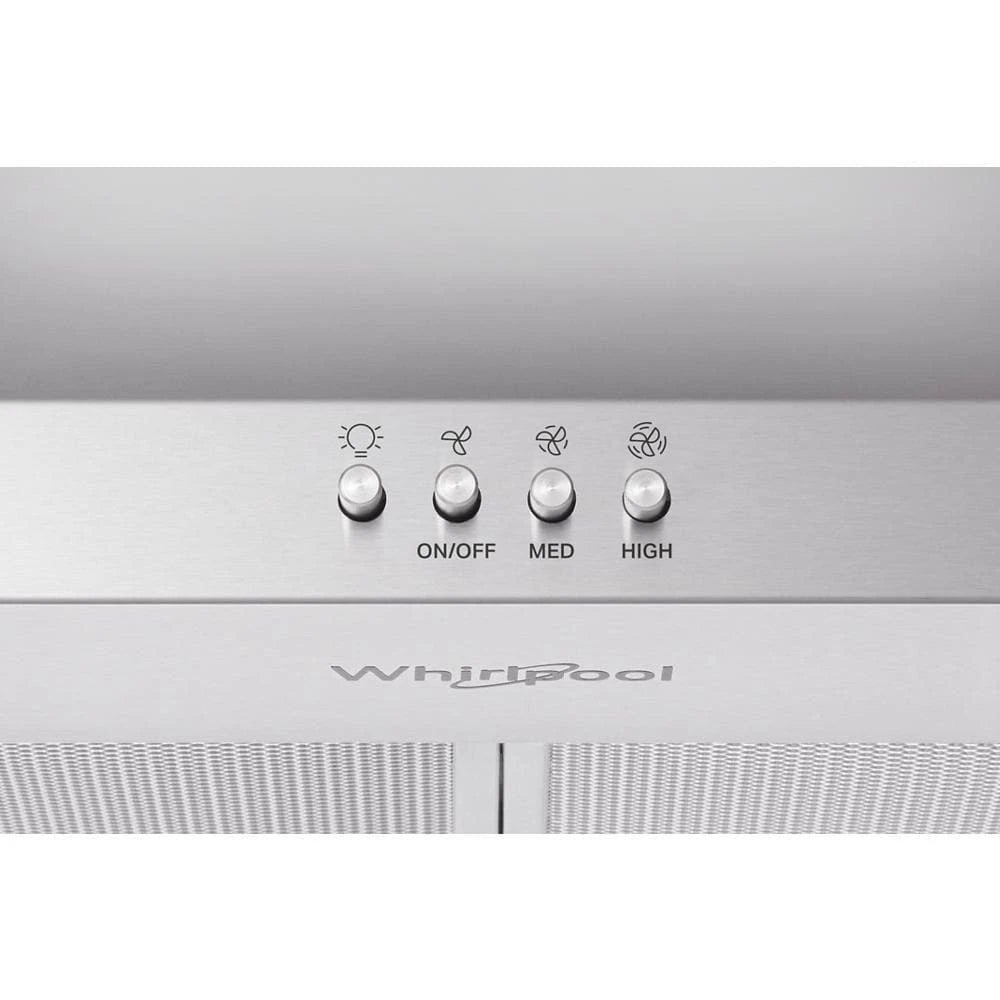

  • Push Button Controls
    Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
  • ADA Compliant
    When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
  • Convertible Ventilation (recirculating or vented)
    A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
  • Optional Recirculation Kit (non-vented/duct-free)
    This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548459.
  • 6" Round Damper Included
    Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
  • Optional Chimney Extension Kit
    Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT18FS.
