Sale price $822.59 Regular price $1,285.97 Save $463.38 / 36% OFF

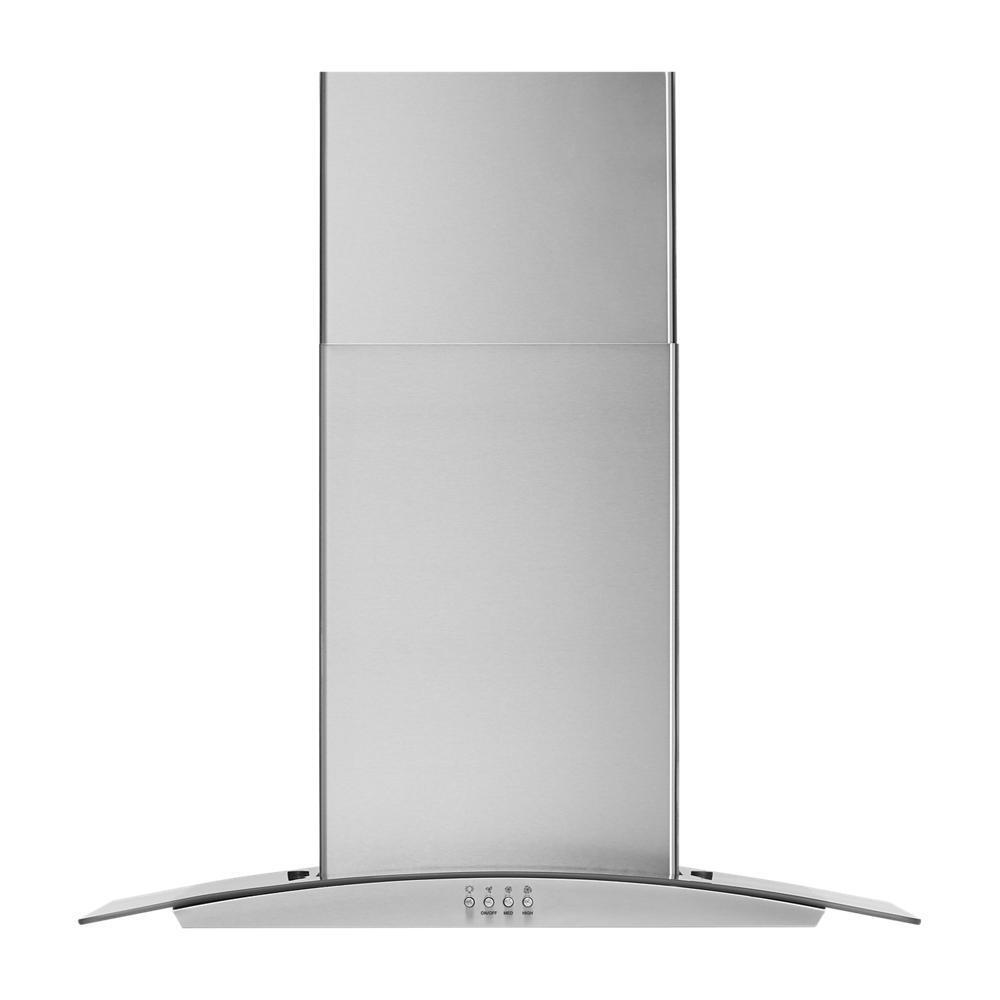

Product Details for Whirlpool WVW51UC0LS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.86 ft³
Dimensional Weight 172.26 lbs.
Total of Cubes 13.86 ft³
Total of Dimensional Weight 172.26 lbs.

Ventilation details

Auto Function No
Auto On No
BTU Threshold 65 K
Blower Motor N/A
CFM Motor Class 400
Duct Direction Vertical
Duct Type Round
Exhaust Vent Location Top
Filters Aluminum Mesh Filter
HVI (CFM HS Vertical) 340
Maximum Motor CFM 340
Night Light No
Night Light Type N/A
Task Light Type LED
Vent Material Metal
Venting Exterior or Recirculating
Duct Length 45.5
Damper Included Yes
Duct Outlet Size 6 in
Hood and Vent Selections Fan High, Fan Med, Fan On/Off, Lamp
Lighting Control Type Push Button
Number of Task Light Settings 1
Task Lighting Yes

Controls

Control Location Front
Control Type Push Button
Number of Vent Speeds 3

Details

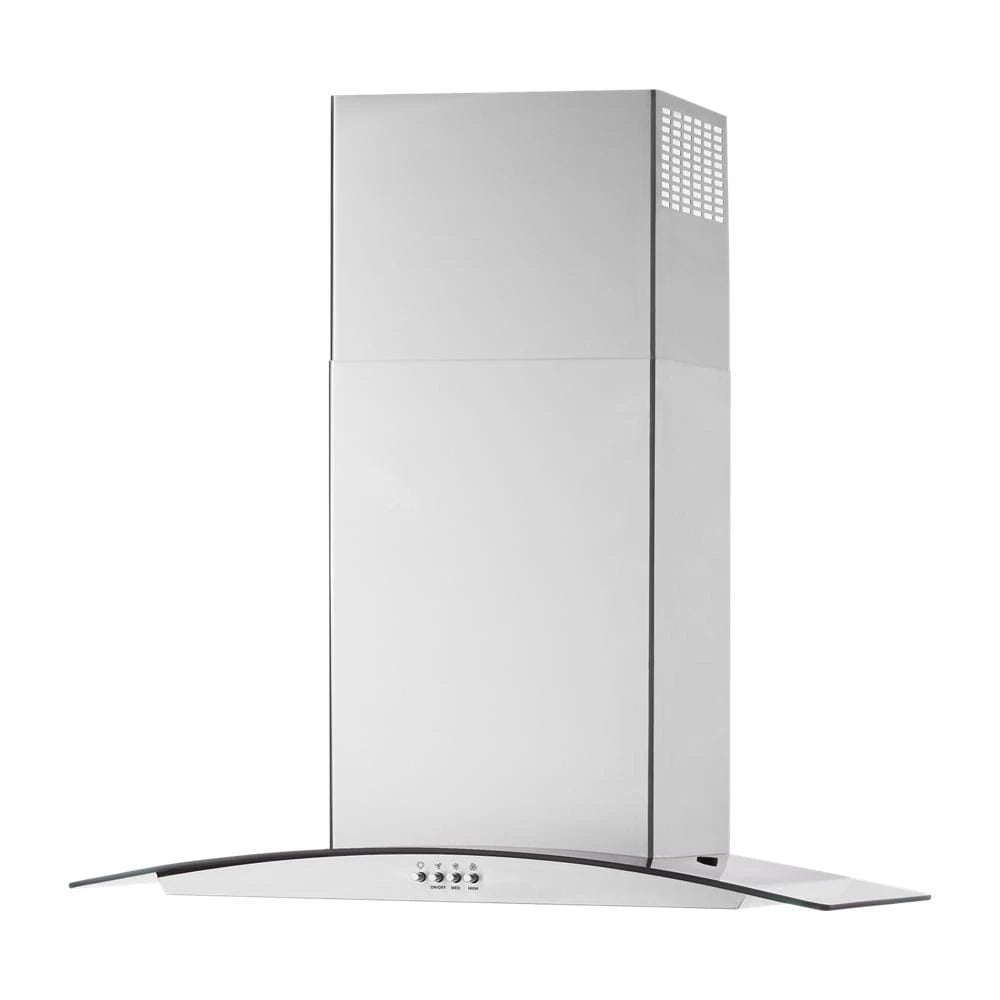

Hood Type Wall-Mount Canopy
Blower Type Centrifugal

Electrical

Power Cord Included No
Amps 2
Hz 60
Volts 120

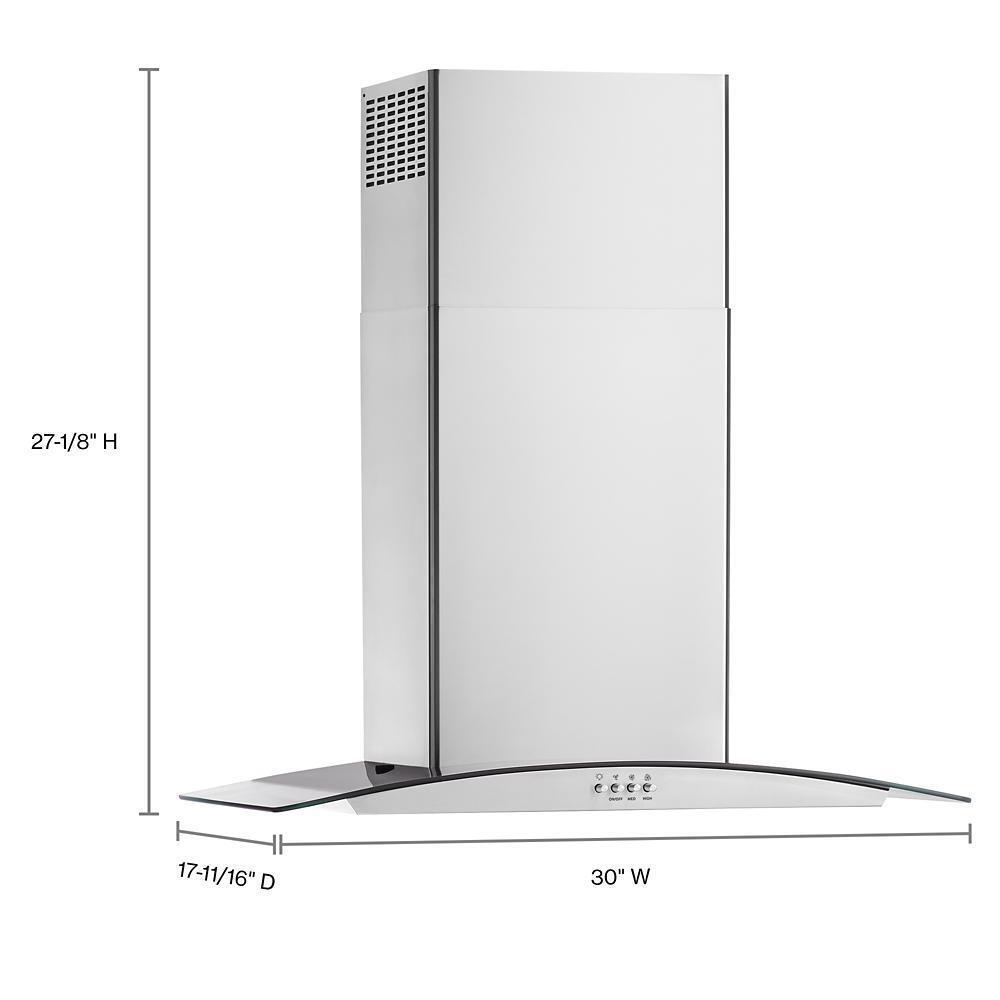

Dimensions & weight

Width 30 in.
Height 45.13 in.
Length 17.69 in.
Weight 46 lbs.
Gross Weight 46 lbs
Net Weight 37 lbs
Canopy Height 10.813 in
Maximum Height 45.125 in
Minimum Height 27.125 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34 in.
Shipping Height 26 in.
Shipping Length 22.69 in.
Shipping Weight 86 lbs.
Total of Shipping Weight 86 lbs.
Source Calculation

Other

Common Size 30 in

Certifications

Energy Star Qualified No
Energy Star® Qualified No

Capacity

Volume 9.208 Cu.Ft.

Description

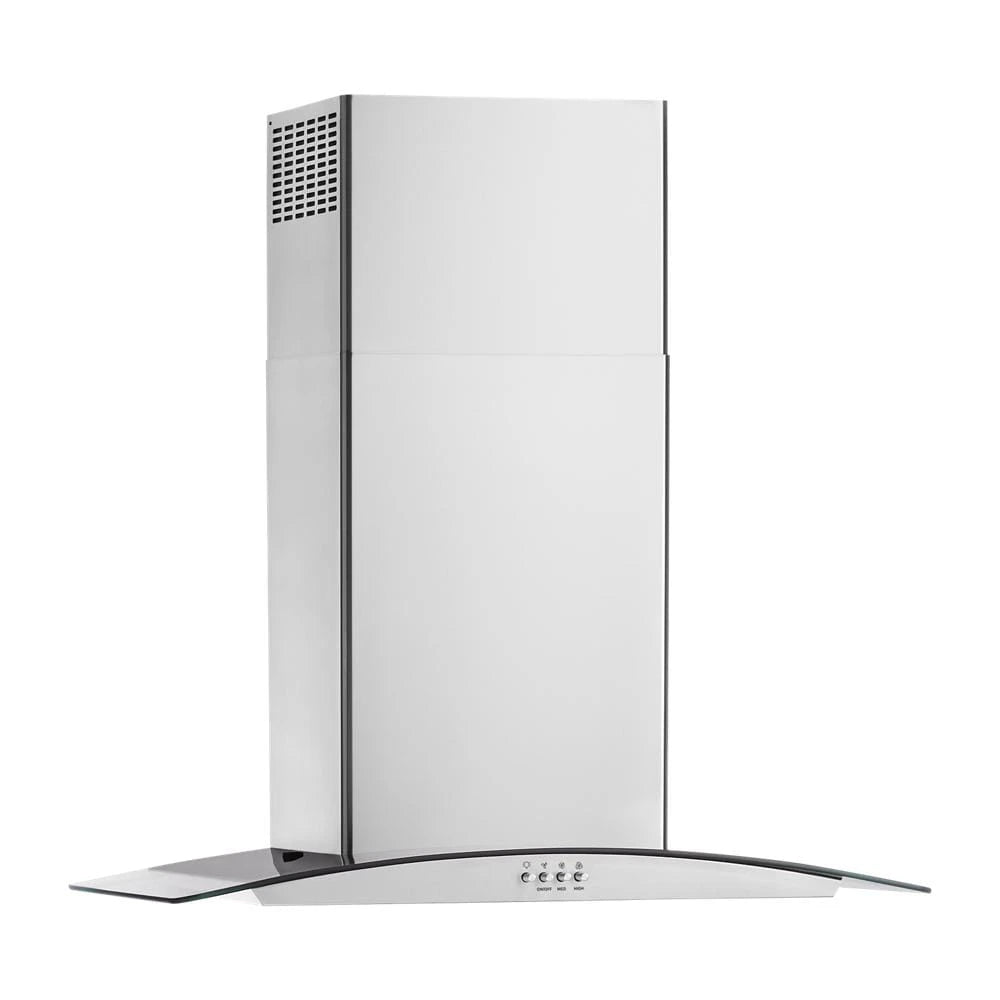

Easily vent smoke and odors with this 400 CFM Motor Class range hood that comes equipped with a 3-speed kitchen exhaust fan for powerful ventilation. This 30" wall mount range hood also comes with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold. (Performance varies based oninstallation. Resources available at aham.org.)


Product Features

  • 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)

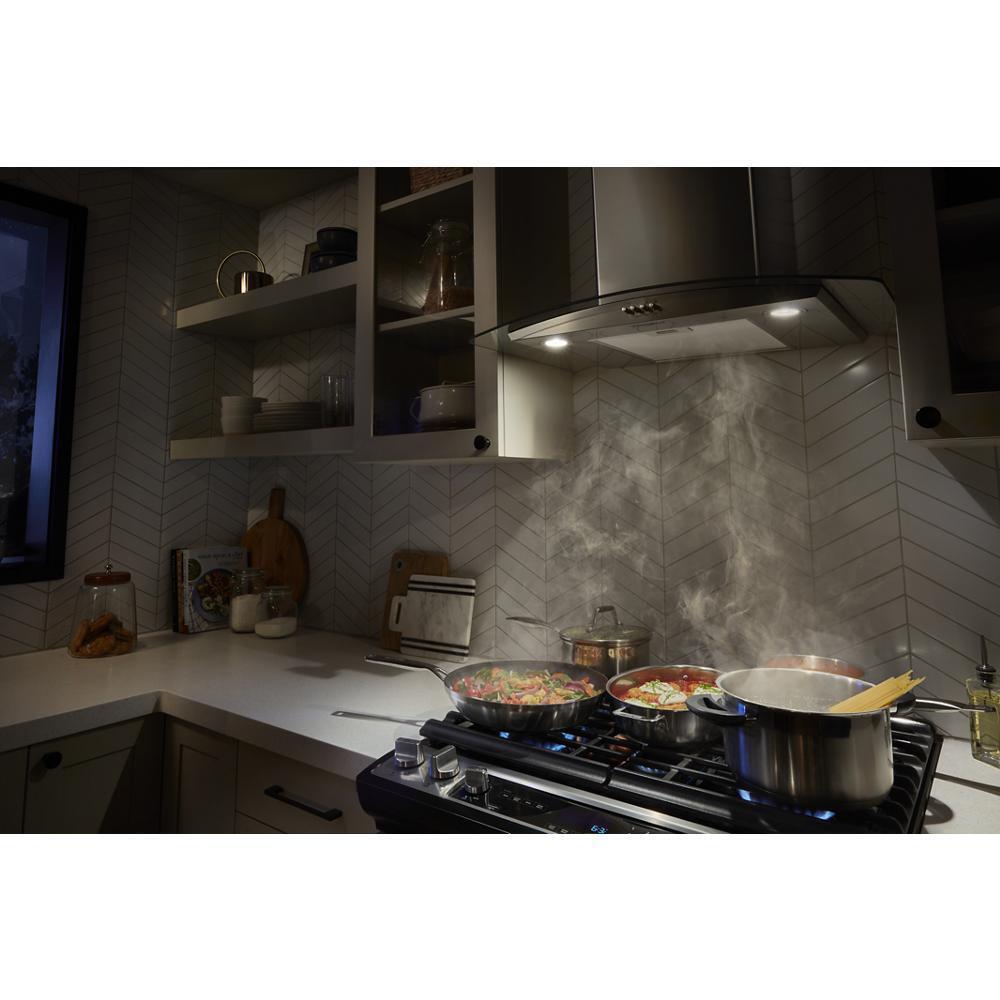

    Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

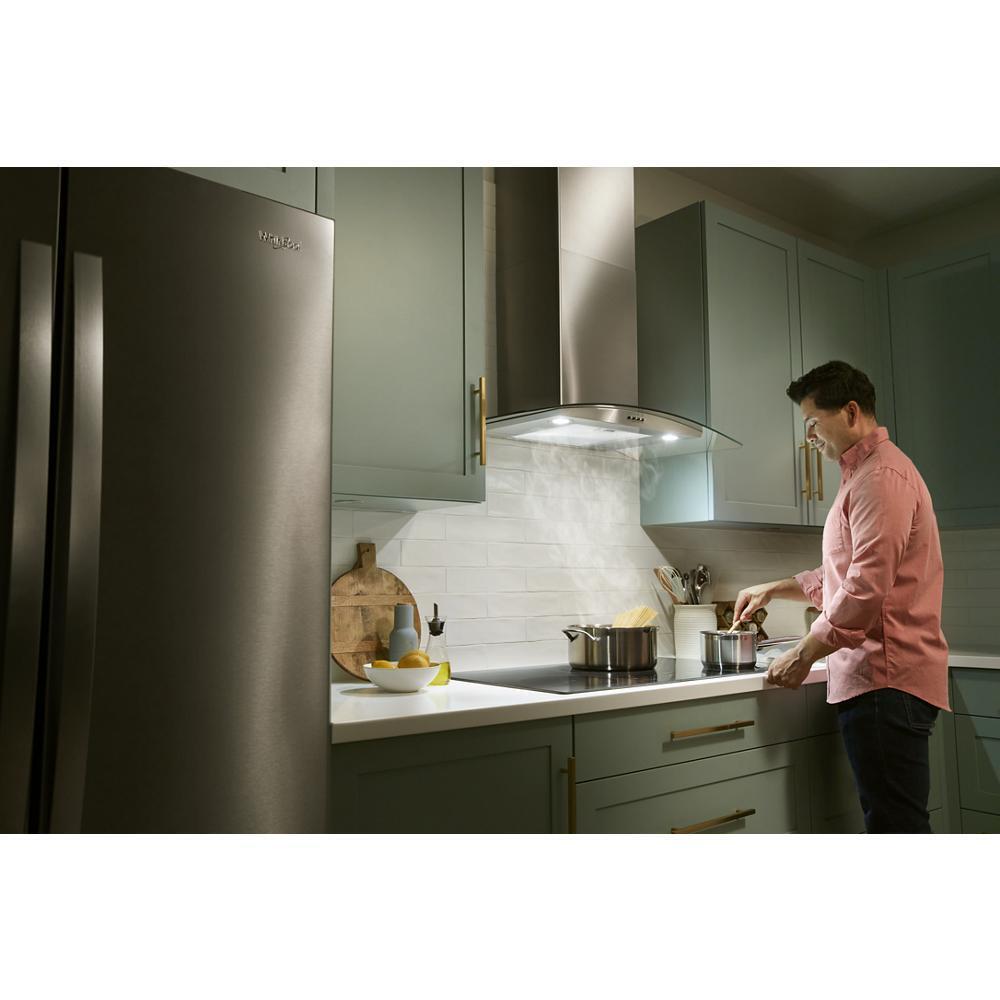

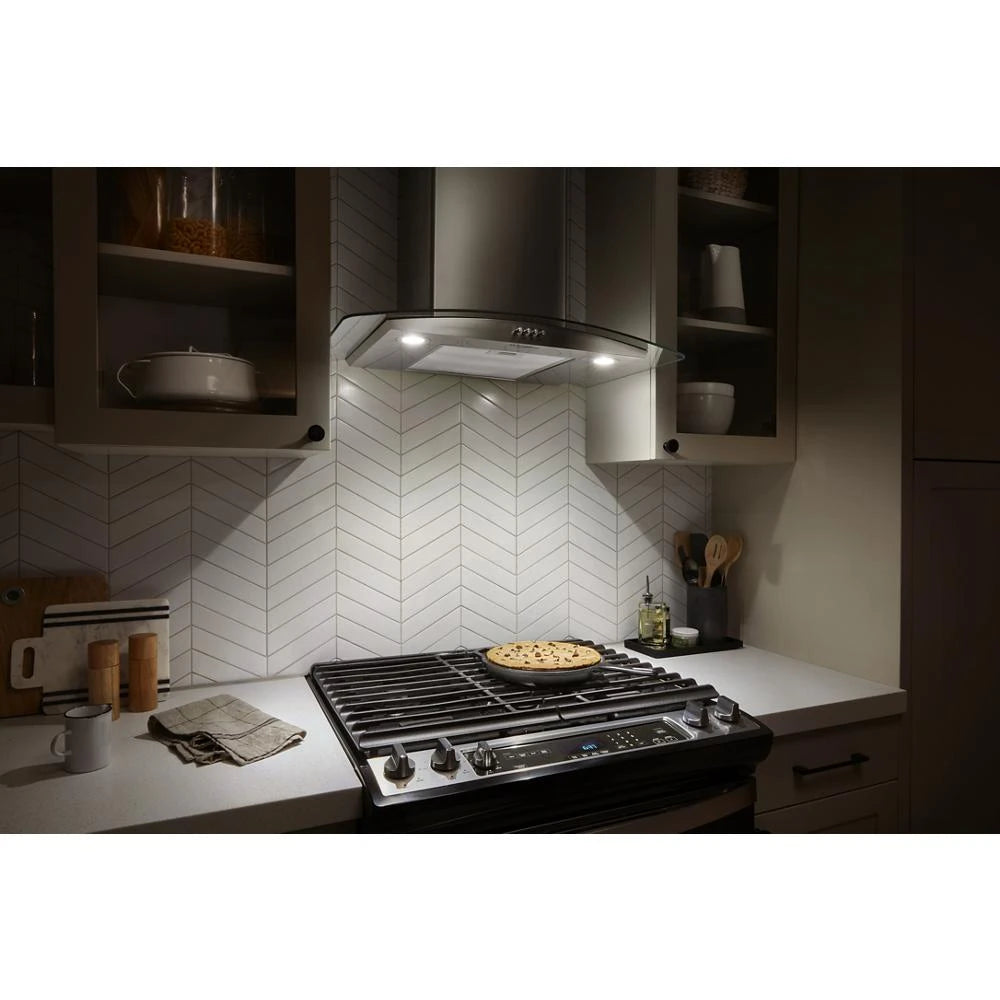

  • LED Task Lighting
    Bright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.

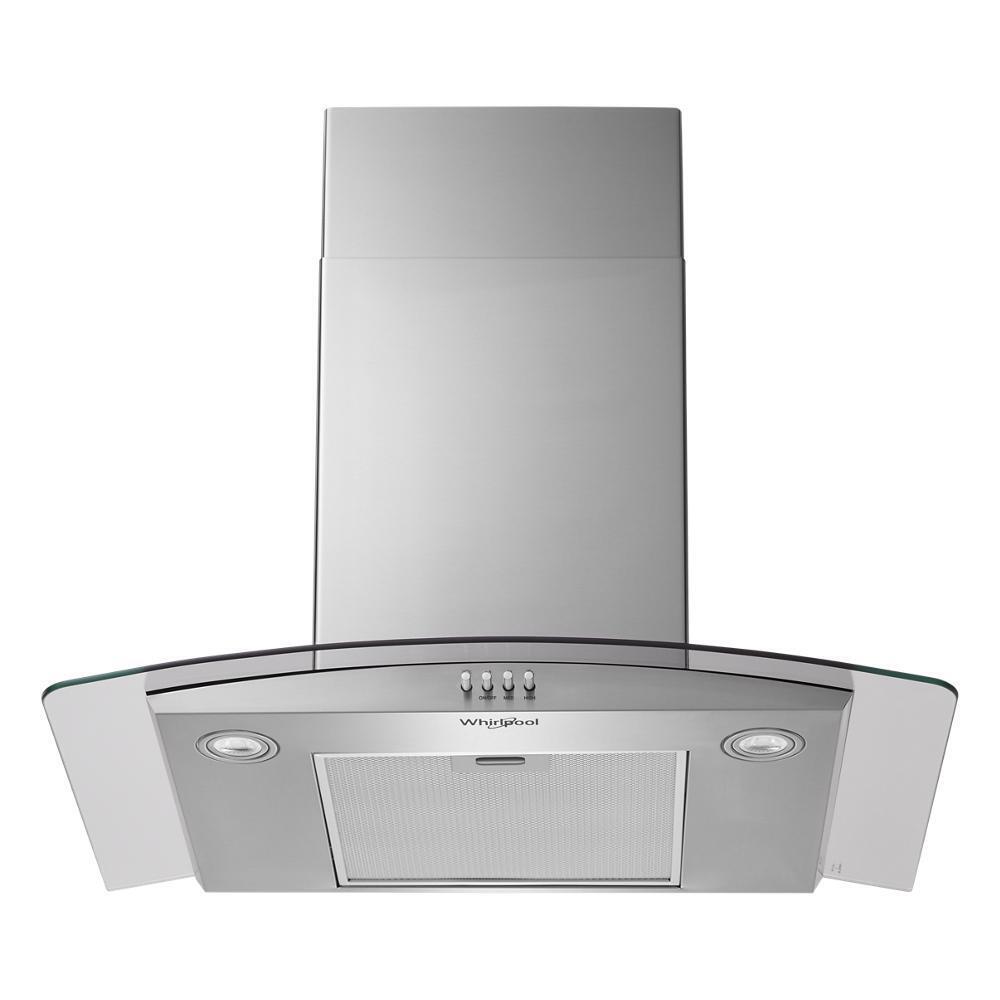

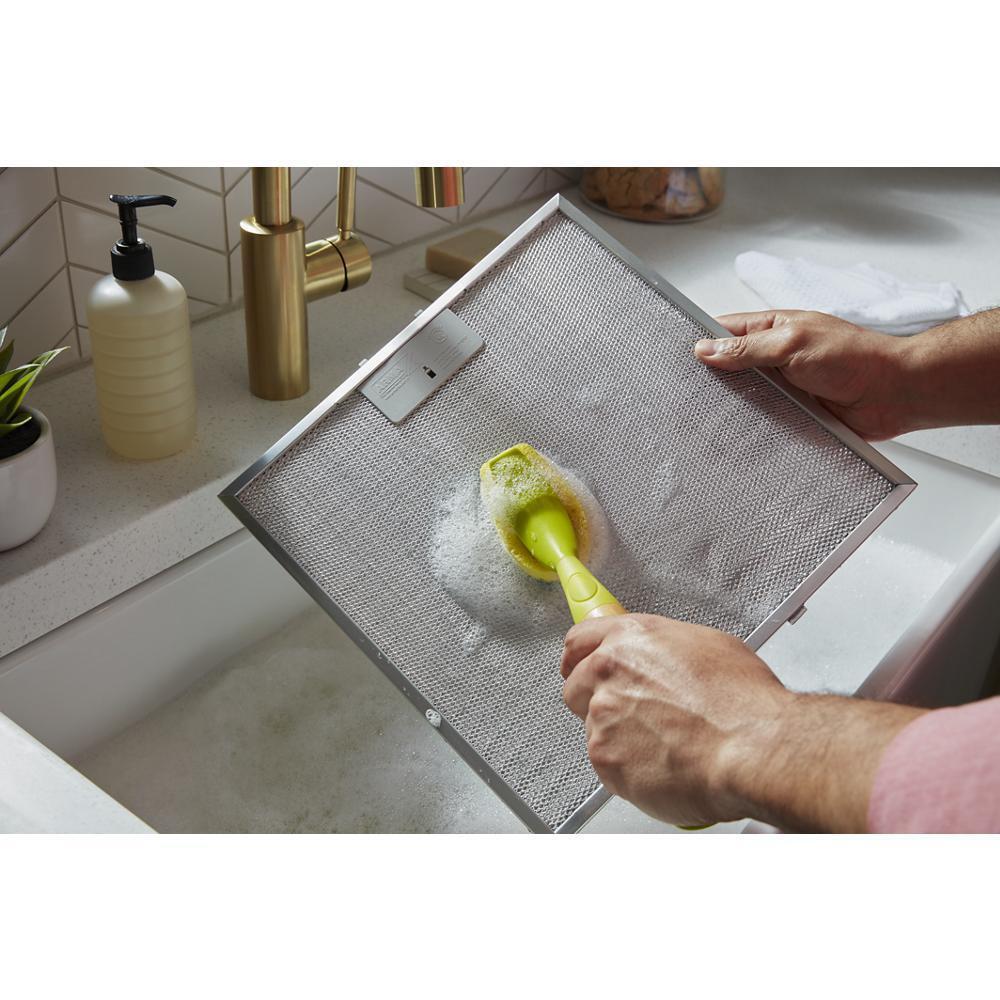

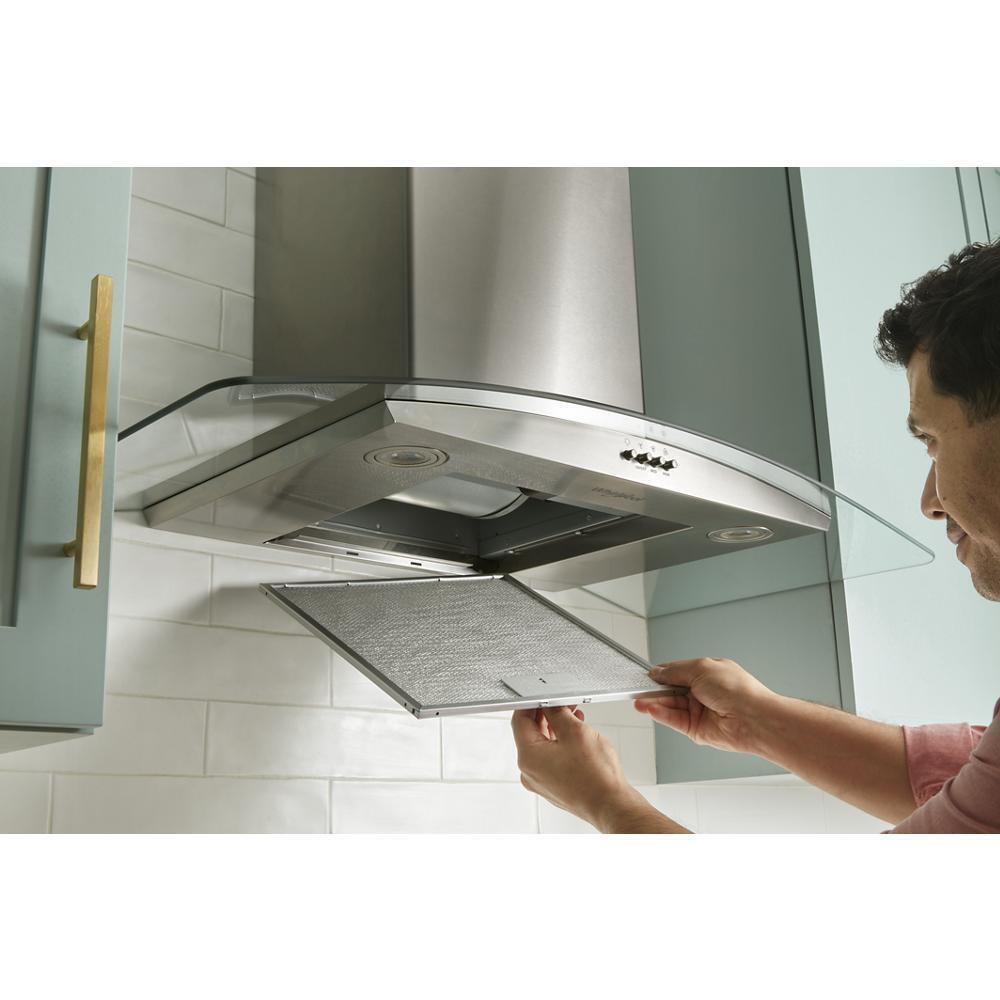

  • Grease Filter
    Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
  • 65K BTU Cooktop Threshold
    Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
  • 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
    Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.

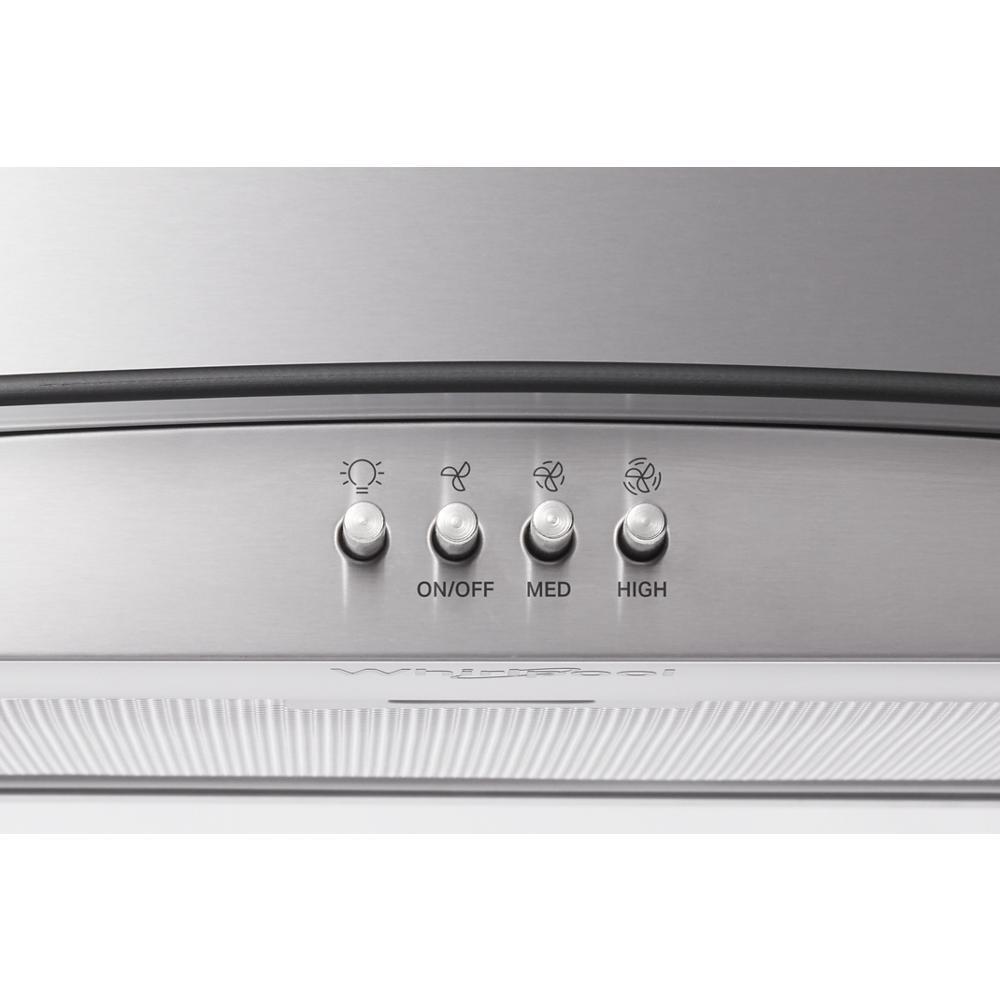

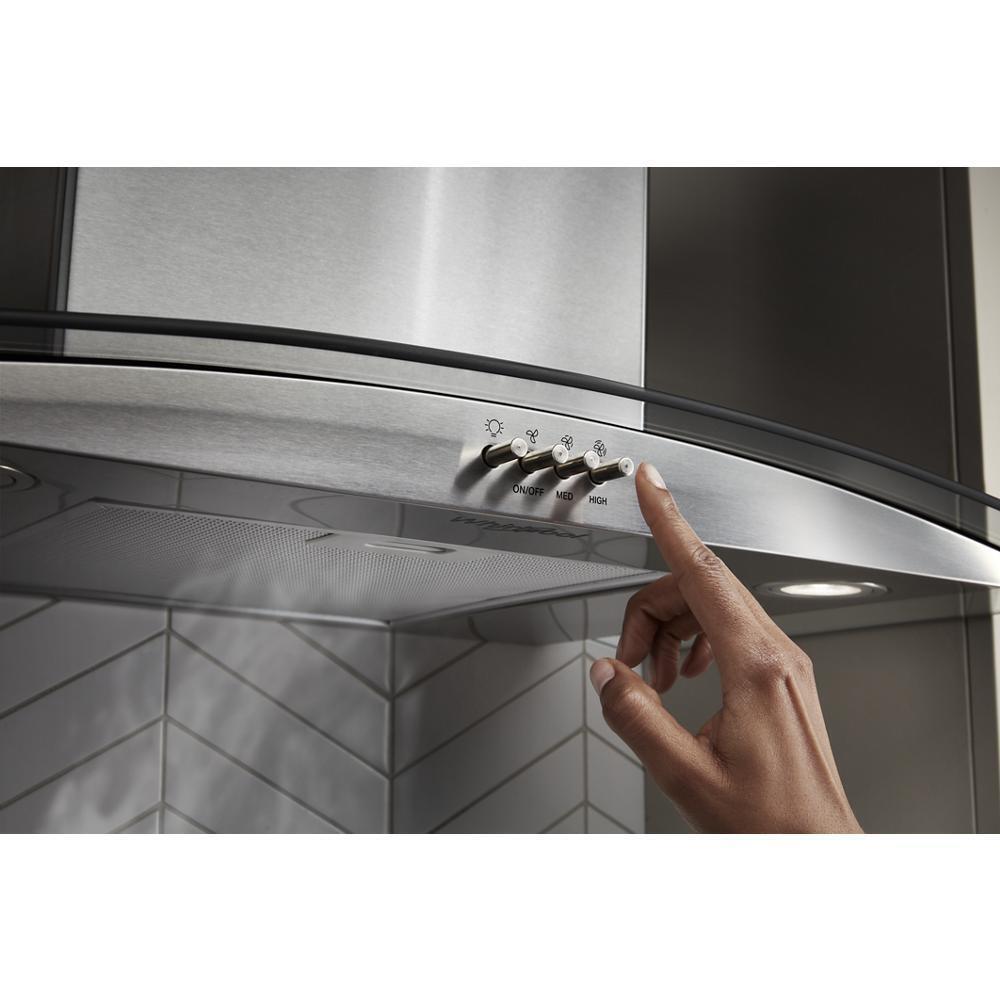

  • Push Button Controls
    Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
  • ADA Compliant
    When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
  • Convertible Ventilation (Recirculating or Vented)
    A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
  • Optional Recirculation Kit (non-vented/duct-free)
    This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.

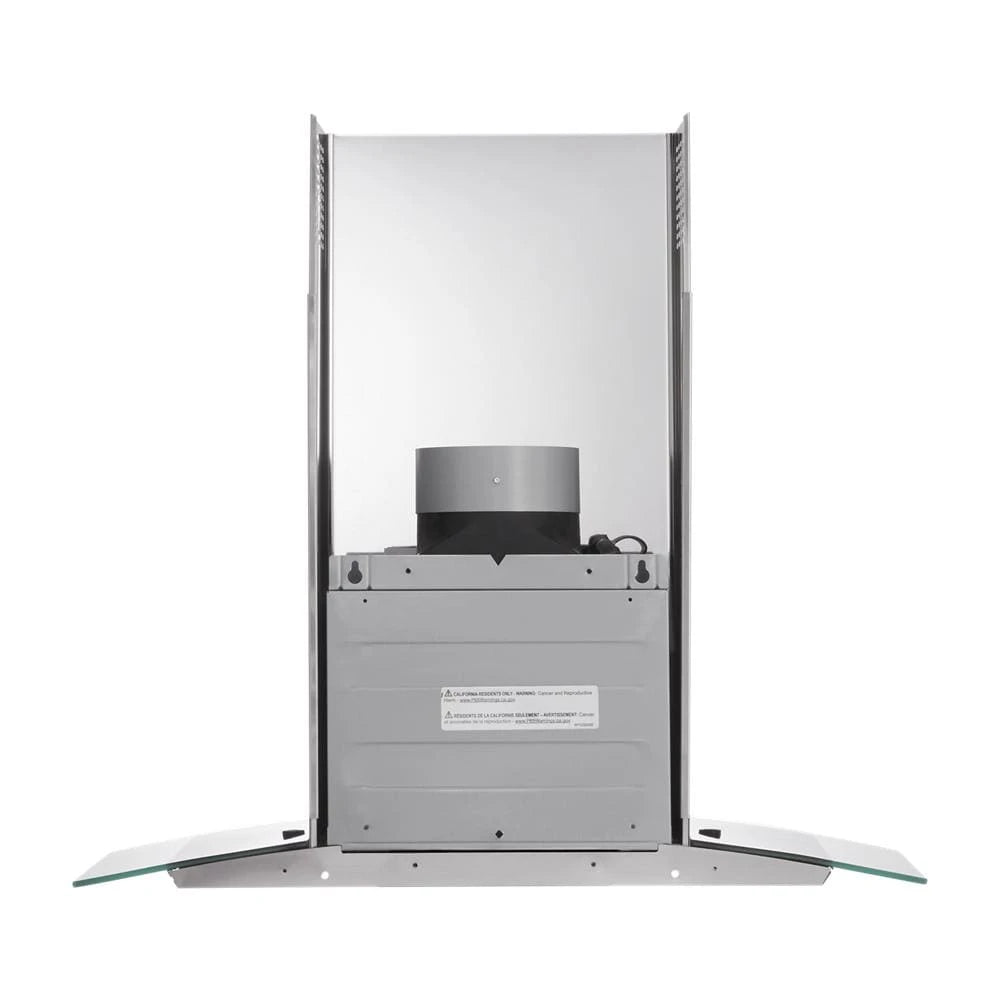

  • 6" Round Damper Included
    Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
  • Optional Chimney Extension Kit
    Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.
