Sale price $798.70 Regular price $1,276.97 Save $478.27 / 37% OFF

Product Details for WHIRLPOOL WVI51UC6LS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 26.42 ft³
Dimensional Weight 328.49 lbs.
Total of Cubes 26.42 ft³
Total of Dimensional Weight 328.49 lbs.

Controls

Control Location Front
Control Type Push Button
Number of Vent Speeds 3

Ventilation details

Auto Function No
BTU Threshold 65 K
Blower Motor Blower Motor Included
Duct Direction Vertical
Duct Type Round
Exhaust Vent Location Top
Filters Aluminum Mesh Filter
HVI (CFM HS Horizontal) N/A
HVI (CFM HS Vertical) 340
Maximum Motor CFM 340
Night Light No
Night Light Type N/A
Task Light Type LED
Vent Material Metal
Venting Exterior or Recirculating
Duct Length 49.38
Damper Included Yes
Duct Outlet Size 6 in
Hood and Vent Selections Fan High, Fan Med, Fan On/Off, Lamp
Lighting Control Type Push Button
Number of Night Light Settings 0
Number of Task Light Settings 1
Task Lighting Yes

Details

Hood Type Island Canopy
Blower Type Centrifugal

Electrical

Power Cord Included No
Hz 60
Volts 120

Certifications

Star K Certified No
Energy Star Qualified No
Energy Star® Qualified No

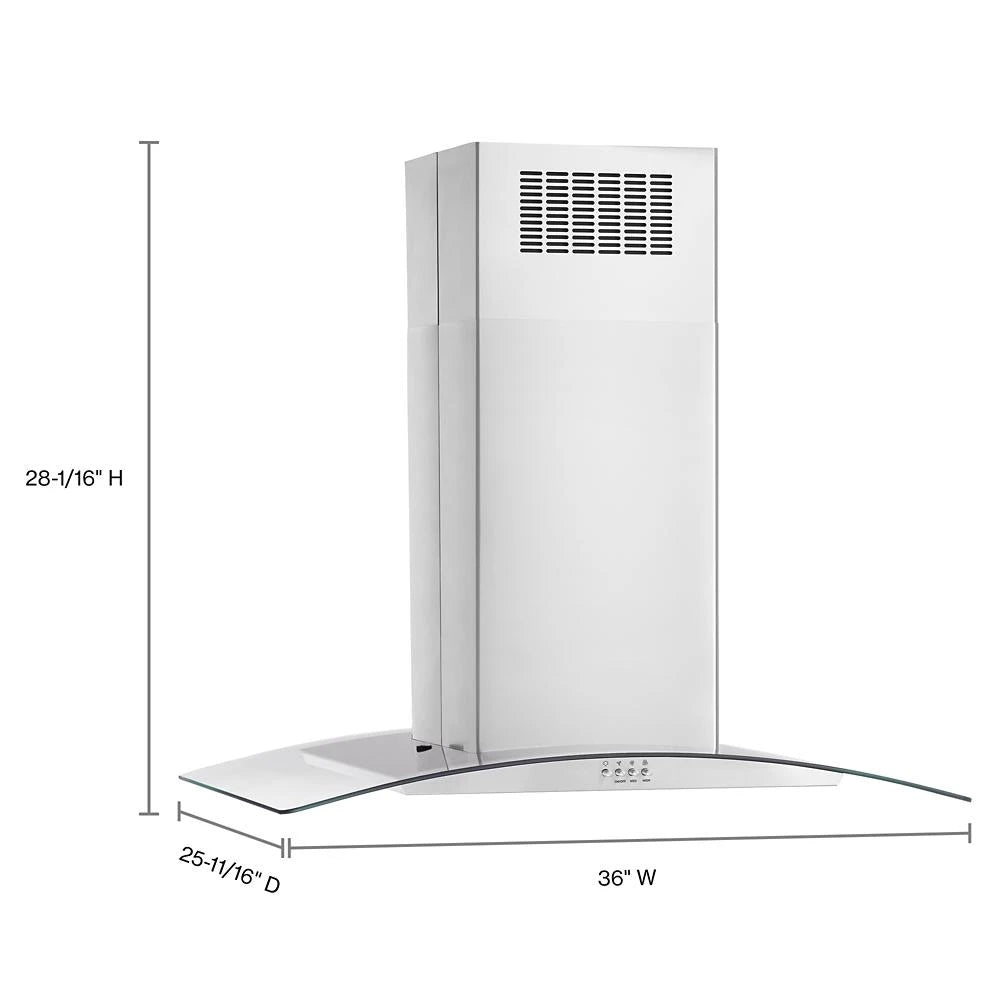

Dimensions & weight

Width 36 in.
Height 49.38 in.
Length 25.69 in.
Weight 88 lbs.
Gross Weight 88 lbs
Net Weight 57 lbs
Canopy Height 28.625 in
Maximum Height 49.375 in
Minimum Height 28.0625 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 41 in.
Shipping Height 23 in.
Shipping Length 30.69 in.
Shipping Weight 128 lbs.
Total of Shipping Weight 128 lbs.
Source Calculation

Other

Common Size 36 in

Capacity

Volume 18.009 Cu.Ft.

Description

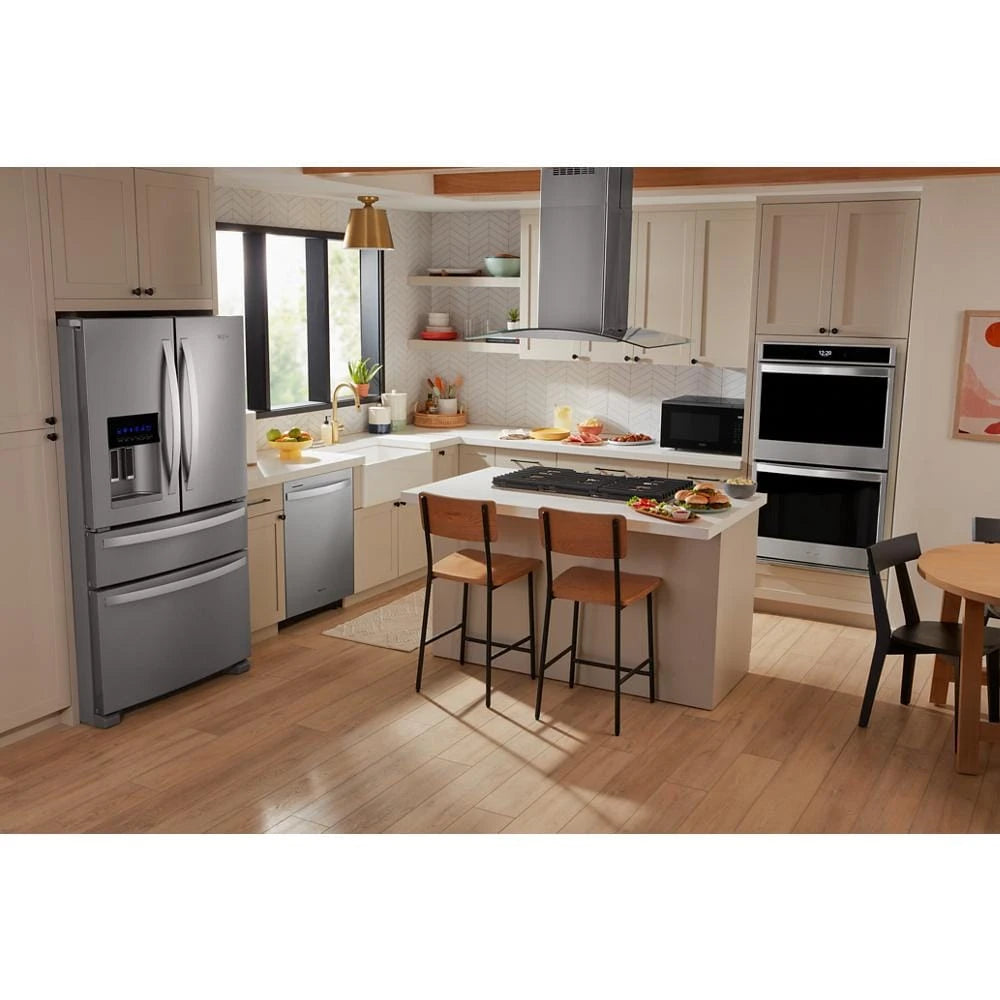

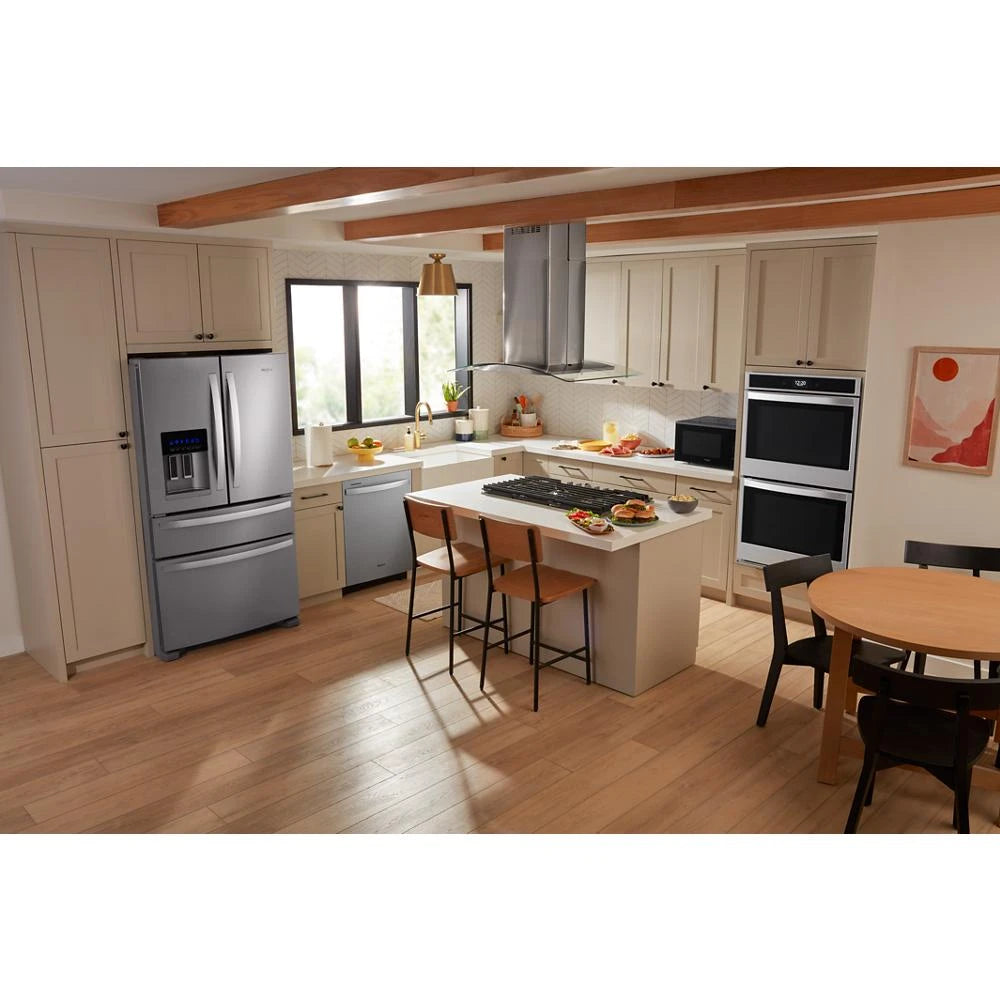

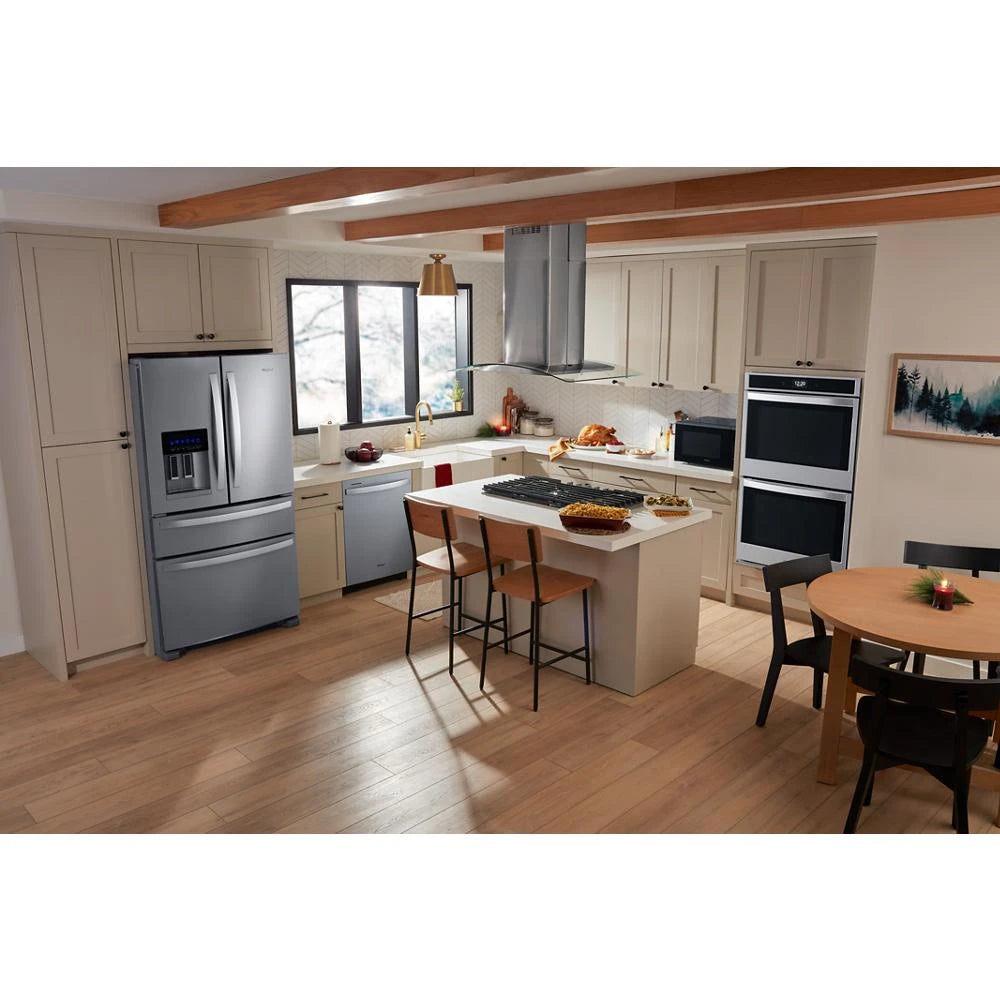

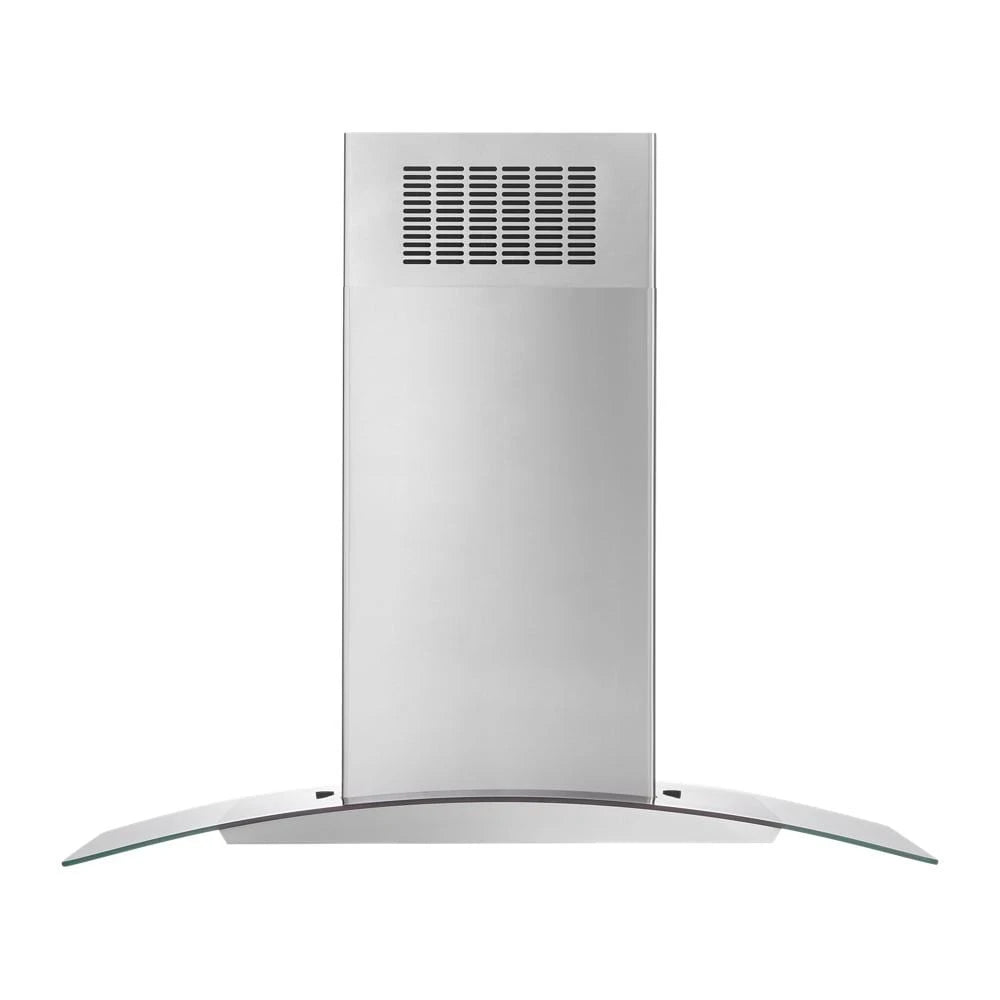

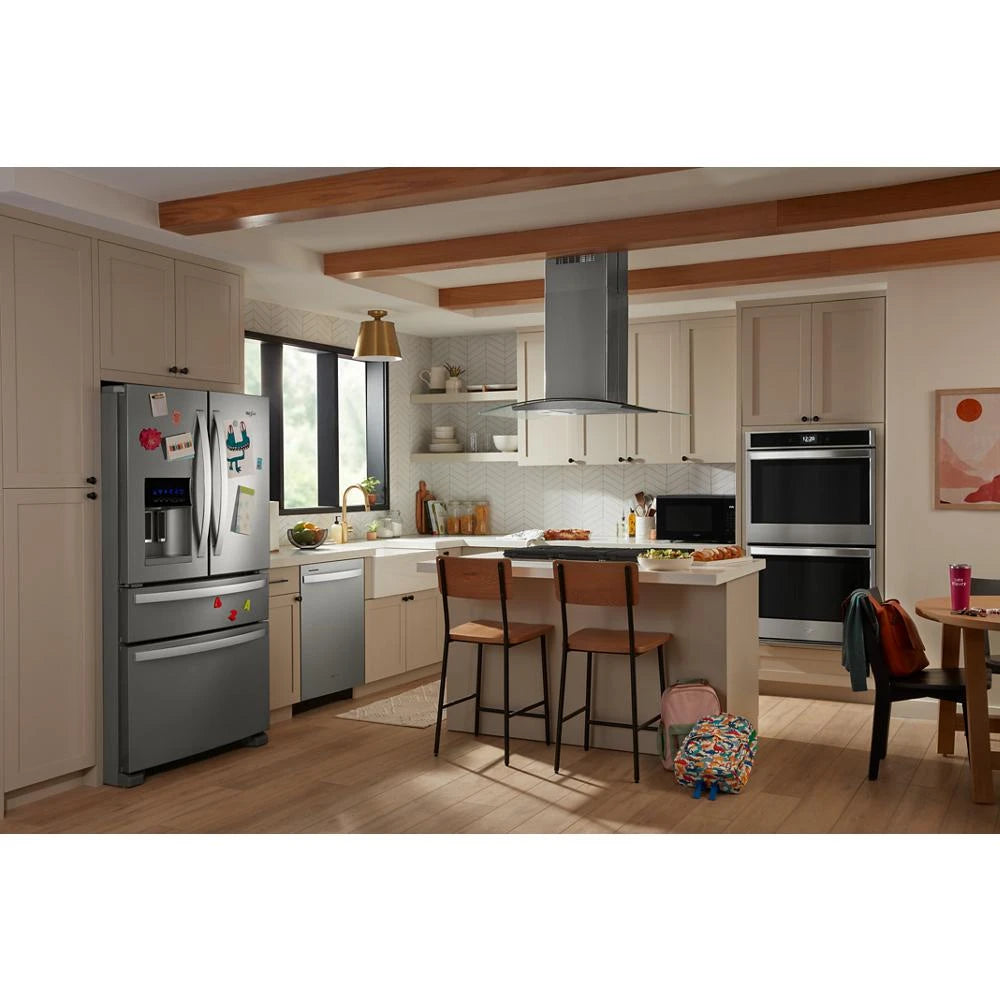

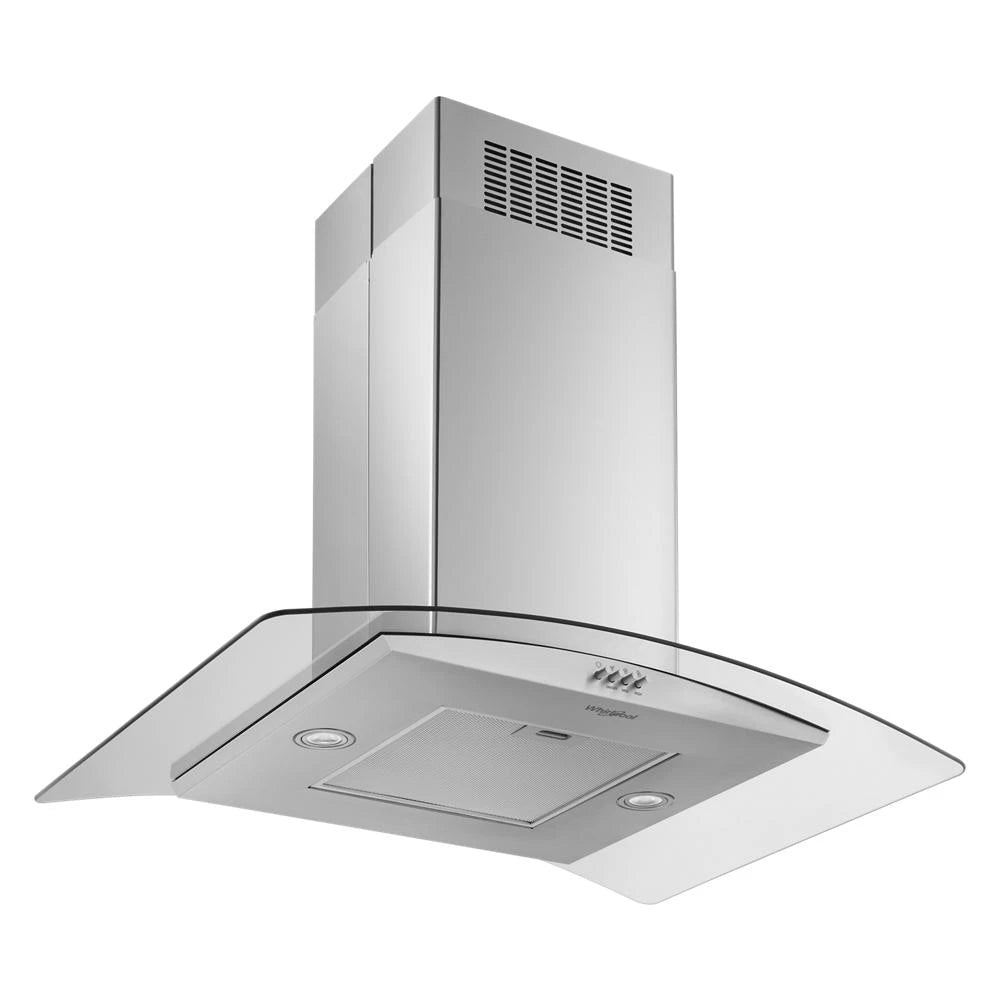

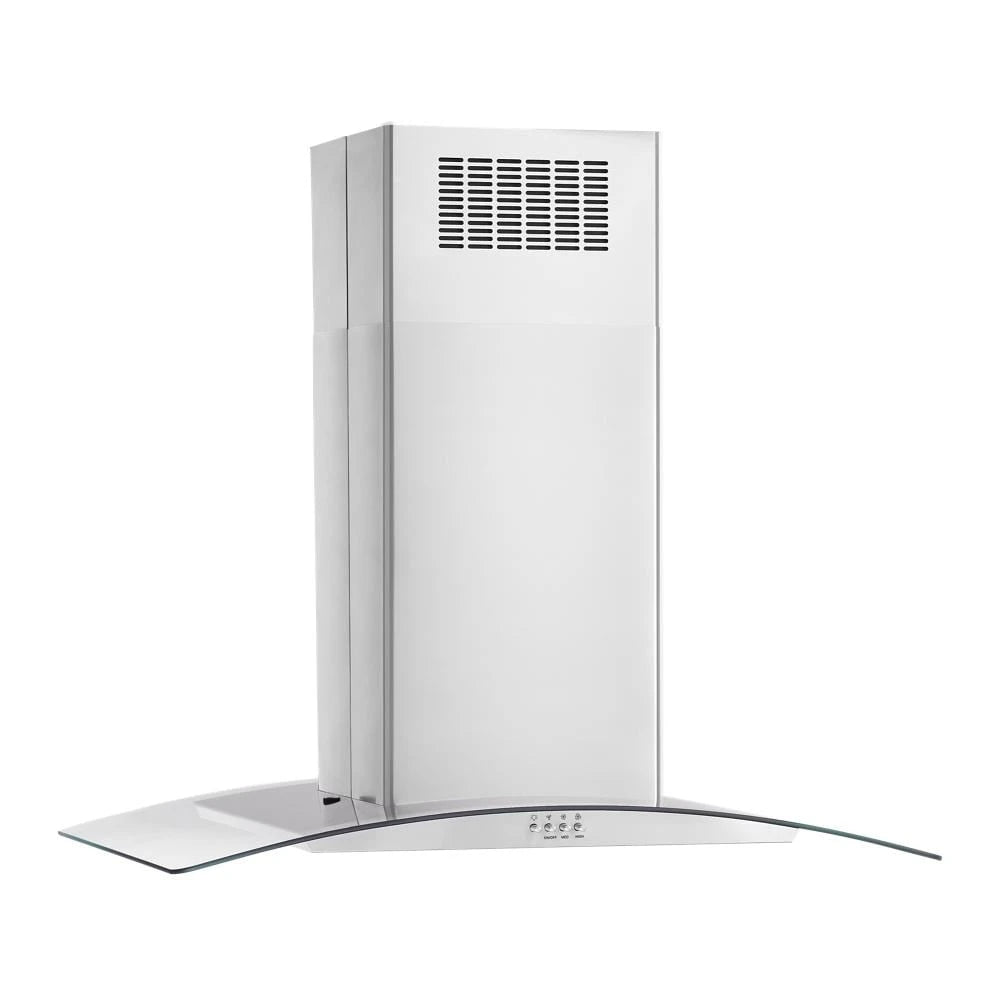

The brand Whirlpool WVI51UC6LS combines powerful ventilation with elegant design. Offering 400 CFM airflow to clear smoke and odors above an island cooktop, it features a curved glass canopy, LED task lighting, and intuitive metal-touch controls. The fingerprint-resistant stainless steel finish resists smudges, while dishwasher-safe aluminum filters and dual-speed ventilation ensure easy cleaning and versatile performance.



Product Features

  • 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)
    Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

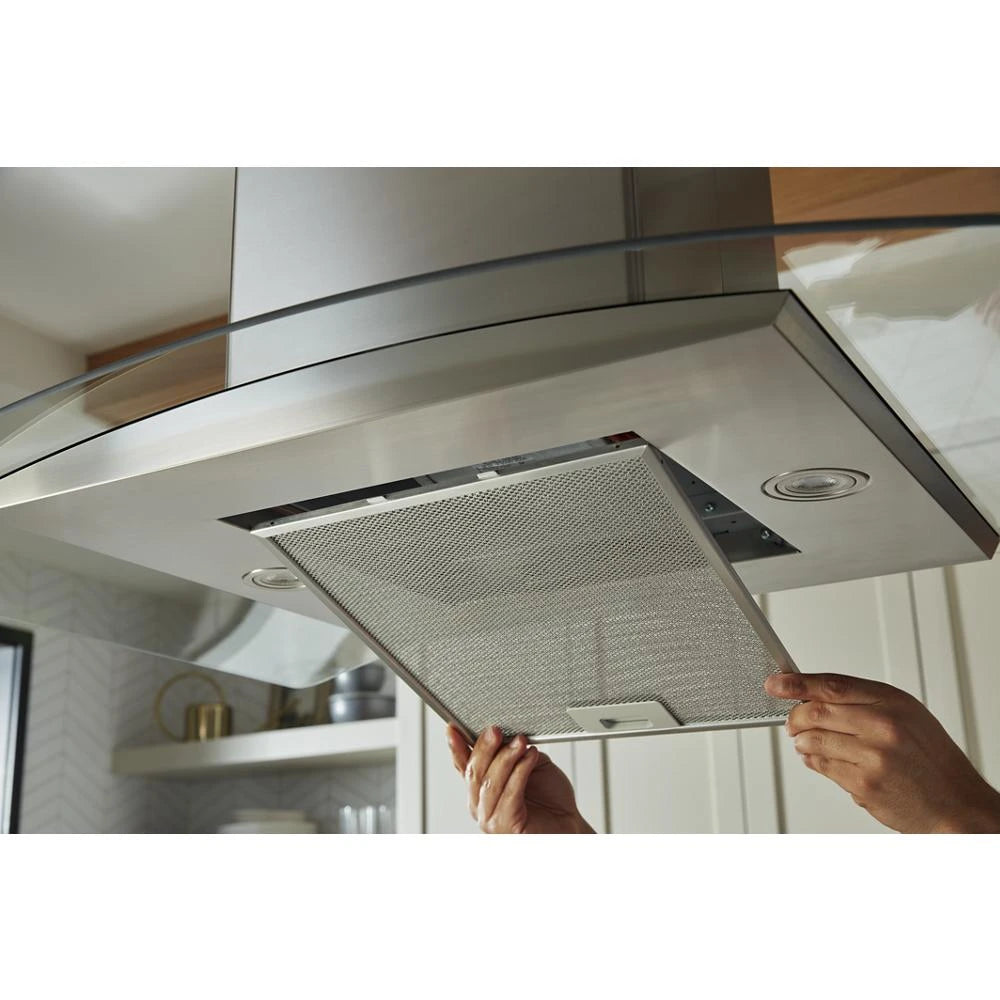

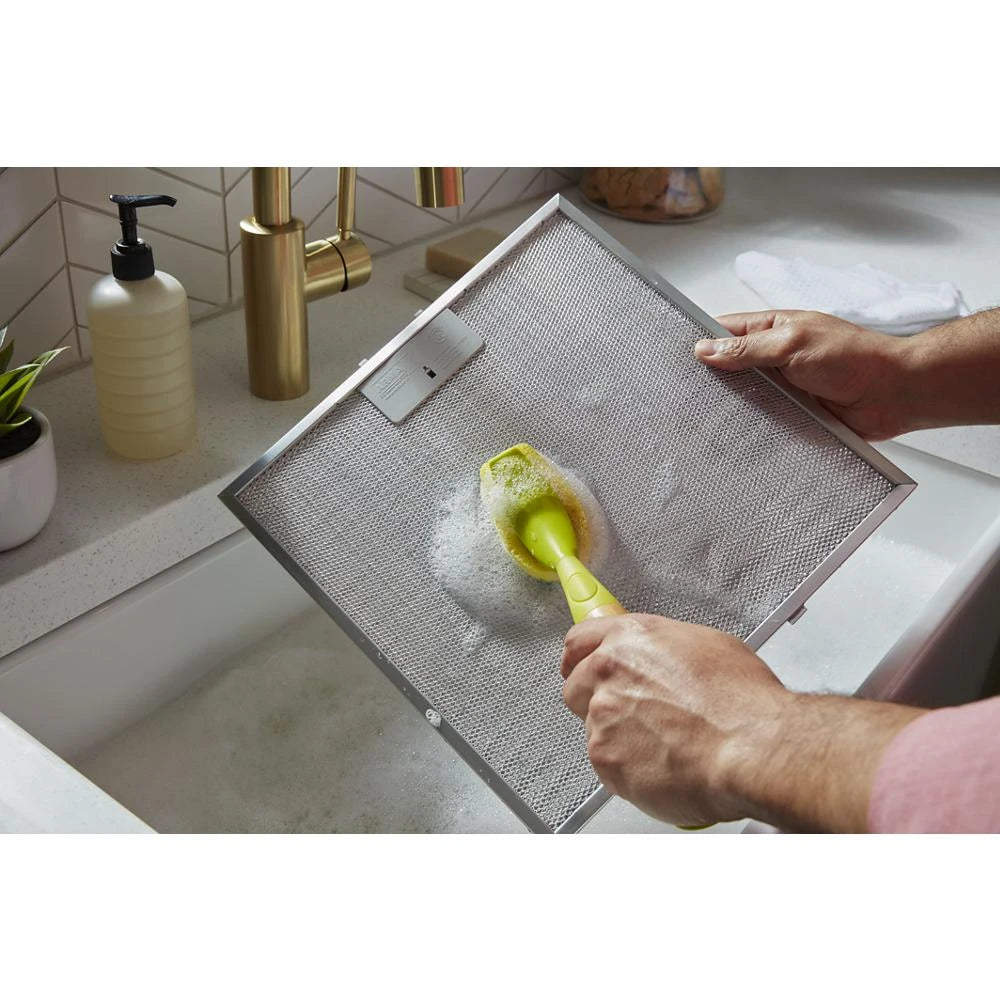

  • Grease Filter
    Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.

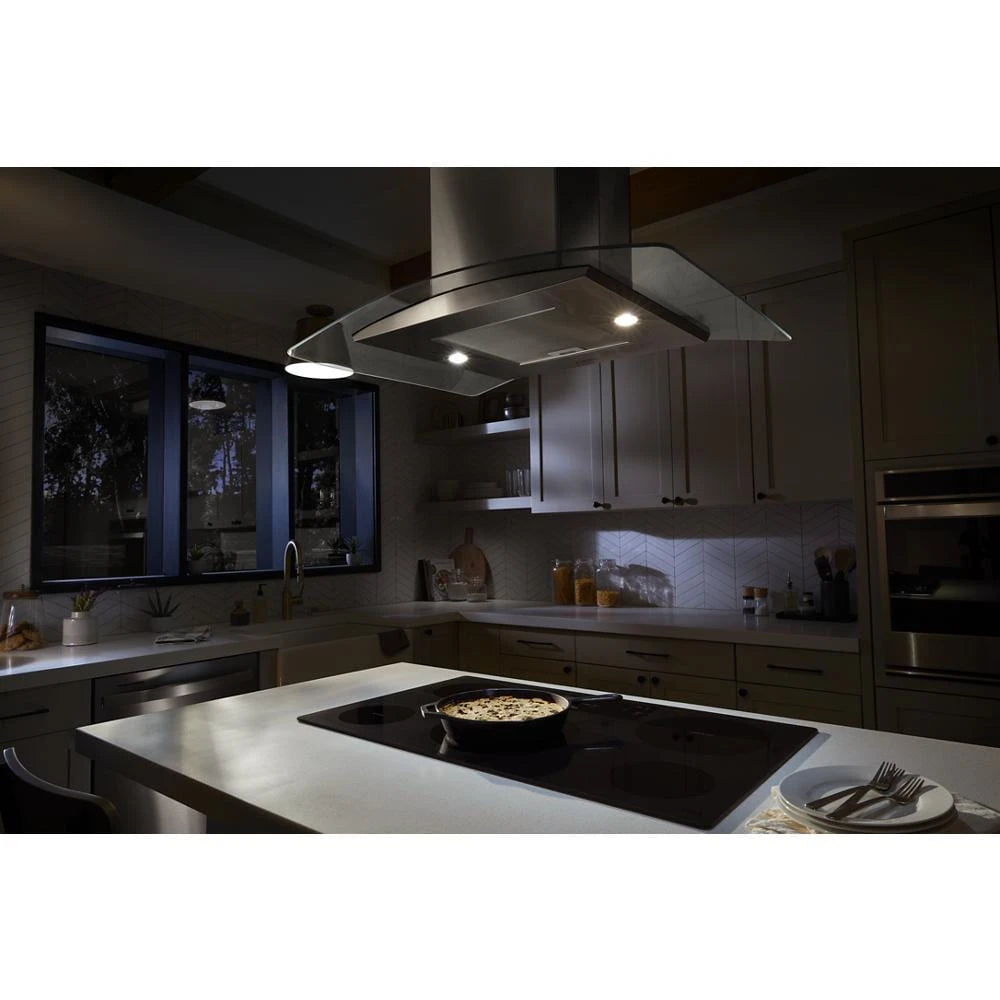

  • LED Task Lighting
    Bright, long-lasting LED task lighting makes it easy to see what you're cooking.
  • 65K BTU Cooktop Threshold
    Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
  • 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
    Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.

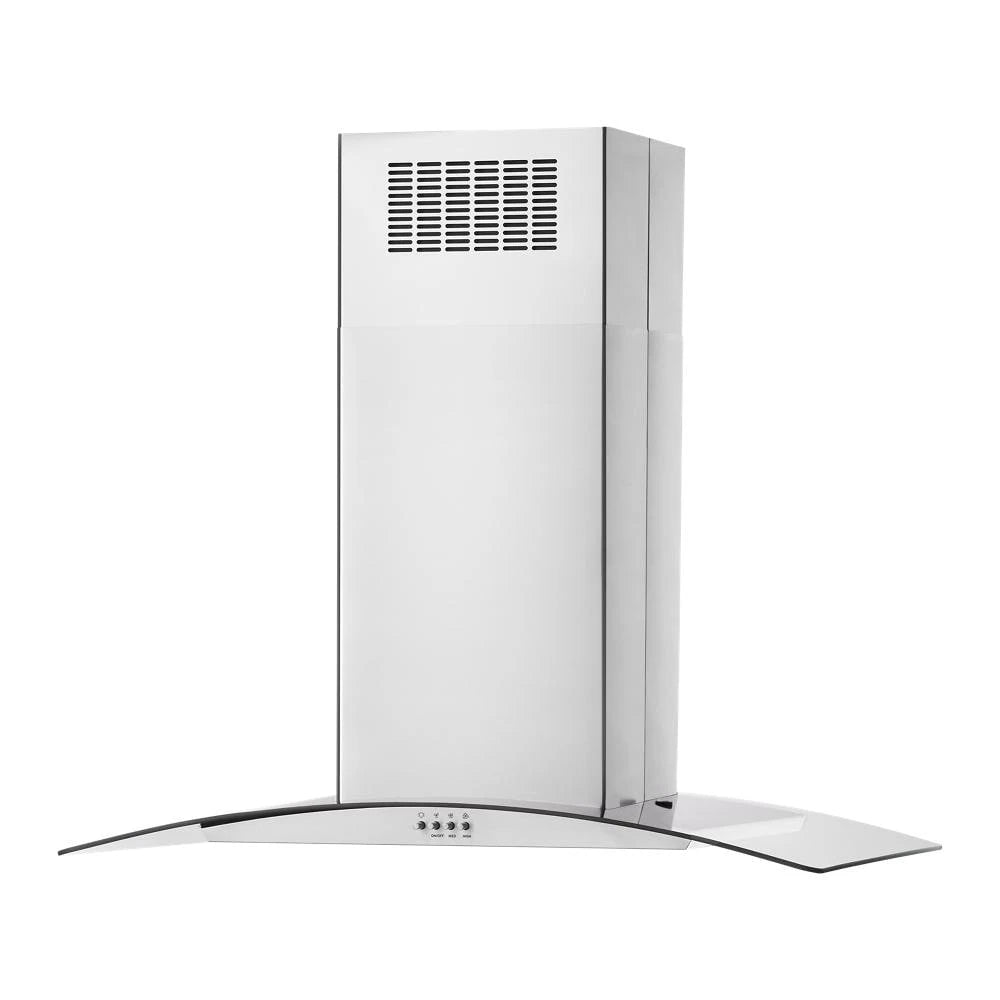

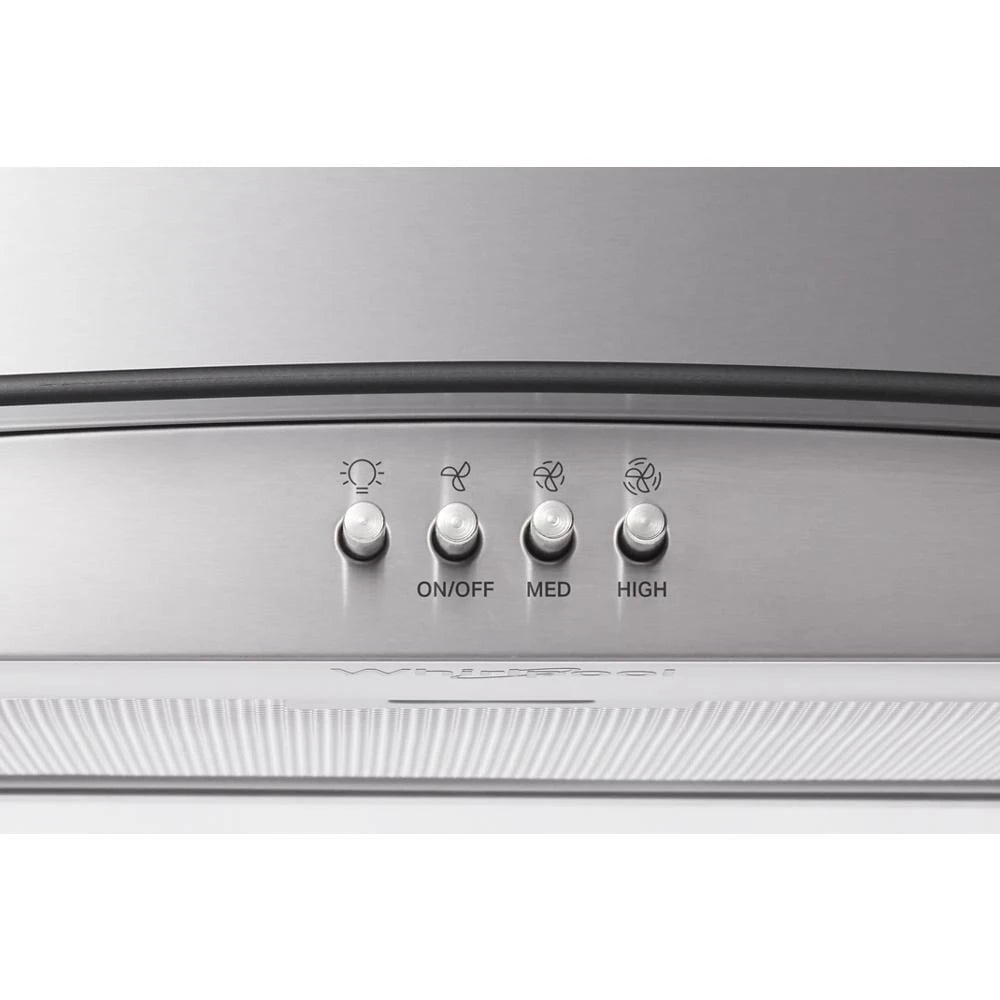

  • Push Button Controls
    Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
  • ADA Compliant
    When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
  • Convertible Ventilation (recirculating or vented)
    A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
  • Optional Recirculation Kit (non-vented/duct-free)
    This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548459.
  • 6" Round Damper Included
    Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
  • Optional Chimney Extension Kit
    Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT26FS.
