| Cubic Feet Measurement | 11.83 ft³ |
| Dimensional Weight | 147.12 lbs. |
| Total of Cubes | 11.83 ft³ |
| Total of Dimensional Weight | 147.12 lbs. |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Door Lock | Yes |
| Handle Color | White |
| Handle Material | Metal |
| Delay Clean | Yes |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Automatic Shut-Off | Yes |
| Oven Type | Single |
| Power On Indicator Light | Yes |
| Cooktop Combinations | G7CE3034, G7CE3055, G7CE3635, G9CE3065, G9CE3675, UCIG245KBL, W5CE1522, W5CE3024, W5CE3625, WCC31430, WCE55US0, WCE55US4, WCE55US6, WCE77US0, WCE77US6, WCE97US0, WCE97US6, WCG51US, WCG51US6, |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, Rapid Preheat, Sabbath Mode, |
| Smart Appliance | Yes |

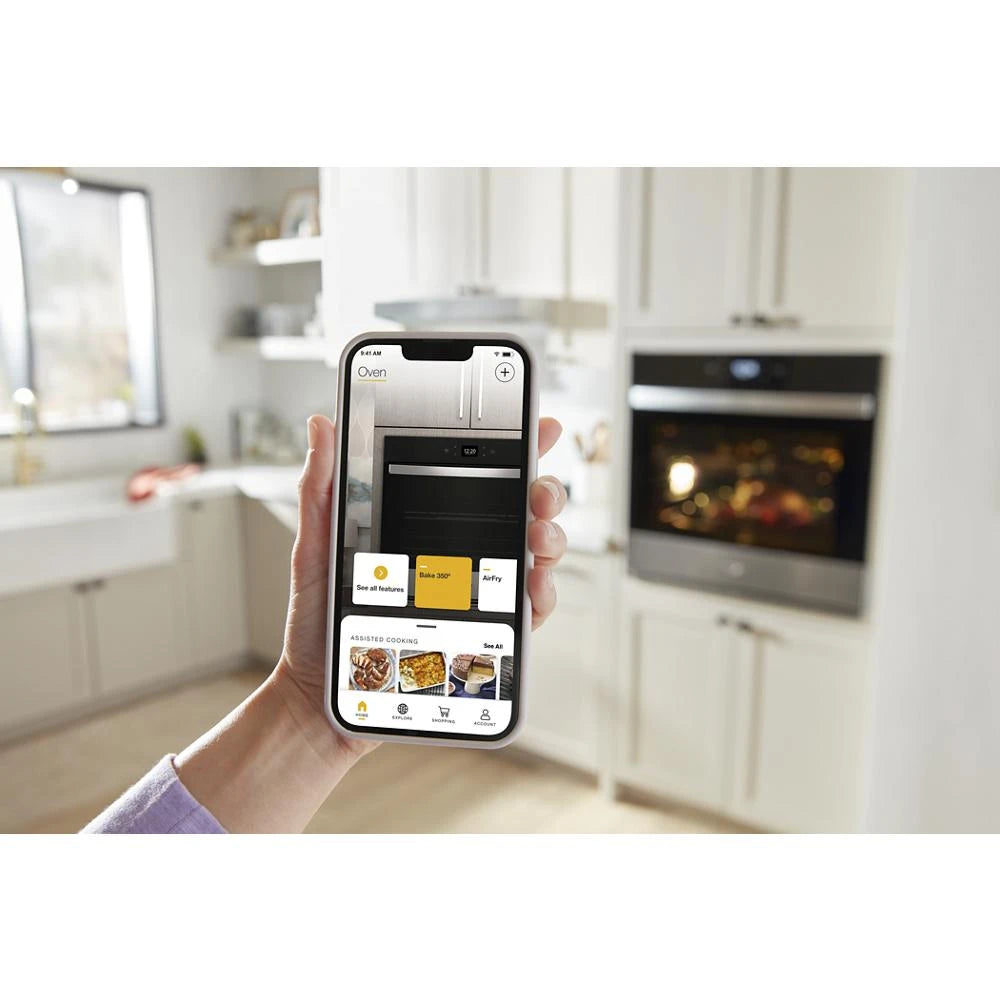

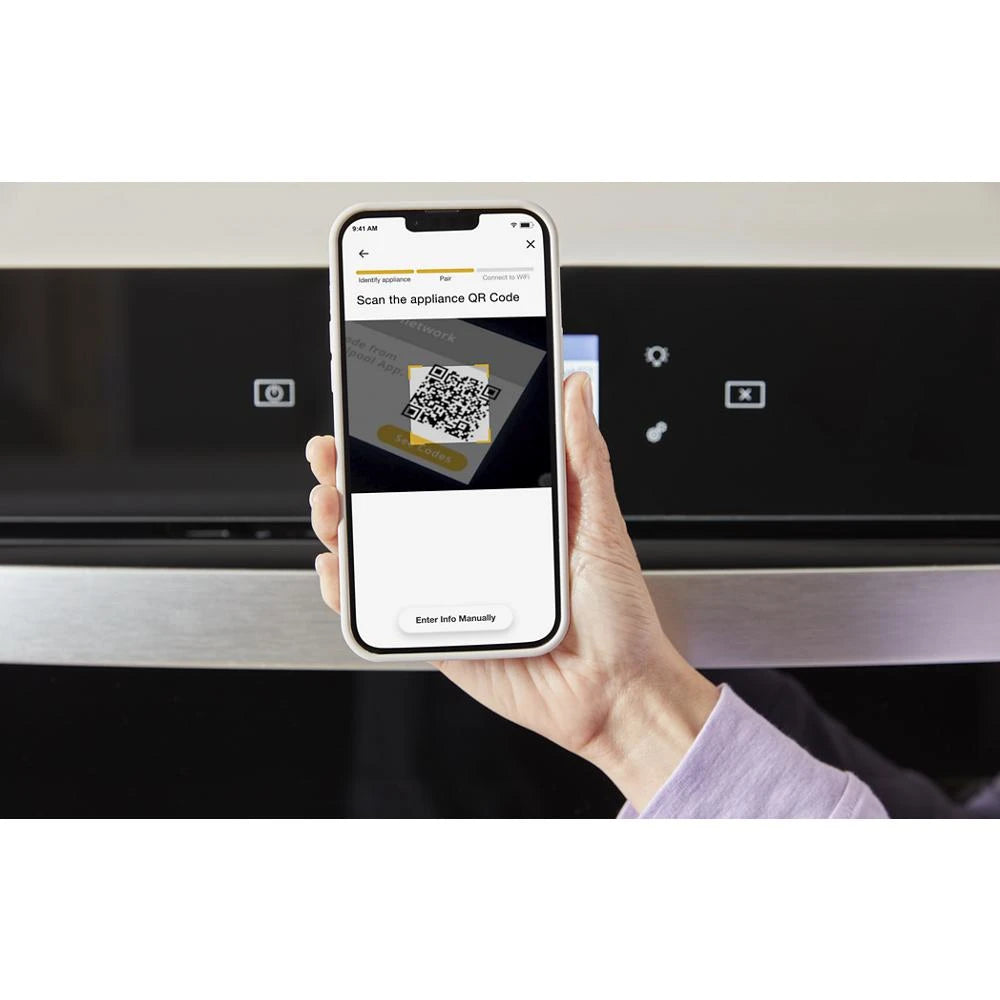

| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Remote Access, Voice Controlled, WiFi |
| Control Type | Glass Touch Digital Display |
| Display Color | Full Color |
| Electronic Display Type | Full Color LCD |
| Language Conversion | English/French/Spanish |
| Light Control | Oven Light Touch Pad |
| Power Cord Included | No |
| Amps | 20 |
| Hz | 60 |
| Volts | 240 |
| ADA Compliant | Yes |
| CUL | Yes |
| Star K Certified | Star K Certified |
| UL | Yes |

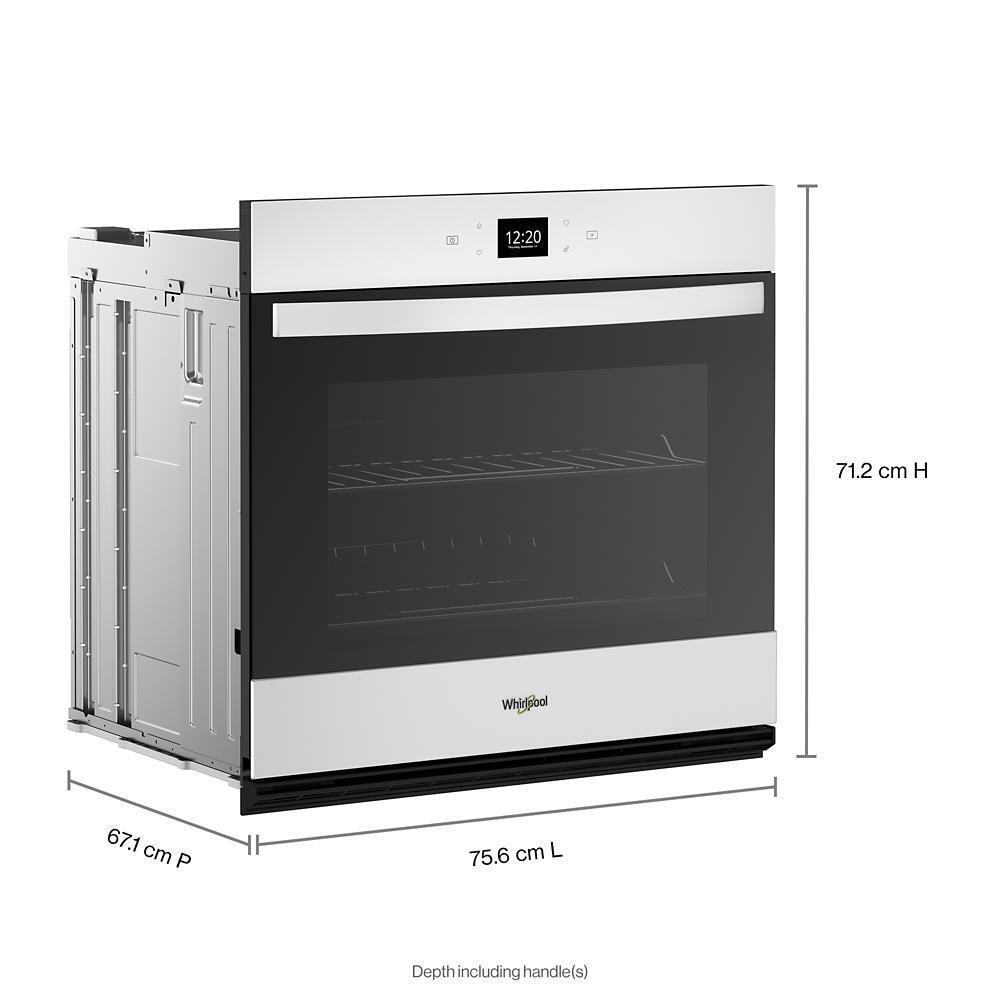

| Width | 29.75 in. |
| Height | 26 in. |
| Length | 26.44 in. |
| Weight | 142 lbs. |
| Cutout Depth | 24 in |
| Cutout Height | 28 in |
| Gross Weight | 142 lbs |
| Minimum Height | 26 in |
| Net Weight | 137 lbs |
| Oven Interior Depth | 19 in |
| Oven Interior Height | 18 in |
| Oven Interior Width | 25 in |
| Cutout Width | 28.5 in |
| Depth Closed Excluding Handles | 24.438 in |
| Depth Closed Including Handles | 26.438 in |
| Depth With Door Open 90 Degree | 46.188 in |
| Maximum Height | 27.875 in |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 31 in. |
| Shipping Length | 31.44 in. |
| Shipping Weight | 182 lbs. |
| Total of Shipping Weight | 182 lbs. |
| Source | Calculation |
| Common Size | 30 in |
| Oven Capacity | 5 cu. ft. |
| Broiler Element Power | 3600 W/3120 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 2500 W/2167 W w |
| Convection Element Type | Single Fan |
| Convection Functions | Bake, Broil, Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Installable Under Oven | Yes |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |

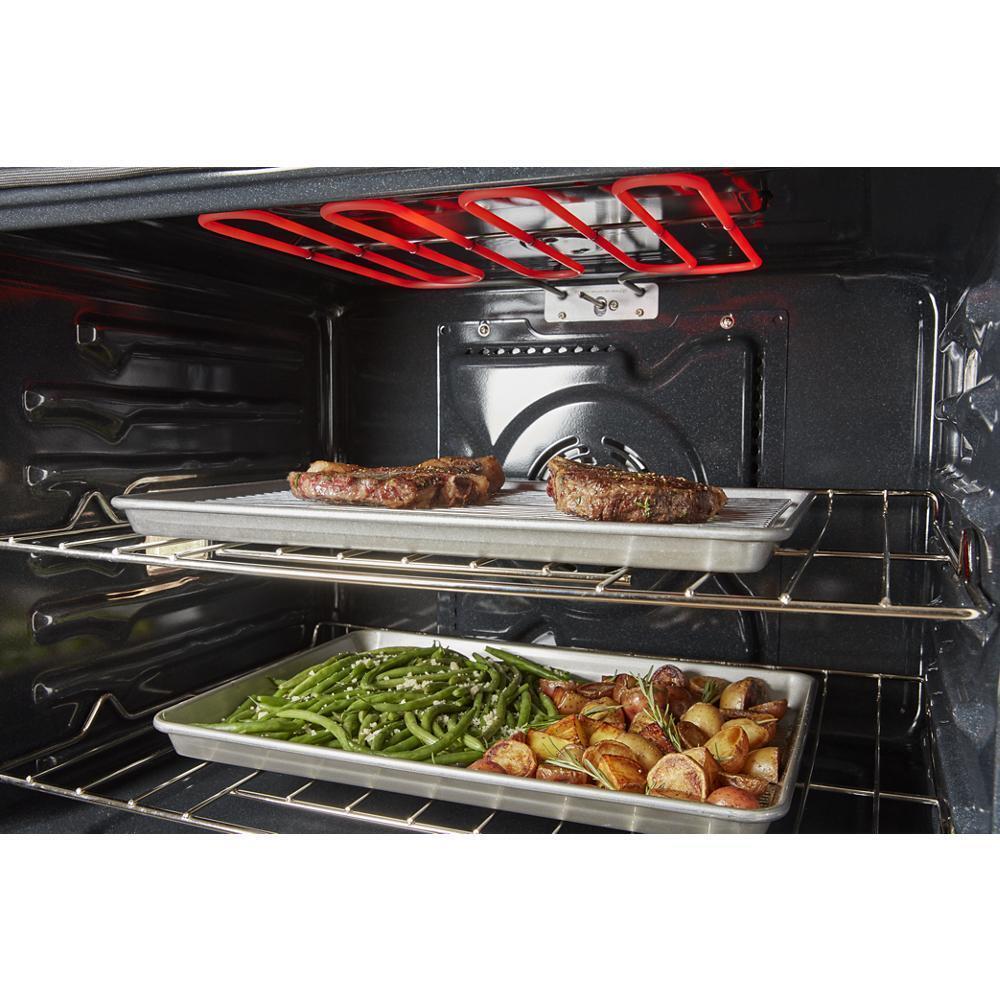

| Oven Cooking System | Convection |
| Self-Cleaning Oven Racks | No |
| Temperature Conversion | No |
| Bake Element Power | 2,800 W/2,427W |
| Volume | 19.465 Cu.Ft. |

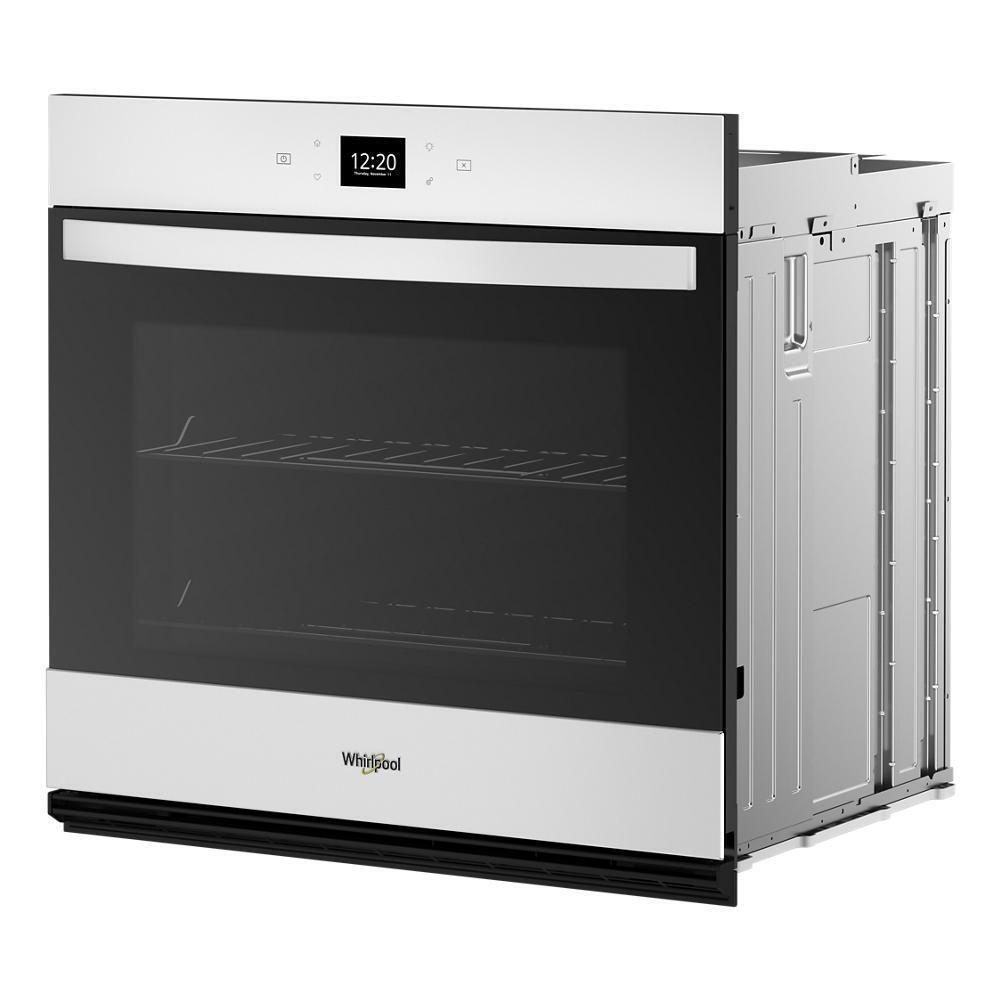

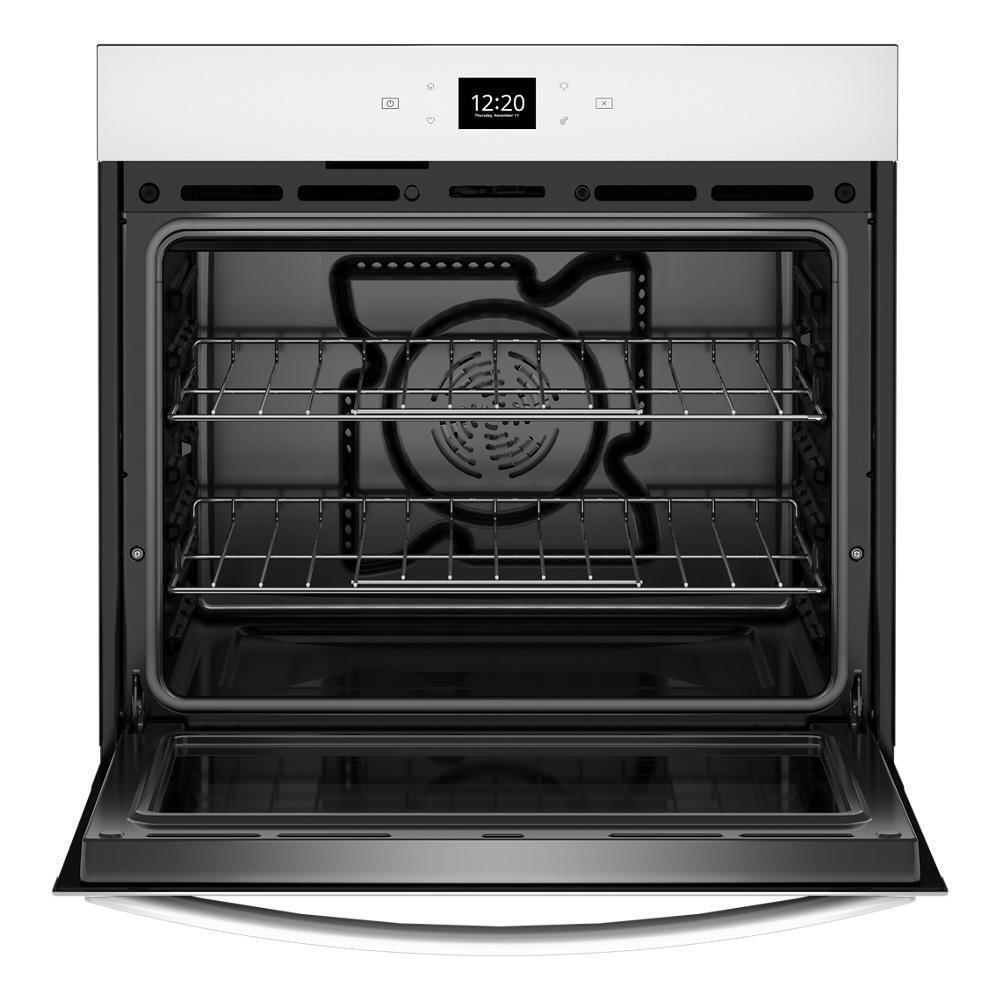

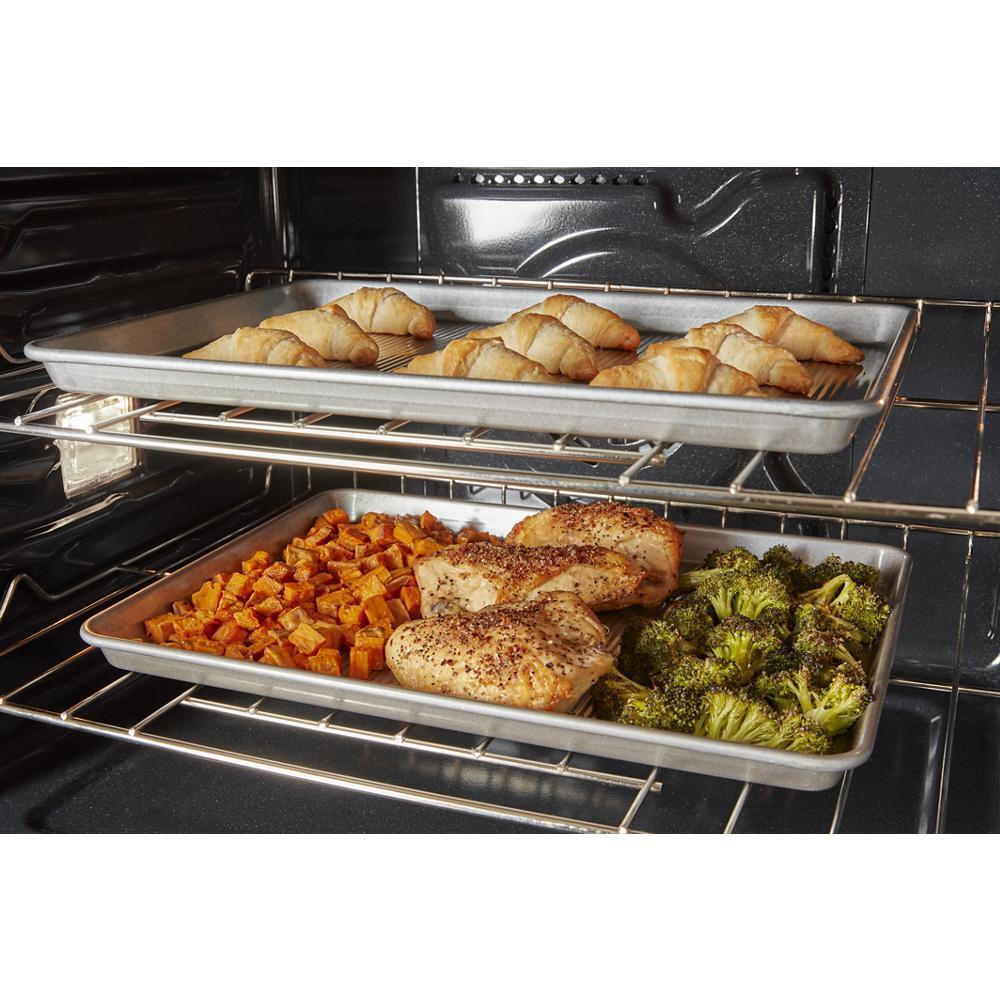

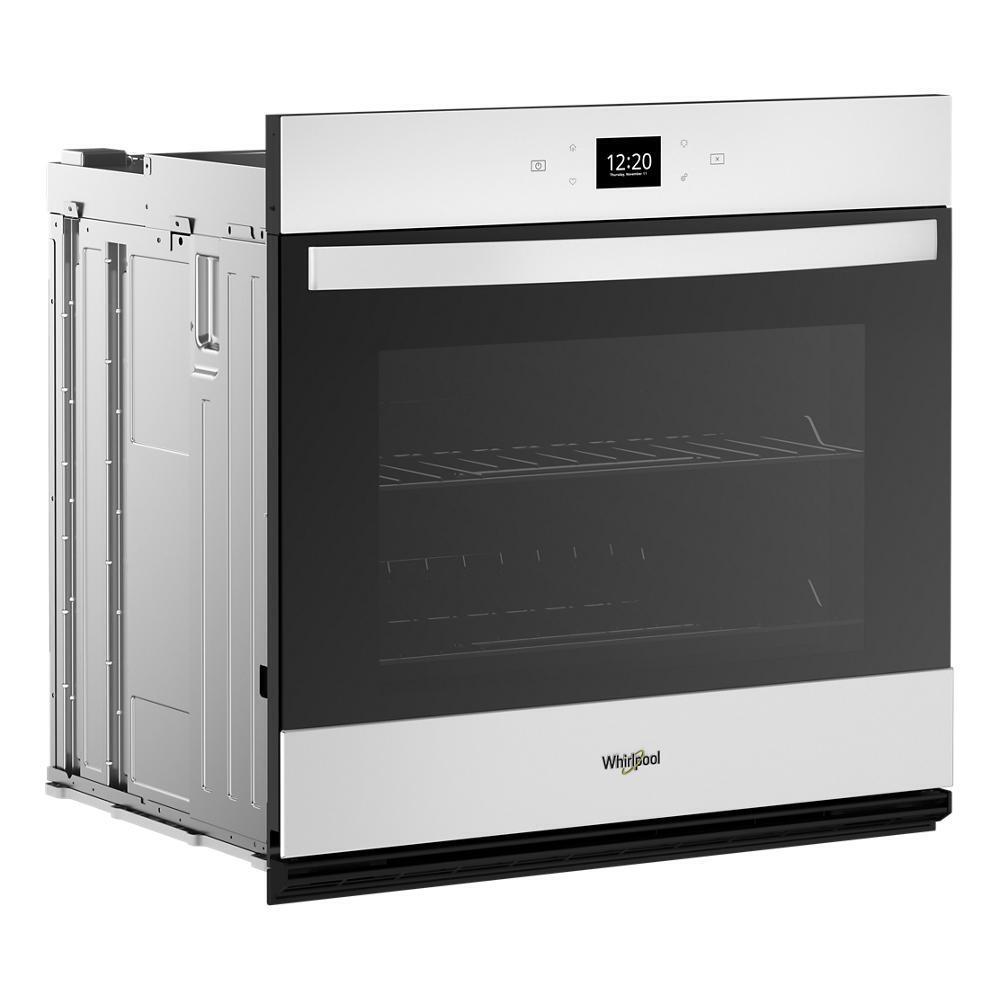

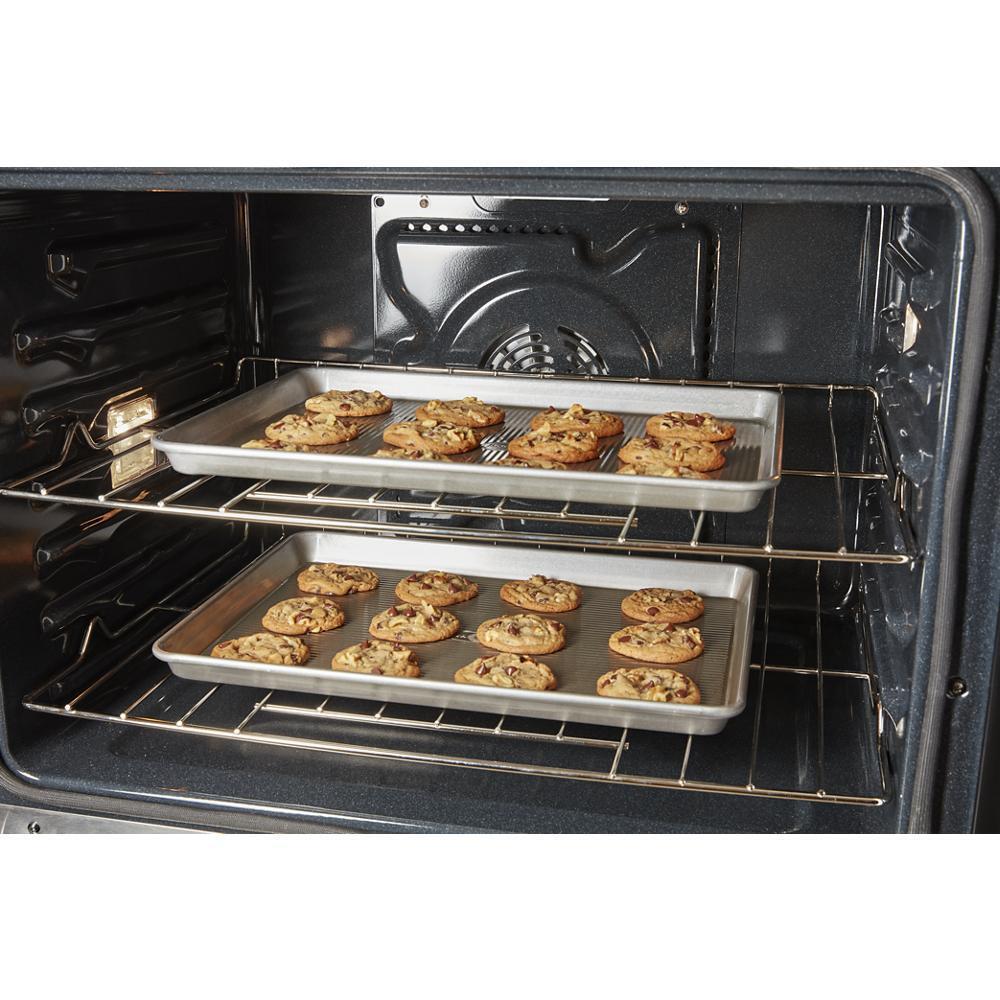

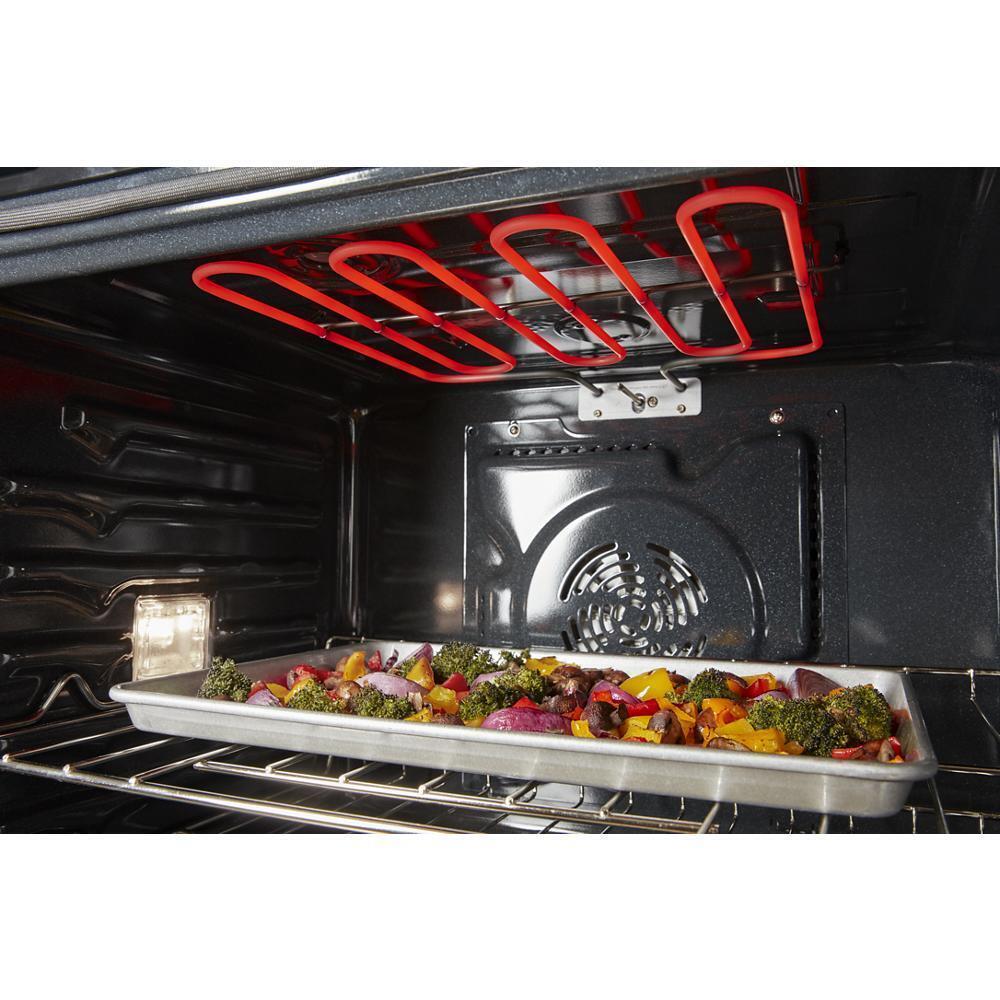

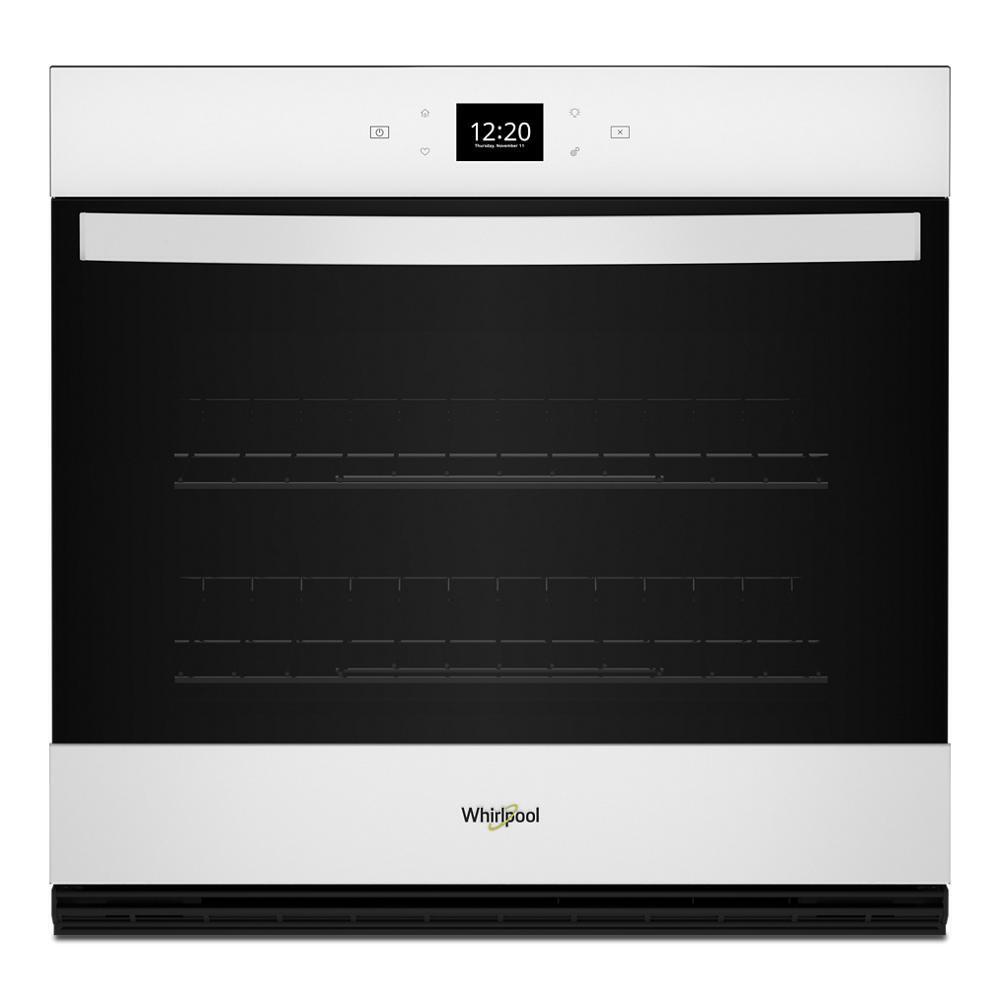

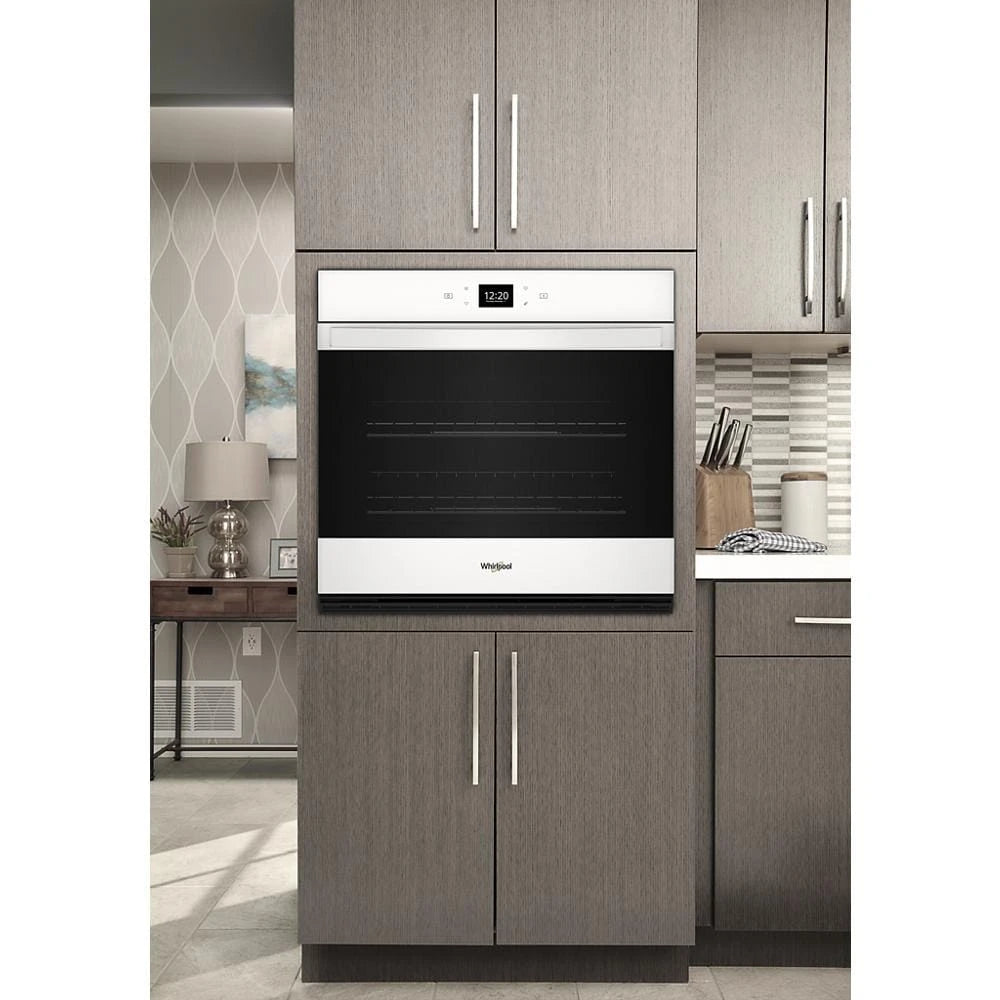

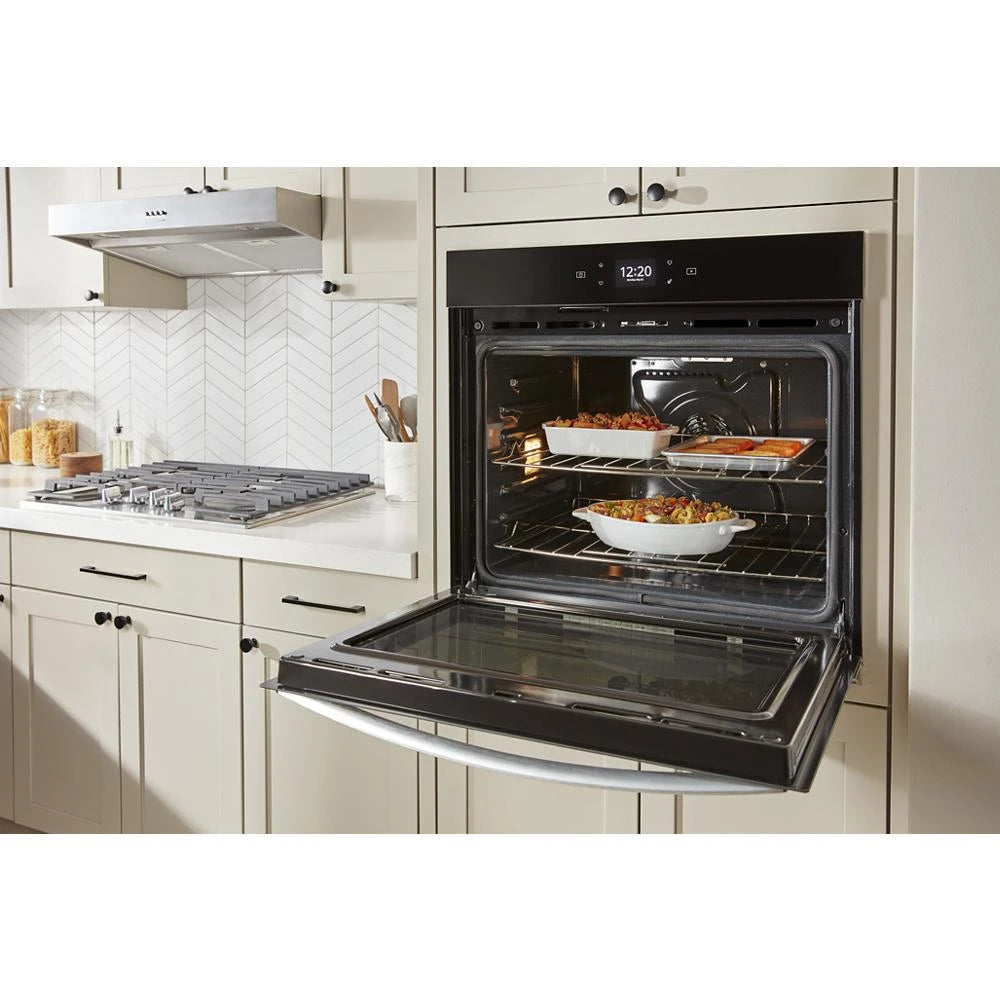

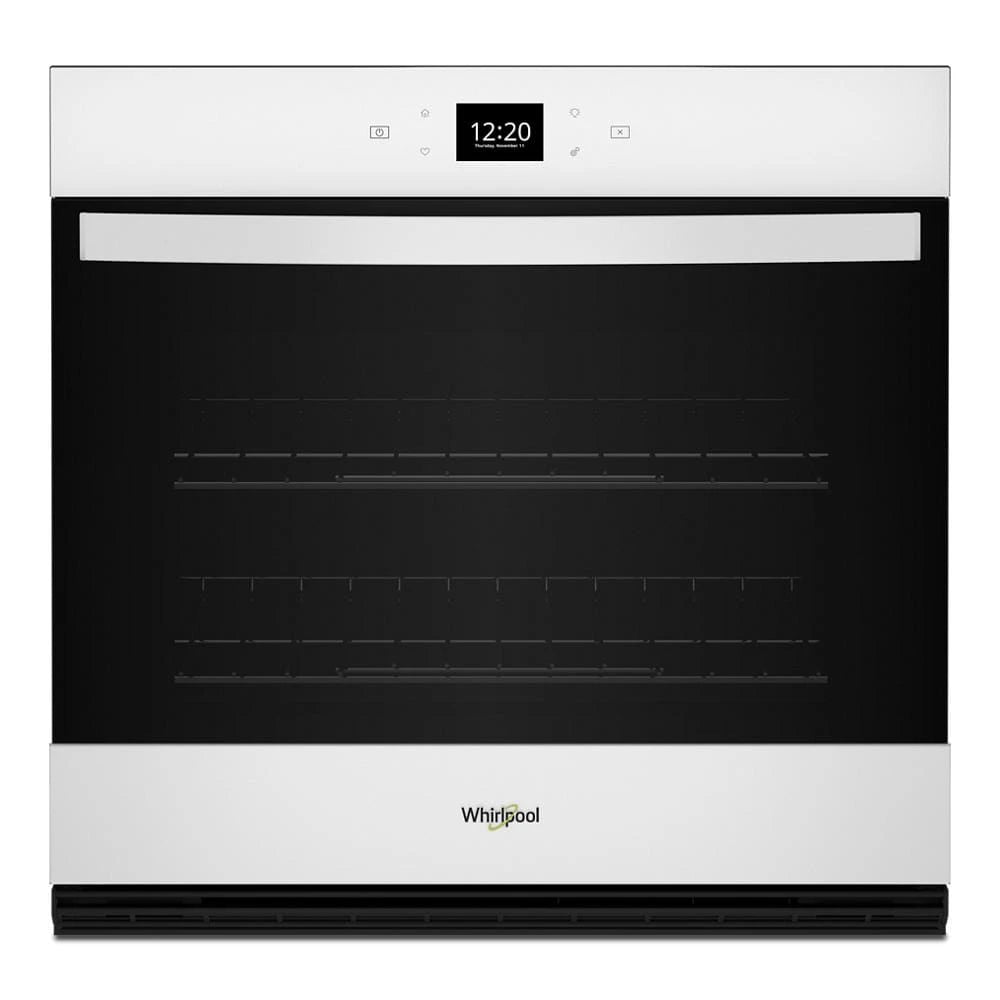

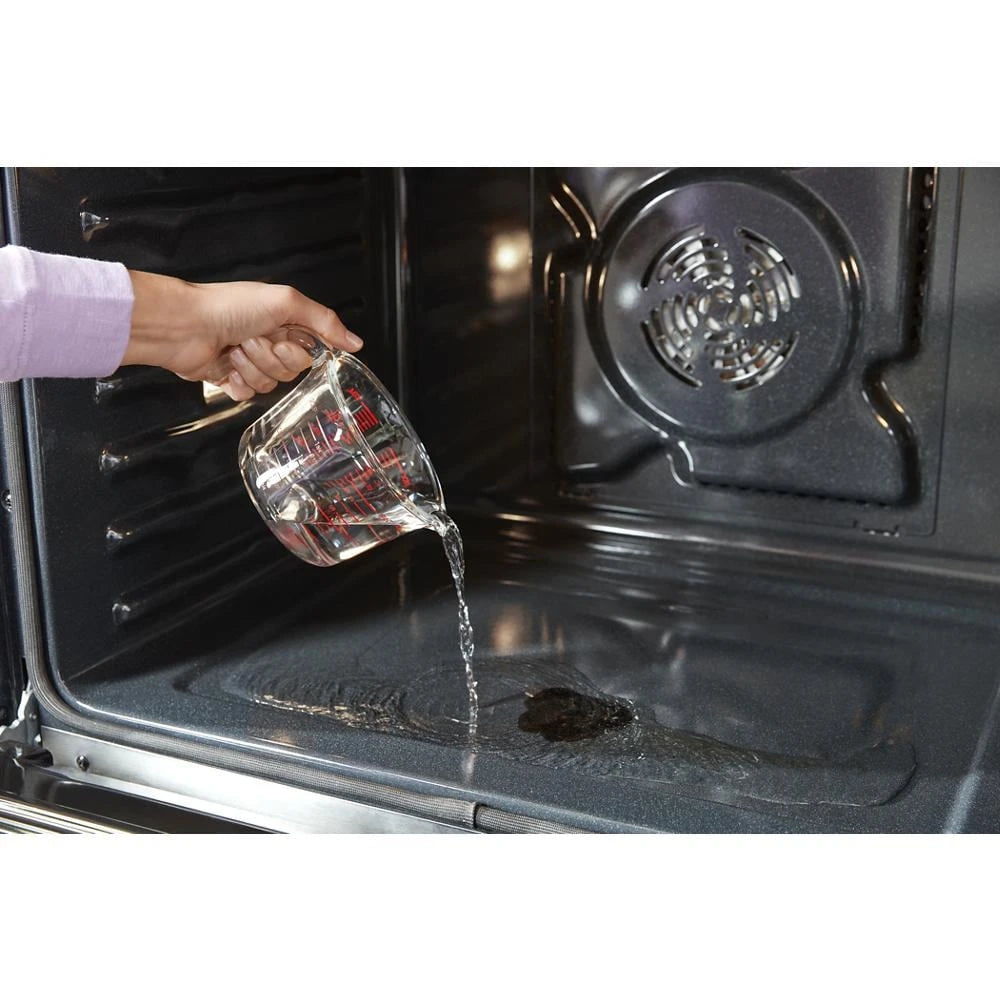

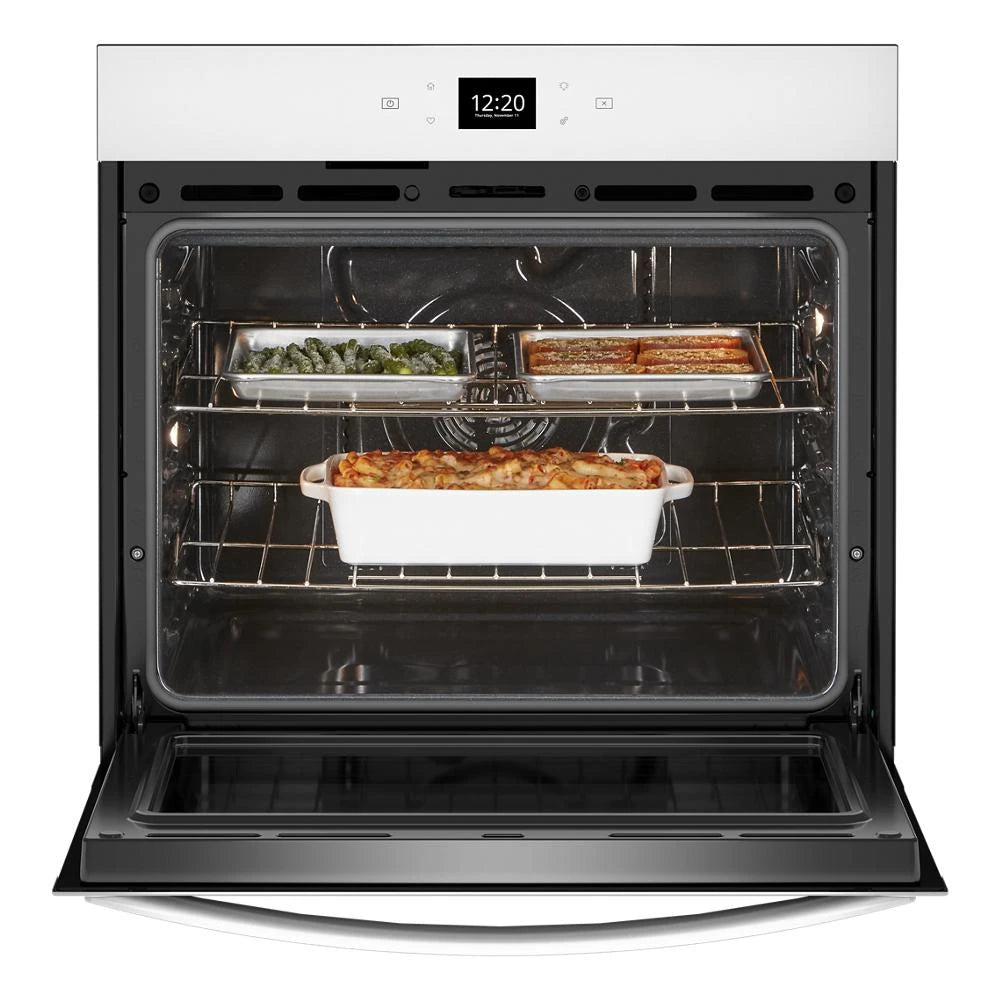

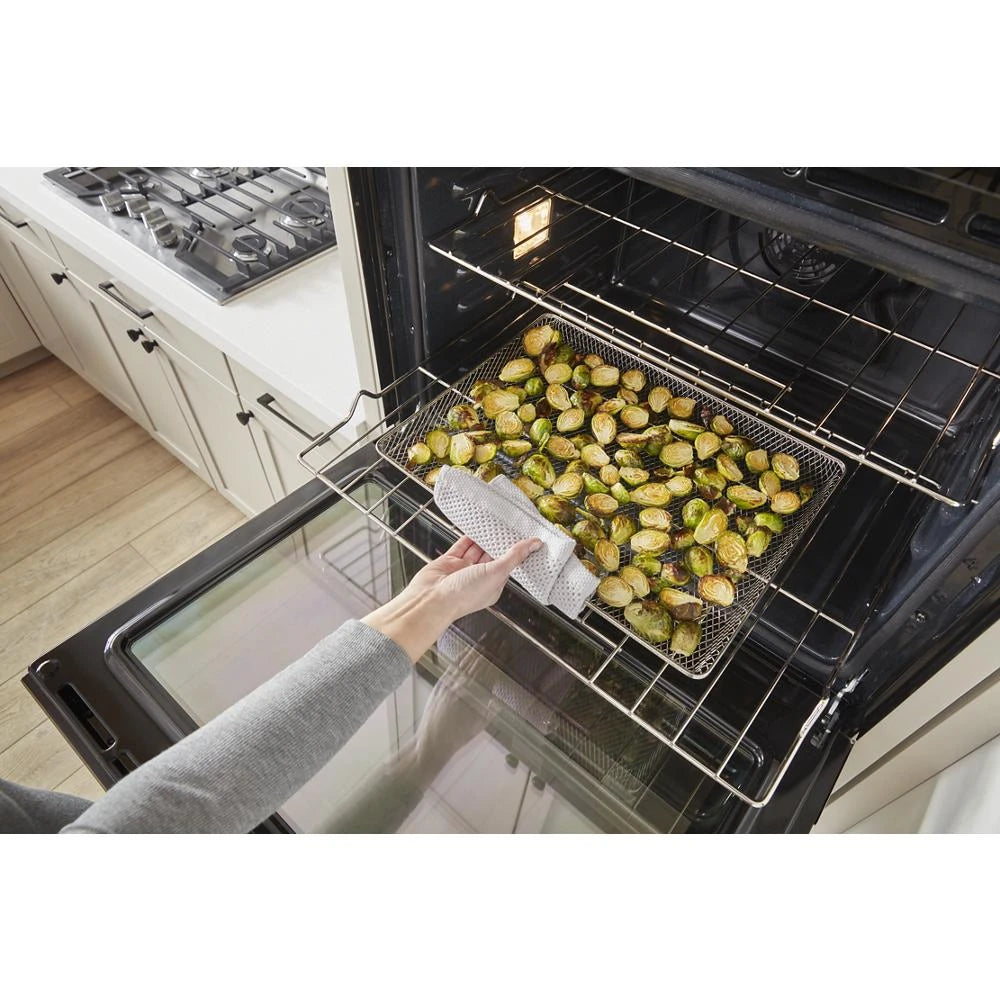

The Whirlpool WOES5030LW combines large-capacity cooking and smart convenience in a built-in design. Equipped with a 5.0 cu ft oven and a **fan convection system**, it allows even baking across multiple racks. The oven offers **six cooking modes**—including Frozen Bake™, Keep Warm™, Broil, Convect Broil, Bake, and Convect Bake—with the **Air Fry mode** activated via Automatic Feature Updates when connected to Wi‑Fi. Its **full-color touchscreen** simplifies control and integrates with voice assistants for remote operation :contentReference[oaicite:0]{index=0}. Features also include **rapid preheat**, a **hidden bake element** for easy cleaning, plus **steam‑clean and self‑clean options**. The unit is ADA-compliant, Star‑K certified, and available in fingerprint‑resistant finishes :contentReference[oaicite:1]{index=1}.
Keep hot food hot without having to keep cooking. By maintaining the oven's lowest temperature at a steady 175˚F, you can be confident knowing that you can serve everything at once.

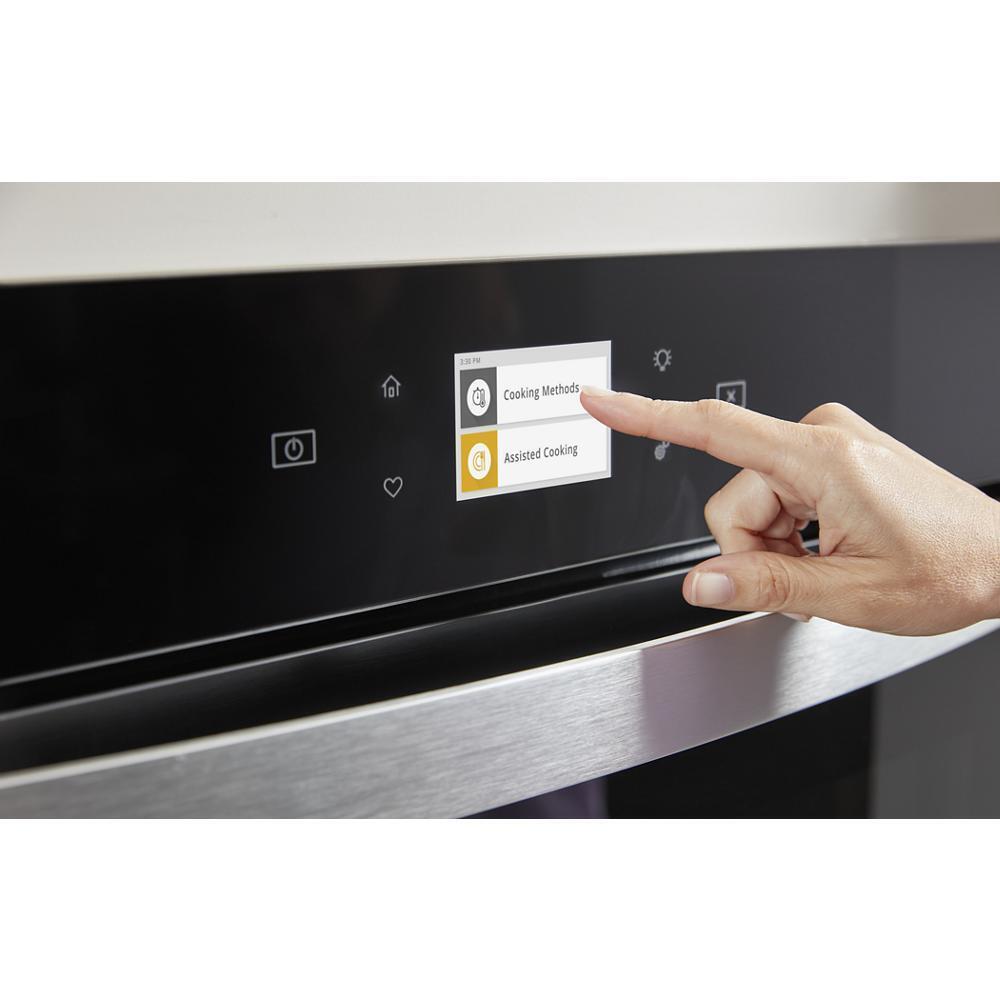

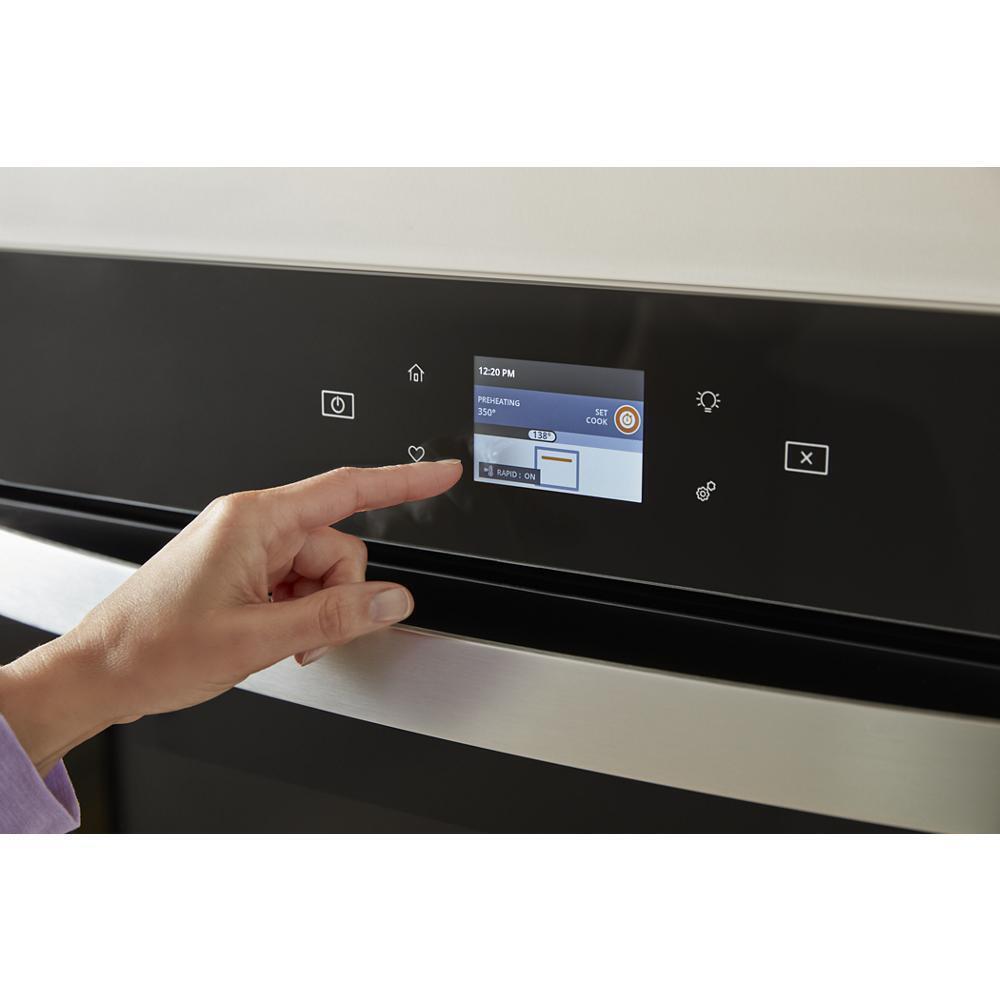

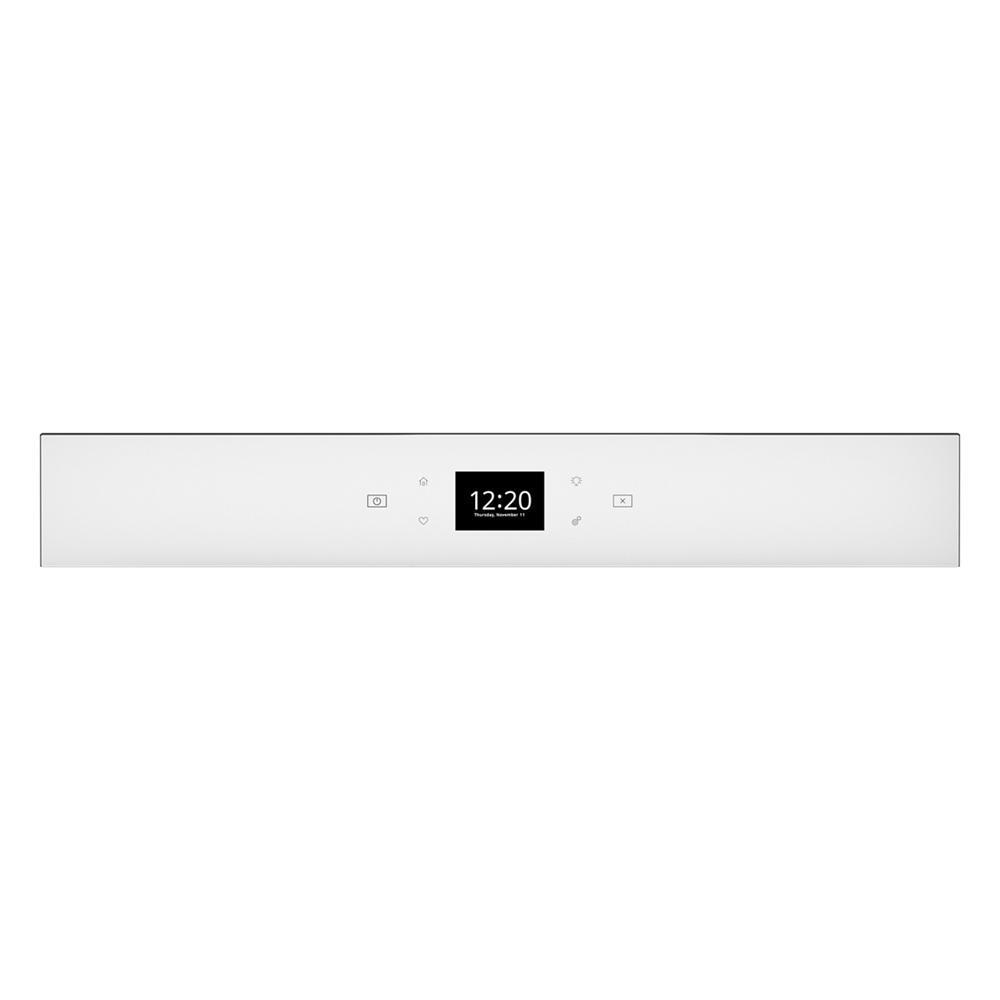

Get instant access to the settings you use most with a full-color Touchscreen display.
A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
