SKU: WMH31017HZ | UPC: 883049452722

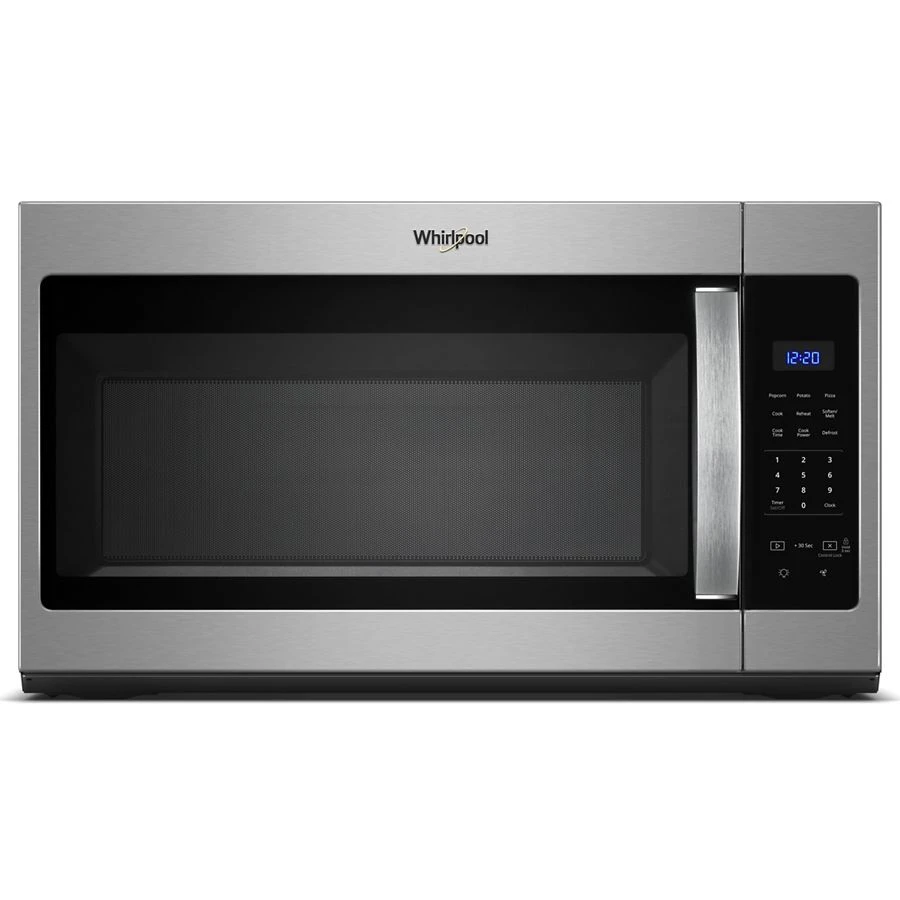

WHIRLPOOL WMH31017HZ 1.7 cu. ft. Microwave Hood Combination with Electronic Touch Controls Stainless

Quick Specification More details

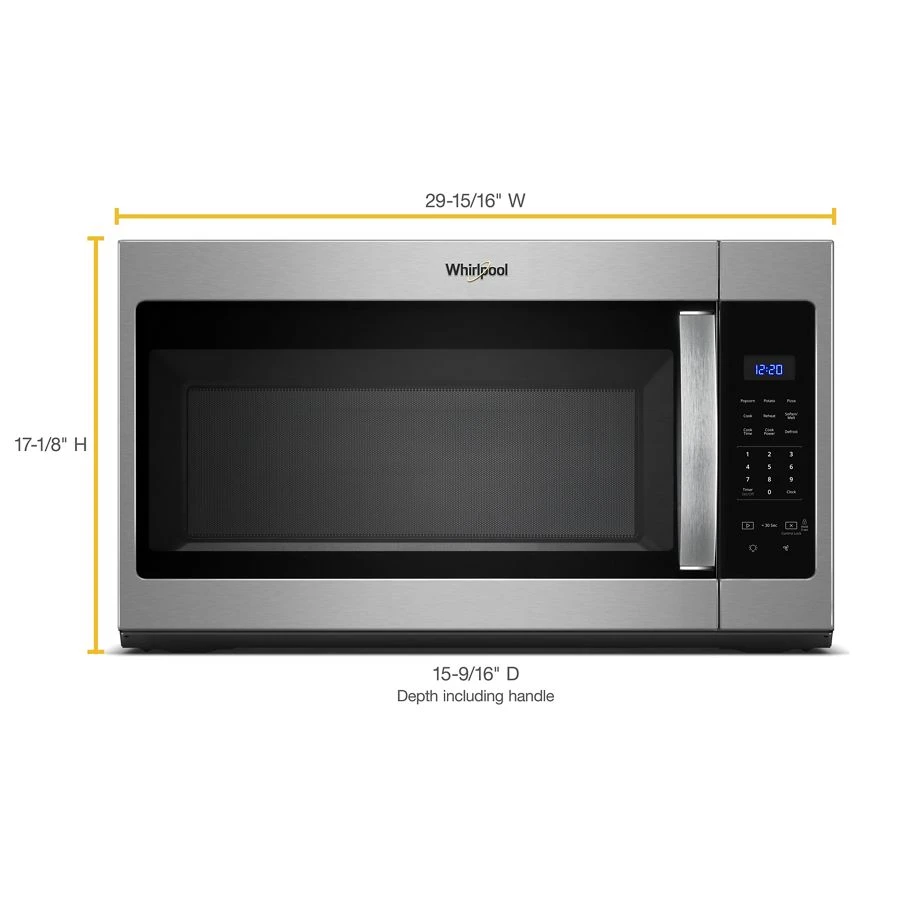

Width:
29.94 Inch
Depth:
15.56 Inch
Height:
17.13 Inch
Type:
Over-the-Range Microwaves

About this product

Get the right amount of ventilation with a 2-speed fan
2-Speed, 300 CFM Motor Class
Fingerprint Resistant
Add cook time with one touch using the Add 30 Seconds option

SKU: WMH31017HZ | UPC: 883049452722

WHIRLPOOL WMH31017HZ 1.7 cu. ft. Microwave Hood Combination with Electronic Touch Controls Stainless

Active Rebates

Color:

WHIRLPOOL WMH31017HZ 1.7 cu. ft. Microwave Hood Combination with Electronic Touch Controls Stainless

WMH31017HZ

WHIRLPOOL WMH31017HS 1.7 cu. ft. Microwave Hood Combination with Electronic Touch Controls in Stainless Steel

WMH31017HS

Discontinued

In stock

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.94 Inch
Depth:
15.56 Inch
Height:
17.13 Inch
Type:
Over-the-Range Microwaves

About this product

Get the right amount of ventilation with a 2-speed fan
2-Speed, 300 CFM Motor Class
Fingerprint Resistant
Add cook time with one touch using the Add 30 Seconds option

Product Details for WHIRLPOOL WMH31017HZ

Technical Details

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.94 in.
Shipping Height	22.13 in.
Shipping Length	20.56 in.
Shipping Weight	95 lbs.
Total of Shipping Weight	95 lbs.
Source	Calculation

Dimensions & weight

Width	29.94 in.
Height	17.13 in.
Length	15.56 in.
Weight	55 lbs.
Depth With Door Open 90 Degree	39-3/8 in
Gross Weight	55 lbs
Interior Depth	14 in
Interior Height	9-1/2 in
Interior Width	21-63/1000 in
Net Weight	59 lbs

Oven cavity details

Convection	No
Cooking Power	1,000 w

Electrical

Amps	16
Hz	60
Volts	120

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	4.62 ft³
Dimensional Weight	57.4 lbs.
Total of Cubes	4.62 ft³
Total of Dimensional Weight	57.4 lbs.

Other

Capacity	1.7 cu. ft.
Common Size	30 in

Certifications

ADA Compliant	No
CUL	No
Prop 65	Standard
UL	Yes
Ada Compliant	No
Cul	No
Prop65	CA
Ul	Yes

Controls

Microwave Selections	Add 30 Seconds, Control Lock, Cook Power, Cook Time, Cook/Start, Defrost, End of Cycle Signal, Off/Cancel, Pizza, Popcorn, Potato, Reheat, Soften/Melt, Timer
Number of Quick Touch/One-Touch Selections	6
Number of Vent Speeds	2
Control Location	Right
Control Type	Electronic Touch
Display Color	Blue
Electronic Display Type	LED
Number of Keypads	26
Number of Power Levels	10
Number of Quick Touch/one-touch Selections	6
Number of Sensor Control Keypads	0

Details

Blower Type	Centrifugal
Door Release	Handle
Microwave Interior Light	Incandescent
Number of Microwave Racks	0
Turntable Diameter Size	12 in
Cavity Finish	Powder Coat
Clock	Yes
Door Opening Direction	Left
Grill	No
Microwave Configuration	Microwave Hood Combination
Microwave Type	Over-the-Range
Number of Vent Speeds	2
Turntable	Yes
Work Surface Light	Incandescent

Dimensions

Net Weight	59
Product Height	17.13
Carton Height	20.5
Gross Weight	59
Interior Height	9.5
Carton Depth	19.5
Carton Width	32.0
Product Depth	15.56
Product Width	29.94
Depth With Door Open 90 Degree	39.38
Interior Depth	14.0
Interior Width	21.06

Exterior details

Door Opening Direction	Left
Cabinet Color	Black
Handle Color	Stainless Steel

General

Microwave Features	Add 30 Seconds Button; Adjustable Cooktop Lighting; Conventional; Whirlpool Handle
Microwave Interior Light	Incandescent

Microwave details

Grill	No
Microwave Interior Light	Incandescent
Turntable Diameter Size	12 in
Door Release	Handle
Number of Microwave Racks	0
Sensor Cooking	No

Oven details

Convection	No
Cooking Power	1

Ventilation details

CFM Motor Class	300
Duct Outlet Size	3.25 W x 10 H in
Blower Type	Centrifugal
Cfm Motor Class	300
Duct Direction	Vertical or Horizontal
Duct Type	Rectangular
Fan Speed Indicator	Yes
Filters	Charcoal Odor Removing Filter
Night Light	Yes
Vent Fan Location	Back
Ventilation Type	Updraft
Venting	Exterior or Recirculating

Features

Get the right amount of ventilation with a 2-speed fan
2-Speed, 300 CFM Motor Class
Match the right amount of ventilation to the dish being prepared and quickly get rid of cooking odors with two different fan speed settings.
Fingerprint Resistant
Available in black stainless and stainless finishes, the easy-to-clean exterior resists fingerprints and smudges.
Add cook time with one touch using the Add 30 Seconds option
Add 30 Seconds Option
Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.

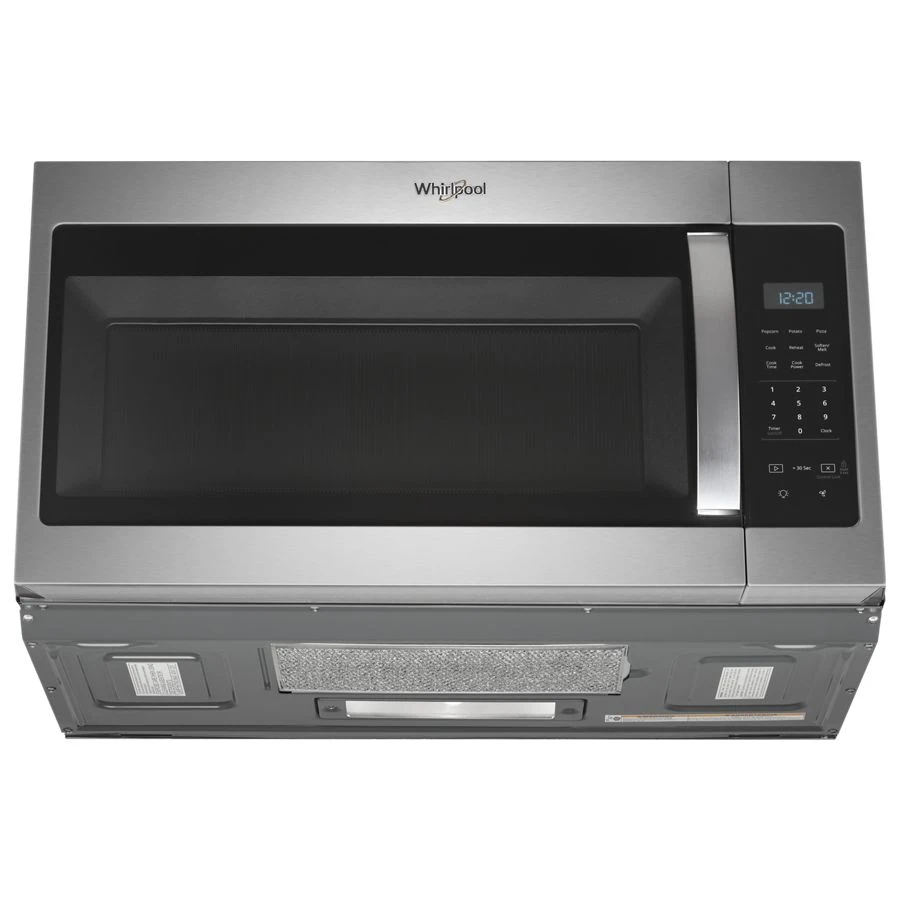

Adjustable Cooktop Lighting
Keep an eye on what's cooking below the microwave or keep a nightlight on in the kitchen.
See what's cooking below with adjustable lighting
Dishwasher-Safe Turntable Plate
Clean up spills on the turntable by simply putting it in the dishwasher.
Clean up spills easily with the dishwasher-safe turntable plate

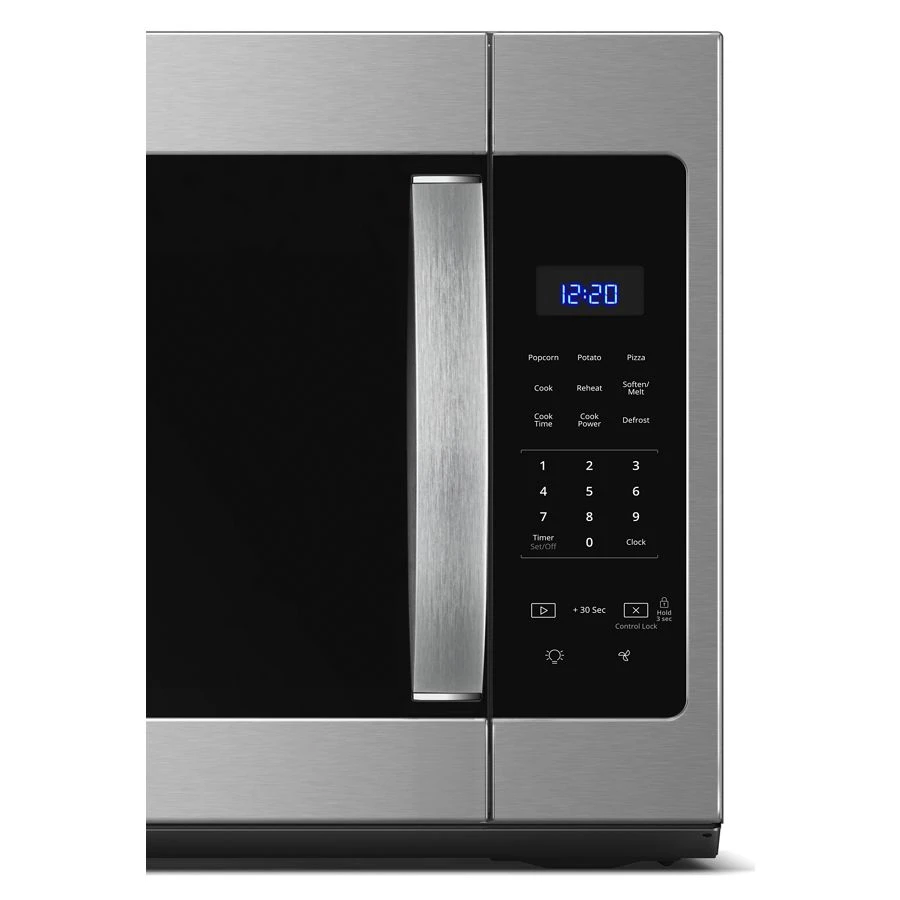

Electronic Touch Controls
Navigate through cooking modes and options with controls that are as easy to use as they are to clean.
Easily navigate through settings with electronic touch controls
Microwave Presets
Get just the right amount of heat and time, whether you're cooking or defrosting, with specific preset options.
Resists fingerprints and smudges with an easy-to-clean finish
Get the right amount of heat and time with microwave presets

Description

This Whirlpool(R) microwave has convenient features that are easy to use no matter who's doing the cooking. Our microwave with a turntable accommodates various dish sizes while microwave presets deliver the right amount of time and heat. Plus, electronic touch controls are easy to use and clean. From sides to snacks, enjoy the flexibility of fitting cooking into any schedule.
