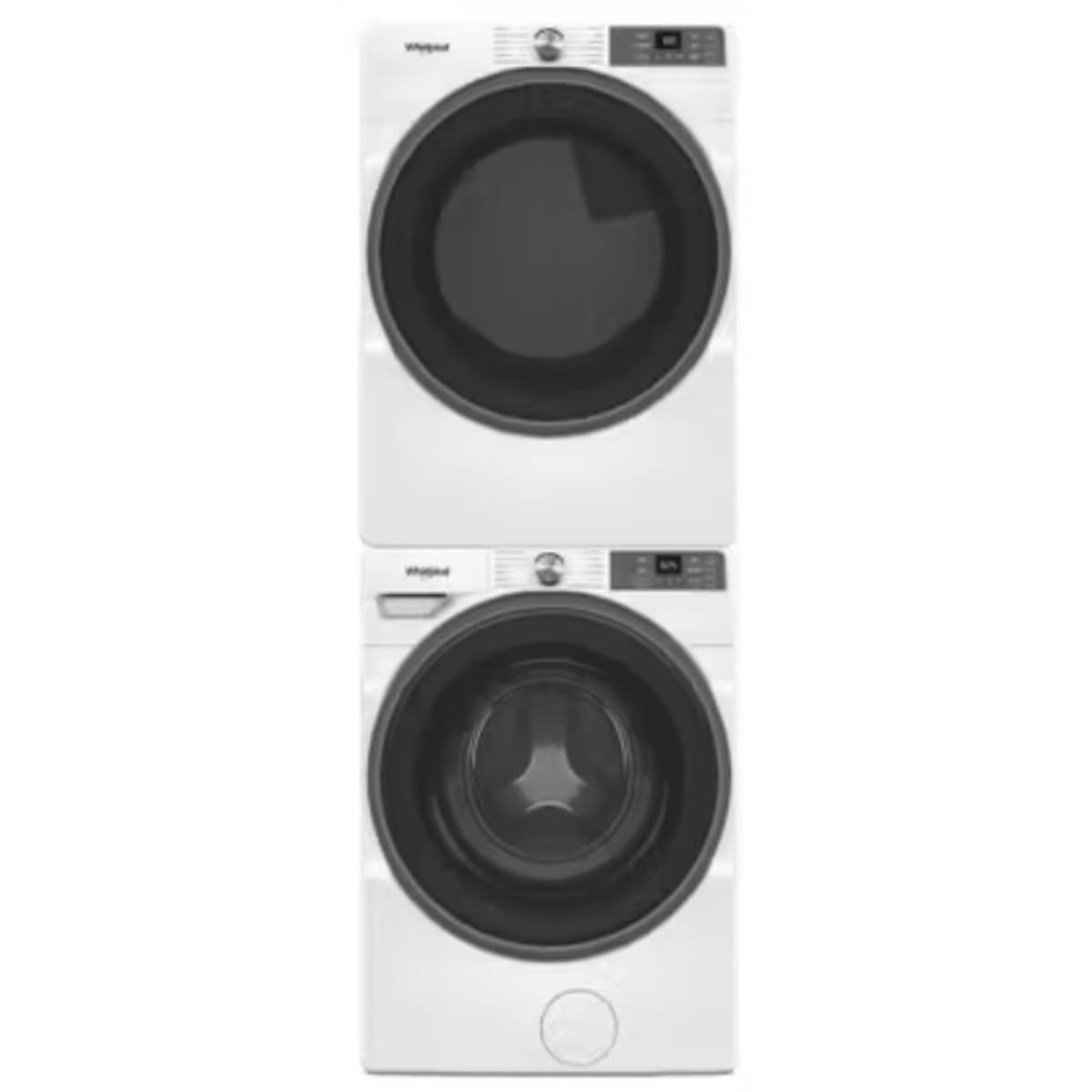

What's included: 3 items

  • 4.5 cu. ft. Smart Front Load ENERGY STAR® Washer with FreshFlow™ Vent System

    Whirlpool WFW5720RW 4.5 cu. ft. Smart Front Load ENERGY STAR® Washer with FreshFlow™ Vent System White

    • SKU SKU: WFW5720RW UPC: 883049692814
    • Type Front Load Washers
  • 7.4 cu. ft. Smart Front Load ENERGY STAR® Electric Dryer with Wrinkle Shield™ Option

    Whirlpool WED5720RW 7.4 cu. ft. Smart Front Load ENERGY STAR® Electric Dryer with Wrinkle Shield™ Option White

    • SKU SKU: WED5720RW UPC: 883049692340
    • Type Front Load Matching Dryers
  • Washer & Dryer Stacking Kit for 27", with hooked galvanized steel brackets, 4 leveling dryer feet, 2 clips, and 4 screws

    Whirlpool W10869845 Washer & Dryer Stacking Kit for 27", with hooked galvanized steel brackets, 4 leveling dryer feet, 2 clips, and 4 screws Other

    • SKU SKU: W10869845 UPC: 883049433646
    • Type Stacking Kits
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Reviews
Sale price $1,747.64 Regular price $2,607.12 Save $859.48 / 32% OFF

Product Details for Whirlpool WFW5720RW

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.23 ft³
Dimensional Weight 239.1 lbs.
Total of Cubes 19.23 ft³
Total of Dimensional Weight 239.1 lbs.

Interior details

Automated Dispenser No
Dispense System Detergent, Fabric Softener & Bleach
Fan Type Fan Fresh®
Motor Drive Type Direct Drive
Out of Balance Sensing Yes
Suspension System 2 Springs 4 Dampers

Cycles

Number of Wash Cycles 12
Washer Cycle Selections Bedding, Clean Washer with affresh, Cold Wash, Custom Cycle, Delicates, Drain & Spin, Dry Drum, Heavy Duty, Normal / Regular, Quick Wash, Sanitize, Whites

Exterior details

Adjustable Feet Yes

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

Details

Stackable Yes
Motor Horsepower Inverter Driven Variable Speed Direct Drive Motor
Pedestal Options WFP2715HW, XHP1000XW

Modifiers

Delay Start Yes
Number of Soil Levels 4
Number of Spin Speeds 4
Number of Temperatures 5
Number of Wash/Rinse Temperatures 5
Number of Washer Options 9
Pre Soak Yes
Spin Speed Selections Fast, Medium, Off, Slow

Controls

Control Location Front Panel
Electronic Display Type Cycle Indicator Lights with Digital Time Remaining
End of Cycle Signal Yes

Certifications

ADA Compliant No
Energy Star Qualified ENERGY STAR® Qualified

Dimensions & weight

Width 27 in.
Height 39 in.
Length 31.56 in.
Weight 232 lbs.
Gross Weight 232 lbs
Net Weight 222 lbs
Depth With Door Open 90 Degree 54.875 in
Maximum Height 42.75 in
Minimum Height 38.625 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 30 in.
Shipping Height 40 in.
Shipping Length 36.56 in.
Shipping Weight 272 lbs.
Total of Shipping Weight 272 lbs.
Source Calculation

Other

Capacity (DOE) US 4.5 cu. ft.
Capacity IEC Canada 5.2 cu. ft.

Options

Washer Option Selections Delay Wash, Extra Rinse, Fan Fresh®, Presoak, Remote Enable, Steam Clean

Electrical

Amps 15
Hz 60
Volts 120

Capacity

Volume 24.306 Cu.Ft.

Description

This front load washer has a trio of freshness features with The FreshFlow(TM) Vent System. It's the first fan-powered system with antimicrobial protection designed to help keep your clothes and washer fresh. The FanFresh(R) Option keeps clothes fresh in the washer. The Dry Drum Cycle reduces excess moistures in the drum and door. And the Antimicrobial rubber seal helps prevent the growth of odor-causing bacteria.



Product Features

  • FreshFlow™ Vent System
    The FreshFlow™ Vent System is a trio of freshness features that helps keep your clothes and washer fresh. It's the first fan-powered system with the FanFresh® Option, Dry Drum Cycle, and Antimicrobial Gasket.
  • Quick Wash Cycle
    Save time in the laundry room and wash a full-sized load fast with the 25 minute Quick Wash Cycle.**Based on a 10-lb load.
  • 4.5 cu. ft. Capacity
    Get enough space to handle larger loads with 4.5 Cu. Ft. Capacity.
  • Cycle Notification
    Stay on top of your laundry with cycle notifications to ensure finished loads aren’t left behind.**WiFi & App Required. Details and privacy info at whirlpool.com/connect. Appliance must be set to Remote Enable.
  • Voice Control
    Control your smart washer or dryer hands-free with simple voice commands using a voice-enabled device.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Stain Guide
    Get step-by-step instructions based on your fabric type in the Stain Guide to take on everyday stains like coffee, grass, mud and more.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Select stains only.
  • Family Share
    Easily add family members to your Household in the Whirlpool® App, allowing shared access to all the connected Whirlpool® appliances associated with your account. Now, anyone can start the machine, receive notifications, and create their favorite cycles right from the app.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Favorite Cycles
    Pin and save up to 10 favorite cycles in the app for easy access right from the home screen.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Specialty Cycles
    Use the Whirlpool® app to get access to additional cycles not available directly on your appliance, including cycles designed for activewear, jeans, swimwear and more.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Custom Cycles
    Design a custom cycle that fits your needs and save it directly to your machine.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • ENERGY STAR® Certified
    ENERGY STAR® certified models exceed government standards to help conserve natural resources and save money on your utility bills.
  • Sanitize Cycle
    The Sanitize cycle uses increased water temperature to eliminate 99.9% of common household bacteria.**Bacteria tested were S. aureus, P. aeruginosa, and K. pneumoniae.
  • Pump Access
    Easily access the drain pump for more convenient cleaning and maintenance.
  • Pedestals
    Raise your washer for easier loading and unloading. Optional laundry pedestals also provide space-saving storage for detergent, fabric softener and other supplies.**Sold seperately
  • Stackable
    Make the most of your space with the option to stack your appliances vertically, using the available stacking kit.
  • Add Garment
    Last minute items? Pause the washer, open the door and add any items early in the wash cycle.
  • Clean Washer with affresh® Cycle
    Run the Clean Washer with affresh® Cycle every 30 washes with an affresh® washing machine cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer.
  • 33" Closet-Depth Fit
    Get a space-saving design with closet-depth fit that allows for more flexible installation in your laundry space.**Designed to fit a 33"" installation depth.
  • Presoak Option
    The Presoak option lets you skip soaking outside of the washer. Extra time is automatically added in the washer before the wash cycle starts.
  • An American Company for Over 100 Years
    Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years
  • Steam Clean
    Get help removing everyday stains with the Steam Clean Option, which gets deep into fabrics with increased wash action and heat.
  • FanFresh® Option
    Keep your clothes fresh in the washer after a cycle. The FanFresh® Option uses a built-in fan and periodic tumbling to keep your just-washed clothes fresh until they're ready for the dryer, using less energy than you would re-washing your clothes.**Based on rewashing an 8 lb load on Normal cycle.

Key Features

Dry Drum Cycle

After you take the clothes out, close your washer door and select the Dry Drum Cycle. A powerful fan reduces excess moisture from the drum, rubber gasket and door.

Cold Wash Cycle

The Cold Wash Cycle adjusts wash actions and time to help protect fabrics, while using cold water to save up to 90% of energy.**According to Energy Star, 90% of the energy used to operate a washing machine is spent on heating the water

Antimicrobial Protection

Antimicrobial protection on the rubber seal helps keep your washer fresh by preventing the growth of odor-causing bacteria and mold.

AI Intelligent Wash

Simplify your laundry routine with intelligent wash technology. It uses sensors to detect load size and fabric type, then automatically adjusts water levels, temperature, and wash actions for ideal fabric care and efficient cleaning performance.

Quick Wash & Dry

Finish laundry in less than 1 hour by pairing the 25 minute Quick Wash cycle with the 30 minute timed dry.* Experience the ultimate time-saving duo for hassle-free laundry days.*Based on a 10-lb load when paired with a traditional vented dryer on medium heat.

Smart Features with Whirlpool® App

Be in control and stay connected from anywhere. The Whirlpool® App lets you start, pause, track progress and receive notifications when you're away, so you can manage laundry day right from your smartphone.**Features subject to change. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to Remote Enable.

From The Manufacturer

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Reviews
Sale price $1,747.64 Regular price $2,607.12 Save $859.48 / 32% OFF

Product Details for Whirlpool WED5720RW

Technical Details

Other

Capacity IEC Canada 7.4 cu. ft.
Capacity 7.4 cu. ft.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 18.66 ft³
Dimensional Weight 232 lbs.
Total of Cubes 18.66 ft³
Total of Dimensional Weight 232 lbs.

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

Details

Automatic Dry Control Yes
Cycle Time Remaining Yes
Dryer Cycle Time Remaining Yes
Dryer Lint Filter Indicator Yes
Drying Rack Yes Not Included
EcoBoost Energy Saver Yes
Fuel Type Electric
LP Convertible No
Lint Filter Indicator No
Moisture Sensor Yes
Quad Baffles Yes
Secondary Lint Filter No
Sound Package No
Stackable Yes
Steam Hose Y Connector No
Pedestal Options WFP2715HW, XHP1000XW

Exterior details

Door Style Side Swing
Reversible Door Yes
Window Yes
Door Opening Direction Right

Controls

Automatic Temperature Controls Yes
Control Location Front
Control Type Knob and Button
End of Cycle Signal Yes
Feedback-Status Indicators Check Vent, Cooling Down, Damp, Sensing, Wet

Cycles

Number of Dryer Cycles 12
Drying Cycles Selections How to Dry: Normal, Wrinkle Control, Heavy Duty, Sanitize, Timed Dry, Quick, What to Dry: Regular, Delicates, Bulky Items, Whites, Colors , Towels

Interior details

Dryer Drum Material Powder Coat
Lint Screen Location Front
Dryer Interior Light Yes
Drying Rack Yes Not Included

Options

Number of Dryer Options 9
Dryer Option Selections Control Lock, Cycle Signal, Damp Dry Signal, Eco Boost™, Wrinkle Shield™

Installation considerations

Flat Back No
Four Way Venting Yes
Long Vent No
Venting Direction Left, Right, Bottom, Rear
Ventless N/A
Hoses Included No
Maximum Vent Length 64 ft

Electrical

Power Cord Included No
Amps 30
Hz 60
Volts 240

Modifiers

Number of Dryness Levels 3
Number of Temperatures 4
Dryer Temperature Selections Air Only, Extra Low, High, Low, Medium
Selection of Drying Levels Less, More, Normal

Certifications

ADA Compliant ADA Compliant with feet fully extended
UL Yes
Energy Star® Qualified ENERGY STAR® Qualified

Dimensions & weight

Width 27 in.
Height 39 in.
Length 30.63 in.
Weight 146 lbs.
Depth Excluding Doors 30-5/8 in
Depth With Door Open 90 Degree 54-313/1000 in
Door Opening Height 25-69/100 in
Door Opening Width 25-69/100 in
Gross Weight 146 lbs
Maximum Height 39 in
Minimum Height 38-1/8 in
Net Weight 132 lbs
Depth Excluding Doors 30.625 in
Depth With Door Open 90 Degree 54.313 in
Door Opening Height 25.69 in
Door Opening Width 25.69 in
Minimum Height 38.125 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 29 in.
Shipping Height 41 in.
Shipping Length 35.63 in.
Shipping Weight 186 lbs.
Total of Shipping Weight 186 lbs.
Source Calculation

Capacity

Volume 22.707 Cu.Ft.

Description

Help prevent wrinkles from setting in to clean, dry clothing with the Wrinkle Shield™ Option on this front load electric dryer. It has smart features so you can track progress remotely using the Whirlpool® App, and intelligent sensors that automatically adjust dry time, to prevent overdrying. Plus you can finish laundry in under 1hr by pairing the 25 minute Quick Wash cycle on the matching washer with the 30 minute timed dry.**Based on a 10-lb load on medium heat.


Product Features

  • Wrinkle Shield™ Option
    Help keep wrinkles from setting into clean, dry laundry with the Wrinkle Shield™ Option. It keeps clothes tumbling up to 150 minutes after the cycle ends, or until you open the door.
  • AI Intelligent Dry
    AI Intelligent Dry technology uses three sensors to detect moisture and temperature, then automatically adjusts dry time to help prevent overdrying.
  • Quick Dry Cycle
    Dry small loads fast with the Quick Dry cycle and get clothes ready in no time.
  • Sanitize Cycle
    The Sanitize Cycle uses high heat to santizie items like towels, providing care for your clothes in the dryer and eliminating 99.9% of common household bacteria.**Bacteria tested were K. pneumoniae, P. aeruginosa, S. aureus.
  • Wrinkle Control Cycle
    The Wrinkle Control cycle uses lower temperatures and the Wrinkle Shield™ option to help minimize wrinkles.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • 7.4 Cu. Ft. Capacity
    Get room to dry large loads with 7.4 Cu. Ft. Capacity. It easily handles bulky items like comforters and sleeping bags.
  • Cycle Notification
    Stay on top of your laundry with cycle notifications to ensure finished loads aren’t left behind.**WiFi & App Required. Details and privacy info at whirlpool.com/connect. Appliance must be set to Remote Enable.
  • Stain Guide
    Get step-by-step instructions based on your fabric type in the Stain Guide to take on everyday stains like coffee, grass, mud and more.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Select stains only.
  • Voice Control
    Control your smart washer or dryer hands-free with simple voice commands using a voice-enabled device.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Family Share
    Easily add family members to your Household in the Whirlpool® App, allowing shared access to all the connected Whirlpool® appliances associated with your account. Now, anyone can start the machine, receive notifications, and create their favorite cycles right from the app.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Specialty Cycles
    Use the Whirlpool® app to get access to additional cycles not available directly on your appliance, including cycles designed for activewear, jeans, swimwear and more.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Favorite Cycles
    Pin and save up to 10 favorite cycles in the app for easy access right from the home screen.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • Custom Cycles
    Design a custom cycle that fits your needs and save it directly to your machine.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
  • ENERGY STAR® Certified
    ENERGY STAR® certified models exceed government standards to help conserve natural resources and save money on your utility bills.
  • Stackable
    Make the most of your space with the option to stack your appliances vertically, using the available stacking kit.
  • Pedestals
    Raise your dryer for easier loading and unloading. Optional laundry pedestals also provide space-saving storage for detergent, fabric softener and other supplies.**Sold seperately
  • Air Flow Detection
    Air Flow Detection monitors airflow to ensure optimal drying times and performance. Blockages decreasing airflow will turn on a message letting you know when its time to check your house venting.
  • EcoBoost™ Option
    Use less energy while getting great drying performance with the EcoBoost™ Option.* This option saves energy by using less heat and an extended cycle time.*Savings may vary by load type.
  • Quad Baffles
    Four baffles tumble clothes in a randomized pattern, allowing items to open up freely. This helps increase the effectiveness of the dryer for small loads.
  • An American Company for Over 100 Years
    Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years

Key Features

Quick Wash & Dry

Finish laundry in less than 1 hour by pairing the 25 minute Quick Wash cycle with the 30 minute timed dry.* Experience the ultimate time-saving duo for hassle-free laundry days.*Based on a 10-lb load when paired with a traditional vented dryer on medium heat.

Air Dry Cycle

Avoid heated dry and protect delicate items with the Air Dry cycle.

Smart Features with Whirlpool® App

Be in control and stay connected from anywhere. The Whirlpool® App lets you start, pause, track progress and receive notifications when you're away, so you can manage laundry day right from your smartphone.**Features subject to change. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.

From The Manufacturer

Reviews

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Sale price $1,747.64 Regular price $2,607.12 Save $859.48 / 32% OFF

Product Details for Whirlpool W10869845

Technical Details

Details

This Part is a Replacement for the Following Part Numbers 12774, W10298318, W10761316, 52774, W10298318RP

Certifications

prop65 Standard

Dimensions

carton depth 13
carton height 2
carton width 6.5
gross weight 0.5
net weight 0.5

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.1 ft³
Dimensional Weight 1.02 lbs.
Total of Cubes 0.1 ft³
Total of Dimensional Weight 1.02 lbs.

Dimensions & weight

Weight 0.49 lbs.
Gross Weight 0-1/2 lbs
Net Weight 0-1/2 lbs
carton height 2
carton width 6.5
Weight (lbs.) 0.495
Carton Length 13

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 6.5 in.
Shipping Height 2 in.
Shipping Length 13 in.
Shipping Weight 40.49 lbs.
Total of Shipping Weight 40.49 lbs.
Source Manufacturer

Description

This Washer & Dryer Stacking Kit can be used in tight spaces to place the dryer on top of the washing machine, freeing up additional room in your laundry area. This accessory is designed to be used across several brands; check to see if your model number is compatible. This kit includes all the parts needed to safely support the washer and dryer as well as detailed installation instructions. Installing this kit will require basic hand tools and novice repair experience. You must unplug both the washer and the dryer or shut off the house circuit breaker for the appliances before installing. Helpful Tip: We also recommend using affresh(R) Washing Machine Cleaner (item W10501250) once a month to help reduce odor-causing residue that can build up in your washing machine's drain without proper care. *affresh(R) brand products are owned and distributed by Whirlpool Corporation.



Product Features

  • Accessory W10869845 replaces W10298318RP, W10761316, 12774, 4502692, 52774, PS12069913 and W10298318
  • For use in tight spaces to free up additional room
  • Kit includes (2) hooked steel brackets, (4) leveling dryer feet, (2) plastic clips, and (4) screws
  • For over 100 years, Whirlpool has cared for your appliance like you care for your home, which is why our replacement parts are made using durable materials and innovative processes

From The Manufacturer

Reviews

Compare with similar products

Recommendations

Previously viewed products
