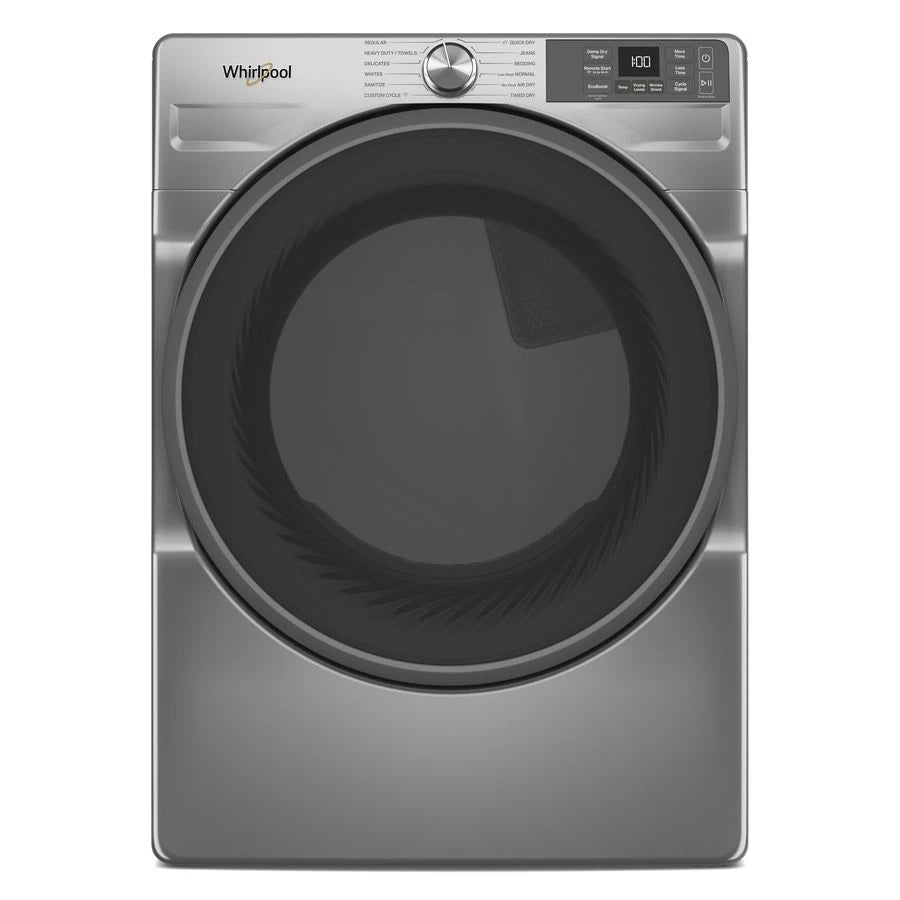

Product Details for Whirlpool WED5720RR
Technical Details
Other
| Capacity | 7.4 cu. ft. |
| Capacity IEC Canada | 7.4 cu. ft. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 18.66 ft³ |
| Dimensional Weight | 232 lbs. |
| Total of Cubes | 18.66 ft³ |
| Total of Dimensional Weight | 232 lbs. |
Smart compatibility
| Smart Appliance | Yes |
| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Remote Access, Voice Controlled, WiFi |
Cycles
| Number of Dryer Cycles | 12 |
| Drying Cycles Selections | How to Dry: Normal, Wrinkle Control, Heavy Duty, Sanitize, Timed Dry, Quick, What to Dry: Regular, Delicates, Bulky Items, Whites, Colors , Towels |

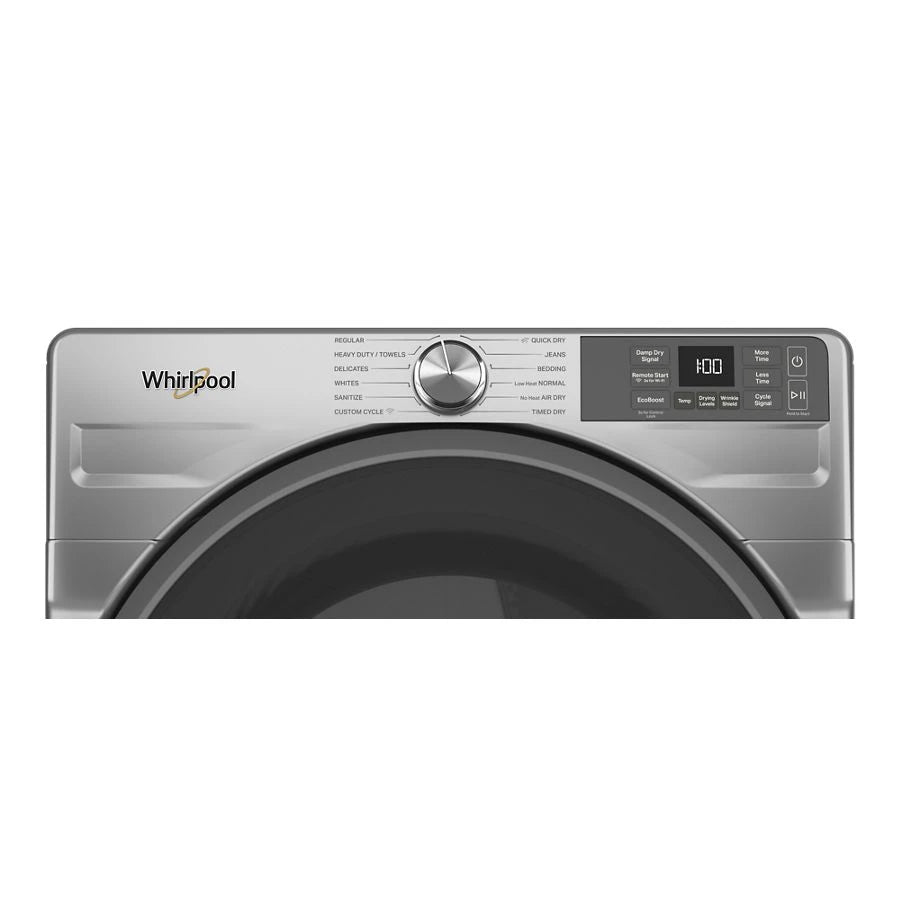

Controls
| Automatic Temperature Controls | Yes |
| Control Location | Front |
| Control Type | Knob and Button |
| End of Cycle Signal | Yes |
| Feedback-Status Indicators | Check Vent, Cooling Down, Damp, Sensing, Wet |
Details
| Automatic Dry Control | Yes |
| Cycle Time Remaining | Yes |
| Dryer Cycle Time Remaining | Yes |
| Dryer Lint Filter Indicator | Yes |
| Drying Rack | Yes Not Included |
| EcoBoost Energy Saver | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Lint Filter Indicator | No |
| Moisture Sensor | Yes |
| Quad Baffles | Yes |
| Secondary Lint Filter | No |
| Sound Package | No |
| Stackable | Yes |
| Steam Hose Y Connector | No |
| Pedestal Options | WFP2715RR, XHP1000XW |

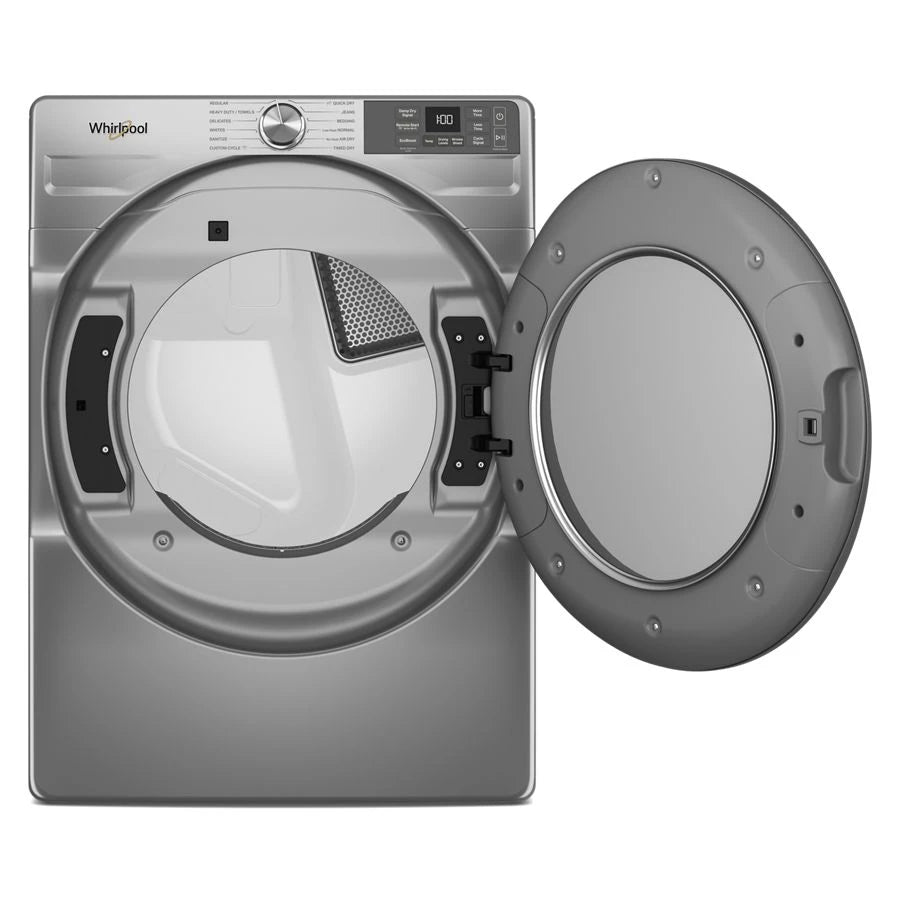

Interior details
| Dryer Drum Material | Powder Coat |
| Lint Screen Location | Front |
| Dryer Interior Light | Yes |
| Drying Rack | Yes Not Included |
Installation considerations
| Flat Back | No |
| Four Way Venting | Yes |
| Long Vent | No |
| Venting Direction | Left, Right, Bottom, Rear |
| Ventless | N/A |
| Hoses Included | No |
| Maximum Vent Length | 64 ft |
Exterior details
| Door Style | Side Swing |
| Reversible Door | Yes |
| Window | Yes |
| Door Opening Direction | Right |
Modifiers
| Number of Dryness Levels | 3 |
| Number of Temperatures | 4 |
| Dryer Temperature Selections | Air Only, Extra Low, High, Low, Medium |
| Selection of Drying Levels | Less, More, Normal |
Electrical
| Power Cord Included | No |
| Amps | 30 |
| Hz | 60 |
| Volts | 240 |
Options
| Number of Dryer Options | 9 |
| Dryer Option Selections | Control Lock, Cycle Signal, Damp Dry Signal, Eco Boost™, Wrinkle Shield™ |
Certifications
| ADA Compliant | ADA Compliant with feet fully extended |
| UL | Yes |
| Energy Star® Qualified | ENERGY STAR® Qualified |

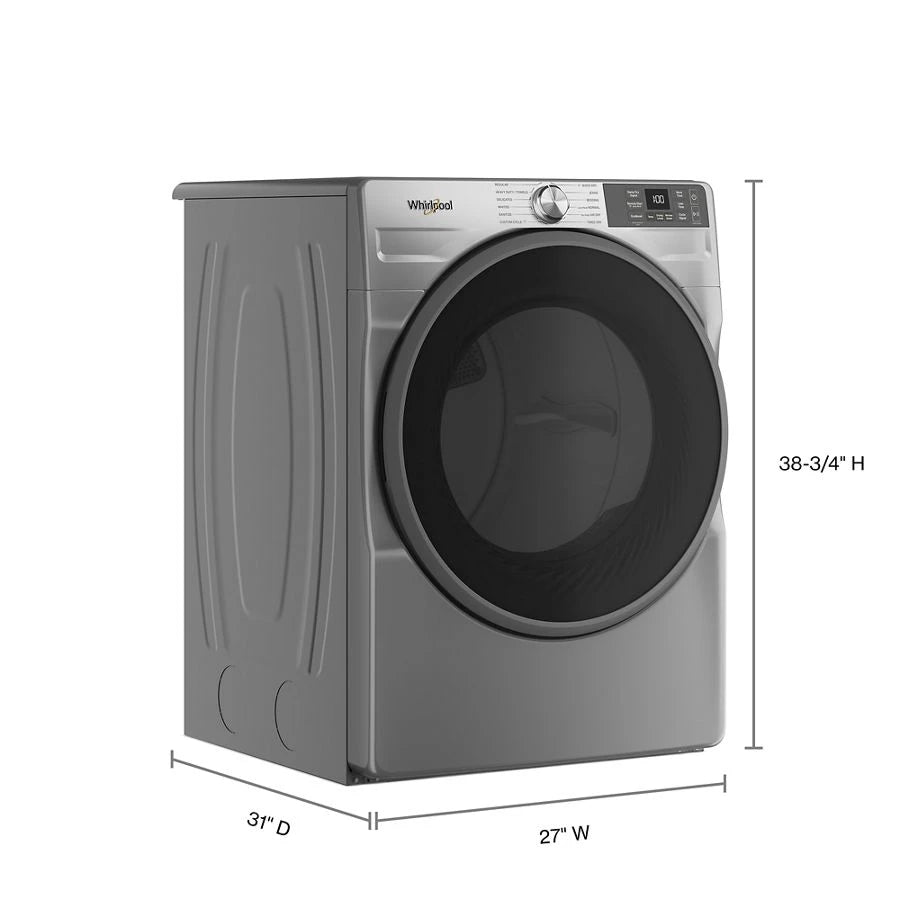

Dimensions & weight
| Width | 27 in. |
| Height | 39 in. |
| Length | 30.63 in. |
| Weight | 146 lbs. |
| Depth Excluding Doors | 30-5/8 in |
| Depth With Door Open 90 Degree | 54-313/1000 in |
| Door Opening Height | 25-69/100 in |
| Door Opening Width | 25-69/100 in |
| Gross Weight | 146 lbs |
| Maximum Height | 39 in |
| Minimum Height | 38-1/8 in |
| Net Weight | 132 lbs |
| Depth Excluding Doors | 30.625 in |
| Depth With Door Open 90 Degree | 54.313 in |
| Door Opening Height | 25.69 in |
| Door Opening Width | 25.69 in |
| Minimum Height | 38.125 in |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 29 in. |
| Shipping Height | 41 in. |
| Shipping Length | 35.63 in. |
| Shipping Weight | 186 lbs. |
| Total of Shipping Weight | 186 lbs. |
| Source | Calculation |
Capacity
| Volume | 22.707 Cu.Ft. |
Description
Product Features
-
Wrinkle Shield™ Option
Help keep wrinkles from setting into clean, dry laundry with the Wrinkle Shield™ Option. It keeps clothes tumbling up to 150 minutes after the cycle ends, or until you open the door. -
Quick Dry Cycle
Dry small loads fast with the Quick Dry cycle and get clothes ready in no time. -
Sanitize Cycle
The Sanitize Cycle uses high heat to santizie items like towels, providing care for your clothes in the dryer and eliminating 99.9% of common household bacteria.**Bacteria tested were K. pneumoniae, P. aeruginosa, S. aureus. -
Wrinkle Control Cycle
The Wrinkle Control cycle uses lower temperatures and the Wrinkle Shield™ option to help minimize wrinkles.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable. -
AI Intelligent Dry
AI Intelligent Dry technology uses three sensors to detect moisture and temperature, then automatically adjusts dry time to help prevent overdrying. -
7.4 Cu. Ft. Capacity

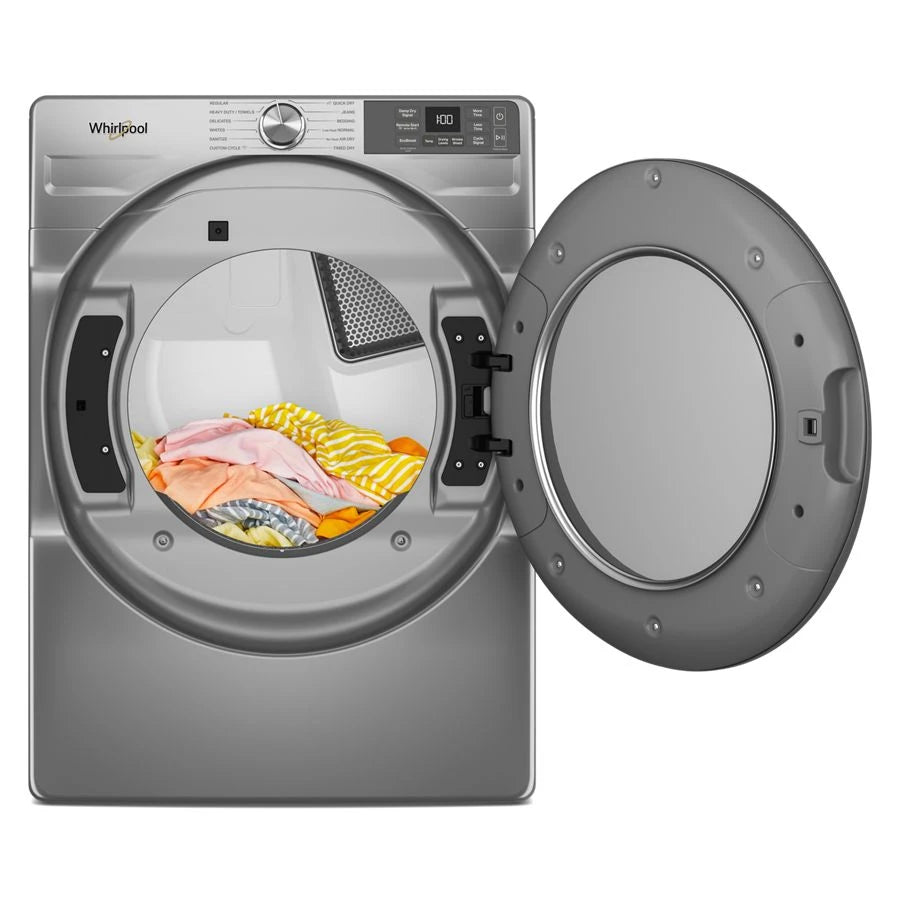

Get room to dry large loads with 7.4 Cu. Ft. Capacity. It easily handles bulky items like comforters and sleeping bags. -
Cycle Notification
Stay on top of your laundry with cycle notifications to ensure finished loads aren’t left behind.**WiFi & App Required. Details and privacy info at whirlpool.com/connect. Appliance must be set to Remote Enable. -
Stain Guide
Get step-by-step instructions based on your fabric type in the Stain Guide to take on everyday stains like coffee, grass, mud and more.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Select stains only. -
Voice Control
Control your smart washer or dryer hands-free with simple voice commands using a voice-enabled device.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable. -
Family Share
Easily add family members to your Household in the Whirlpool® App, allowing shared access to all the connected Whirlpool® appliances associated with your account. Now, anyone can start the machine, receive notifications, and create their favorite cycles right from the app.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable. -
Specialty Cycles
Use the Whirlpool® app to get access to additional cycles not available directly on your appliance, including cycles designed for activewear, jeans, swimwear and more.**U.S. only. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable. -
Favorite Cycles
Pin and save up to 10 favorite cycles in the app for easy access right from the home screen.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable. -
Custom Cycles
Design a custom cycle that fits your needs and save it directly to your machine.**WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable. -
ENERGY STAR® Certified
ENERGY STAR® certified models exceed government standards to help conserve natural resources and save money on your utility bills. -
Stackable
Make the most of your space with the option to stack your appliances vertically, using the available stacking kit. -
Pedestals
Raise your dryer for easier loading and unloading. Optional laundry pedestals also provide space-saving storage for detergent, fabric softener and other supplies.**Sold seperately -
Air Flow Detection
Air Flow Detection monitors airflow to ensure optimal drying times and performance. Blockages decreasing airflow will turn on a message letting you know when its time to check your house venting. -
EcoBoost™ Option
Use less energy while getting great drying performance with the EcoBoost™ Option.* This option saves energy by using less heat and an extended cycle time.*Savings may vary by load type. -
Quad Baffles
Four baffles tumble clothes in a randomized pattern, allowing items to open up freely. This helps increase the effectiveness of the dryer for small loads. -
An American Company for Over 100 Years
Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years
Manuals & Guides
Key Features
Air Dry Cycle
Avoid heated dry and protect delicate items with the Air Dry cycle.
Quick Wash & Dry
Finish laundry in less than 1 hour by pairing the 25 minute Quick Wash cycle with the 30 minute timed dry.* Experience the ultimate time-saving duo for hassle-free laundry days.*Based on a 10-lb load when paired with a traditional vented dryer on medium heat.
Smart Features with Whirlpool® App
Be in control and stay connected from anywhere. The Whirlpool® App lets you start, pause, track progress and receive notifications when you're away, so you can manage laundry day right from your smartphone.**Features subject to change. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to remote enable.
