Product Details for WHIRLPOOL WDT550SAPB

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 9.97 ft³
Dimensional Weight 123.93 lbs.
Total of Cubes 9.97 ft³
Total of Dimensional Weight 123.93 lbs.

Exterior details

Door Style Drop Down
Magnetic Door Yes
Window No

Details

Built-In Water Softener Yes
Dishwasher Type Built-In
Dispensers Detergent and Rinse Aid
Drying System Type Open Door System
Number of Place Settings 14

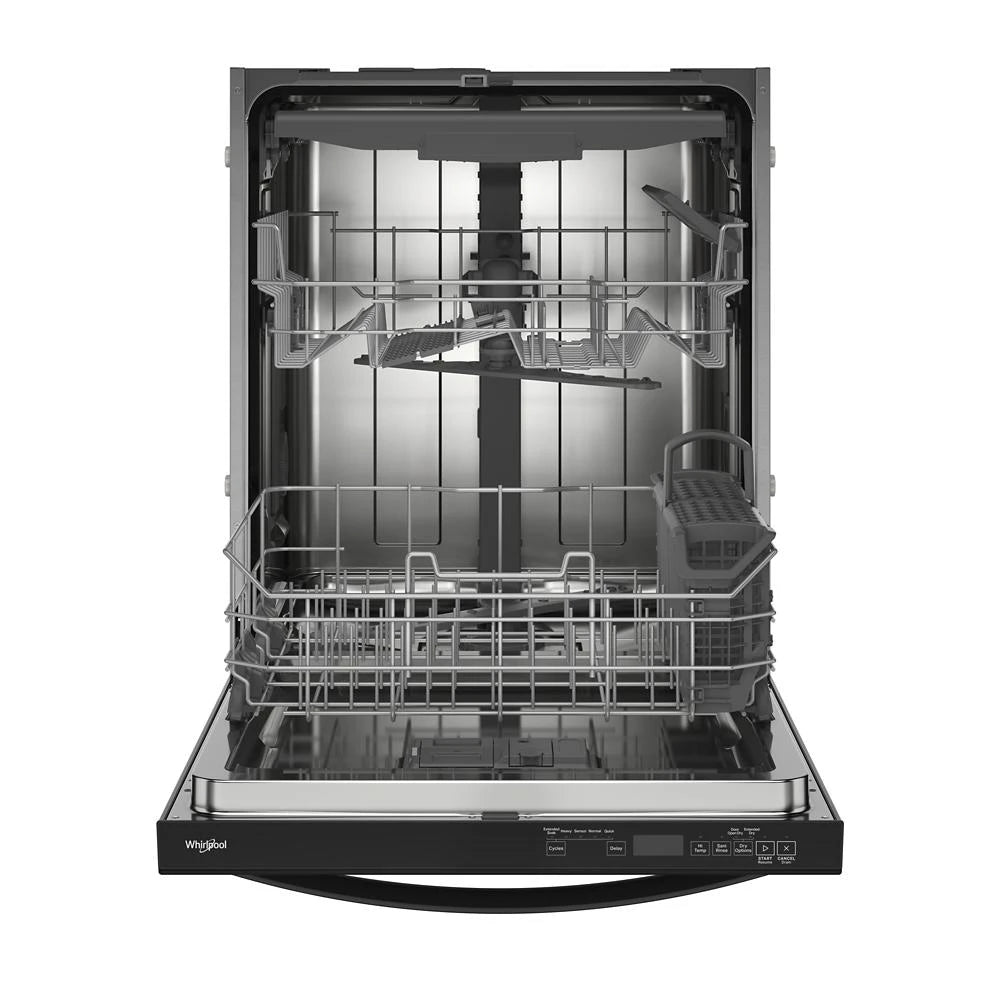

Number of Racks 3
Number of Wash Levels 3
Number of Washarms 3
Rinse Aid Dispenser Level Indicator No
Sensor Yes
Sound Package Yes
True Hold Door Yes
Tub Material Stainless Steel
Tub Style Built-in Tall Tub 24in.
Wash System Filter
Wash System Type Removable Filter
Water Filtration Yes

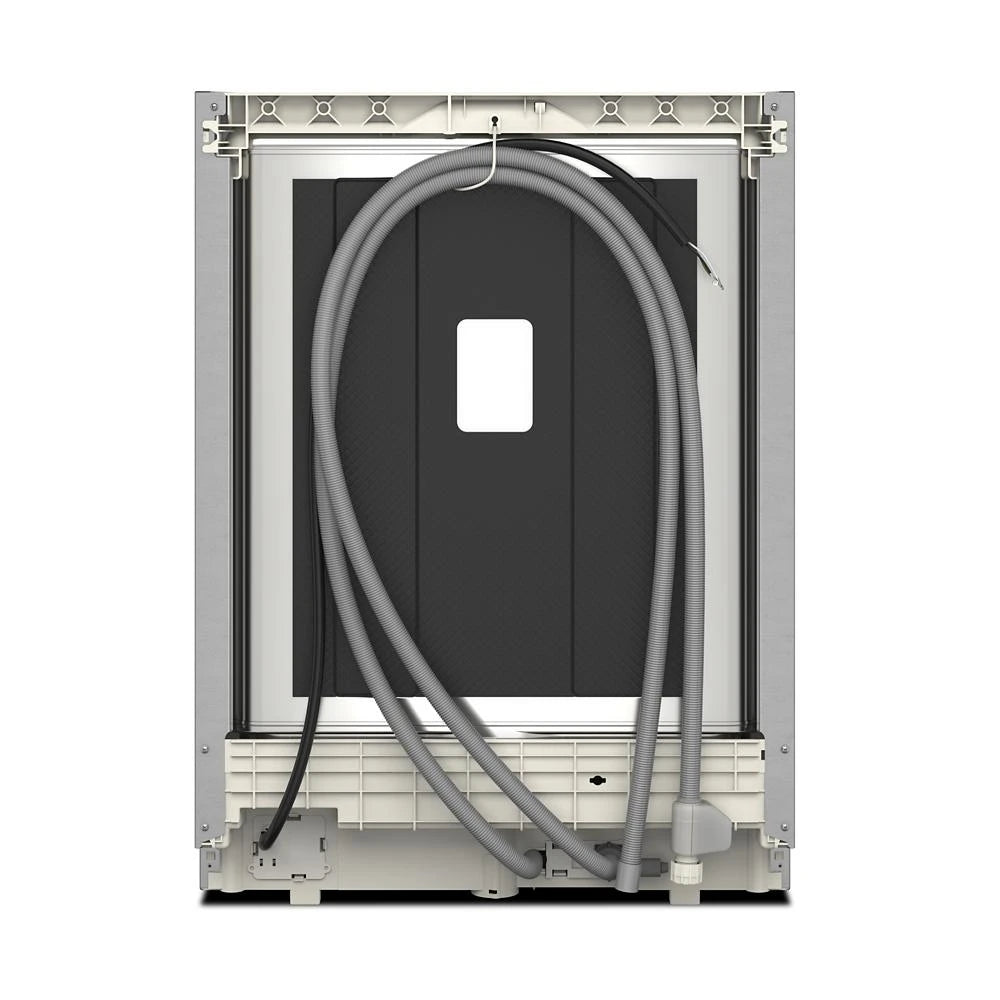

Hoses Included Yes, Drain
Dishwasher Cycle Selection Extended Soak; Heavy; Normal; Quick Wash; Sensor
Dishwasher Option Selections Delay; Door Open Dry; Extended Dry; Hi Temp Wash; Sani Rinse

Rack details

Lower Rack Cushion-Tip Tines No
Lower Rack Extras Two Caddies
Lower Rack Fold-Down Tines No
Lower Rack Style Straight
Second Level Rack Adjustable Yes
Second Level Rack Cushion-Tip Tines No
Second Level Rack Extras 2-Plastic Cup Shelf Overmolded
Second Level Rack Fold-Down Tines No
Second Level Rack Glides Non Ball Bearings
Third Level Rack Adjustable No
Third Level Rack Glides N/A
Third Level Rack Removable Yes
Third Level Rack Type Toss and Go

Smart compatibility

Connectivity No
Works With No

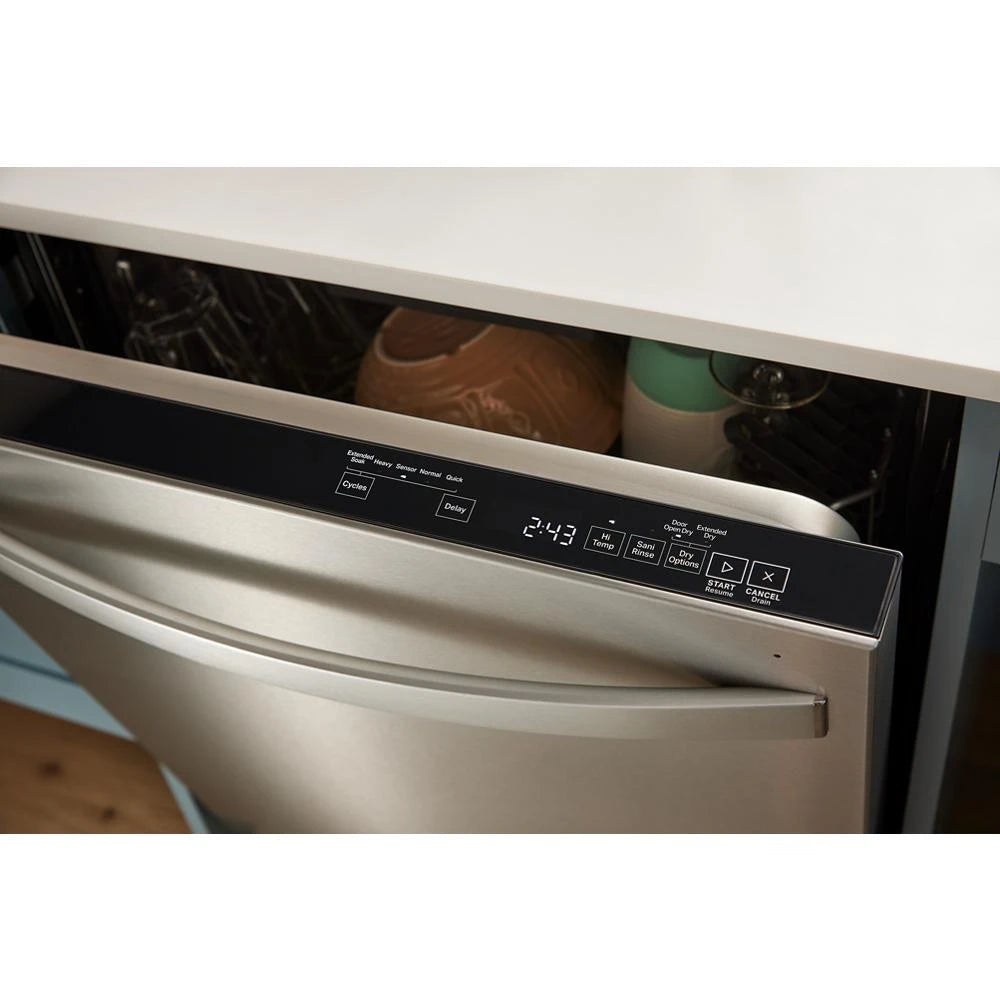

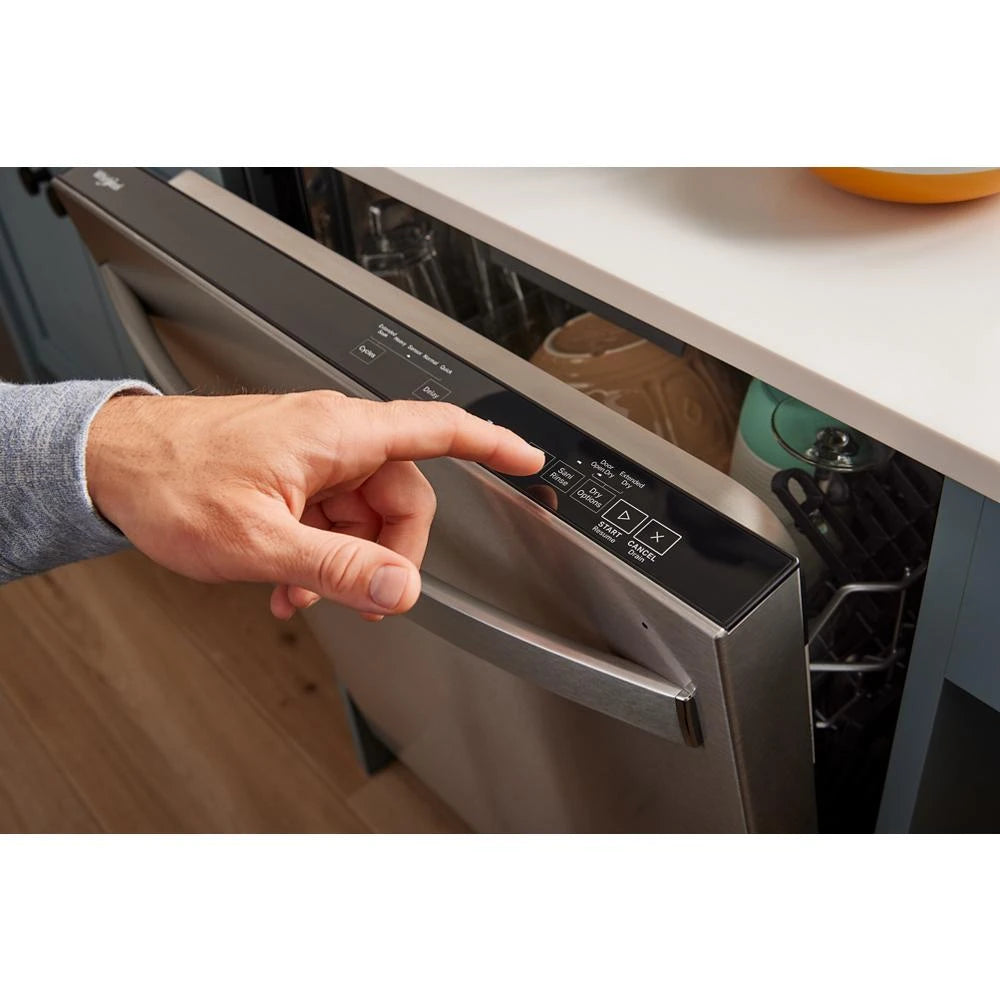

Controls

Automatic Temperature Controls Yes

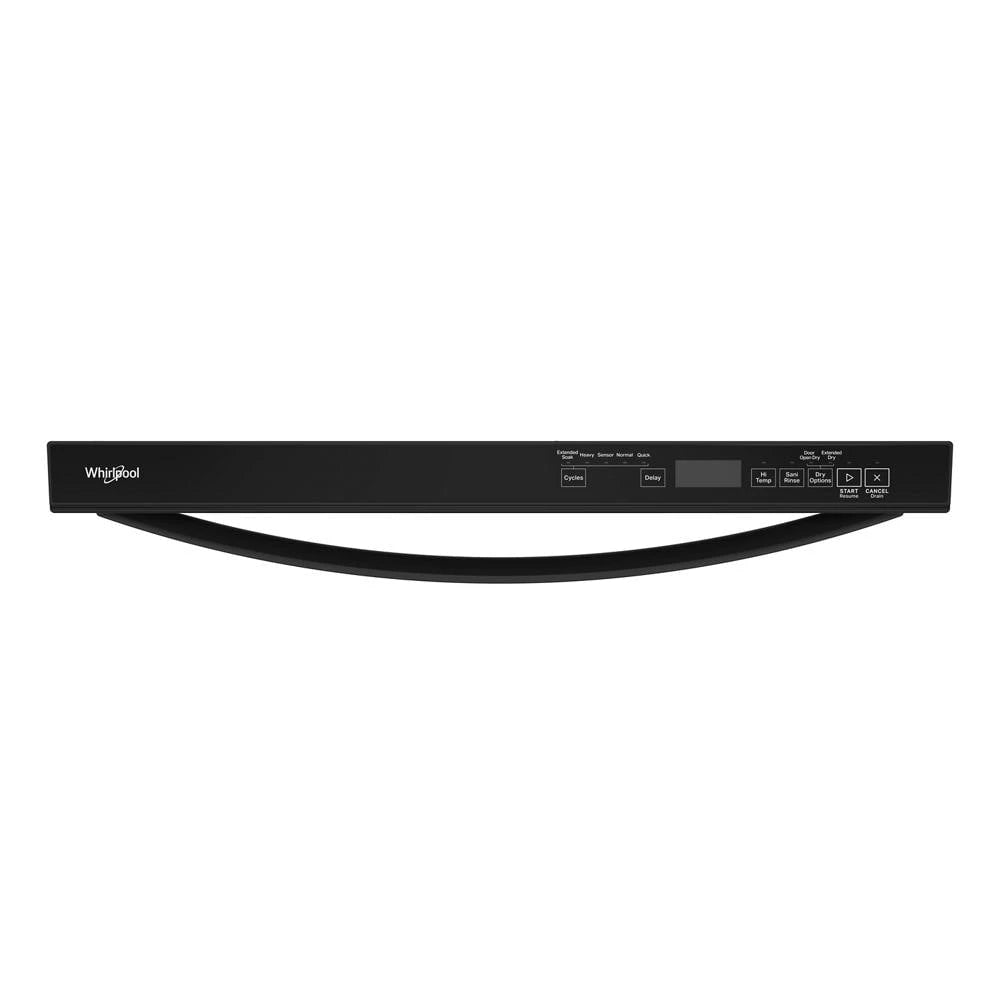

Control Location Top Hidden

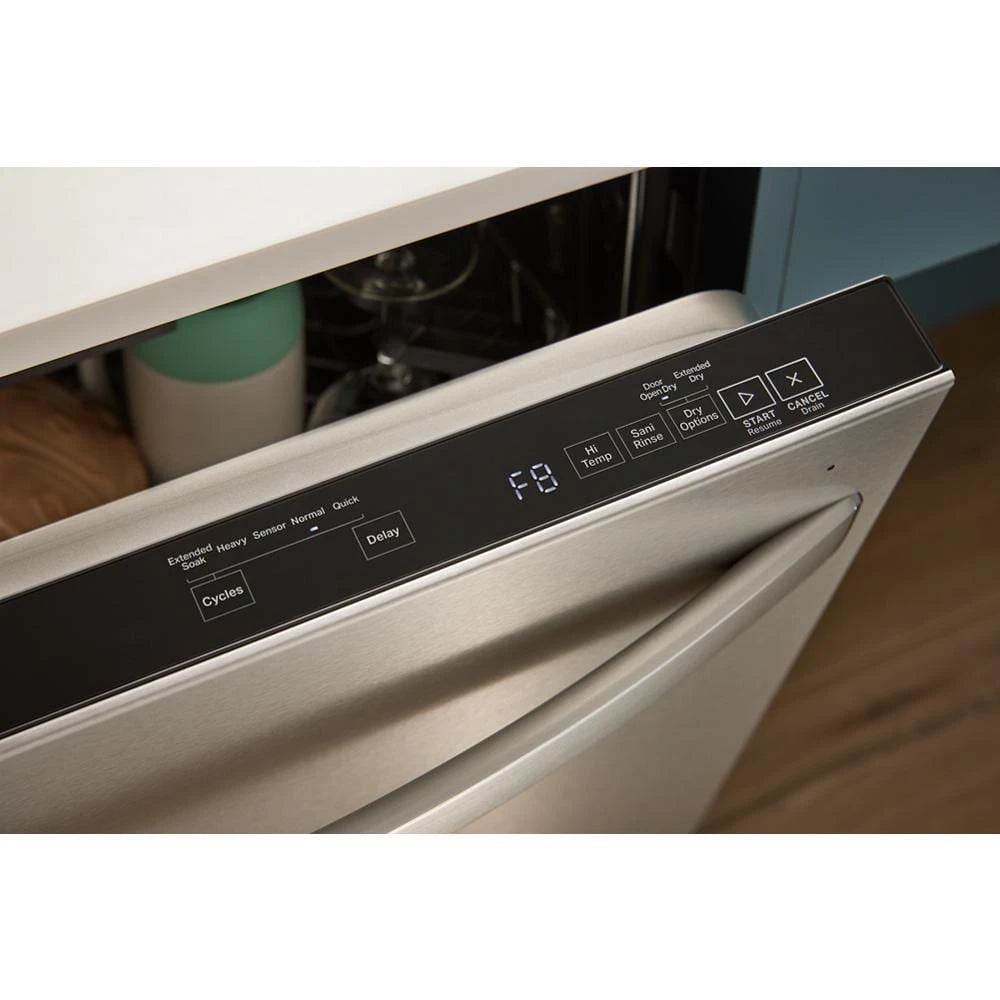

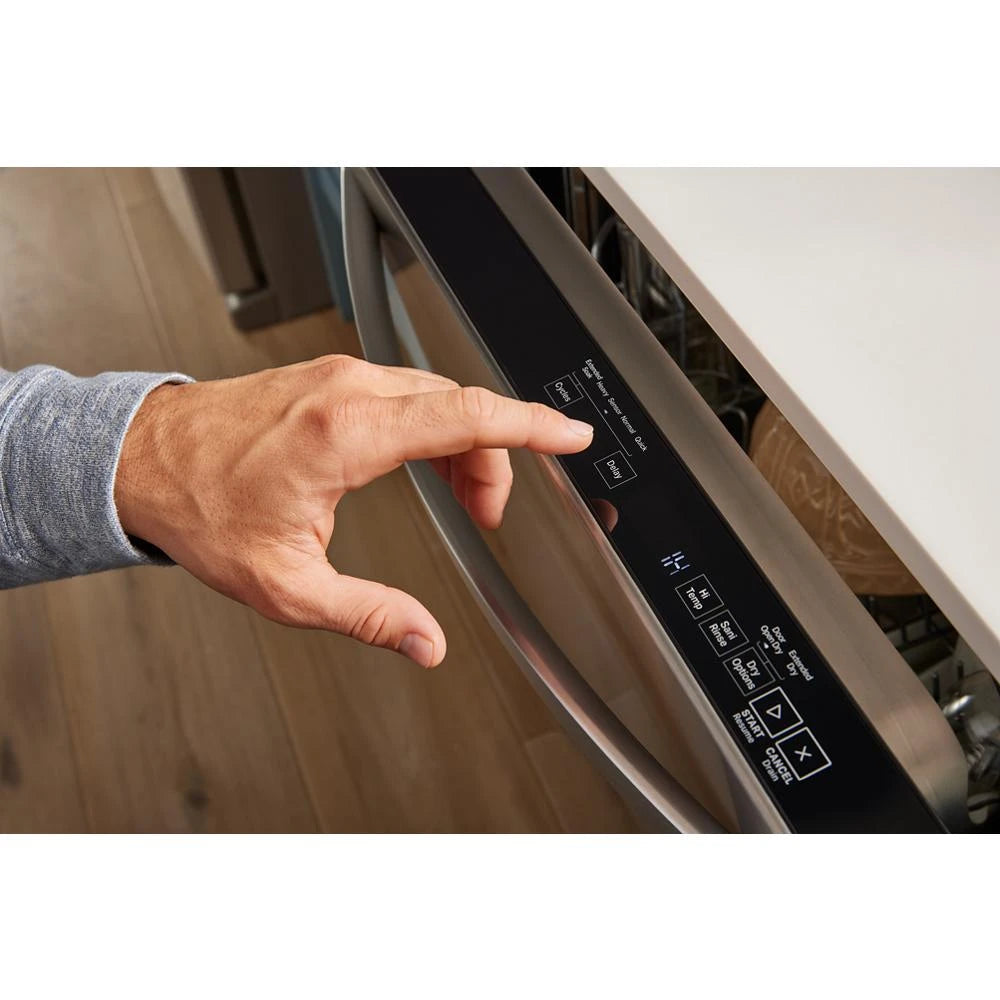

Control Type Electronic Touch
End of Cycle Signal Yes

Cycles

Number of Wash Cycles 5

Electrical

Power Cord Included No

Silverware basket details

Silverware Basket Covers Yes
Silverware Basket Location Bottom Rack
Culinary Basket Yes
Silverware Basket Type Full Length Non Splittable

Certifications

ADA Compliant Yes (US Only)
CUL Yes
NSF Certified Yes
prop65 Standard
Energy Rating (kWh/year) 240

Dimensions

carton depth 26.57
carton height 35.82
carton width 24.6
Cutout Depth 22.875
Cutout Height 32.313
Cutout Width 23.625
Depth Closed Excluding Handles 22.625
Depth Closed Including Handles 25.375
Depth With Door Open 90 Degree 47.25
gross weight 91.88
net weight 87.7

Oven details

Interior Light No
Lower Rack Glides Non Ball Bearings
Lower Rack Utility Basket Yes

Performance details

Motor Horsepower 9/10 HP

Product details

Decibel Level (dBA) 44
Dishwasher Rack Material Nylon
Energy Star® Qualified ENERGY STAR® Qualified
Kosher Consumer Friendly No

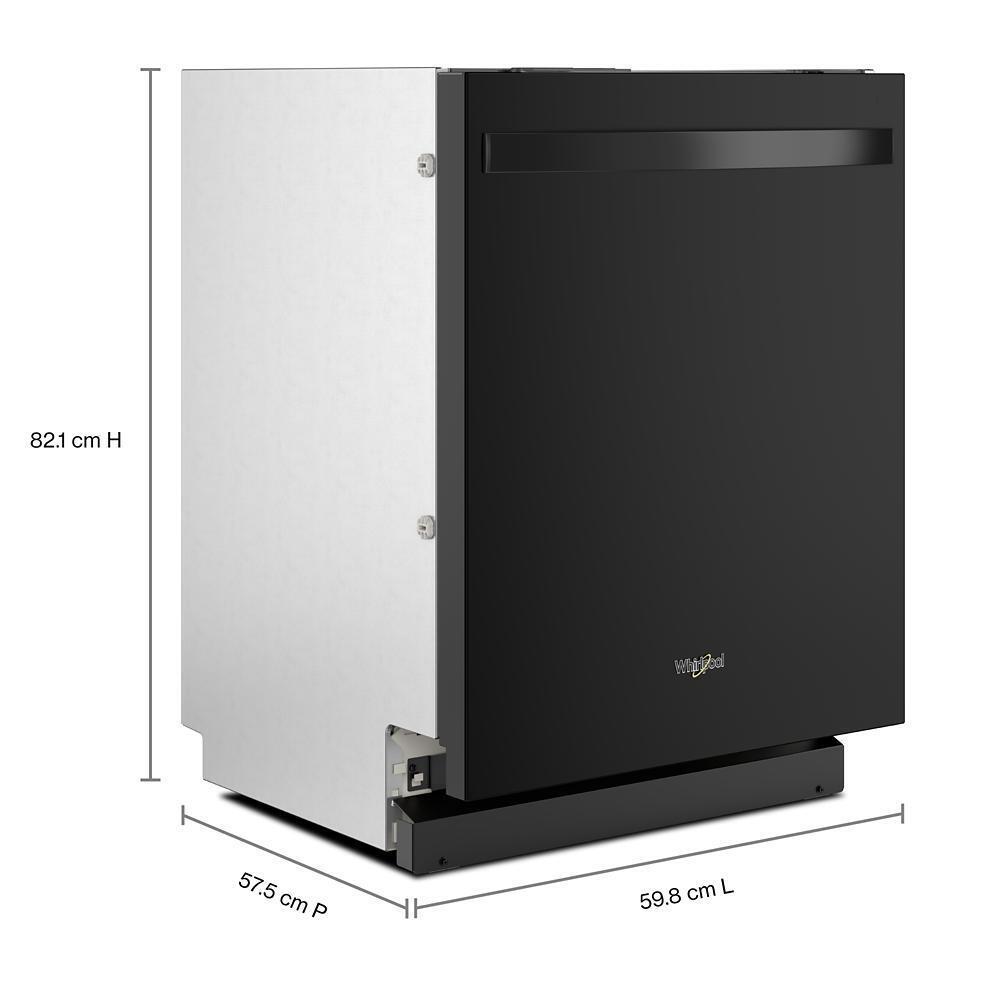

Dimensions & weight

Width 23.56 in.
Height 32.31 in.
Length 22.63 in.
Weight 91.88 lbs.
Cutout Depth 22-7/8 in
Cutout Height 32-313/1000 in
Cutout Width 23-5/8 in
Depth Closed Excluding Handles 22-5/8 in
Depth Closed Including Handles 25-3/8 in
Depth With Door Open 90 Degree 47-1/4 in
Gross Weight 91-22/25 lbs
Maximum Height 35-7/16 in
Minimum Height 32-5/16 in
Net Weight 87-7/10 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 24.6 in.
Shipping Height 35.82 in.
Shipping Length 27.63 in.
Shipping Weight 131.88 lbs.
Total of Shipping Weight 131.88 lbs.
Source Calculation

Description

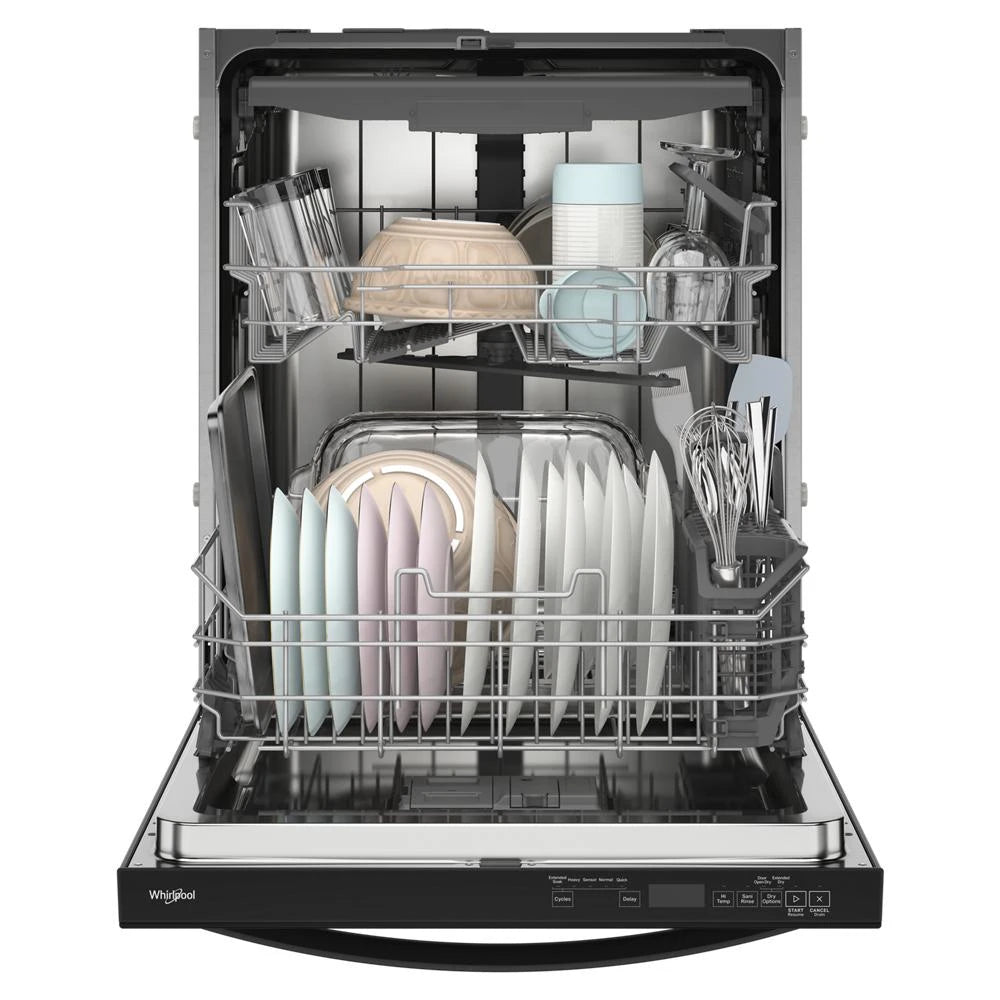

Get a built-in look with this flush-mount dishwasher. Load hard-to-fit utensils in the 3rd Rack and get enhanced drying with Door Open Dry. And at just 44 dBA, this ADA dishwasher gives a quiet clean that won't interrupt mealtime.



Product Features

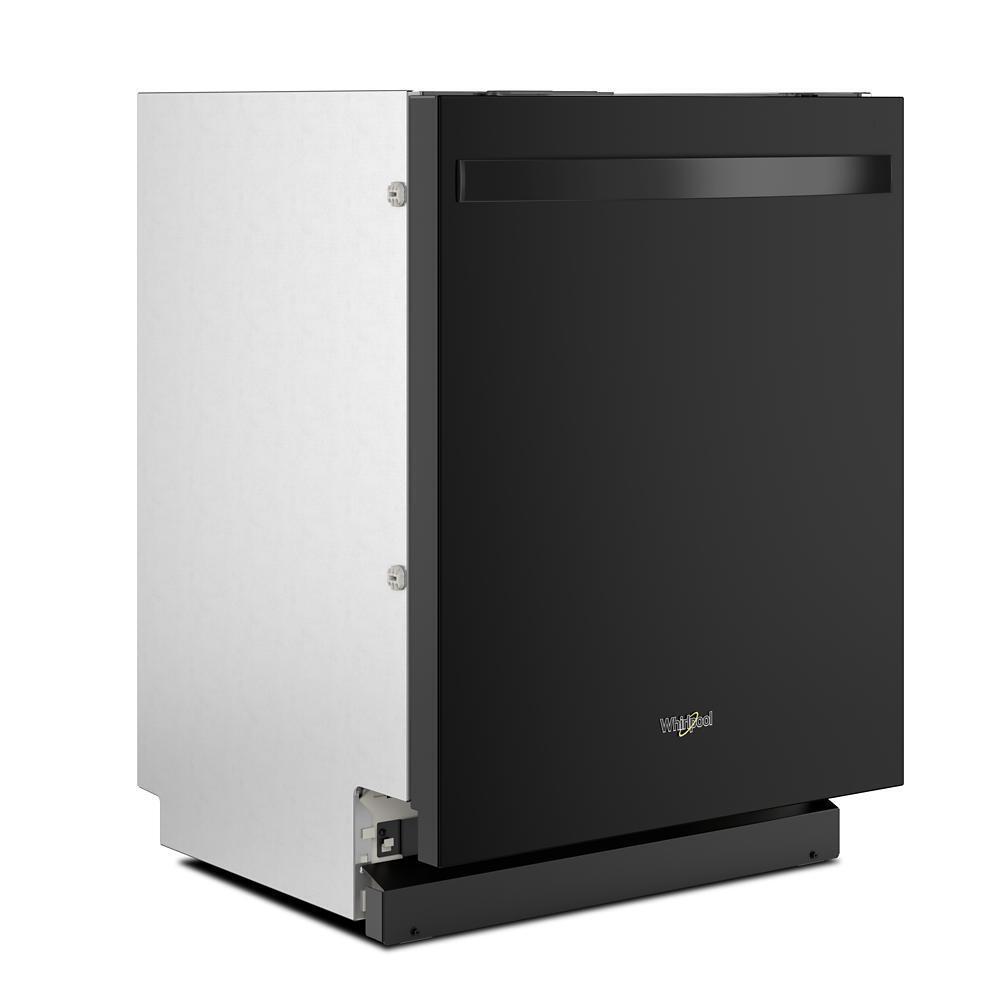

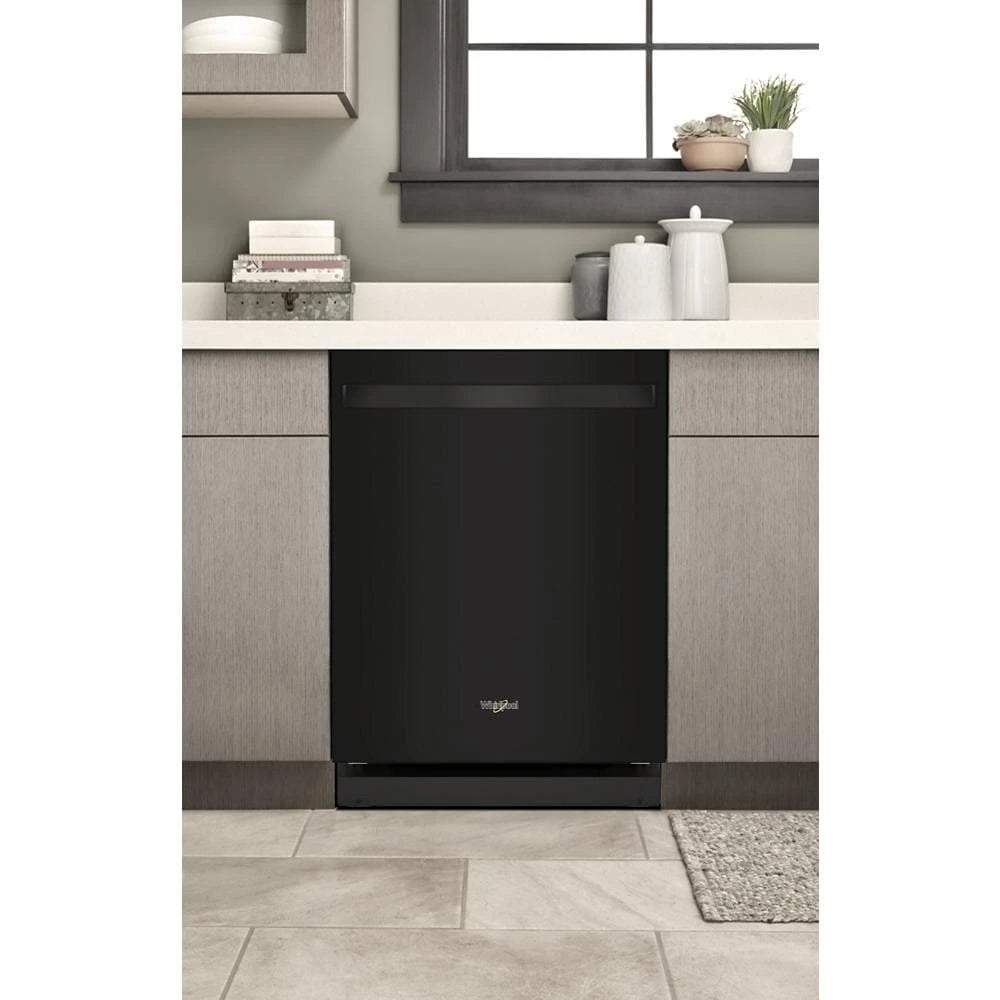

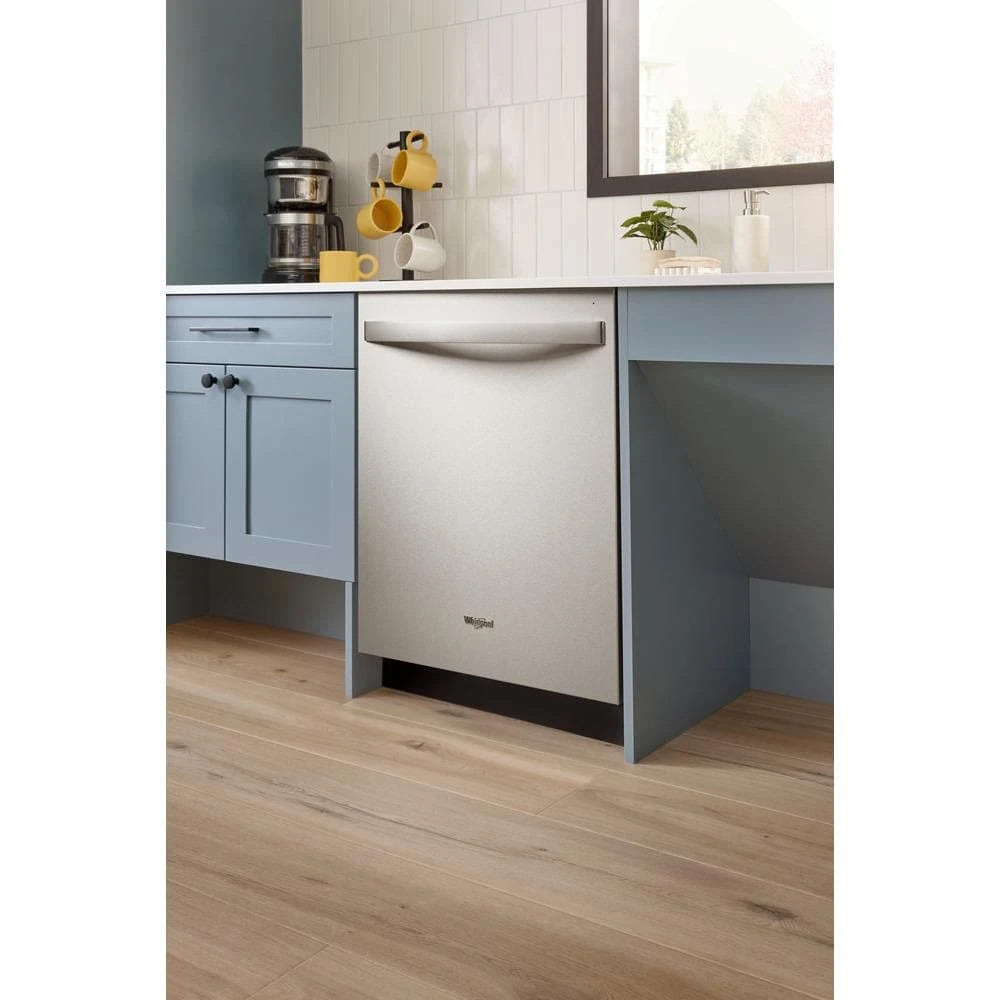

  • Flush Installation
    With Flush Installation, your dishwasher will sit flush with the cabinets giving it a built-in look.

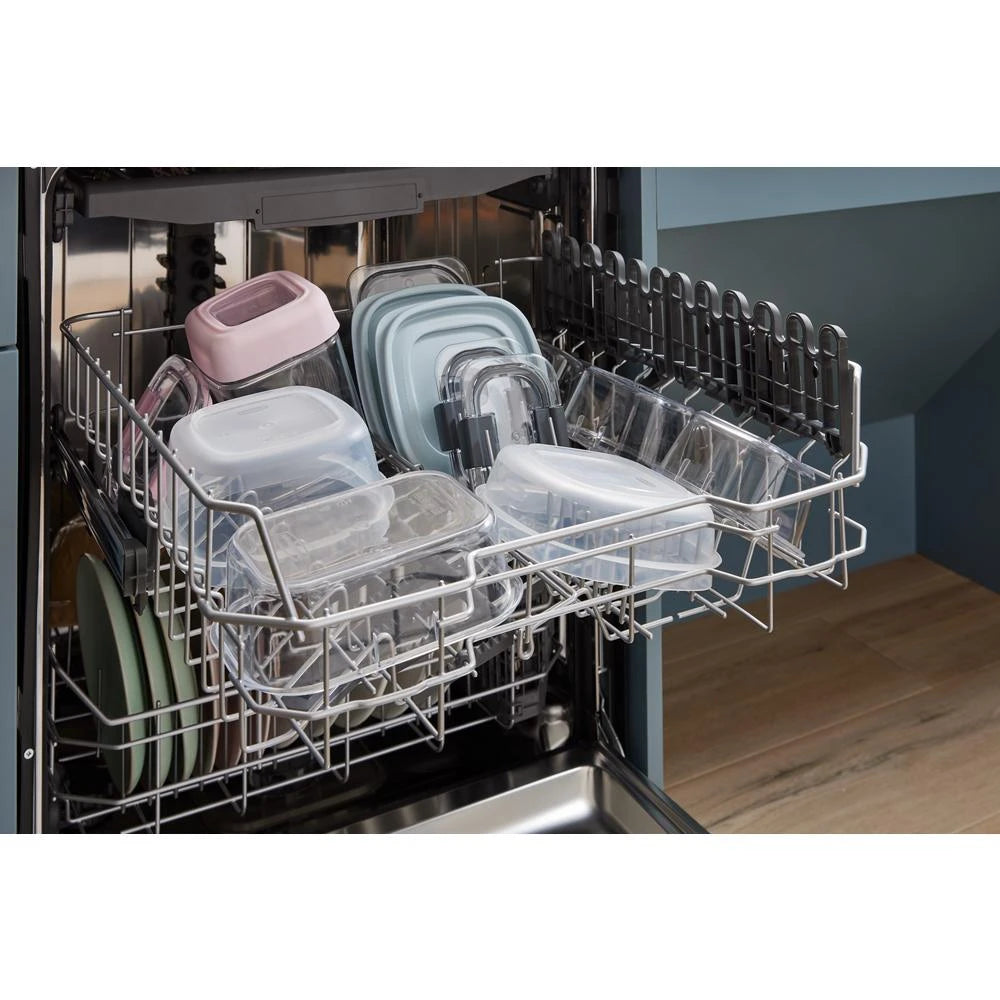

  • Adjustable 2nd Rack
    Make room for taller items like water bottles with adjusters that smoothly raise or lower the Adjustable 2nd Rack.

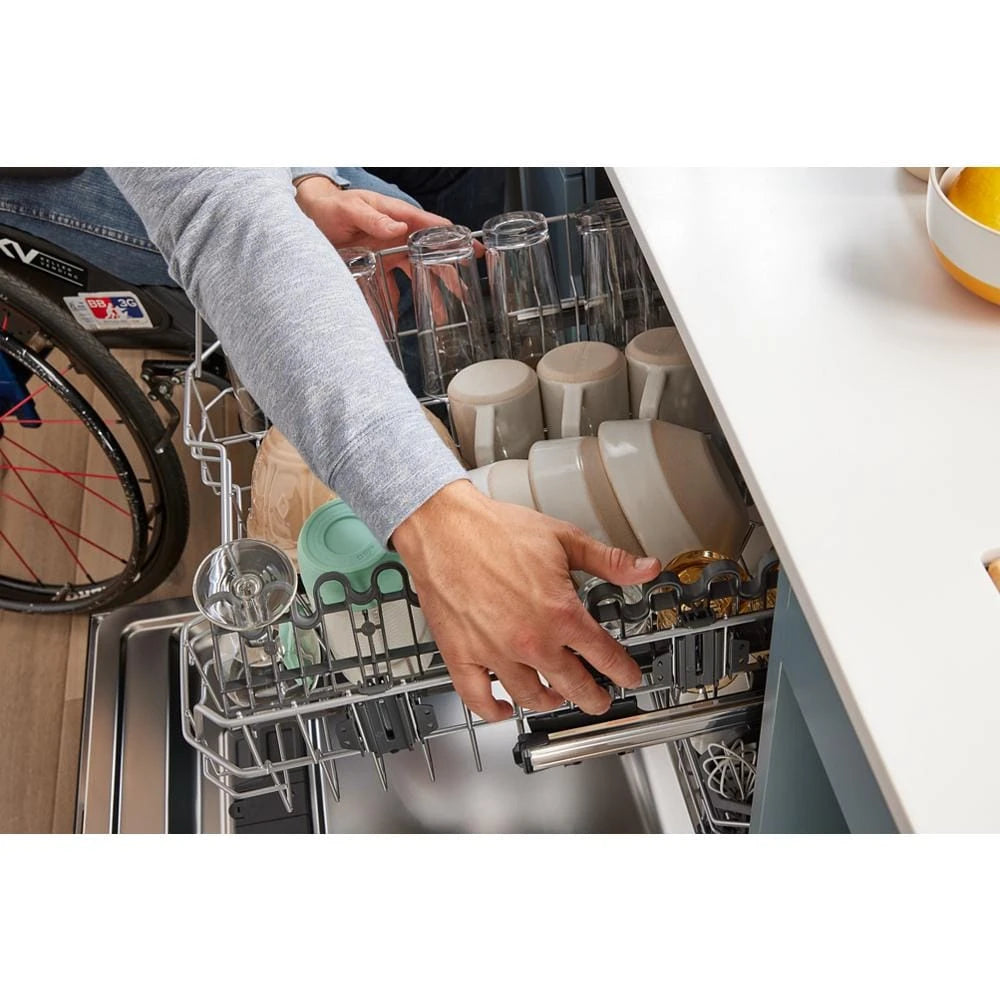

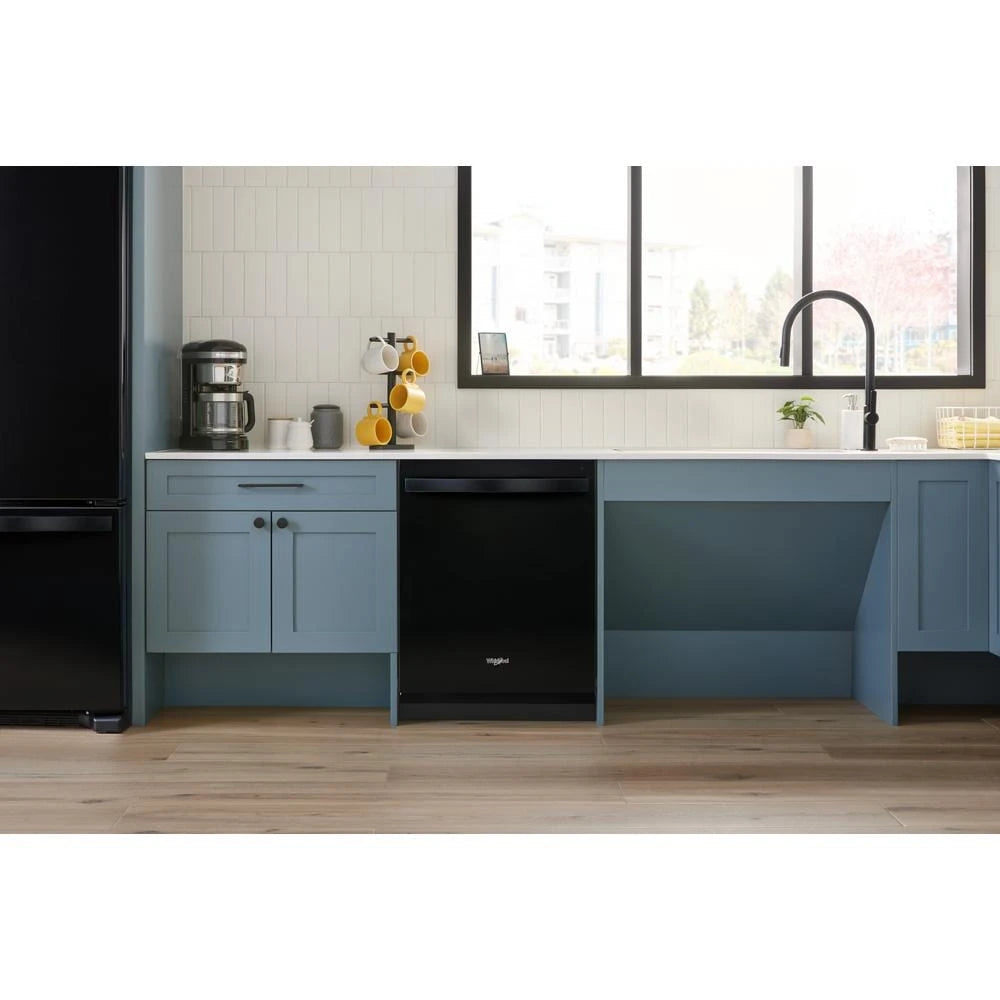

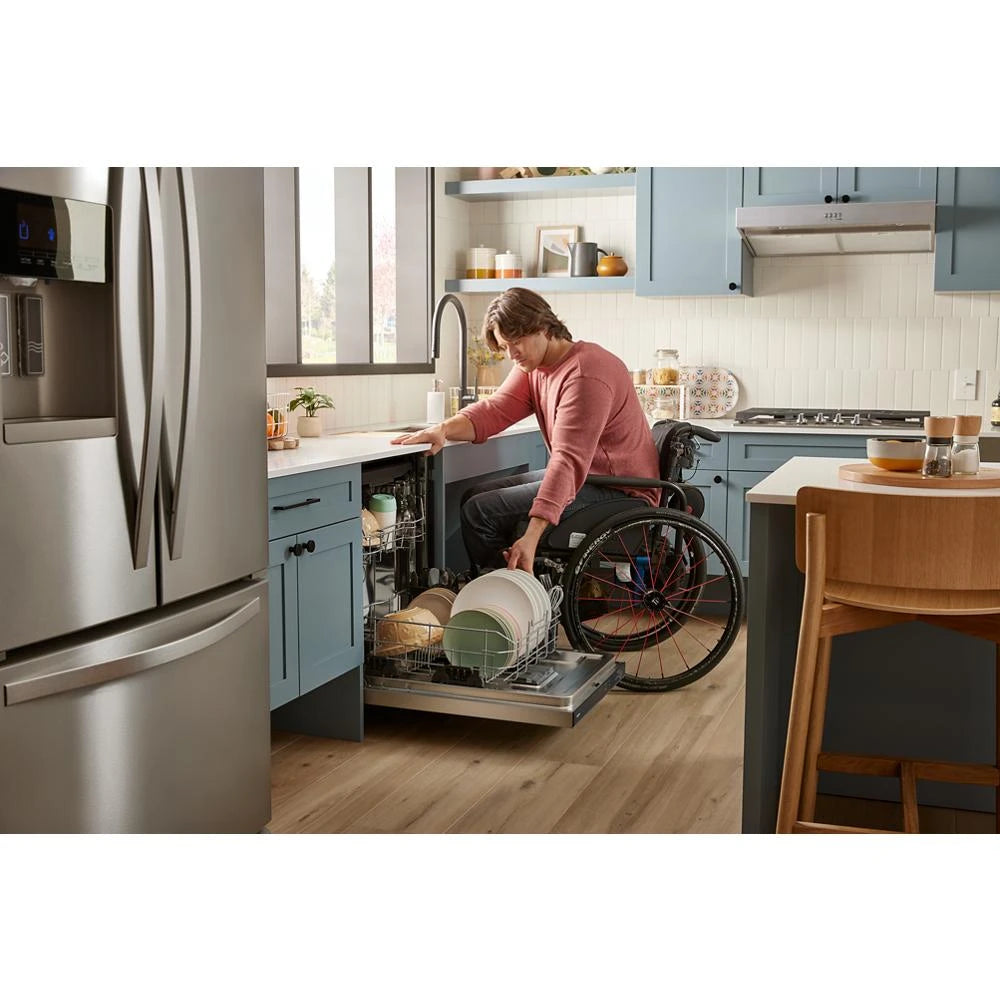

  • ADA Compliant (U.S Only)
    With adjustable feet, this dishwasher can be installed in a standard and ADA cutout. Installed in the ADA cutout, this dishwasher meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.(U.S Only)

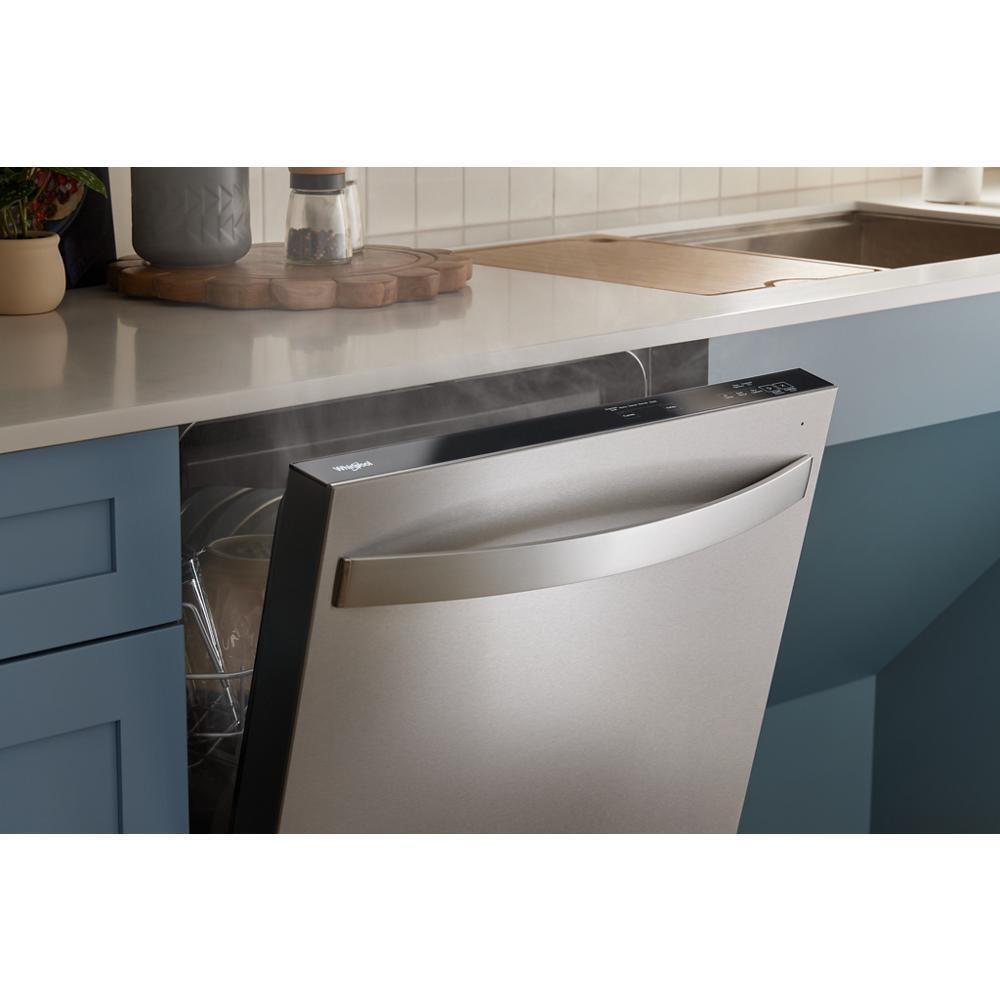

  • Door Open Dry
    To use less energy at the end of the cycle, the door automatically opens to let hot air out and fresh air in to improve drying and create less condensation on dishes.
  • 44 dBA
    Get a quiet clean that won't interrupt mealtime with a sound level of just 44 dBA.

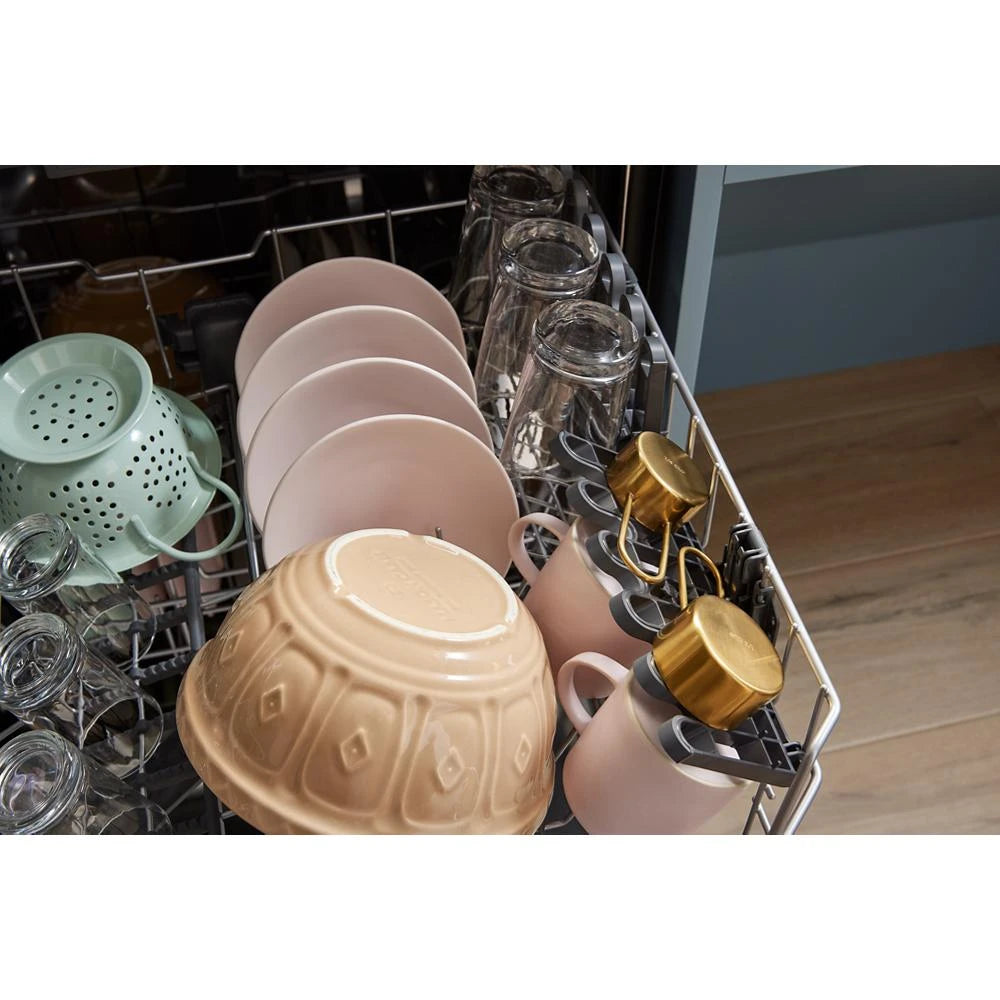

  • 3rd Rack with Enhanced Drying
    With 30% more rack space*, it's easy to load silverware and hard-to-fit utensils like tongs or even measuring cups and spoons to free up space on the other racks. And with 50% less water retention, 3rd rack utensils will come out 2 times drier** thanks to our water-repelling technology.*Compared to Whirlpool® Dishwashers without a third level rack.**Compared to our standard third level racks

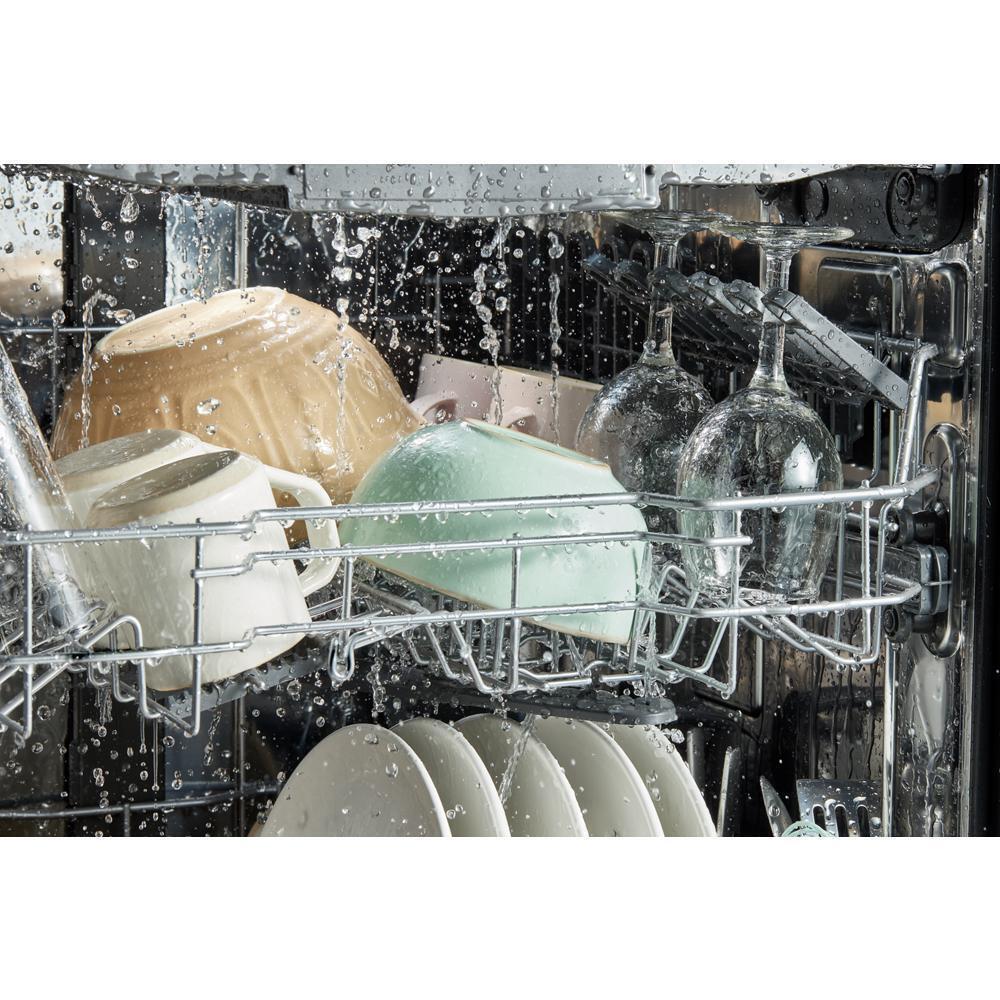

  • Cup Shelf
    Two 8" Cup Shelves fit five additional cups or bowls to free up extra space in the racks below and conveniently folds down to stay out of the way when not in use.

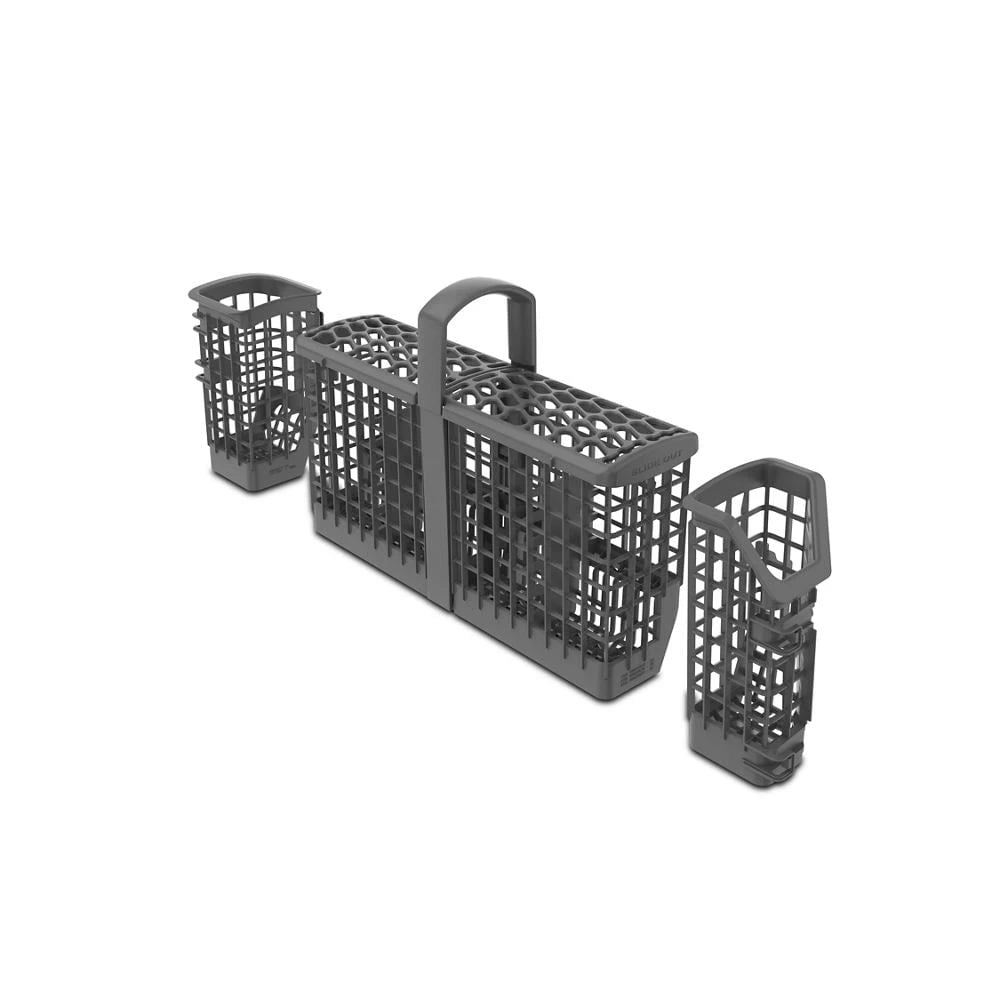

  • 3-Piece Silverware Basket
    Gain extra space in the lower rack for casserole dishes and large pans by moving or separating the 3-piece silverware basket.
  • Leak Identification System
    Helps detect most types of leaks. If the system detects a problem, a light will flash on the front of the dishwasher to alert you, and the dishwasher will proceed to drain water from the tub.**Will not detect leaks from the water inlet or tub drain connections and hoses or leaks due to cracked tubs or doors
  • Triple Filtration Wash System
    Keep dishes clear of rinsed food particles with a Triple Filtration Wash System that uses a coarse filter to catch large soils, a fine filter to catch medium soils and a micro-fine filter to catch small soils between wash stages.

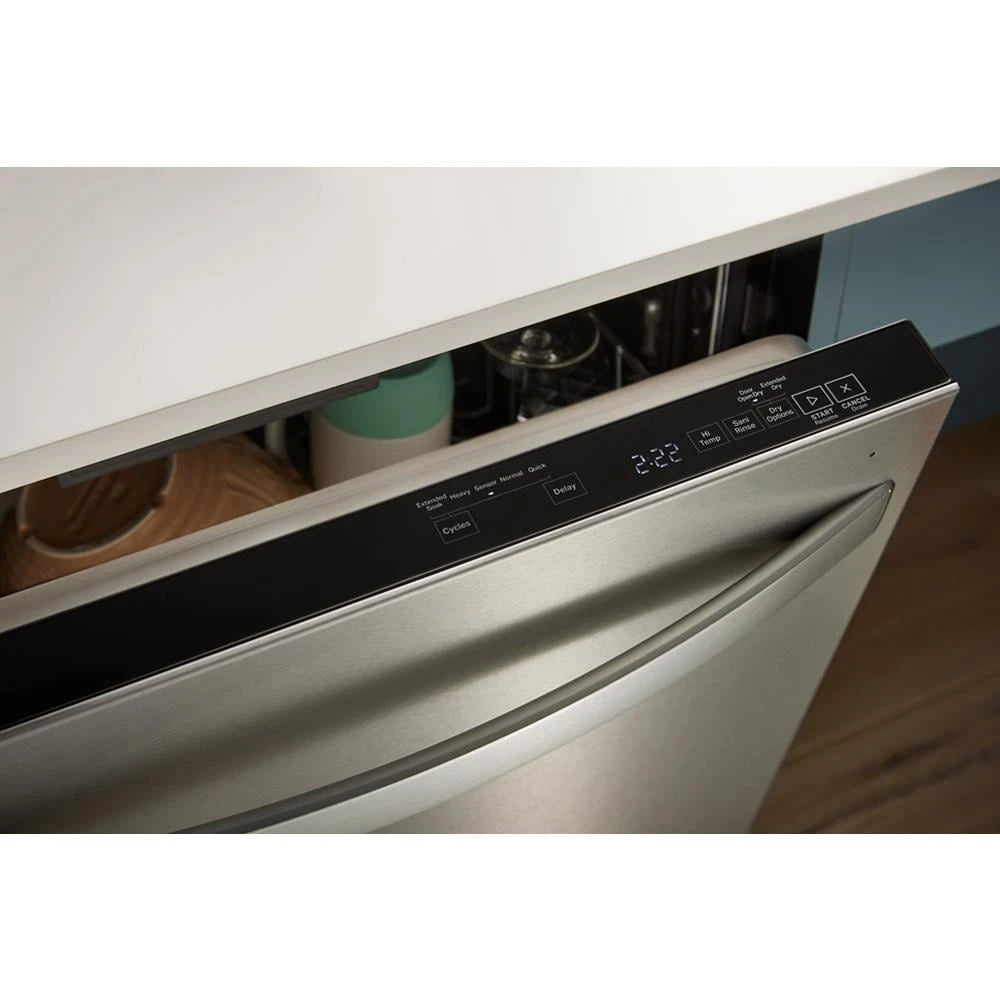

  • Cycle Status Indicator
    The status indicator light glows blue while your dishwasher is running, red when drying and white when the cycle is complete, so there's no need to guess when your dishes will be ready.

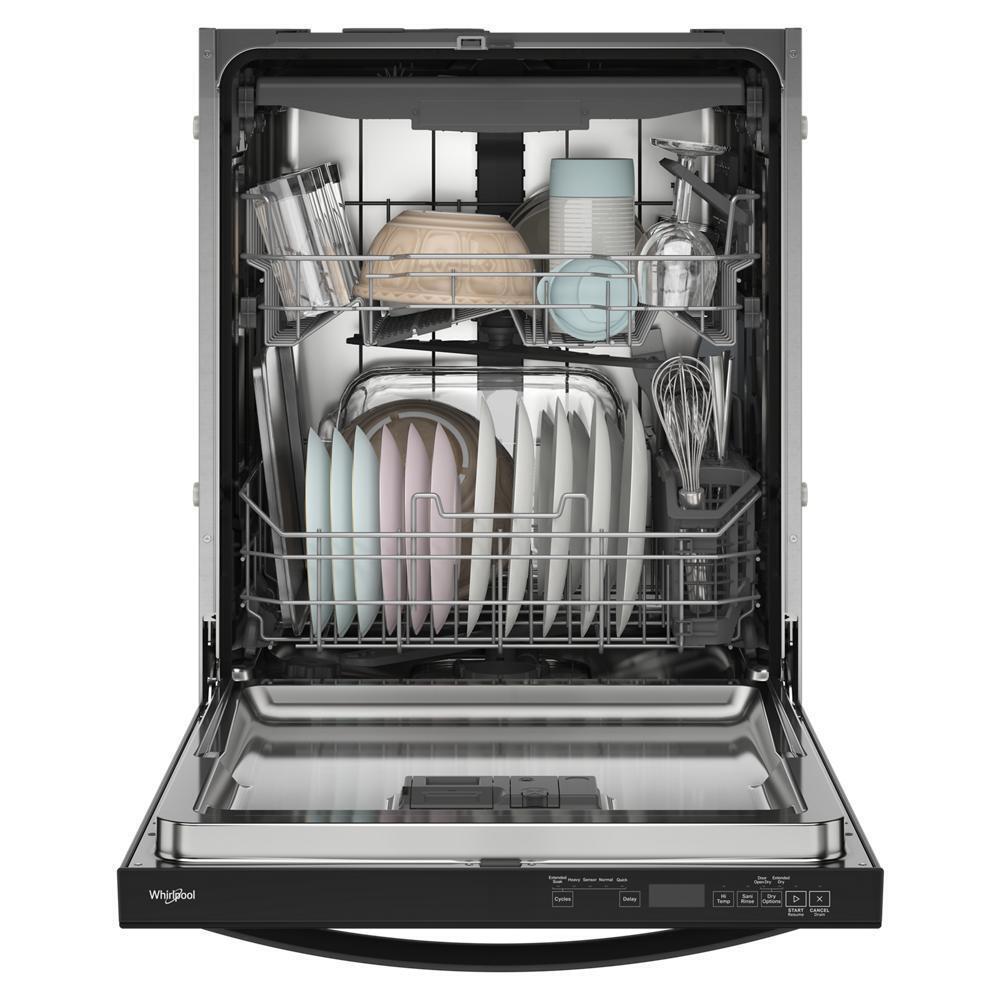

  • 14 Place Settings
    Holds up to 14 place settings, including 14 dinner plates, salad plates, saucers, bowls, cups, glasses, knives, dinner forks, salad forks, small spoons and large spoons.
  • Extended Dry Option
    Use a clean, dry dish straight from the dishwasher thanks to added heat for drying.

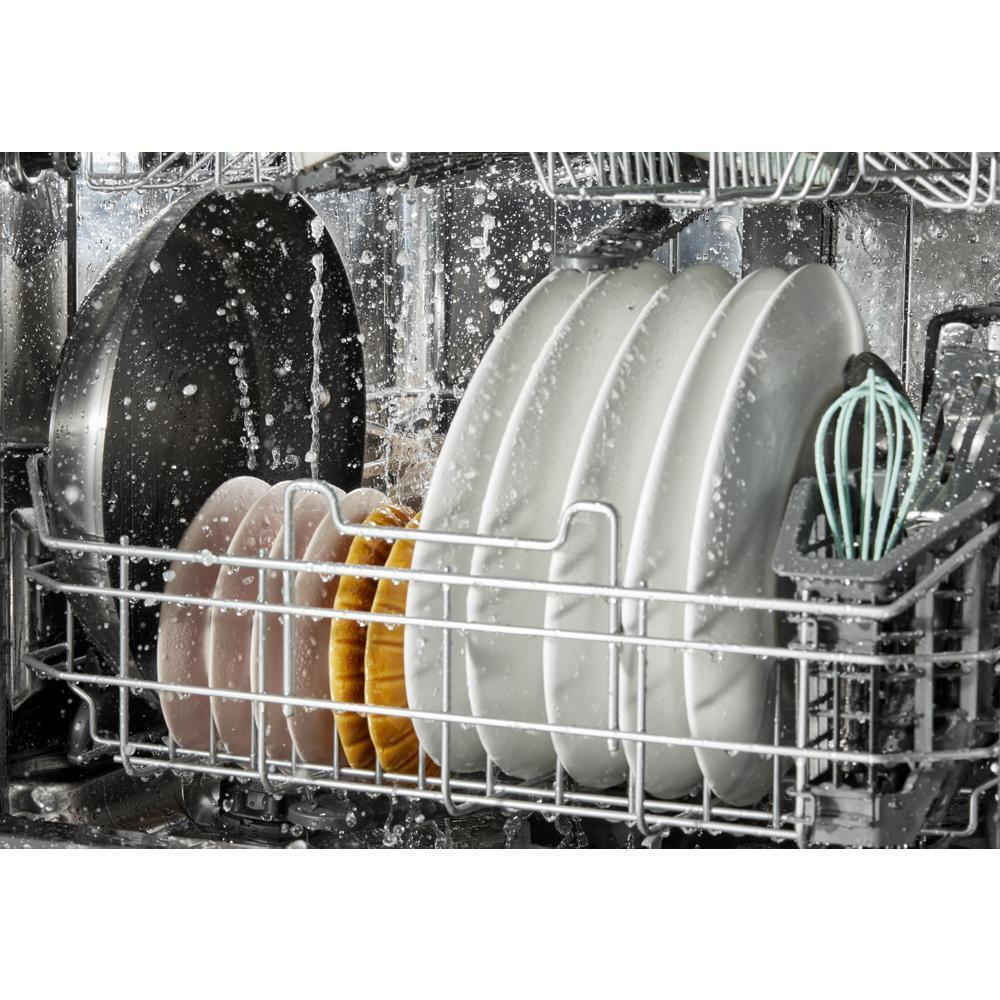

  • Heavy Cycle
    Extra cycle time and water take care of heavily soiled messes and hard-to-clean dishes.
  • Extended Soak Cycle
    Presoak and wash in one cycle so stuck-on food dissolves away without any extra steps.
  • Sensor Cycle
    Automatically get the right wash and dry settings for each load with two sensors that measure temperature and soil level during prewash and the wash cycle.
  • Normal Cycle
    Use the Normal Cycle for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
  • Quick Wash Cycle
    Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.
  • High Temperature Wash Option
    High Temperature Wash Option raises the water temperature to help remove stubborn grease and food grime.
  • Sani Rinse Option
    Whirlpool® Dishwashers with the Sani Rinse Option are certified to eliminate 99.999% of food soil bacteria and reach a final rinse temperature greater than 150°F to sanitize dishes.
  • Delay Start
    Delay the start of the cycle up to 24 hours to make sure dishes are clean and dry when you need them.
  • ENERGY STAR® Certified
    ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.

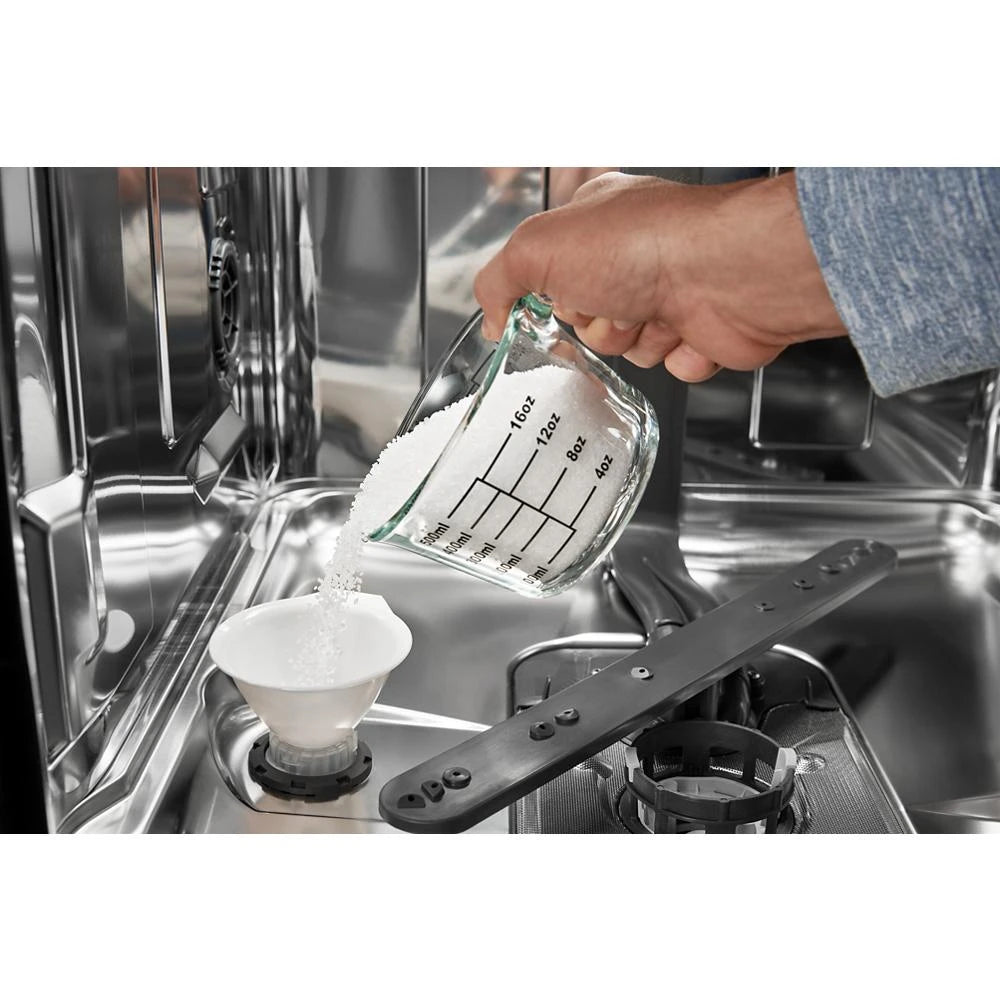

  • Optional Water Softener* *Salt sold separately.
    The built-in Optional Water Softener system helps reduce streaking and hard water stains for a more efficient clean. If you have hard water, simply switch the system on and refill the softener salt container as needed to prevent buildup and optimize performance.
  • Straw Caddy *Sold separately
    Securely clean straws, chopsticks and other slim utensils in the Straw Caddy*, designed with smaller openings along the bottom that let water through but keep everything in place.*Sold separately, part number W11327313.

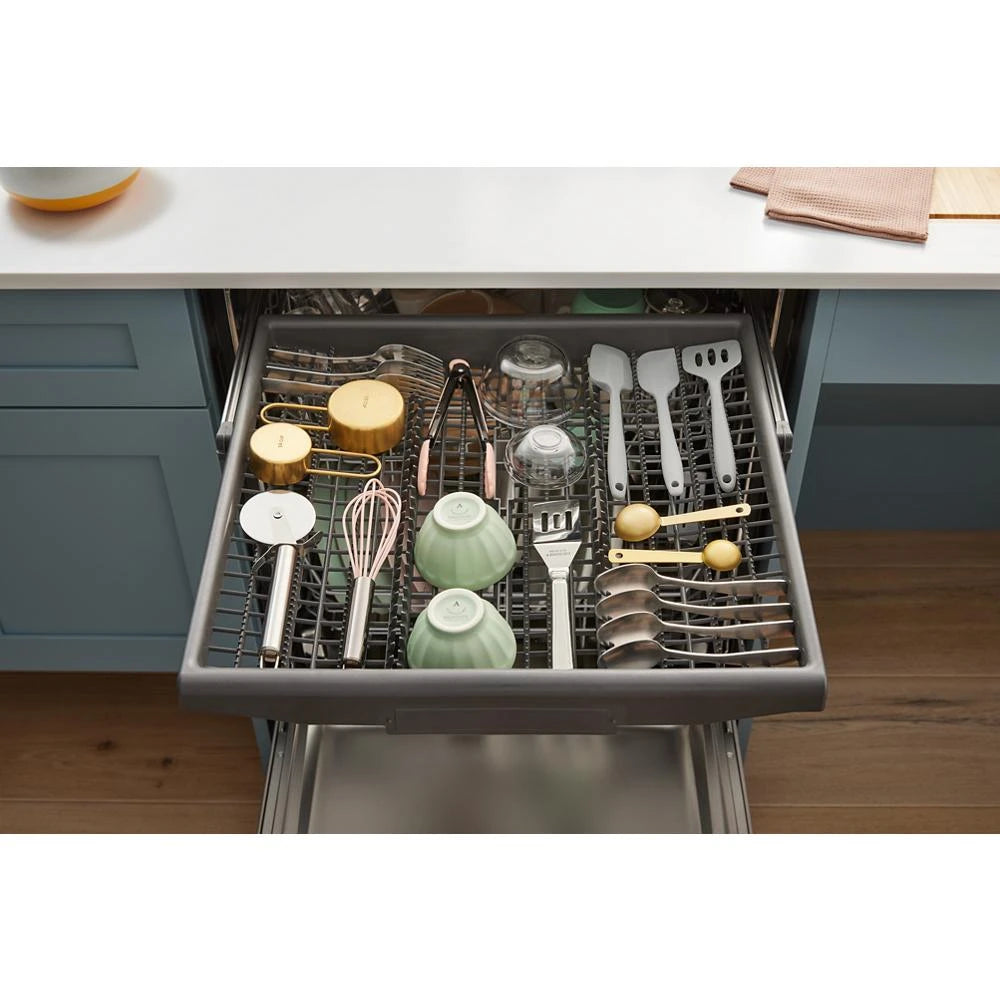

  • 3rd Rack
    Free up space for more dishes with 30% more rack space.* The 3rd Rack makes it easy to load silverware, hard-to-fit utensils like tongs or even measuring cups and spoons.*Compared to Whirlpool® Dishwashers without a third level rack.

Key Features

ADA Compliant

With adjustable feet, this dishwasher can be installed in a standard and ADA cutout. Installed in the ADA cutout, this dishwasher meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
