SKU: UXT5236BDS | UPC: 883049326542

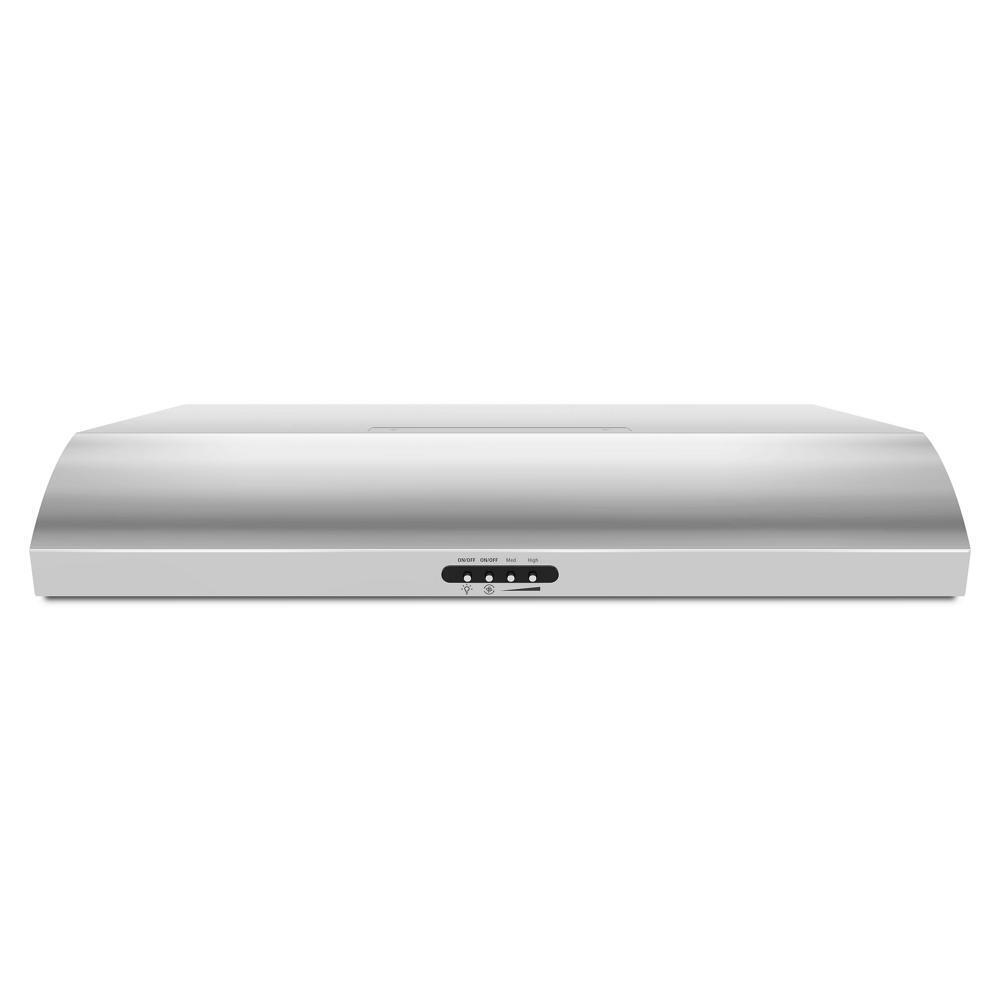

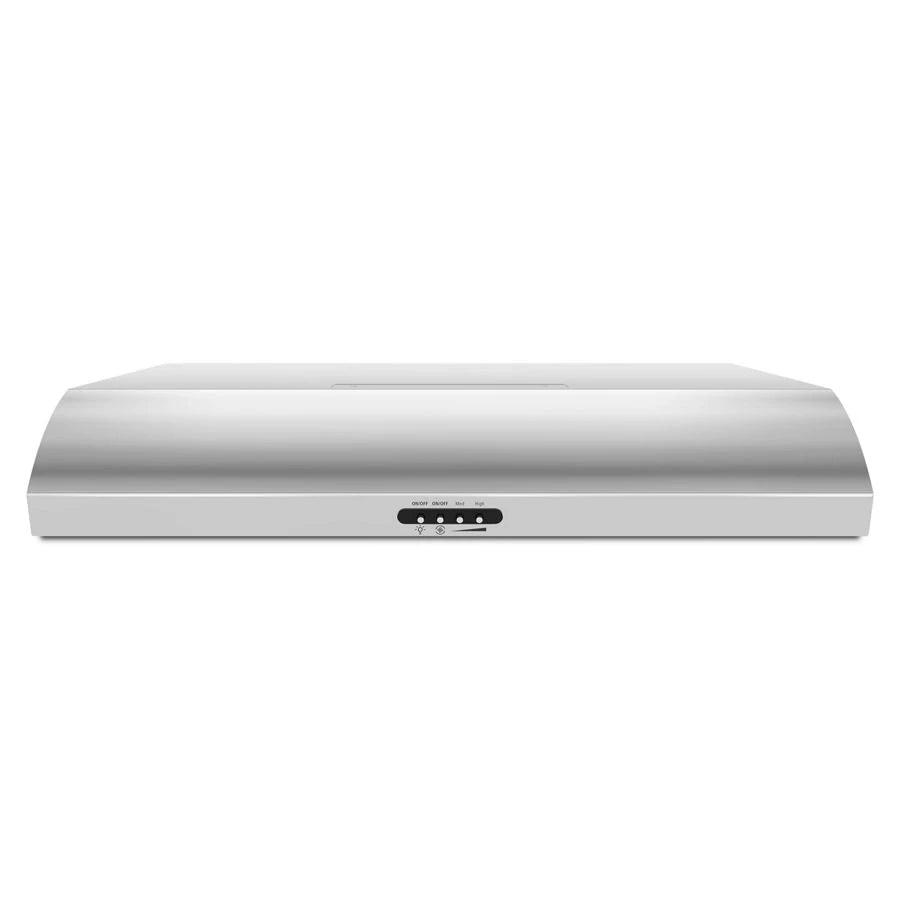

KitchenAid UXT5236BDS 36" Range Hood With The Fit System Stainless Steel

Quick Specification More details

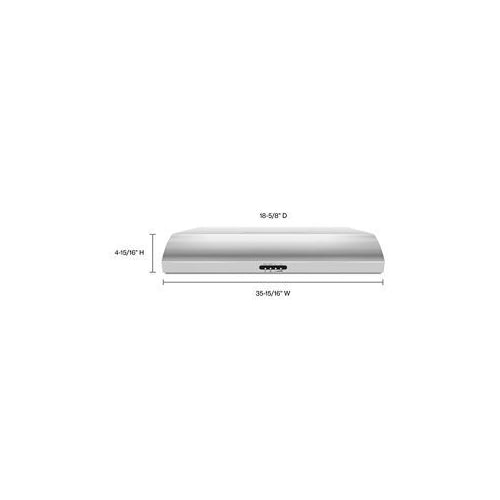

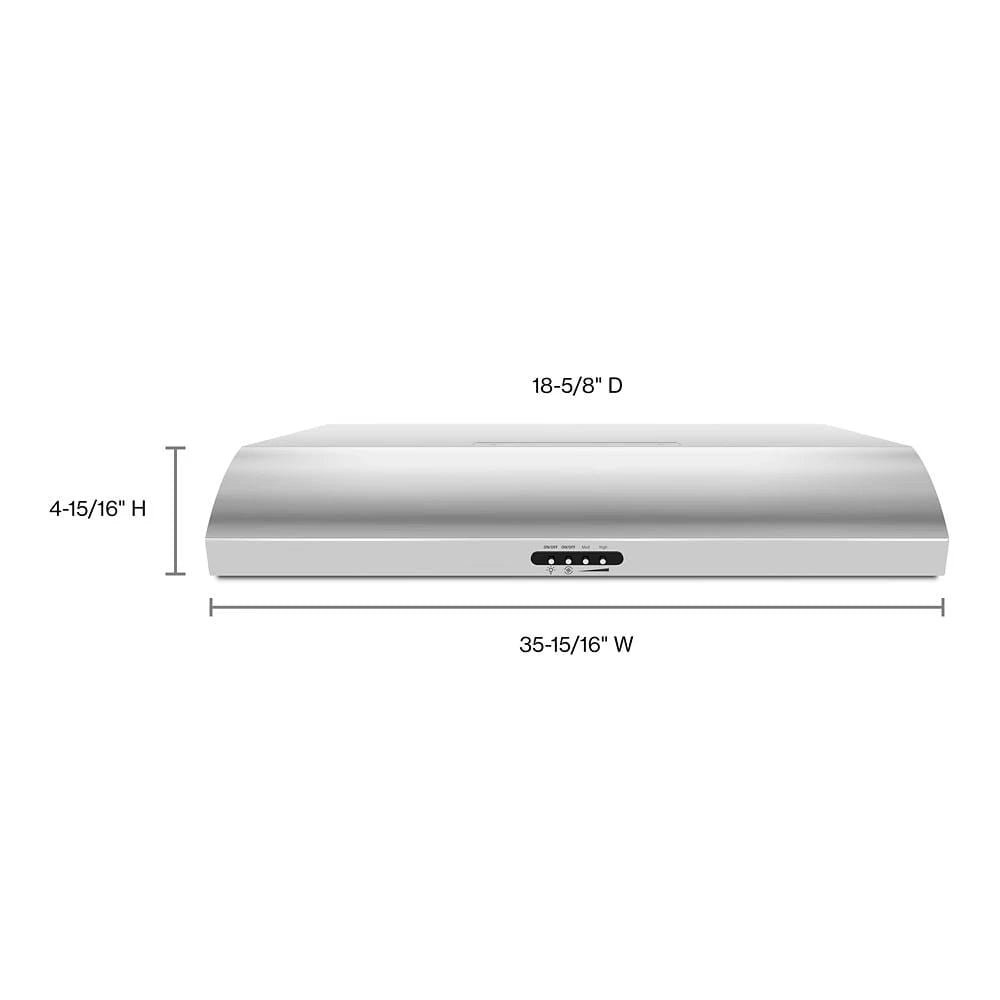

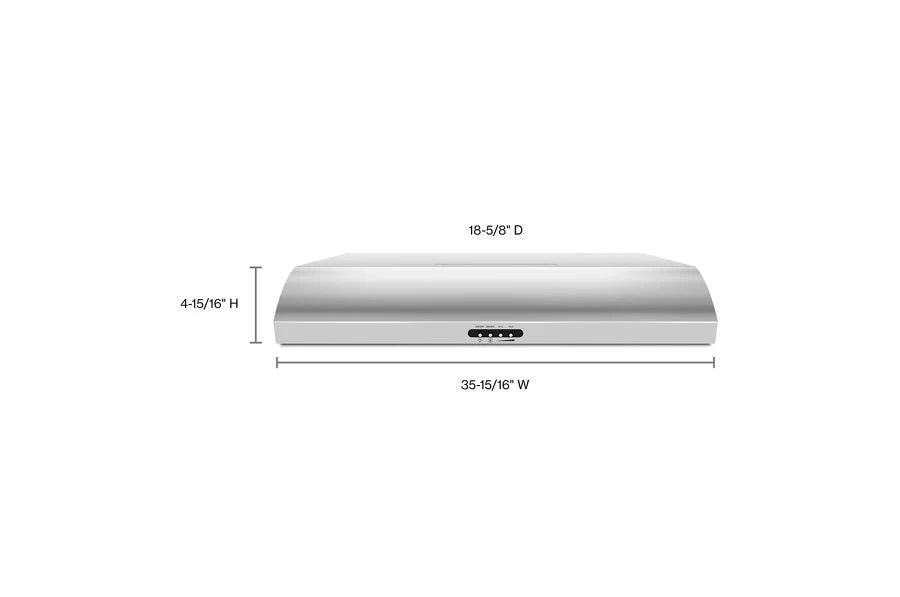

Width:
35-15/16"
Depth:
18-5/8"
Height:
4-15/16"
Type:
Under Cabinet Hoods

About this product

Grease filter
FIT System
Hidden Vent
Halogen Lighting

SKU: UXT5236BDS | UPC: 883049326542

KitchenAid UXT5236BDS 36" Range Hood With The Fit System Stainless Steel

$449.99 ~~$528.97~~ Save $78.98 / 14% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

Range Hood Charcoal Replacement Filter (Set of 2) for Model UXT5236

Whirlpool W10386873 Range Hood Charcoal Replacement Filter (Set of 2) for Model UXT5236 Other

Quickship

On Sale

Quick Specification More details

Width:
35-15/16"
Depth:
18-5/8"
Height:
4-15/16"
Type:
Under Cabinet Hoods

About this product

Grease filter
FIT System
Hidden Vent
Halogen Lighting

Product Details for KitchenAid UXT5236BDS

Technical Details

Certifications

ADA Compliant	Yes
Star K Certified	Yes

Dimensions

Common Size	36 in
Depth	18-5/8 in
Gross Weight	19 lbs
Height	4-15/16 in
Net Weight	16 lbs
Width	35-15/16 in

Ventilation details

BTU Threshold	50 K
CFM Motor Class	560
Duct Direction	Vertical or Horizontal
Duct Outlet Size	3.25 W x 10 H in
Duct Type	Rectangular
Filters	Charcoal Odor Removing Filter
Number of Task Light Settings	1
Task Light Type	Halogen
Task Lighting	Yes
Venting	Exterior or Recirculating

Details

Blower Type	Axial
Hood Type	Under-the-Cabinet
Material	Stainless Steel

Controls

Control Type	Push Button
Number of Vent Speeds	3

Refinements

Features

FIT System

Electrical

Amps	15
Hz	60
Volts	120

Description

Installing this stove hood with halogen lighting is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. The powerful 3-speed hood vent kitchen fan takes care of steam, grease, smoke and odors in the surrounding air.
