SKU: UXT4236ADS | UPC: 883049326627

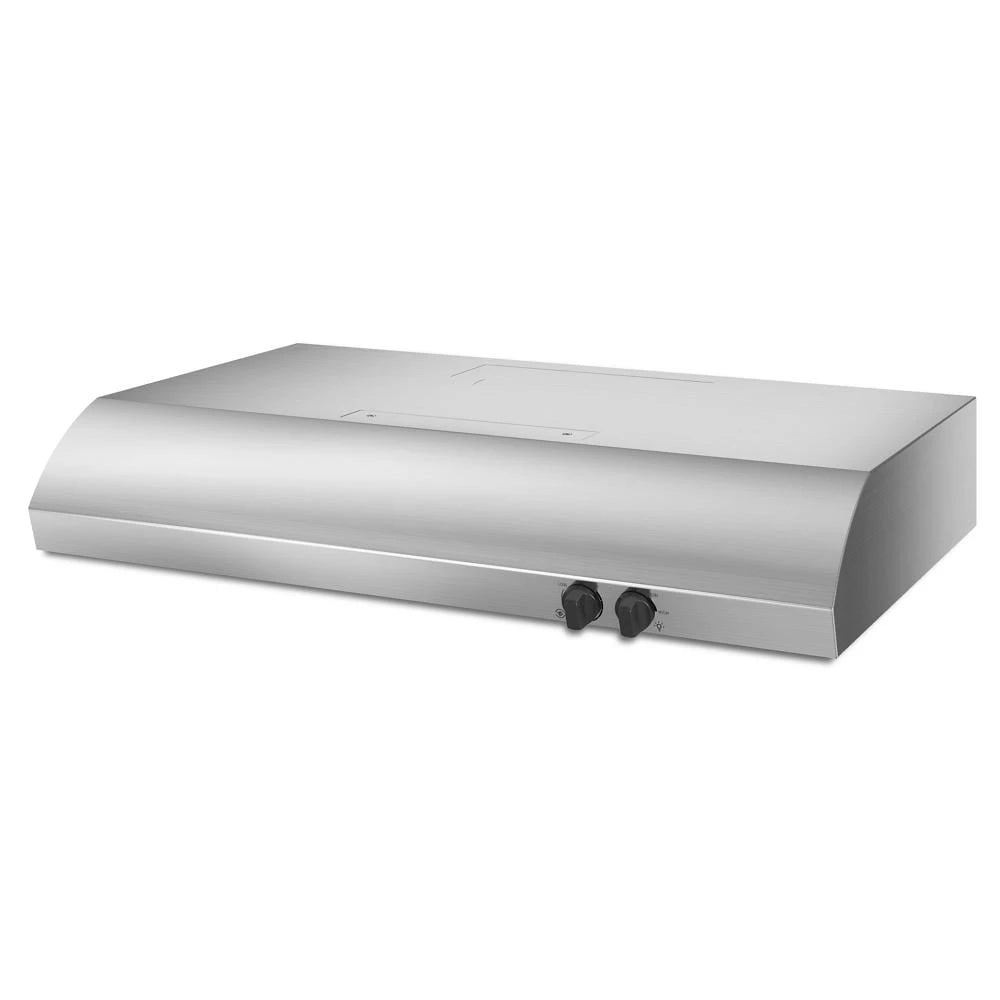

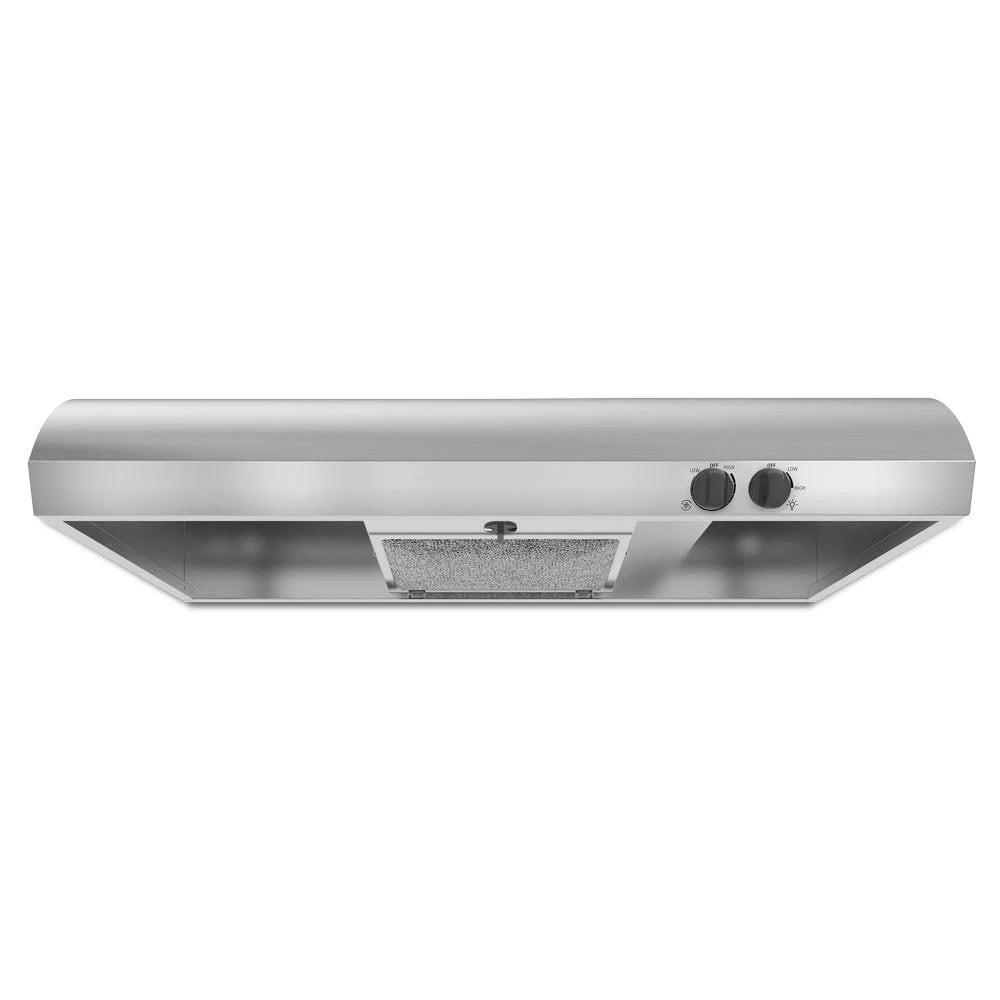

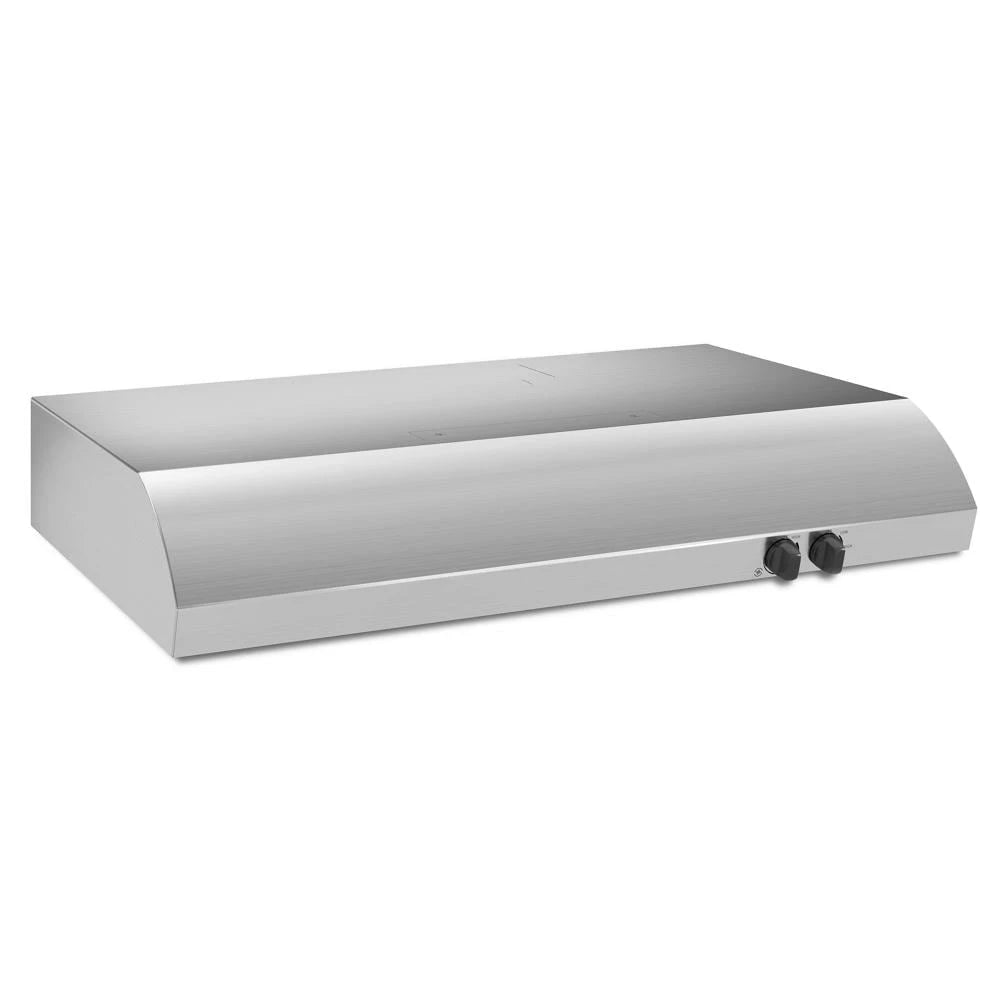

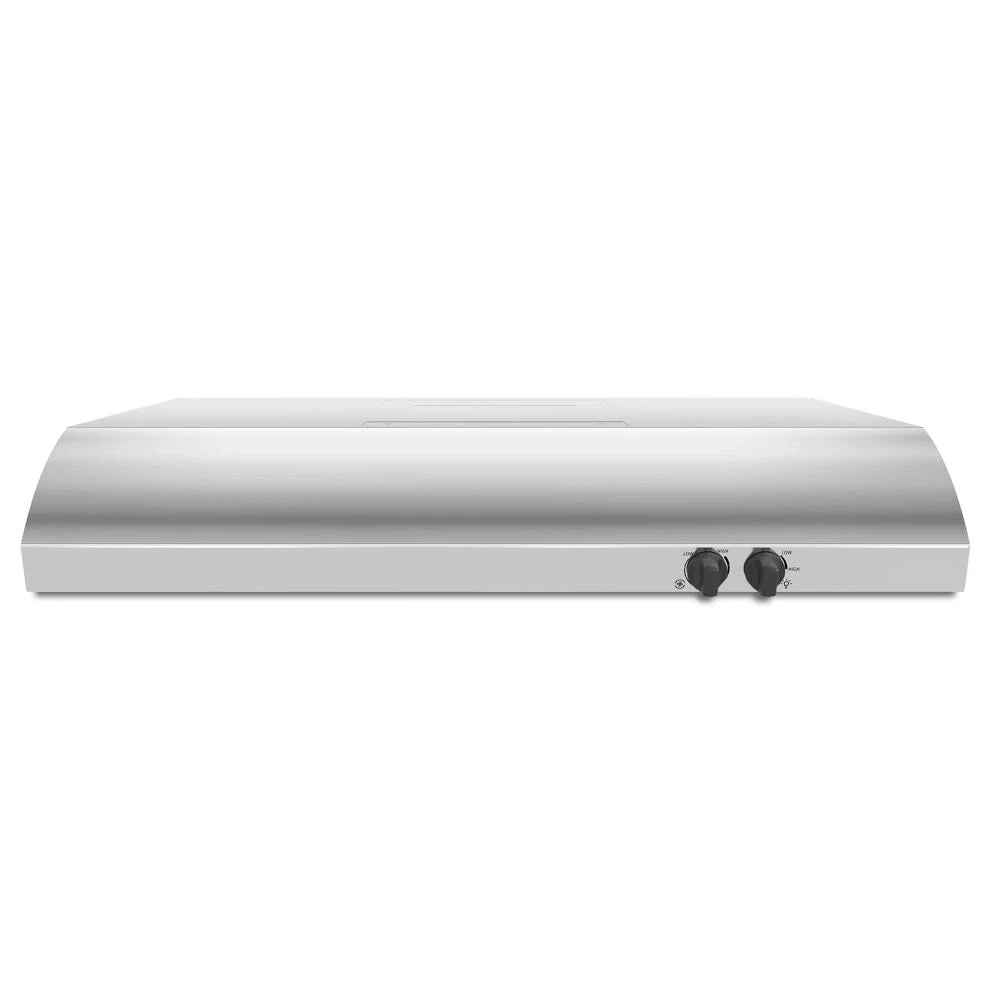

Whirlpool UXT4236ADS 36" Range Hood with the FIT System Stainless Steel

Quick Specification More details

Width:
35.94"
Depth:
18.63"
Height:
4.94"
Type:
Under Cabinet Hoods

About this product

FIT System
Grease filter
Hidden Vent
Incandescent Lighting

SKU: UXT4236ADS | UPC: 883049326627

Whirlpool UXT4236ADS 36" Range Hood with the FIT System Stainless Steel

$262.80 ~~$348.97~~ Save $86.17 / 24% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35.94"
Depth:
18.63"
Height:
4.94"
Type:
Under Cabinet Hoods

About this product

FIT System
Grease filter
Hidden Vent
Incandescent Lighting

Product Details for Whirlpool UXT4236ADS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.91 ft³
Total of Cubes	1.91 ft³
Dimensional Weight	23.79 lbs.
Total of Dimensional Weight	23.79 lbs.

Details

Hood Type	Under-the-Cabinet
Material	Painted Steel
Blower Type	Axial

Ventilation details

CFM Motor Class	225
Duct Direction	Vertical or Horizontal
Duct Type	Rectangular
Task Light Type	Incandescent
Venting	Exterior or Recirculating
Duct Outlet Size	3.25 W x 10 H in
Filters	Charcoal Odor Removing Filter, Grease Filters
Number of Task Light Settings	2
Task Lighting	Yes

Controls

Control Type	Knobs
Number of Vent Speeds	2

Certifications

ADA Compliant

Yes

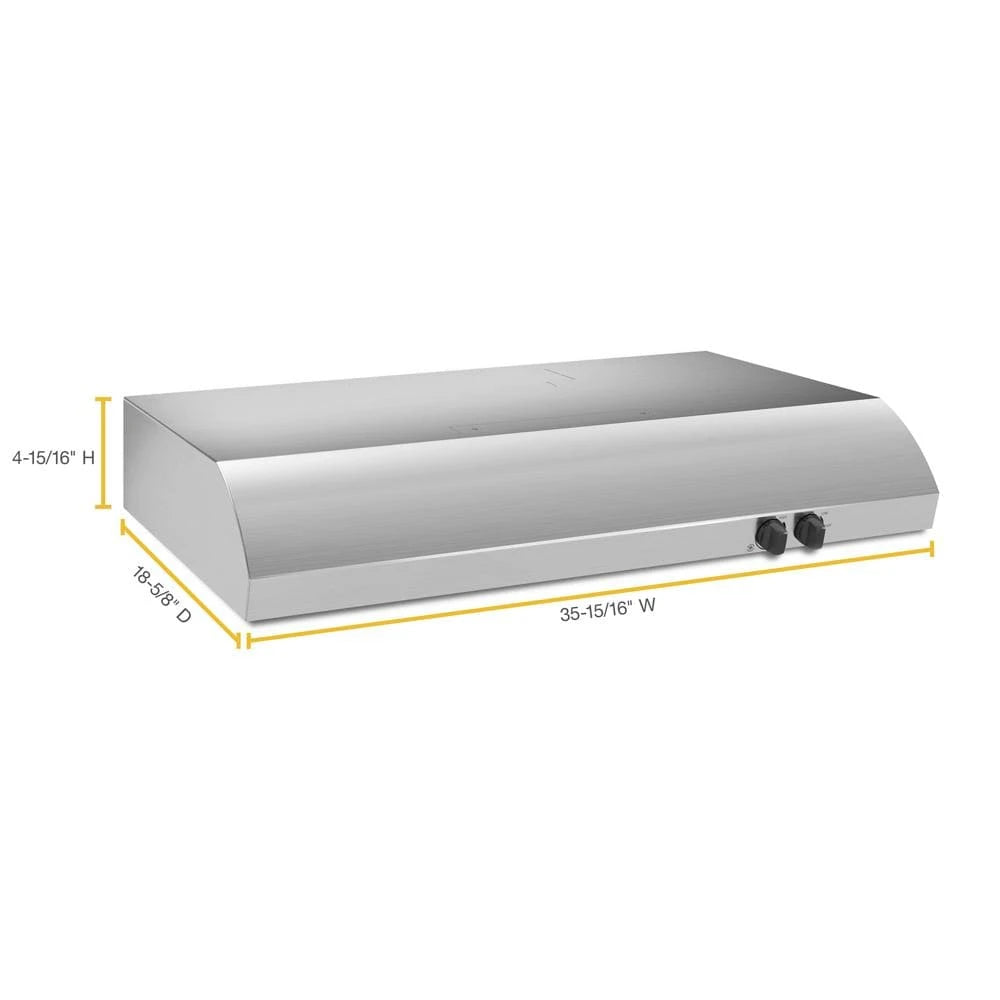

Dimensions & weight

Width	35.94 in.
Height	4.94 in.
Length	18.63 in.
Weight	19 lbs.
Gross Weight	19 lbs
Net Weight	16 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Length	23.63 in.
Shipping Weight	59 lbs.
Total of Shipping Weight	59 lbs.
Source	Calculation
Shipping Width	38 in.
Shipping Height	21 in.

Other

Common Size

36 in

Refinements

Features

FIT System, Grease Filter

Capacity

Volume

3.233 Cu.Ft.

Description

Installing this stove hood is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. When cooking introduces steam, grease, smoke or odors into the surrounding air, the powerful 2-speed hood vent kitchen fan takes care of it.

Product Features

FIT System
The FIT system eliminates measuring, cutting and trim for a perfect fit every time.
Grease filter
The grease filter helps trap unwanted grease and helps remove odors.
Hidden Vent
Incandescent Lighting
Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
3-1/4" x 10" Damper
Recirculation (Non-Vented/Duct-Free)
By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
ADA compliant
This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
