SKU: UXT2030ADW | UPC: 883049326412

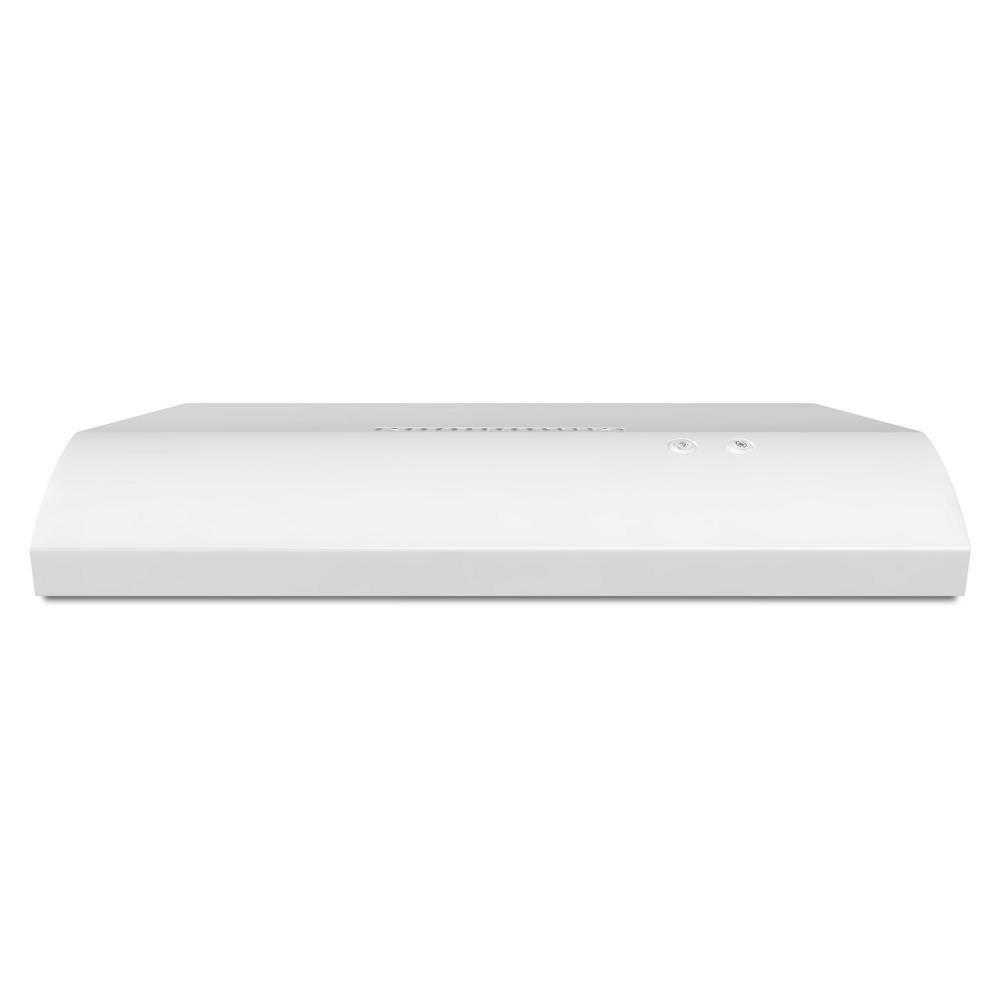

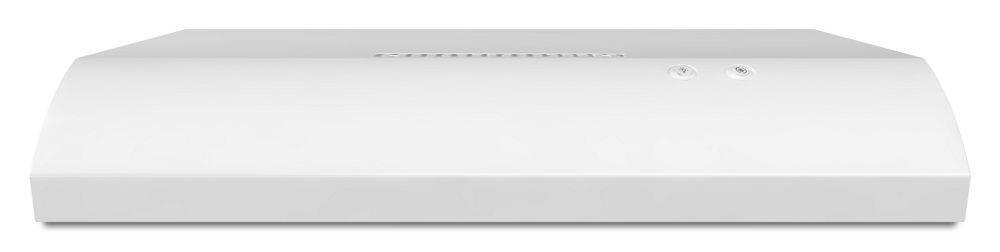

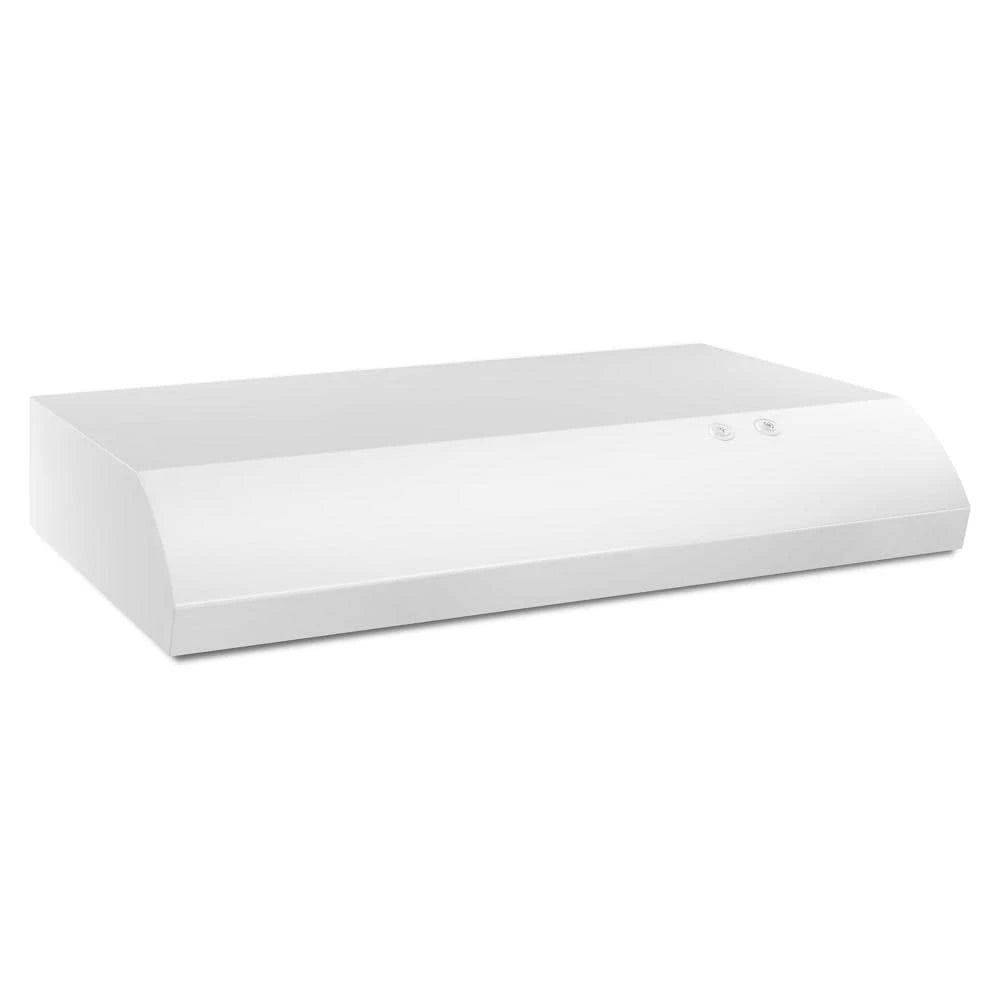

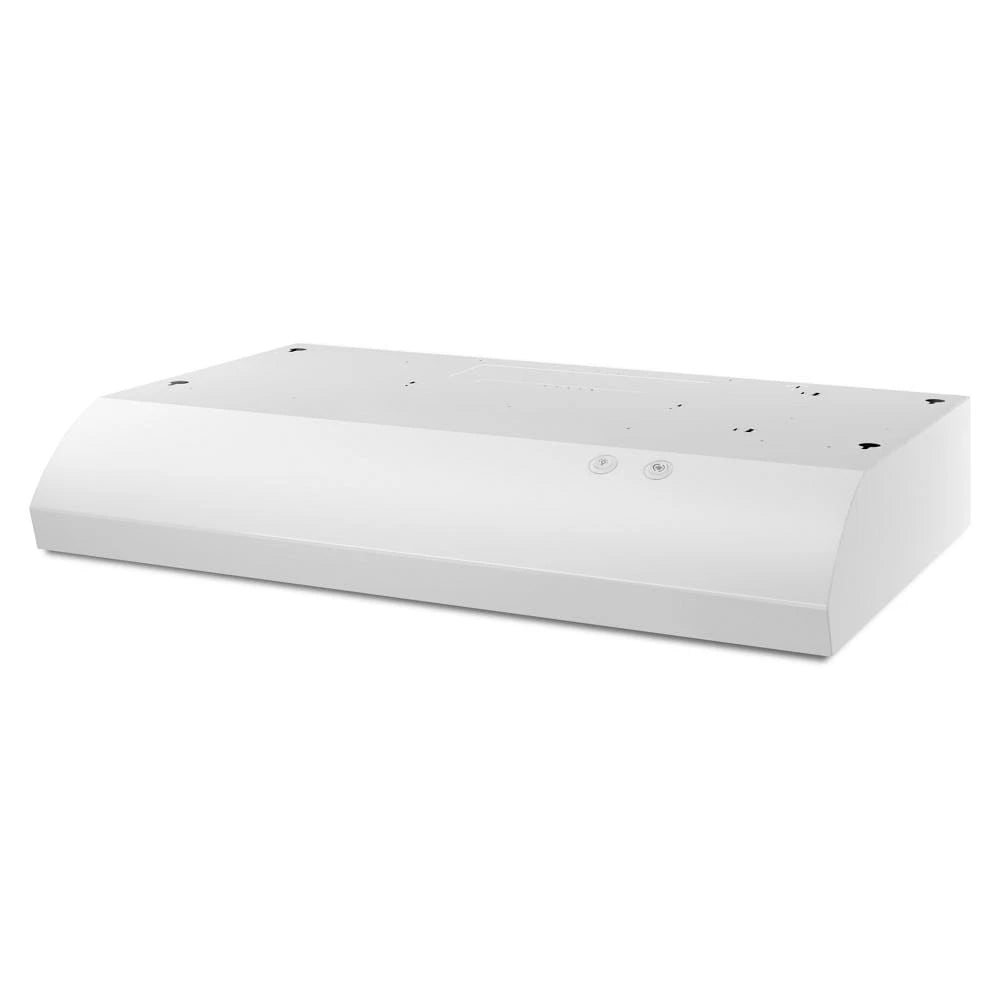

Whirlpool UXT2030ADW 30" Range Hood with the FIT System White

Quick Specification More details

Width:
29.94"
Depth:
18.63"
Height:
4.94"
Type:
Under Cabinet Hoods

About this product

Grease filter
Hidden Vent
2-speed, 190 CFM Motor Class
Incandescent Lighting

SKU: UXT2030ADW | UPC: 883049326412

Whirlpool UXT2030ADW 30" Range Hood with the FIT System White

$169.20 ~~$268.97~~ Save $99.77 / 37% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.94"
Depth:
18.63"
Height:
4.94"
Type:
Under Cabinet Hoods

About this product

Grease filter
Hidden Vent
2-speed, 190 CFM Motor Class
Incandescent Lighting

Product Details for Whirlpool UXT2030ADW

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.59 ft³
Total of Cubes	1.59 ft³
Dimensional Weight	19.82 lbs.
Total of Dimensional Weight	19.82 lbs.

Ventilation details

BTU Threshold	40 K
CFM Motor Class	250
Duct Direction	Vertical or Horizontal
Duct Type	Round
Task Light Type	Incandescent
Venting	Exterior
Duct Outlet Size	7 in
Lighting Control Type	Rocker Switch
Number of Task Light Settings	2
Task Lighting	Yes

Details

Hood Type	Under-the-Cabinet
Material	Painted Steel
Blower Type	Axial

Controls

Control Type	Push Button
Number of Vent Speeds	2

Certifications

ADA Compliant	Yes
Star K Certified	Yes

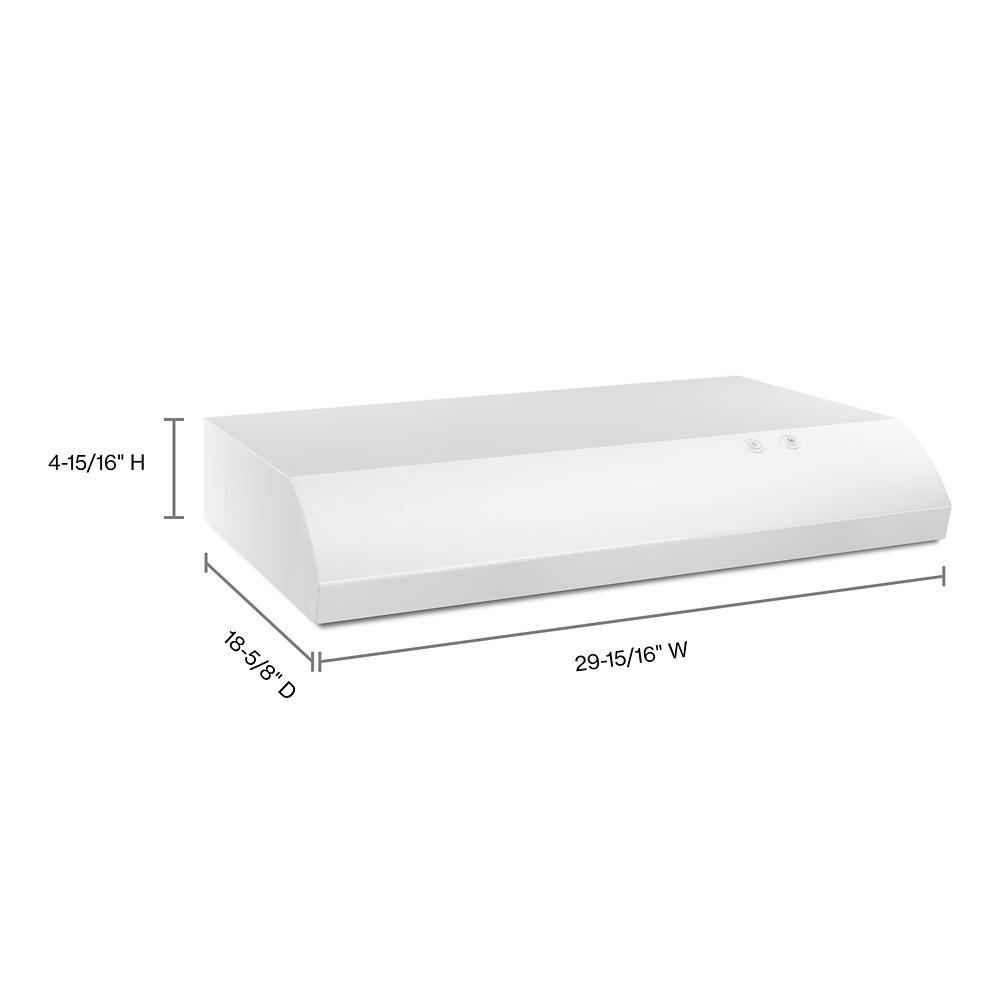

Dimensions & weight

Width	29.94 in.
Height	4.94 in.
Length	18.63 in.
Weight	17 lbs.
Gross Weight	17 lbs
Net Weight	14 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	31 in.
Shipping Height	21 in.
Shipping Length	23.63 in.
Shipping Weight	57 lbs.
Total of Shipping Weight	57 lbs.
Source	Calculation

Other

Common Size

30 in

Refinements

Features

FIT System

Electrical

Amps	15
Hz	60
Volts	120

Capacity

Volume

2.637 Cu.Ft.

Description

Installing this stove hood is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. Once installed, the powerful 2-speed hood vent kitchen fan takes care of steam, grease, smoke and odors in the surrounding air.

Product Features

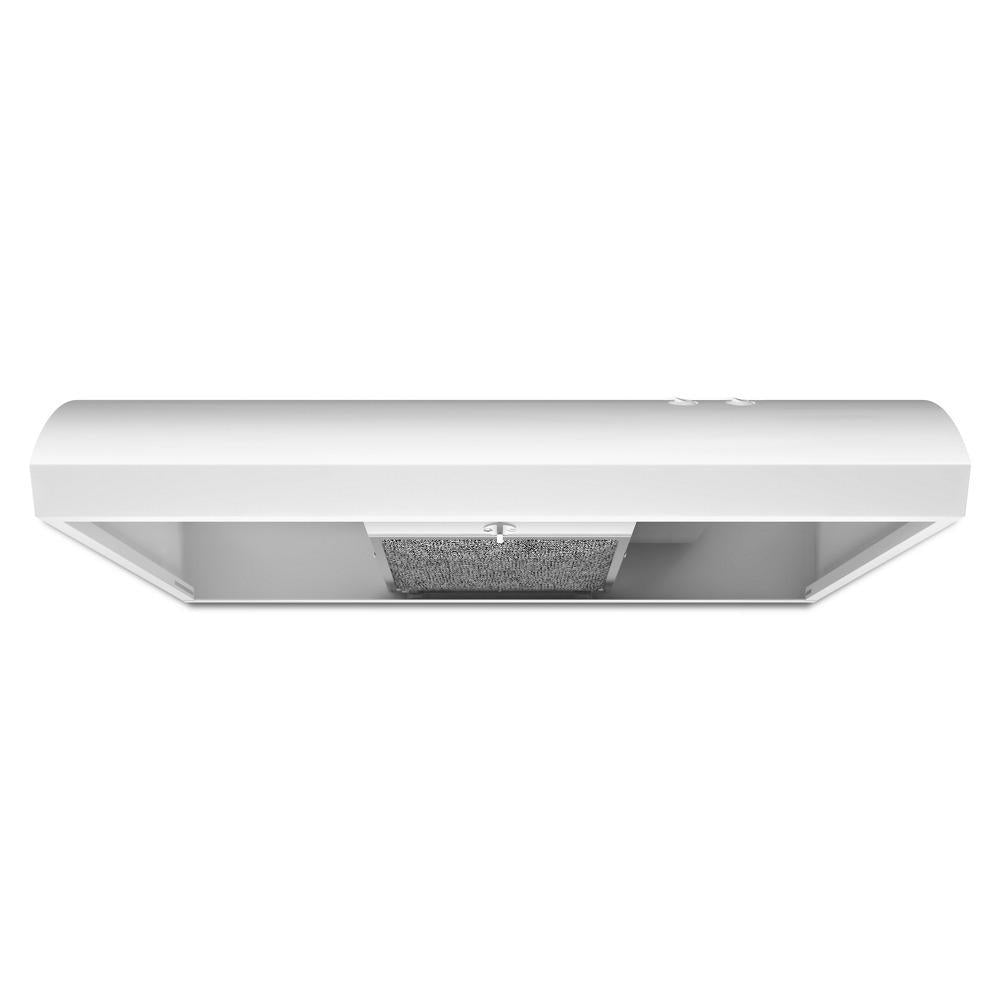

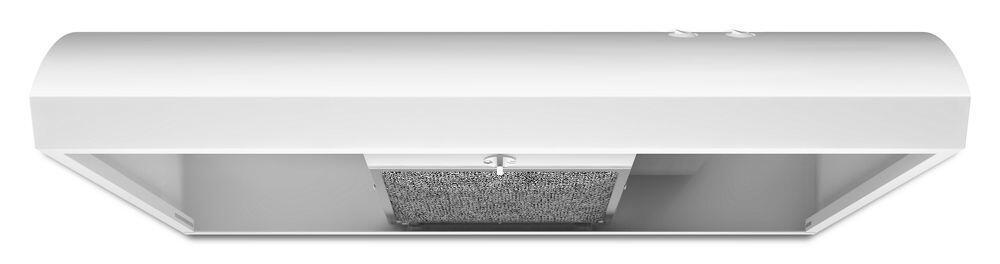

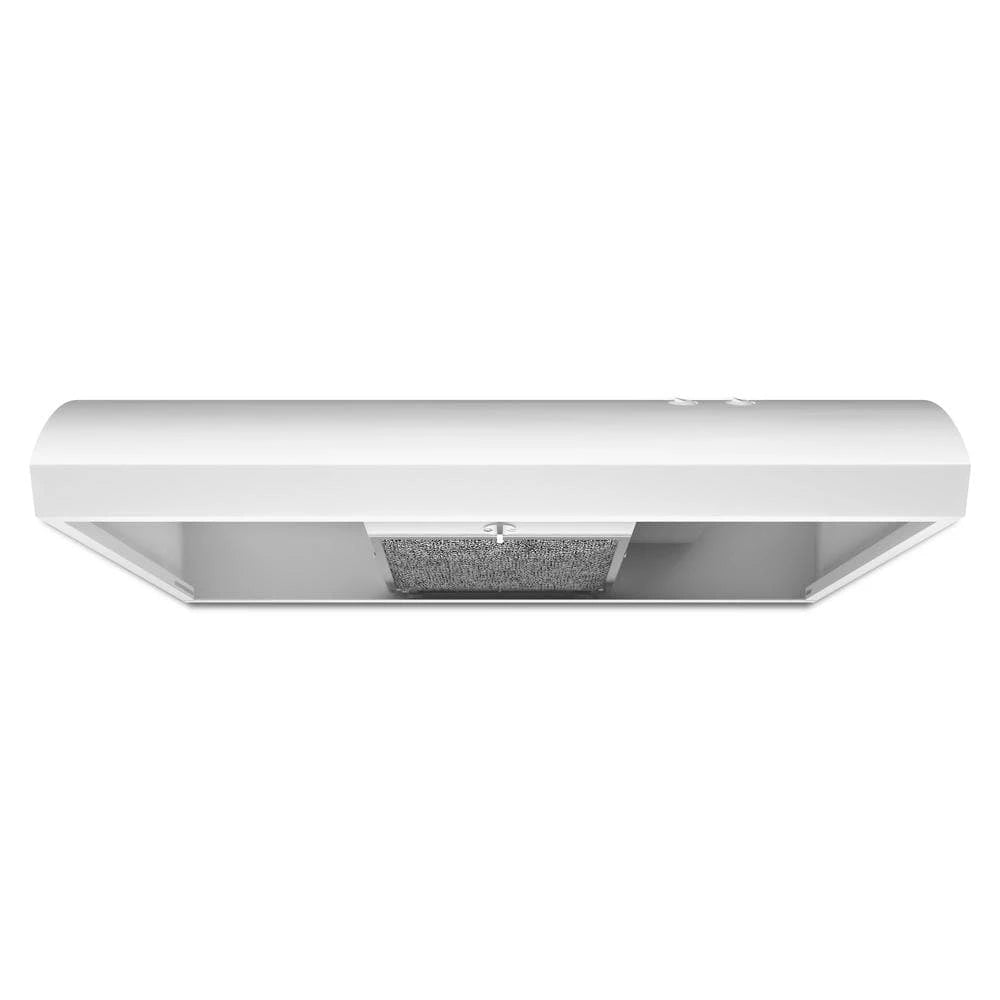

Grease filter
The grease filter helps trap unwanted grease and helps remove odors.
Hidden Vent
2-speed, 190 CFM Motor Class
Two fan speeds provide the right amount of ventilation for every meal you prepare.
Incandescent Lighting
Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
FIT system
The FIT system helps reduce measuring, cutting and trim so that your hood is a perfect fit every time.
