SKU: UXD8630DYS | UPC: 883049222448

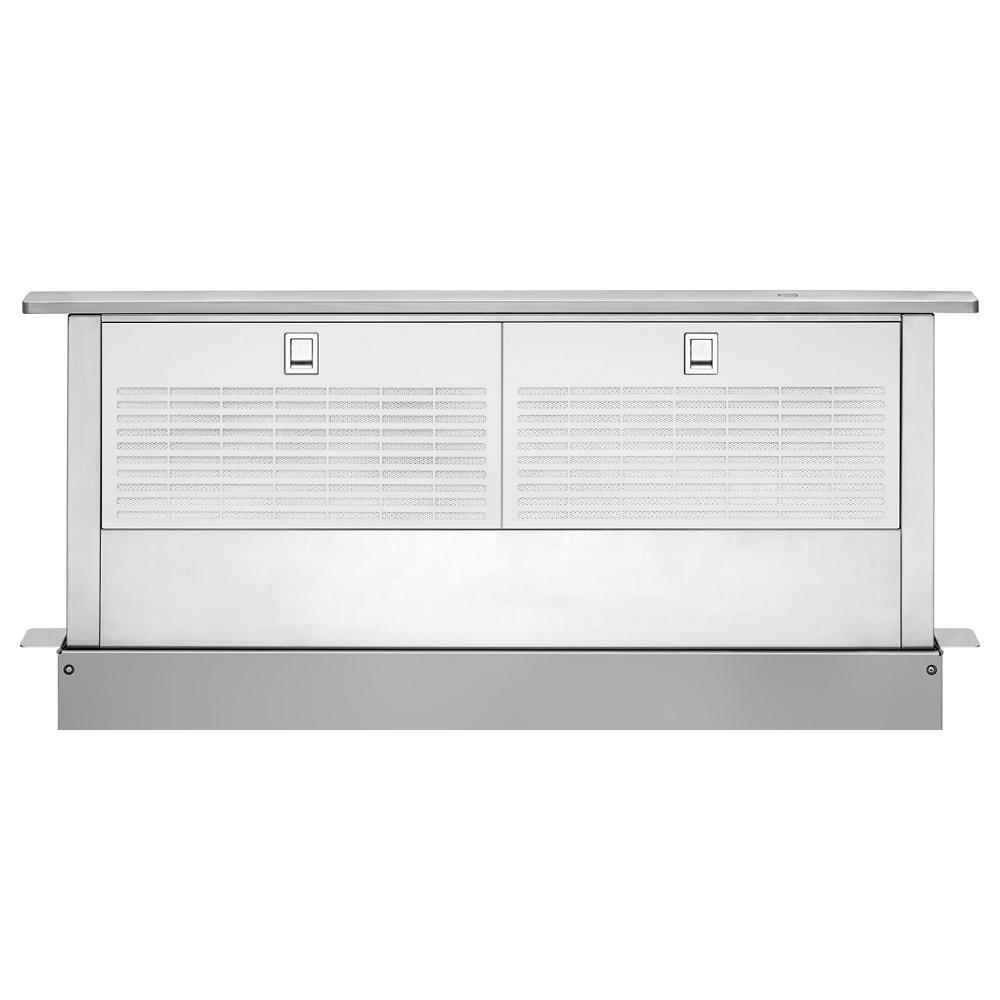

Whirlpool UXD8630DYS 30" Retractable Downdraft System with Interior Blower Motor Stainless Steel

Quick Specification More details

Width:
30"
Depth:
12.13"
Height:
28.5"
Type:
Downdraft Hoods

About this product

Powerful 600 CFM Interior Blower Motor Included
Touch-Activated Telescoping Operation
Dual Centrifugal Blower
6.5 Vertical Sones (3-1/4" x 10")

SKU: UXD8630DYS | UPC: 883049222448

Whirlpool UXD8630DYS 30" Retractable Downdraft System with Interior Blower Motor Stainless Steel

$1,495.37 ~~$1,879.97~~ Save $384.60 / 20% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
12.13"
Height:
28.5"
Type:
Downdraft Hoods

About this product

Powerful 600 CFM Interior Blower Motor Included
Touch-Activated Telescoping Operation
Dual Centrifugal Blower
6.5 Vertical Sones (3-1/4" x 10")

Product Details for Whirlpool UXD8630DYS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6 ft³
Dimensional Weight	74.58 lbs.
Total of Cubes	6 ft³
Total of Dimensional Weight	74.58 lbs.

Ventilation details

CFM Motor Class	585
Duct Direction	Vertical
Duct Type	Round
Venting	Exterior
Duct Outlet Size	3.25 W x 10 H in

Controls

Control Location	Hidden
Control Type	Manual
Number of Vent Speeds	3

Details

Hood Type	Retractable Downdraft
Material	Stainless Steel with Glass
Blower Type	Centrifugal

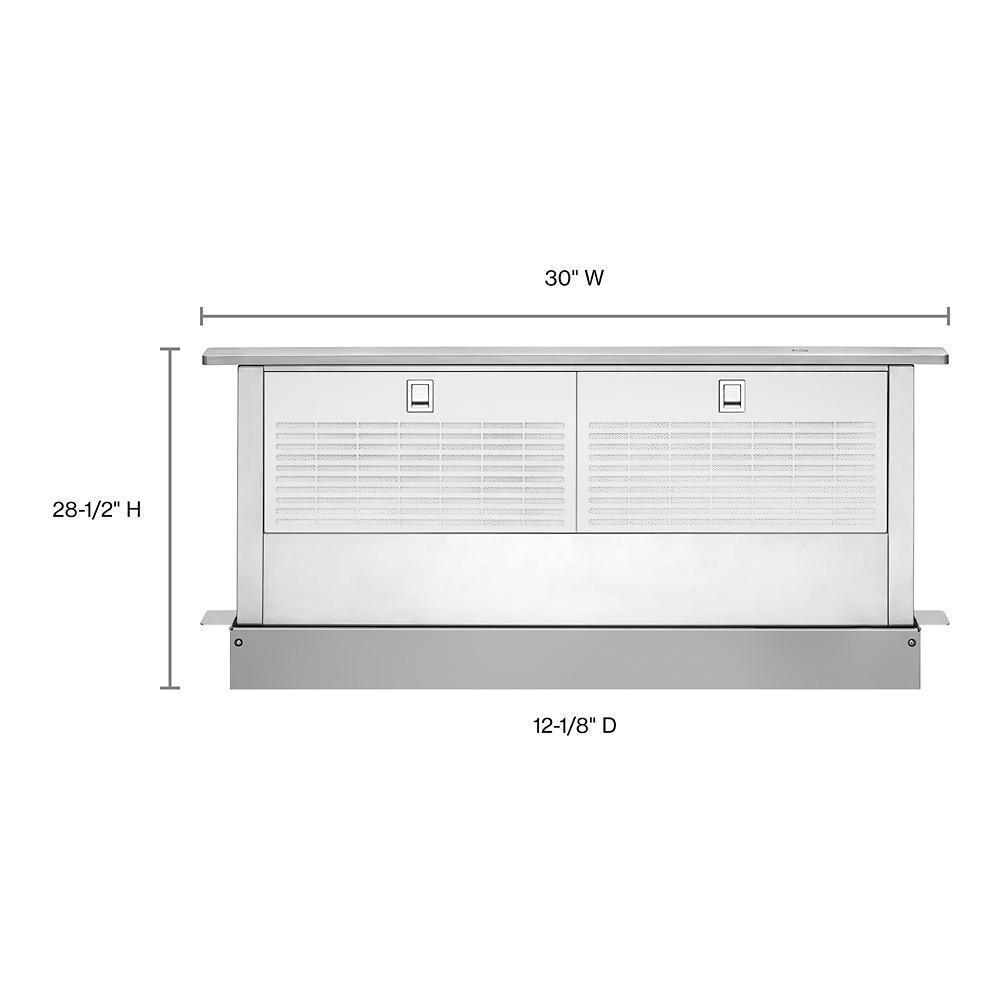

Dimensions & weight

Width	30 in.
Height	28.5 in.
Length	12.13 in.
Weight	93 lbs.
Gross Weight	93 lbs
Net Weight	66.14 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34 in.
Shipping Height	16 in.
Shipping Length	17.13 in.
Shipping Weight	133 lbs.
Total of Shipping Weight	133 lbs.
Source	Calculation

Other

Common Size

30 in

Electrical

Amps	15
Hz	60
Volts	120

Capacity

Volume

11.019 Cu.Ft.

Description

Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.

Product Features

Powerful 600 CFM Interior Blower Motor Included
Touch-Activated Telescoping Operation
Keep the fresh air flowing during the peak cooking periods in your kitchen! Whirlpool® ventilation hoods feature variable-speed fan control for maximum relief. Hoods are designed to fit perfectly with today's kitchen layouts and designs and are available in a variety of colors, depending on the model.
Dual Centrifugal Blower
A barrel-shaped fan that moves air through a vent hood. A centrifugal fan moves more air, and operates more quietly, than an axial-type (bladed) fan.
6.5 Vertical Sones (3-1/4" x 10")
Auto Off When Retracted
Aluminum Grease Filters
Damper
Brushed Aluminum Intake Cover Standard
Slide Controls
