SKU: UVL5430JSS | UPC: 883049569499

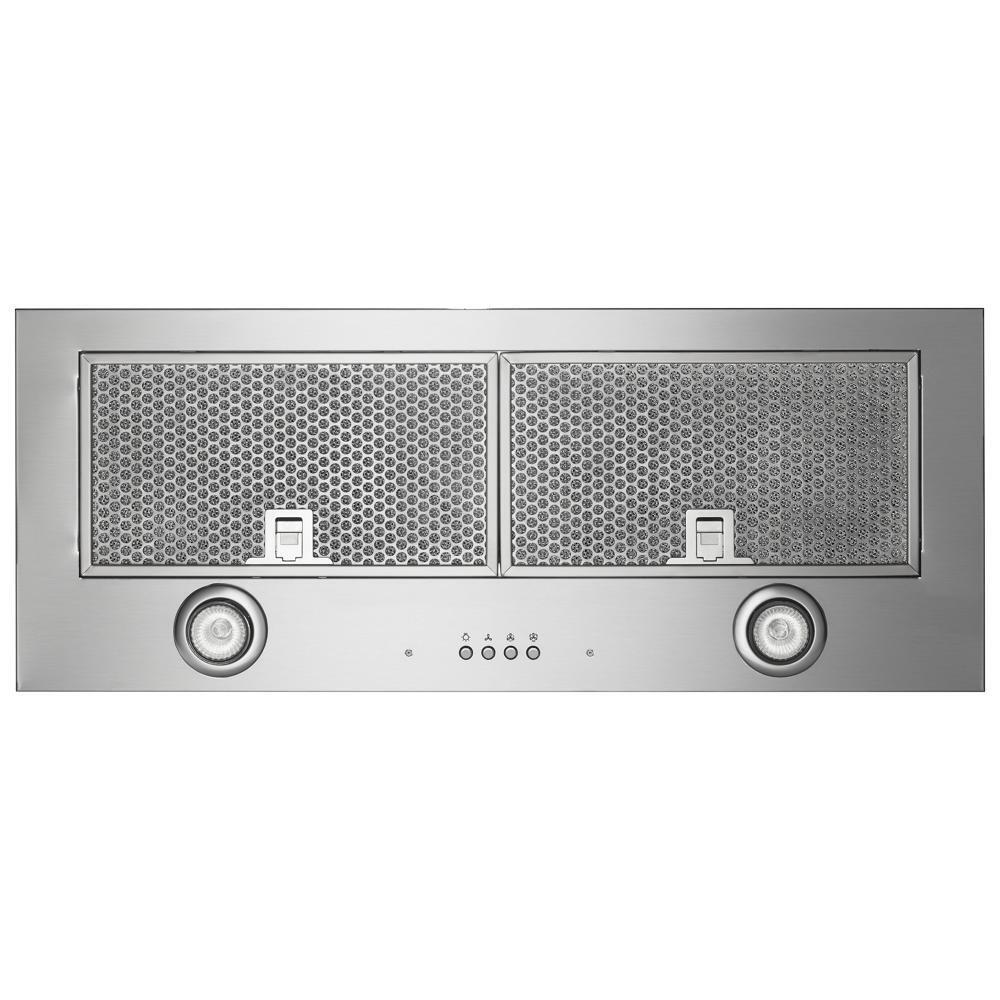

Whirlpool UVL5430JSS 30" 400 CFM Motor Class Custom Hood Liner Stainless Steel

Quick Specification More details

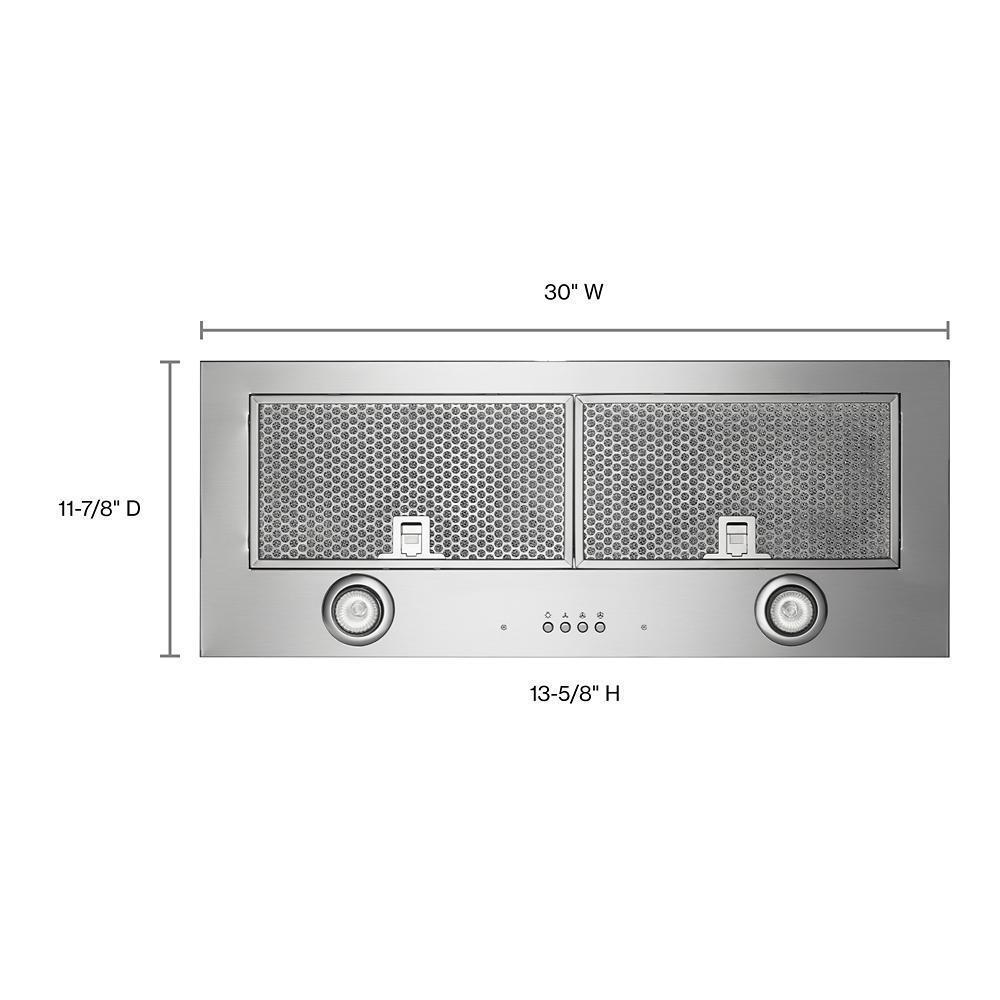

Width:
30"
Depth:
11.88"
Height:
13.63"
Type:
Ducted Mount Hoods

About this product

Three-Speed Fan
400 CFM Motor Class Ventilation System
Two LED Lights with Night Light Setting
Removable Filters

SKU: UVL5430JSS | UPC: 883049569499

Whirlpool UVL5430JSS 30" 400 CFM Motor Class Custom Hood Liner Stainless Steel

$908.70 ~~$1,333.97~~ Save $425.27 / 31% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

2-pack Charcoal Range Hood Filters For Various Models - Jxw0330w And Uxt5536aa

KitchenAid W10272068 2-pack Charcoal Range Hood Filters For Various Models - Jxw0330w And Uxt5536aa Black

Quickship

On Sale

Quick Specification More details

Width:
30"
Depth:
11.88"
Height:
13.63"
Type:
Ducted Mount Hoods

About this product

Three-Speed Fan
400 CFM Motor Class Ventilation System
Two LED Lights with Night Light Setting
Removable Filters

Product Details for AMANA UVL5430JSS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	2.81 ft³
Total of Cubes	2.81 ft³
Dimensional Weight	34.93 lbs.
Total of Dimensional Weight	34.93 lbs.

Ventilation details

Auto Function	No
Duct Direction	Vertical
Duct Length	14
Duct Type	Round
Exhaust Vent Location	Top
Filters	Grease Filters
Maximum Motor CFM	400
Night Light	No
Task Light Type	LED
Vent Fan Location	Side
Venting	Exterior or Recirculating
Damper Included	Yes
Duct Outlet Size	6 in
Lighting Control Type	Push Button
Number of Night Light Settings	1
Task Lighting	Yes

Controls

Control Location	Hidden
Control Type	Push Button
Number of Vent Speeds	3

Details

Hood Type	Under Cabinet
Blower Type	Centrifugal

Electrical

Power Cord Included	Yes
Hz	60
Volts	120
Watts	253
Amps	2.1

Dimensions & weight

Width	30 in.
Height	13.63 in.
Length	11.88 in.
Weight	33.51 lbs.
Canopy Height	13.625 in
Gross Weight	33.51 lbs
Net Weight	24.25 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	33 in.
Shipping Height	16 in.
Shipping Length	16.88 in.
Shipping Weight	73.51 lbs.
Total of Shipping Weight	73.51 lbs.
Source	Calculation

Other

Common Size

30 in

Certifications

Energy Star Qualified	No
Energy Star® Qualified	No
Star K Certified	No, No

Capacity

Volume

4.583 Cu.Ft.

Description

Designed to pair with 30-inch KitchenAid(R) Ranges and Cooktops, this 30-inch 400 CFM motor class custom hood liner allows you to conceal ventilation within cabinetry, creating a style all your own. A 65,000 BTU rating keeps up with high-heat cooking on multiple burners, and three fan speeds let you choose the right setting for every cooking adventure.

Product Features

Three-Speed Fan
Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
400 CFM Motor Class Ventilation System
Completes your kitchen with ventilation to match the performance of conventional ranges and cooktops.
Two LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Filters
help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
KitchenAid® Custom Hood Liners
KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
