Product Details for Whirlpool UDPS5118PP
Technical Details
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 7.74 ft³ |
| Dimensional Weight | 96.24 lbs. |
| Total of Cubes | 7.74 ft³ |
| Total of Dimensional Weight | 96.24 lbs. |
Details
| Built-In Water Softener | No |
| Dishwasher Type | Built-In |
| Dispensers | Detergent and Rinse Aid |
| Drying System Type | Recessed Heating Element |
| Number of Place Settings | 8 |
| Number of Racks | 2 |
| Number of Wash Levels | 4 |
| Number of Washarms | 2 |
| Rinse Aid Dispenser Level Indicator | Yes |
| Sensor | Yes |
| Sound Package | Yes |
| True Hold Door | Yes |
| Tub Material | Stainless Steel |
| Wash System | Filter |
| Water Filtration | Yes |
| Hoses Included | Yes, Drain |
| Tub Style | Built-in 18in. Tub |
| Wash System Type | Removable Filter |
| Dishwasher Cycle Selection | Glass; Heavy; Light/China; Normal; Quick Wash; Rinse |
| Dishwasher Option Selections | 1-24 Hour Delay; Heated Dry; Hi Temp Wash |
Exterior details
| Door Style | Flat |
| Magnetic Door | No |
| Window | No |
Smart compatibility
| Connectivity | No |
| Works With | No |

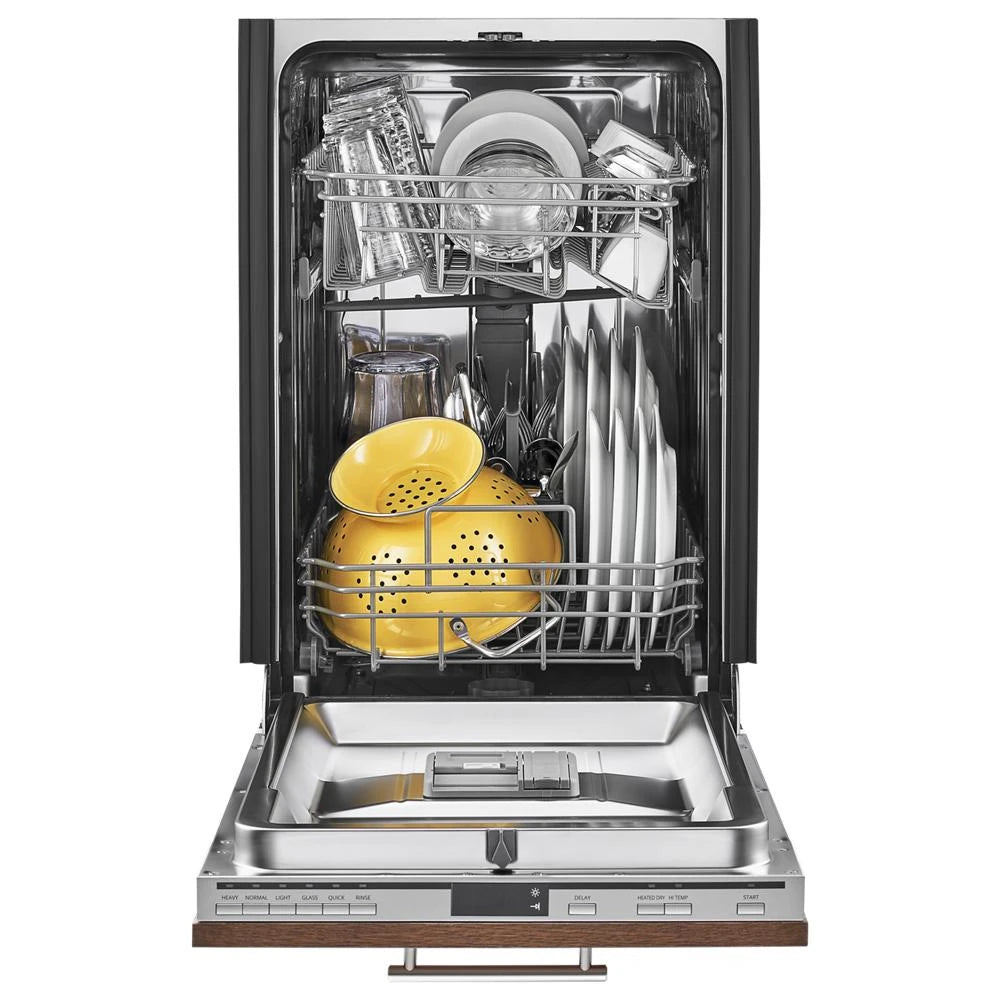

Rack details
| Lower Rack Cushion-Tip Tines | Yes |
| Lower Rack Extras | No |
| Lower Rack Fold-Down Tines | No |
| Lower Rack Style | Extended |
| Second Level Rack Adjustable | Yes |
| Second Level Rack Cushion-Tip Tines | Yes |
| Second Level Rack Extras | 1-Fold Down Wire Cup Shelf |
| Second Level Rack Fold-Down Tines | 1 Fold Down |
| Third Level Rack Adjustable | N/A |
| Third Level Rack Removable | No |
| Second Level Rack Glides | Rollers |
| Third Level Rack Glides | N/A |

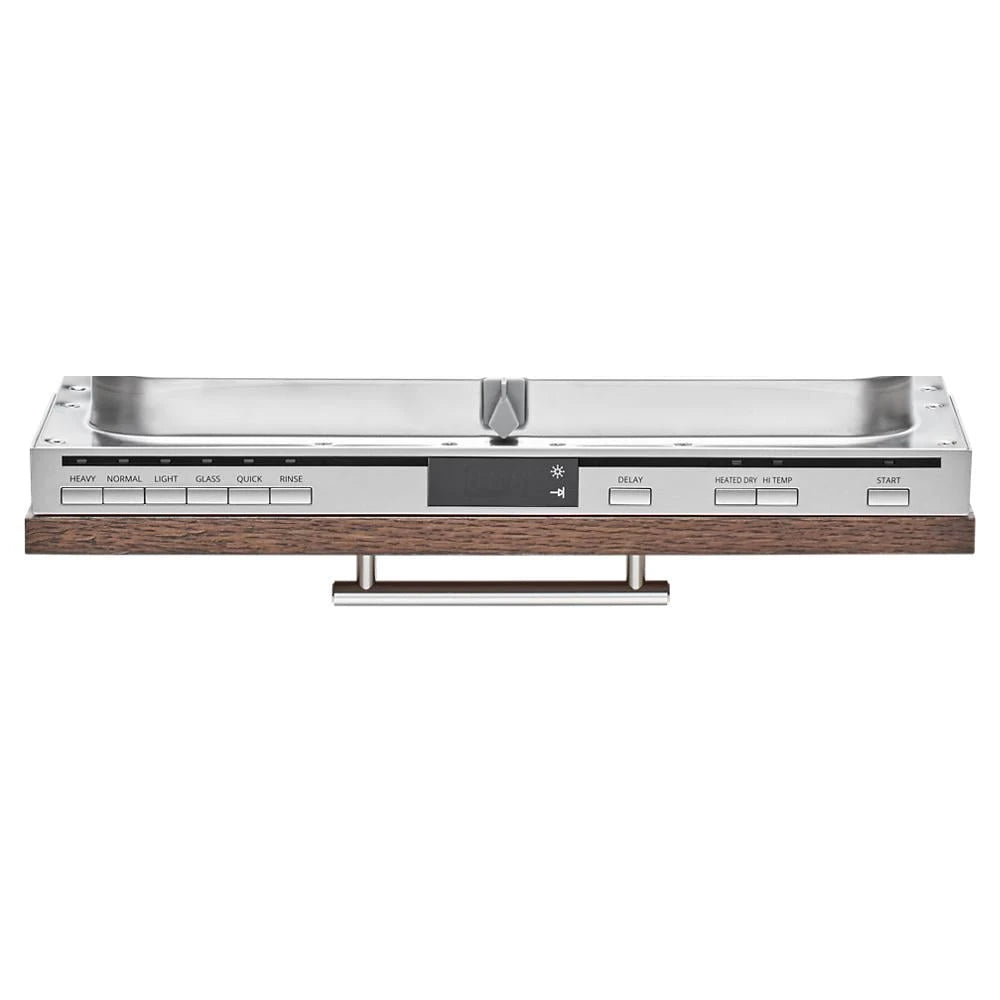

Controls
| Automatic Temperature Controls | Yes |
| Control Location | Top Hidden |
| Control Type | Electronic Touch |
| End of Cycle Signal | Yes |
| Status Light | White |
Cycles
| Number of Wash Cycles | 6 |
Electrical
| Power Cord Included | No |

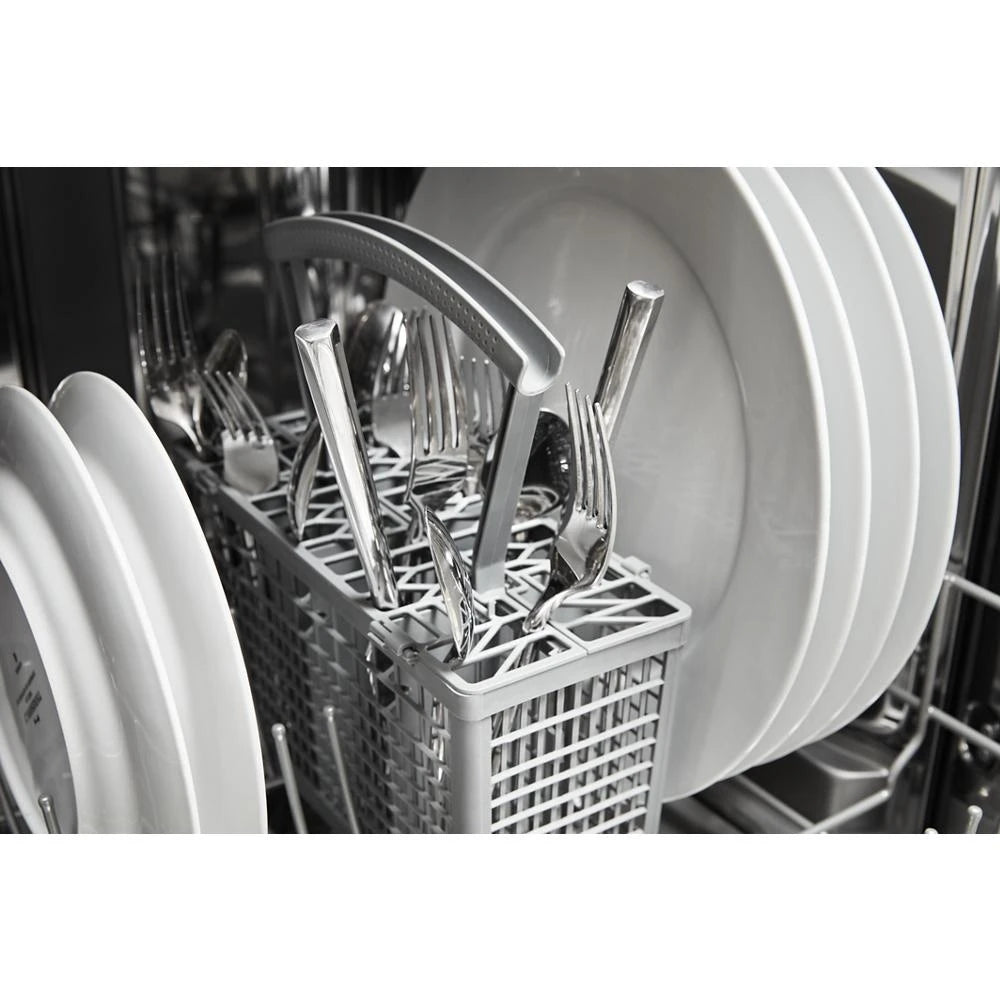

Silverware basket details
| Silverware Basket Covers | Yes |
| Silverware Basket Location | Bottom Rack |
| Culinary Basket | No |
| Silverware Basket Type | Full Length Non Splittable |
Certifications
| ADA Compliant | Yes |
| CEE Tier Rating | Tier I |
| CUL | Yes |
| NSF Certified | No |
| prop65 | Standard |
| Energy Rating (kWh/year) | 240 |
Dimensions
| carton depth | 26.38 |
| carton height | 34.49 |
| carton width | 20.28 |
| Cutout Depth | 22 |
| Cutout Height | 34.5 |
| Cutout Width | 18 |
| Depth Closed Excluding Handles | 22 |
| Depth Closed Including Handles | 22.438 |
| Depth With Door Open 90 Degree | 44.5 |
| gross weight | 62.83 |
| net weight | 53.68 |
Oven details
| Interior Light | No |
| Lower Rack Glides | Rollers |
| Lower Rack Utility Basket | Yes |
Product details
| Decibel Level (dBA) | 50 |
| Dishwasher Rack Material | Nylon |
| Energy Star® Qualified | ENERGY STAR® Qualified |
| Kosher Consumer Friendly | Yes |

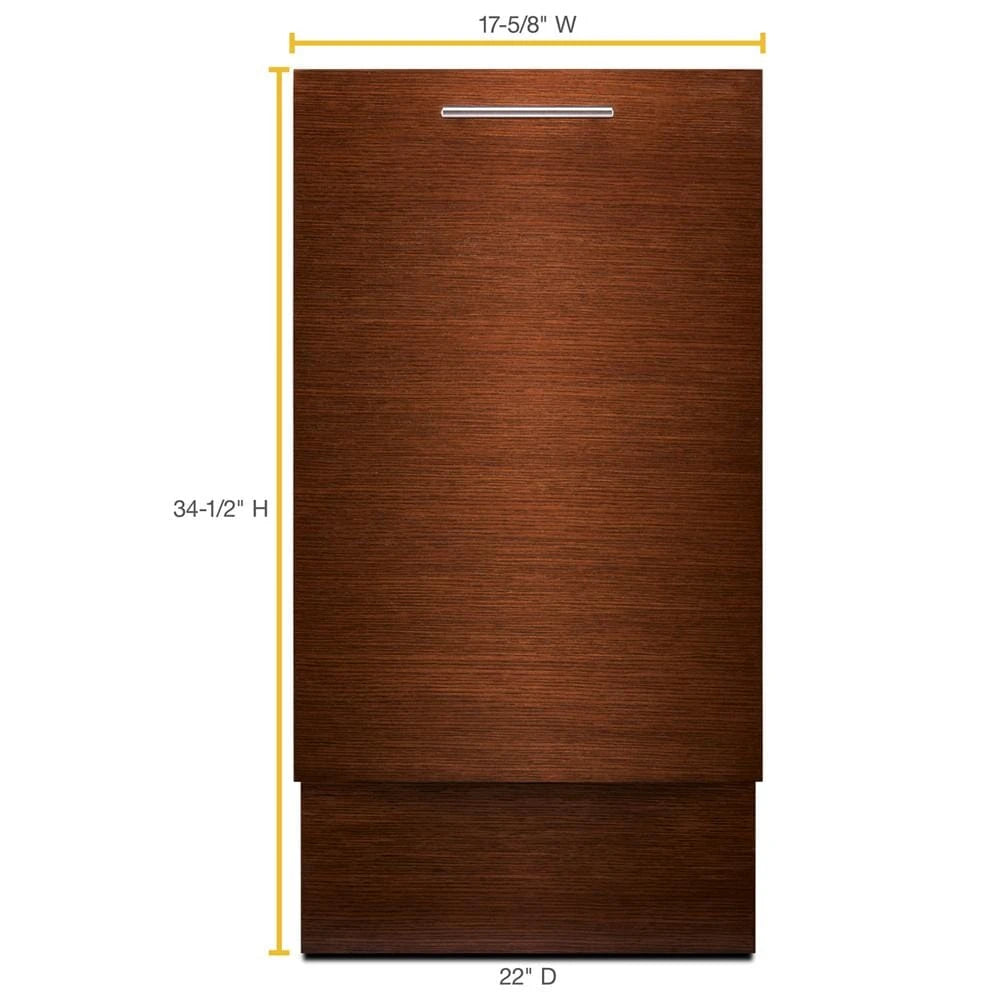

Dimensions & weight
| Width | 17.63 in. |
| Height | 34.5 in. |
| Length | 22 in. |
| Weight | 62.83 lbs. |
| Cutout Depth | 22 in |
| Cutout Height | 34-1/2 in |
| Cutout Width | 18 in |
| Depth Closed Excluding Handles | 22 in |
| Depth Closed Including Handles | 22-219/500 in |
| Depth With Door Open 90 Degree | 44-1/2 in |
| Gross Weight | 62-83/100 lbs |
| Net Weight | 53-17/25 lbs |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 20.28 in. |
| Shipping Height | 34.49 in. |
| Shipping Length | 27 in. |
| Shipping Weight | 102.83 lbs. |
| Total of Shipping Weight | 102.83 lbs. |
| Source | Calculation |
Description

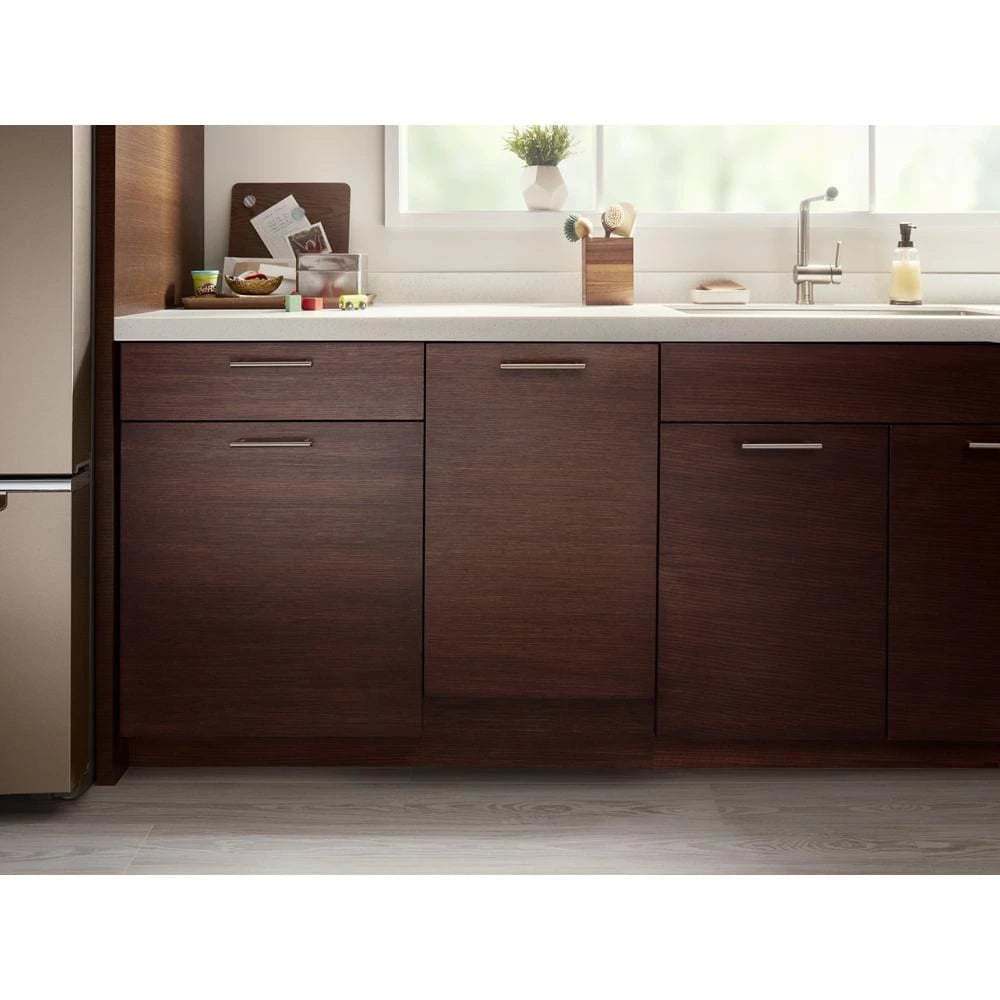

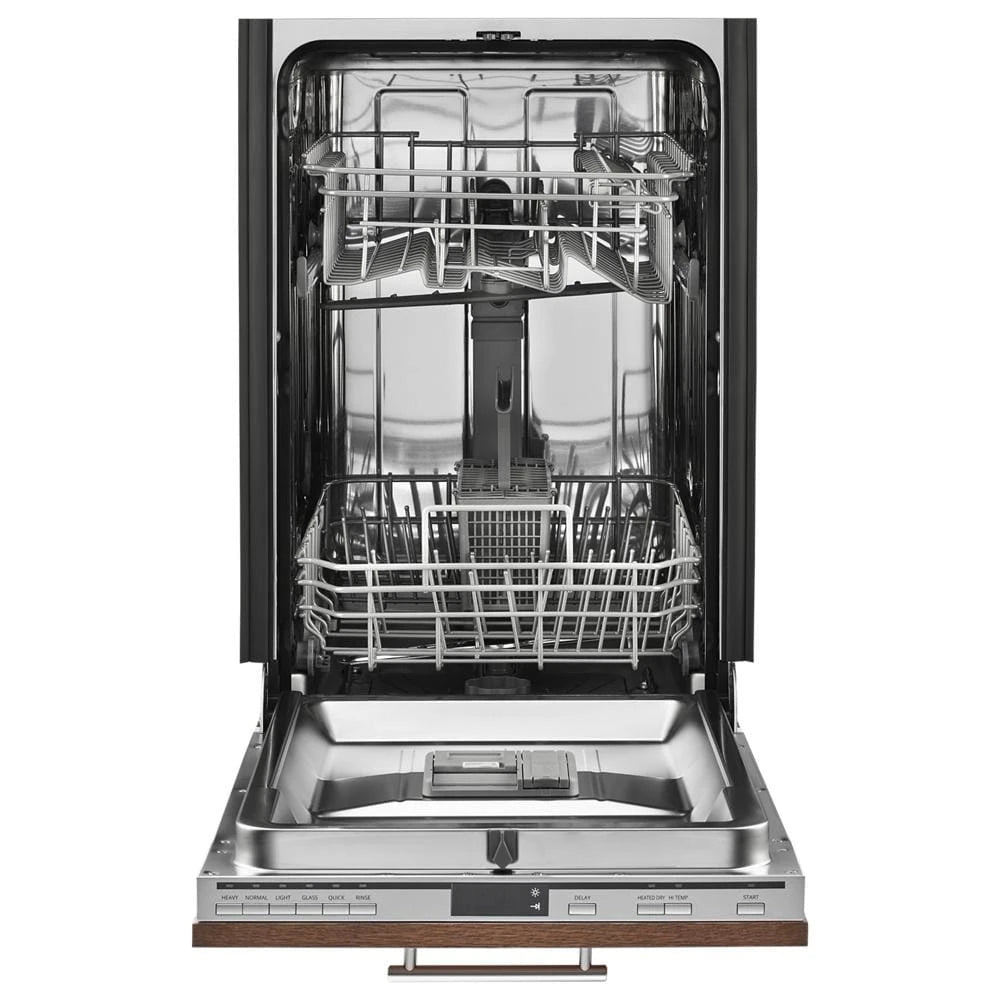

This space-saving dishwasher features the same functionality as a traditional dishwasher but is made to work in smaller spaces. The compact design can fit 8 placesettings while freeing up room in the kitchen. Choose a Whirlpool(R) or KitchenAid(R) panel kit (not included) that coordinates with the rest of your appliances or add a custom front panel and handle for a seamless fit with your cabinetry. Also, the cycle memory feature remembers the last cycle you ran, starting it with the push of a button, and an adjustable upper rack helps you fit large dishes.
Product Features
-
Adjustable upper rack
Manually raise or lower the upper rack two inches to better fit tall items. -
Small Space Solution
Fit 8 place settings in this compact dishwasher that offers more flexibility and room to work in the kitchen. -
Cycle Memory
For quick cleanup of routine messes, this dishwasher remembers the last cycle you picked and automatically chooses it for you the next time. -
ADA compliant
Meets ADA Standards for Accessible Design -
Quiet cleaning performance
Keep your kitchen quiet during cleanup with a dishwasher sound level of just 50 dBA.**Per IEC standards. -
Stainless steel tub
Make sure dishes come out dry with the stainless steel tub that cools quickly so moisture doesn't condense on the dishes. -
Normal cycle
Use to clean up leftover messes from your day-to-day meals. -
Heavy cycle
Takes care of heavily soiled messes and other hard-to-clean dishes without the extra elbow grease by adding extra time to the cycle. -
High Temperature Wash option
Gives items like glassware or dishes a more thorough clean. -
Heated Dry option
Use a clean, dry dish straight from the dishwasher thanks to added heat for drying. For optimal drying results, use this option with rinse aid. -

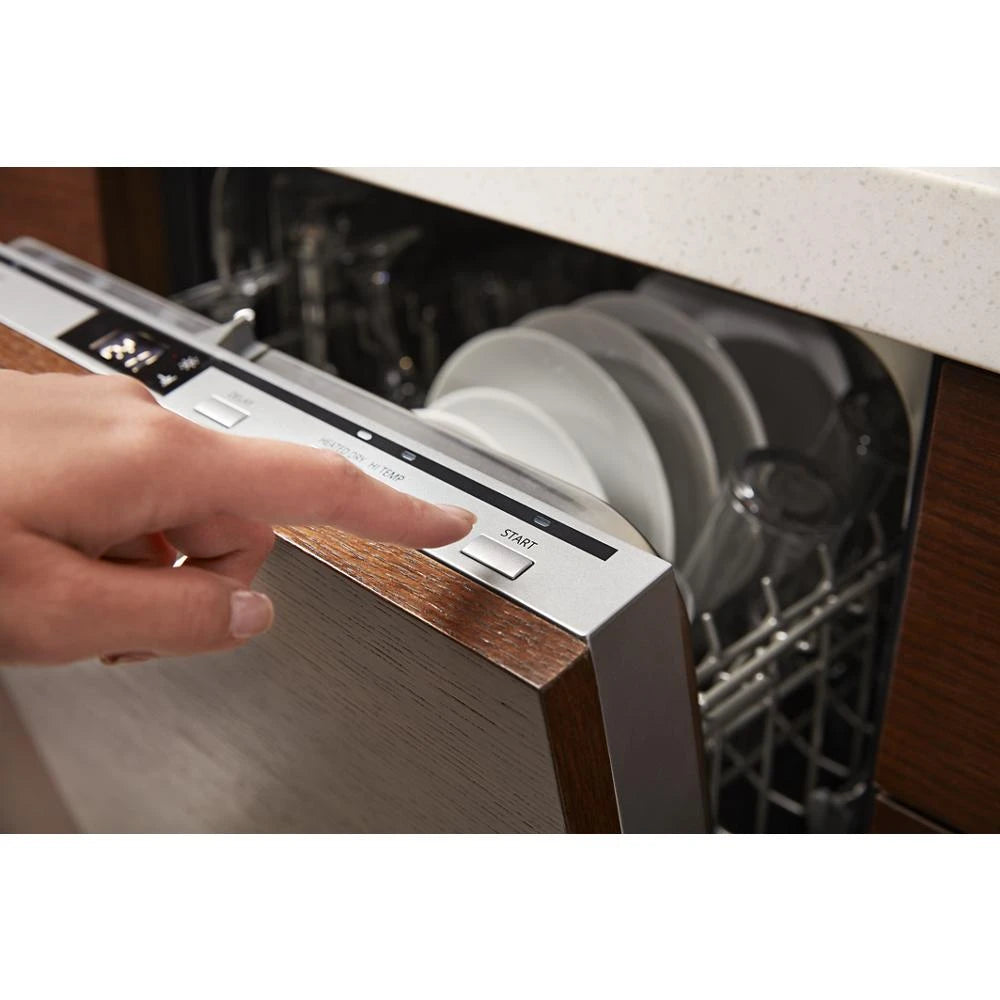

Control Lock mode
Easily avoid unintended use by holding down the control lock button for 3 seconds to lock the dishwasher controls. -
Dual spray arm
A smaller space doesn't mean you have to sacrifice cleaning performance, thanks to a dishwasher with a separate spray arm in each rack. -
ENERGY STAR® certified
ENERGY STAR® certified models exceed government standards to help save money on your utility bills.
