Sale price $1,619.10 Regular price $1,798.97 Save $179.87 / 9% OFF

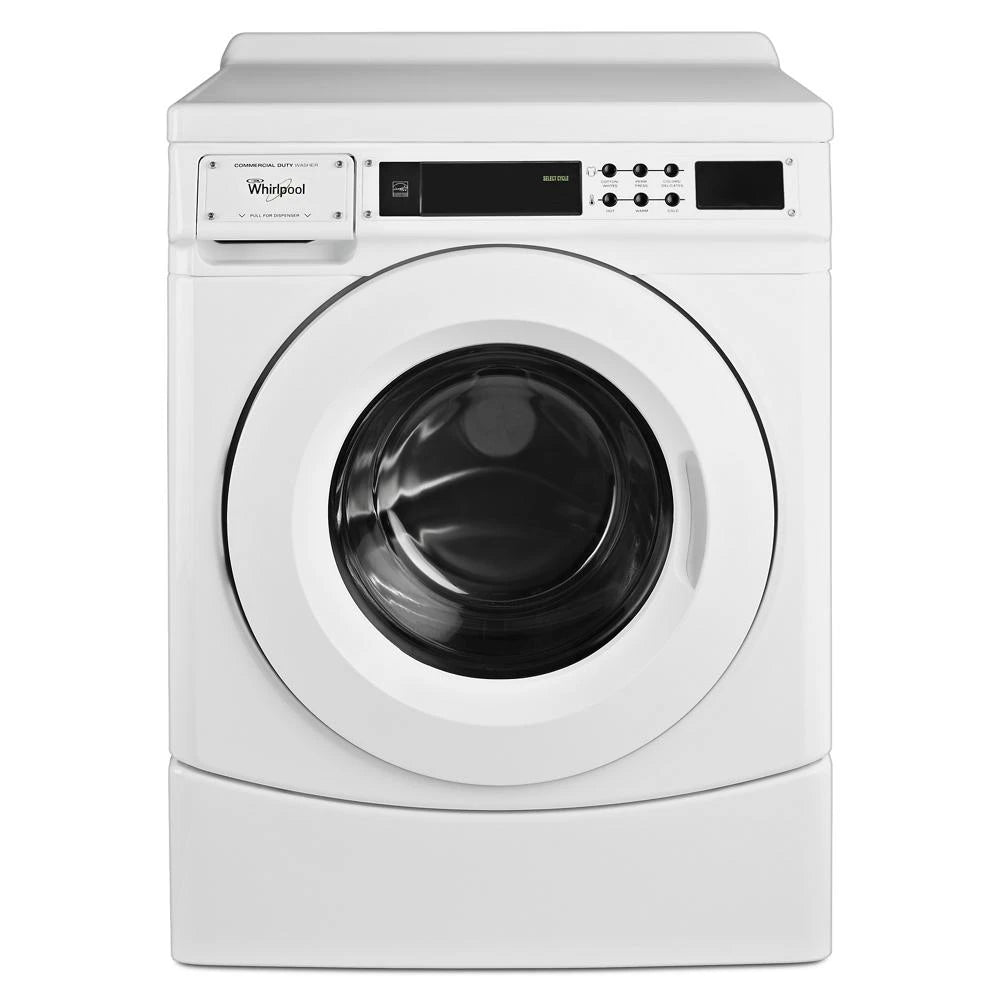

Product Details for Whirlpool CHW9160GW

Technical Details

Details

Hoses Included Yes
Water Factor 4.23
Maximum Spin Speed 1, 000
Operating Pressure 20-100

Controls

Control Type Electronic
Electronic Display Type Cycle Indicator Lights
LED Color Blue

Cycles

Number of Wash Cycles 3
Washer Cycle Selections Colors; Delicates; Whites

Modifiers

Number of Wash/Rinse Temperatures 3
Rinse Temperature Cold; Hot; Warm

Certifications

ADA Compliant ADA Compliant with Optional Pedestal
CEE Tier Rating Tier II
prop65 CA

Exterior details

Lid/Door Swing Left
Window Yes

Interior details

Advanced Vibration Control Yes
Automated Dispenser Precision Dispense
Automatic Load Size Sensing Technology Yes
Dispense System Detergent, Fabric Softener & Bleach
Washer Drum Material Stainless Steel

Performance details

Motor Horsepower 1/2 HP

Product details

Energy Star® Qualified ENERGY STAR® Qualified

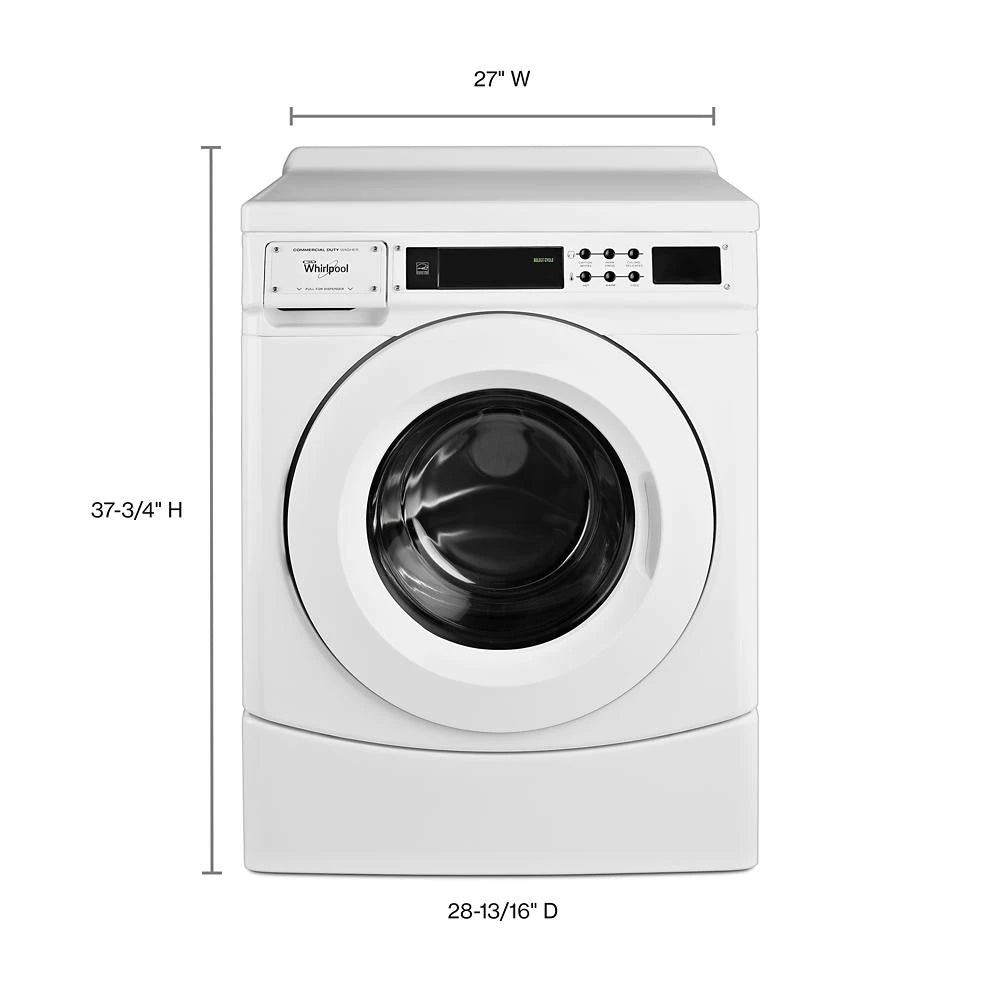

Dimensions & weight

Length 28.81 in.
Weight 244 lbs.
Full Width Console Yes
carton depth 33.5
carton height 40.5
carton width 29
gross weight 244
net weight 235
Width 29 in.
Height 40.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 29 in.
Shipping Height 40.5 in.
Shipping Length 33.81 in.
Shipping Weight 284 lbs.
Total of Shipping Weight 284 lbs.
Source Calculation

Capacity

Volume 22.77 Cu.Ft.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.58 ft³
Dimensional Weight 243.46 lbs.
Total of Cubes 19.58 ft³
Total of Dimensional Weight 243.46 lbs.

Description

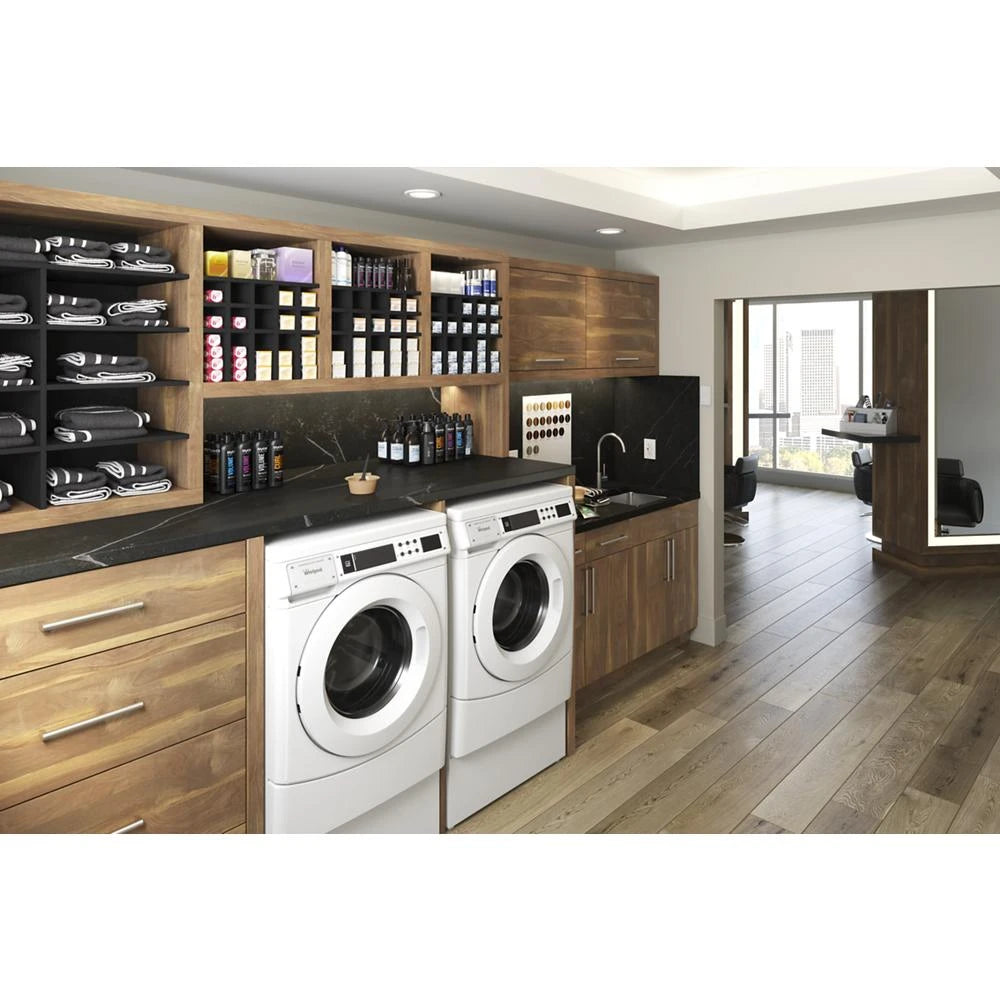

Give your customers the sustained performance they expect over time with this commercial front-load, single-load washer. Combining the constant, reliable action of the drive system with regular cycle times from automatic load balancing helps provide optimal cleaning, load after load keeping customers happy and getting the job done. Plus, we re backing it with a 90-Day Labor, Two-Year Limited Parts-Only Warranty.



Product Features

  • Commercial-Grade Cabinet
    Built from heavy, galvanized steel, this cabinet is designed to keep up with traffic in a commercial laundry space.
  • Triple-Lip Seal with Garter Spring
    Provides an effective seal, helping to reduce potential moisture contamination. Addition of garter spring enhances spring support if any deflection occurs.
  • Premium Bearings
    Oversized, premium NSK bearings are sealed for added protection.
  • Six-Point Suspension
    Provides optimal stability for entire wash unit as a result of four dampers and two springs.
  • Powerful Drive System
    The robust drive system is designed and tested to last in the commercial environment, giving your customers the performance they expect over time.
  • Microprocessor Controls
    Controls offer owners the ability to customize vend prices and washer cycle options, such as Super Cycle, ensuring optimal revenue opportunities. Controls also give customers the option to select the ideal cycle for individual wash needs.
  • Redesigned Bellow
    The redesigned bellow helps keep small items from getting caught or snagged, ensuring all items get an equal clean.
  • Durable Dispenser
    The durable soap dispenser offers the end user convenient space to load detergent, and its sturdiness adds to the machine's overall durability.
  • Shaft Sleeve
    Helps to prevent drive shaft wear. The robust axial compression tube locks the two inner races of the premium NSK bearings ensuring they turn with the shaft, helping to prevent drive shaft wear.
  • Trunnion
    Shock-resistant, cast-metal trunnion provides additional strength to overall drive system and basket structure.
  • Card Reader Compatible
  • Accelerometer
    Detects unbalanced loads and redistributes to finish the final spin.
  • Multi-Level Pricing
    To help maximize revenue options, owners have the ability to price each cycle independently.
  • Cycle Modifiers
    Price cycles individually, add a rinse or modify water temperature.
  • Time of Day Pricing
    Controls offer the flexibility to program different vend pricing based on the day of the week and time of day.
  • Progressive Spin Logic
    Delivers consistent cycle times by reallocating weight to complete spin out of unbalanced loads.
  • Water Inlet Hose Included
    The durable water inlet hose is robust and resists kinking or bending, helping the machine operate at full capacity.
  • ADA Compliant with Optional Pedestal Installed
  • Optional Pedestals Sold Separately
    4" Pedestal (WHP0400VW) or 10" Pedestal (WHP1000VW)
  • Robust Hinge
    This door hinge is built to maintain its integrity and aesthetics.
  • Automatic Load Balancing
    A six point suspension with four dampers and two springs help deliver consistent cycle times and optimal unbalanced performance.
  • Super Cycle
    Super Cycle offers an extra three minutes of wash time or an additional rinse for an additional cost to the user, boosting revenue opportunities.
  • High-Efficiency Design
    Helps reduce energy and water costs.
  • Front-Access Panel
    The front-access panel provides fast entry to the motor, transmission, and wash tub for streamlined self-service.
  • 90-Day Labor, Two-Year Limited Parts-Only Warranty
    This quality dryer is backed with a 90-Day Labor, Two-Year Limited Parts-Only Warranty.
  • Front Access Panel
    The front-access panel streamlines self-service by providing quick entry to the motor, transmission, and wash tub—minimizing downtime and helping to keep the machine running and generating revenue.
  • Large Capacity Wash Basket
    Ideal for Family-Size Loads
  • Time-of-Day Pricing
    Controls offer the flexibility to program different vend pricing based on the day of the week and time of day. This allows owners to take full advantage of revenue-generating opportunities for their operation.
