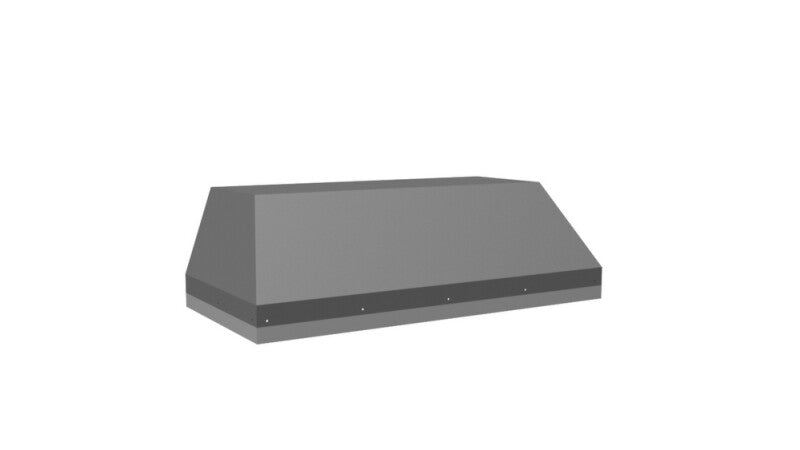

VENTAHOOD M40SLDSS 40 3/8" M Series Wall Mount Liner Insert Stainless Steel

Ventahood

SKU: M40SLDSS

  • On Sale
VENTAHOOD M40SLDSS 40 3/8" M Series Wall Mount Liner Insert Stainless Steel
Key Specs
  • Type: Hood inserts
  • Width: 40.37 Inch
  • Depth: 19.25 Inch
  • Height: 12.5 Inch

More details

$789.98 $1,025.00 Save $235.02

Check Delivery Options

More on the way

Notify Me

Notify me when in stock

We will send you an email once the item becomes available!

Thank you!

You will be first to know when the item is back in stock.

Error!

Something went wrong, please try again later.
Extended Protection
?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $115.99
  • $163.99
  • Product Information
  • Specifications
  • Manuals & Guides
  • Features
  • Reviews
  • General
  • Model: M40SLDSS
  • Brand: VENTAHOOD
  • Type: Range Hoods
  • Height: 12.5
  • Width: 40.37
  • Length: 19.25
  • Advanced Features
  • Wi-Fi Connectivity: No
  • Smart Features: No
The MSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes. Features a corrosion resistant canopy and a stainless steel fascia assembly. All liners in this series are 19 1/4" deep. Recommended mounting height is 24" - 27" above the cooking surface. PLEASE NOTE, TWO BLOWER OPTIONS ARE AVAILABLE. M600 [630 CFM] AND M1200 [1035 CFM].
The MSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes. Features a corrosion resistant canopy and a stainless steel fascia assembly. All liners in this series are 19 1/4" deep. Recommended mounting height is 24" - 27" above the cooking surface. PLEASE NOTE, TWO BLOWER OPTIONS ARE AVAILABLE. M600 [630 CFM] AND M1200 [1035 CFM].
WIDTH : 40 3/8"
DEPTH : 19 1/4"
HEIGHT : 12 1/2"
CFM : (Chart A)
SONES : N/A
Amps : (Chart B)
Num. Lights : 2
(Chart A) Electrical/Mechanical Specifications For Blower Unit
Model M600 Single
Volts 115
Amps* 5.0
Hz 60
CFM SP@0.0" 630
CFM SP@0.1" 625
CFM SP@0.25" 615
CFM SP@0.5" 600
CFM SP@0.75" 580
Min. Round Duct Size 6" (28in.^2)
-
Model M600 w/WHM300 Harness
Volts 115
Amps* 5.0
Hz 60
CFM SP@0.0" 302
CFM SP@0.1" 300
CFM SP@0.25" 295
CFM SP@0.5" 288
CFM SP@0.75" 278
Min. Round Duct Size 6" (28in.^2)
-
Model M1200 Dual
Volts 115
Amps* 10.0
Hz 60
CFM SP@0.0" 1035
CFM SP@0.1" 1015
CFM SP@0.25" 1000
CFM SP@0.5" 995
CFM SP@0.75" 915
Min. Round Duct Size 10" (79in.^2)
  • Quietest at all speeds
  • Easiest to Clean
  • Patented Filterless Design
  • Inherently Fire Safe
  • 1 Year Warranty
  • SensaSource(R) heat detection
