SKU: BH340PSLBSS

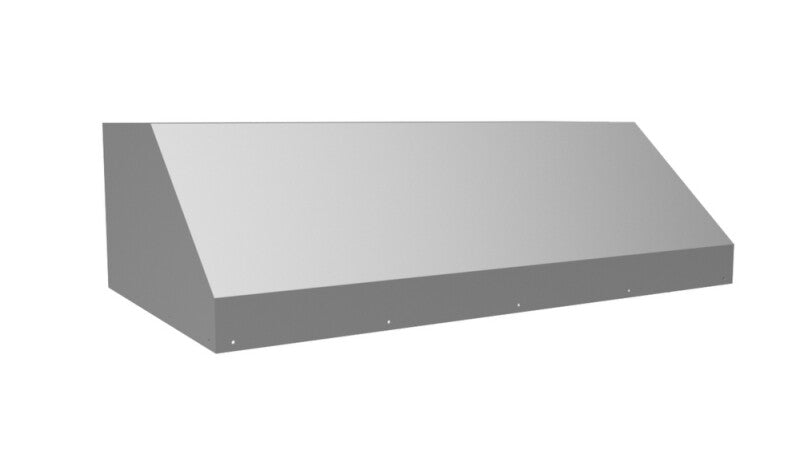

Vent-A-Hood BH340PSLBSS Professional-Depth Wall Mount Liner Insert with High-Capacity Magic Lung® Blower Stainless Steel

Quick Specification More details

Width:
40.38"
Depth:
22.5"
Height:
12"
Type:
Hood Inserts

About this product

+ This model is equipped with three LED lights.
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
Special Notes: LED lights. This model is not available with heat lamps.
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".

SKU: BH340PSLBSS

Vent-A-Hood BH340PSLBSS Professional-Depth Wall Mount Liner Insert with High-Capacity Magic Lung® Blower Stainless Steel

$2,826.00 ~~$3,719.95~~ Save $893.95 / 24% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
40.38"
Depth:
22.5"
Height:
12"
Type:
Hood Inserts

About this product

+ This model is equipped with three LED lights.
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
Special Notes: LED lights. This model is not available with heat lamps.
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,826.00 ~~$3,719.95~~ Save $893.95 / 24% OFF

Product Details for Vent-A-Hood BH340PSLBSS

Technical Details

Performance

CFM

900

Sound level

SONES

6.3

Electrical specifications

Amps

6.0

Lighting

Num. Lights

3

Dimensions & weight

Width	40.38 in.
Height	12 in.
Length	22.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	45.38 in.
Shipping Height	17 in.
Shipping Length	27.5 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.31 ft³
Dimensional Weight	78.43 lbs.
Total of Cubes	6.31 ft³
Total of Dimensional Weight	78.43 lbs.

Description

Ideal when maximum blower capacity is needed but available width is limited. This liner insert combines a deeper capture area with higher-capacity Magic Lung® blower configurations for demanding cooking environments, featuring patented centrifugal filtration for powerful ventilation and exceptionally quiet operation.

Product Features

+ This model is equipped with three LED lights.
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
Special Notes: LED lights. This model is not available with heat lamps.
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
