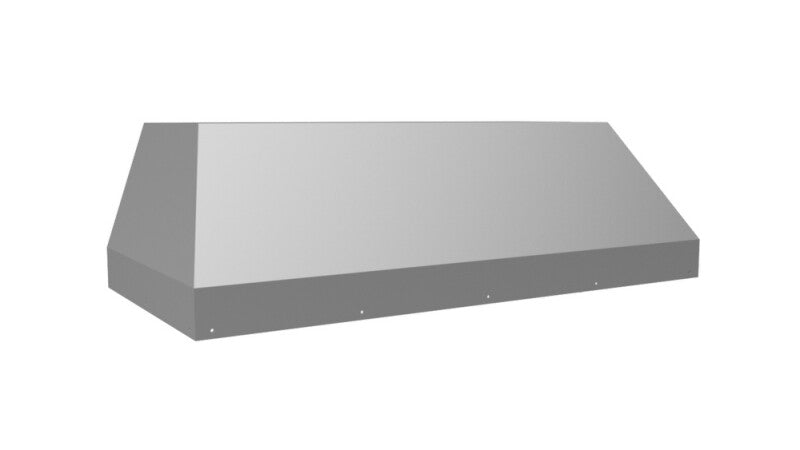

VENTAHOOD BH228SLDSS 28 3/8" 600 CFM Wall Mount Liner Insert Stainless Steel

SKU: BH228SLDSS

Quick Ship
In stock
On Sale
VENTAHOOD BH228SLDSS 28 3/8" 600 CFM Wall Mount Liner Insert Stainless Steel

Key Specs

  • Type: Hood inserts
  • Width: 28.37 Inch
  • Depth: 19.25 Inch
  • Height: 12.0 Inch

More details

    $1,686.98 $2,301.00 Save $614.02

    In stock - Ships within 24 hours

    Extended Protection

    ?

    Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

    Enjoy added peace of mind long after the original warranty expires.

    This Protection Plan includes:

    • Full parts and labor coverage during the whole period of the extension plan.
    • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
    • Food loss protection
    • 24/7 toll-free number for support

    Click here for full details.

    • $195.99
    • $131.99

    Check Delivery Options
    • Product Information
    • Technical Details
    • Manuals & Guides
    • Features
    • Reviews
    • General
    • Model: BH228SLDSS
    • Brand: Ventahood
    • Height: 12.0
    • Width: 28.37
    • Length: 19.25
    • Advanced Features
    • Wi-Fi Connectivity: No
    • Smart Features: No

    The standard ventilation of the BHSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 19 1/4" deep. Recommended mounting height is 24" - 27" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.

    WIDTH : 28 3/8"
    DEPTH : 19 1/4"
    HEIGHT : 12"
    CFM : 600
    SONES : 6.5
    Amps : 4.0
    Num. Lights : 2
    ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT
    Model B200 Dual
    Volts 115
    Amps+ 4.0
    Hz 60
    RPM 1550
    CFM SP@0.0" 600
    Equiv. CFM$ 900
    CFM SP@0.1" 531
    CFM SP@0.2" 480
    CFM SP@0.3" 430
    Min. Round Duct Size 8" (50 sq. in.)
    Sones# 6.5
    • Quietest at all speeds
    • Easiest to Clean
    • Patented Filterless Design
    • Inherently Fire Safe
    • 5 Year Warranty
    • SensaSource(R) heat detection
