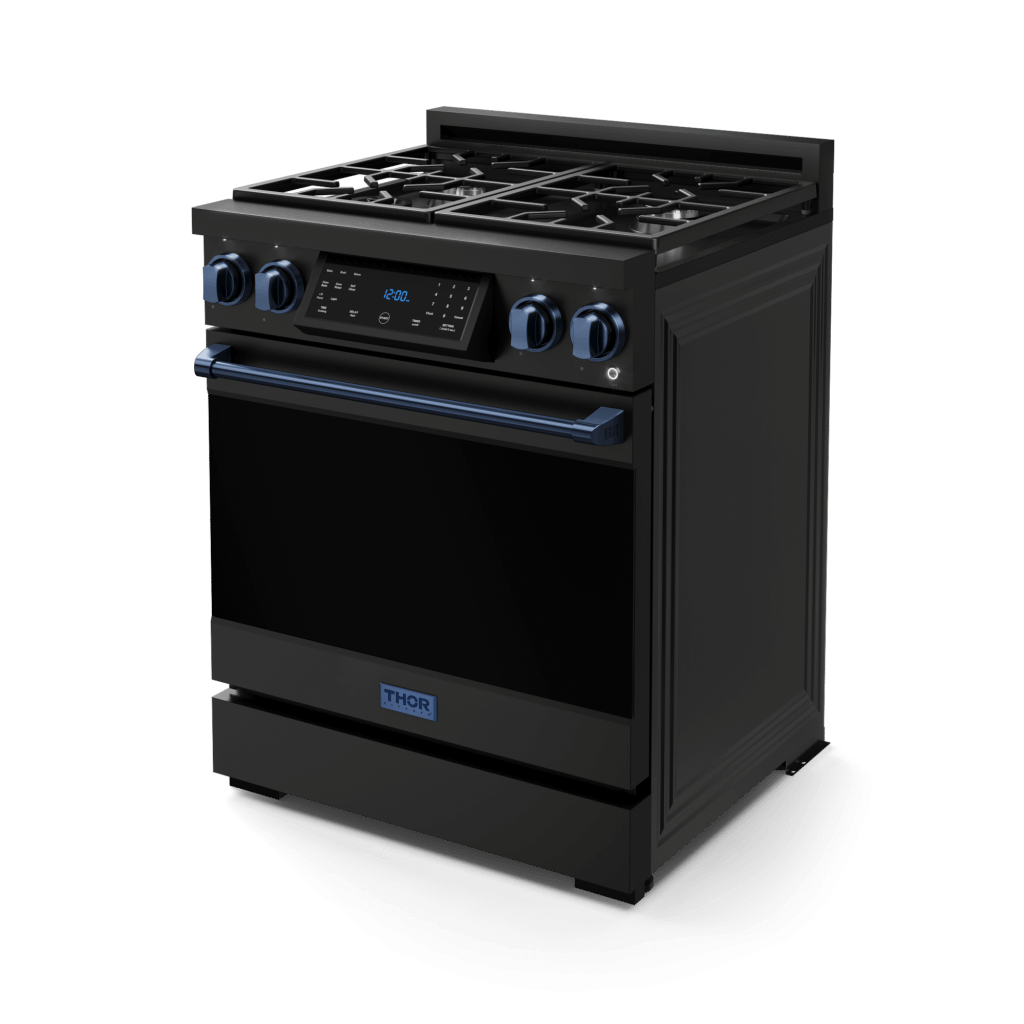

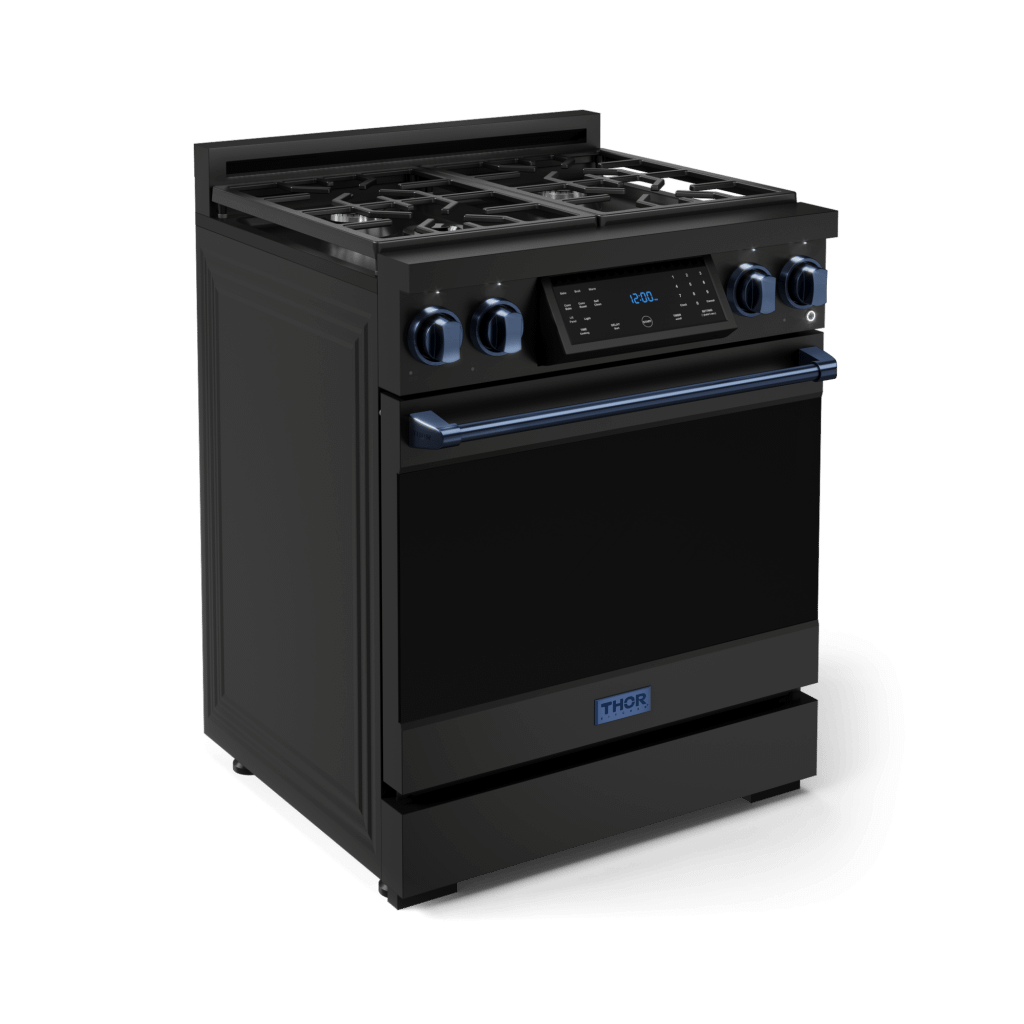

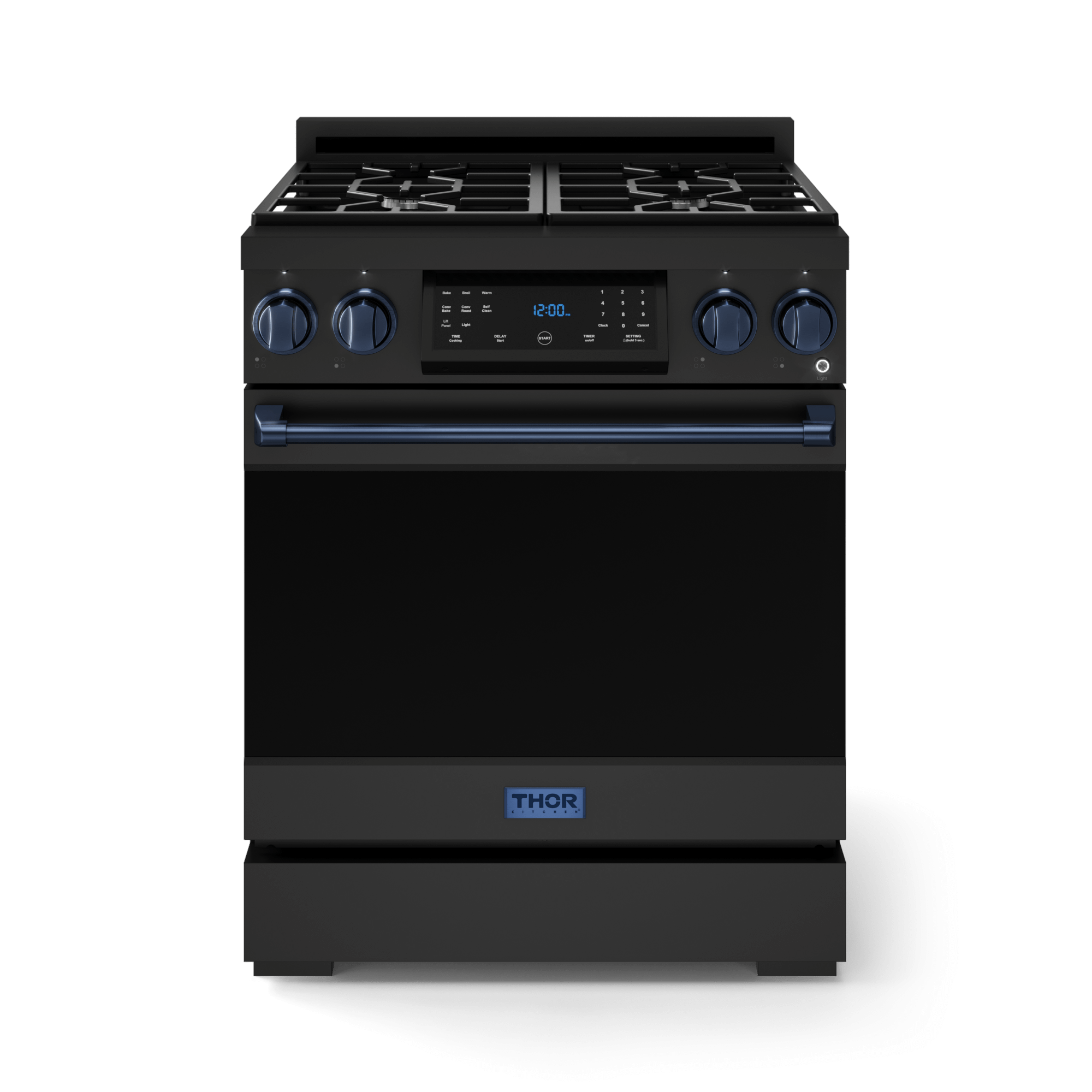

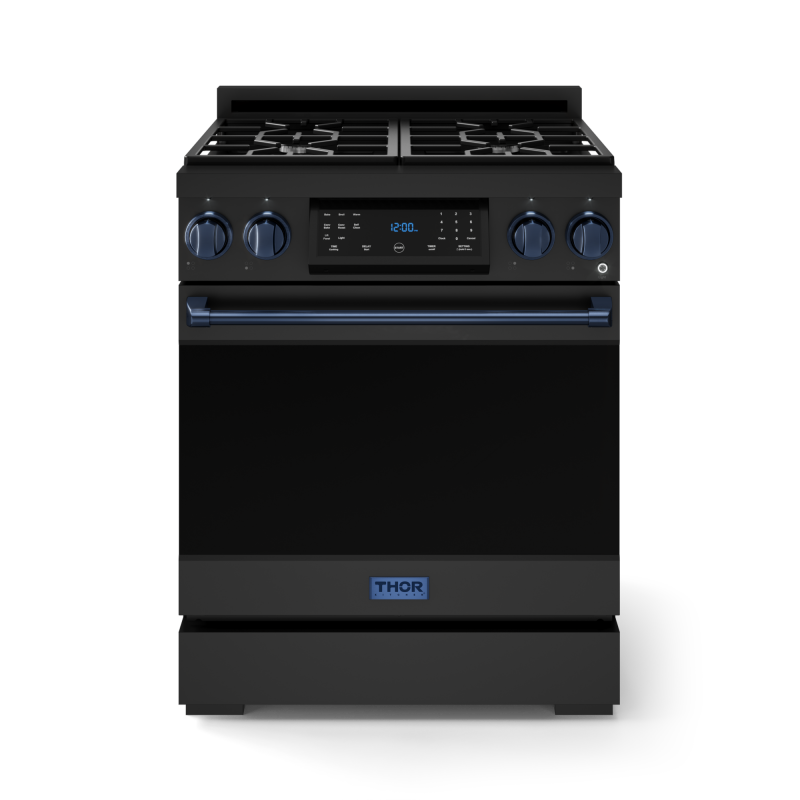

Product Details for THOR KITCHEN RSG30BLPBLU
Technical Details
Technical details
| Fuel Type | Liquid Propane |
| Construction | Freestanding |
| Burner Type | Sealed Burners |
| Type of Grate | Continuous |
| Watts (W) / Max BTU | 15 |
| Amperage | 15 |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Control Type | Knob / Touch Screen |
| Panel light | Yes |
| Plug Type | US 3 Prong |
| Power Cord Length (in.) | 59.0 |
| Color | Black/Blue |
| Certification | CSA |

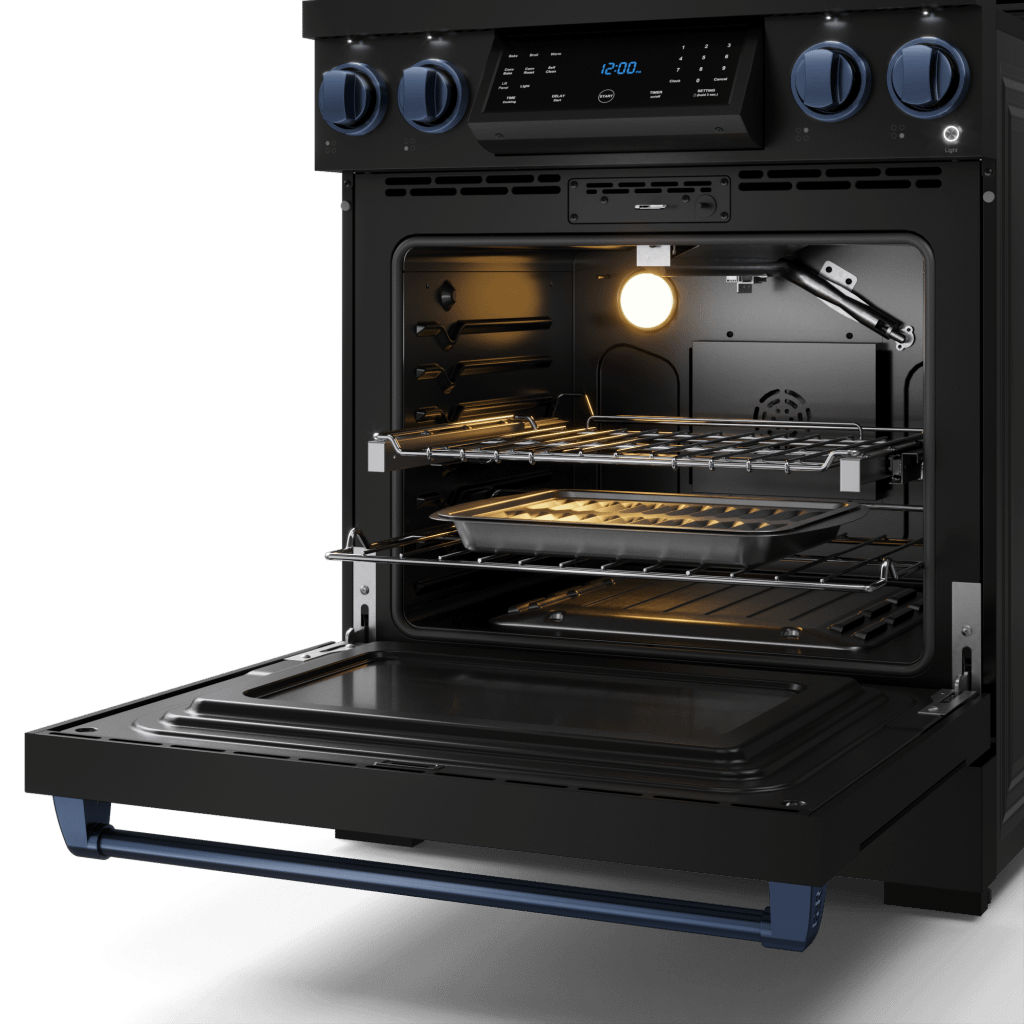

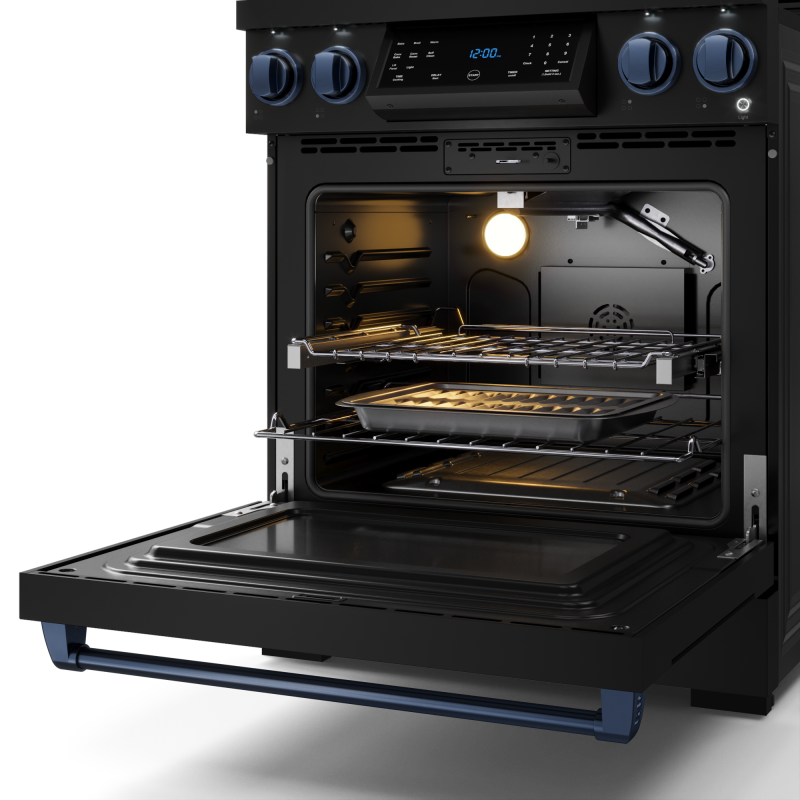

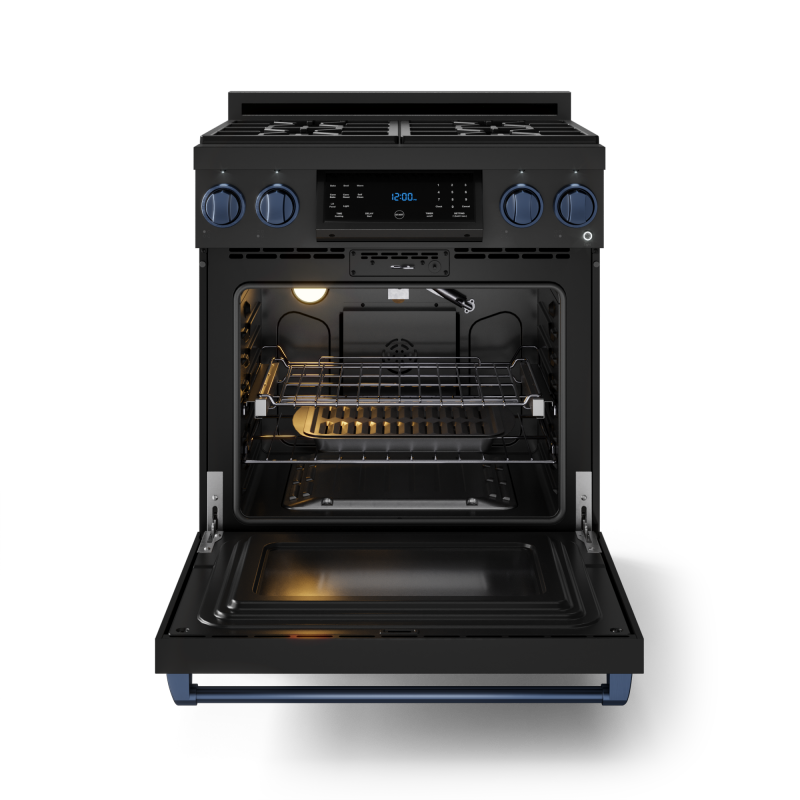

Oven performance
| Oven Capacity (cu. Ft.) | 4.55 |
| Oven Control Features: | Light On/Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self Clean, Control Lock Capability, Sabbath Mode C(degree) or F(degree) Programmable |
| Oven Cooking Modes | Bake, Conv Bake, Conv Roast, Broil, Keep Warm, Fast Preheat |
| Bake Element Power | 18 |
| Broil Element Power | 10 |
| Convection | Commercial Convection |
| Oven Lights | Yes |
| Oven Racks (standard) | 1 |
| Oven Racks (telescopic) | 1 |
| Baking Sheet Size | Fits 23 x 16 Baking Sheet |
| Self Clean (Y/N) | Y |
| Sabbath Mode (Y/N) | Y |
| Air Fry | N |

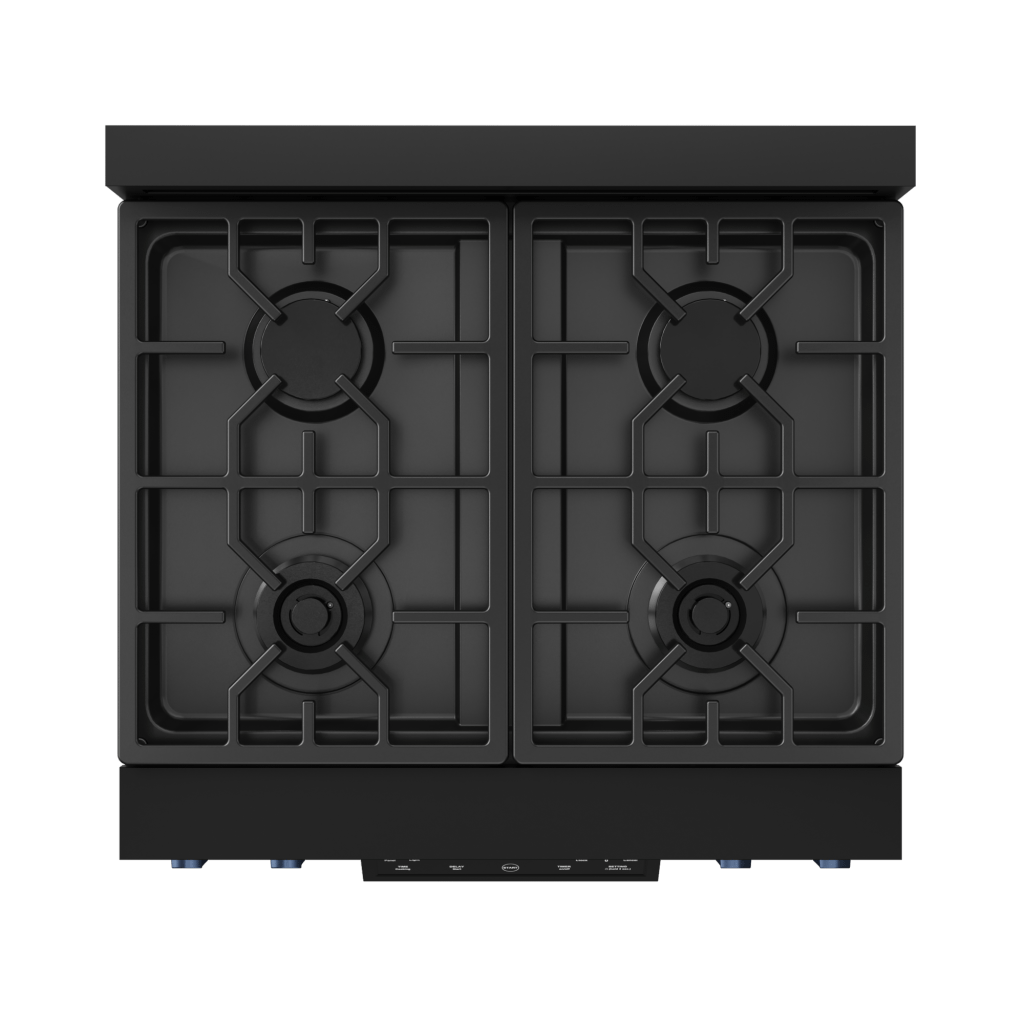

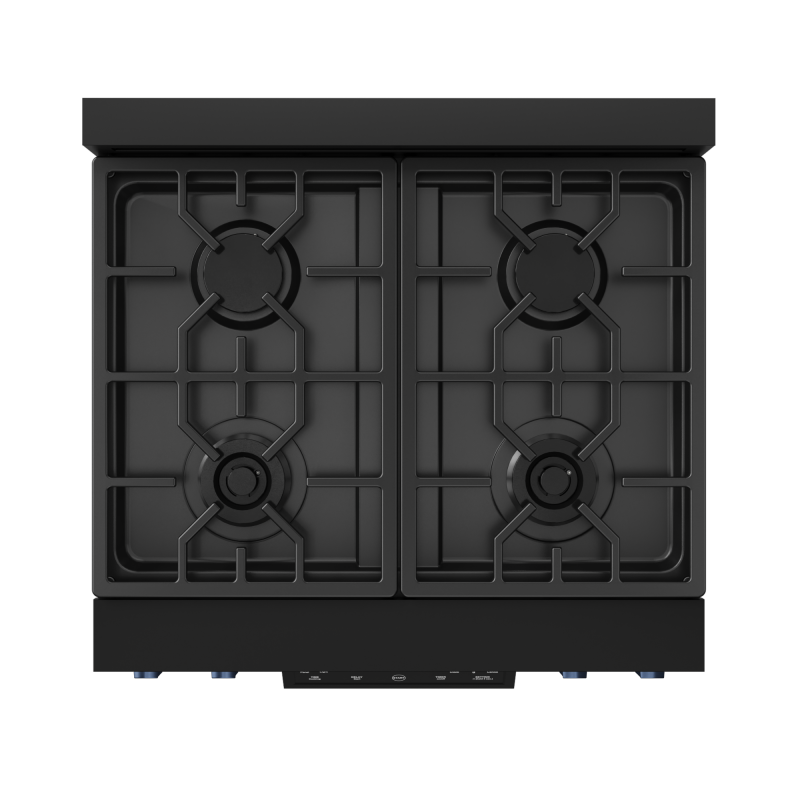

Cooktop performance
| Total Burners | 4 |
| Front Left Burner | 15 |
| Front Right Burner | 15 |
| Rear Left Burner | 12 |
| Rear Right Burner | 12 |
Dimensions
| Product Dimensions (WxDxH) (in.) | 29 in x 29 in x 40 in |
| Rubber Spacer Depth (install on back panel) | 3 |
| Product Height (from bottom to top of back splash) (in.) | 40 |
| Product Height (from bottom to top of side panel) (in.) | 36.0 |
| Product Depth (from back panel to handle) (in.) | 29.0 |
| Product Depth (from back panel to bullnose) (in.) | 27 |
| Product Depth (from back panel to control panel) (in.) | 26 |
| Product Depth (from back panel to side panel front) (in.) | 24.0 |
| Cutout Dimensions (WxDxH) | 30 in x 24 in x 36 in |
| Adjustable Height (in.) | 1.0 |
Oven dimensions
| Oven Internal Width | 23 |
| Oven Internal Depth | 19 |
| Oven Internal Height | 18.0 |
Weight
| Net weight | 212 |
| Gross weight | 256 |
Cutout
| Cutout Height | 36.0 |
| Cutout Width | 30.0 |
| Cutout Depth | 24.75 |
Accessories (optional)
| Island Trim | ITRSG30 |
| Reversible Cast Iron Griddle and Grill Plate1 | Telescope Rack |
| Wok Ring | WK01 |
| Telescopic Rack | TR30ESS |
Features
- The panel is illuminated by a white projector light, ensuring easy visibility and a modern look.
- For even heat distribution within the oven.
- The oven broiler features a 10,000 BTU tube for quick and efficient broiling.
- The panel is illuminated by a white projector light, ensuring easy visibility and a modern look.
Description
Key Features
Powerful Broil Burner
The oven broiler features a 10,000 BTU tube for quick and efficient broiling.
Commercial Convection Fan
For even heat distribution within the oven.

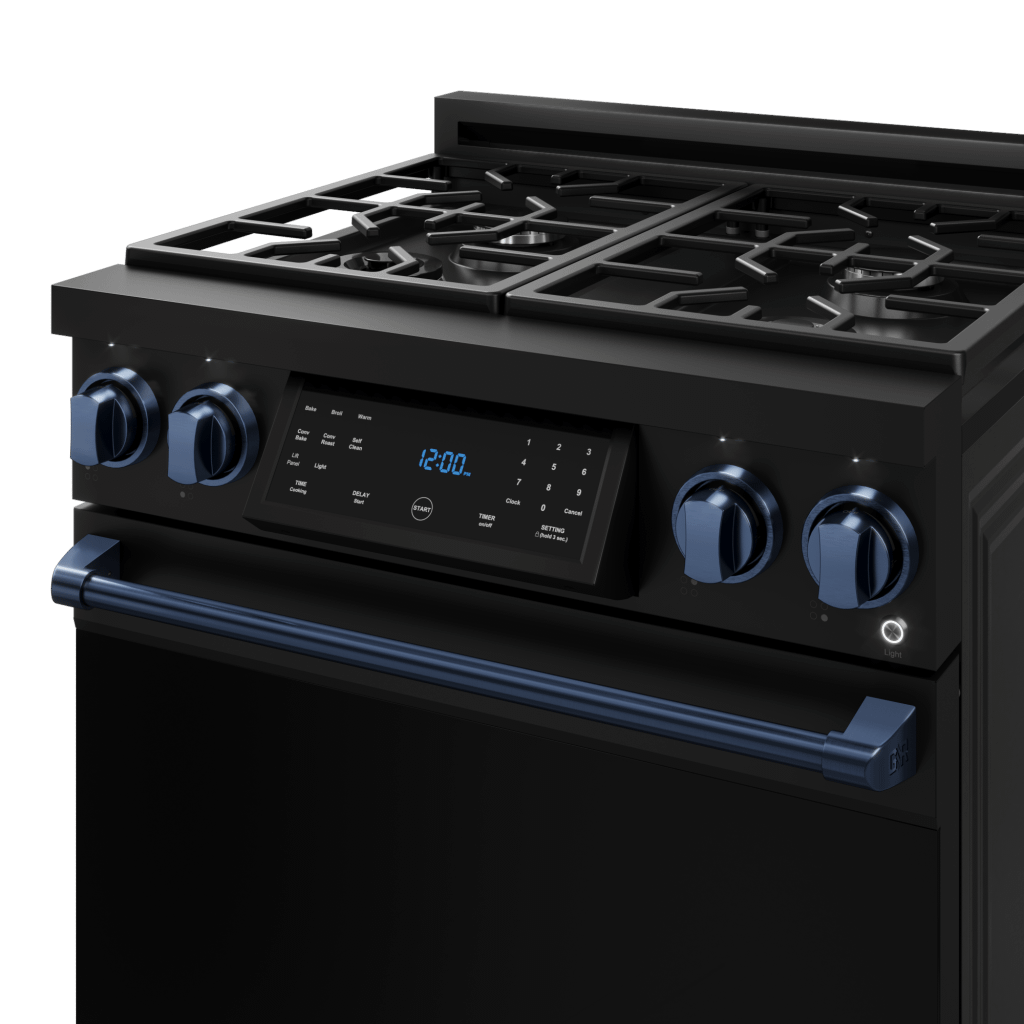

White Projector Light on Panel
The panel is illuminated by a white projector light, ensuring easy visibility and a modern look.
