Sale price $2,399.00 Regular price $3,110.97 Save $711.97 / 22% OFF

Product Details for Thermador WD30W

Technical Details

Warranty

Parts 2 Year
Labor 2 Year

General

Dinner Plate Capacity 27
Dinner Plate Diameter 10 1/2 "
Temperature Settings High, Medium, Low
Proof Mode yes
SoftClose® Door/Drawer yes
Sabbath Mode no
ADA Compliant (When Installed to ADA requirements) no
Automatic Shut-Off Timer no

Design

Cavity Capacity 2.2 Cu Ft
Color Not Applicable

Size and weight

Cavity Dimensions (in) 7 11/16'' x 21 7/8'' x 20 1/4''
Cavity Capacity 2.2 Cu Ft
Product Packaging Dimensions (HxWxD) 14 1/2'' x 35 5/8'' x 30 1/2''

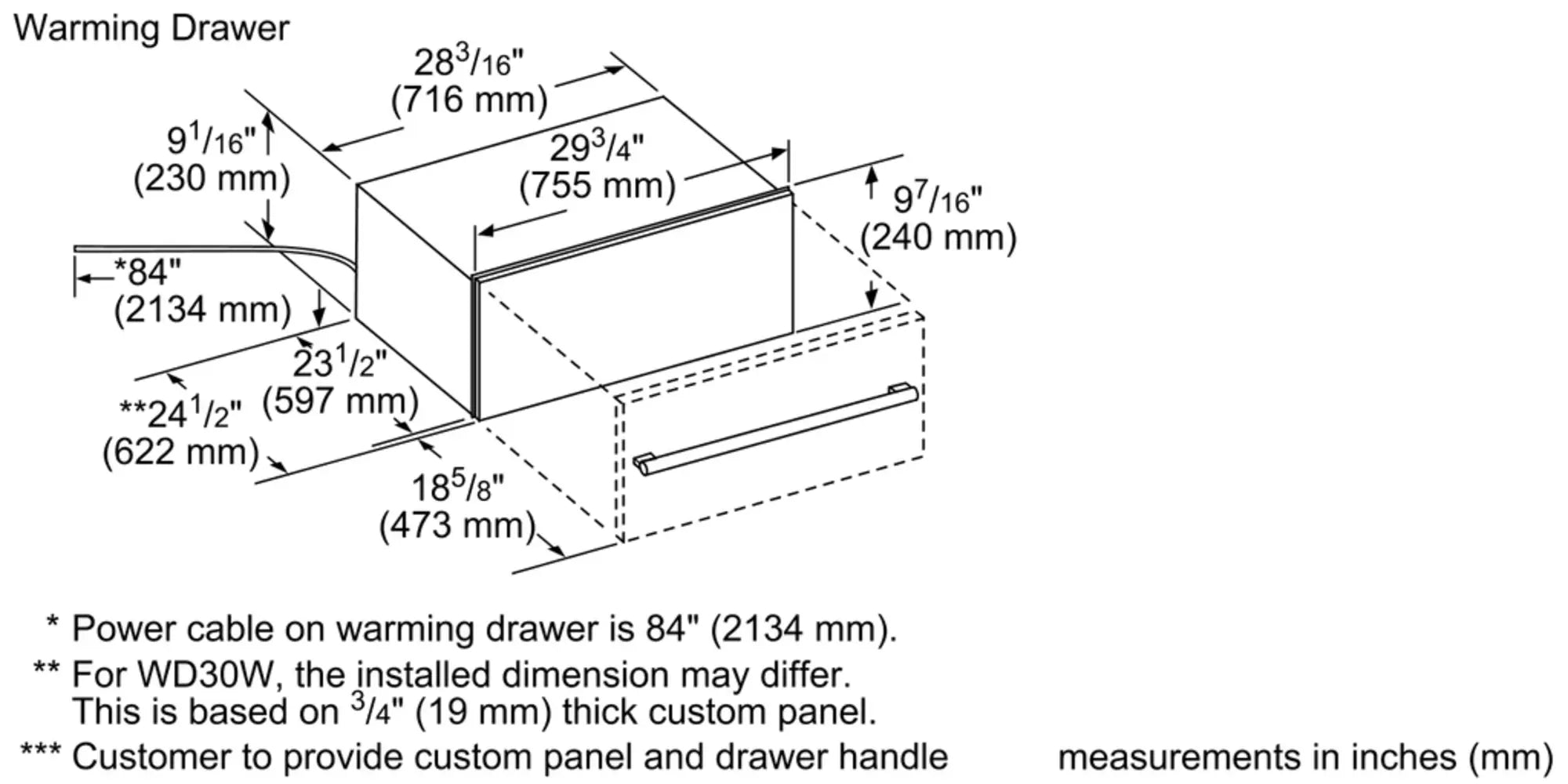

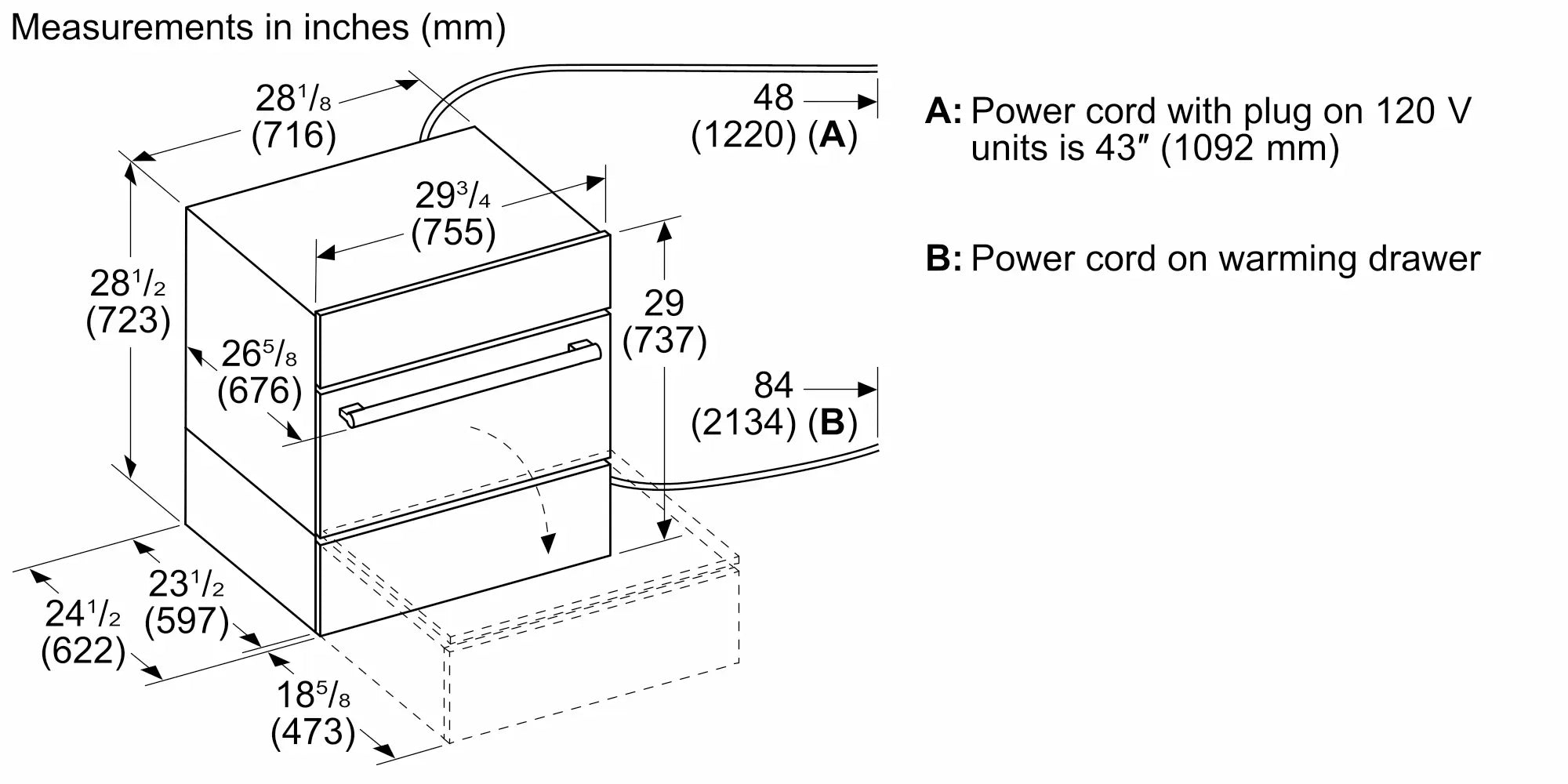

Overall Appliance Dimensions (HxWxD) (in) 9 7/16'' x 29 3/4'' x 23 3/4''

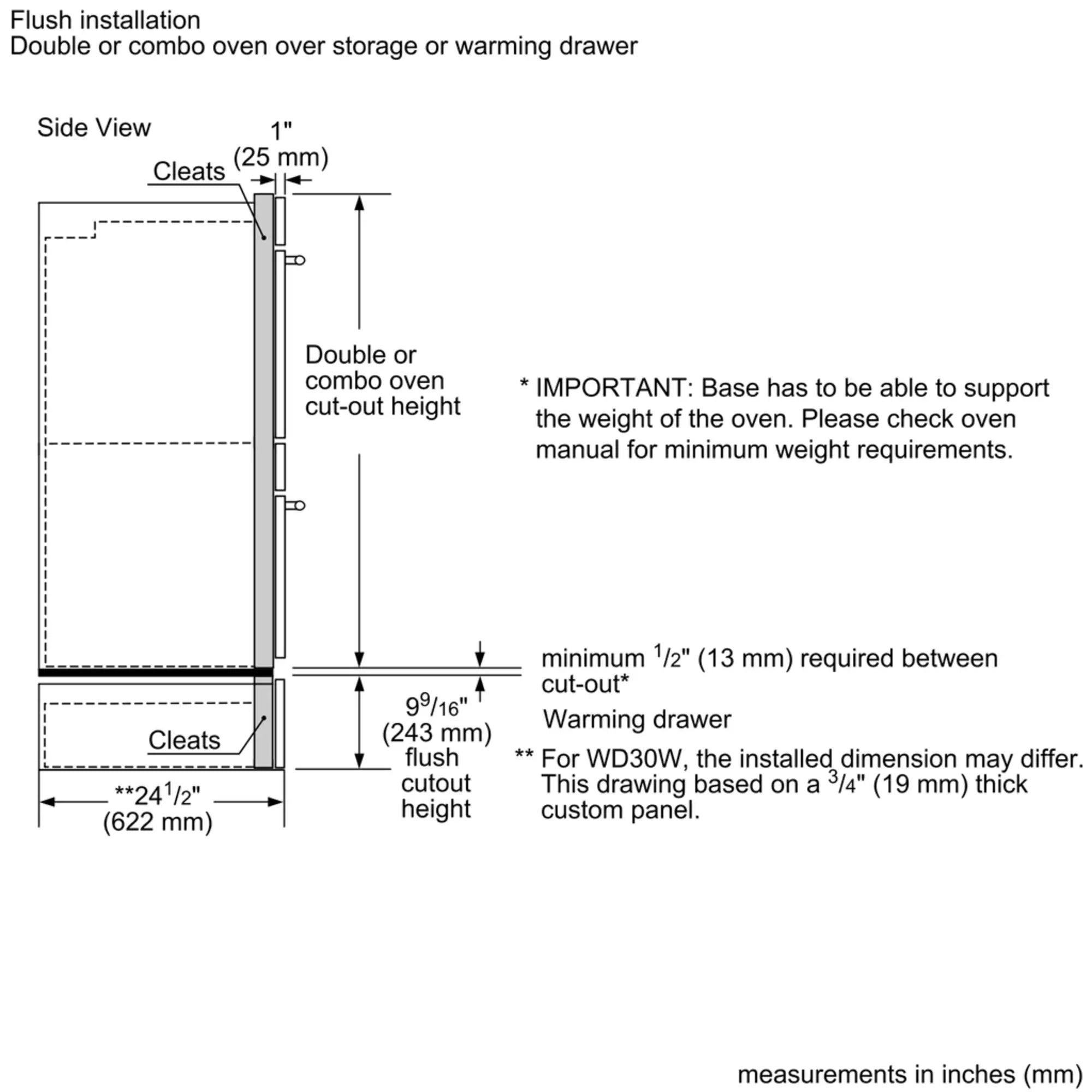

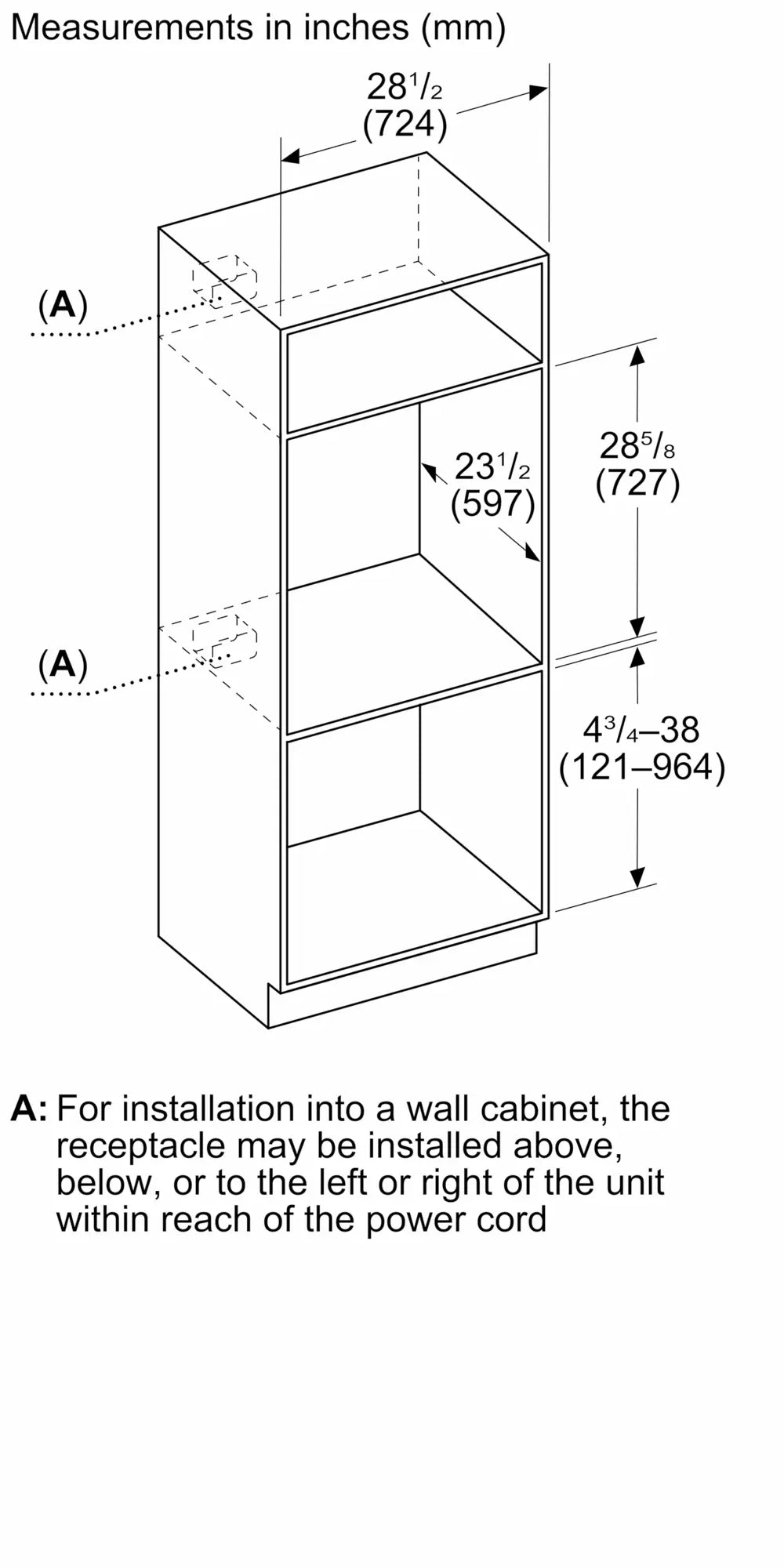

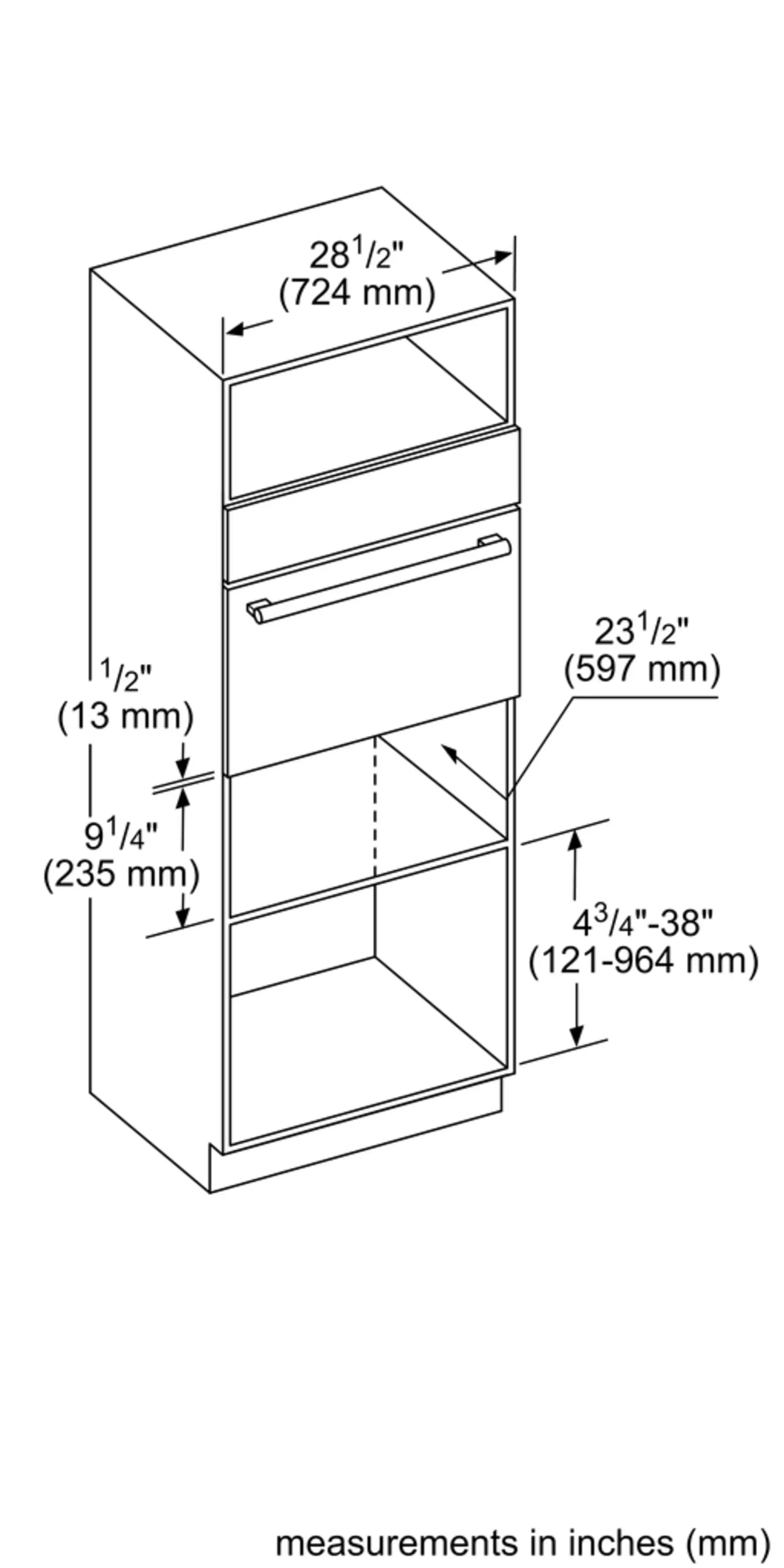

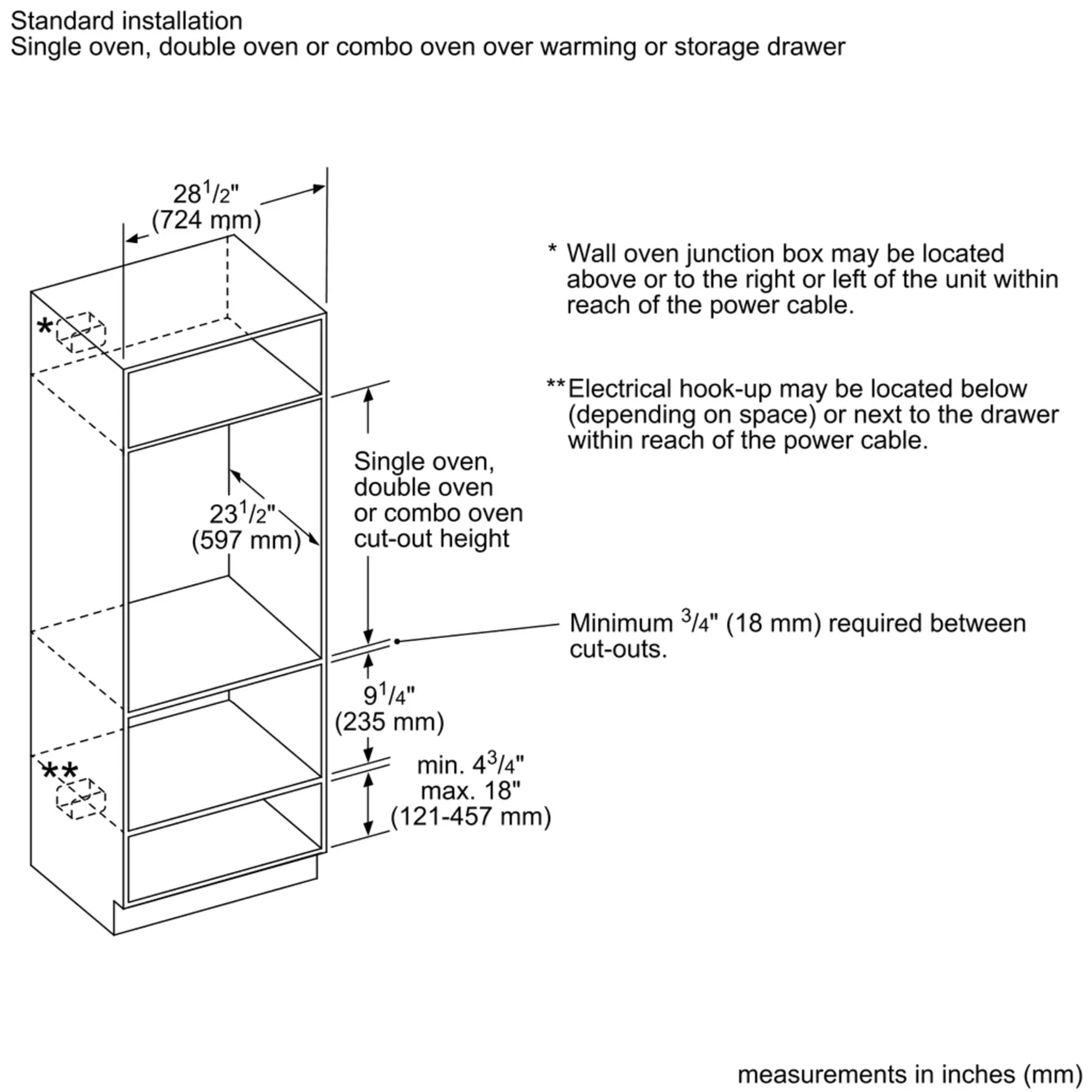

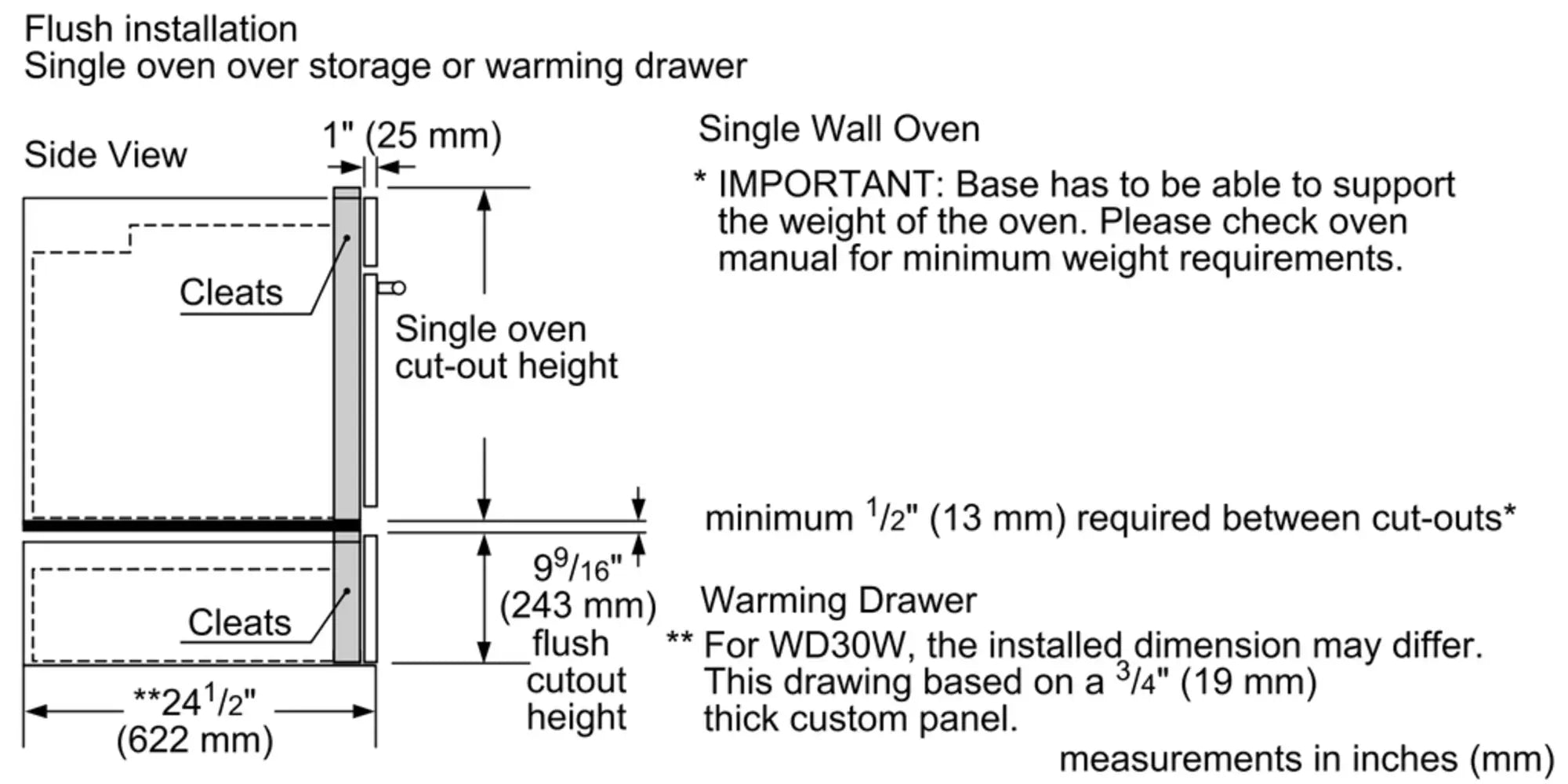

Required Cutout Size (HxWxD) (in) 9 1/4'' x 28 1/2'' x 23 1/2''
Net Weight 72.000 lbs

Technical specifications

Plug Type 120V-3 prong
Power Cord Length 84''
Volts 120 V
Amps 15 A
Frequency 60 Hz

Connectivity

Home Connect® WiFi-enabled no

Dimensions & weight

Width 29.75 in.
Height 9.44 in.
Length 23.75 in.
Weight 71 lbs.
Net Weight 71.000 lbs
Cavity Dimensions (in) 7 11/16'' x 21 7/8'' x 20 1/4''
Product Packaging Dimensions (HxWxD) 14 1/2'' x 35 5/8'' x 30 1/2''

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 14.44 in.
Shipping Length 28.75 in.
Shipping Weight 111 lbs.
Total of Shipping Weight 111 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 3.86 ft³
Dimensional Weight 47.97 lbs.
Total of Cubes 3.86 ft³
Total of Dimensional Weight 47.97 lbs.

Description

If you want to keep your meals warm and fresh, the Thermador Warming Drawer 30" is just what you need. With its telescoping ball-bearing design and built-in appearance, this drawer will fit perfectly into your kitchen. The spacious 2.2 cu.ft. cavity can easily hold and warm up to 28 dinner plates, making it perfect for family dinners or large gatherings. With SoftClose® drawer door and premium touch control, you can be sure that your meals are in safe hands. One of the standout features of the Thermador Warming Drawer 30" is its warming mode, which offers three different temperature settings to help you keep your food warm and fresh for as long as you need. This is especially useful for those times when you need to prepare multiple dishes and want to keep them all warm until it's time to serve. In addition to the warming mode, the Thermador Warming Drawer also has a special proof mode that is perfect for proofing bread dough. This mode maintains a consistent, low temperature that is ideal for proofing bread, ensuring that your dough rises perfectly before you bake it. To help prevent your food from getting overcooked, the Warming Drawer comes with an automatic shut-off timer. This feature allows you to set a specific amount of time for your food to stay warm, after which the drawer will automatically shut off to prevent your food from becoming overcooked or dry. Another key feature of the Thermador Warming Drawer 30" is its concealed 450-watt heating element, which ensures that your food stays warm and fresh without any risk of getting burnt or dried out. Additionally, the panel-ready appearance of this warming drawer means that it will seamlessly integrate into the design of your kitchen, adding both style and functionality to your cooking space. With the Thermador Warming Drawer 30", you can enjoy perfectly warm and fresh meals every time. Don't miss out on this amazing product!


Product Features

  • Automatic shut-off timer
    When the time has elapsed the control panel will sound and the drawer automatically turns off.

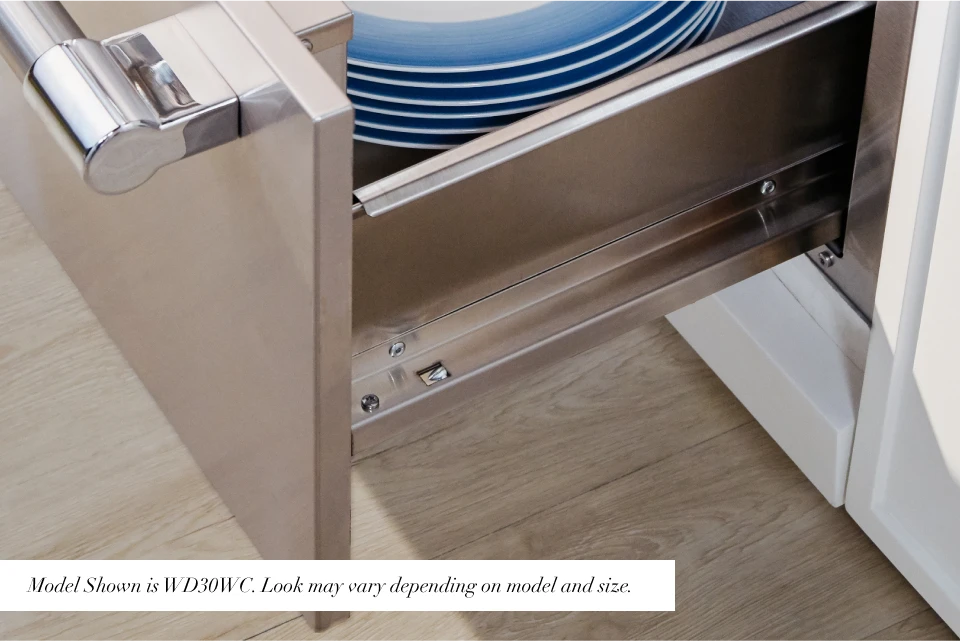

  • Telescopic Rails
    Featuring a telescoping ball-bearing design for smooth opening and closing that supports up to a 40 lbs. load.
  • Pairs with Thermador Ovens

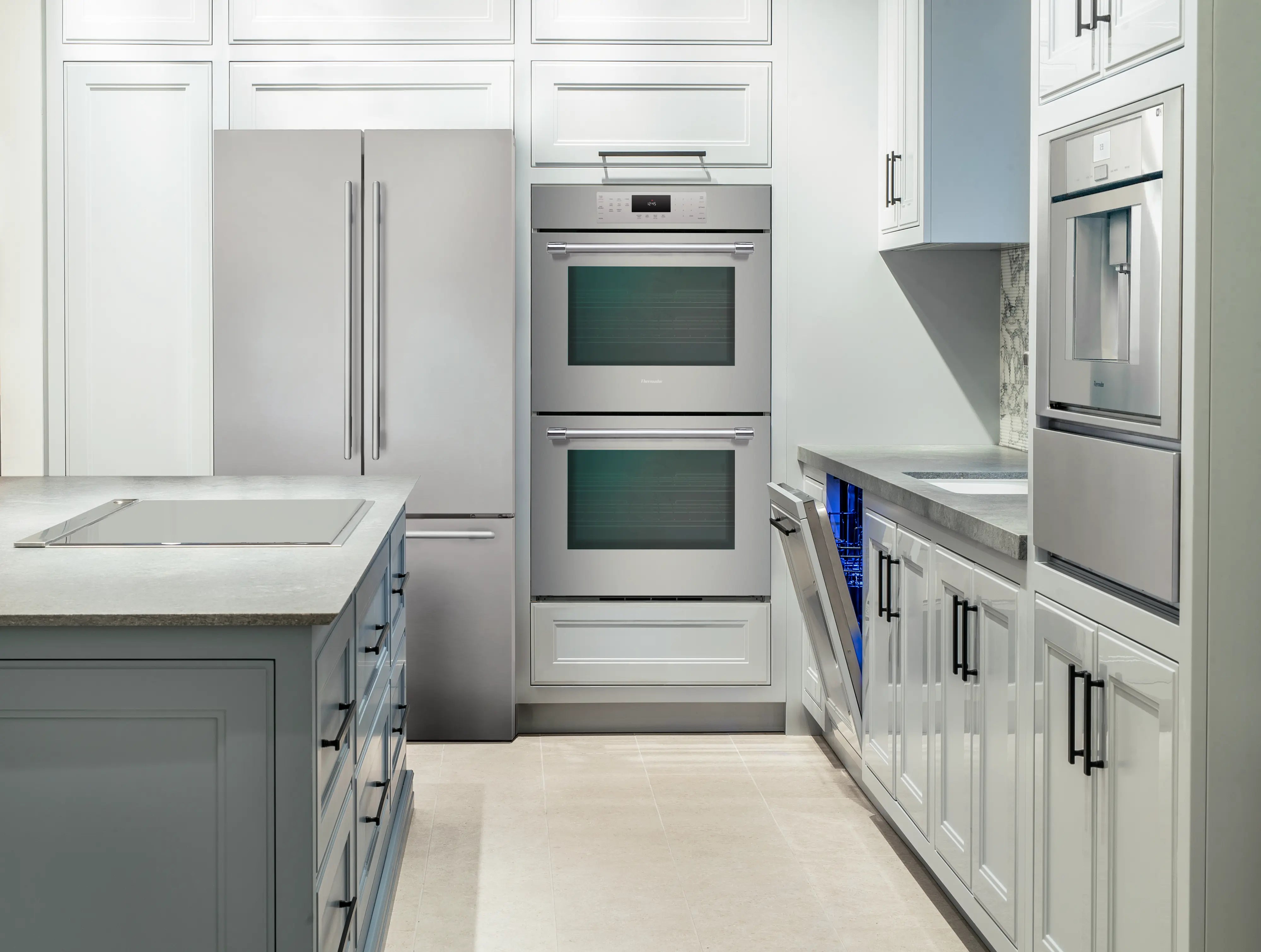

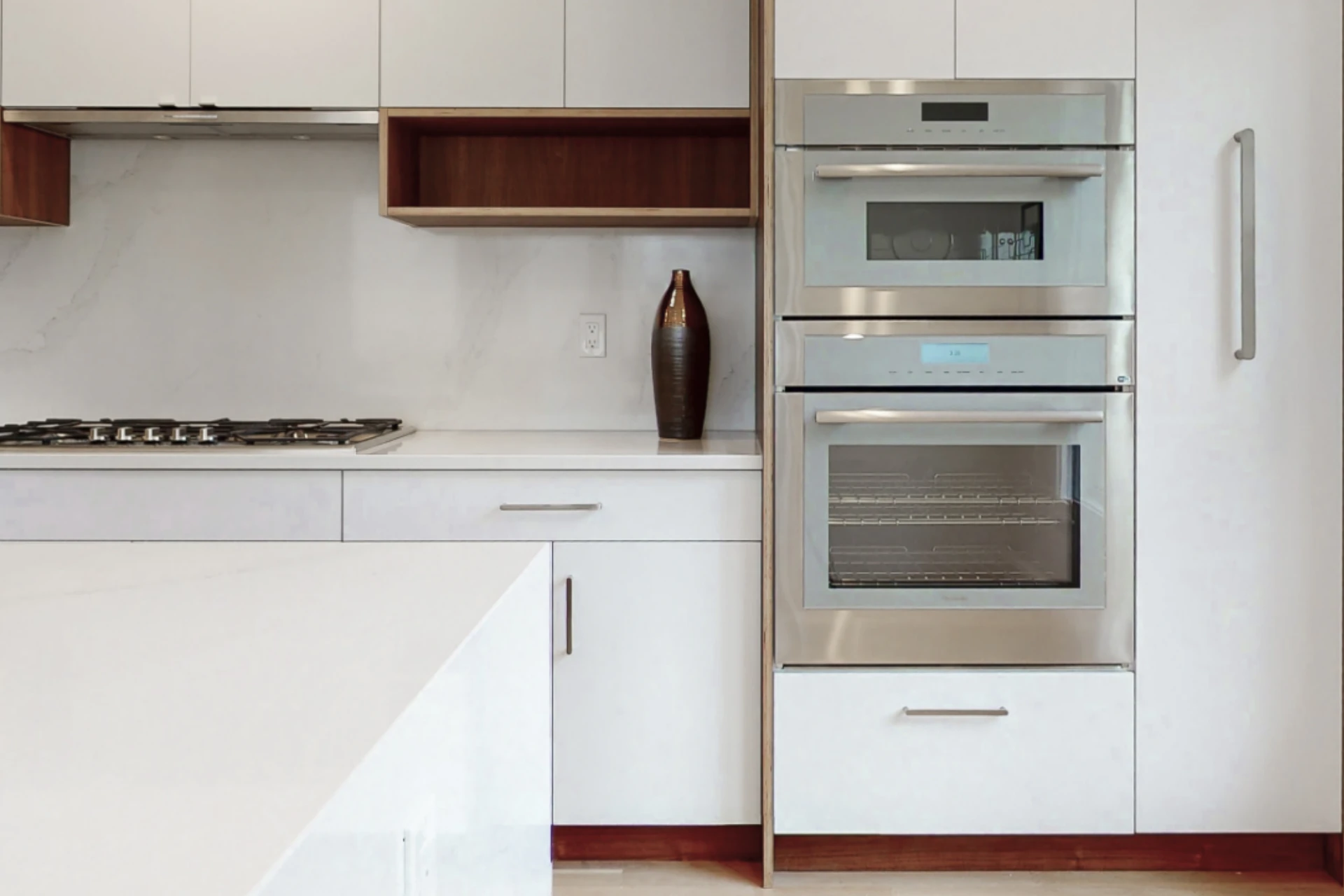

    Installs vertically under Thermador speed, steam or wall ovens.

Key Features

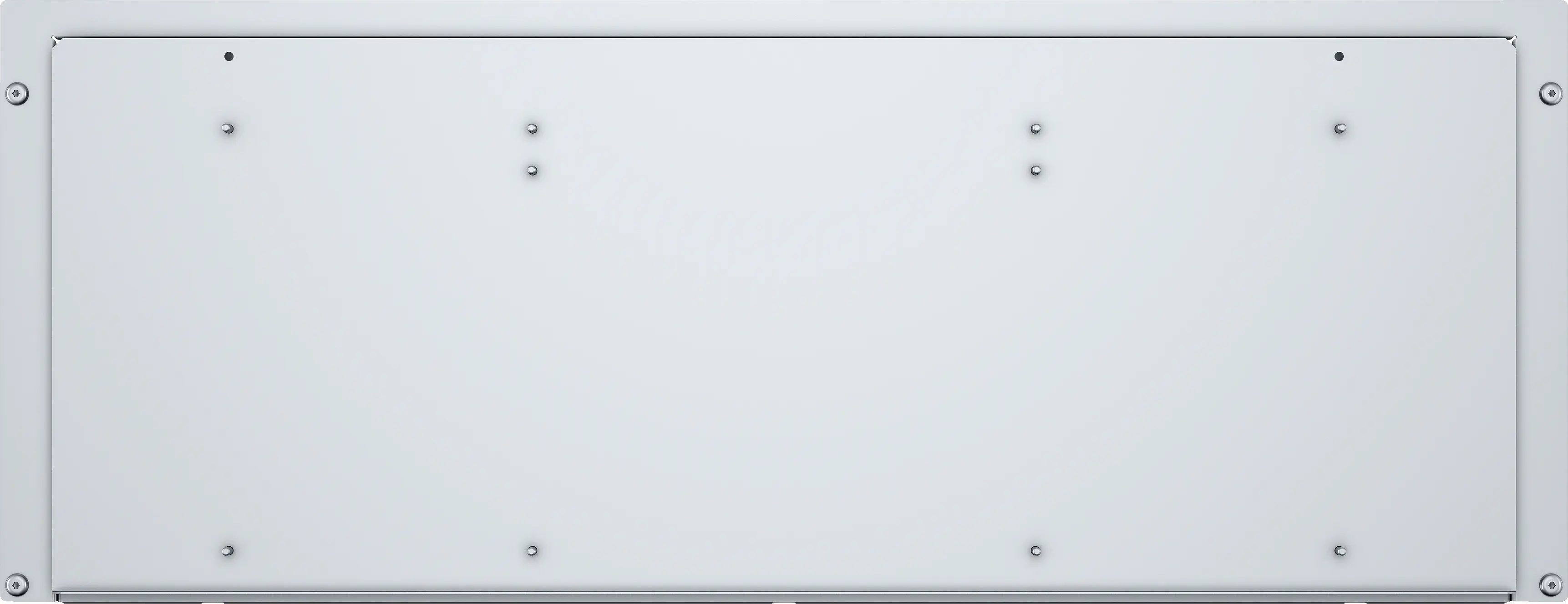

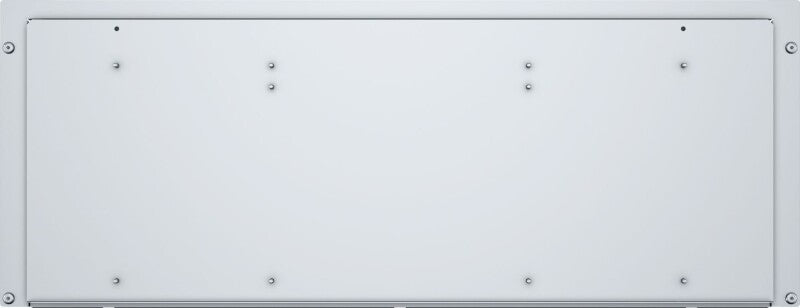

Custom Panel Ready

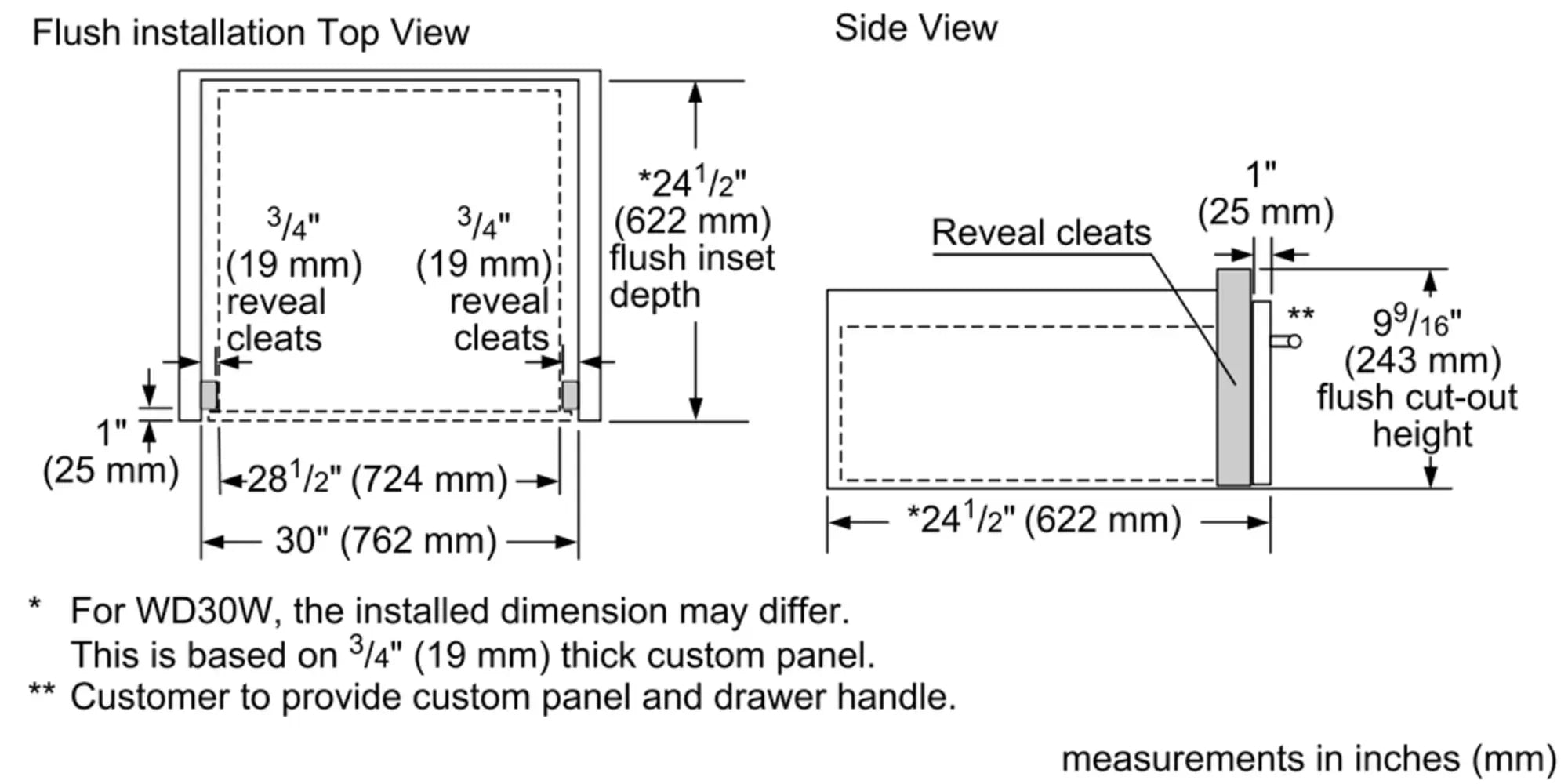

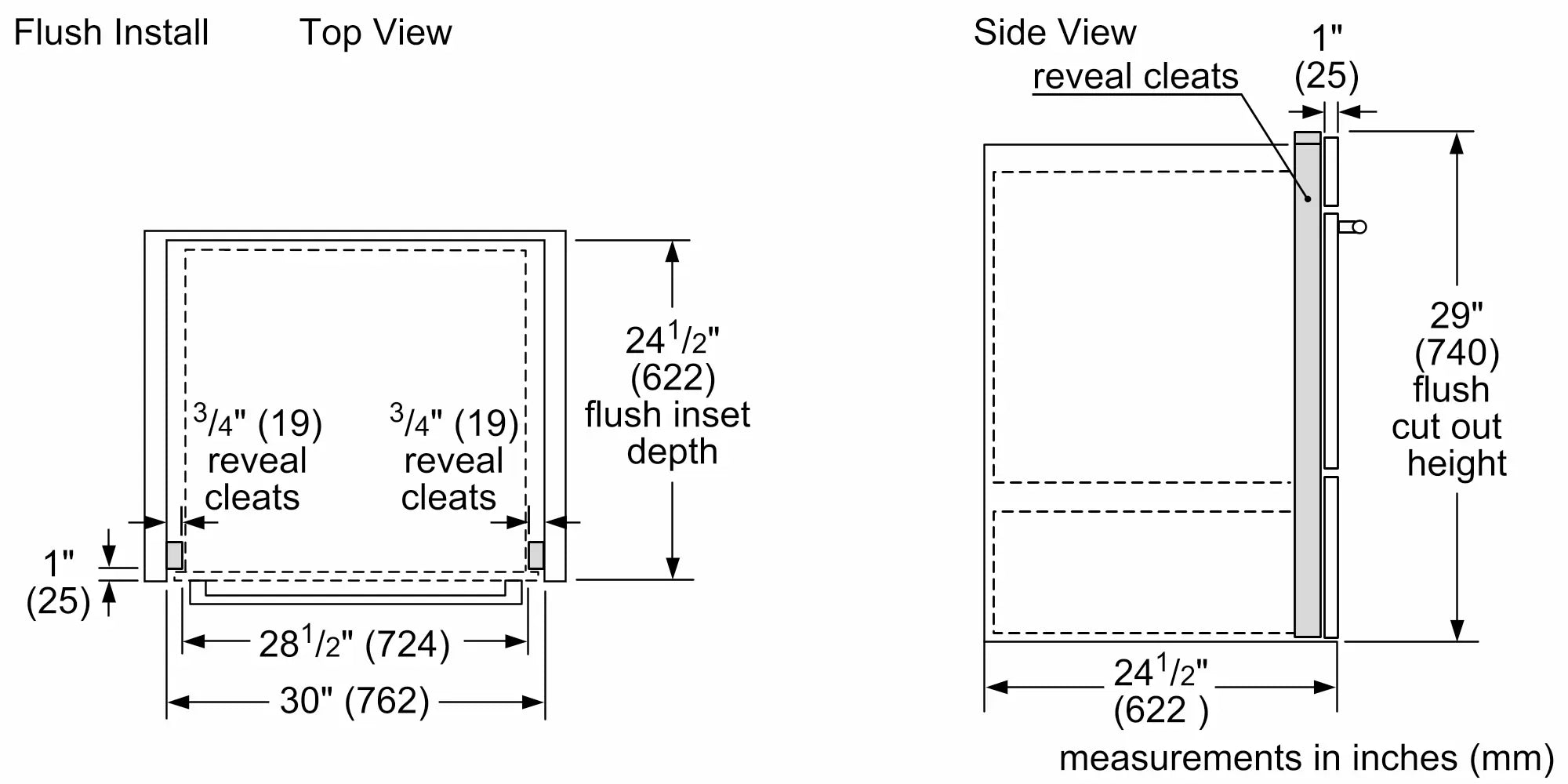

The custom panel-ready model lets you create a custom panel to match the warming drawer to existing cabinetry and includes pull-to-open functionality. The fully flush-mounted design creates a seamless appearance, giving you the ultimate in design flexibility.

Four convenient temperature settings

Warming mode with convenient temperature settings including high, medium, low and proof.

Proof Mode for all your baking needs

Use Proof Mode to ensure your dough recipes achieve your desired texture and taste. Proofing provides a draft-free environment to rise dough in.

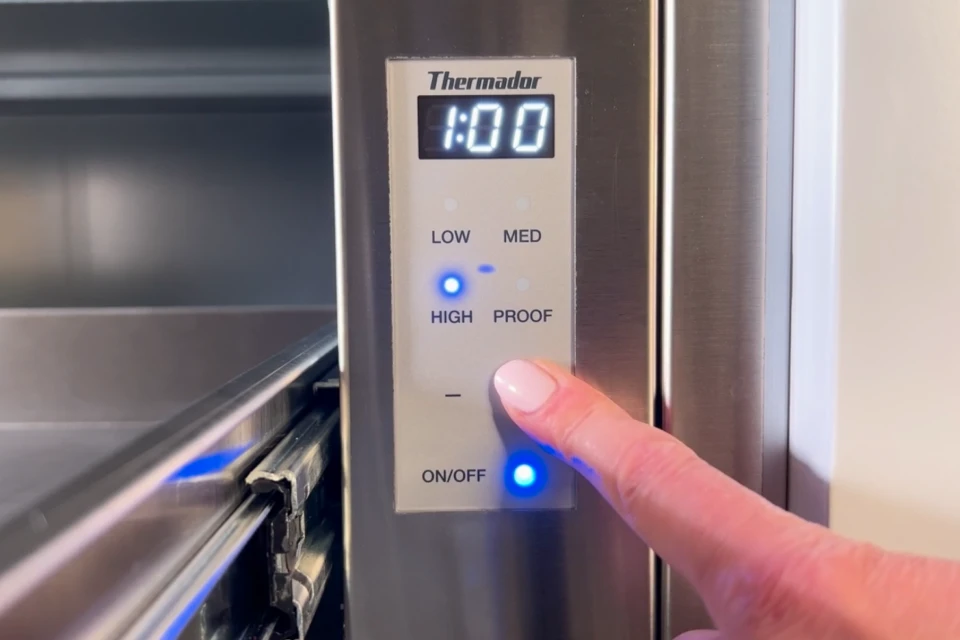

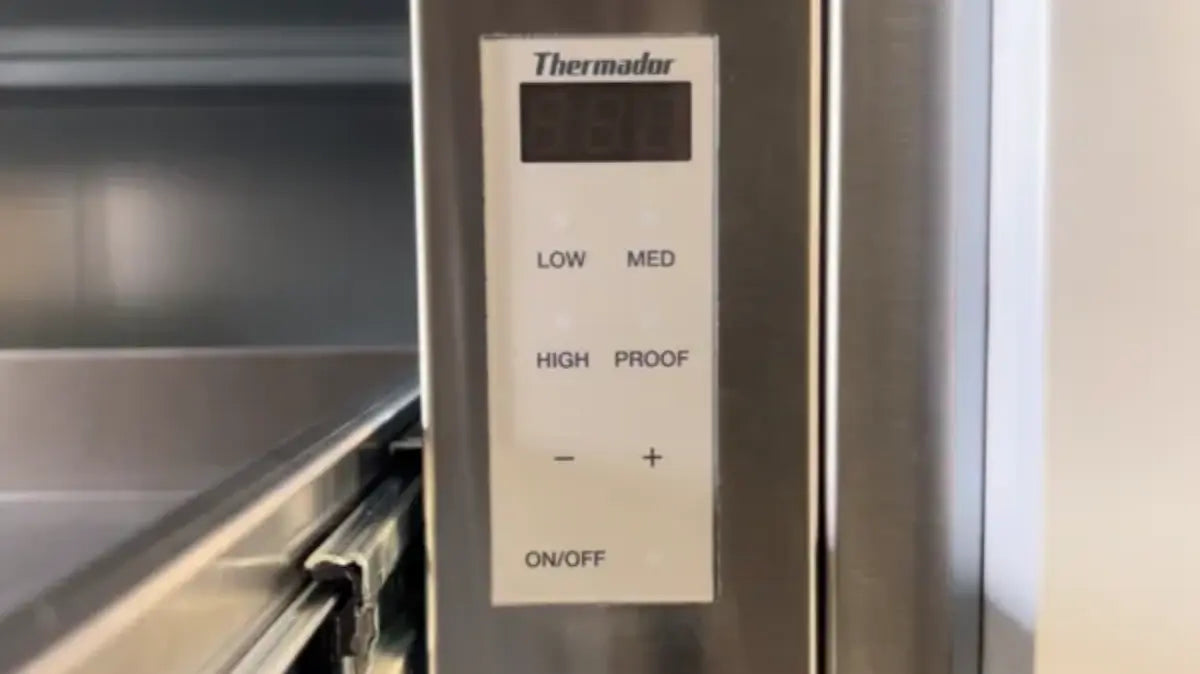

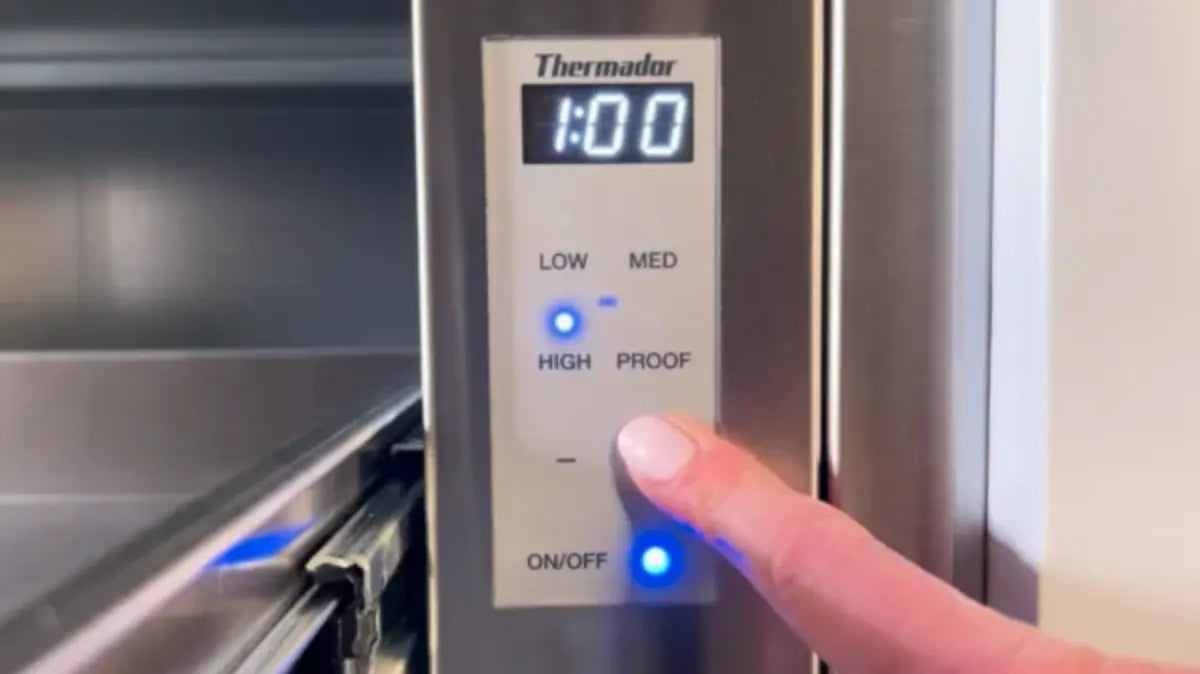

Touch control provides convenient easy-to-use control

This convenient feature boasts a digital display to easily activate and monitor any one of the 4 temperature settings. It also includes an electronic timer, a hot-surface indicator, and an automatic shut-off feature.

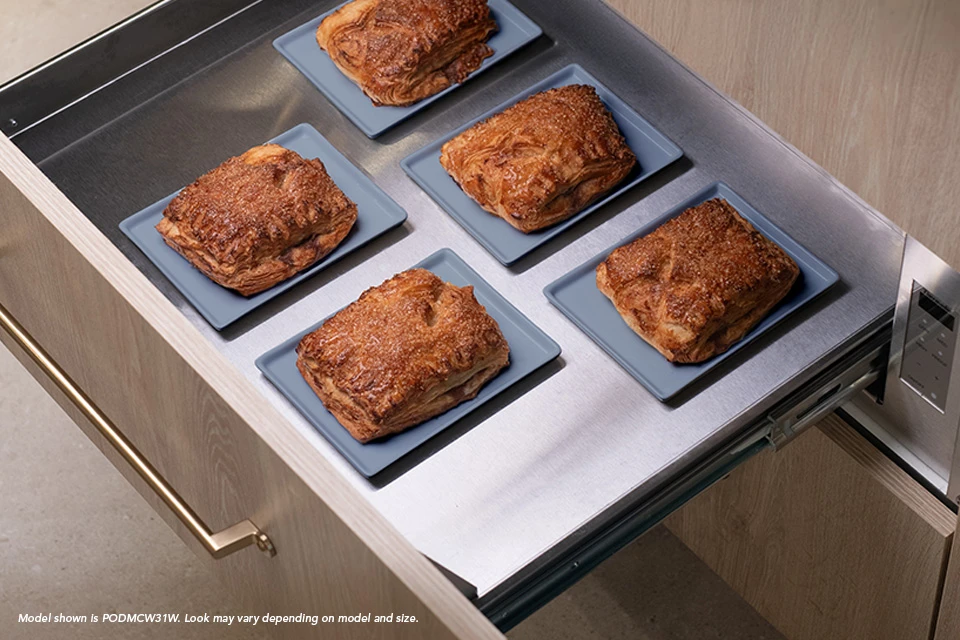

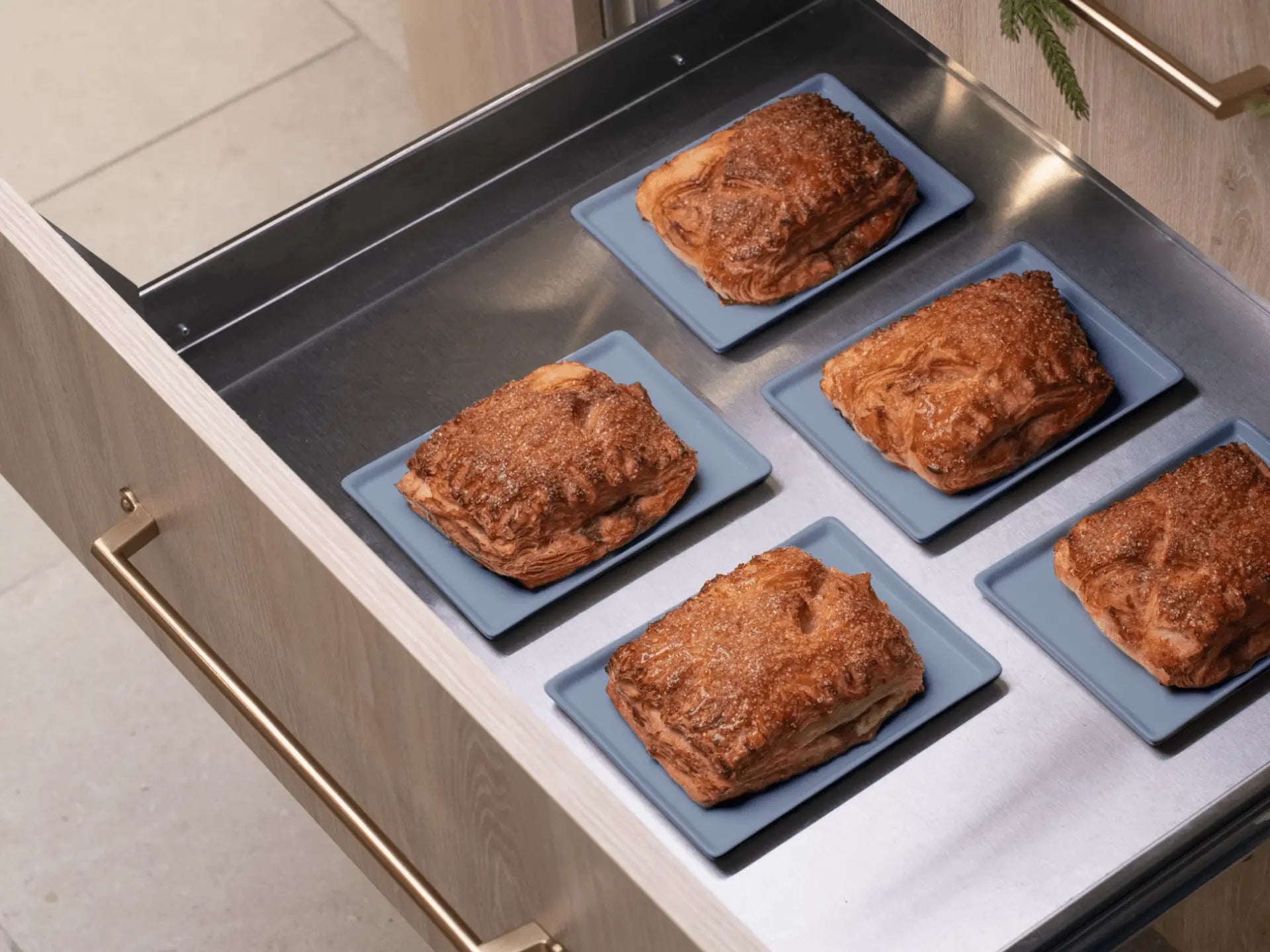

Warm your dinner plates in the 2.2 cu. ft. cavity

Spacious 2.2 cu.ft. cavity can hold and warm up your dinner plates

Star-K Sabbath Compliant

This appliance is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.

Prevent Slamming with SoftClose® Drawers

SoftClose® door prevent slamming and ensure ultra smooth closing of the Warming Drawer.
