| Parts | 2 Year |
| Labor | 2 Year |
| Total Number of Cooking Modes Secondary Cavity | 8 |
| Number of Gas Burners | 2 |
| ExtraLow® Burners | yes |
| Total Number of Cooking Modes Primary Cavity | 7 |
| AHAM usable cavity size | 3 Cu Ft |
| Cooking Modes | Bake, Convection Bake, Self-Clean, Convection Broil, True Convection, Broil |
| AHAM volume (of cavity) - Secondary Cavity | 1.3 Cu Ft |
| Location of secondary cavity | Left |
| Cooking Modes Combinable with Steam Function | Not Applicable |
| Water Intake | Not Applicable |
| Included Accessories | 1 x grill plate, 1 x broiler pan small, 1 x island trim |
| Full Access® Telescopic Racks | 3-level |
| Pedestal Star® Burners | yes |
| Cleaning System | Self Clean |
| ADA Compliant (When Installed to ADA requirements) | no |
| Sabbath Mode | yes |
| Color | Stainless Steel |
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |

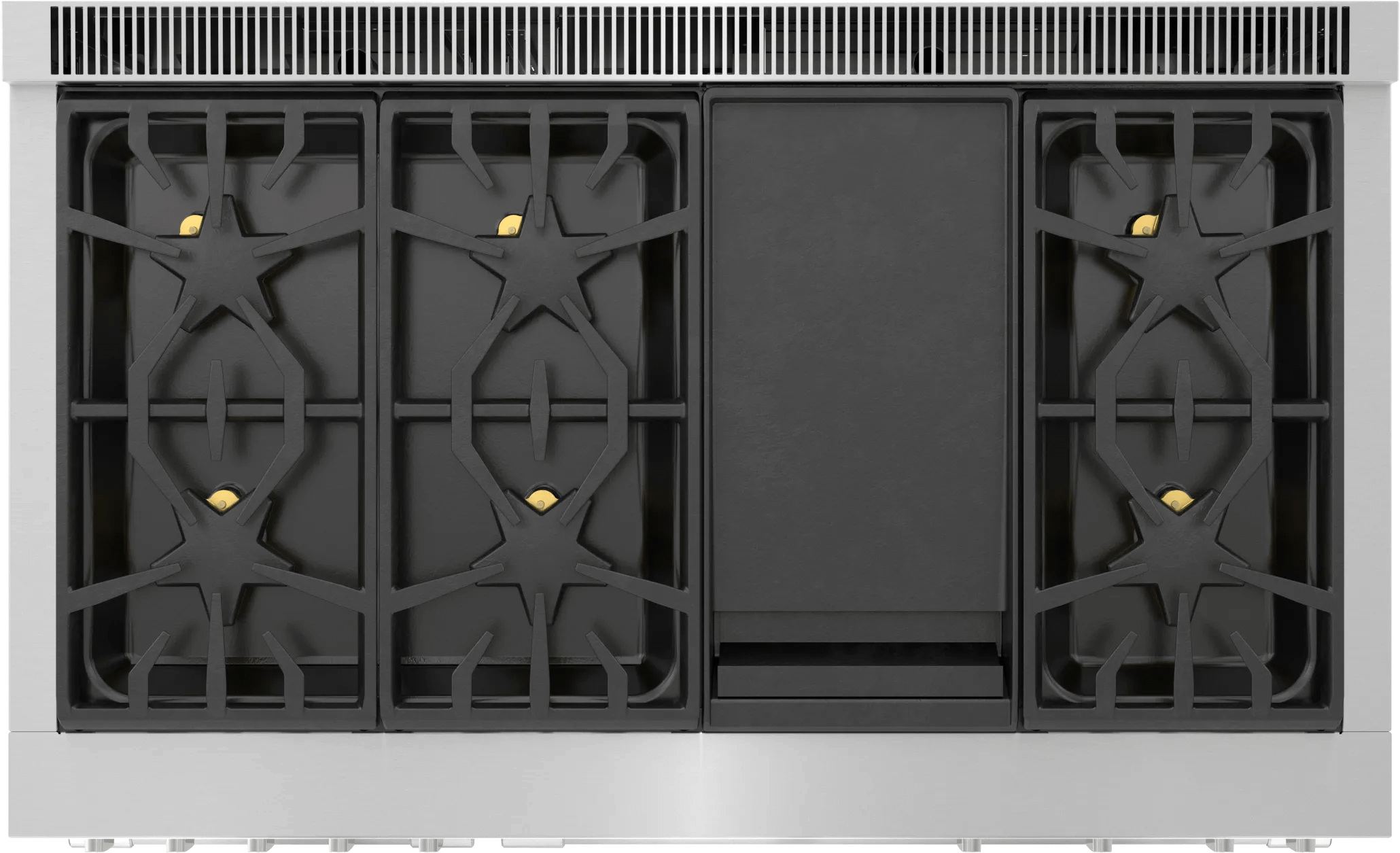

| Number of Continuous Grates | 3 |
| Product Packaging Dimensions (HxWxD) | 49.21 x 53.14 x 40.39 |

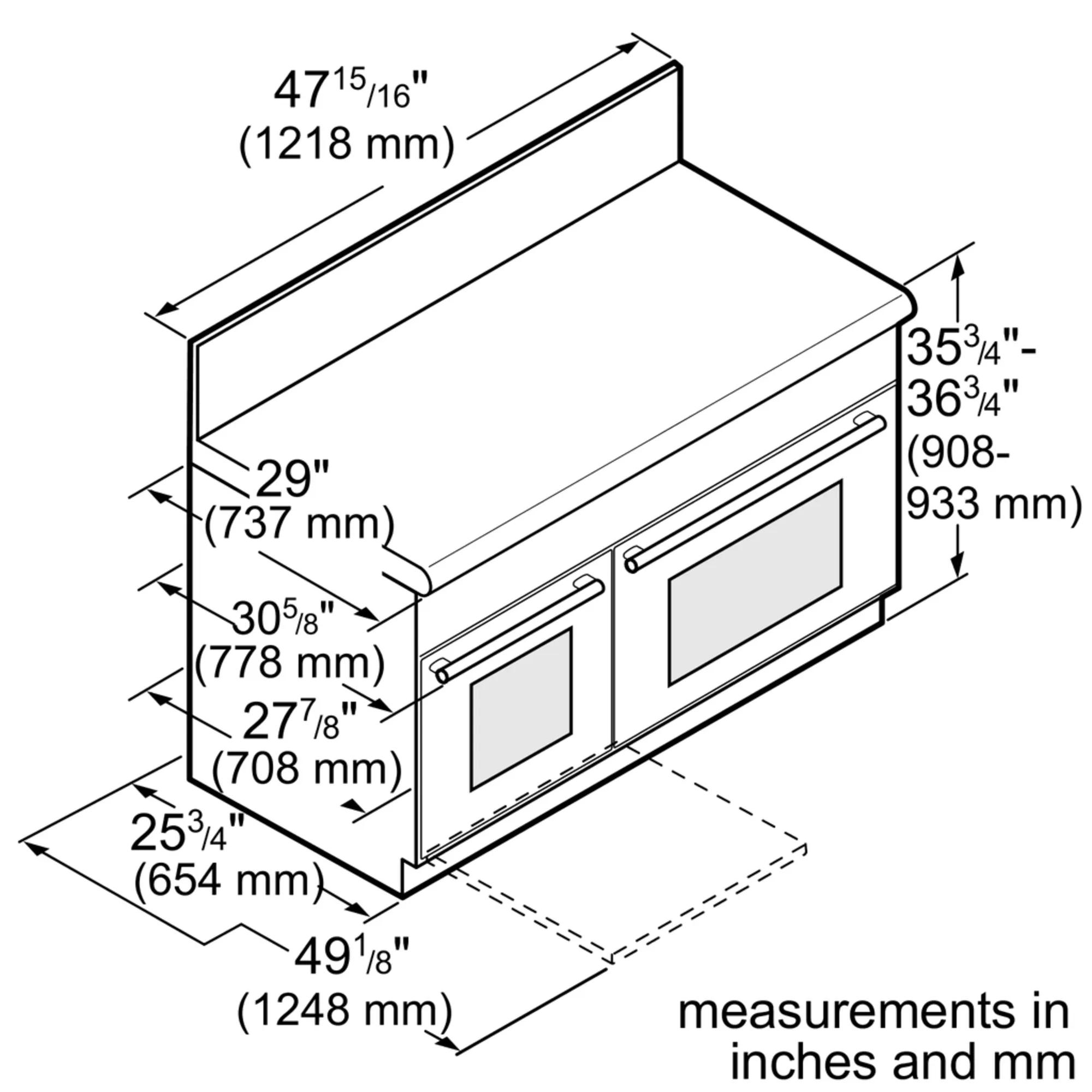

| Overall Appliance Dimensions (HxWxD) (in) | 35 7/8'' x 47 15/16'' x 27 7/8'' |

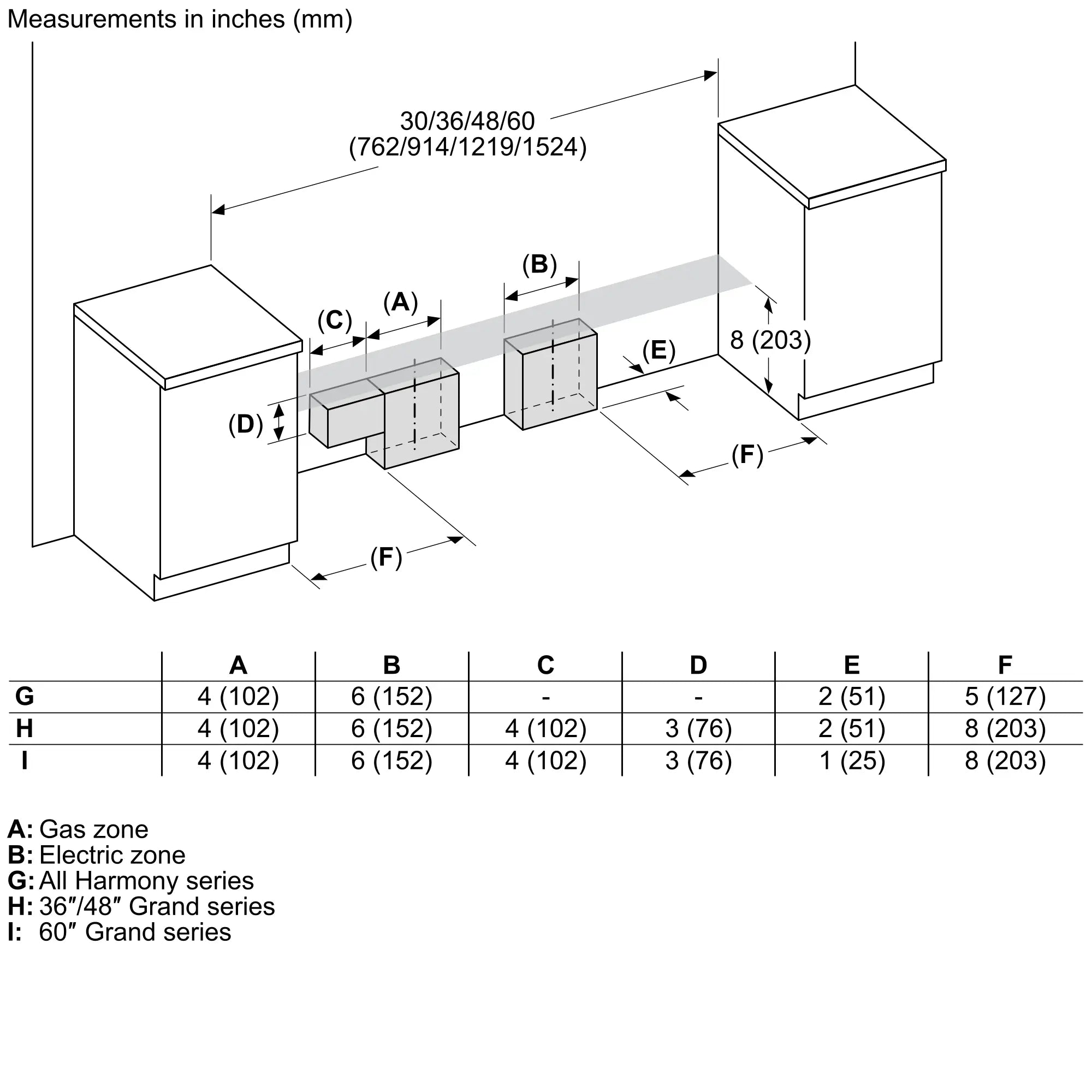

| Required Cutout Size (HxWxD) (in) | 48'' width slide-in |
| Plug Type | No Plug |
| Volts | 240/208 V |
| Watts | 12400 W |
| Amps | 50 A |
| Home Connect® WiFi-enabled | yes |
| Width | 47.94 in. |
| Height | 35.88 in. |
| Length | 27.88 in. |
| Weight | 497 lbs. |
| Net Weight | 497.000 lbs |
| Product Packaging Dimensions (HxWxD) | 49.21 x 53.14 x 40.39 |
| Number of Boxes | 1 |
| Shipping Width | 52.94 in. |
| Shipping Height | 40.88 in. |
| Shipping Length | 32.88 in. |
| Shipping Weight | 537 lbs. |
| Total of Shipping Weight | 537 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 27.74 ft³ |
| Dimensional Weight | 344.88 lbs. |
| Total of Cubes | 27.74 ft³ |
| Total of Dimensional Weight | 344.88 lbs. |
Use the Multi-point Temperature Meat Probe to measure the temperature of your dish from three different points in real time for added precision and consistency. All you have to do is insert the probe while cooking.

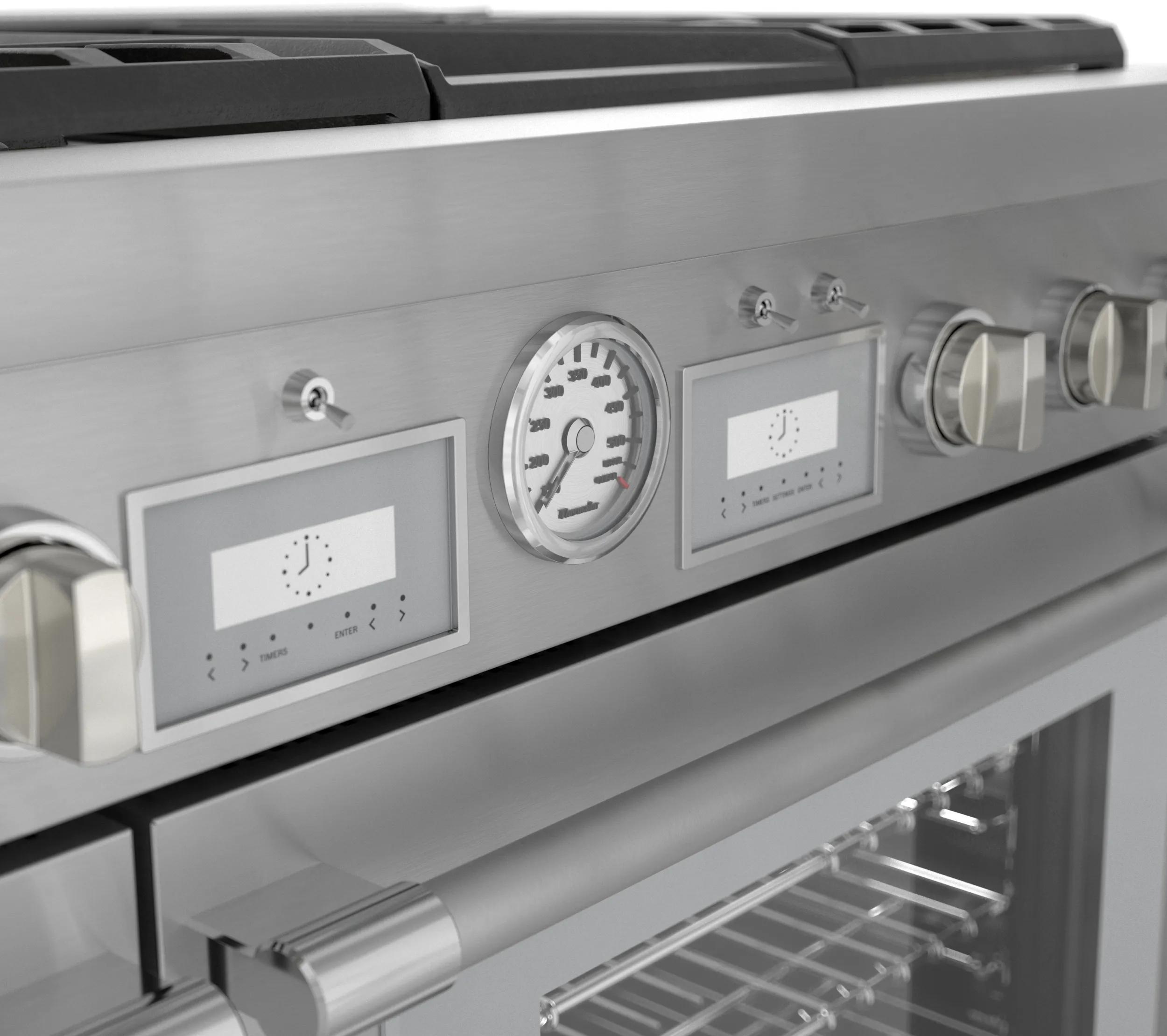

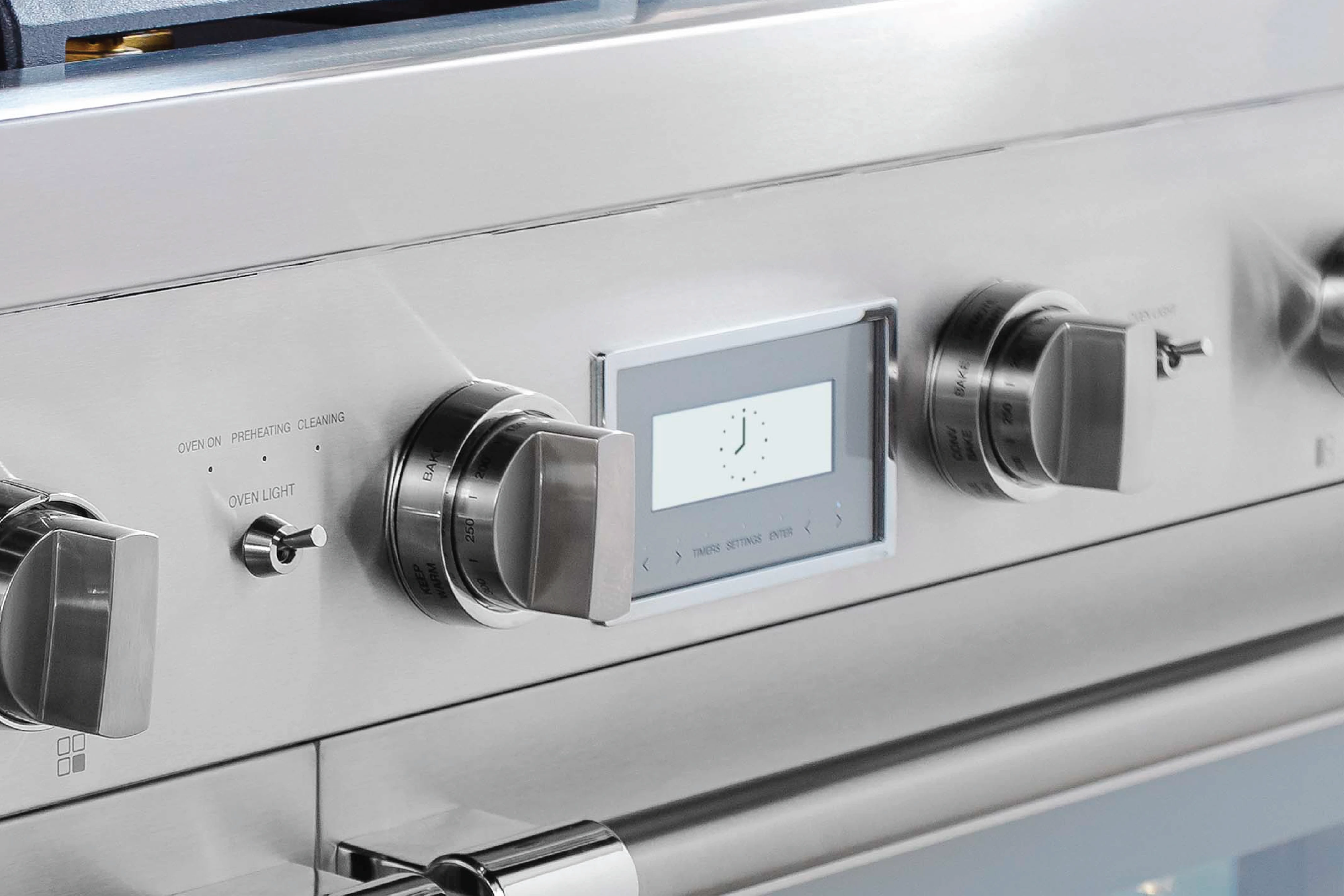

The TFT display panel offers a vibrant, full-color touchscreen display that lets you easily adjust settings.

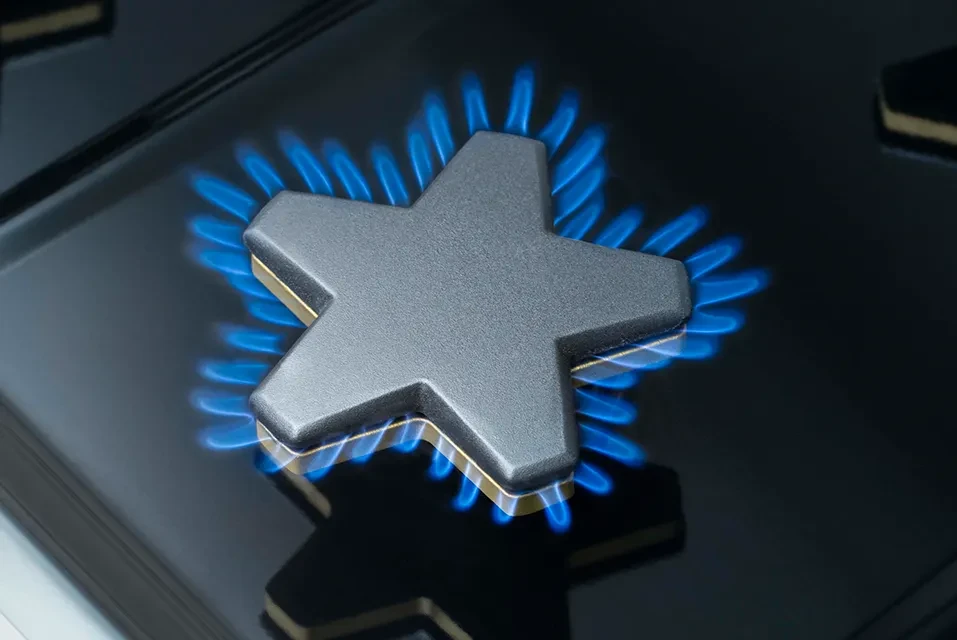

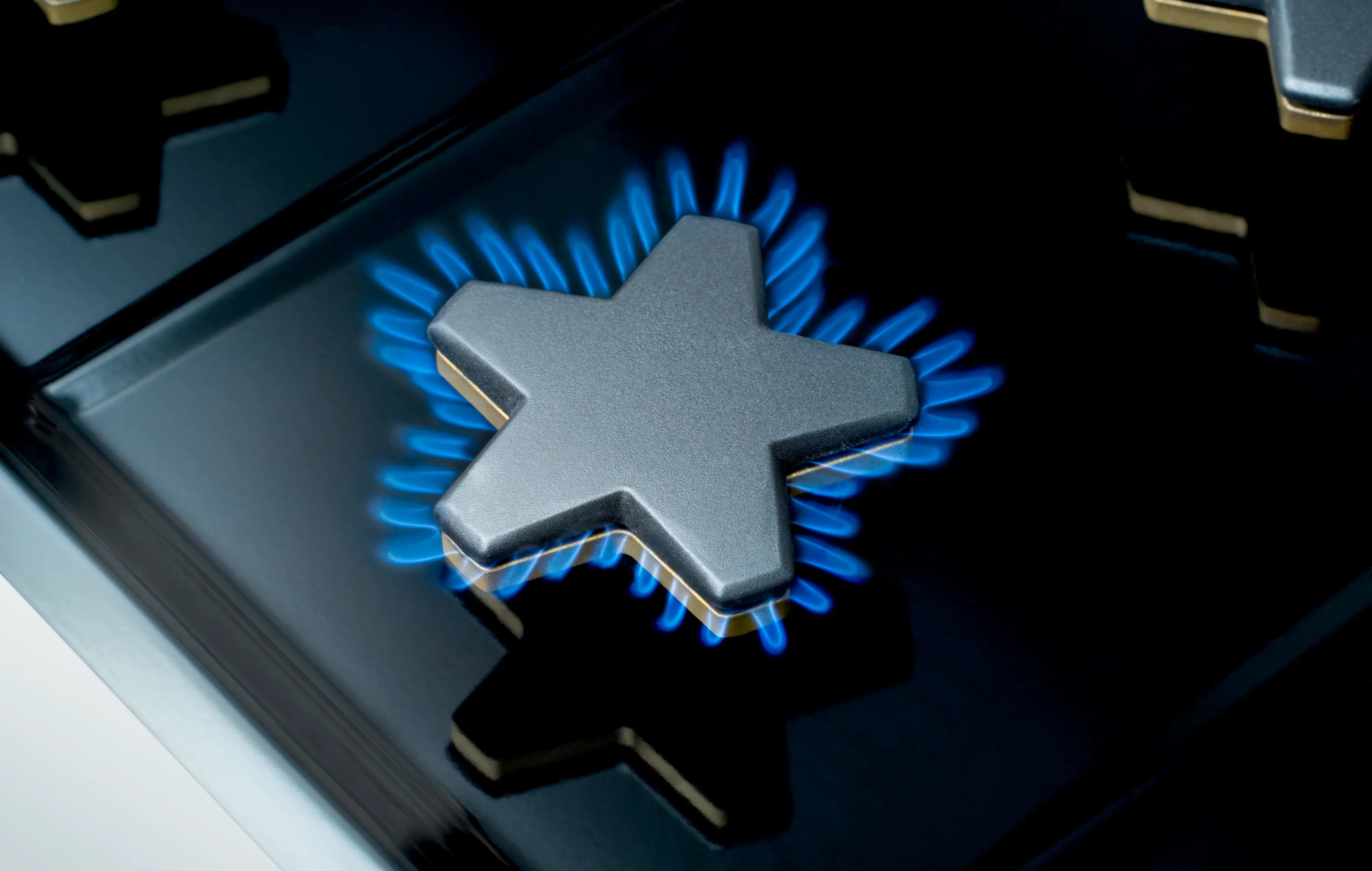

Our powerful, patented Pedestal Star® Burner delivers 22,000 BTU of pure cooking power for better searing and faster boiling.
Large oven accommodates professional-grade catering trays with 5.7 cubic feet.

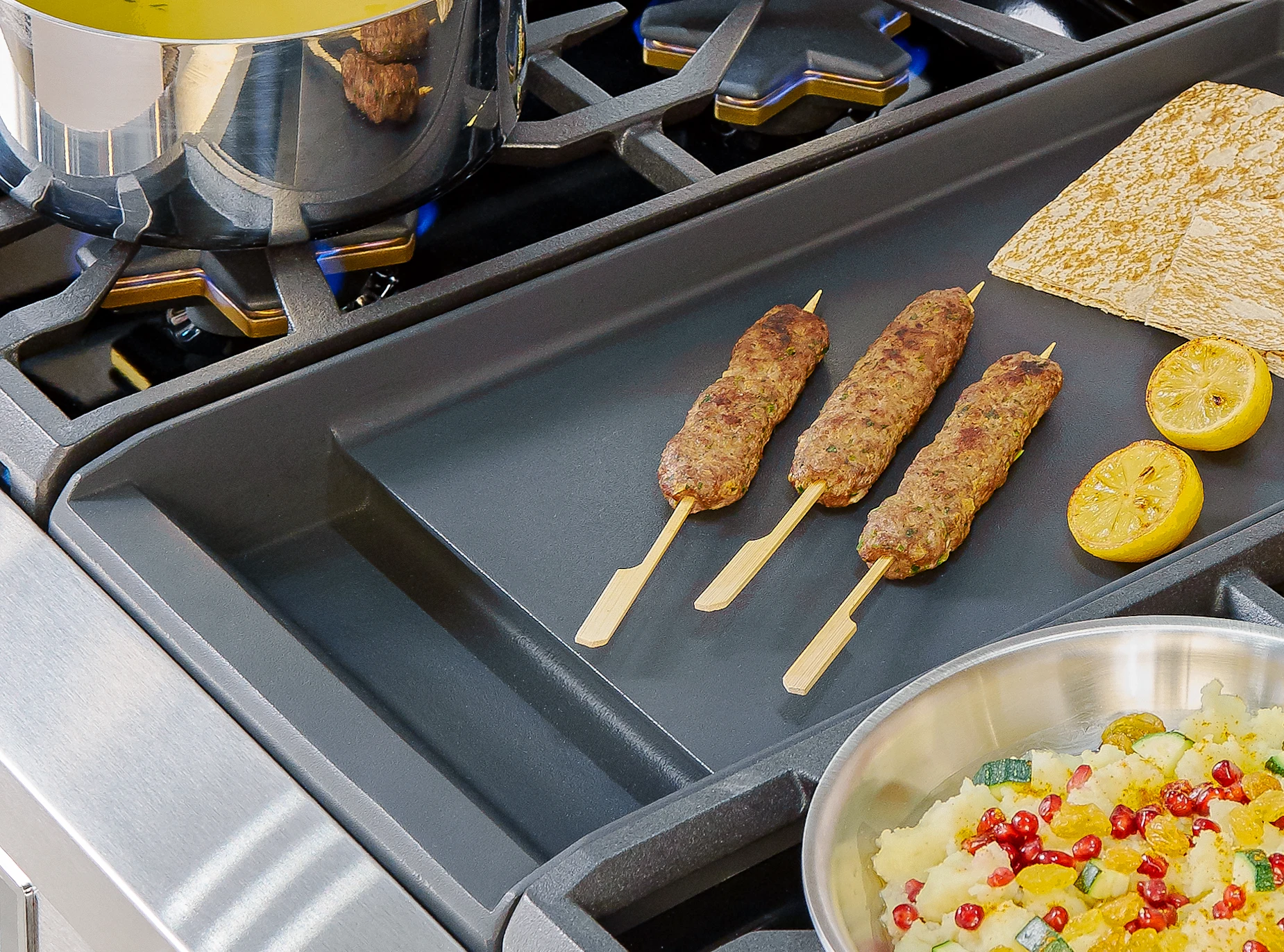

Our 12" non-stick, corrosion resistant cast-aluminum easy-clean coated surface griddle is thermostatically controlled to deliver consistent, even heating across the entire surface. It is also removable for easy cleaning or interchange it with our grill accessory.

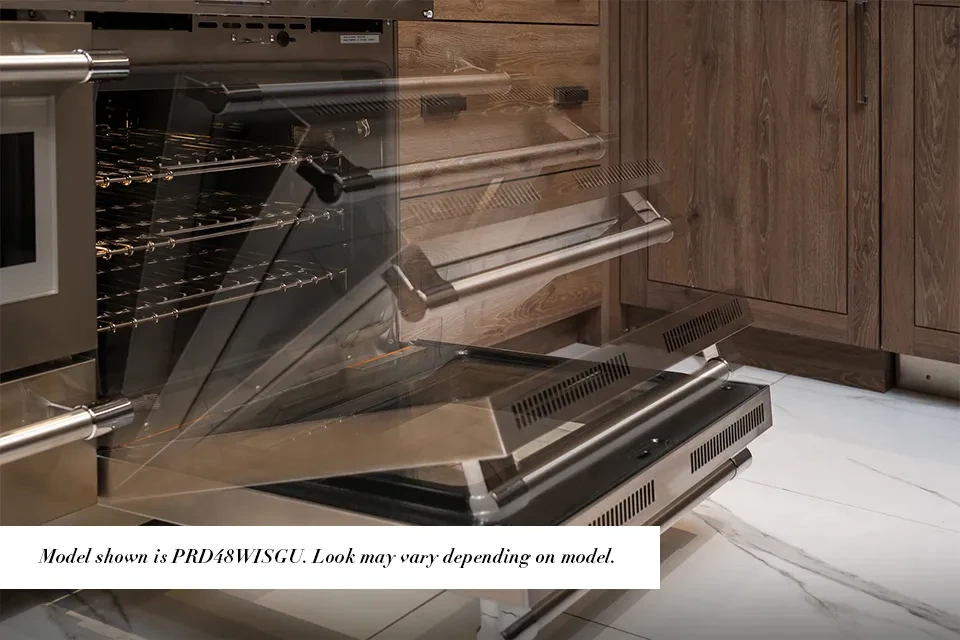

Hydraulic SoftClose® Hinges prevent slamming and ensure ultra smooth closing for all doors on your appliance.

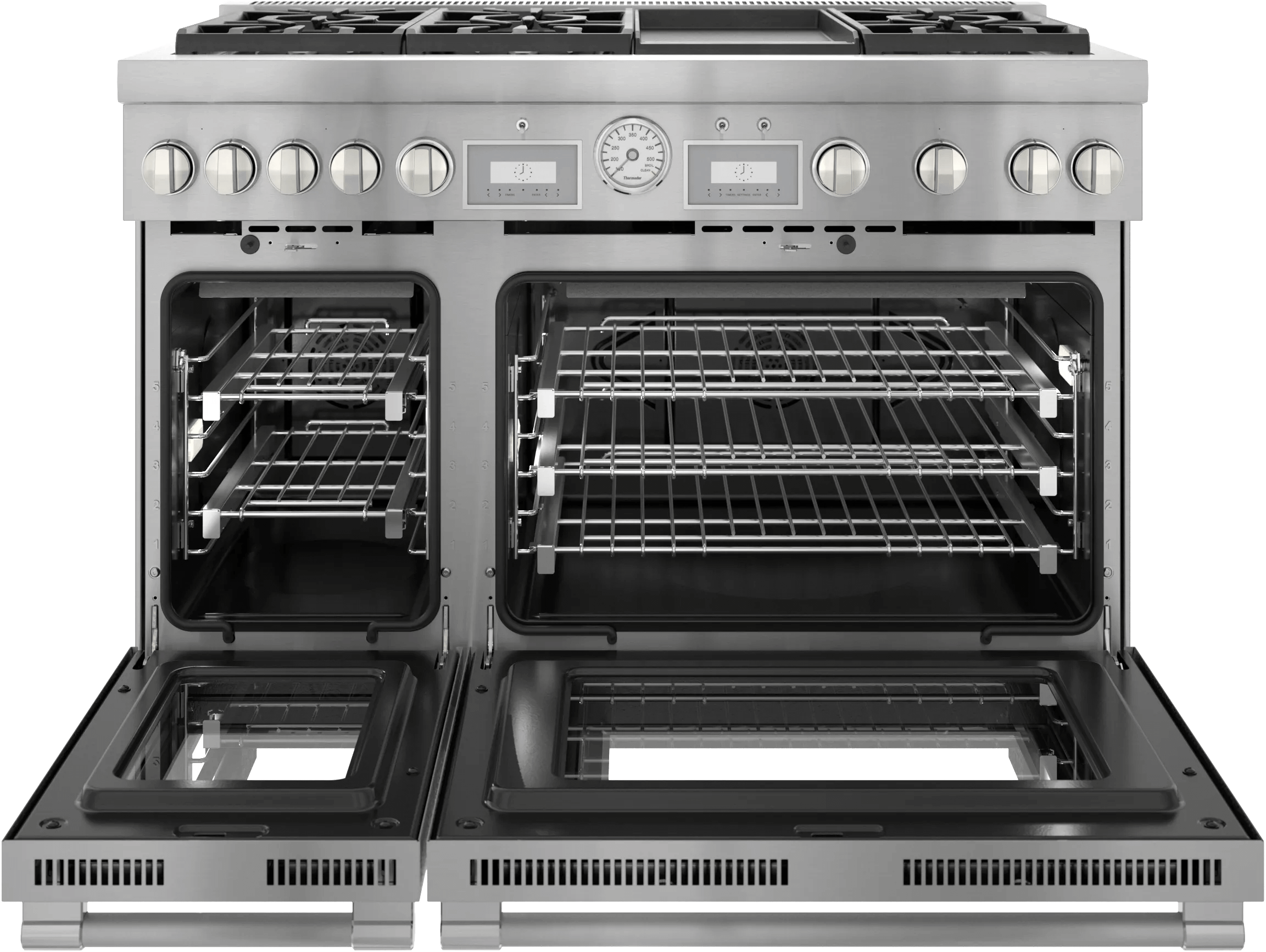

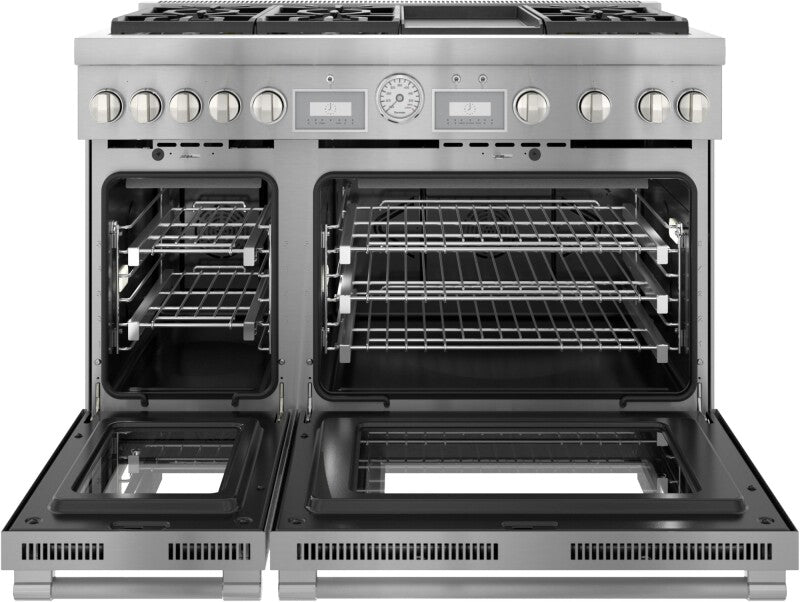

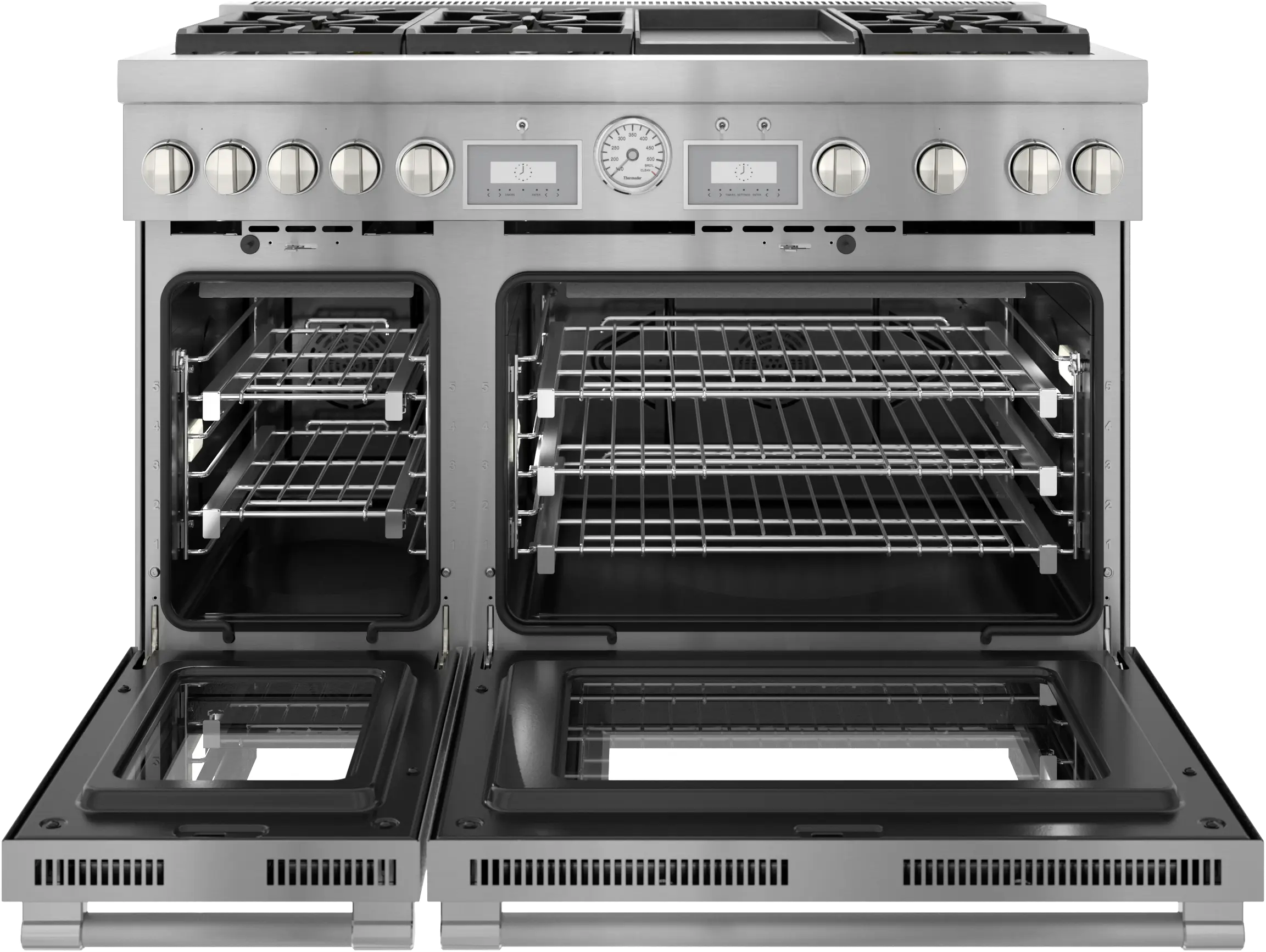

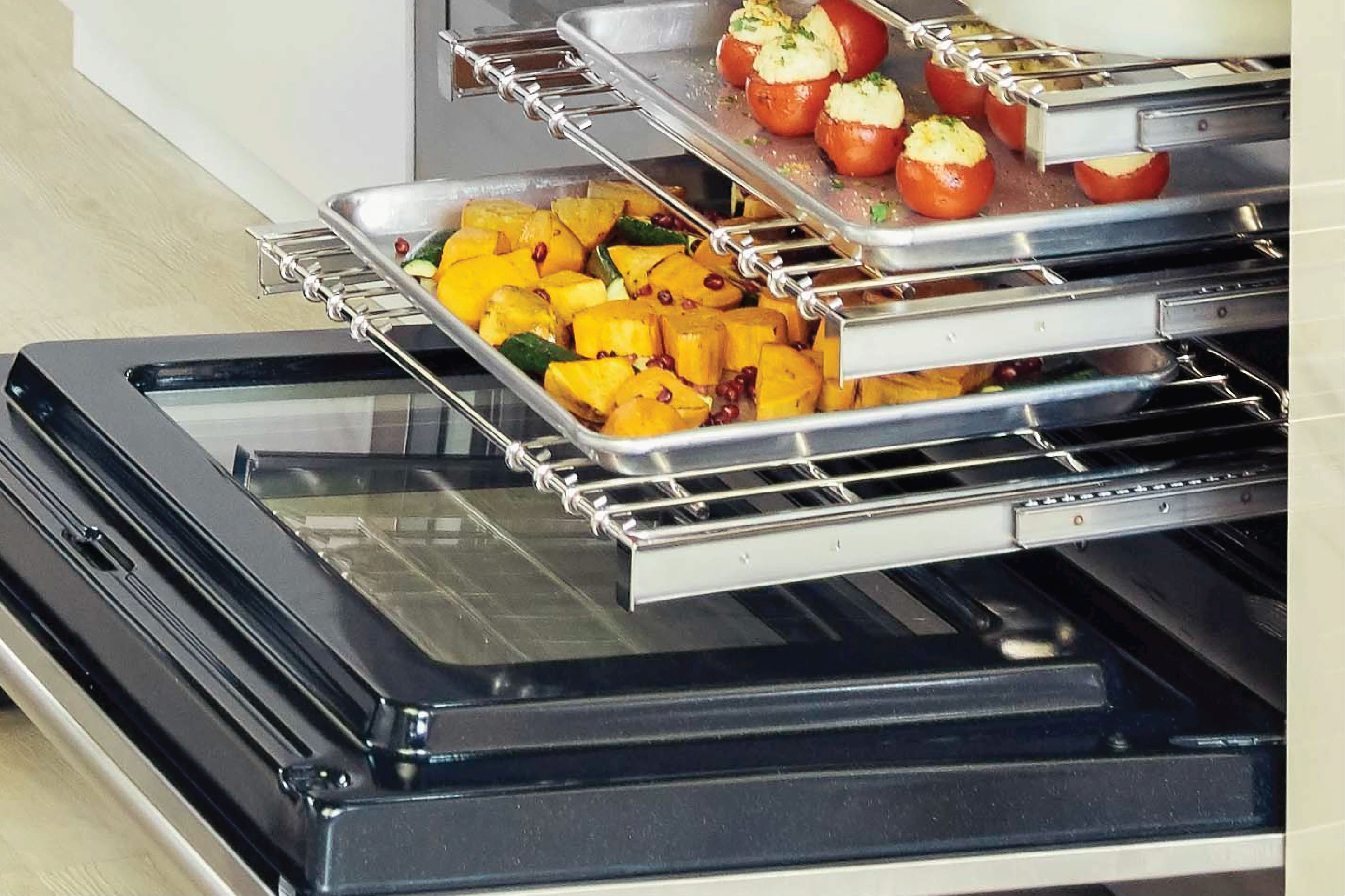

Full Access® Telescopic Racks glide smoothly on ball bearings, allowing them to extend for safe, easy access while supporting the heaviest dishes. Large oven has 3 Telescopic racks and small oven has 2 Telescopic racks.

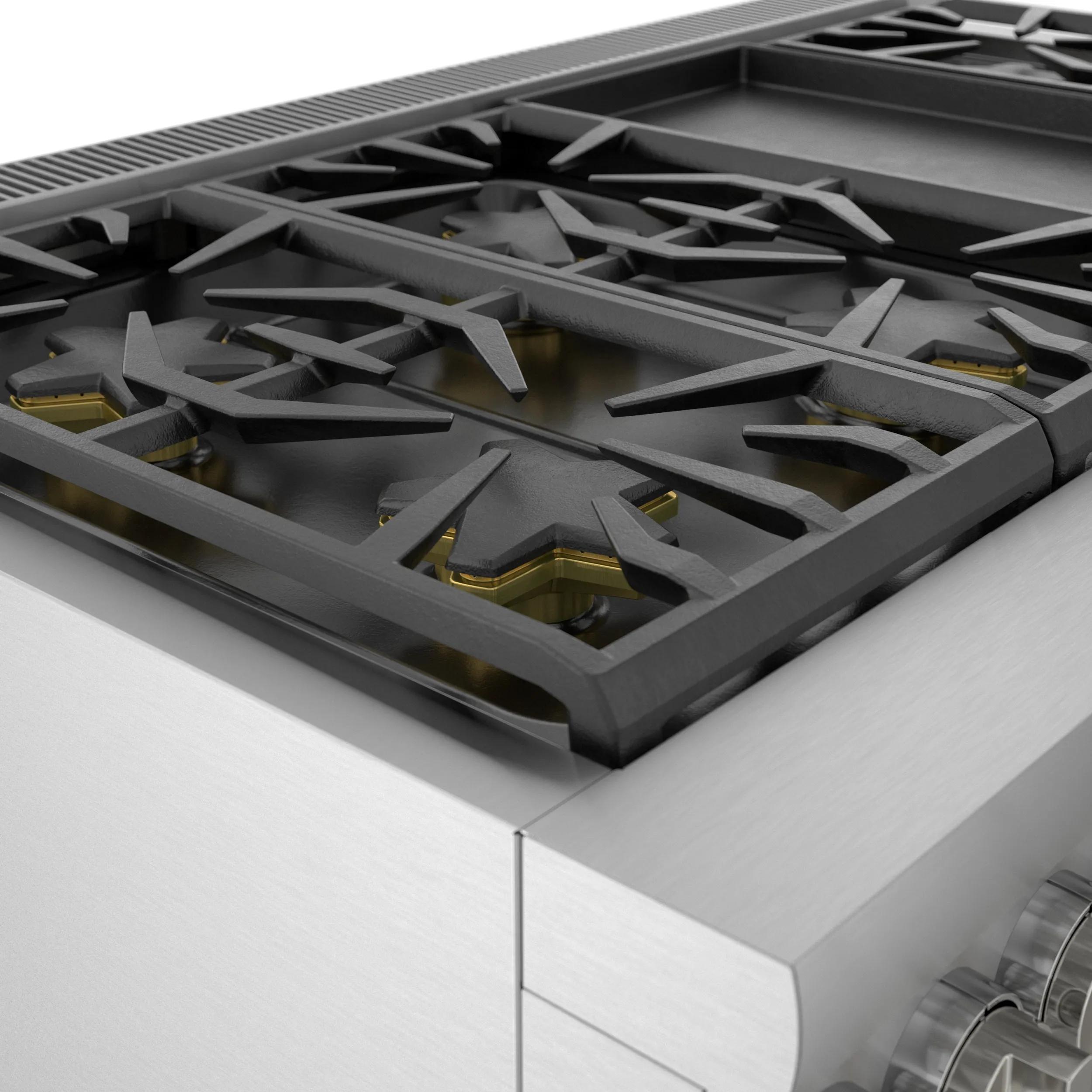

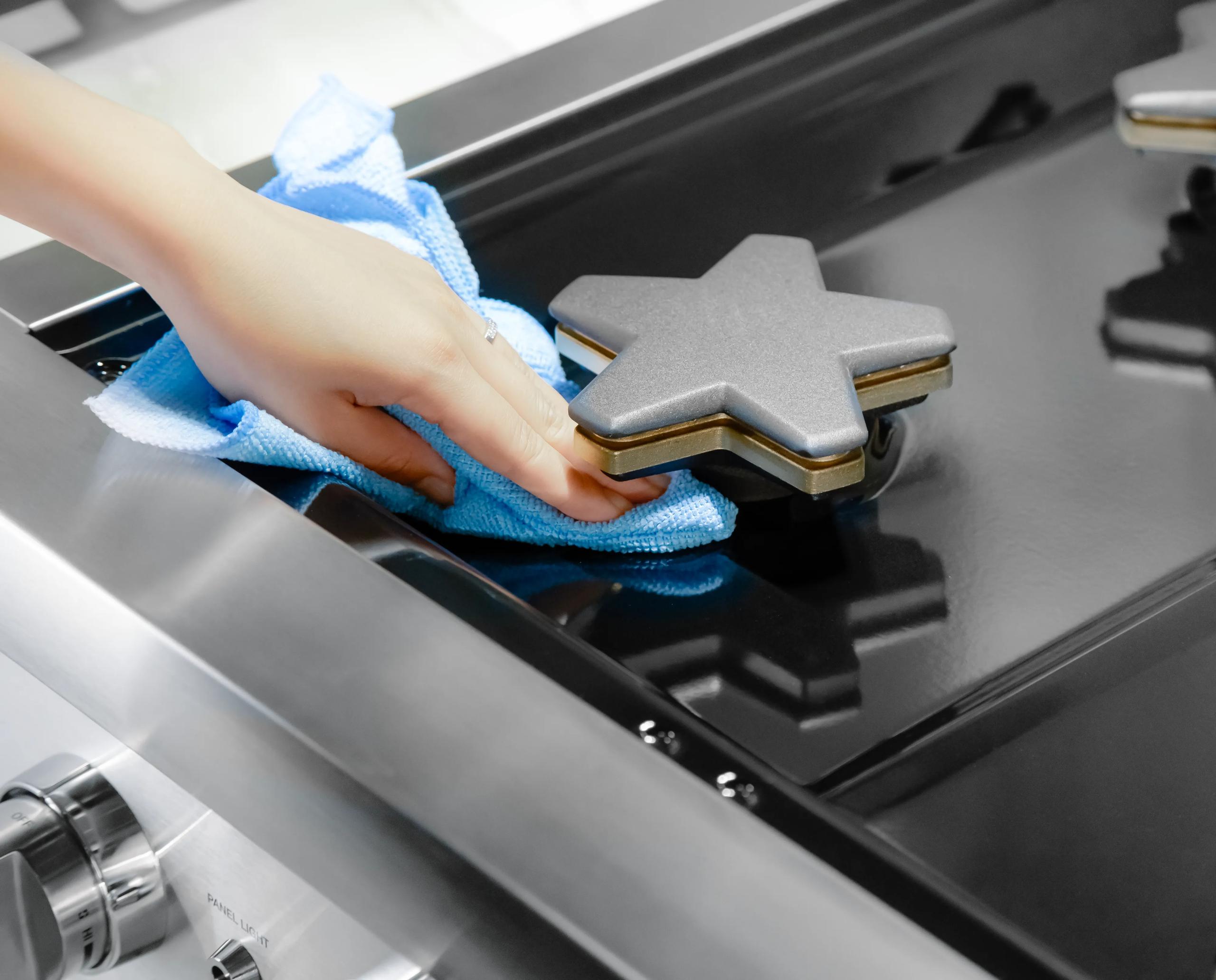

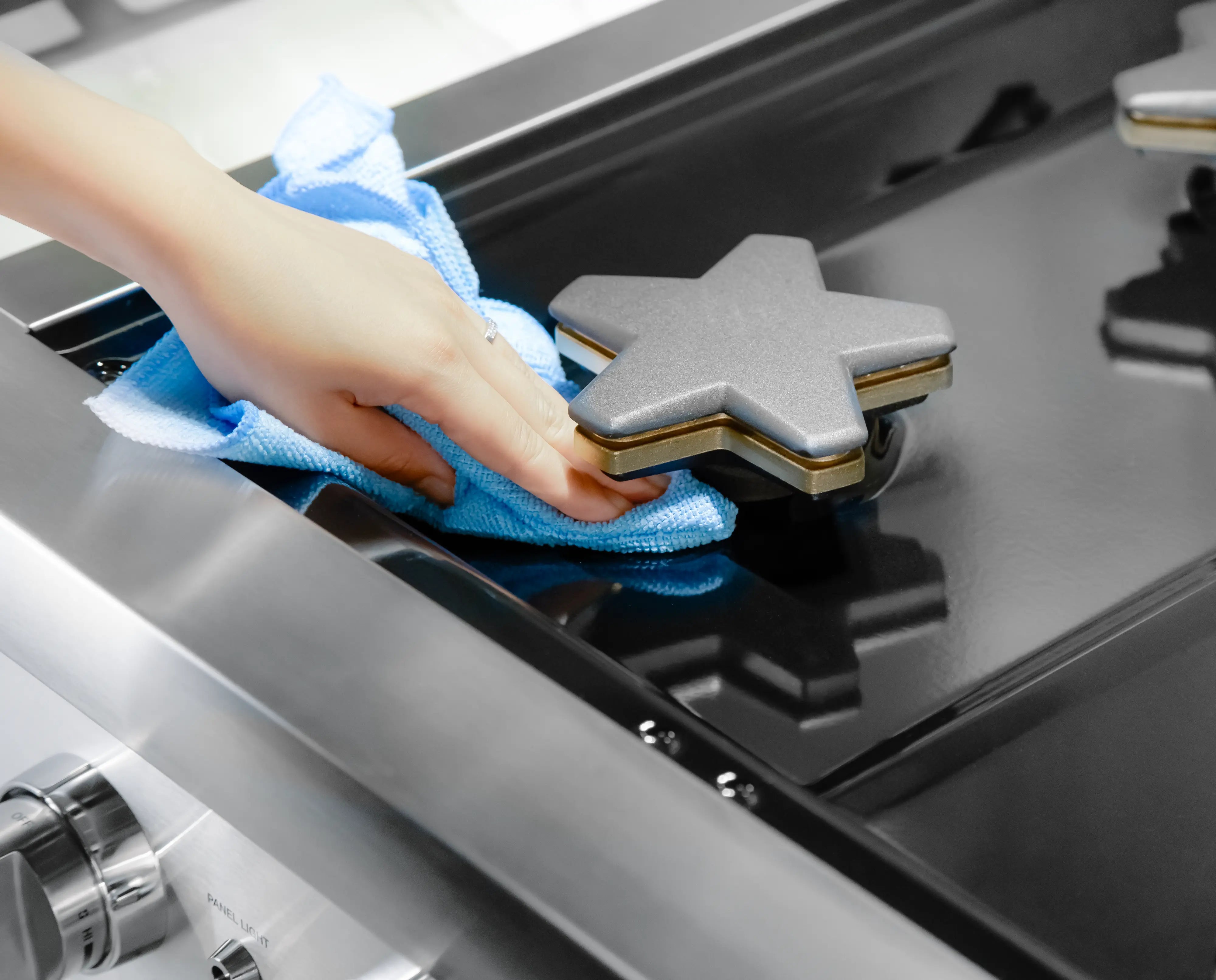

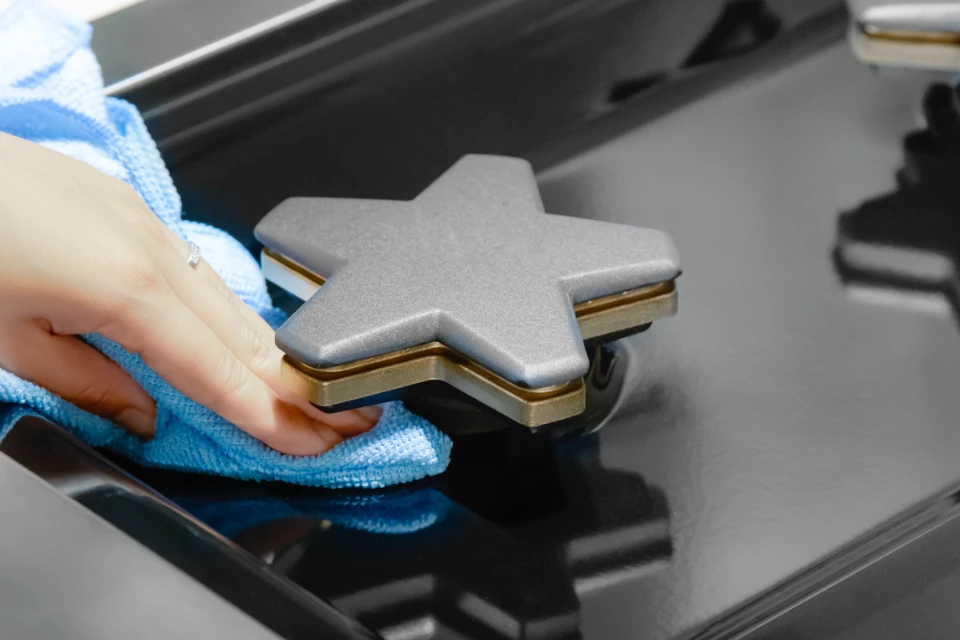

The raised, patented Pedestal Star® Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.
