SKU: DWHD770CFP | UPC: 883049339931

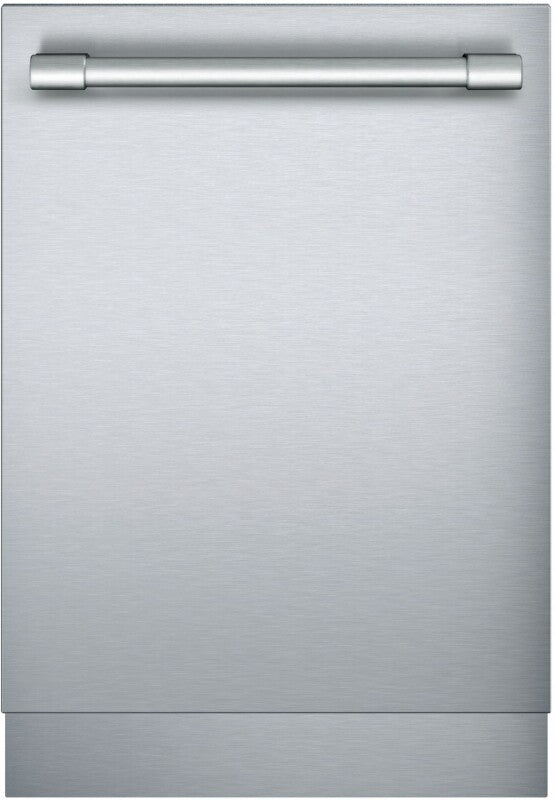

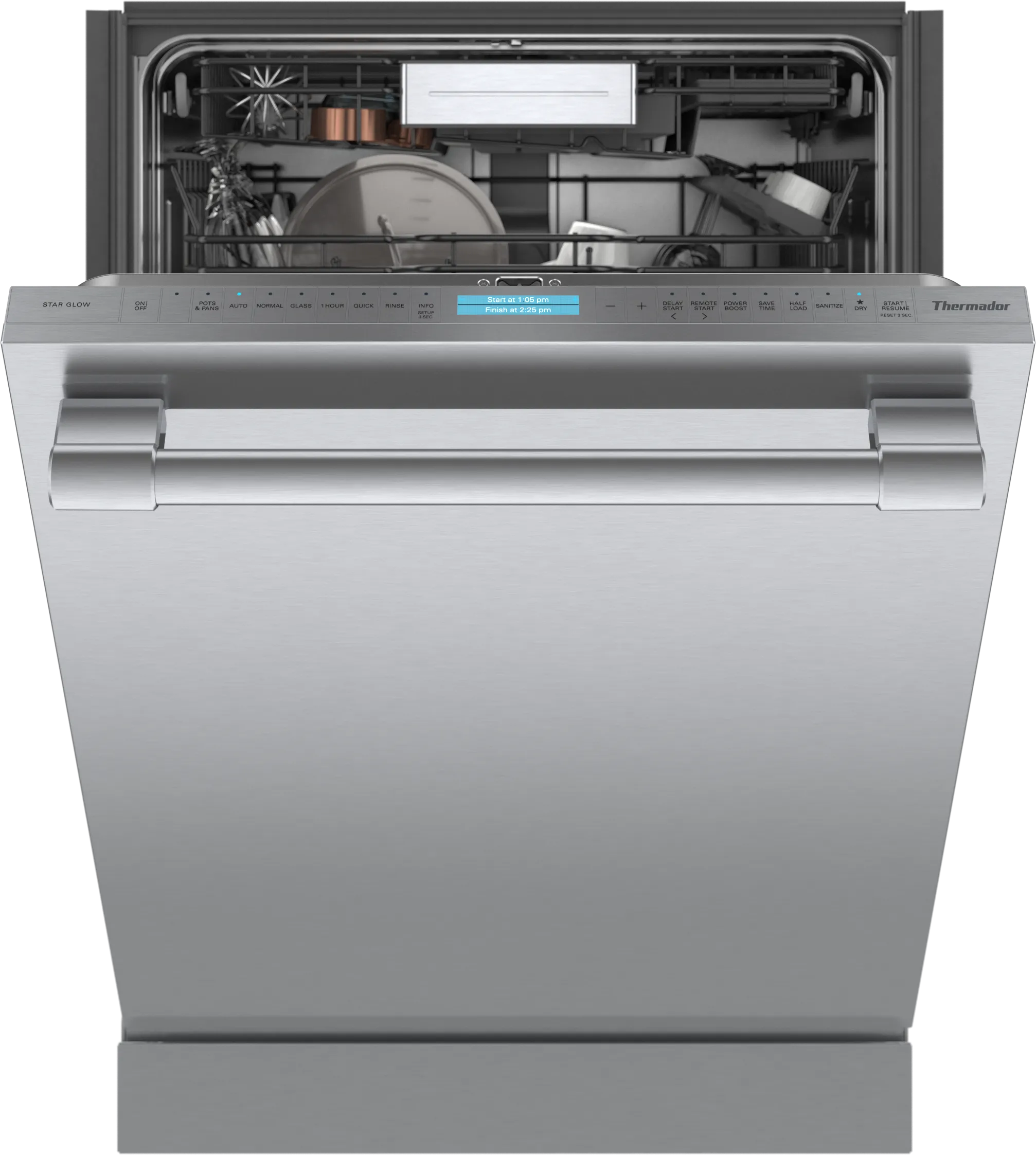

Thermador DWHD770CFP Star Sapphire Dishwasher 24" Stainless Steel

Quick Specification More details

Width:
23.56"
Depth:
23.75"
Height:
33.88"
Type:
Built-In Dishwashers

About this product

Stainless Steel Panel with Professional Handle
StarDry with Zeolite
Multi-color Star Glow Light
Adjustable Entertainer’s Drawer 3rd rack

Summer Sale

Clearance

SKU: DWHD770CFP | UPC: 883049339931

Thermador DWHD770CFP Star Sapphire Dishwasher 24" Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.56"
Depth:
23.75"
Height:
33.88"
Type:
Built-In Dishwashers

About this product

Stainless Steel Panel with Professional Handle
StarDry with Zeolite
Multi-color Star Glow Light
Adjustable Entertainer’s Drawer 3rd rack

Related Products

Bosch Junction Box & Supply Hose Kit SMZ3IN1UC Other

Summer Sale

Thermador SMZ5000 Dishwasher Accessory Kit Other

Bosch Junction Box Kit SMZPCJB1UC White

Thermador SGZ1010UC Drain Hose Extension Kit 11030046 Other

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for THERMADOR DWHD770CFP

Technical Details

Connectivity

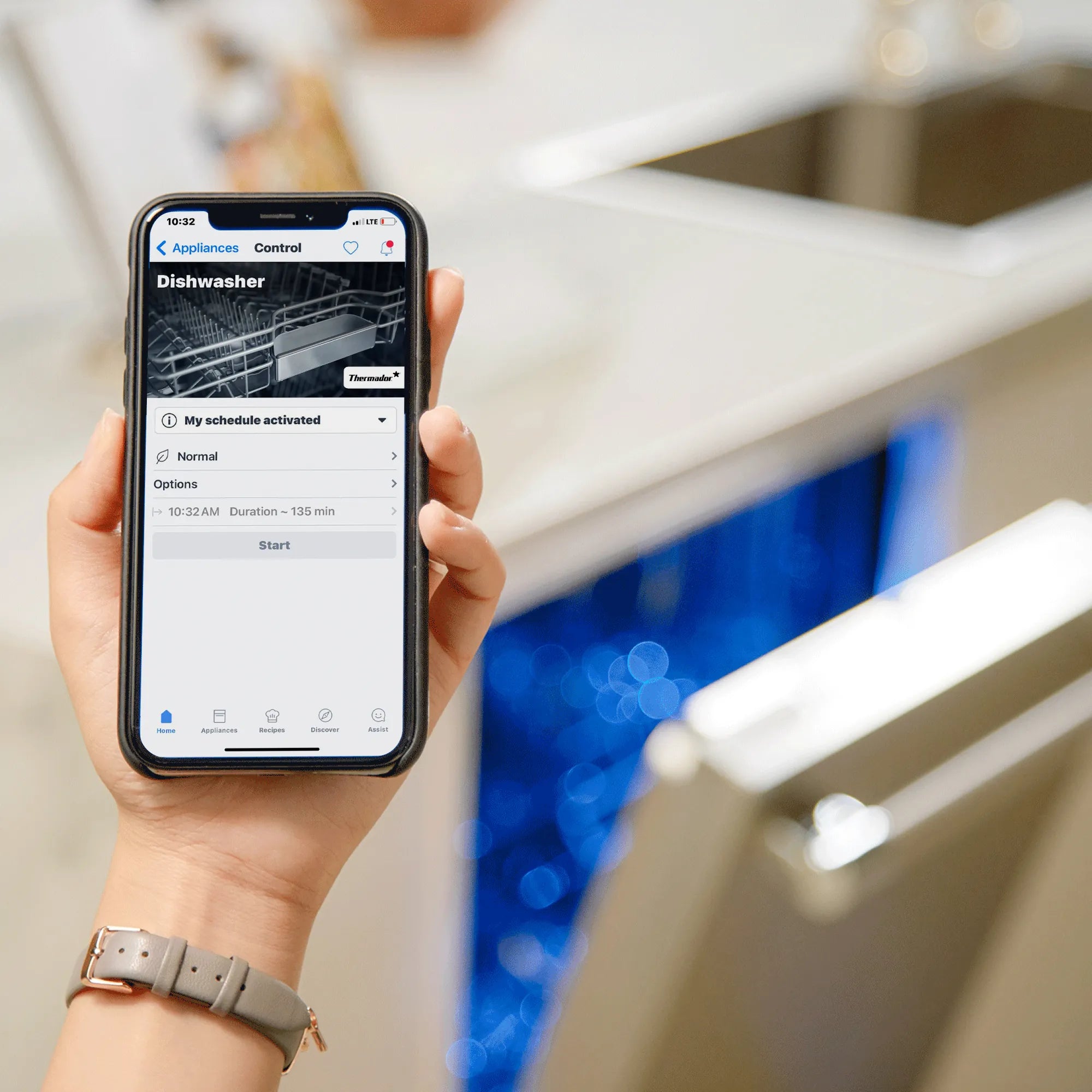

Home Connect® WiFi-enabled	yes
Home Connect® Features	Remote Monitoring and Control

Programmes

Status Indicator	End of program audible, Rem. time proj. white, Sanitized LED US, Water inlet
List of Programs	1 Hour, Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse
Program 1	Pots & Pans
Program 2	Auto
Program 3	Normal
Program 4	Hand Wash
Program 5	1 Hour
Program 6	Quick
Program 7	Rinse
Reference program	Eco
Temperature program 1	151-160 °F
Temperature program 2	127-140 °F
Temperature program 3	113-136 °F
Temperature program 4	113-122 °F
Temperature program 5	122 °F
Temperature program 6	113 °F

Safety

ChildLock	No
Safety	24/7 AquaStop® Leak Protection

Consumption values

Crystal Protect®	Yes
Water consumption program 1	4.9-6.4 gal
Water consumption program 2	3.4-6.4 gal
Water consumption program 3	2.3-5.5 gal
Water consumption program 4	2.4-3.9 gal
Water consumption program 5	3.8 gal
Water consumption program 6	2.8 gal
Water consumption program 7	1.1 gal
Total Annual Water Consumption	624 gal
Maximum temperature for water intake (°C)	60 °C

Connection

Watts	1,440 W
Power Cord Length	67''
Amps	12 A
Plug Type	Nema5-15P

Comfort and convenience

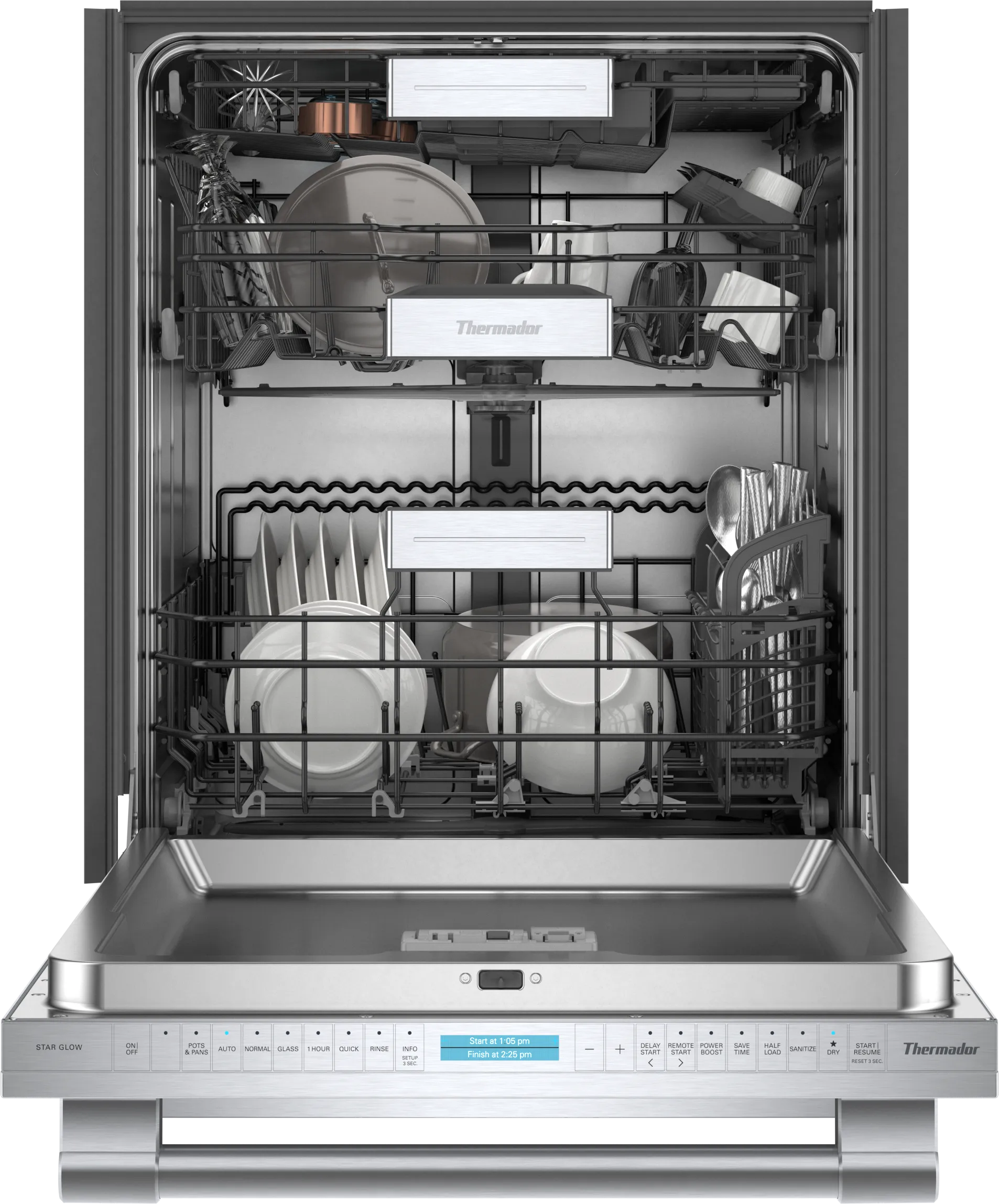

3rd Rack	Adjustable Entertainer’s Drawer®
Adjustable Upper Rack	yes
Time Remaining PowerBeam®	yes
Program Status Light	Not Applicable
Sapphire Glow™	no
Multi-color Star Glow	yes
Crystal Protect®	yes
Open Door Assist	no

Cleaning technology

Drying System	StarDry™ with Zeolite, Condensation Dry
NSF® Certified Sanitize Option	yes
List of Programs	Auto, Hand Wash, Normal, Pots & Pans, 1 Hour, Quick, Rinse
Cycle Options	Remote Start, PowerBoost®, Save Time, Half Load, Sanitize, StarDry™
Aquasensor	yes
Water Softener	yes

Energy and water

ENERGY STAR® certified	no
Total Annual Energy Consumption	269 kWh
Total Annual Water Consumption	624 gal

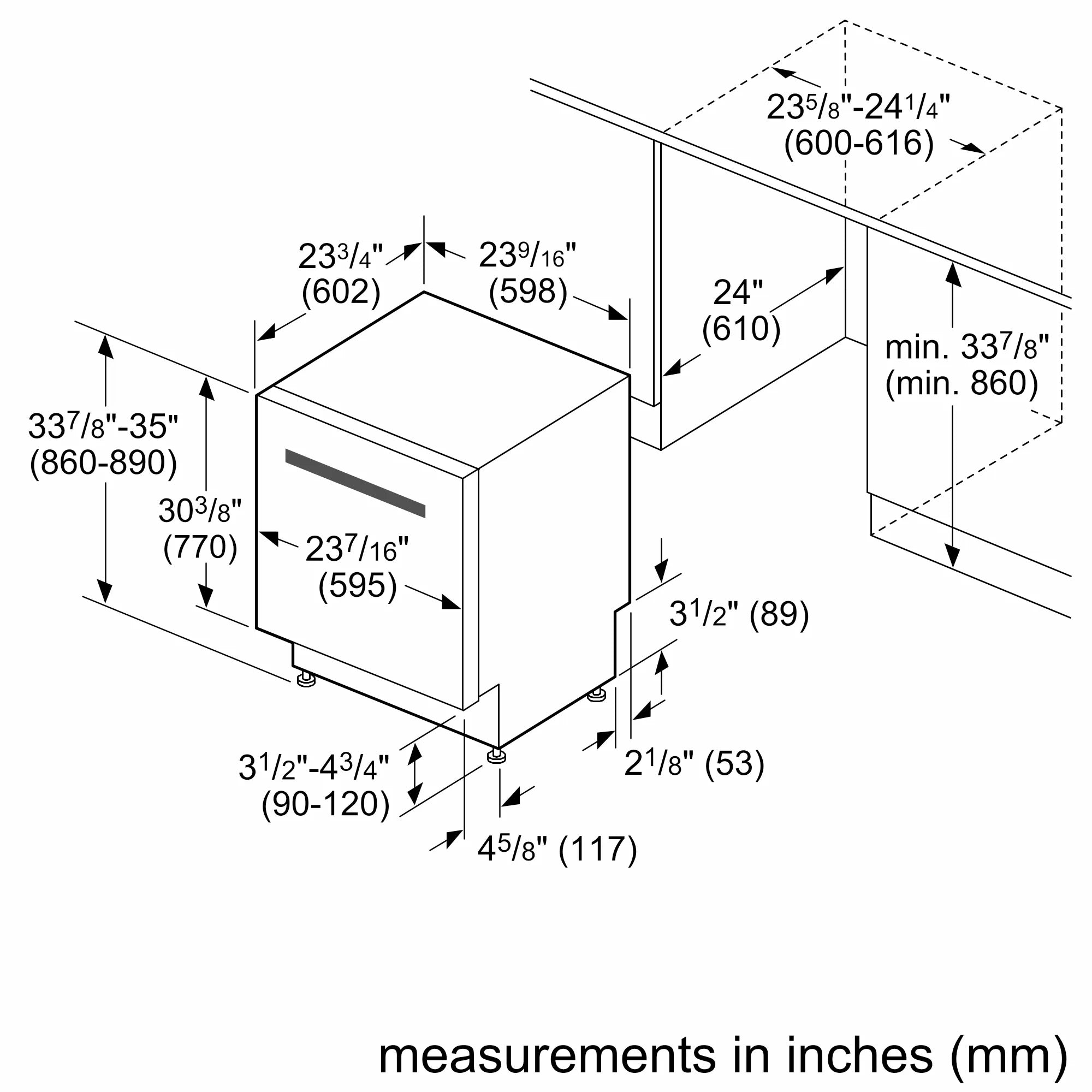

Dimensions & weight

Width	23.56 in.
Height	33.88 in.
Length	23.75 in.
Weight	100 lbs.
Net Weight	100.000 lbs

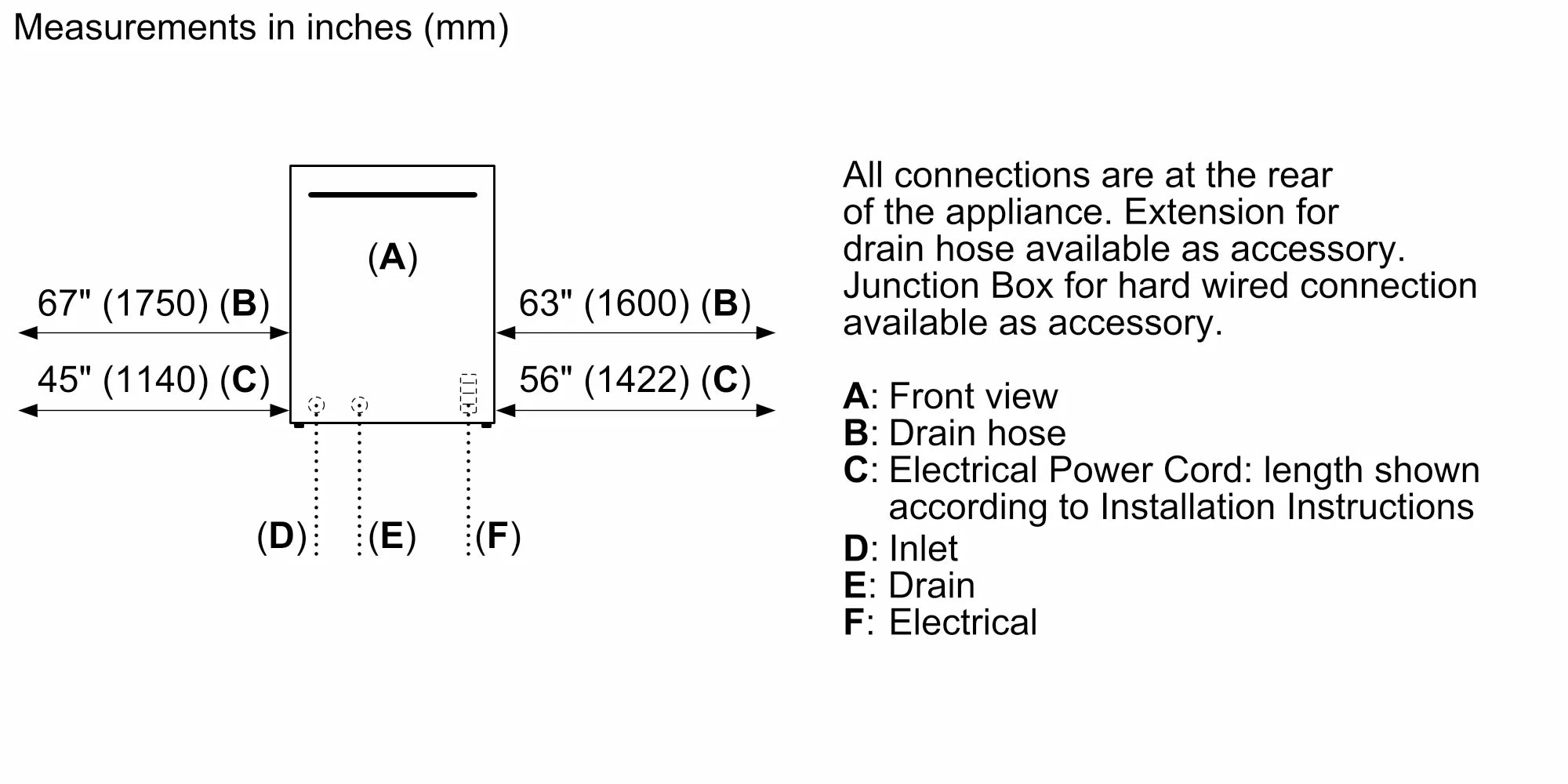

Length Outlet Hose (in)	90 1/2''
Power Cord Length	67''
Product Packaging Dimensions (HxWxD)	36 13/16'' x 26'' x 28''

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.56 in.
Shipping Height	38.88 in.
Shipping Length	28.75 in.
Shipping Weight	140 lbs.
Total of Shipping Weight	140 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.97 ft³
Dimensional Weight	136.38 lbs.
Total of Cubes	10.97 ft³
Total of Dimensional Weight	136.38 lbs.

Manuals & Guides

Key Features

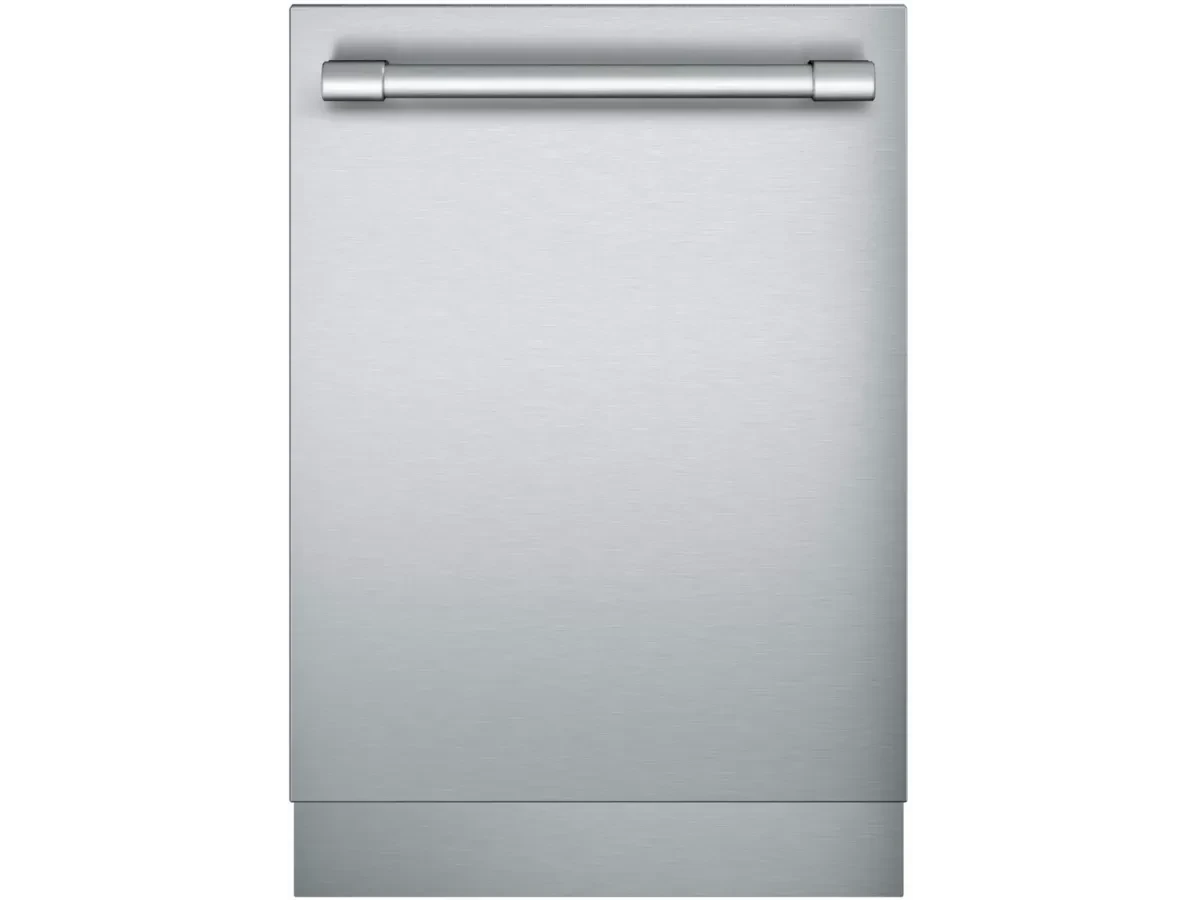

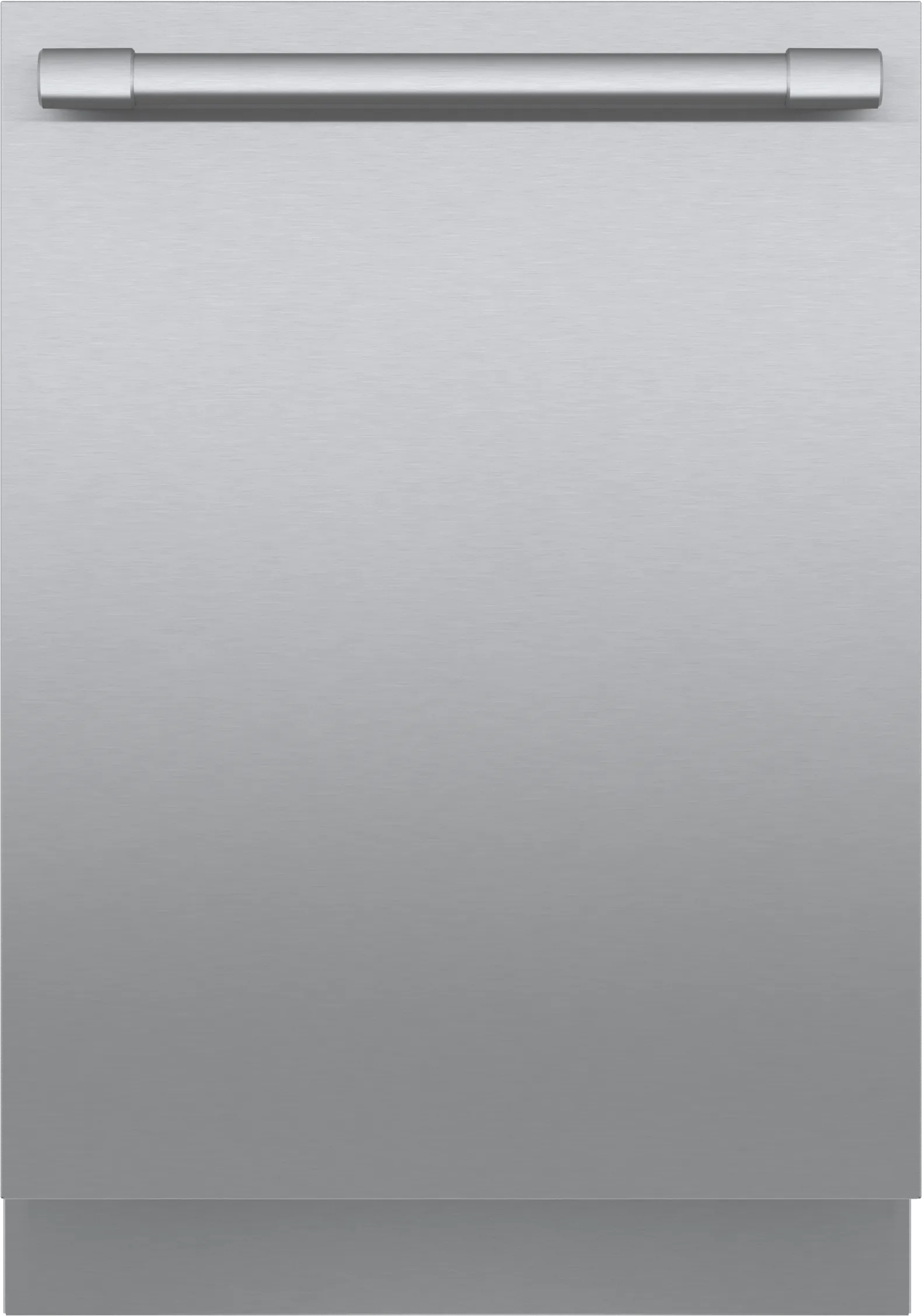

Stainless Steel Panel with Professional Handle

Professional style bold brushed stainless steel handles

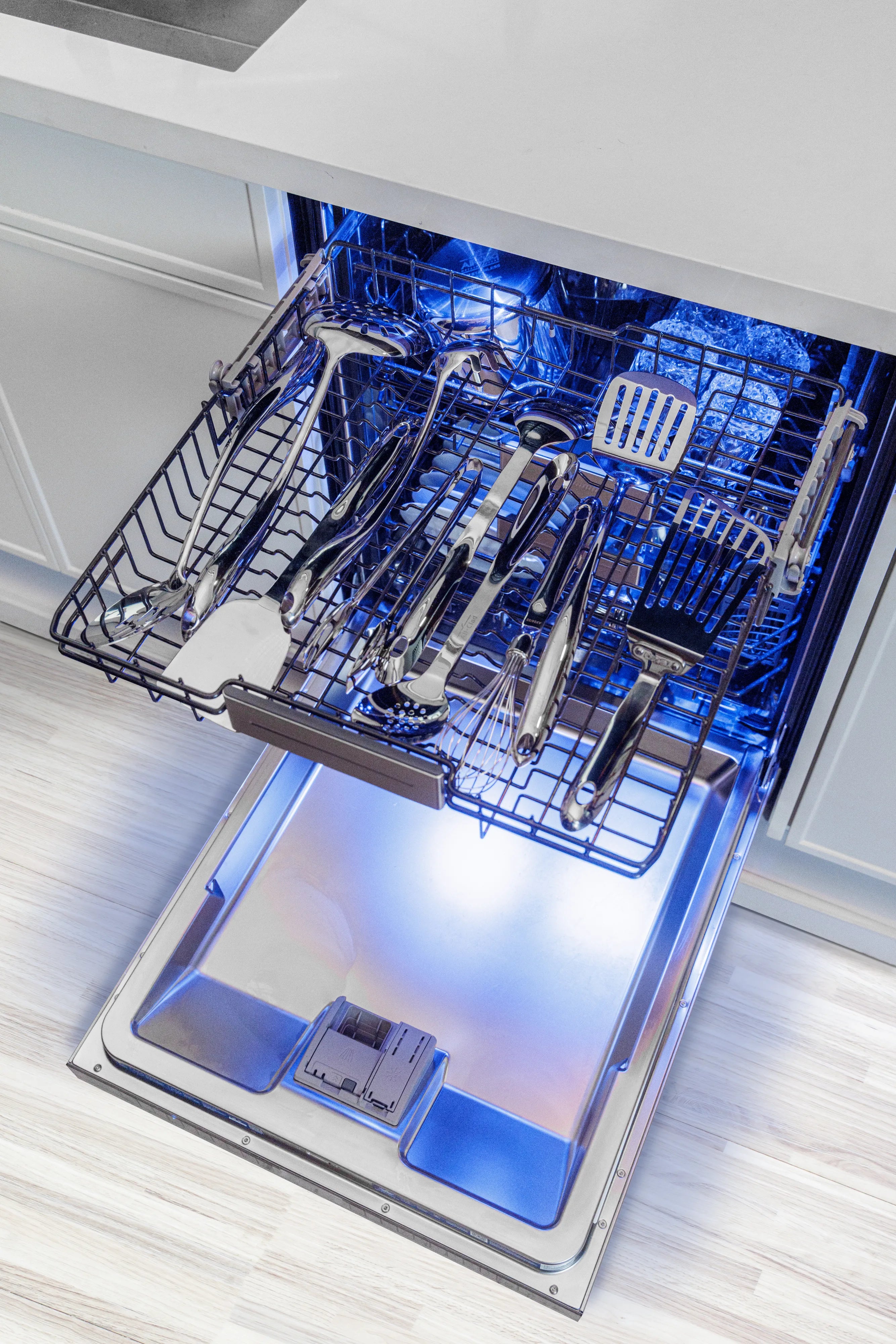

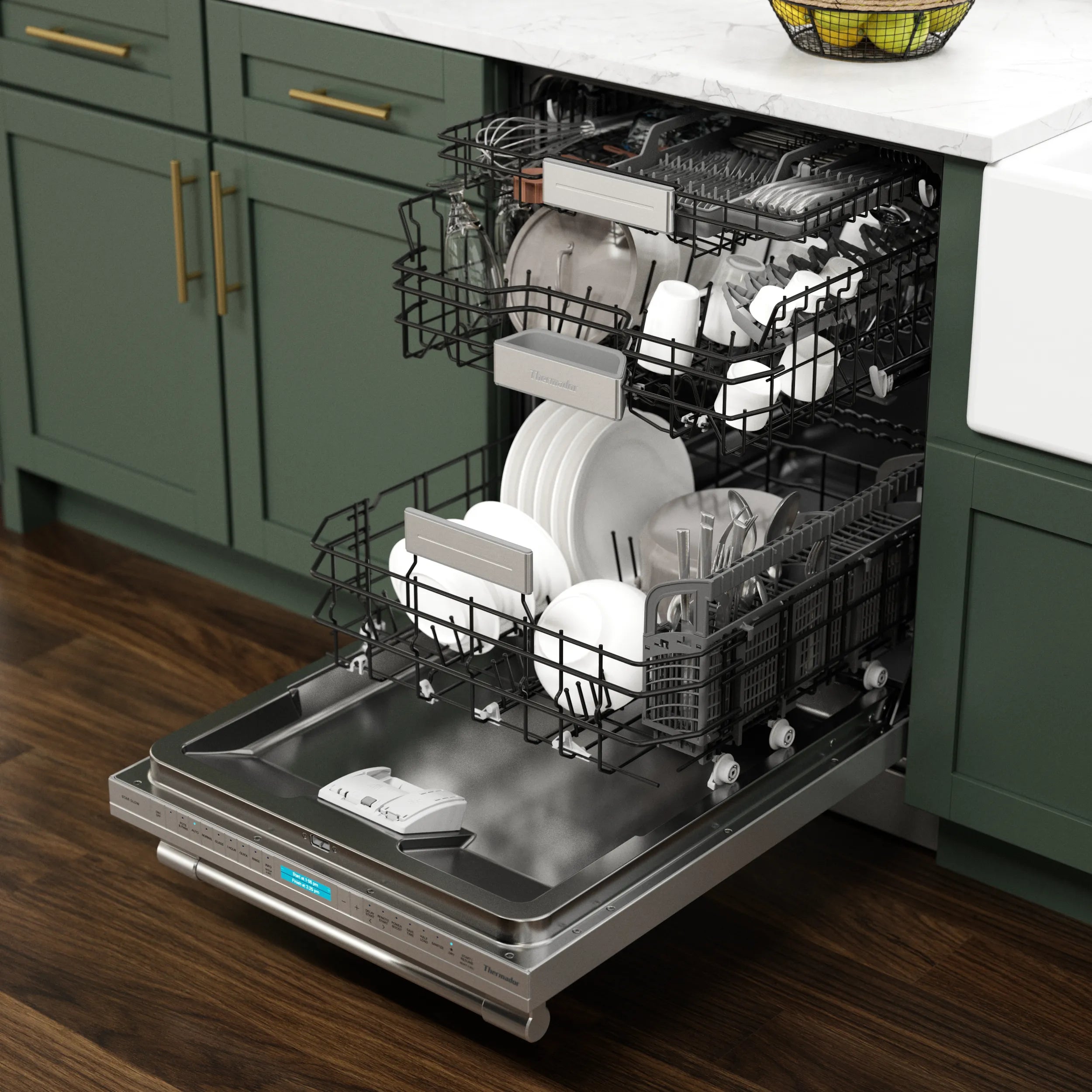

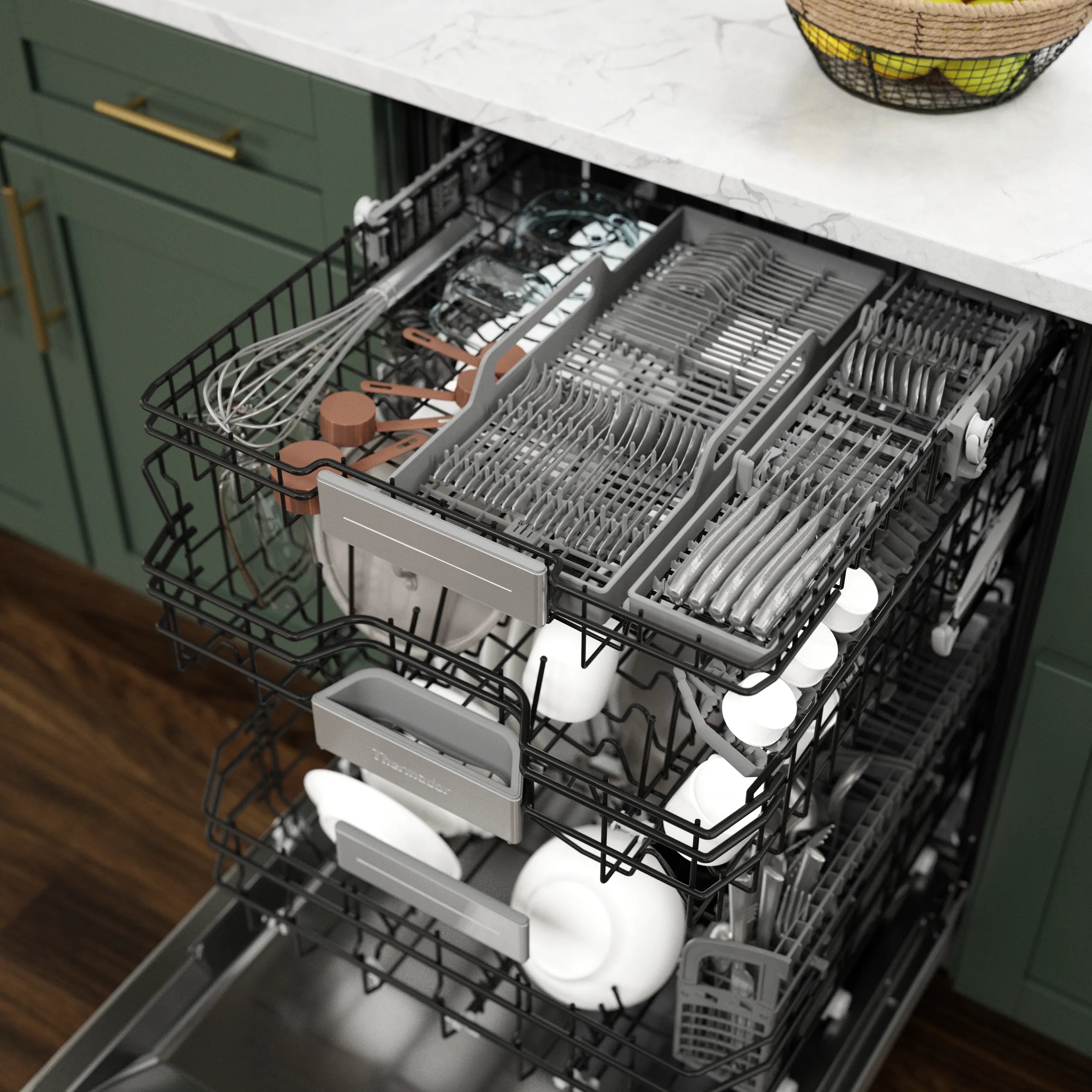

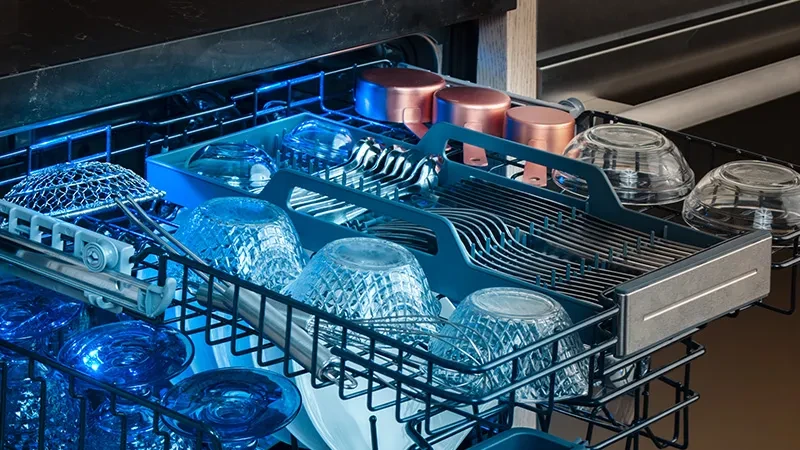

Adjustable Entertainer’s Drawer 3rd rack

Entertainer’s Drawer (3rd Rack) provides additional capacity and the ultimate flexibility in cleaning your culinary kitchen tools.

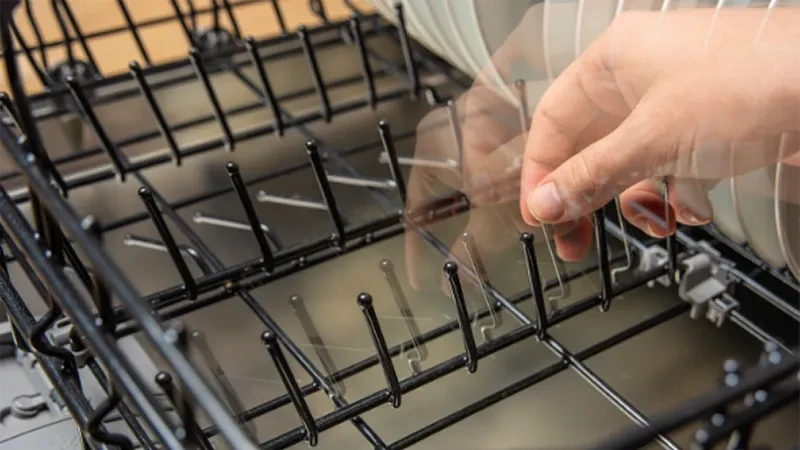

Flexible Folding Tines accommodate larger items.

Flexible Folding Tines folds down to accommodate larger pots, pans, and dishes.

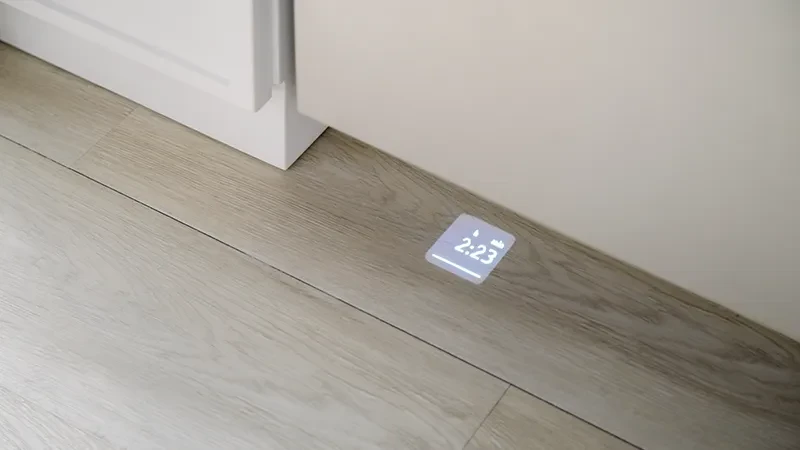

Time Remaining PowerBeam countdown on floor

Time Remaining PowerBeam: shines a countdown of the remaining time of the cycle on the floor.

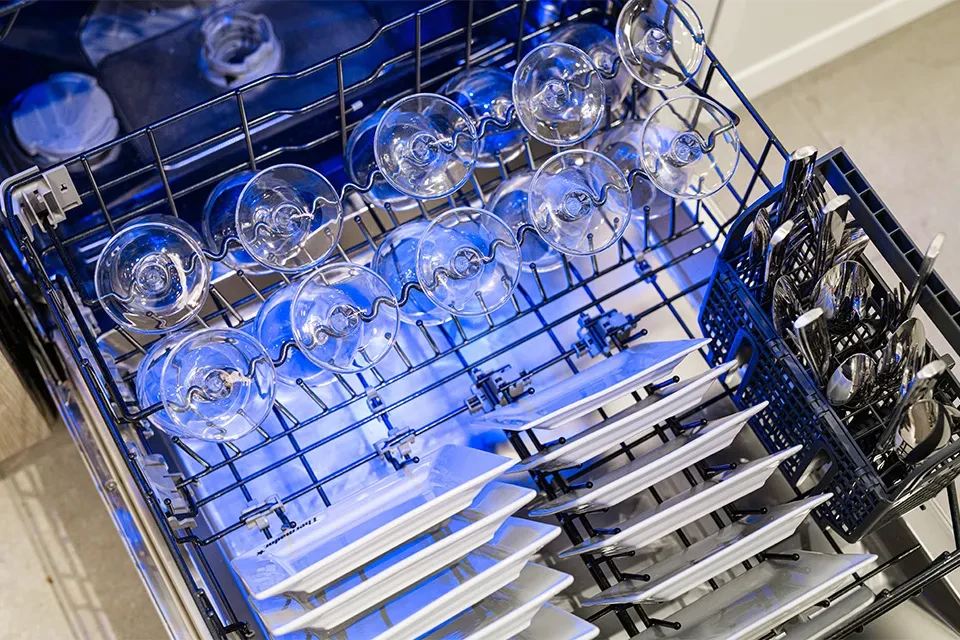

Wash 18 Wine Glasses with the Folding Glass Care Rack

Allowing you to wash up to 18 wine glasses at once. Securely wash your most delicate stems while accommodating every entertaining occasion.

Crystal Protection System is perfect for fine crystal

The Crystal Protect Water Softener System utilizes a built-in water softener to neutralize water hardness, making it safe to wash crystal with sparkling results.
