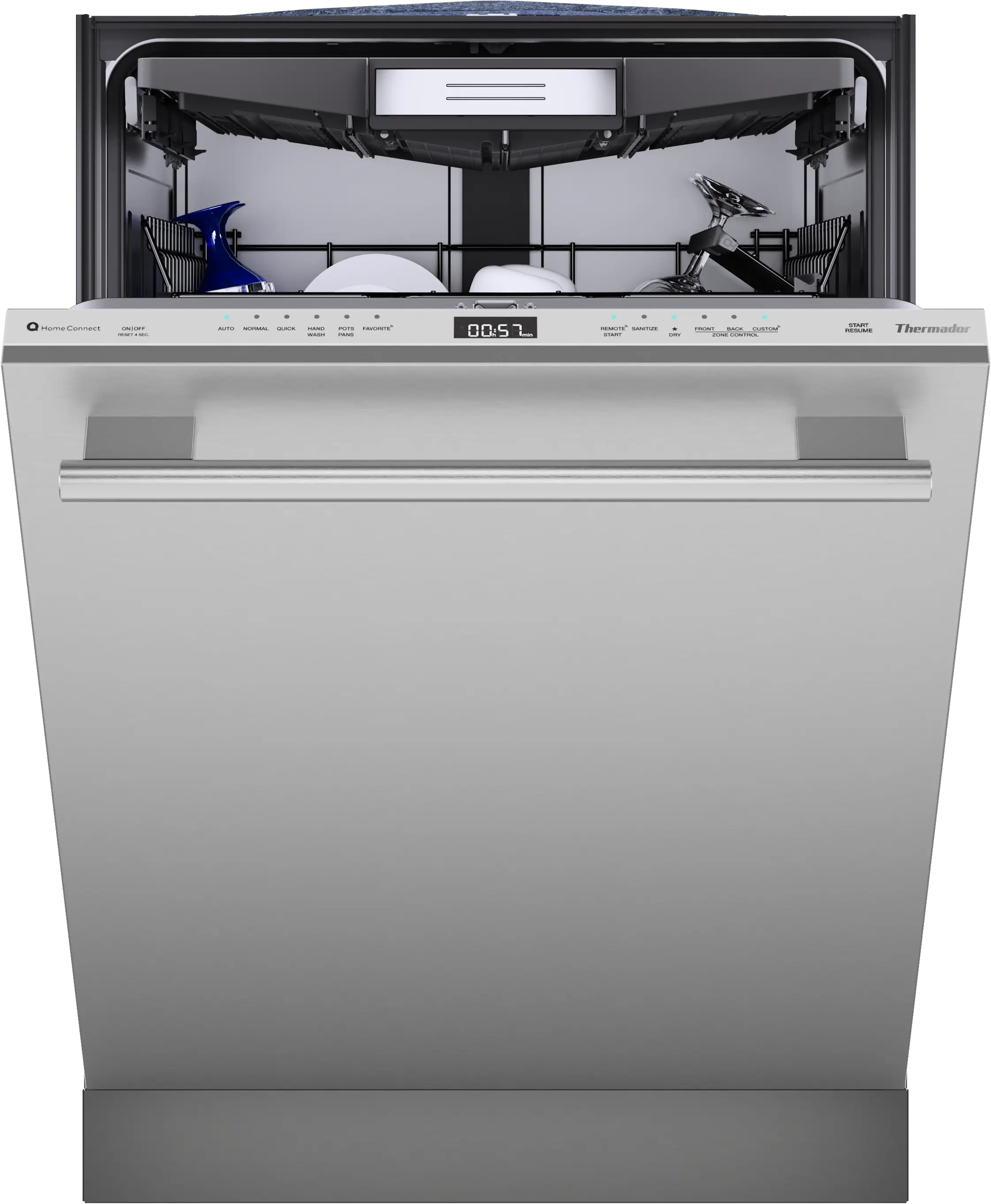

Product Details for Thermador DWHD661EFM
Technical Details
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
General
| Installation Type | Built-under |
| Number of Place Settings | 16 |
| Cycle Options | Remote Start, Sanitize, StarDry™, ZoneControl™ Front, ZoneControl™ Back, ZoneControl™ Custom |
| Silence Level | 42 dB(A) re 1pW |
| Handle Design | Bar Handle |
| Panel Ready | Not Possible |
| Design | Built-in |
| Collection | Masterpiece |
| Color | Stainless Steel |
| Toe Kick Color | Stainless Steel |
| Tub Material | Stainless Steel |
| List of Programs | Auto, Normal, Quick, Hand Wash, Pots & Pans, Favorite |
| Programs & Options Exclusive to Home Connect | Glass, Machine Care, Save Time, Rinse |
Connectivity
| Home Connect® WiFi-enabled | yes |
| Home Connect® Features | Remote Monitoring and Control |

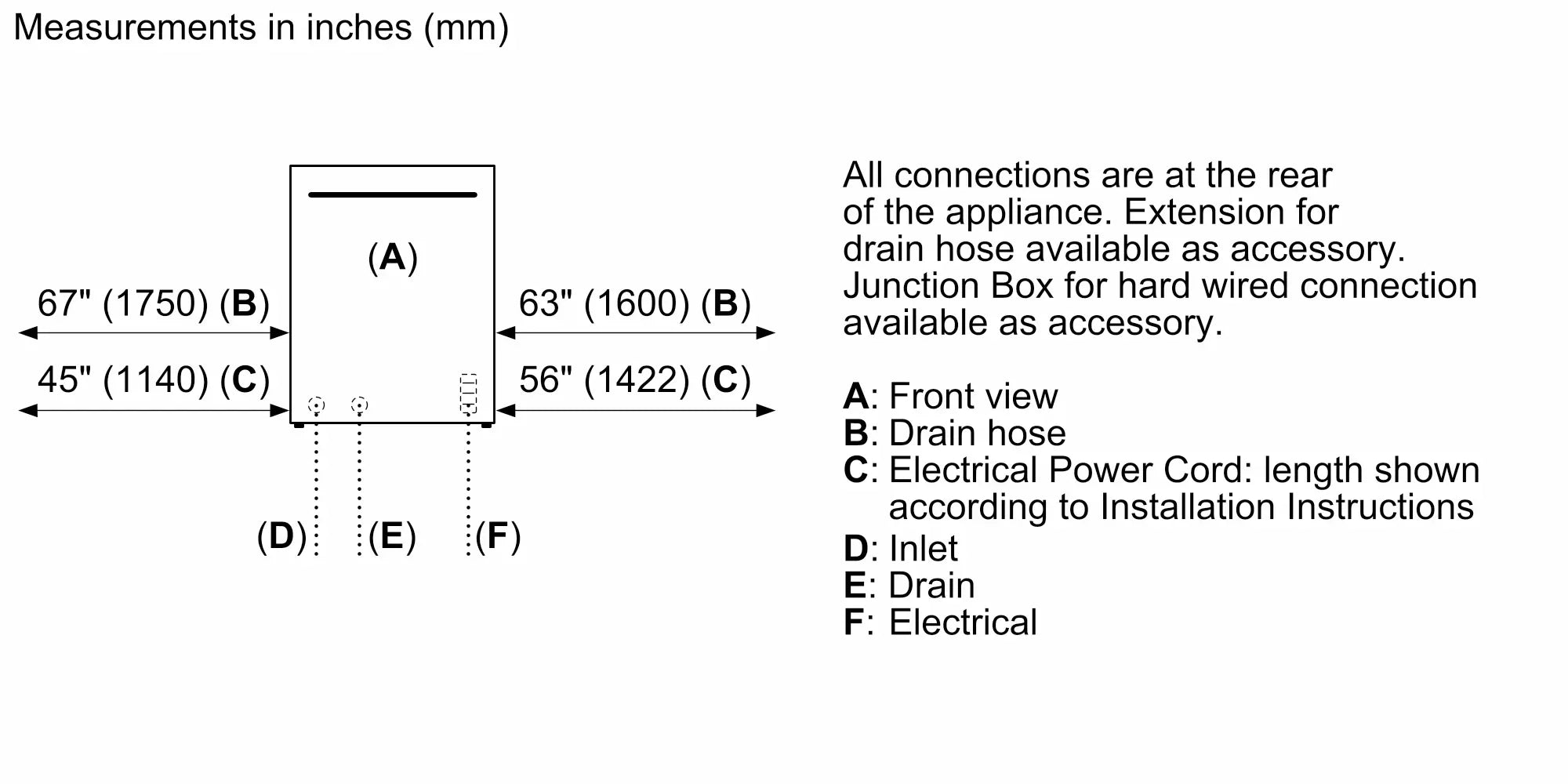

Size and weight
| Required Cutout Size (HxWxD) (in) | 33 7/8'' x 24'' x 24'' |
| Adjustable Feet | Yes, All Adjustable from Front |
| Length Outlet Hose (in) | 90 1/2'' |
| Power Cord Length | 67'' |
| Product Packaging Dimensions (HxWxD) | 35 3/4'' x 26'' x 29 5/16'' |
| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4" |
| Net Weight | 103.000 lbs |
Comfort and convenience
| Adjustable Upper Rack | yes |
| 3rd Rack | Adjustable Chef’s Tool Drawer® |
| Time Remaining PowerBeam® | yes |
| Program Status Light | Not Applicable |
| Sapphire Glow™ | no |
| Multi-color Star Glow | yes |
| Crystal Protect® | yes |
| Open Door Assist | no |
Cleaning technology
| Drying System | StarDry™ with Zeolite, Condensation Dry |
| NSF® Certified Sanitize Option | yes |
| Cycle Options | Remote Start, Sanitize, StarDry™, ZoneControl™ Front, ZoneControl™ Back, ZoneControl™ Custom |
| Aquasensor | yes |
| Water Softener | yes |
| List of Programs | Auto, Normal, Quick, Hand Wash, Pots & Pans, Favorite |
Energy and water
| ENERGY STAR® certified | yes |
| Total Annual Energy Consumption | 240 kWh |
| Total Annual Water Consumption | 624 gal |
Dimensions & weight
| Width | 23.56 in. |
| Height | 33.88 in. |
| Length | 23.75 in. |
| Weight | 100 lbs. |
| Net Weight | 100.000 lbs |
| Length Outlet Hose (in) | 90 1/2'' |
| Power Cord Length | 67'' |
| Product Packaging Dimensions (HxWxD) | 35 3/4'' x 26'' x 29 5/16'' |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 28.56 in. |
| Shipping Height | 38.88 in. |
| Shipping Length | 28.75 in. |
| Shipping Weight | 140 lbs. |
| Total of Shipping Weight | 140 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 10.97 ft³ |
| Dimensional Weight | 136.38 lbs. |
| Total of Cubes | 10.97 ft³ |
| Total of Dimensional Weight | 136.38 lbs. |
Safety
| Safety | Floating Switch |
Description
Product Features
-
Powerfully Quiet® at 42 dBA
Powerfully Quiet® enjoy a signature cleaning cycle at 42 dBA, perfect for after-dinner conversation. -
AquaStop® provides 24/7 leak protection
AquaStop® provides 24/7 leak protection and shuts off water flow in case of leaks. -

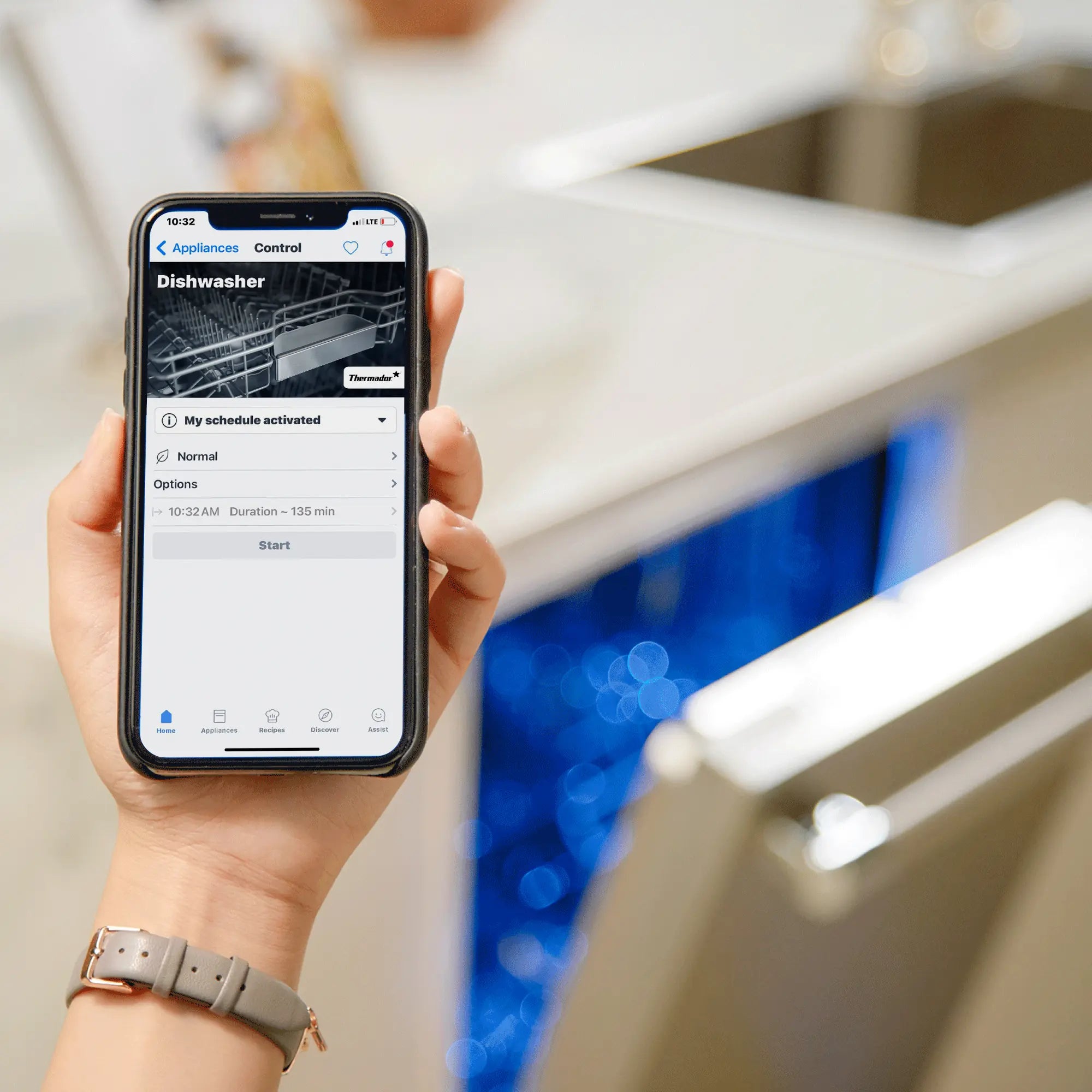

Wifi Smart Appliance via Home Connect App

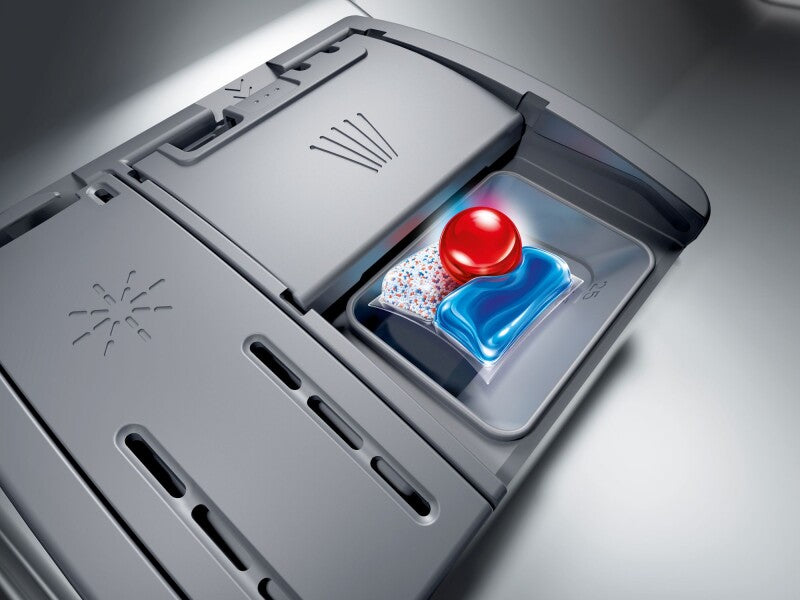

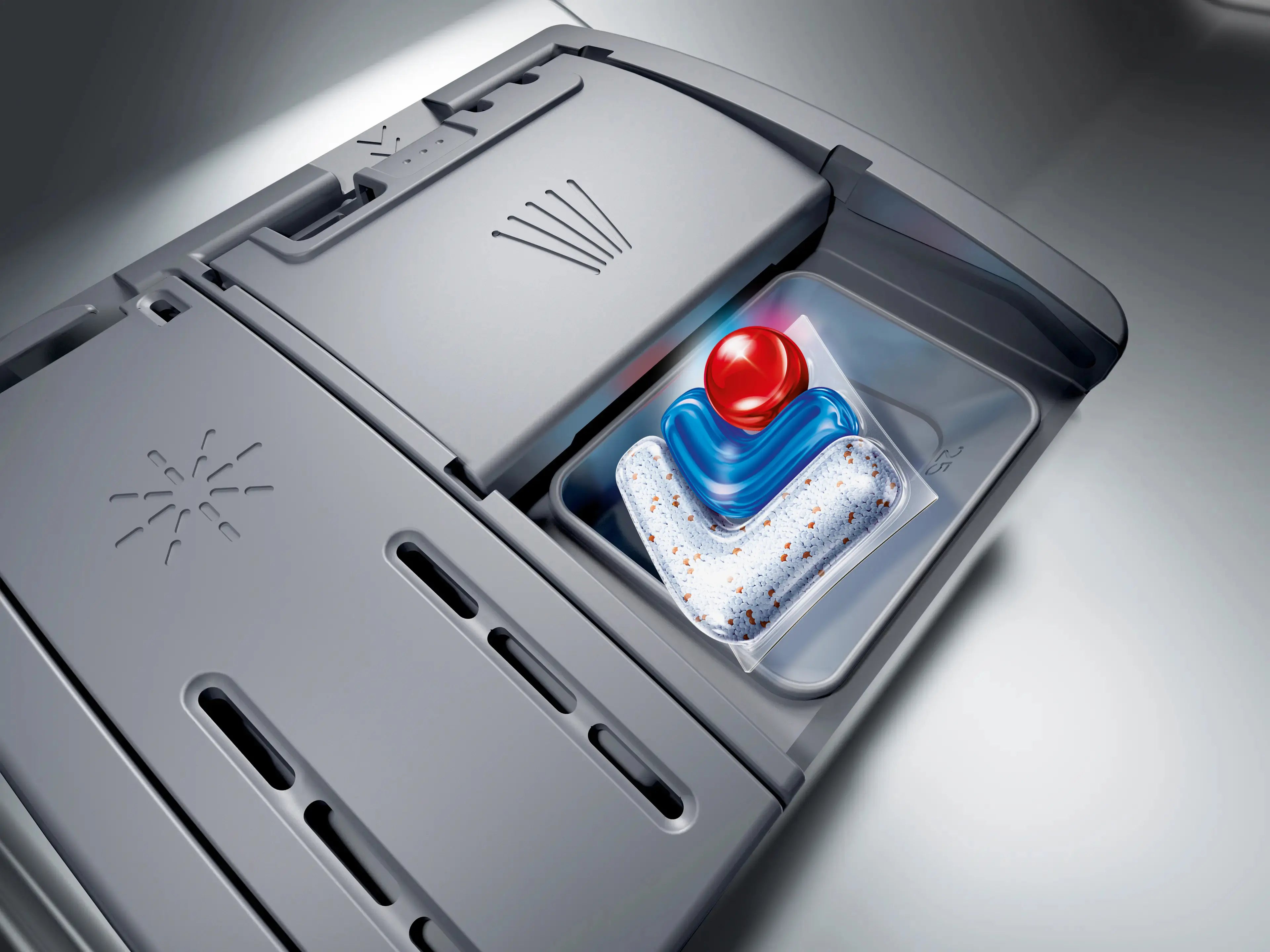

Control smart Dishwashers with the Home Connect® App to refine cleanup from start to finish with features like Remote Start and timely notifications that keep track of every dish tab so you never run out. Access exclusive ZoneControl™ settings in the app to create custom wash settings.
Manuals & Guides
Key Features

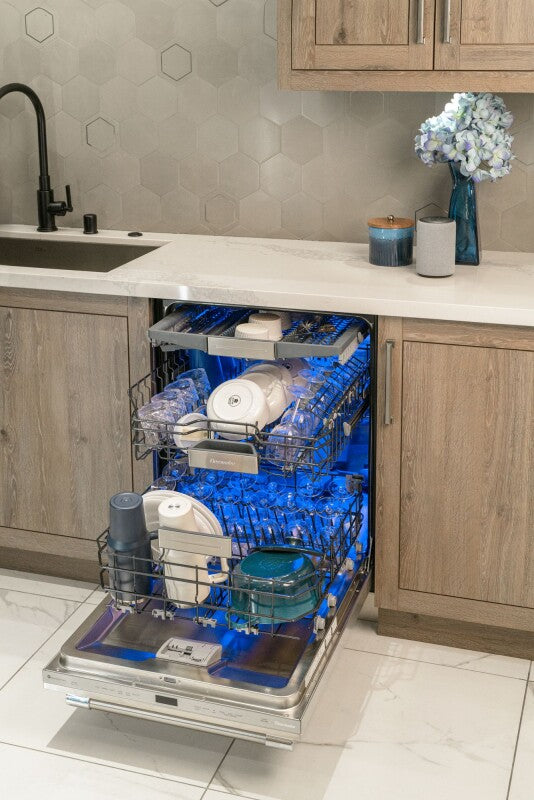

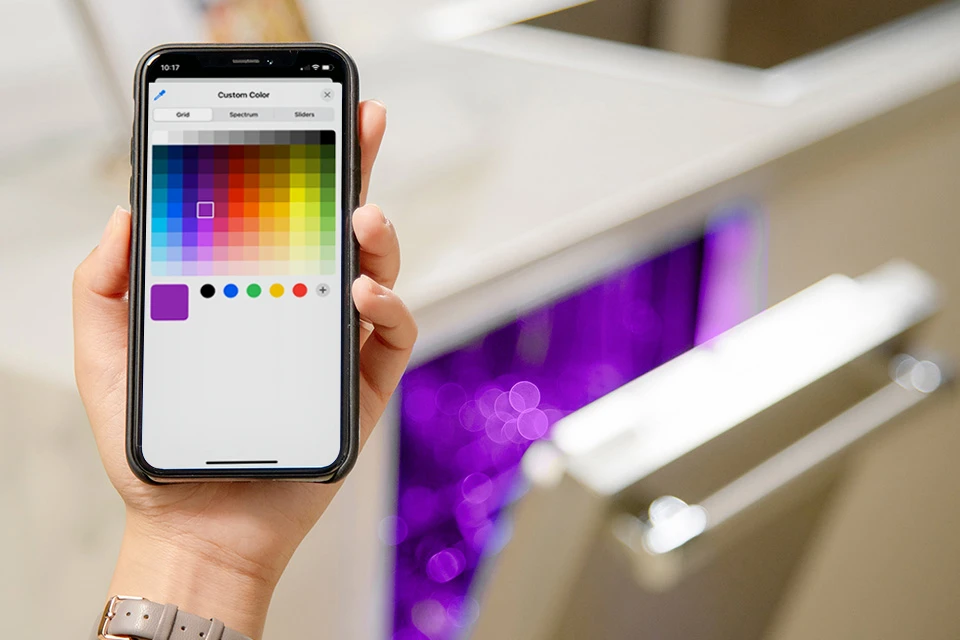

Multi-color Star Glow Light
A Thermador Exclusive, Star Glow illuminates the inside of the dishwasher in a variety of colors, so you can set the mood that marches the occasion via the Thermador Connected Experience by Home Connect.

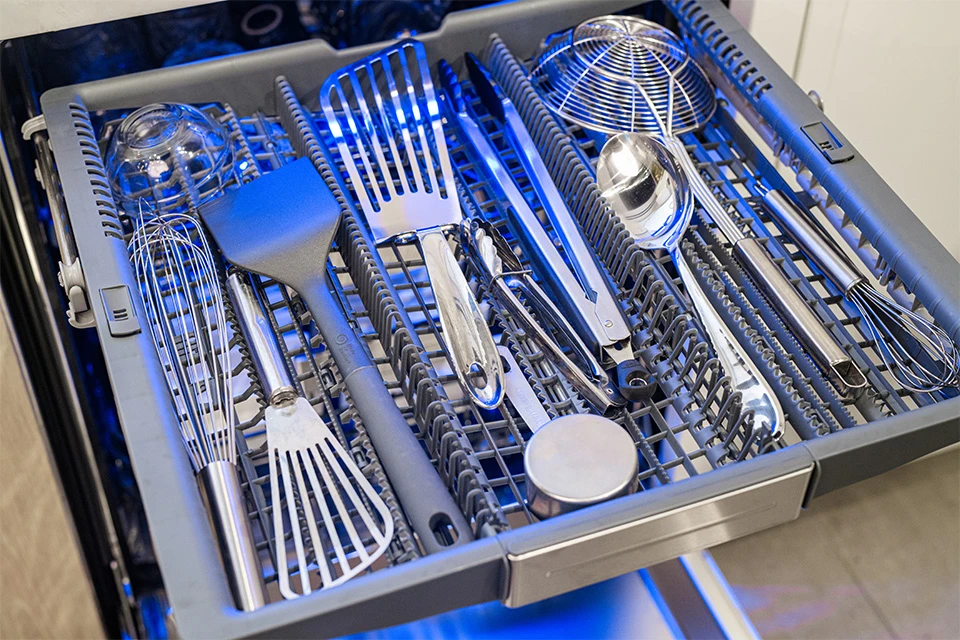

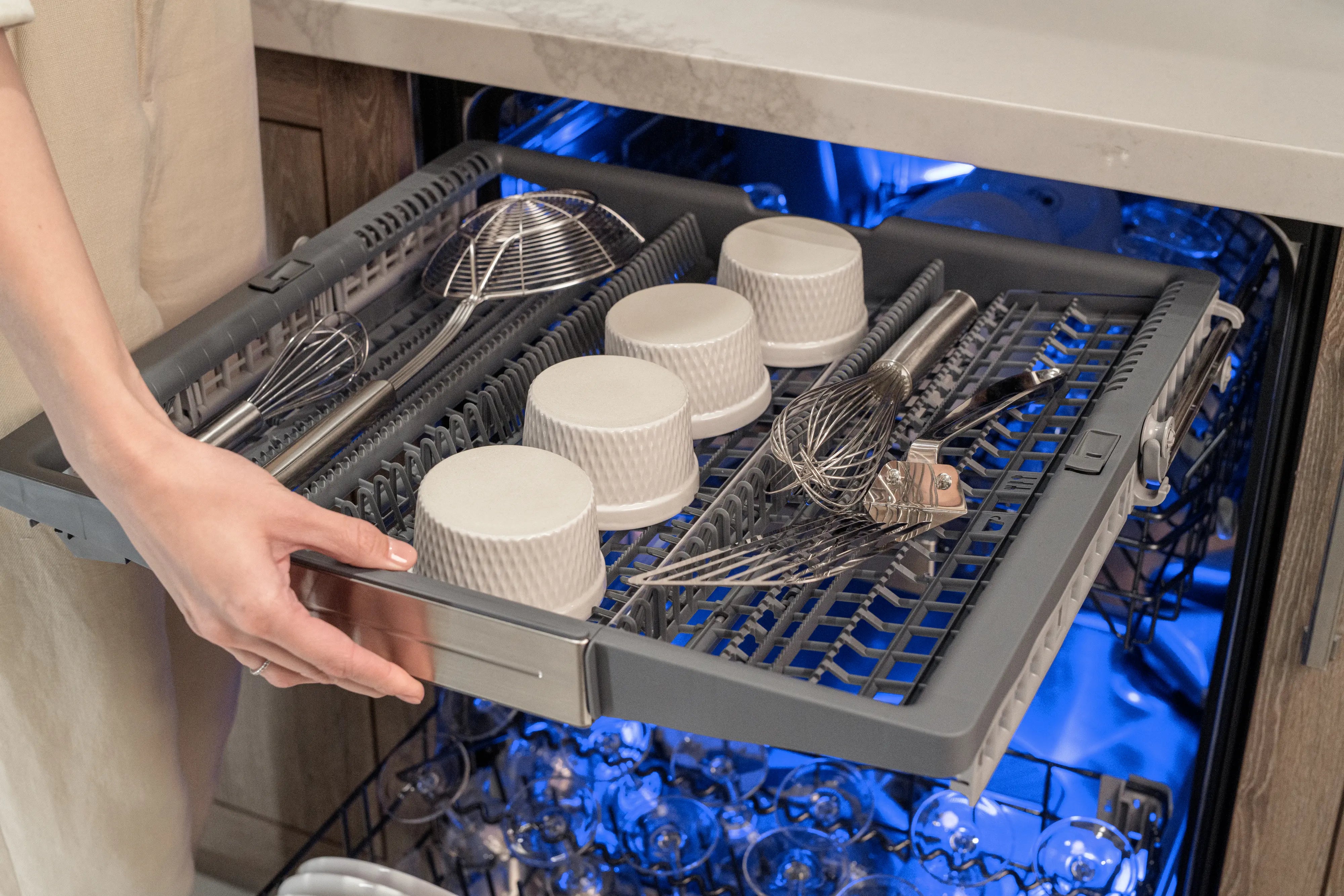

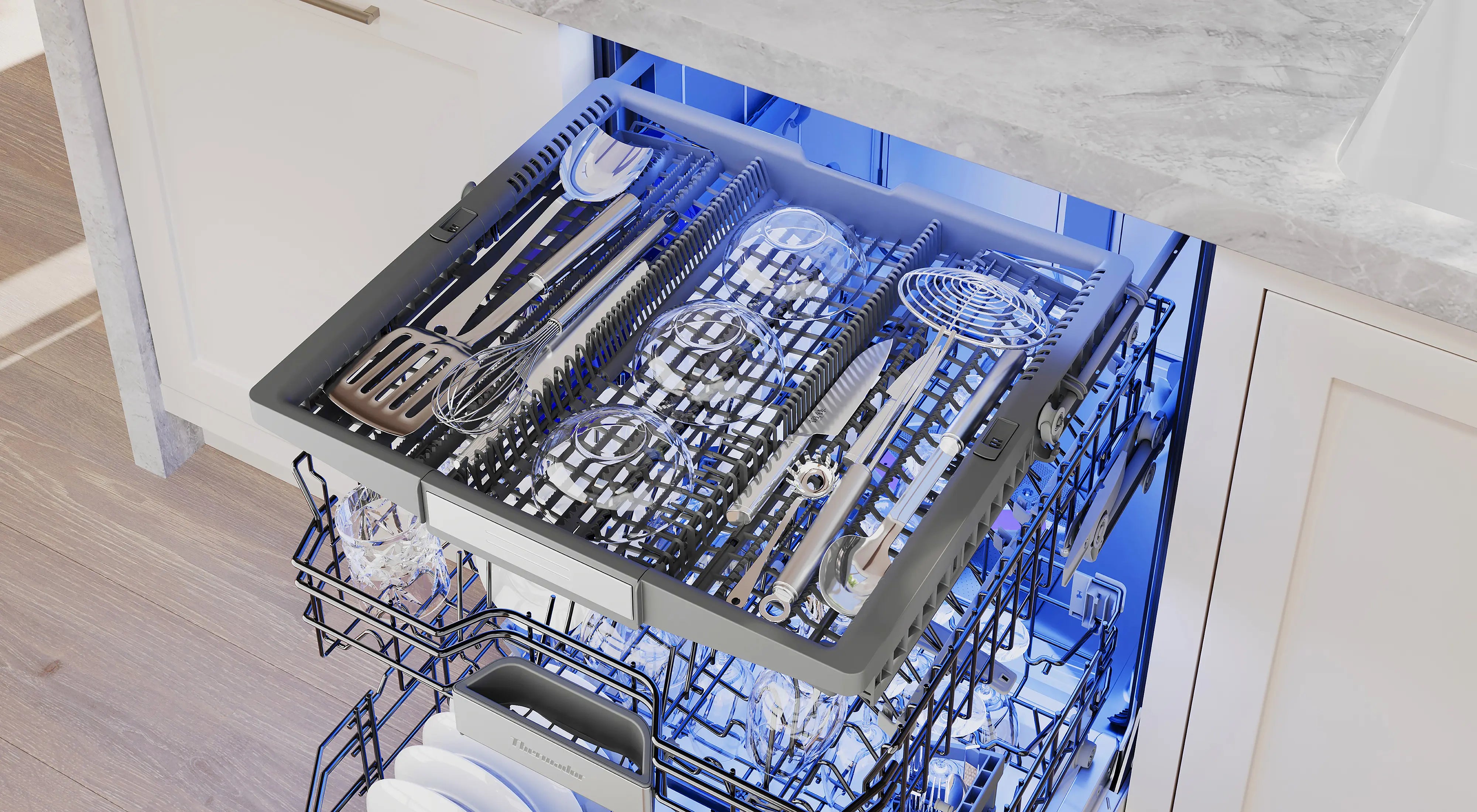

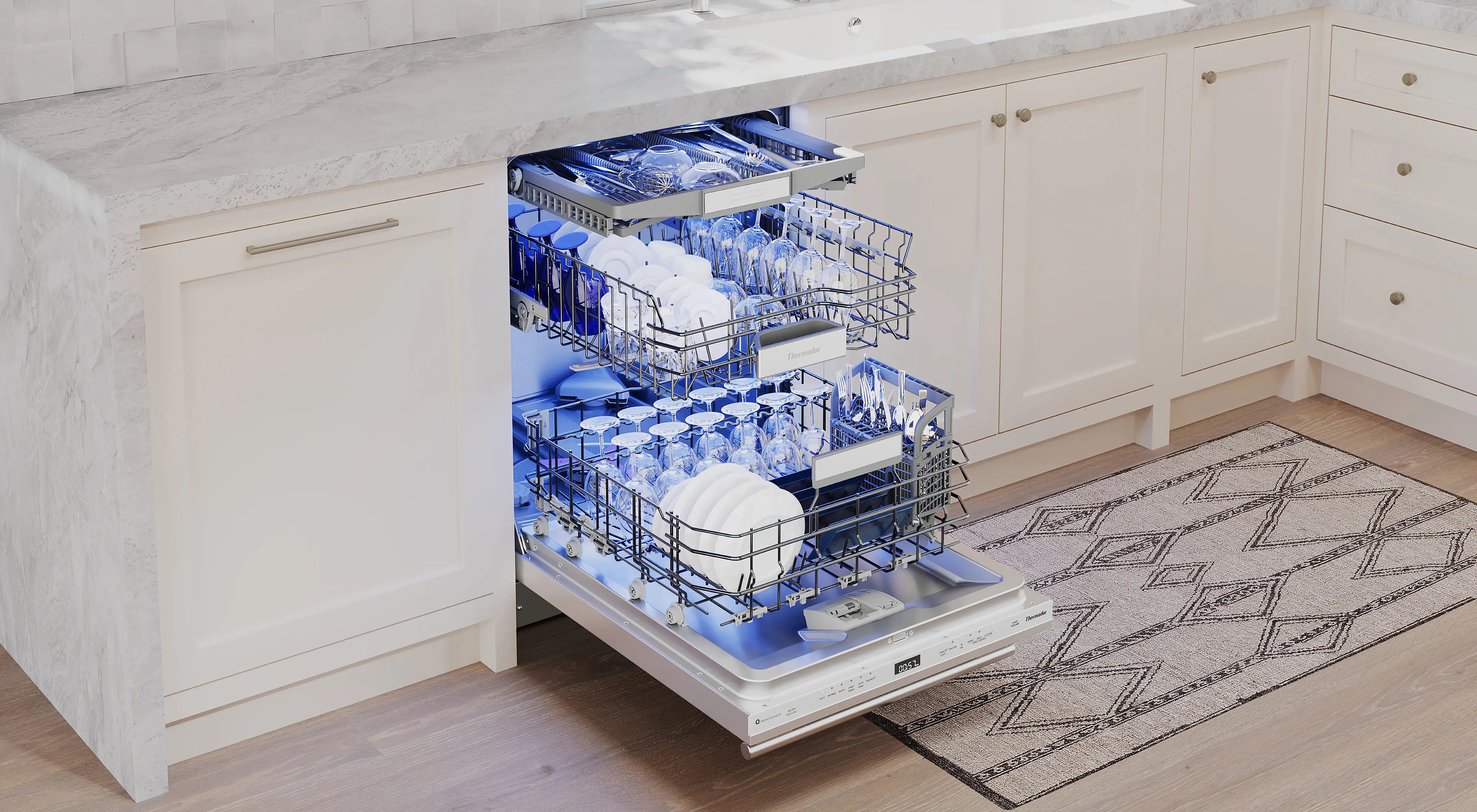

Spacious Adjustable Chef’s Tool Drawer
Adjustable Chef’s Tool Drawer® delivers added loading capacity as well as flexibility to accommodate larger or smaller items in this additional third rack.

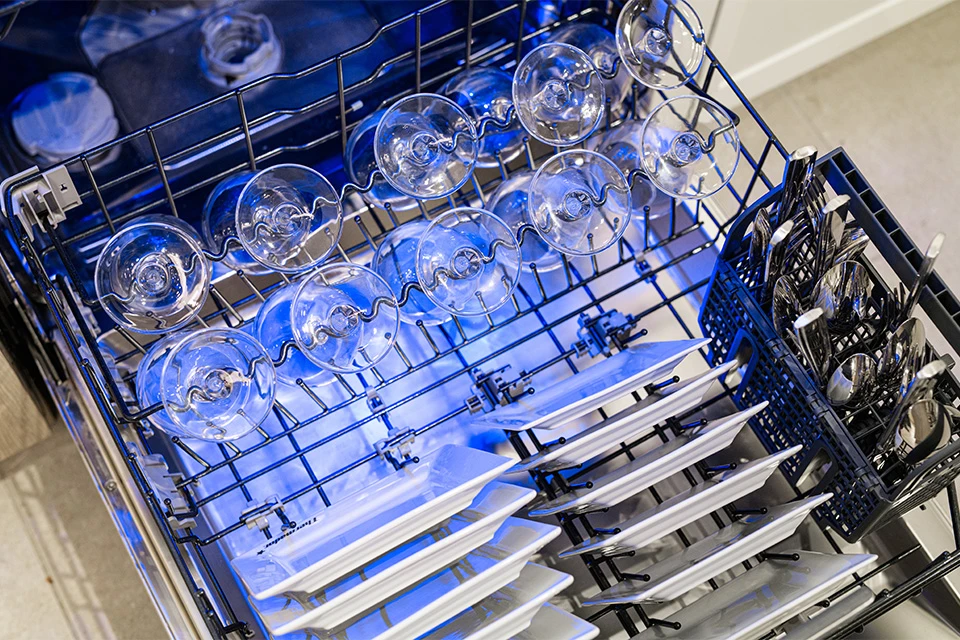

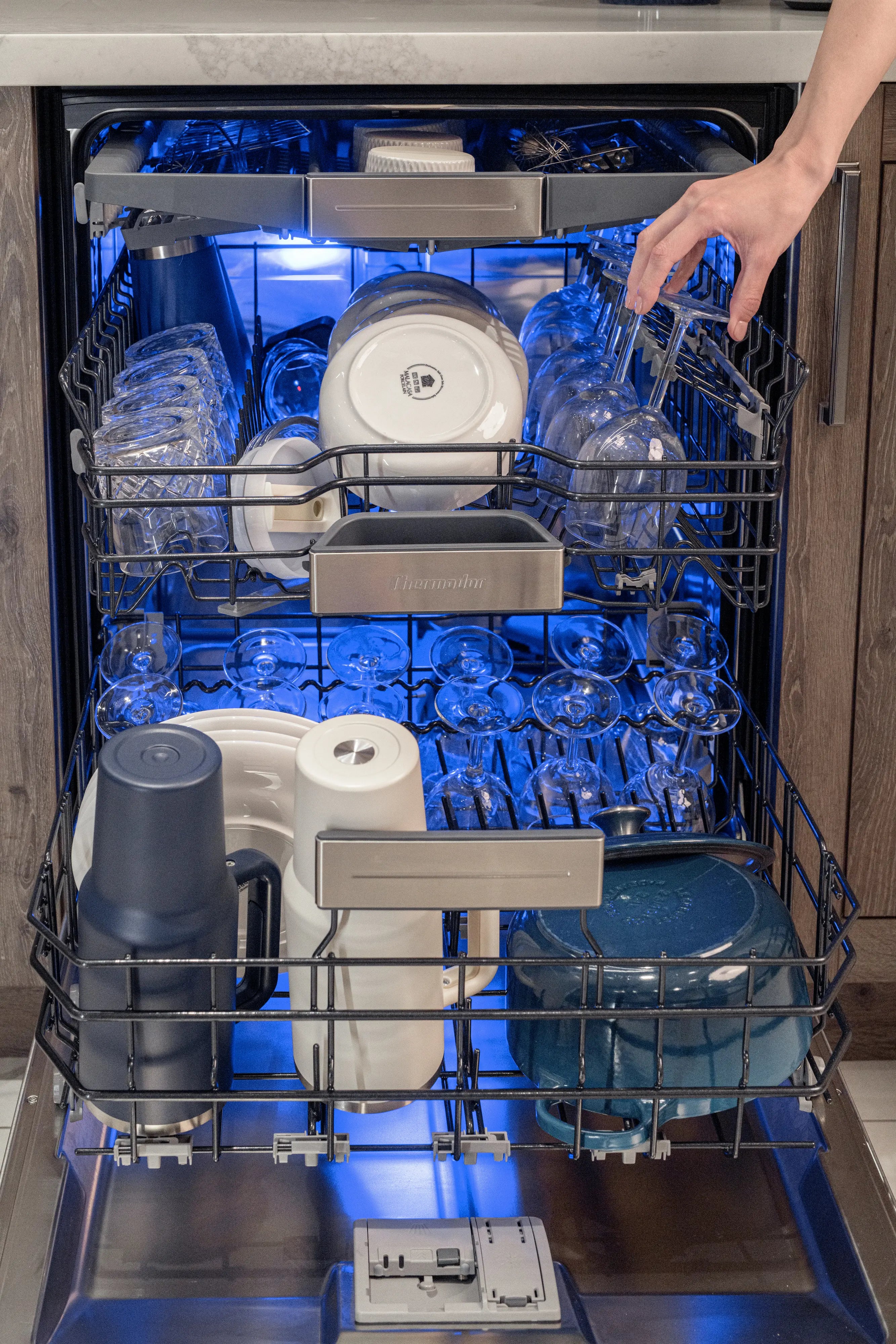

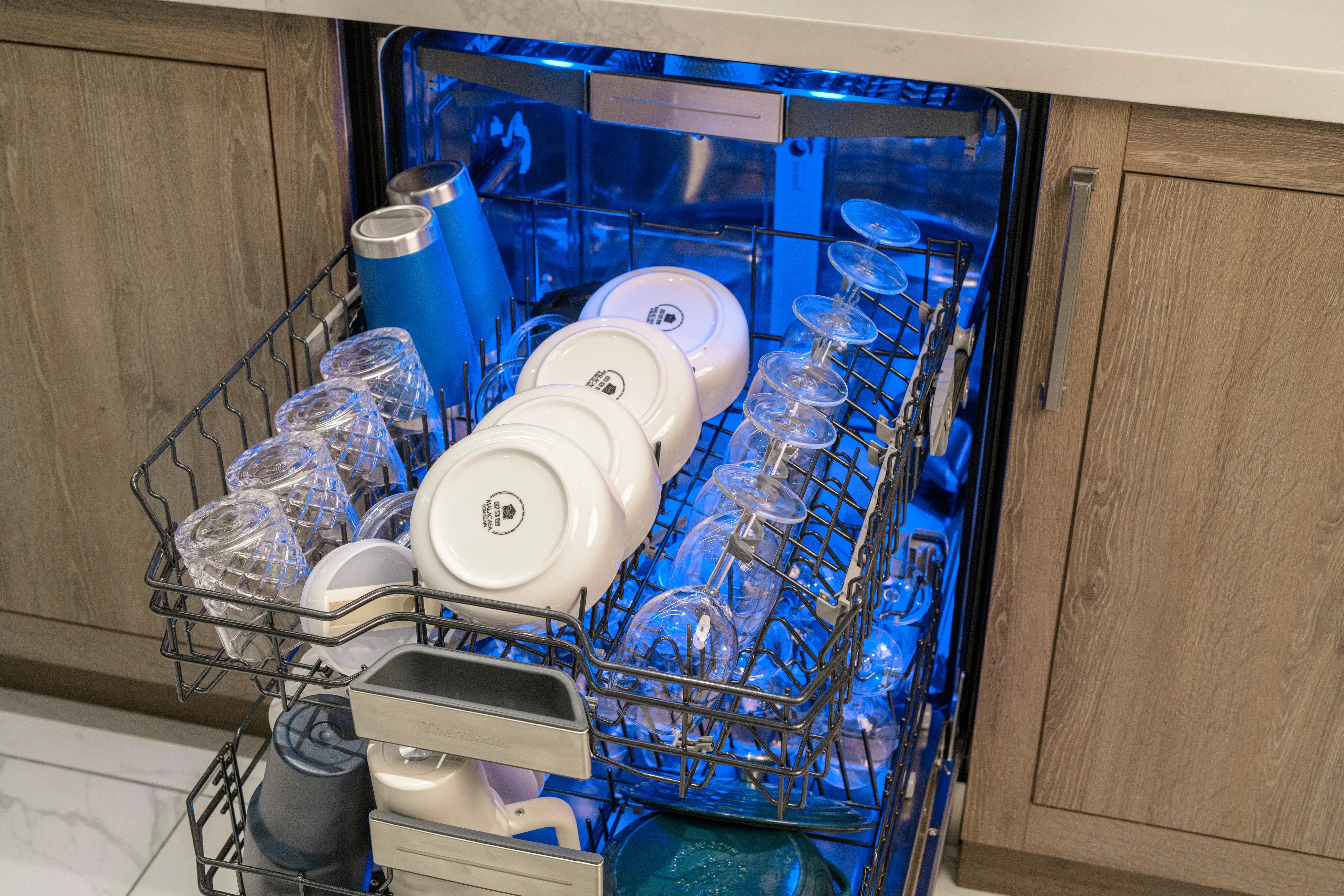

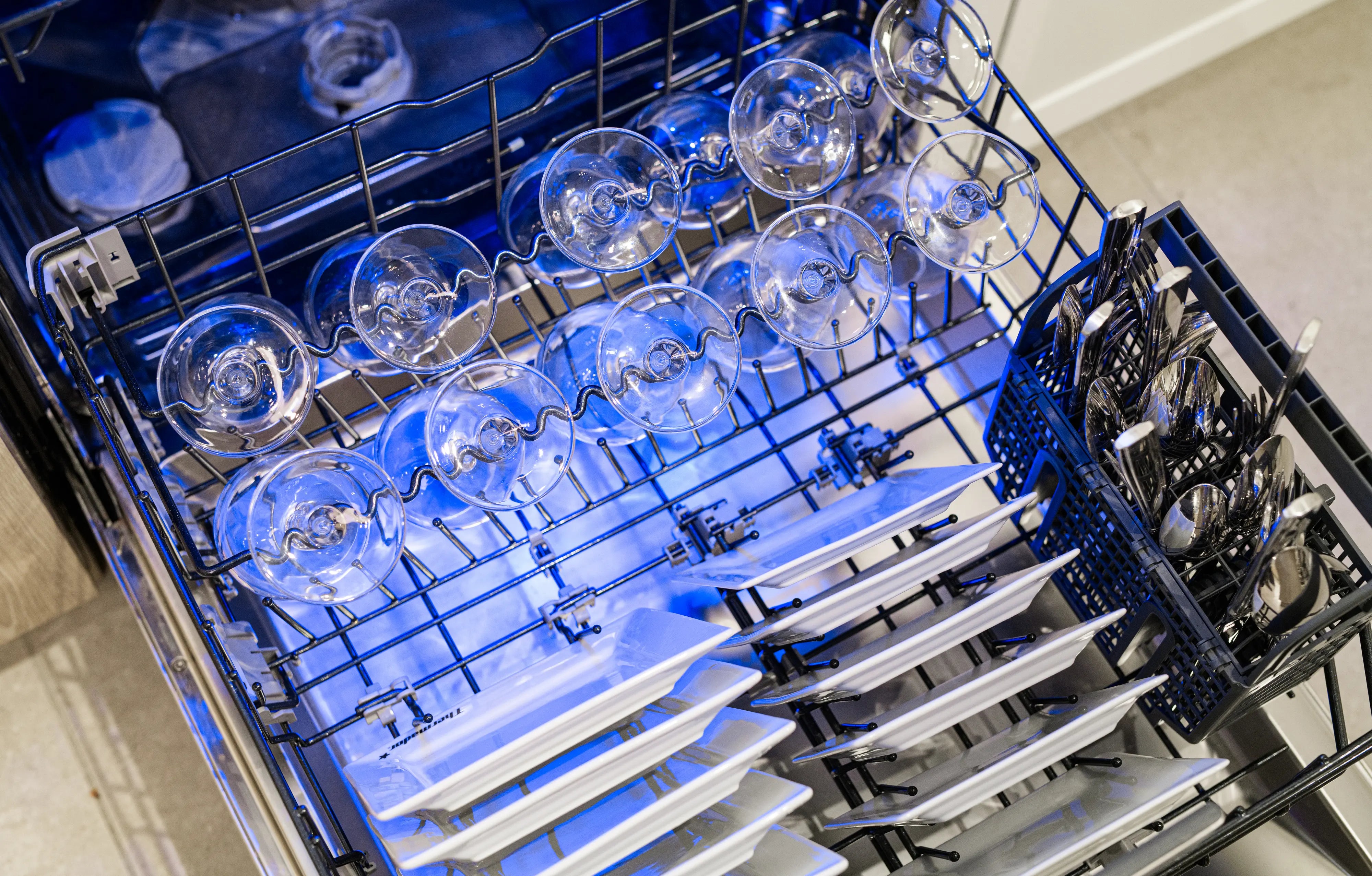

Wash 18 Wine Glasses with the Folding Glass Care Rack
Allowing you to wash up to 18 wine glasses at once. Securely wash your most delicate stems while accommodating every entertaining occasion.

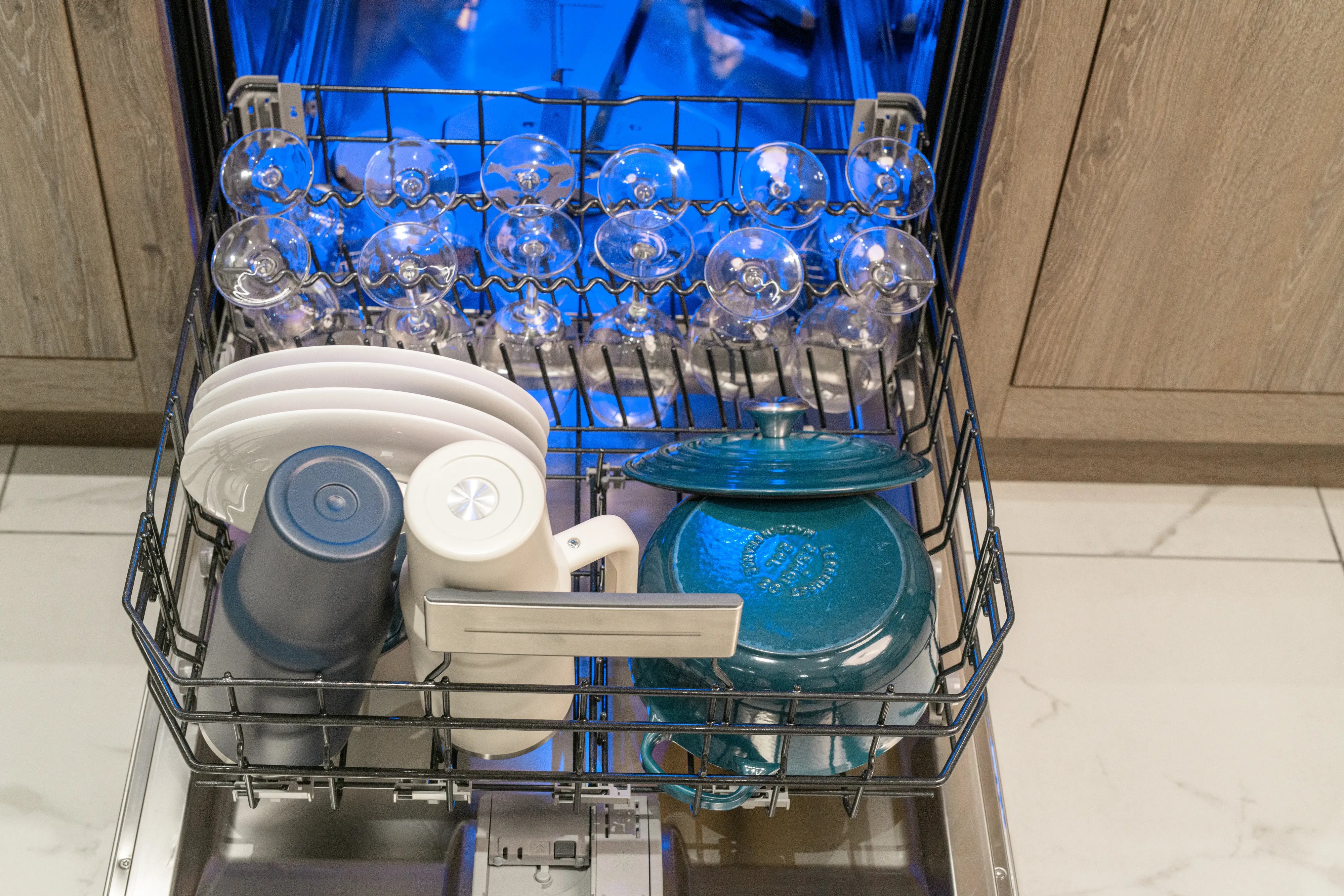

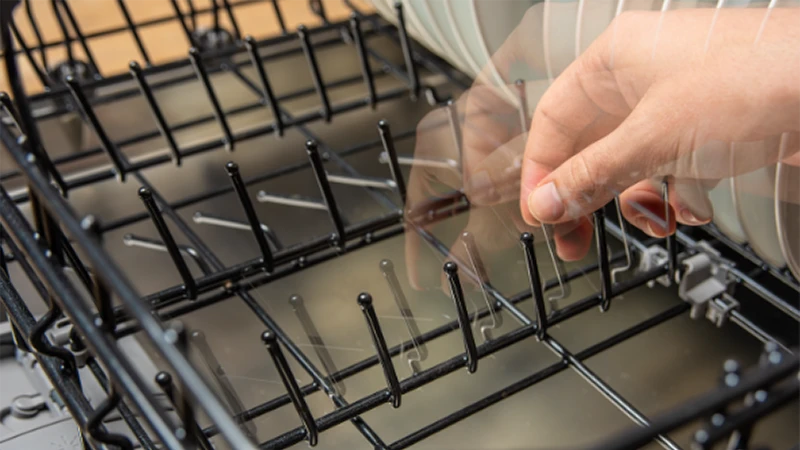

Flexible Folding Tines accommodate larger items.
Flexible Folding Tines folds down to accommodate larger pots, pans, and dishes.

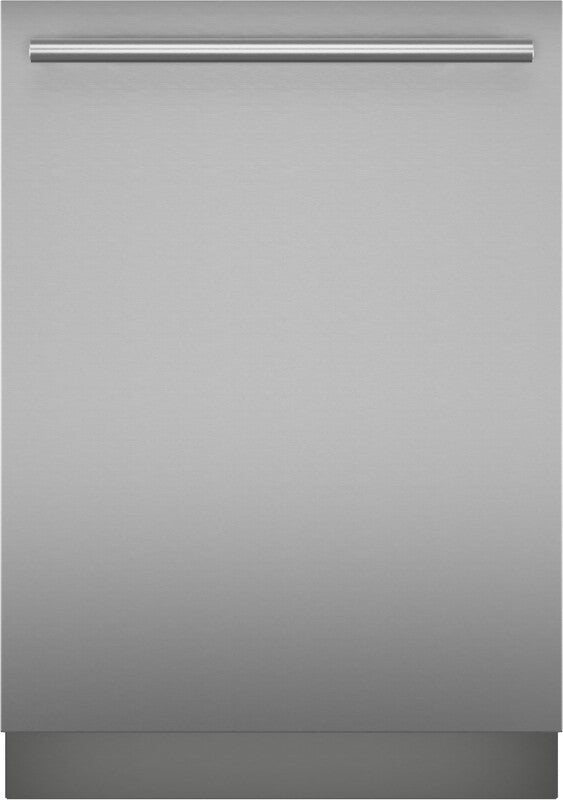

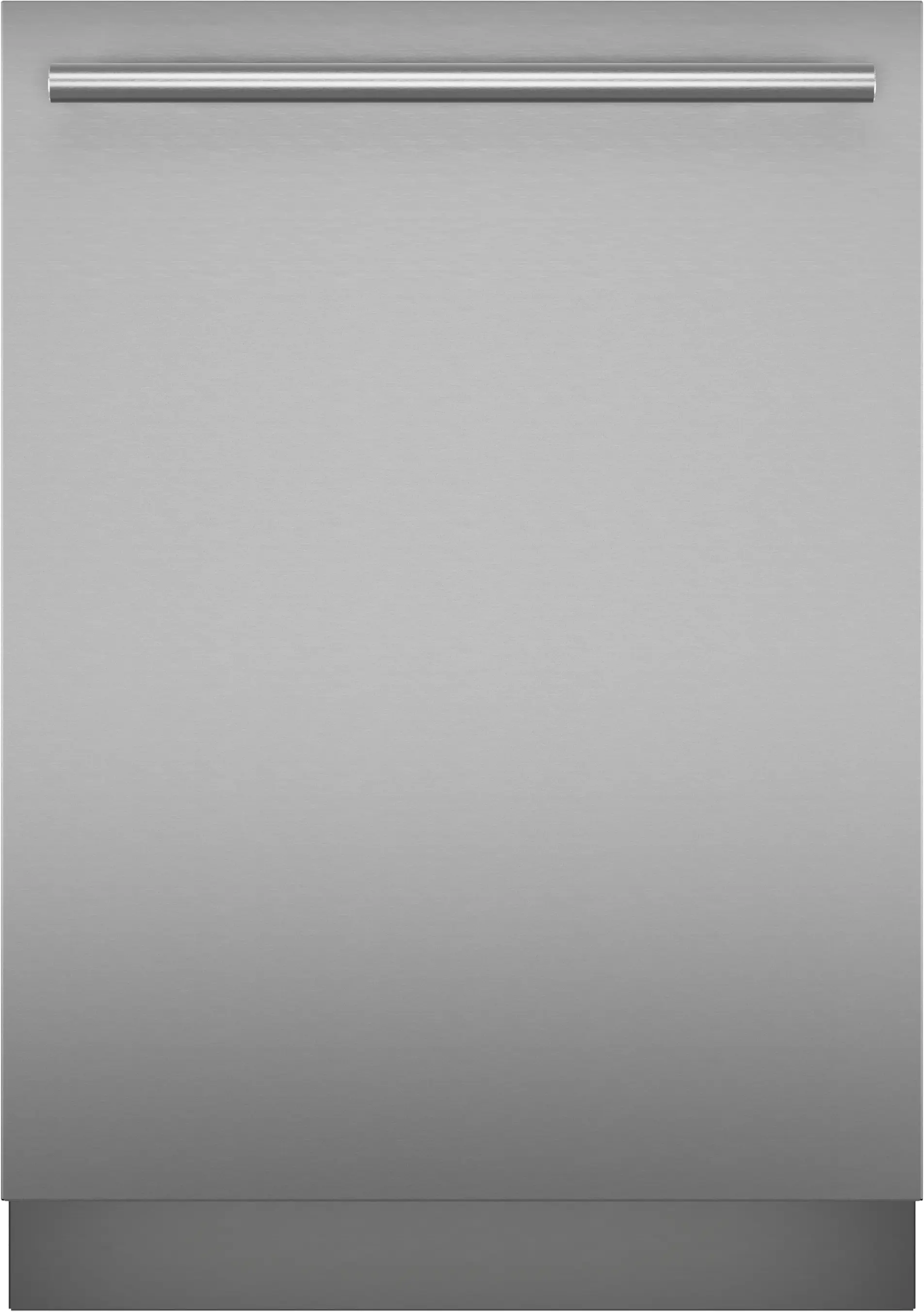

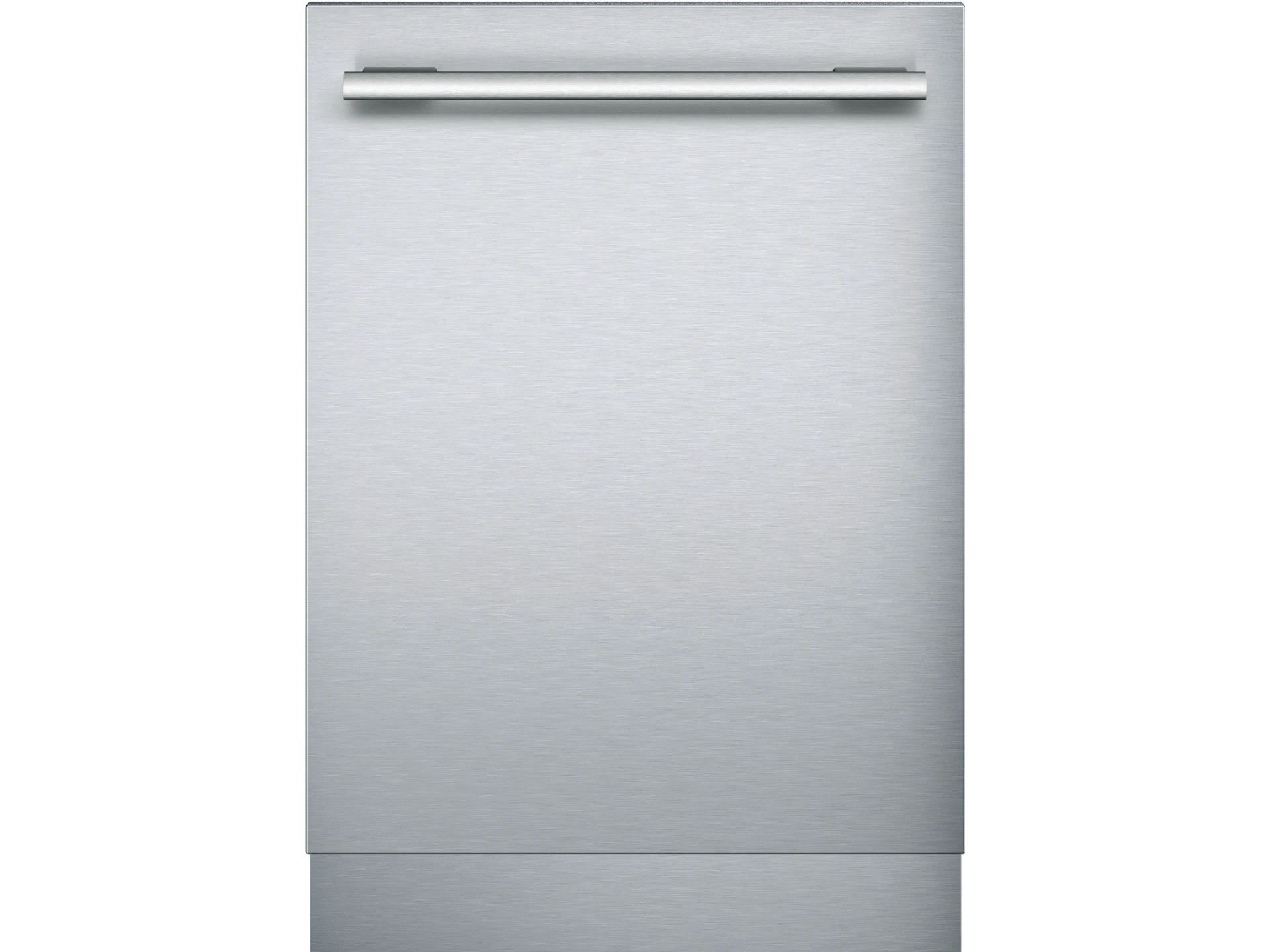

Stainless Steel Panel with Masterpiece® Handle
Sleek brushed stainless steel handles with a modern design.

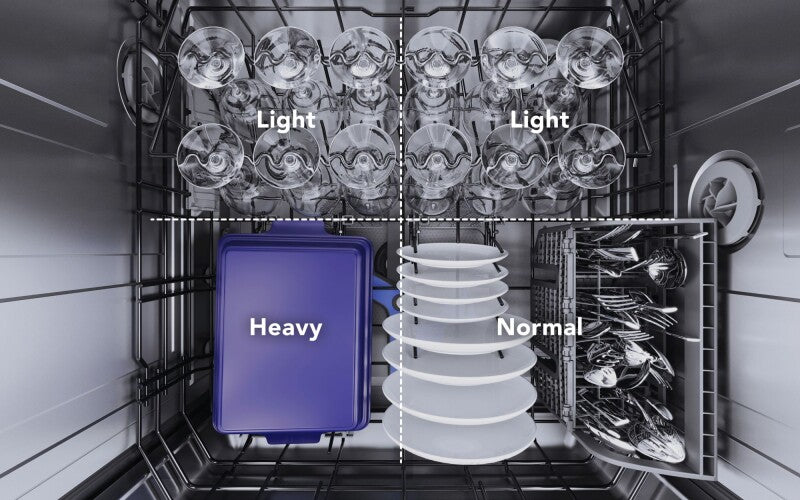

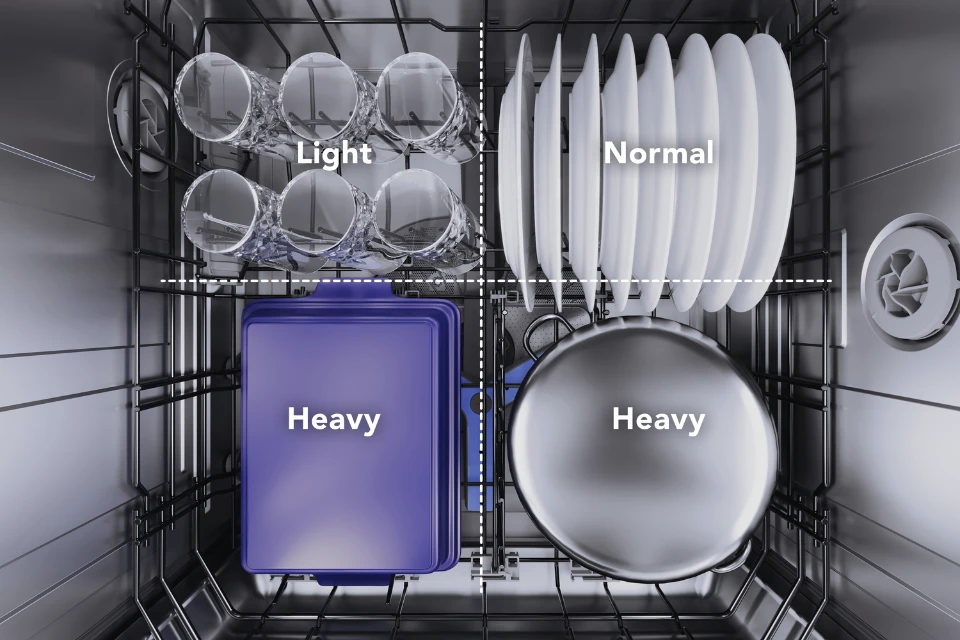

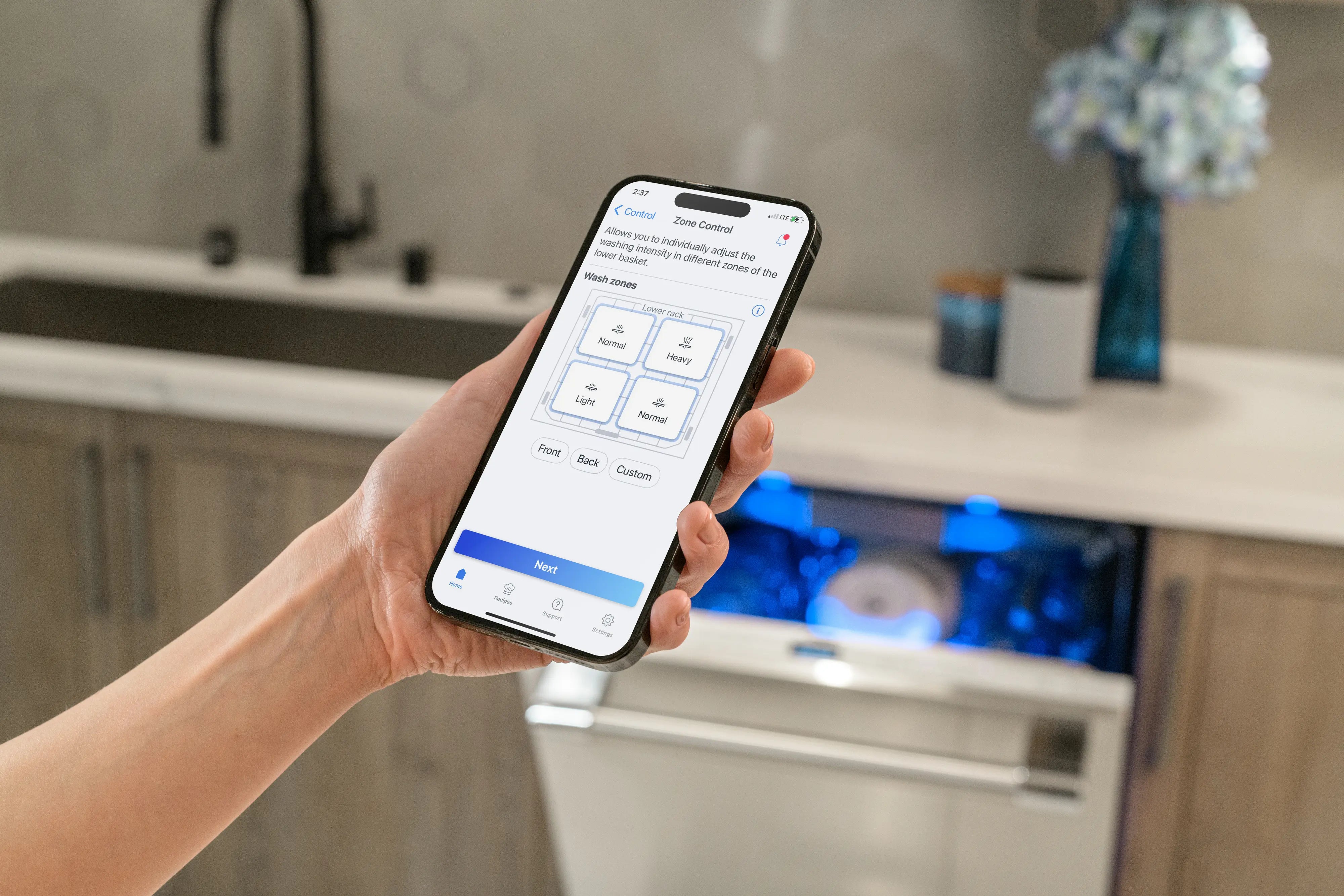

Customize Your Cleaning Power with Zone Control™
Design the ideal clean with Zone Control™ where you can specify up to 4 customized lower rack cleaning zones, ensuring the most challenging pieces emerge immaculate and the most delicate are protected.
StarDry™ with Zeolite
Introducing StarDry™ with Zeolite, an exclusive Thermador drying solution. Zeolite is a natural substance that dries without the use of chemicals. This unique feature helps dry hard to reach crevices, and does not need to be replenished over time.

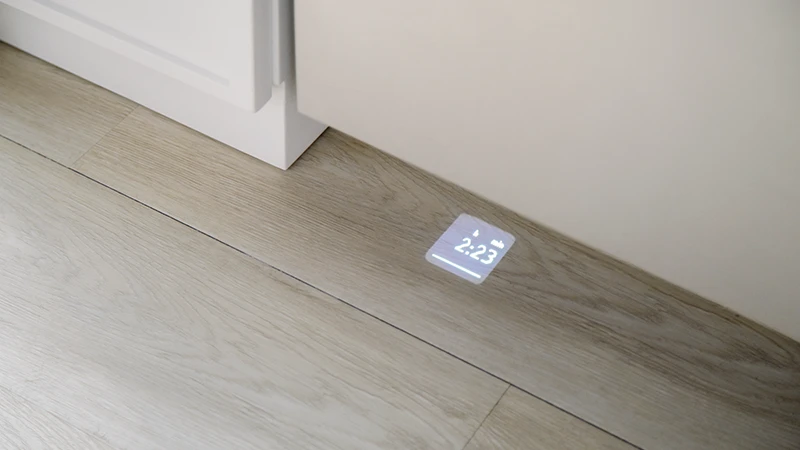

Time Remaining PowerBeam® countdown on floor
Time Remaining PowerBeam®: shines a countdown of the remaining time of the cycle on the floor.
Crystal Protection™ System is perfect for fine crystal
The Crystal Protect® Water Softener System utilizes a built-in water softener to neutralize water hardness, making it safe to wash crystal with sparkling results.

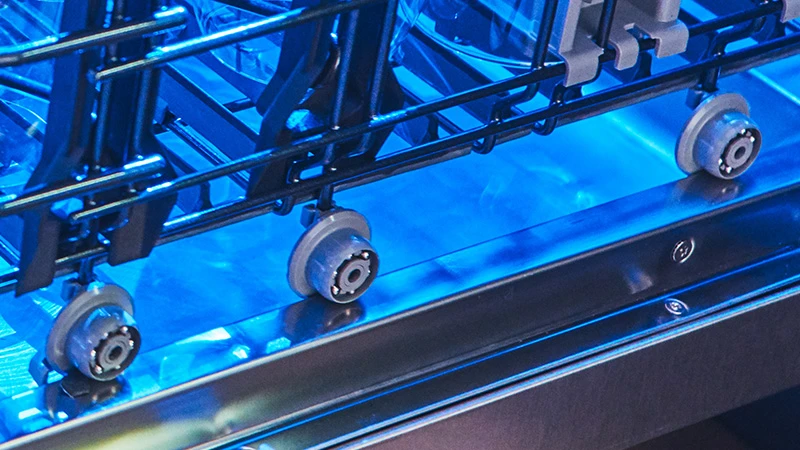

Ball Bearing Wheels provide an ultra-smooth glide
Racks glide in and out of the dishwasher with ease.
