Summit VT65MLVAC456ADA 24" Wide Built-In All-Freezer, Certified to NSF/ANSI 456 Standard for Vaccine Storage, ADA Compliant White

Quick Specification More details

Width:
23.63"
Depth:
23.5"
Height:
32"
Type:
Upright Freezers

About this product

Certified to NSF/ANSI 456 Vaccine Standard
Slim undercounter dimensions
ADA Compliant height
Built-in capable

Summer Sale

Clearance

SKU: VT65MLVAC456ADA | UPC: 761101086903

Summit VT65MLVAC456ADA 24" Wide Built-In All-Freezer, Certified to NSF/ANSI 456 Standard for Vaccine Storage, ADA Compliant White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
23.5"
Height:
32"
Type:
Upright Freezers

About this product

Certified to NSF/ANSI 456 Vaccine Standard
Slim undercounter dimensions
ADA Compliant height
Built-in capable

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT VT65MLVAC456ADA

Technical Details

Dimensions & weight

Width	23.63 in.
Height	32 in.
Length	23.5 in.
Weight	105 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.28 ft³
Dimensional Weight	127.84 lbs.
Total of Cubes	10.28 ft³
Total of Dimensional Weight	127.84 lbs.

Overview freezer

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.38" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.5" (65 cm)
Depth with door at 90°	46.0" (117 cm)
Capacity	1.85 cu.ft. (52 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S to NSF 456
Amps	1.3
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	2 Years
Compressor Warranty	5 Years
UPC	761101086903
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	24.25" (62 cm)
Interior Width	17.63" (45 cm)
Interior Depth	17.0" (43 cm)
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	2.8 oz.
High Side PSI	235.0
Low Side PSI	70.0
Level Legs	4
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	17.63" (45 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	-15ºC to -35ºC

Description

Accucold manufactures purpose-built freezers designed to meet the rigorous standards of NSF 456 for the stable storage of vaccines and other pharmaceuticals. The VT65MLVAC456ADA is a 24" wide 32" high all-freezer with a front-breathing design and fully finished exterior to allow built-in installation under lower ADA compliant counters or freestanding use. The digital microprocessor temperature controls are pre-set and locked at -30ºC to prevent accidental adjustments (if you need to adjust the temperature, contact our Technical Support team). As recommended by VFC programs and the CDC Vaccine Storage and Handling Toolkit, this unit includes a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with an external readout viewable in Celsius or Fahrenheit. A two-year certificate of calibration is included for your facility's records. The thermometer features an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment. This freezer's temperature is pre-set and locked at -30ºC to prevent accidental temperature adjustments (if you need to change the temperature, contact our Technical Support team for assistance). The extra thick insulation and static manual defrost cooling system offer reliable temperature stability. The overall capacity is 3.2 cu.ft., with a 1.85 cu.ft. of usable space for vaccine storage. Three slide-out drawers on fixed shelves allow you to store contents easily. The drawers are made from clear plastic, allowing you to view contents while protecting them from warmer air when the door is opened. As required by the NSF/ANSI 456 standards, the interior includes a defrost indicator to alert users when it is necessary to defrost. The VT65MLVAC456ADA features a factory-installed lock located towards the top of the door for convenient access, with two keys included. It ships with a right hand door swing (for the door to open from the left, add upgrade LHD). The door is self-closing to help protect stored items. The hospital grade cord includes a green dot plug for a more secure connection in wall outlets. For this same unit sized to fit under lower ADA compliant counters, see the VT65MLBIVAC456ADA. *NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order. ABOUT NSF 456: NSF/ANSI 456 is a voluntary standard introduced in 2021 that was designed to establish the performance and construction requirements for vaccine refrigeration. Models certified to this standard undergo strict testing to confirm temperatury consistency. All Accucold units approved to NSF 456 for vaccine storage are certified by an independent testing agency.

Product Features

Certified to NSF/ANSI 456 Vaccine Standard
Designed and tested to comply with the new NSF vaccine storage standards through an independent laboratory
Slim undercounter dimensions
24" footprint is ideal for use under the counter
ADA Compliant height
Sized at 32" high (32.38" to hinge cap) to fit under lower counters complying with ADA guidelines
Built-in capable
Front-breathing design allows built-in installation under counters
Low temperature operation
Preset and locked at -30ºC to prevent accidental adjustments. Range can be adjusted between -15º and -35ºC by contacting our technical support team
Microprocessor control panel
Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range

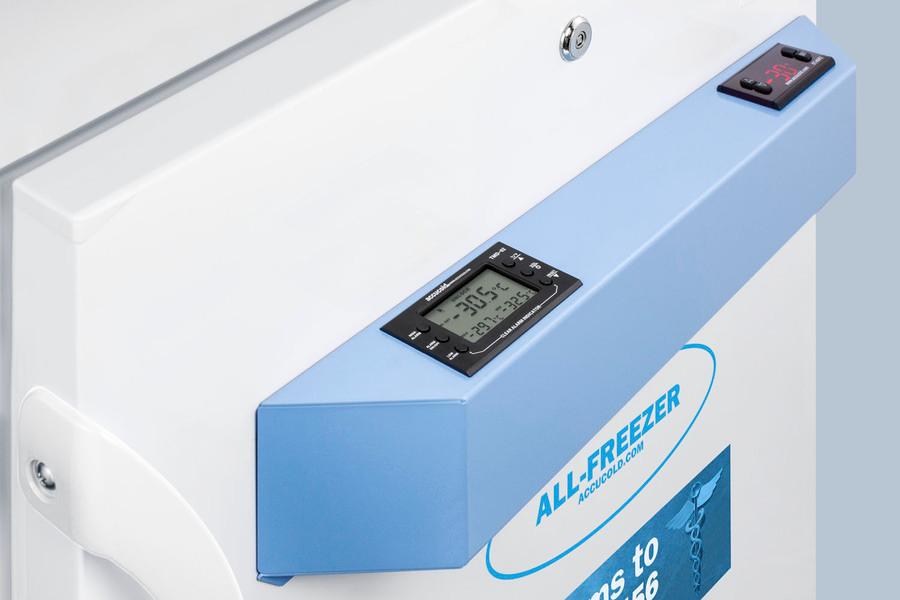

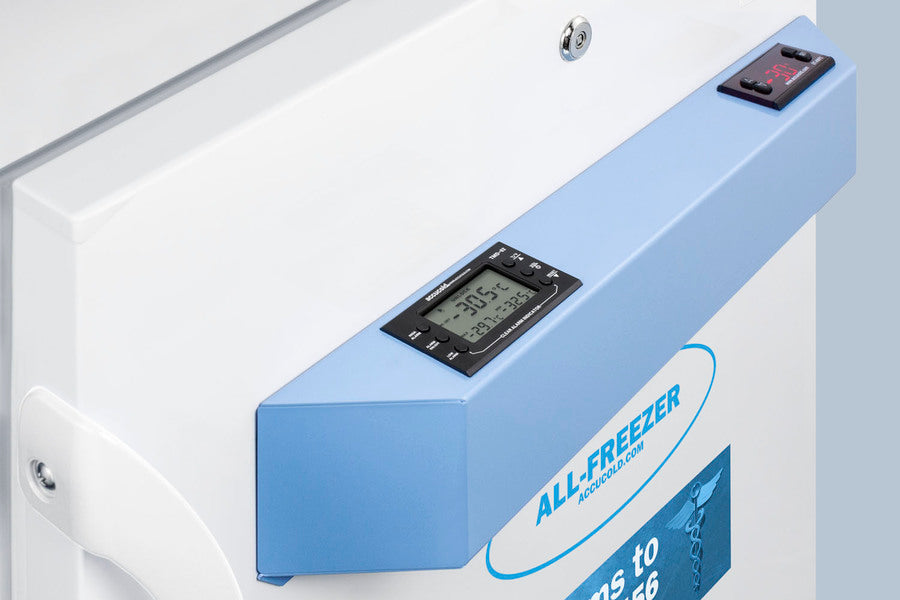

NIST calibrated temperature display
Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Certificate of calibration
NIST calibrated in our ISO/IEC 17025:2017 accredited laboratory, with a 2-year certificate included for your records. This TMD can be re-calibrated through out laboratory services
Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Manual defrost
Static cooling system for reduced temperature fluctuations
Defrost indicator
Interior magnet will help alert users when it is time to defrost
Hospital grade cord and plug
Green dot plug provides a stronger connection to wall outlets for added protection in high traffic environments
3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

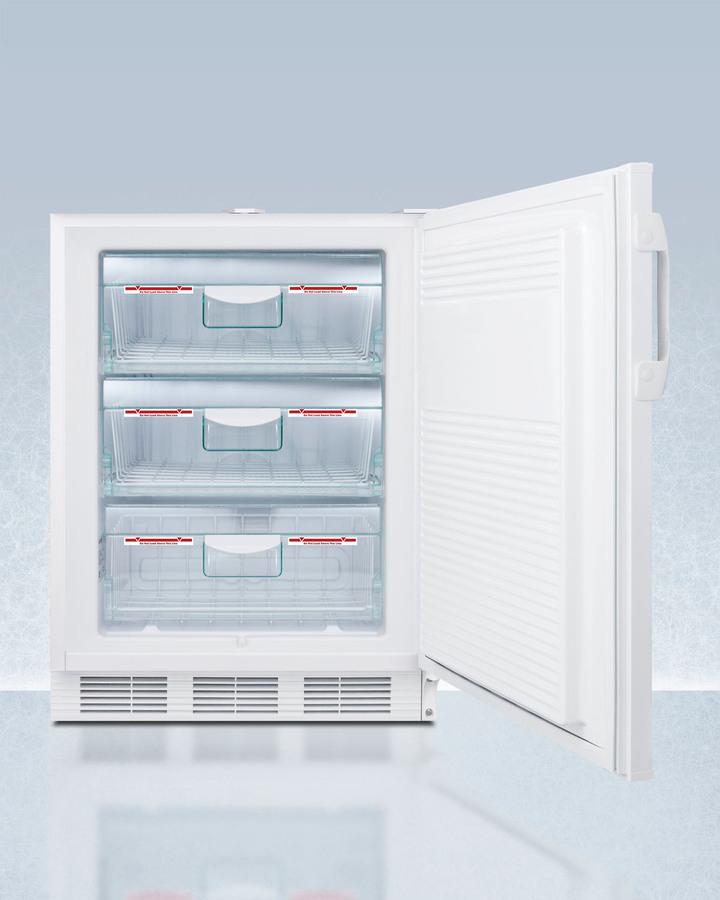

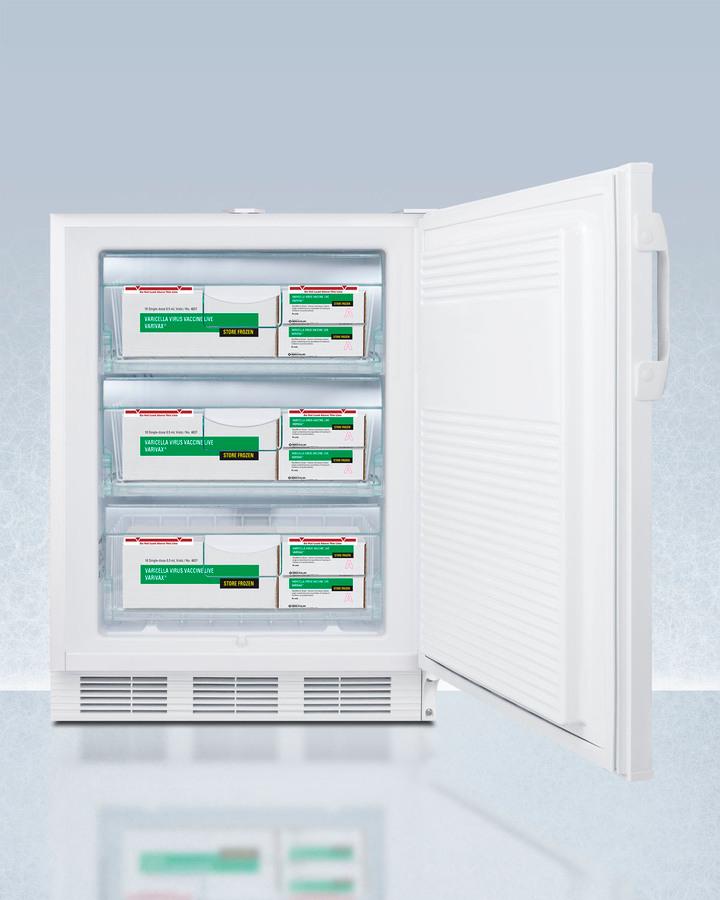

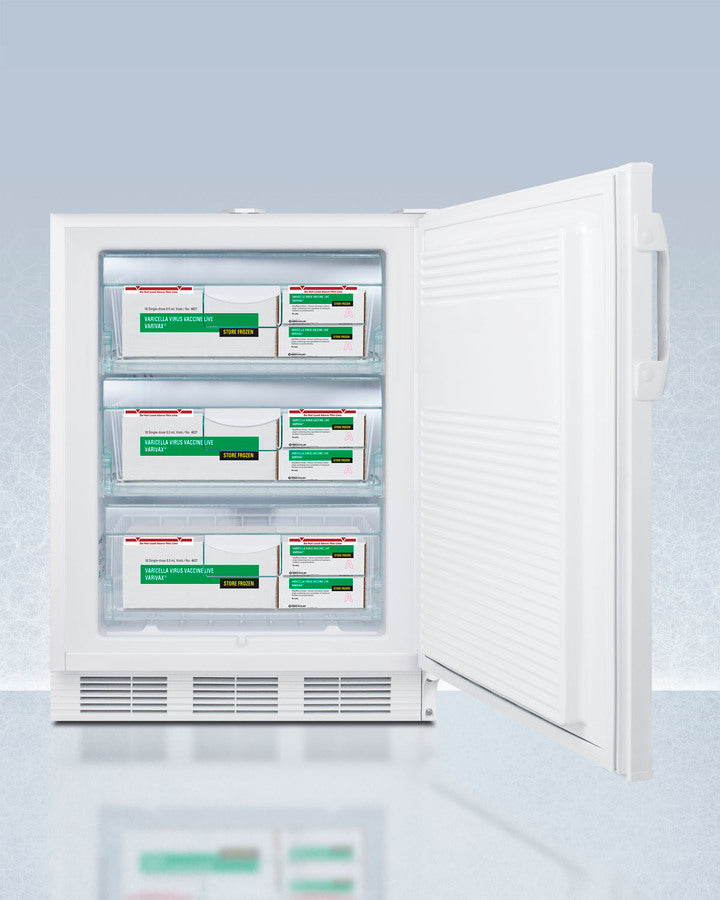

Three slide-out drawers
Plastic drawers on fixed coiling coil shelves offer convenient storage solutions while shielding stored items from ambient air when the door is open
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Fully finished white cabinet
Allows the unit to be used freestanding
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Reliable temperature stability
Engineered to store vaccines and other select pharmaceuticals under stable temperature conditions
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
