Sale price $1,484.97 Regular price $1,914.97 Save $430.00 / 22% OFF

Product Details for SUMMIT UF22W

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 32.75 in.
Height 76.75 in.
Length 29.25 in.
Weight 240 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 42.55 ft³
Dimensional Weight 528.93 lbs.
Total of Cubes 42.55 ft³
Total of Dimensional Weight 528.93 lbs.

Overview freezer

Nominal Height 77.0" (196 cm)
Height of Cabinet 76.75" (195 cm)
Nominal Width 33.0" (84 cm)
Width 32.75" (83 cm)
Width with Door Open 33.75" (86 cm)
Nominal Depth 30.0" (76 cm)
Depth 29.25" (74 cm)
Capacity 21.0 cu.ft. (595 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Energy Usage/Year 540.0kWh/year
Amps 2.2
Voltage/Frequency 115 V AC/60 Hz
Weight 240.0 lbs. (109 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101067568
Door Swing RHD
Reversible No
Interior Height 68.63" (174 cm)
Interior Width 26.5" (67 cm)
Interior Depth 22.5" (57 cm)
Shelf Type Wire
Shelf Qty 4
Full Door Shelves 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 2.47 oz.
High Side PSI 210.0
Low Side PSI 103.0
Compressor Step Height 11.0" (28 cm)
Compressor Step Width 26.5" (67 cm)
Compressor Step Depth 4.0" (10 cm)
Sound Level 32.4 dB

Description

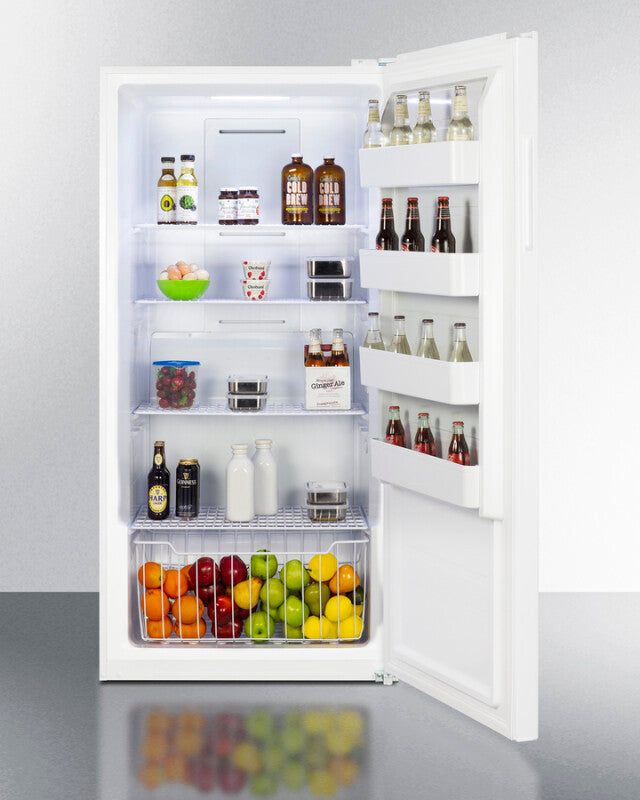

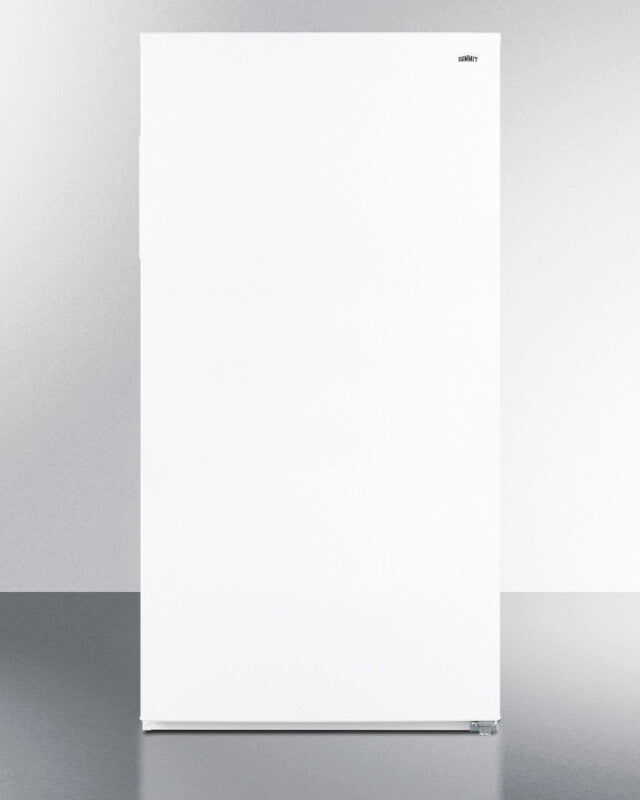

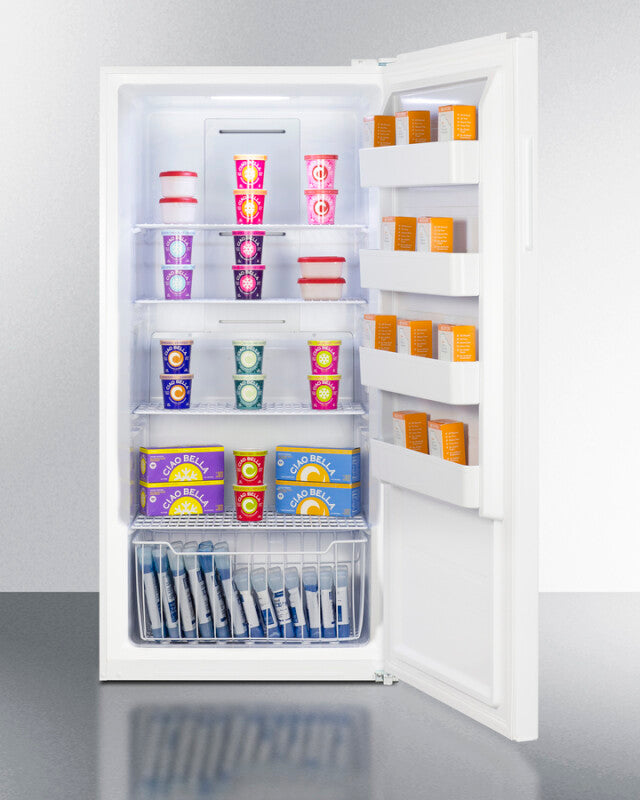

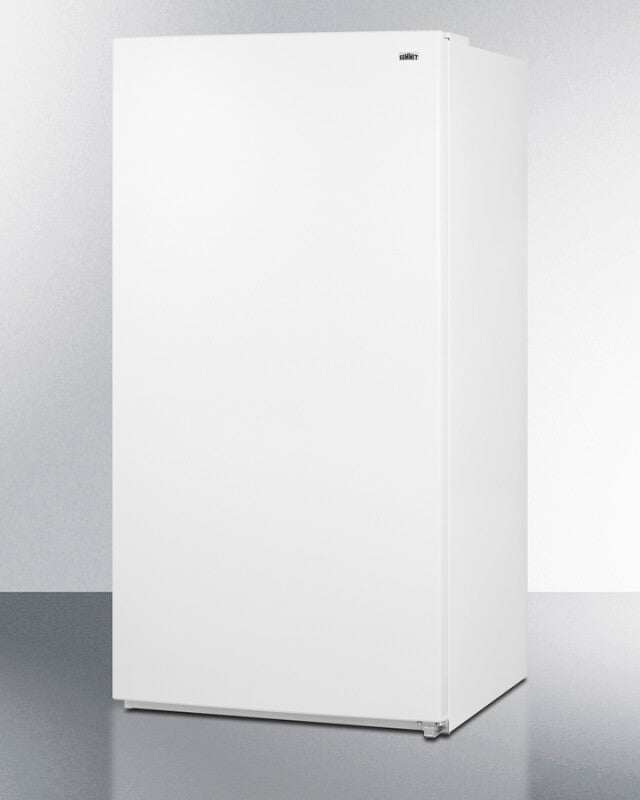

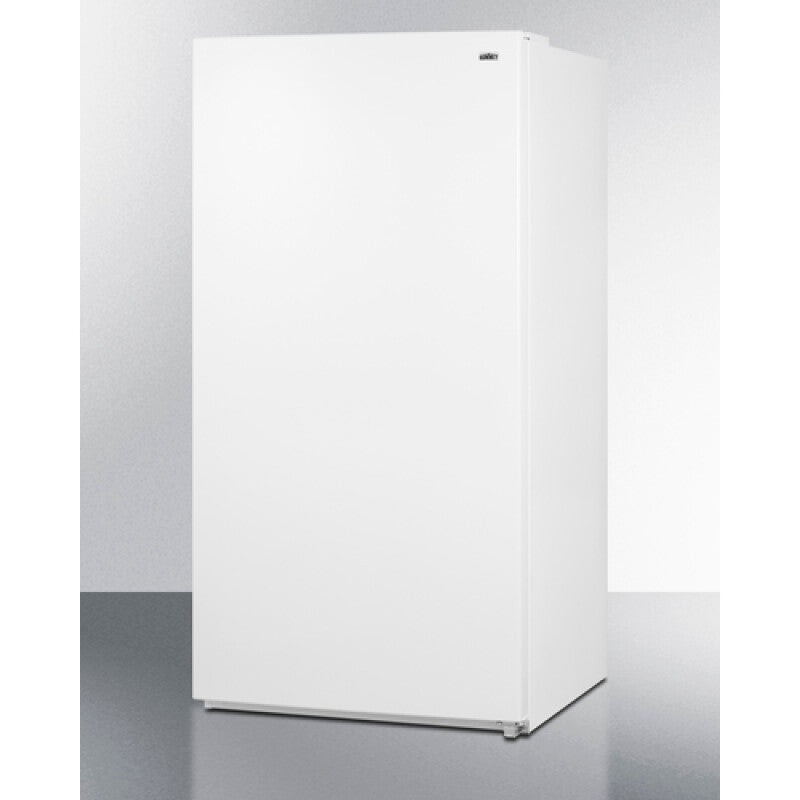

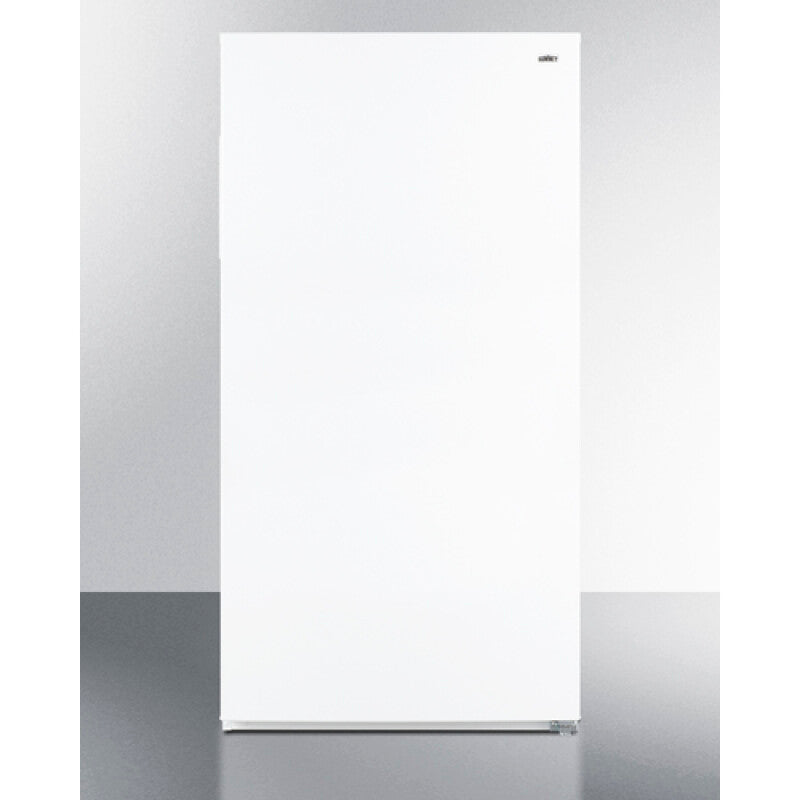

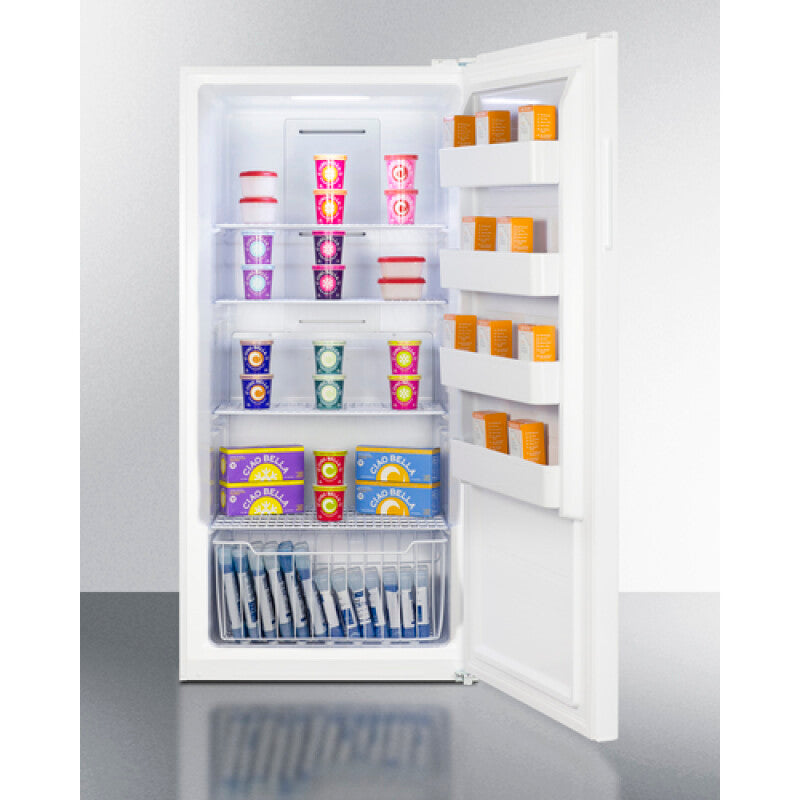

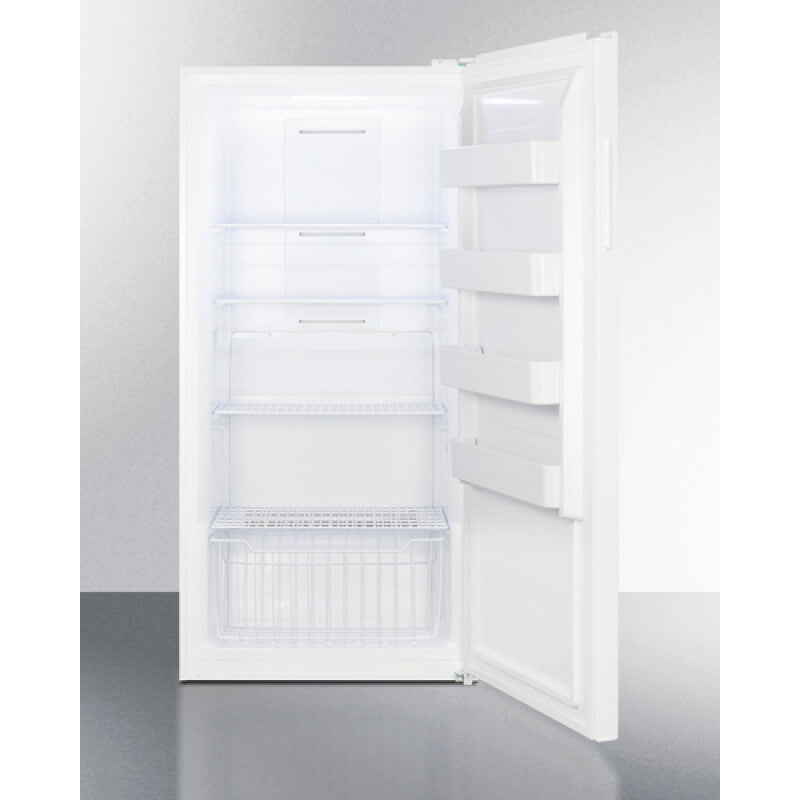

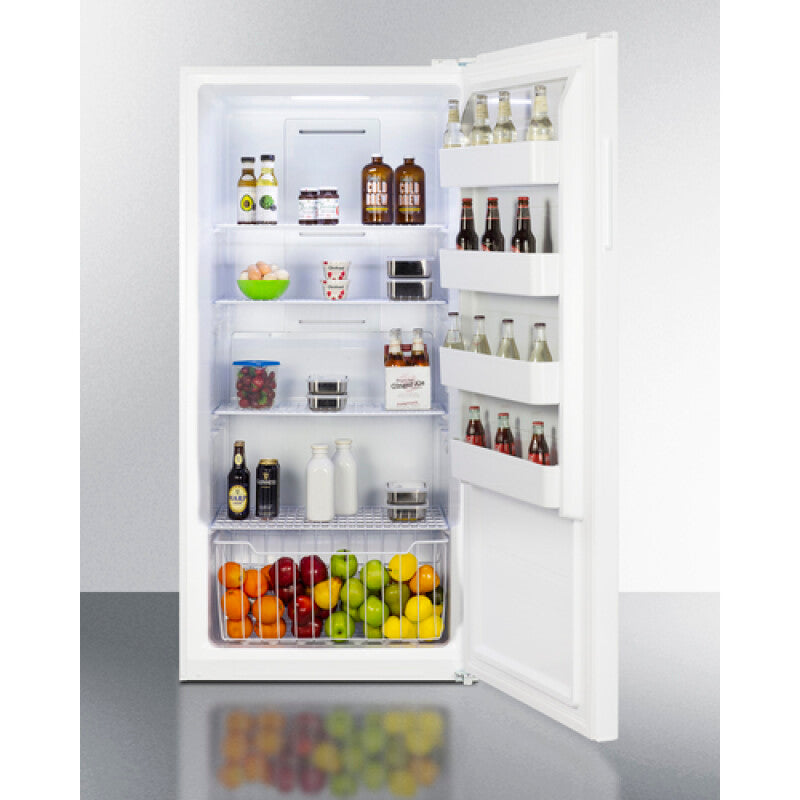

Summit's selection of full-sized refrigeration offers versatile solutions for maximizing cold storage, with upright frost-free convertible freezers that can also be set at refrigerator temperatures. Model UF22W is a front-opening residential freezer that offers a full 21 cu.ft. of storage capacity. A touch control thermostat inside allows users to easily manage the temperature, as well as switch between refrigerator/freezer functionality as needed. Four adjustable wire shelves let you accommodate a variety of sizes, while a lower wire pull-out basket is included for additional storage as needed. Four removable in-door storage racks are ideal for holding condiments, frozen meals, ice cream, and other items. Frost-free operation ensures minimum maintenance and LED lighting makes it easy to navigate the large interior. This unit comes in a textured white exterior finish. The garage-ready design allows you to use this as a freezer in temperatures as low as 0ºF and high as 110ºF (note: the refrigerator function will only stay in range if the ambient temperature is above 38ºF). The sealed back ensures easy cleanup, with a right angle plug for a flush fit into your outlet for added space savings. The door features top and side grips to make it easier to move as needed, with powerful magnetic door gaskets that create a tight and efficient seal. This unit ships with a non-reversible right hand door swing. With its versatile functionality and convenient design, this is the ideal freezer (or refrigerator) for any home in need of extra fresh or frozen cold storage.


Product Features

  • Upright Residential Freezer/Refrigerator
    Full-size convertible design to hold freezer or refrigerator temperatures, ideal for bringing extra food storage to second kitchens, basements, garages, and other settings
  • Frost-free operation
    True no-frost operation that eliminates the need to ever manually defrost the interior
  • Convertible operation
    Capable of operating as a refrigerator or freezer for true storage flexibility
  • Garage-ready freezer design
    Durable construction allows for garage use as a freezer (ambient temperature range: 0ºF to 110ºF). NOTE: when used as a refrigerator, ambient temperature must be above 38ºF for proper storage conditions
  • Large capacity
    21 cu.ft. interior accommodates plenty of food and beverage items

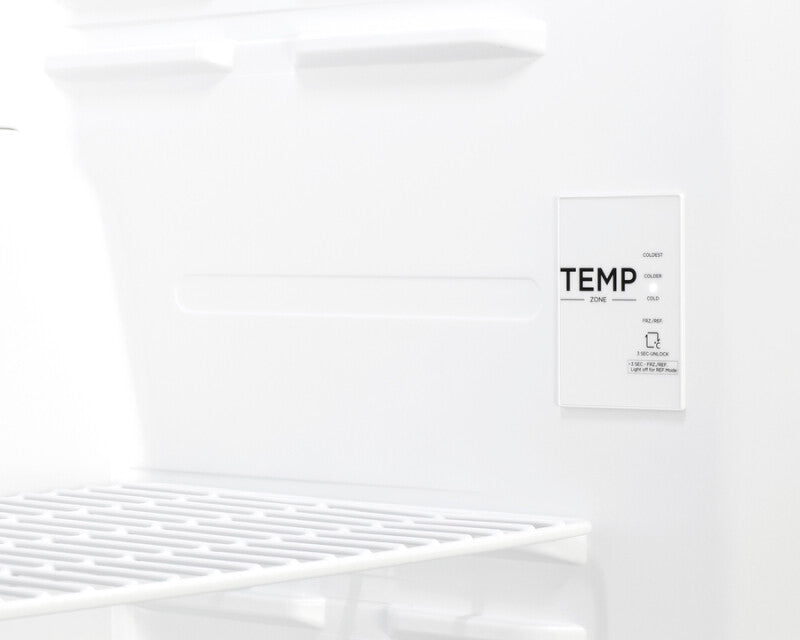

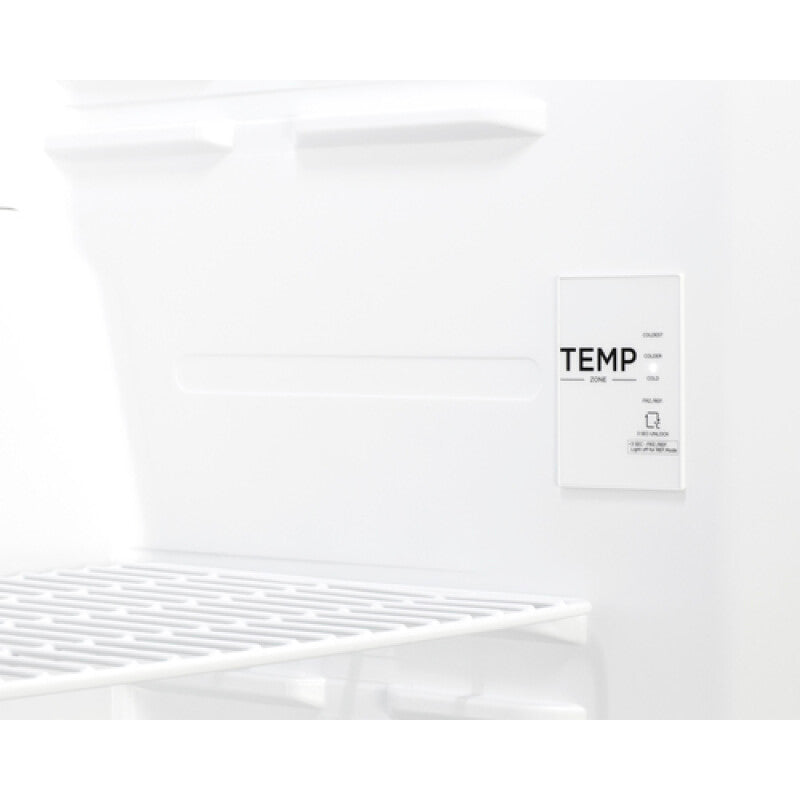

  • Touch panel thermostat
    Allows easy management of unit temperature, as well as changing operation between refrigerator/freezer as needed

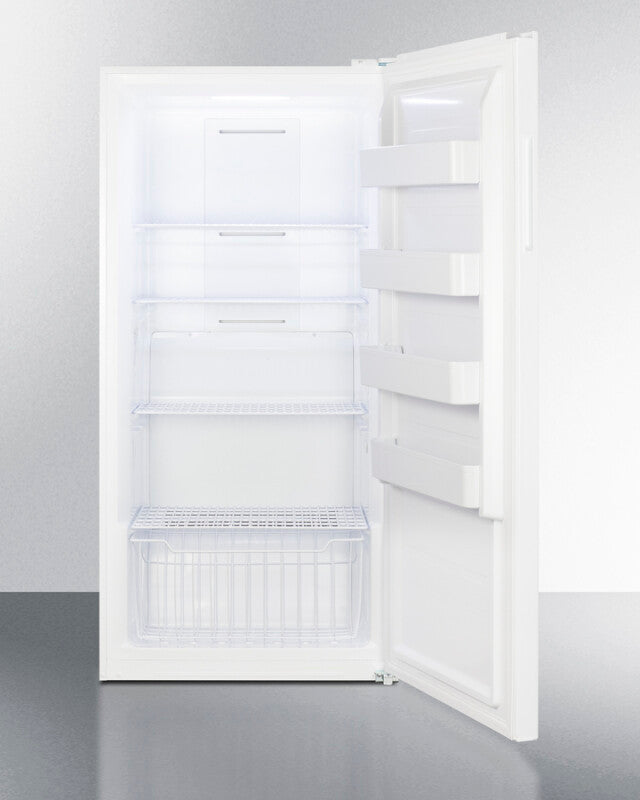

  • Adjustable shelves
    Rearrange the freezer space to fit any sized item or remove shelves for simple cleanup
  • Storage basket
    Lower wire drawer for additional organizing of stored contents
  • Interior light
    Automatically illuminates when the door is opened
  • Sealed back
    Space saving design for easier cleanability
  • Right angle plug
    Provides flexibility in unit placement without needing added depth
  • Door storage
    Four removable racks let you keep additional items in easy reach
  • 100% CFC free
    Environmentally friendly design does not contain ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
