Product Details for SUMMIT SWCDAF24PNR

Technical Details

Overview wine cellar
Nominal Height 66.0" (168 cm)
Height of Cabinet 65.63" (167 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 3.4 cu.ft. (96 L)
Bottles 46 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 405.0kWh/year
Other Energy Info ALWC532: 1.25Ams; SCFF532D: 0.8 Amps
Amps 2.05
Voltage/Frequency 115 V AC/60 Hz
Weight 229.0 lbs. (104 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101082837
Number of Zones 2
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Interior Height 1 11.88" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Interior Height - Drawer 1 9.25" (23 cm)
Interior Width - Drawer 1 17.25" (44 cm)
Interior Depth - Drawer 1 15.5" (39 cm)
Interior Height - Drawer 2 10.0" (25 cm)
Interior Width - Drawer 2 17.25" (44 cm)
Interior Depth - Drawer 2 15.5" (39 cm)
Temperature Range ALWC532: 41°F to 64°F; SCFF532D: -11° to 11°F
Interior Height 2 11.63" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)

Description

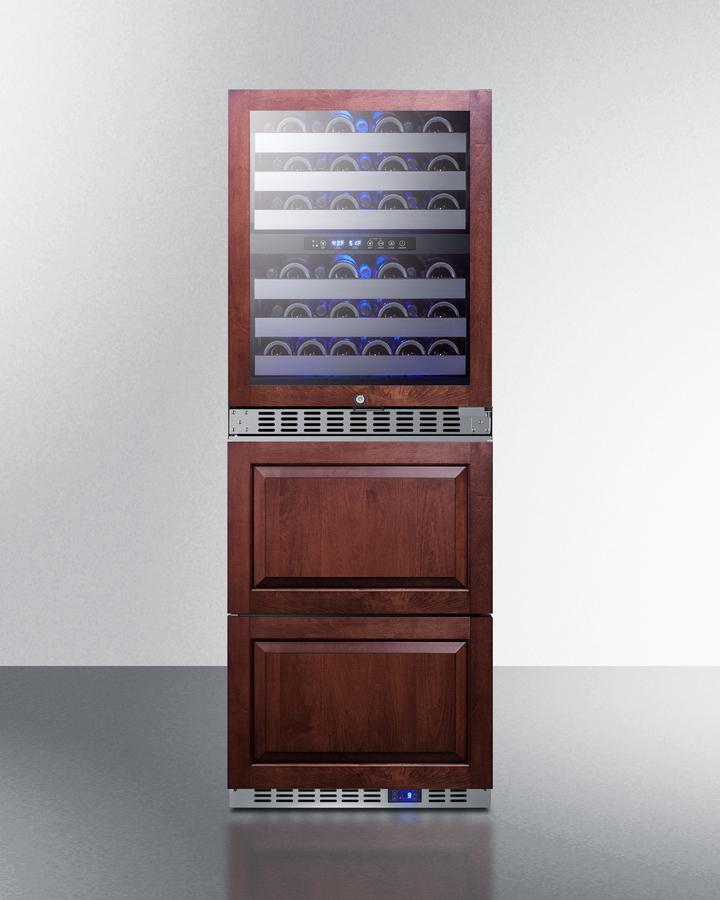

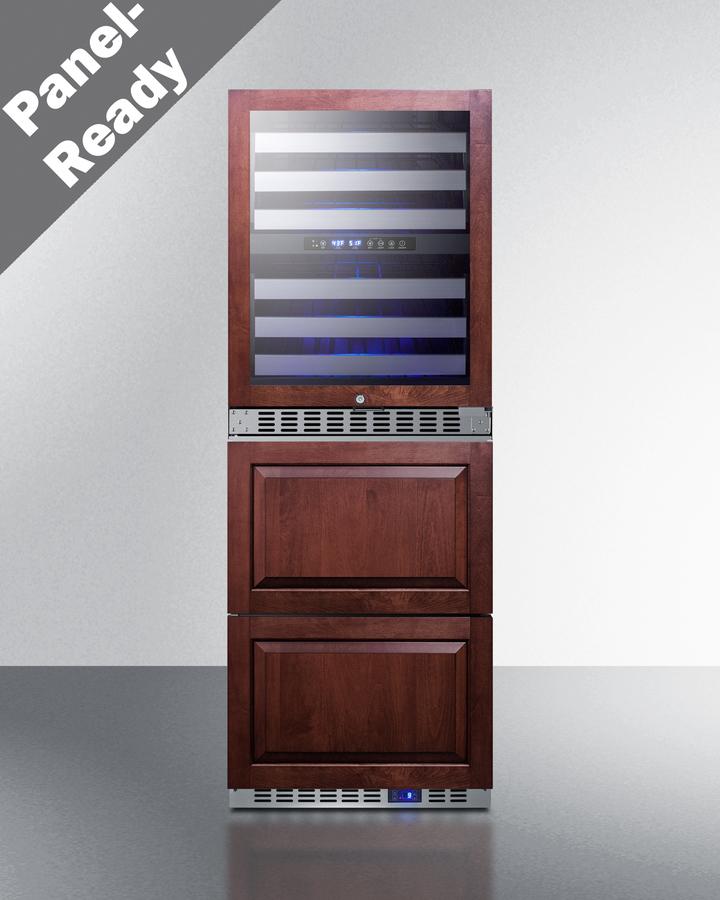

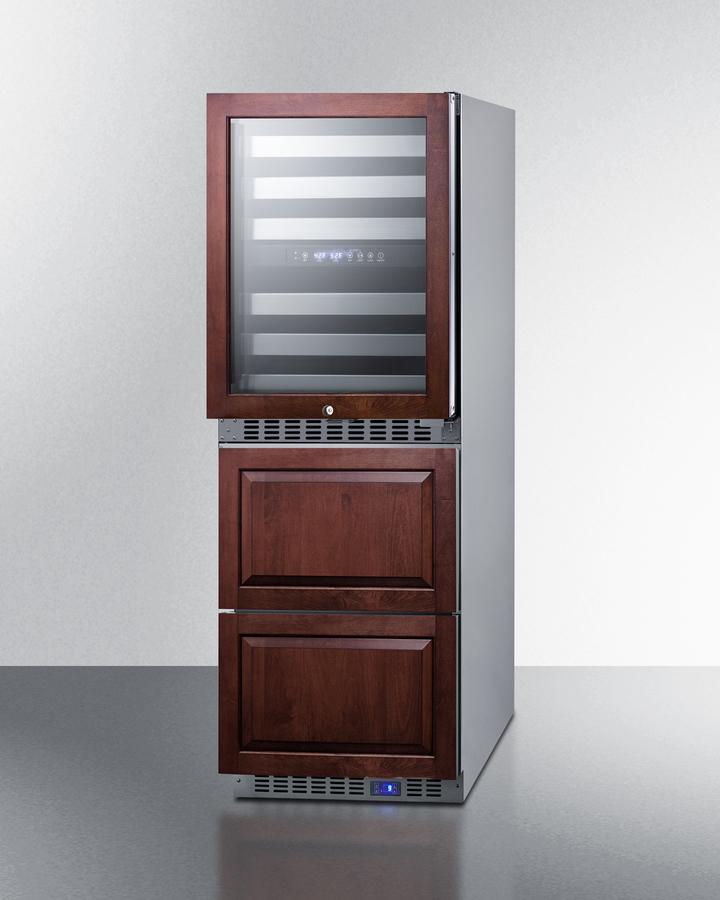

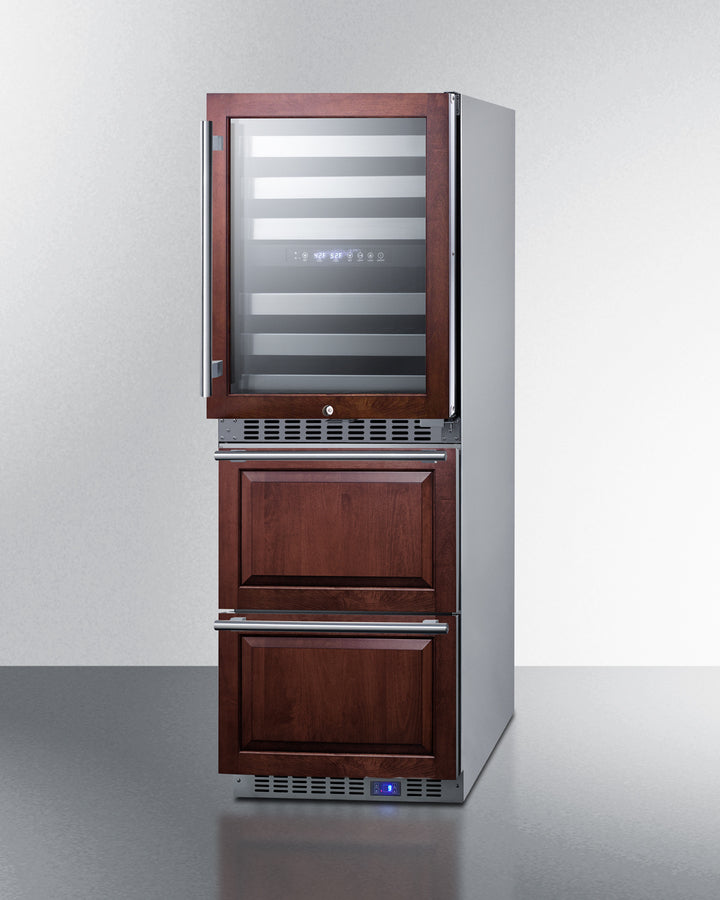

Summit brings an innovative, elegant solution to store wine and food with its combination two-zone wine cellar and two-drawer freezer - the perfect entertainment station for the home. Sized at just under 24" wide, the SWCDAF24PNR combines the 46 bottle capacity two-zone wine cellar (model ALWC532PNR)with the 3.4 cu.ft. two-drawer freezer (model SCFF532D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. The sealed back offers added space savings when placing the unit, while the included 6' Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. The wine cellar door frame and freezer drawer fronts can be customized with overlay panels to match or accent an existing cabinetry design. Users provide their own handles to complete the look. An anti-tip bracket is included and recommended for use to avoid forward tipping. For user convenience, this model ships fully assembled. The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41°F and 50ºF for white wine, while the lower zone is designed to store red wine between 50°F and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. The bottom two-drawer freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. The digital thermostat makes it simple to manage the interior temperature. An internal fan ensures both drawers are evenly cooled. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes. A sliding chrome basket offers additional storage convenience as needed, while the LED lighting makes it easy to view interior contents when loading or unloading both drawers. Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss. Offering complete refrigeration convenience in a slim-fitting design, the SWCDAF24PNR is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. Additional panel-ready options are available with a bottom refrigerator (model SWCDAR24PNR) or a bottom refrigerator-freezer (model SWCDRF24PNR). Note: Panels are not included. The images provided are meant only to be suggestive of what the product with wood panels installed could look like. Users must supply their own wood panels.


Product Features

  • Combination wine cellar and freezer
    Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-freezer (model SCFF532D), perfect for home bars, kitchens, and similar residential spaces
  • 24" wide
    Slim 24" wide fit offers full storage capacity in a compact footprint
  • Built-in capable
    Front-breathing design allows this unit be built in for added space savings

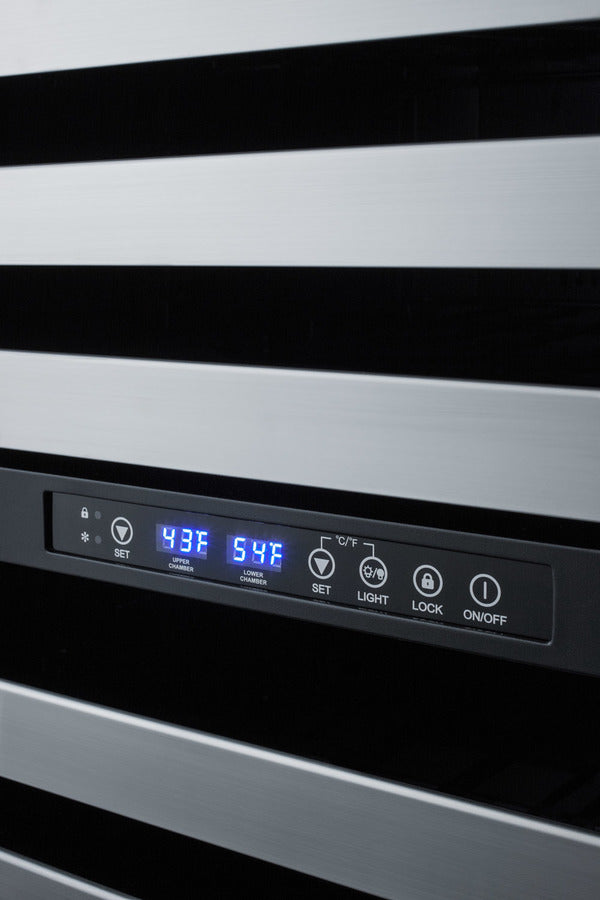

  • Digital controls (both units)
    Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
  • LED lighting (both units)
    LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
  • Double pane tempered glass door (wine cellar)
    Provides a full display of the interior, with two levels of glass for added protection
  • Panel-ready door trim (wine cellar)
    Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
  • Fully articulating hinge
    Smoother opening and a better fit with an integrated European style door hinge on the wine cellar
  • Two temperature zones (wine cellar)
    Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
  • Commercial shelving design (wine cellar)
    Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

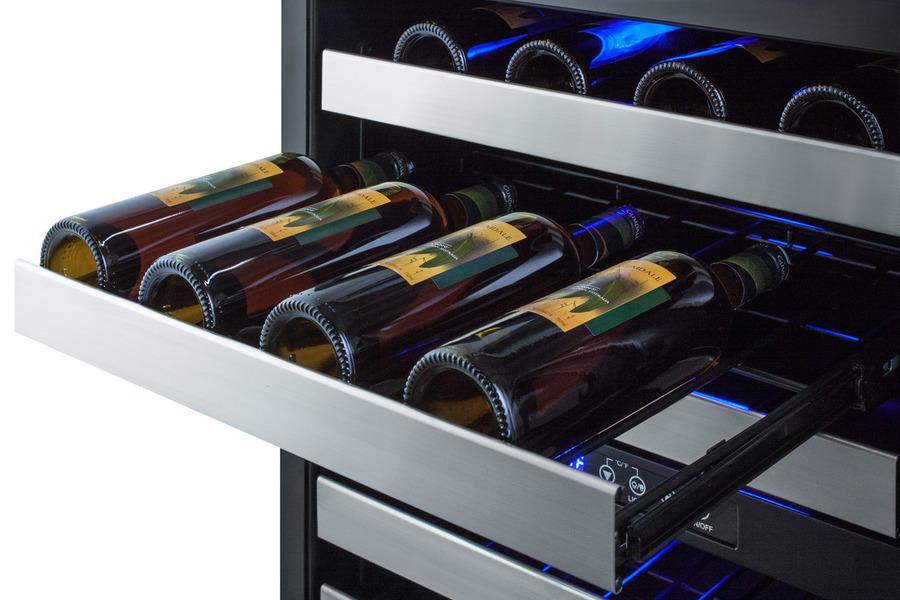

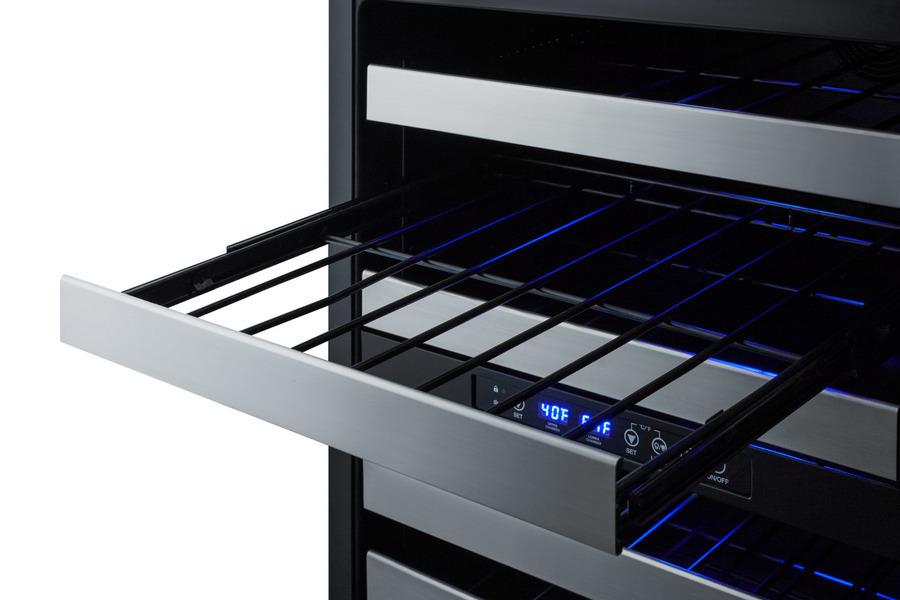

  • Full-extension shelving (wine cellar)
    Shelves move smoothly on ball-bearing glides for easier loading and unloading
  • Automatic defrost (wine cellar)
    Reduced maintenance with auto defrost system

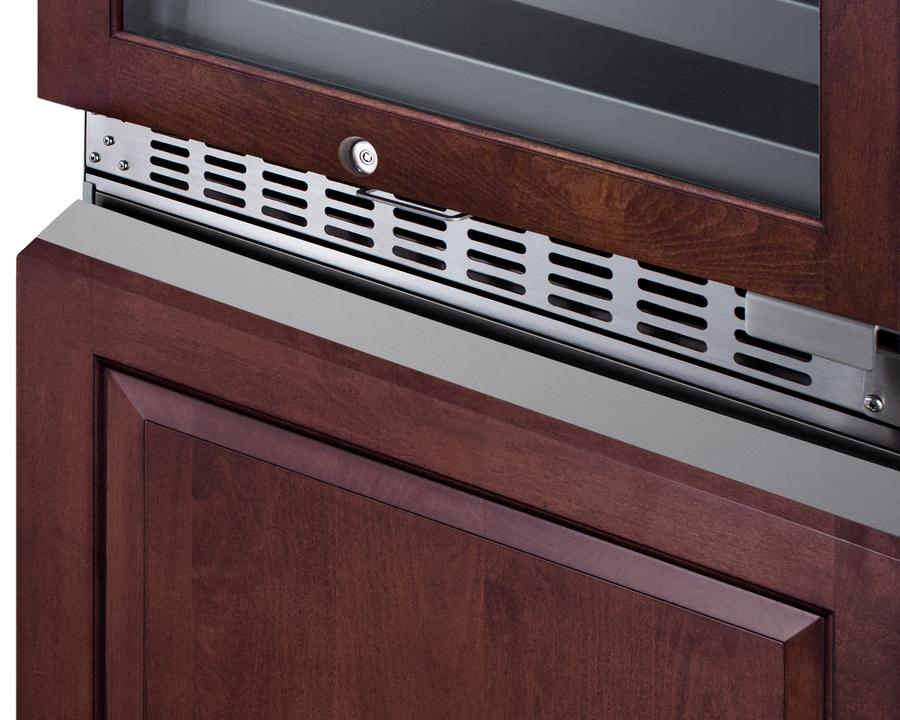

  • Factory installed lock (wine cellar)
    Keyed lock for secure interior, with two keys included
  • Factory-reversible door swing (wine cellar)
    Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"

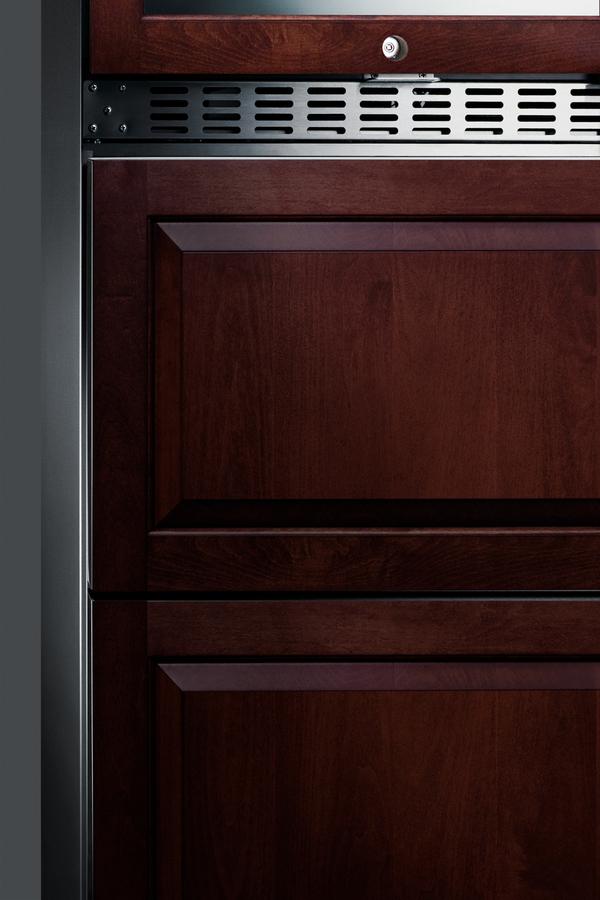

  • Panel-ready drawer fronts (freezer)
    Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) allowing users to create a truly customizable look
  • Stainless steel construction (freezer)
    Complete stainless steel construction offers added durability in an easy-cleaning design

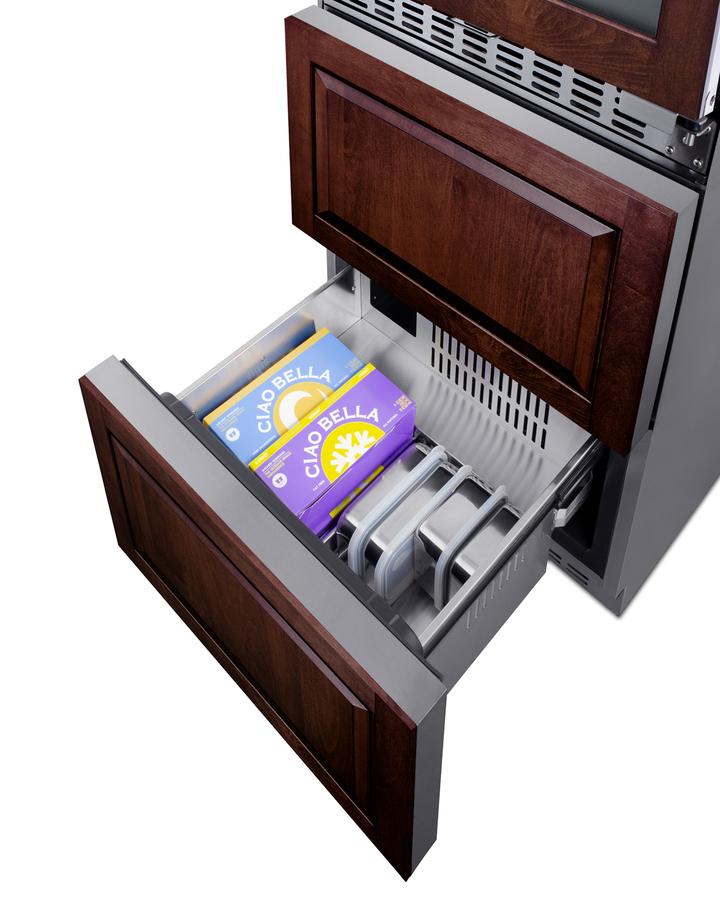

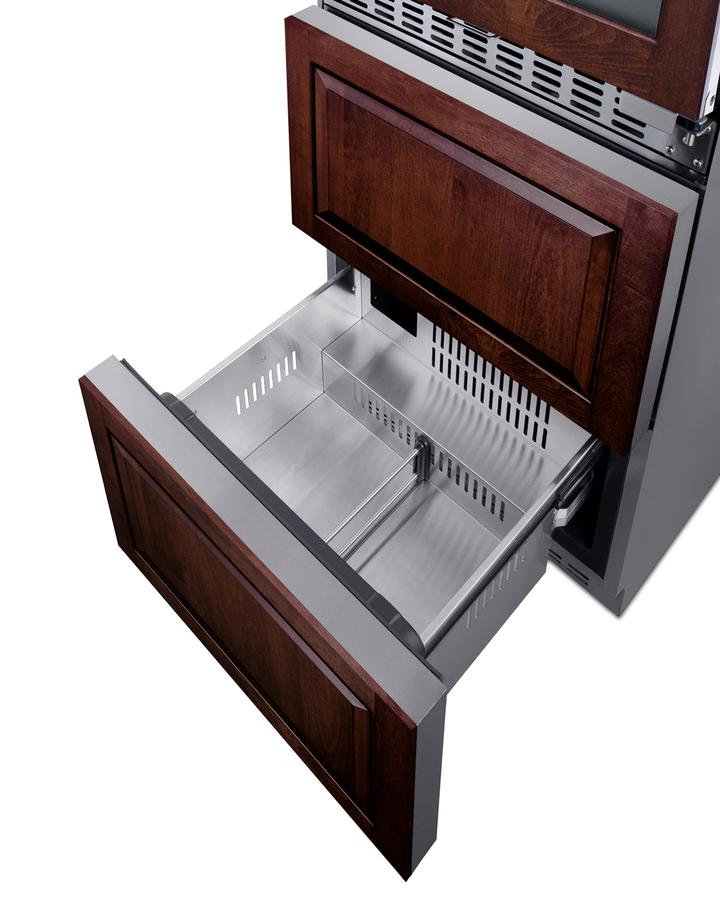

  • Drawer dividers (freezer)
    Two adjustable dividers make it simple to organize the drawer interiors

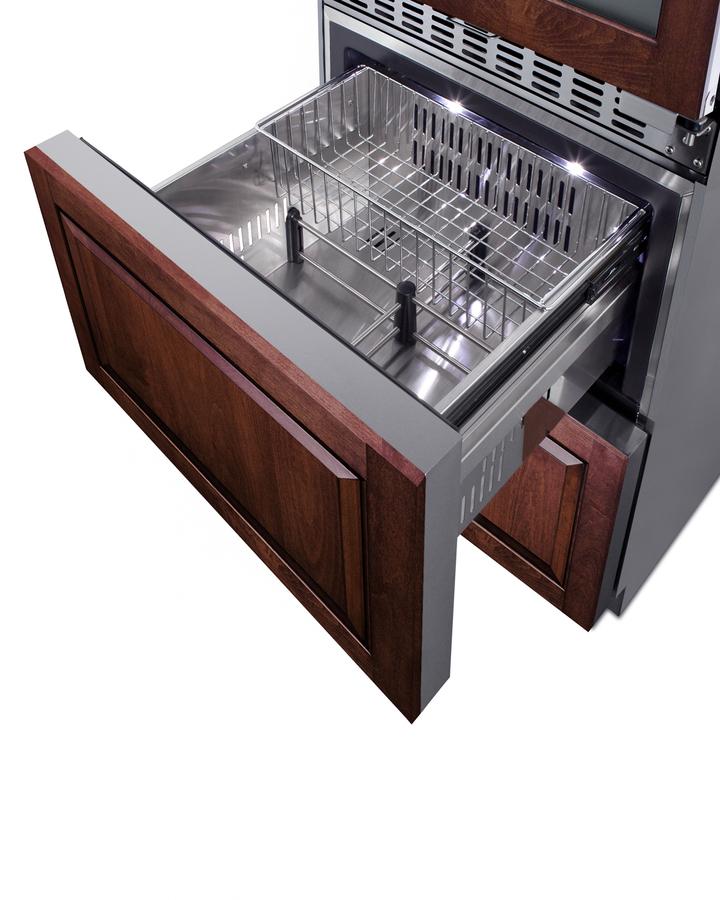

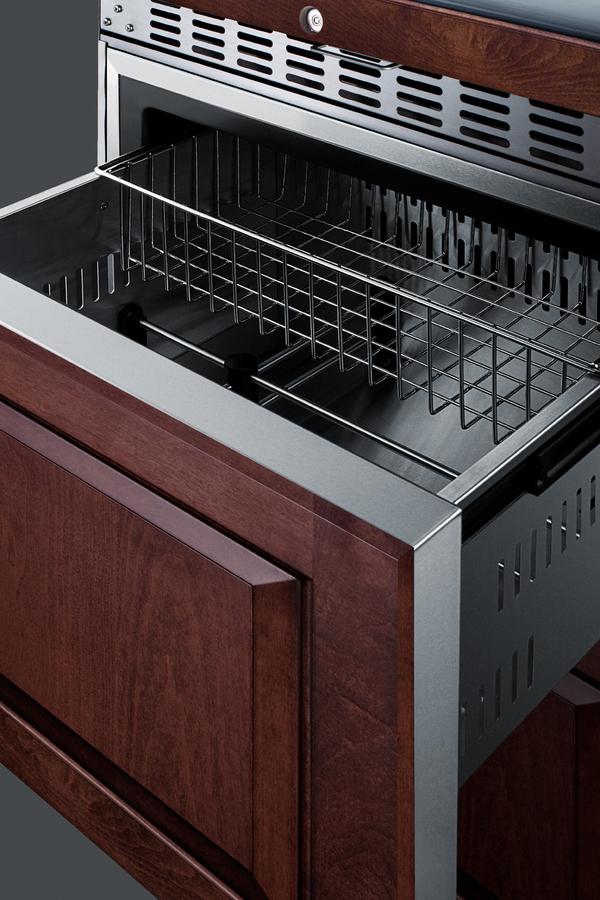

  • Sliding basket (freezer)
    Removable chrome basket included for easier storage convenience
  • Frost-free operation (freezer)
    No-frost operation for minimum user maintenance
  • Internal fan (freezer)
    Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Stainless steel kickplate (freezer)
    Protects from everyday wear and tear in a durable, elegant design
  • Open drawer alarm (freezer)
    Audible alarm will sound if the drawers are left ajar for over a minute
  • Temperature alarm (freezer)
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Temperature Memory Function (freezer)
    Unit will retain its last settings when power is restored in the event of power loss
  • Sabbath Mode (freezer)
    Optional setting lets you disable the lighting and alarm for up to 48 hours

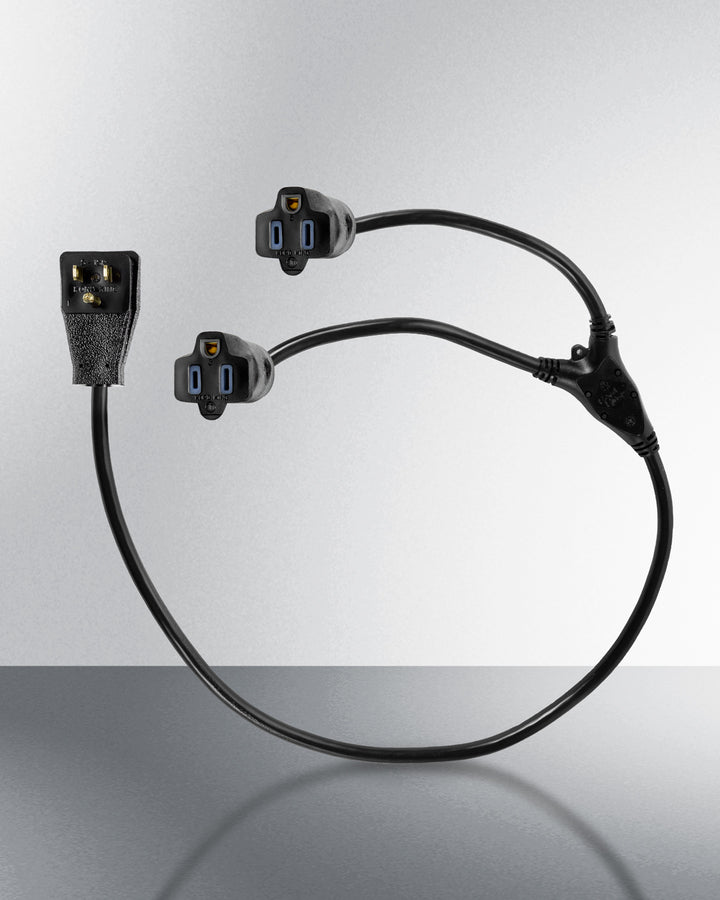

  • Y-cord with single 3-prong right angle plug included
    Included 6 ft. cord allows users to operate both the wine cellar & freezer using a single plug for added convenience
  • Anti-tip bracket
    Included and recommended for user-installation to reduce the risk of tipping
  • Fully finished stainless steel cabinet
    Allows the unit to be used freestanding
  • Ships fully assembled
    Unit comes fully assembled for user convenience
  • Additional panel-ready choices available
    This unit is also available with a bottom refrigerator (see the SWCDAR24PNR) or a bottom refrigerator-freezer (see the SWCDRF24PNR)
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
