Sale price $1,179.78 Regular price $1,394.97 Save $215.19 / 15% OFF

Product Details for Summit SWC182Z

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 17.75 in.
Height 34.25 in.
Length 23.5 in.
Weight 95 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.27 ft³
Dimensional Weight 102.78 lbs.
Total of Cubes 8.27 ft³
Total of Dimensional Weight 102.78 lbs.

Overview wine cellar

Nominal Height 35.0" (89 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101055084
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63" (27 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.25" (13 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Interior Height 2 12.25" (31 cm)
Interior Width 2 14.25" (36 cm)
Interior Depth 2 18.0" (46 cm)

Description

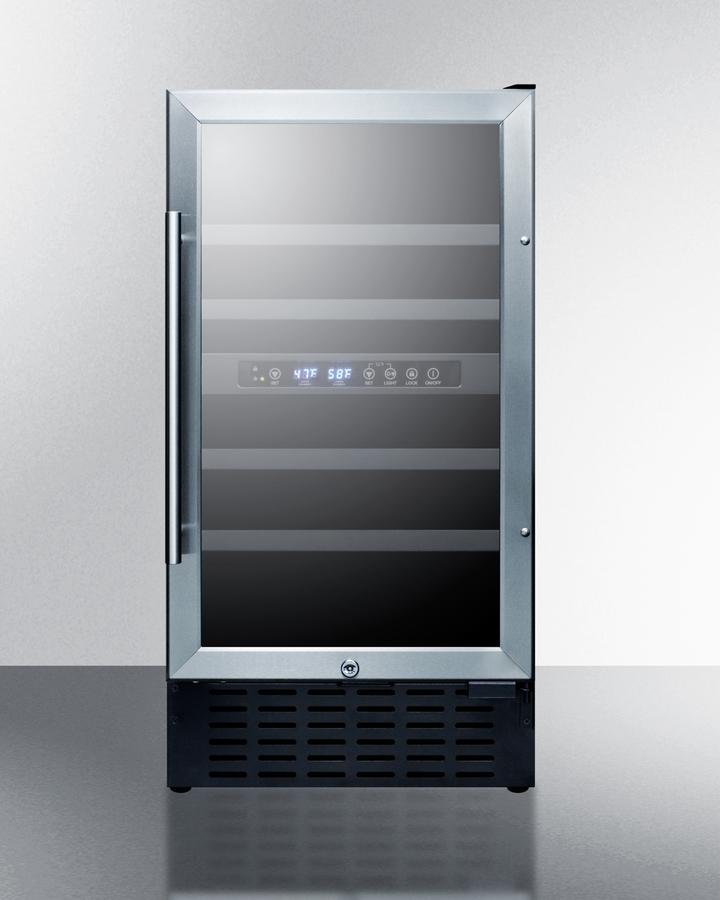

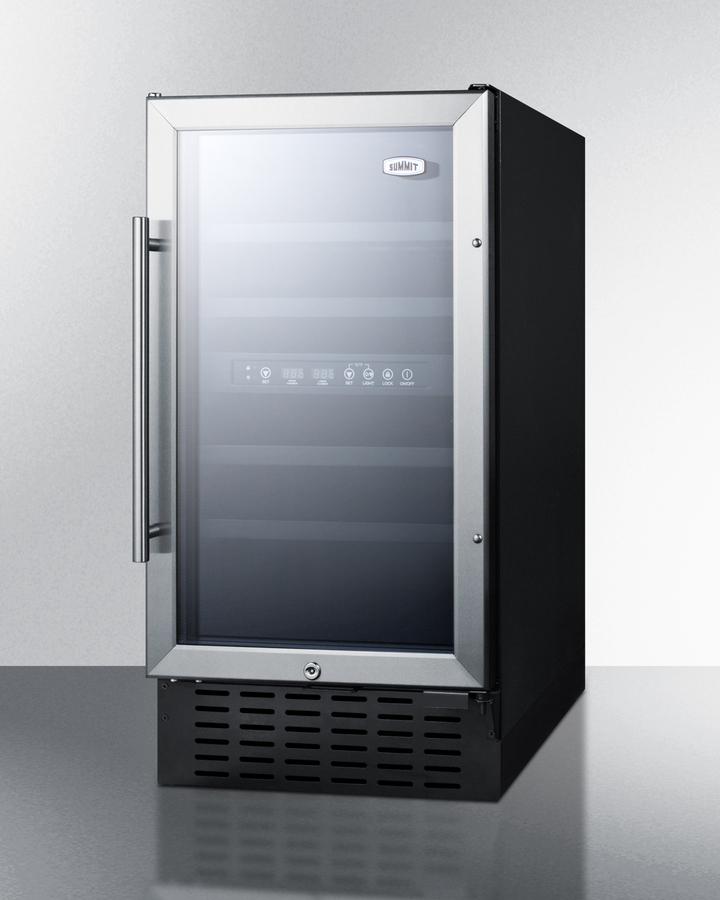

SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space. Sized just under 18" wide, the SWC182Z is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included. Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management. With its slim fit and convenient design, the SWC182Z makes an attractive addition to any room. For this unit in a 32" ADA compliant height, see the SWC182ZADA.


Product Features

  • Commercially Approved
    ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

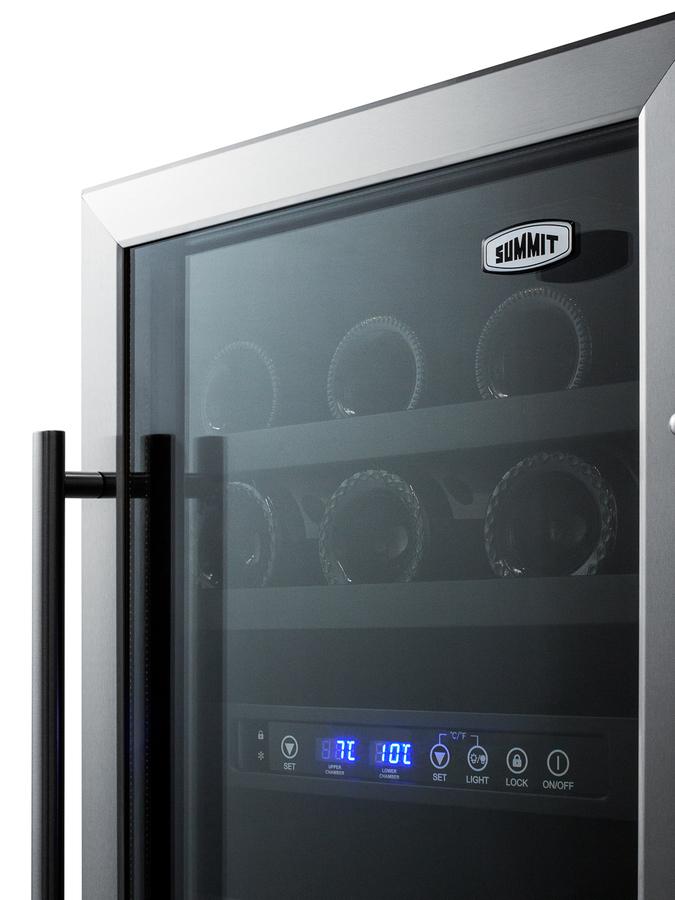

  • Glass door with stainless steel trim
    Provides a full display of stored contents with a heat-safe double tempered design
  • Built-in capable
    Make the best use of space by installing your appliance under the counter
  • HTS CODE: 8418.50.0080
    Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

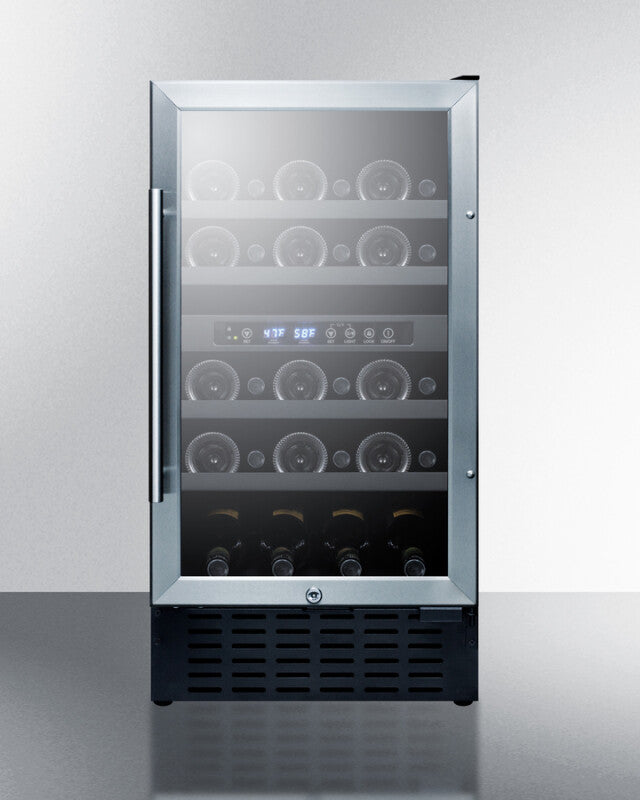

  • 28 bottle capacity

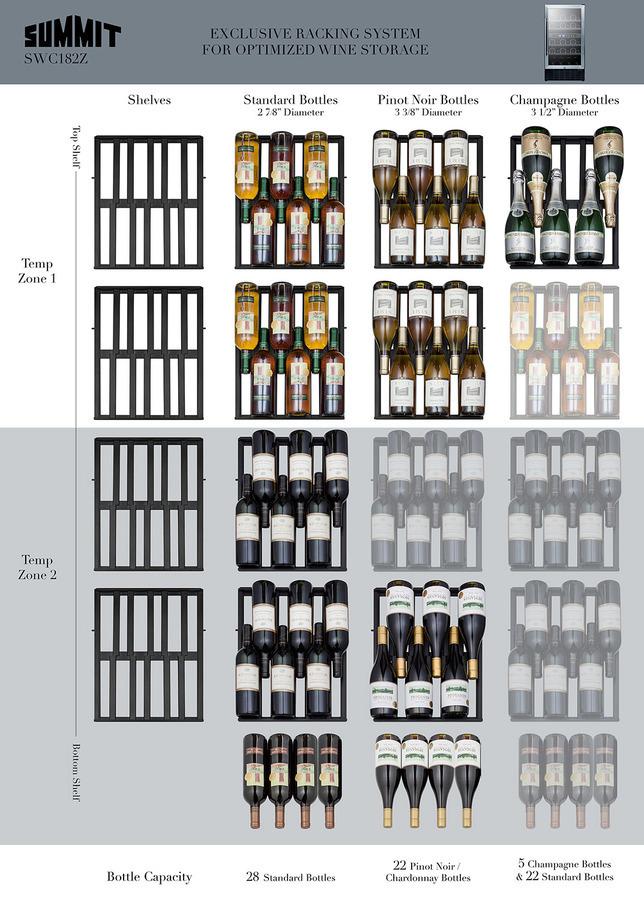

    Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
  • Factory installed lock
    Keyed lock for a secure interior, with 2 keys included

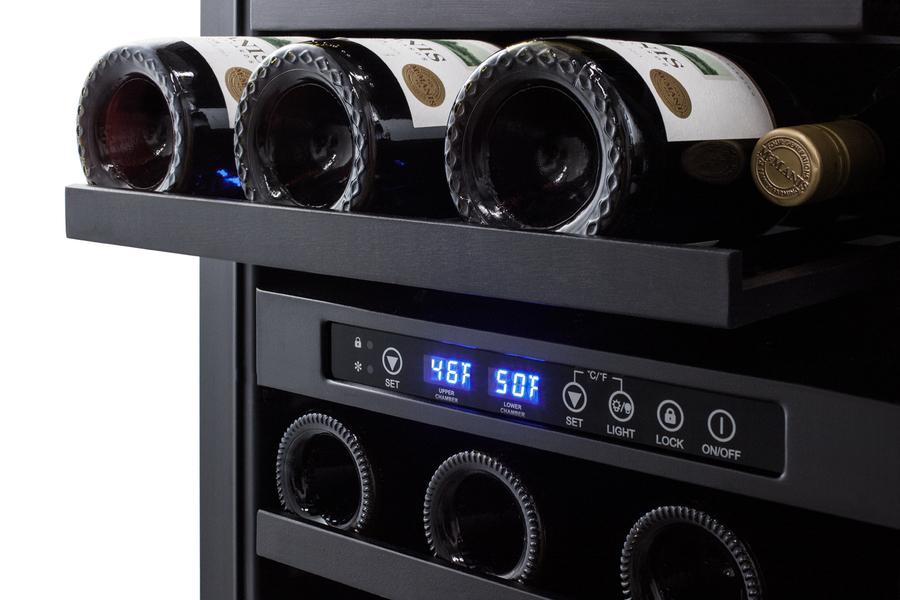

  • Digital thermostat
    Electronic controls for precise temperature management.
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit
  • LED lighting
    Gentle illumination for each temperature zone for an elegant presentation
  • Wooden shelves
    4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
  • Automatic defrost
    Reduced maintenance with the convenience of auto defrost
  • Reversible door
    Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
  • Professional handle
    Stainless steel handle completes the look
  • Integrated door hinge
    Hinge is flush with cabinet, adding no height to the unit
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    ec
  • Dual zone storage
    Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
