Product Details for SUMMIT SPRF34D7

Technical Details

Overview refrigerator-freezer

Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 39.25" (100 cm)
Capacity 3.9 cu.ft. (110 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 380.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101107400
Door Swing Drawer
Interior Light Yes
Refrigerator - Interior Height 10.0" (25 cm)
Refrigerator - Interior Width 18.75" (48 cm)
Refrigerator - Interior Depth 15.5" (39 cm)
Refrigerator - Temperature Range 36°F to 43°F
Freezer - Interior Height 9.25" (23 cm)
Freezer - Interior Width 18.75" (48 cm)
Freezer - Interior Depth 15.5" (39 cm)
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.13 oz.
High Side PSI 270.0
Low Side PSI 105.0
Freezer - Temperature Range -11°F to 11°F
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.0" (10 cm)
Sabbath Mode Yes
Sound Level 34.2 dB

Description

Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, including commercial foodservice establishments. The SPRF34D7 is a 2-drawer refrigerator-freezer that is ETL-S listed to NSF-7 commercial standards. It has a front-breathing design that allows built-in installation, while the fully finished stainless steel cabinet also enables freestanding use. Complete stainless steel construction inside and out offers long-lasting durability with professional elegance. The drawers can be customized with overlay panels to match or accent existing cabinetry design. The stainless steel kickplate and sleek, stainless steel handles complete the look, while a right-angle plug and sealed back offer added space savings when placing the unit. Inside, the SPRF34D7 has a generous 3.9 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers make it easy to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding, removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its durable construction and fully-featured design, the SPRF34D7 offers versatile storage for a variety of commercial applications. NOTE: This unit comes with an anti-tip bracket that should be used to prevent tipping for user safety.


Product Features

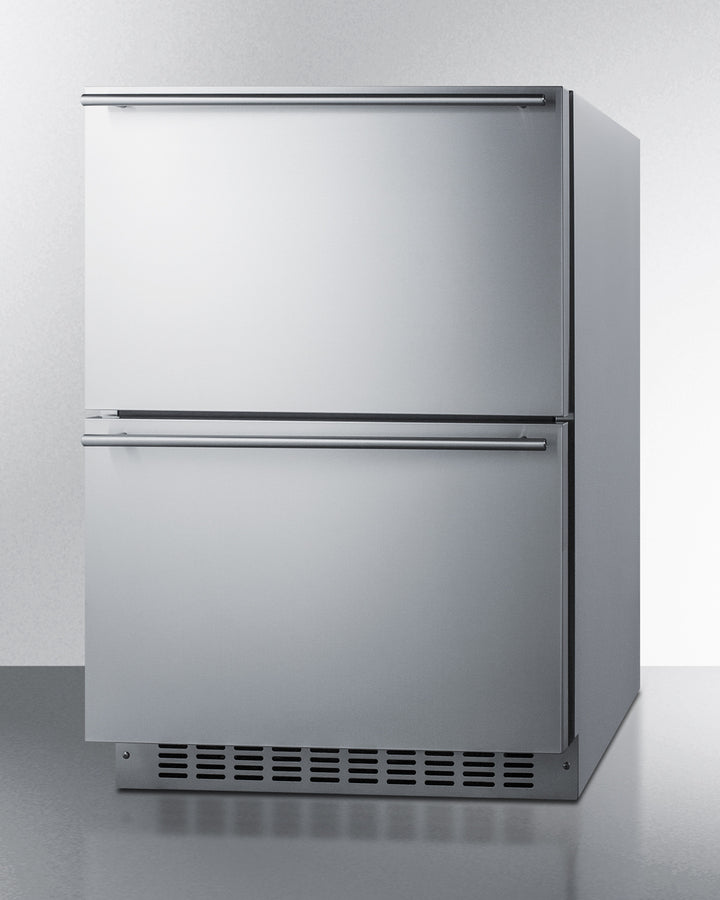

  • 24" Wide 2-Drawer Refrigerator-Freezer
    Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
  • Temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • Anti-tip bracket
    Included and recommended for user-installation to reduce the risk of tipping
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Sealed back
    Space-saving design that offers easier cleanability
  • Fully finished stainless steel cabinet
    Allows the unit to be used freestanding
  • Child lock
    Disables digital controls after two minutes of activity for added safety
  • Sabbath Mode
    Optional setting lets you disable certain electrical functions during periods of religious observance
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Open drawer alarm
    Audible alarm will sound if either drawer is left open longer than one minute
  • Professional handles
    Sleek stainless steel handles add an elegant touch to any setting
  • Commercially approved
    ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Internal fan
    Fan-forced cooling ensures the unit is evenly cooled from top to bottom

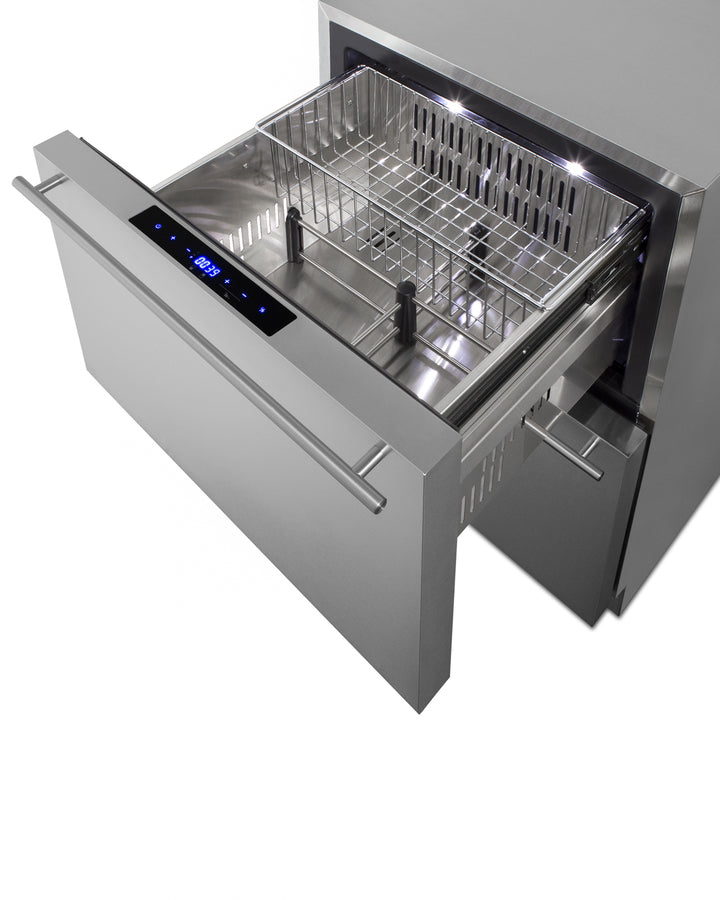

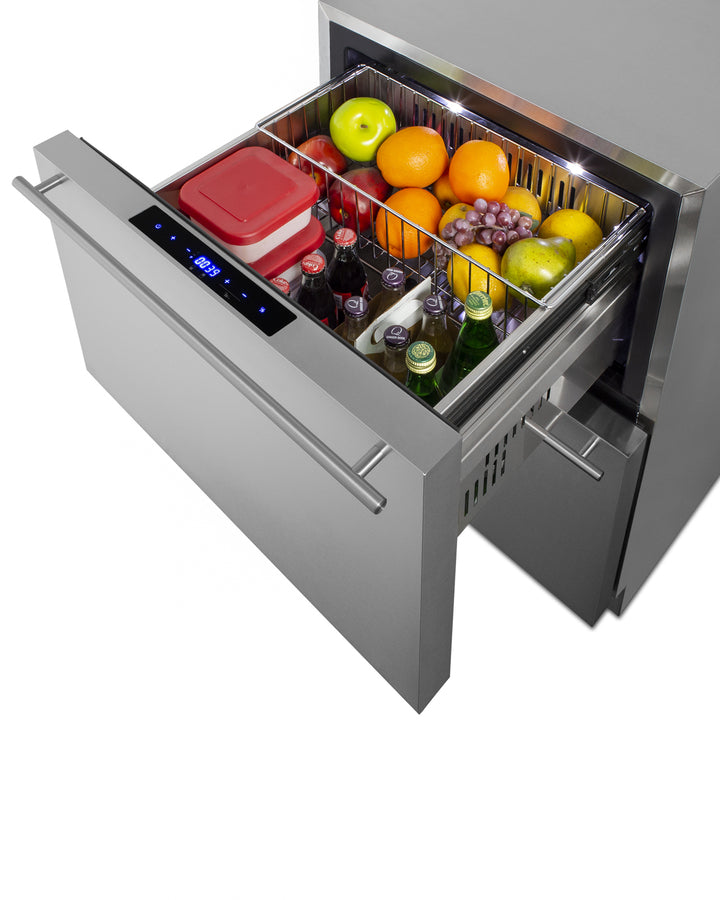

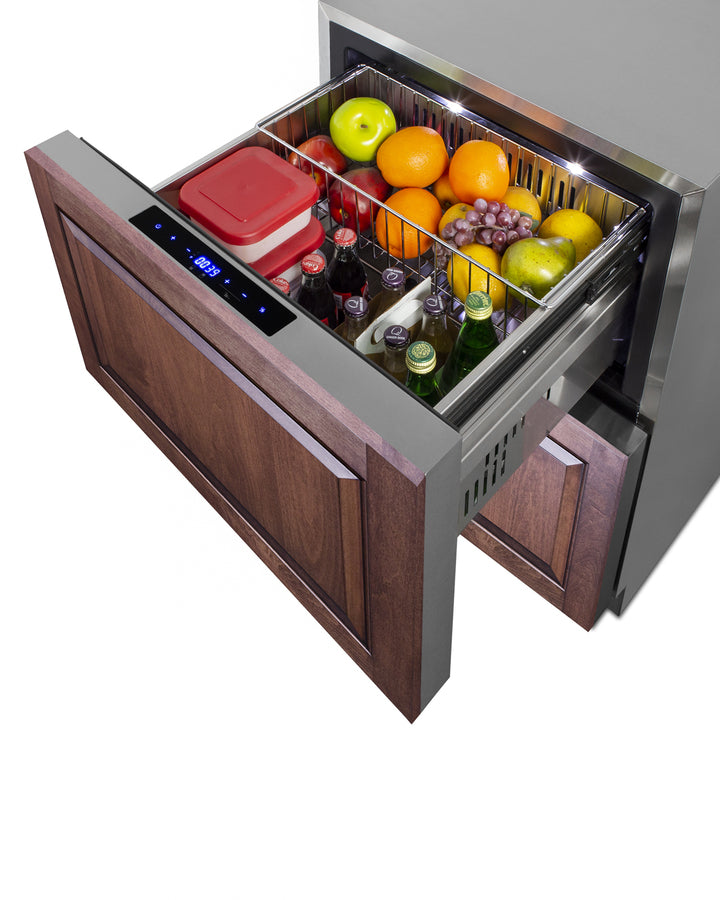

  • Sliding basket
    Removable chrome basket included for easier storage convenience

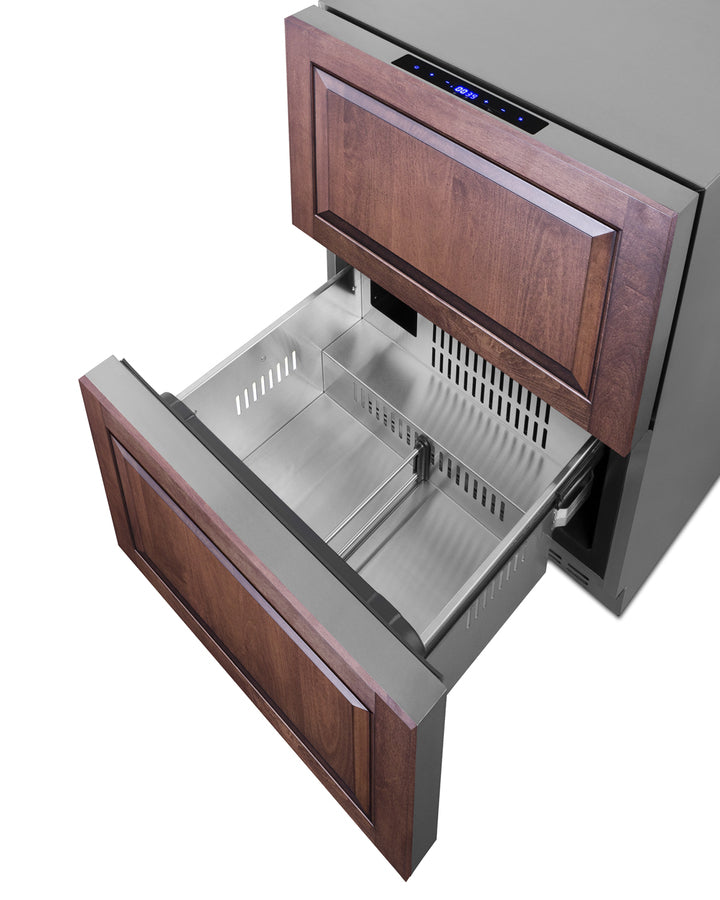

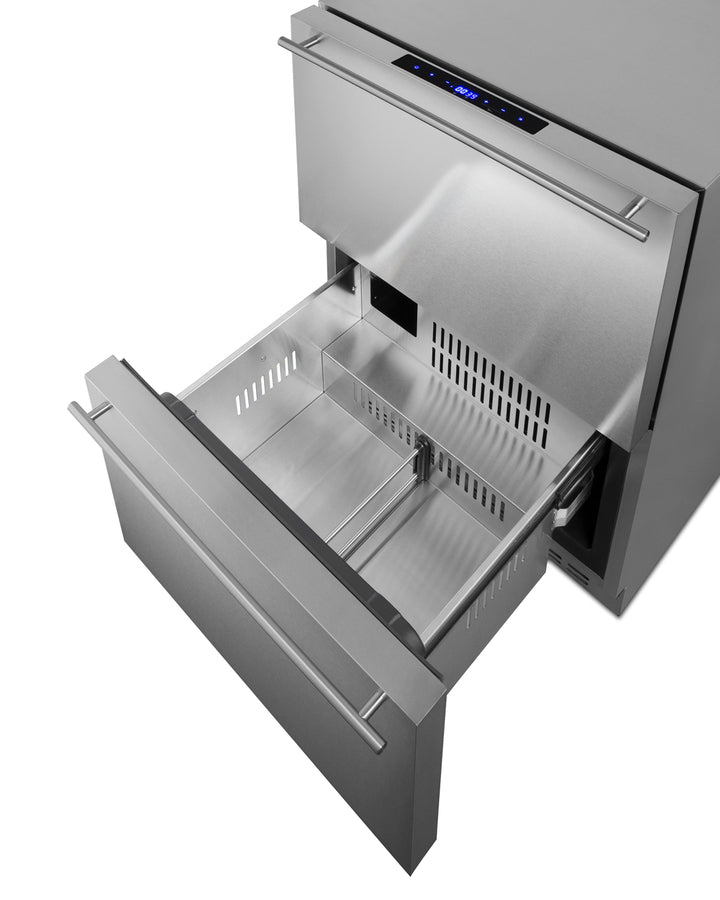

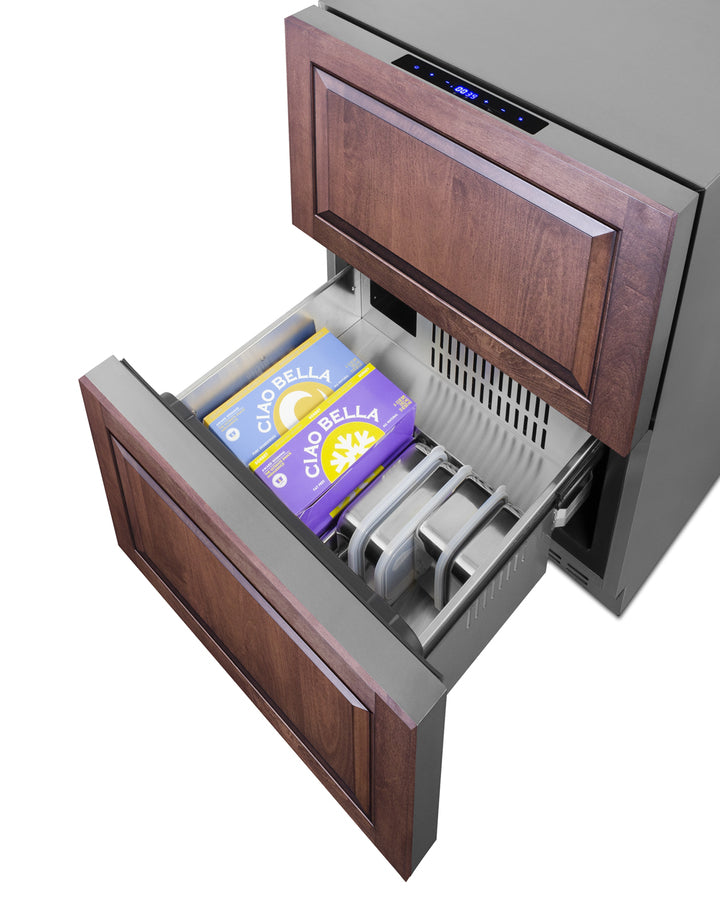

  • Drawer dividers
    Two adjustable dividers make it simple to organize the drawer interiors
  • LED lighting
    Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior

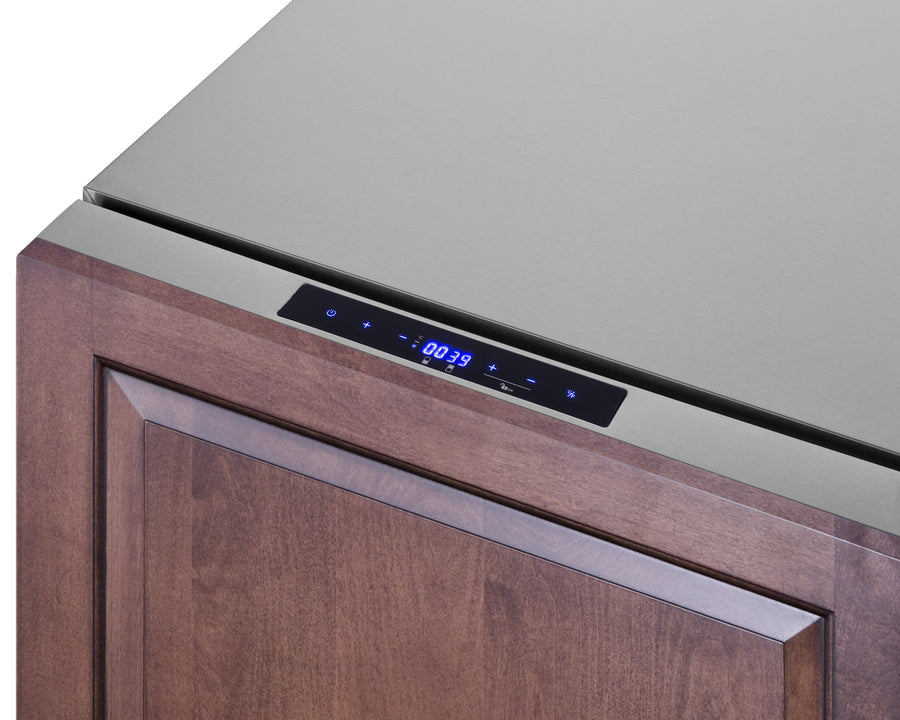

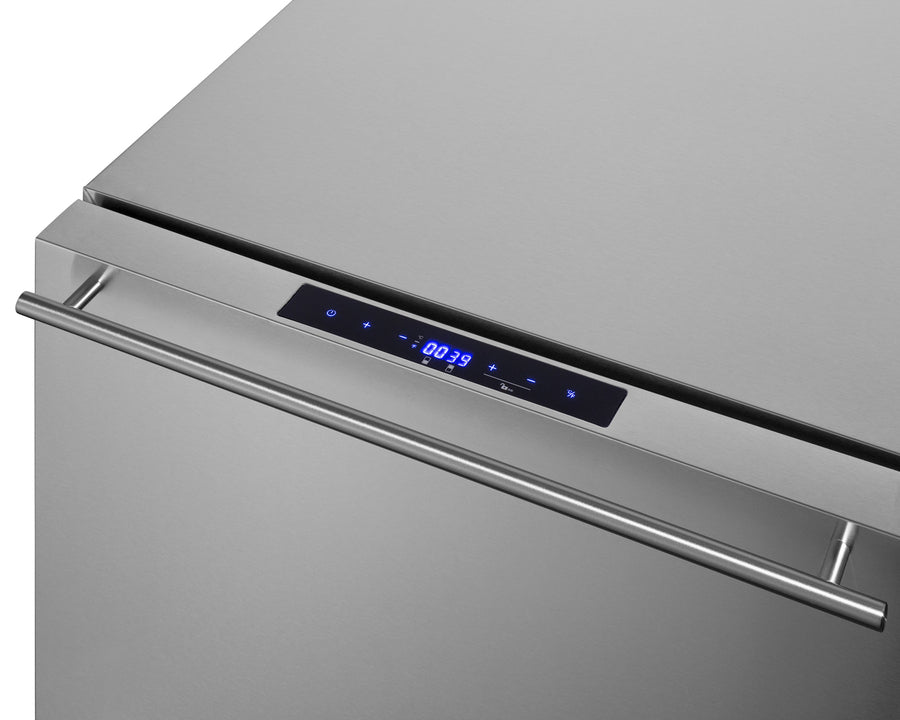

  • Digital thermostat
    Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
  • Frost-free operation
    Minimum user maintenance with a fully no-frost operation system

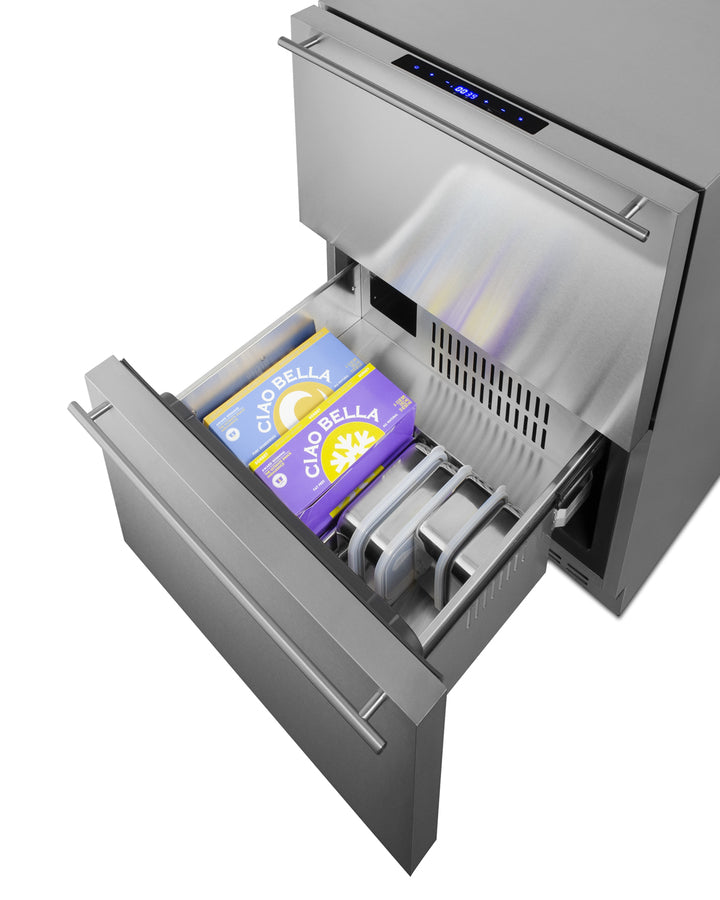

  • Two sliding drawers
    Smooth gliding stainless steel drawers for easy use

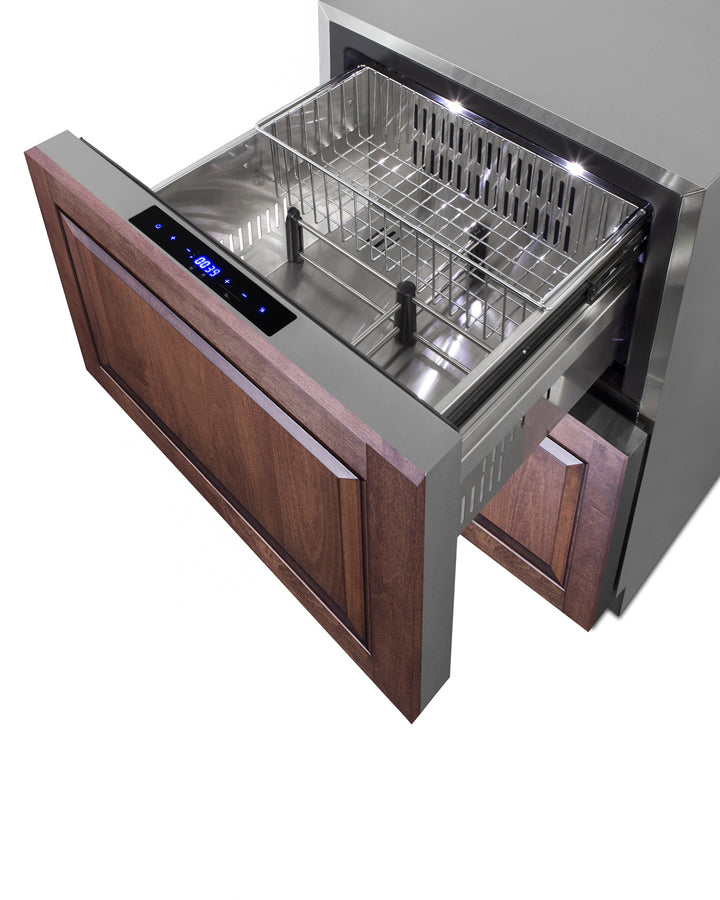

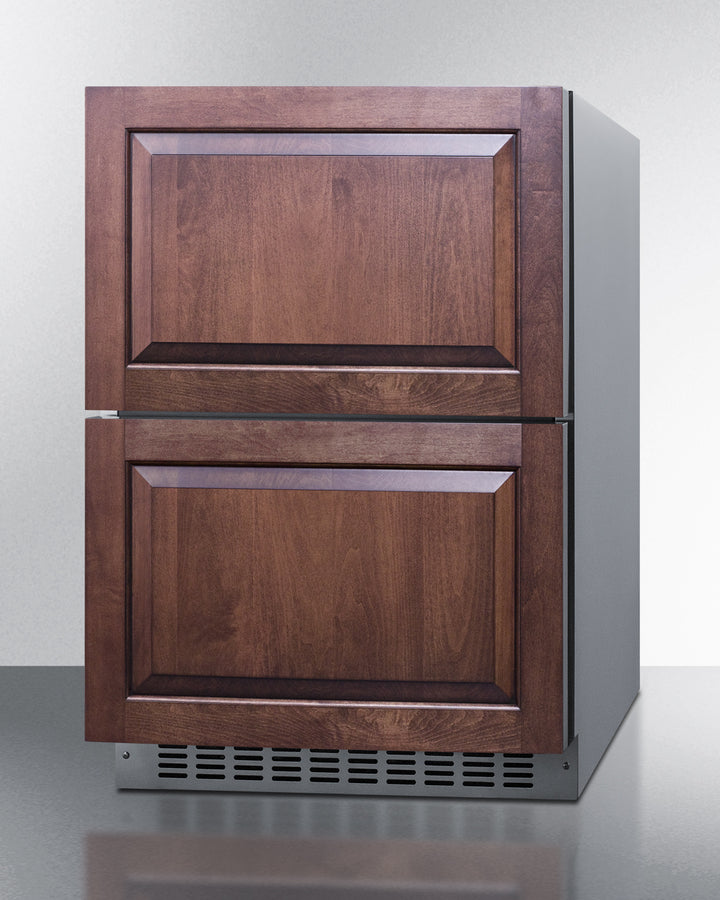

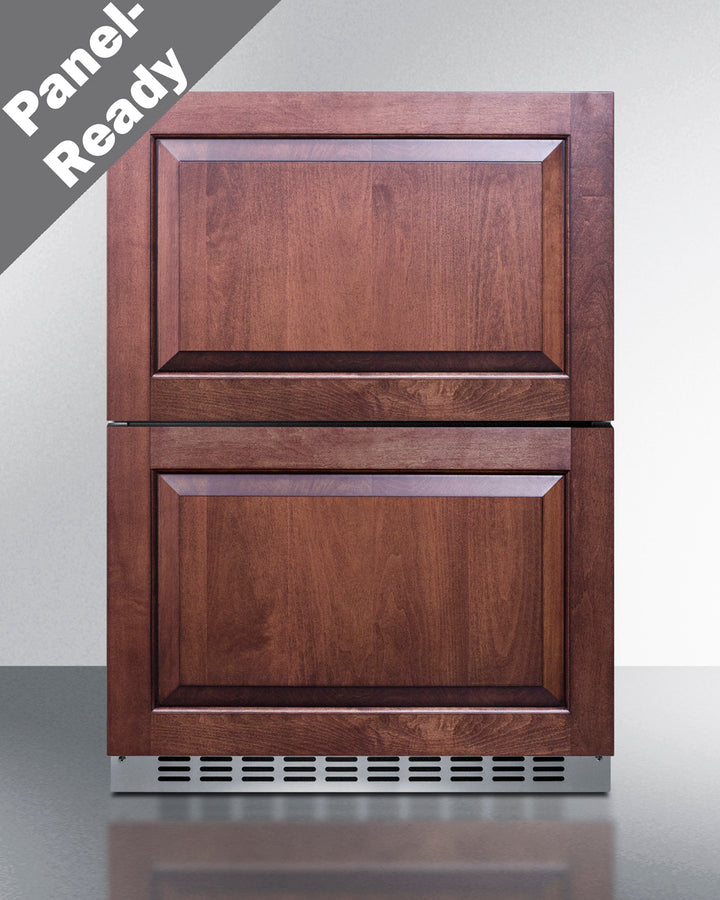

  • Panel-ready drawer fronts
    Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

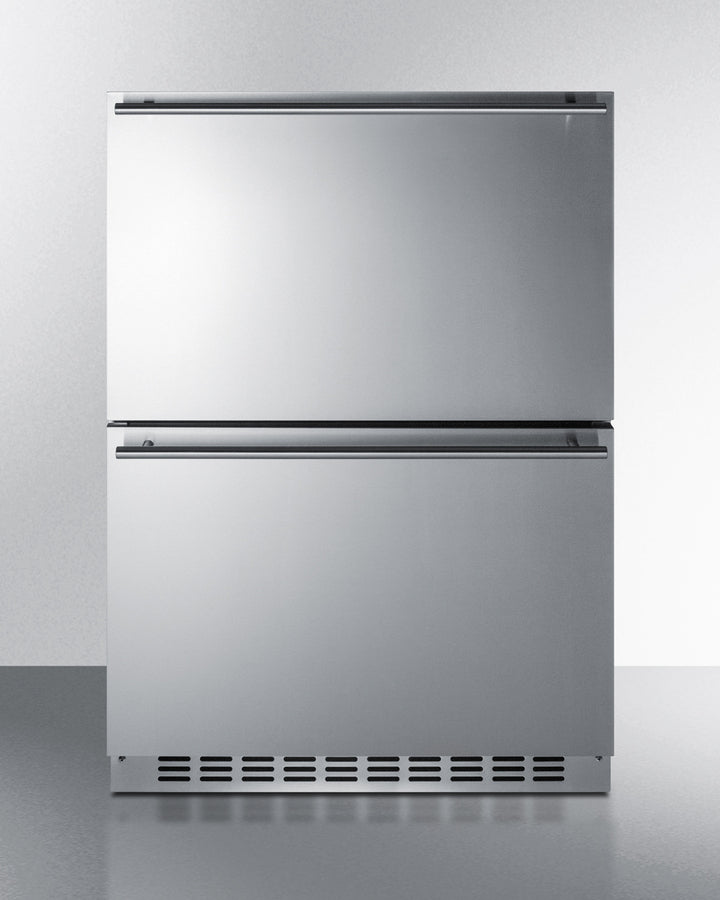

  • Stainless steel construction
    Interior and exterior are fully constructed from stainless steel to ensure lasting durability and easy cleanup
  • Built-in capable
    Make the best use of space by installing this unit under the counter and flush with other cabinetry
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
