Sale price $1,171.14 Regular price $1,379.97 Save $208.83 / 15% OFF

Product Details for SUMMIT SEW24SSX

Technical Details

Dimensions & weight

Width 23.5 in.
Height 23.5 in.
Length 22.88 in.
Weight 83.5 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.31 ft³
Dimensional Weight 90.9 lbs.
Total of Cubes 7.31 ft³
Total of Dimensional Weight 90.9 lbs.

Overview electric walloven

Nominal Height 24.0" (61 cm)
Height of Cabinet 23.5" (60 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Depth 22.88" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.5 cu.ft. (71 L)
Door Glass/SS
US Electrical Safety CSA
Amps 20.0
Voltage/Frequency 220 V AC/60 Hz
Weight 83.5 lbs. (38 kg)
Parts & Labor Warranty 1 Year
UPC 761101106649
Controls Digital
Oven Light Yes
Cooking Timer Yes
Digital Clock Yes
Temperature Range 150-500°F
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Interior Height 13.25" (34 cm)
Interior Width 17.5" (44 cm)
Interior Depth 15.75" (40 cm)
Cutout Height 23.6" (60 cm)
Cutout Width 22.0" (56 cm)
Cutout Depth 24.7" (63 cm)

Description

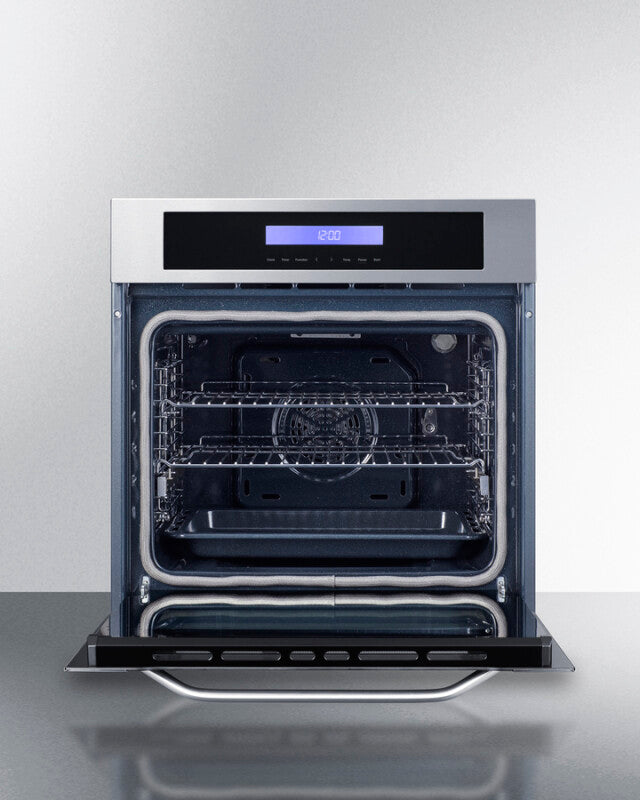

Summit helps enhance smaller kitchen functionality with fully featured electric wall ovens specially sized for 24" x 24" spaces. The SEW24SSX is a 220V electric wall oven with convection designed for built-in installation in 23.6" H x 22" W x 24.7" D cutouts. When installed at the proper height, this unit is compliant with ADA guidelines for user accessibility. Brushed stainless steel look trim, a black glass window, and a digital control panel create a modern look, with a professional handle for added style. Inside, the SEW24SSX includes an oven light for easier monitoring of your cooking. Two heavy-duty gliding wire racks with brakes can sit at five rack positions to better accommodate different-sized dishes. We also include a full-width drip pan that can be used for broiling. The flat bottom can hold larger cookware or full-sized meals (such as turkeys) to maximize capacity. This unit has a removable oven door for easier cleaning and maintenance. The SEW24SSX offers a range of heating functions to cover virtually all of your cooking needs. The digital control panel is easy to program, with specialty settings for baking, grilling/broiling, defrosting (fan only), convection baking, and true convection. This unit also includes a concealed bottom heater function which is ideal for keeping cooked food warmed until ready to serve (default temperature is 350°F but can be adjusted between 150-500°F). The programmable timer makes it easy to manage your meal planning, with an audible alert when the cooking duration is finished. Safety features include programming options that allow you to set a child lockout. With its advanced features, modern style, and ideal size, the SEW24SSX is the perfect choice for space-challenged kitchens looking to maintain full cooking capacity in a slimmer footprint. For compatible cooktops, browse the full Summit selection. NOTE: All wiring and electrical connections should be installed to local code. This is a 208-240V wall oven and requires professional installation.


Product Features

  • Large capacity
    Spacious 2.5 cu.ft. interior to fit an assortment of medium to large dishes
  • 24" Wide 220V Wall Oven
    Electric wall oven sized for 23.6" H x 22" W cutouts
  • True Convection setting
    Allows you to activate an element around the convection fan to improve air circulation and ensure fast, even heating throughout the entire oven interior
  • Defrost setting
    No-heat function will let the fan run for quicker and efficient thawing of frozen foods
  • Cooking timer
    Programmable timer function lets you schedule your cooking to run for up to 9 hours
  • Convection function
    Convection fan can be used with both the bake and roast functions for a more even cooking performance
  • Bottom heater function
    A concealed lower element can be used to keep cooked food warmed within 150-500°F
  • Stainless steel front
    Door is constructed from brushed stainless steel for modern luxury built to last
  • Oven window
    Large window made from double pane tempered glass makes it easy to monitor your cooking
  • Oven light
    Automatically illuminates when the oven door is open for easier cooking
  • Professional handle
    Sleek handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry
  • Porcelain construction
    Oven interior features solid porcelain construction for long-lasting durability and easy cleaning
  • Digital clock
    Clear digital display for easy cooking
  • Versatile temperature display
    Temperature will be shown in Fahrenheit, but can be switched to Celsius through the control panel
  • Child lock
    The control panel can be locked from use to prevent unsupervised access
  • Adjustable oven racks
    Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
  • Broiler tray
    Full-width porcelain rack included
  • Usable oven floor
    Flat bottom can support larger cookware to maximize interior capacity (note: not compatible during the bottom heating function)
  • Removable oven door
    Door can be removed in a few simple steps as needed for full access of the interior and easier maintenance
  • ADA-compliant
    When installed in accordance with section 804.6 of the ADA Standards for Accessible Design, this unit is ADA-compliant
  • 208-240V operation
    Requires professional hardwired installation (cord not included)
  • Touch control panel
    Easy-to-use touch controls offer intuitive cooking
  • Radiant grilling function
    Top heat/broil setting can be used as double grilling with or without the fan, with a temperature range alloweable of 350-500ºF
