SKU: SEH3630SSADA | UPC: 761101107295

Summit SEH3630SSADA 30" Wide Wall-Mounted Range Hood, ADA-Compliant Stainless Steel

30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant
30" Wide Wall-Mounted Range Hood, ADA-Compliant

Quick Specification More details

  • Width:
    29.5" (75 cm)
  • Depth:
    19.69" (50 cm)
  • Type:
    Convertible Hoods

About this product

  • 30" wide wall-mounted range hood
  • ADA-compliant design
  • Convertible design with no additional purchase necessary
  • Charcoal filter set included
Summer Sale
Clearance

SKU: SEH3630SSADA | UPC: 761101107295

Summit SEH3630SSADA 30" Wide Wall-Mounted Range Hood, ADA-Compliant Stainless Steel

$678.75 $929.97 Save $251.22 / 27% OFF

Out of stock

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    29.5" (75 cm)
  • Depth:
    19.69" (50 cm)
  • Type:
    Convertible Hoods

About this product

  • 30" wide wall-mounted range hood
  • ADA-compliant design
  • Convertible design with no additional purchase necessary
  • Charcoal filter set included
  • Product Details
  • From The Manufacturer
  • Reviews
$678.75 $929.97 Save $251.22 / 27% OFF

Product Details for SUMMIT SEH3630SSADA

Technical Details

Warranty
Parts 1 Year
Labor 1 Year

Overview range hood
Nominal Height 37.0" (94 cm)
Height of Cabinet 37.0" (94 cm)
Nominal Width 30.0" (76 cm)
Width 29.5" (75 cm)
Nominal Depth 20.0" (51 cm)
Depth 19.69" (50 cm)
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Amps 2.6
Voltage/Frequency 115 V AC/60 Hz
Weight 47.0 lbs. (21 kg)
Parts & Labor Warranty 1 Year
UPC 761101107295
Installation Wall-Mounted
Venting Convertible
Controls Push Button
Light Yes
Number of Lights 2
Light Type LED
Number of Fan Speeds 3
Maximum Air Movement 400.0 CFM
Sone Rating 10
Minimum Height 25.25" (64 cm)
Maximum Height 37.0" (94 cm)
Duct Shape 6" Round

Description

Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines. Sized at 30" wide, model SEH3630SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface. The SEH3630SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket. Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.


Product Features

  • 30" wide wall-mounted range hood
    European style range hood designed to bring effective ventilation over 30" wide cooking surfaces
  • ADA-compliant design

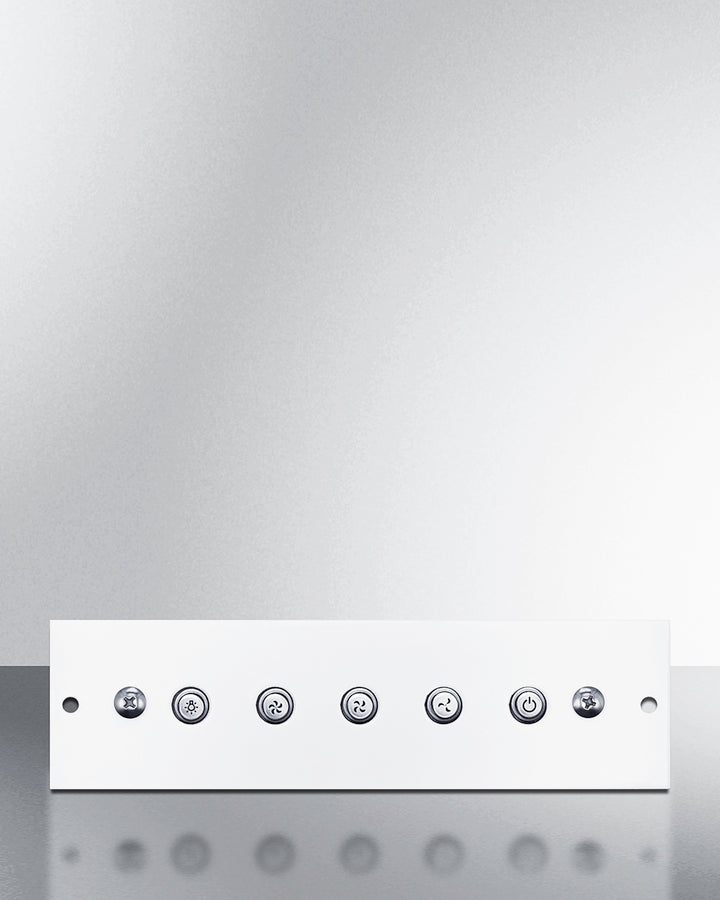

    Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
  • Convertible design with no additional purchase necessary
    Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

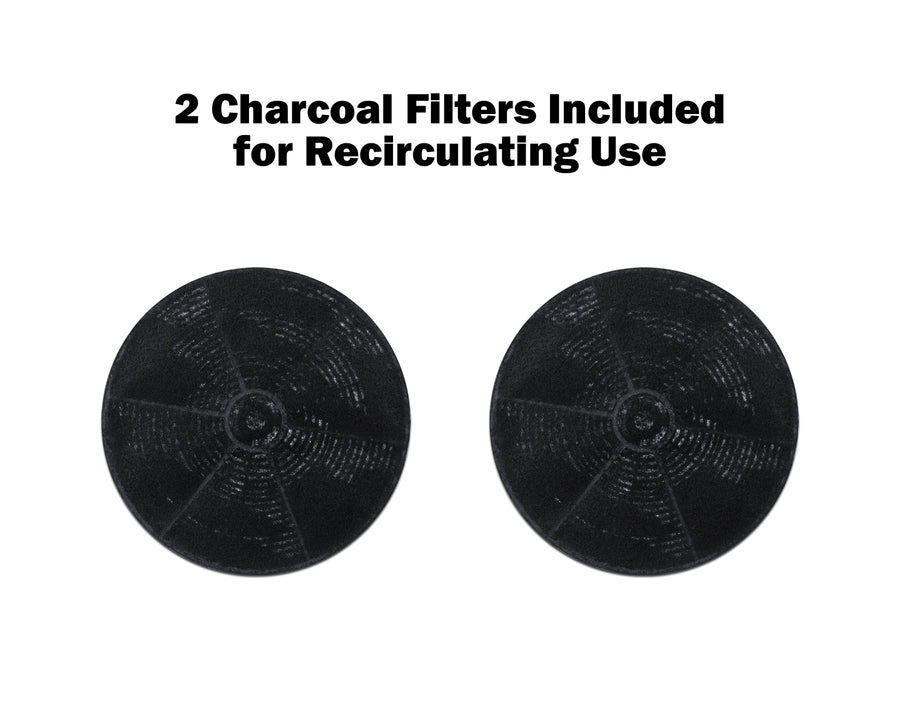

  • Charcoal filter set included
    Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
  • Powerful ventilation
    400 CFM blower to effectively remove smoke and cooking odors from your kitchen

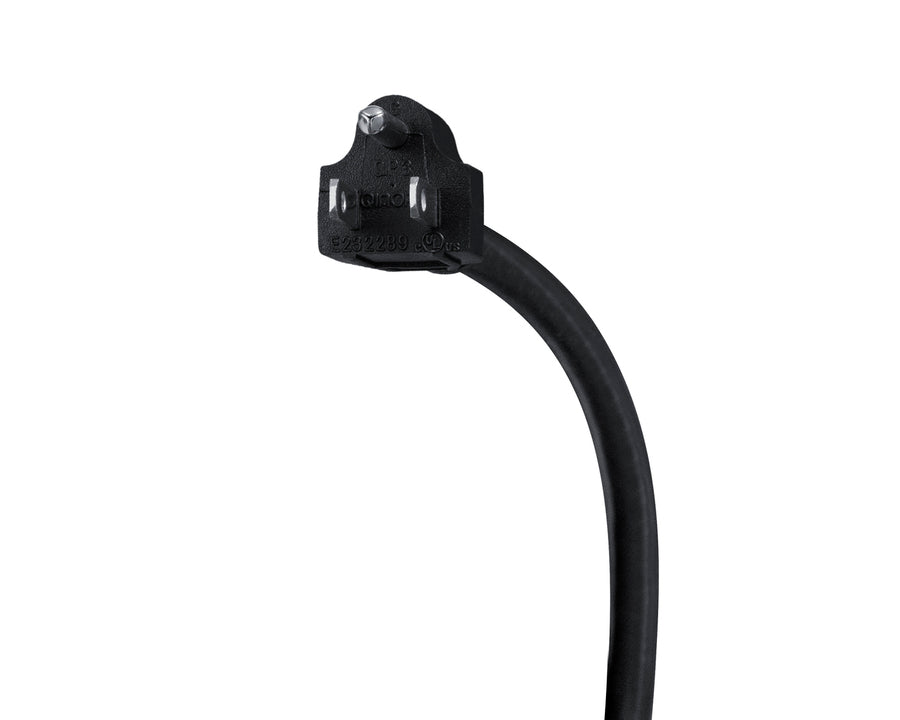

  • Cord included
    Pre-installed power cord with 3-prong plug for 115V outlets
  • LED lighting (bulbs included)
    Includes two pre-installed LED bulbs to illuminate your cooking surface
  • Adjustable height
    Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/4" to 37"
  • Stainless steel finish
    Durable construction in an attractive style with a horizontal grain
  • Intuitive controls
    Touch buttons located towards the front of the hood let you adjust your ventilation and lighting as needed
  • Multi-speed fan
    Choose from three speeds to provide the proper level of ventilation for your cooking

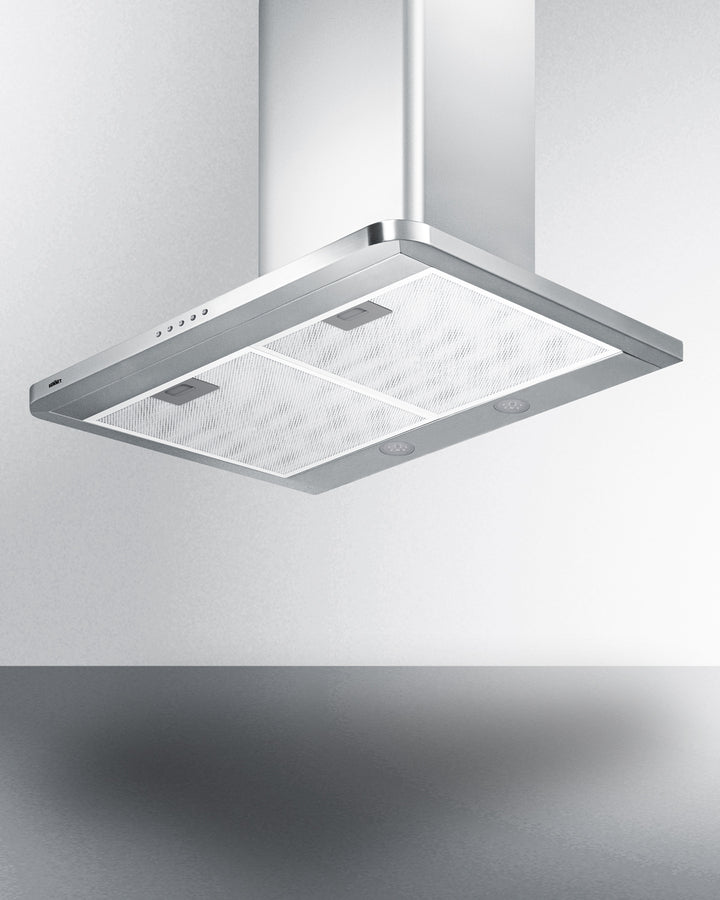

  • Removable aluminum cassette filters
    Two mesh filters capture grease particles and are removable for easy cleanup
  • 6" round ducting
    Ideal for most kitchen settings
  • Classic design
    Full canopy in a curved trapezoidal/low pyramid shape offers an attractive look to complement any style of kitchen
