SKU: SEH1536SSADA | UPC: 761101107271

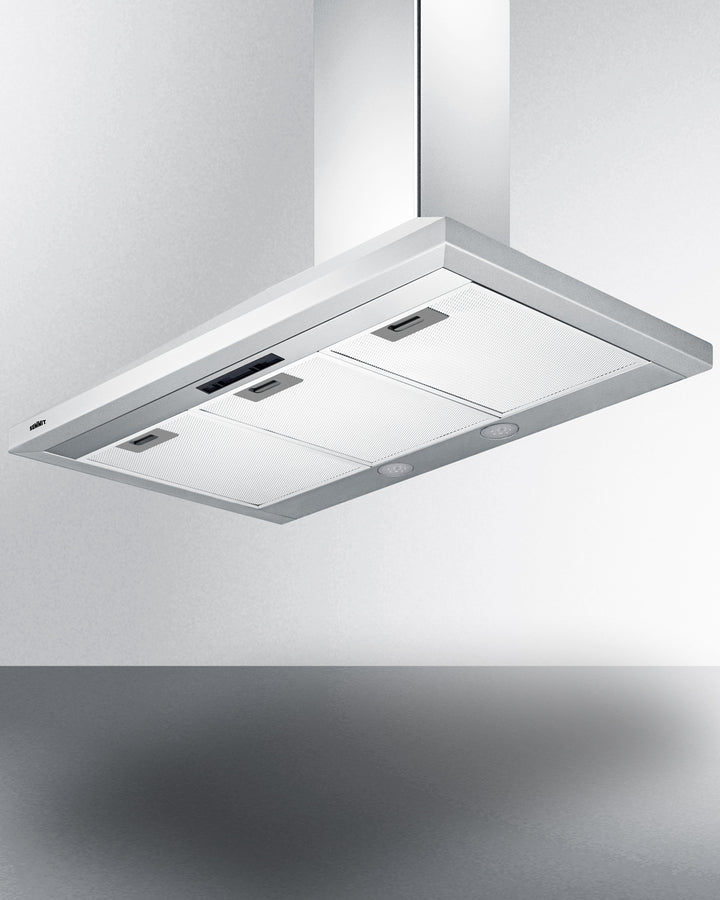

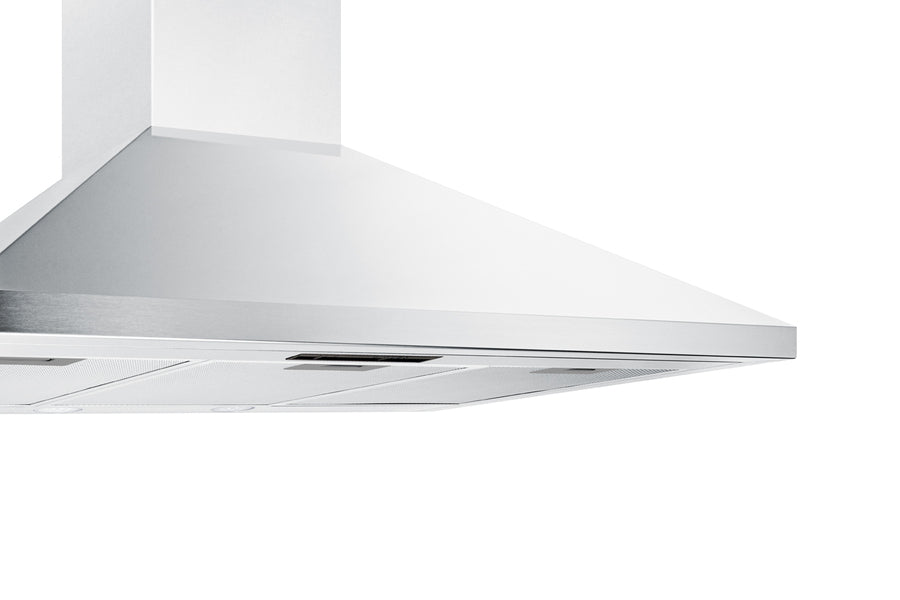

Summit SEH1536SSADA 36" Wide Wall-Mounted Range Hood, ADA-Compliant Stainless Steel

Quick Specification More details

Width:
35.44" (90 cm)
Depth:
19.69" (50 cm)
Type:
Convertible Hoods

About this product

36" wide wall-mounted range hood
ADA-compliant design
Convertible design with no additional purchase necessary
Charcoal filter set included

Summer Sale

Clearance

SKU: SEH1536SSADA | UPC: 761101107271

Summit SEH1536SSADA 36" Wide Wall-Mounted Range Hood, ADA-Compliant Stainless Steel

$582.85 ~~$824.97~~ Save $242.12 / 29% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35.44" (90 cm)
Depth:
19.69" (50 cm)
Type:
Convertible Hoods

About this product

36" wide wall-mounted range hood
ADA-compliant design
Convertible design with no additional purchase necessary
Charcoal filter set included

Product Details
From The Manufacturer
Reviews

$582.85 ~~$824.97~~ Save $242.12 / 29% OFF

Product Details for SUMMIT SEH1536SSADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Overview range hood

Nominal Height	38.0" (97 cm)
Height of Cabinet	37.25" (95 cm)
Nominal Width	36.0" (91 cm)
Width	35.44" (90 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.69" (50 cm)
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Energy Usage/Year	2.6kWh/year
Voltage/Frequency	115 V AC/60 Hz
Weight	45.0 lbs. (20 kg)
Parts & Labor Warranty	1 Year
UPC	761101107271
Installation	Wall-Mounted
Venting	Convertible
Controls	Slide
Light	Yes
Number of Lights	2
Light Type	LED
Number of Fan Speeds	3
Maximum Air Movement	400.0 CFM
Minimum Height	25.5" (65 cm)
Maximum Height	37.25" (95 cm)
Duct Shape	6" Round

Description

Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines. Sized at 36" wide, model SEH1536SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface. The SEH1536SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket. Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.

Product Features

36" wide wall-mounted range hood
European style range hood designed to bring effective ventilation over 36" wide cooking surfaces
ADA-compliant design
Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
Convertible design with no additional purchase necessary
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

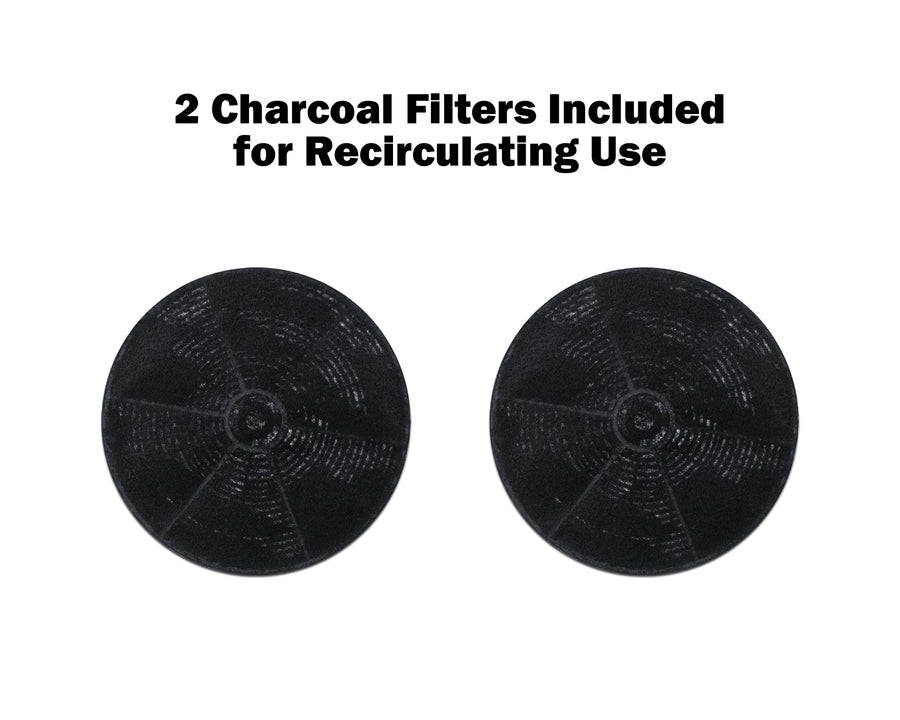

Charcoal filter set included
Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
Powerful ventilation
400 CFM blower to effectively remove smoke and cooking odors from your kitchen

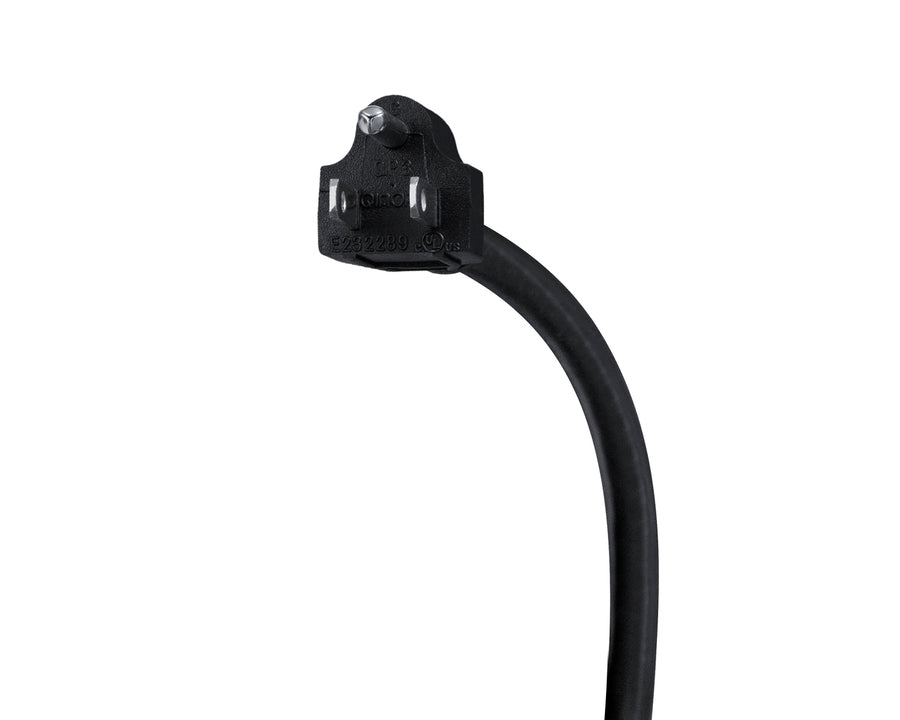

Cord included
Pre-installed power cord with 3-prong plug for 115V outlets
LED lighting (bulbs included)
Includes two pre-installed LED bulbs to illuminate your cooking surface
Adjustable height
Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/2" to 37 1/4"
Stainless steel finish
Durable construction in an attractive style with a horizontal grain

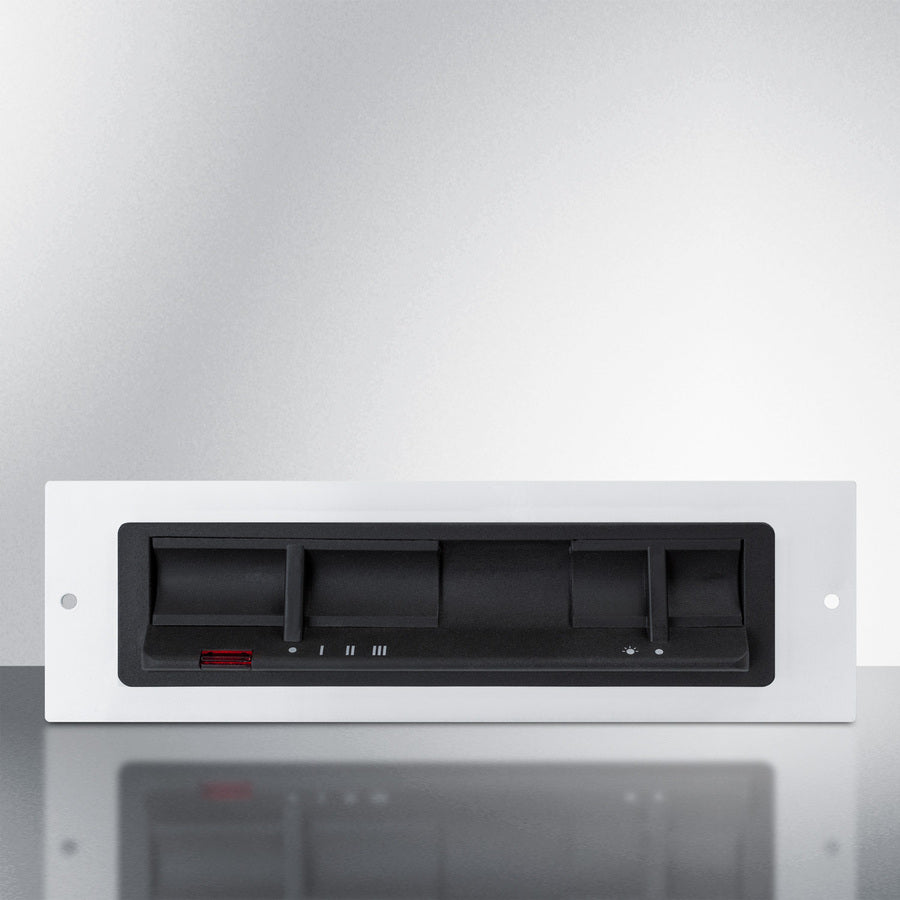

Slide controls
Easy and intuitive controls let you adjust your ventilation and lighting as needed
Multi-speed fan
Choose from three speeds to provide the proper level of ventilation for your cooking
Removable aluminum cassette filters
Two mesh filters capture grease particles and are removable for easy cleanup
6" round ducting
Ideal for most kitchen settings

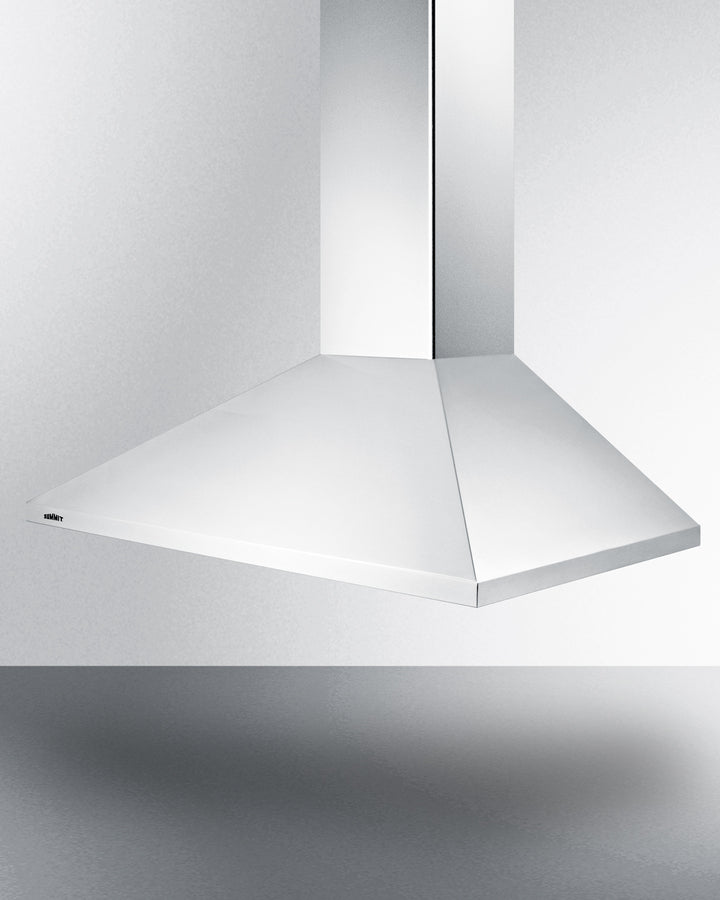

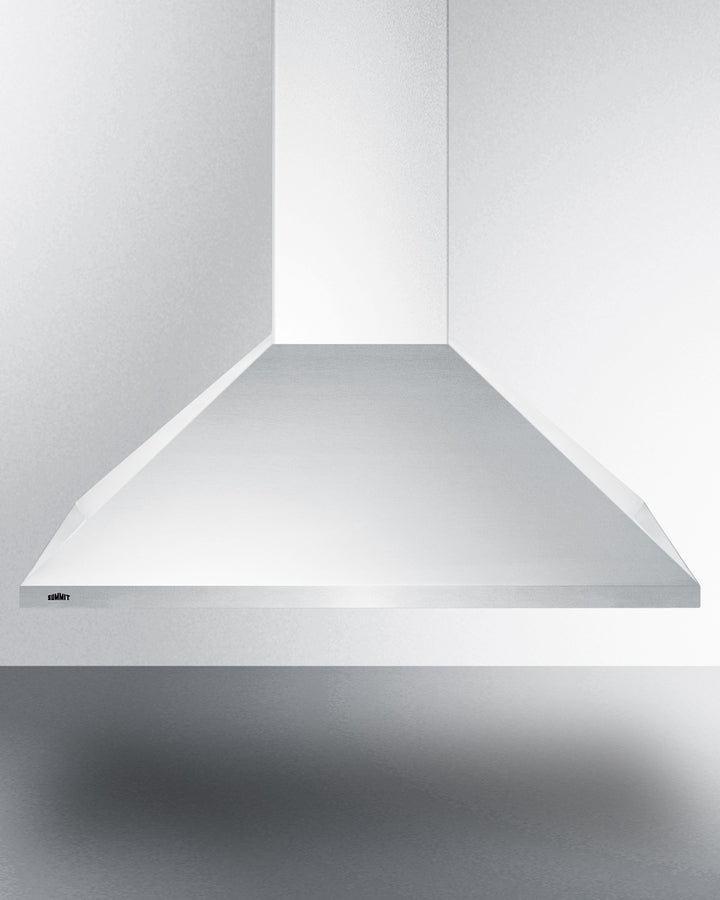

Classic design
Popular pyramid shape offers an attractive look to complement any style of kitchen
